Model # 5841BV Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 5841BV upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

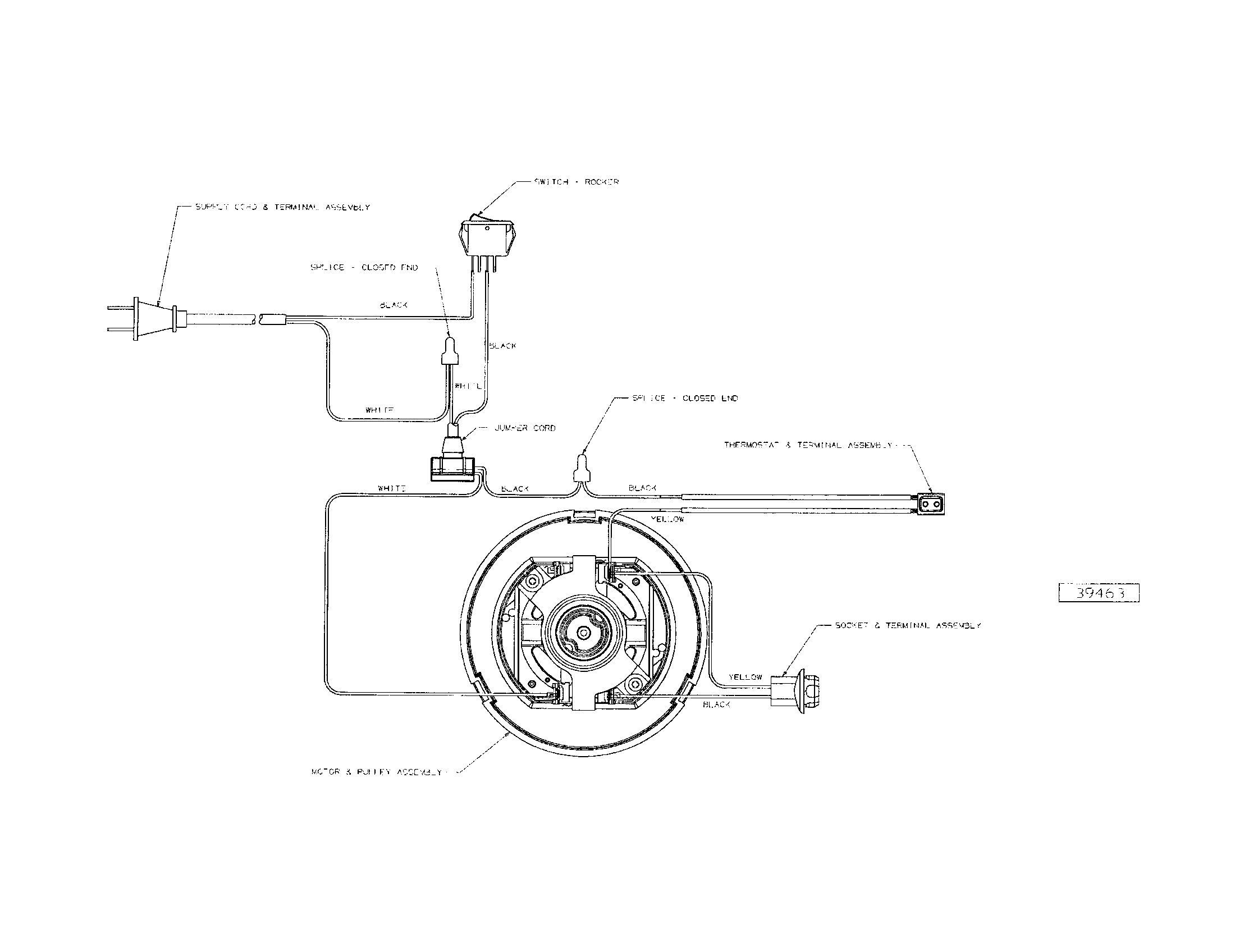

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Spring 61866
#9

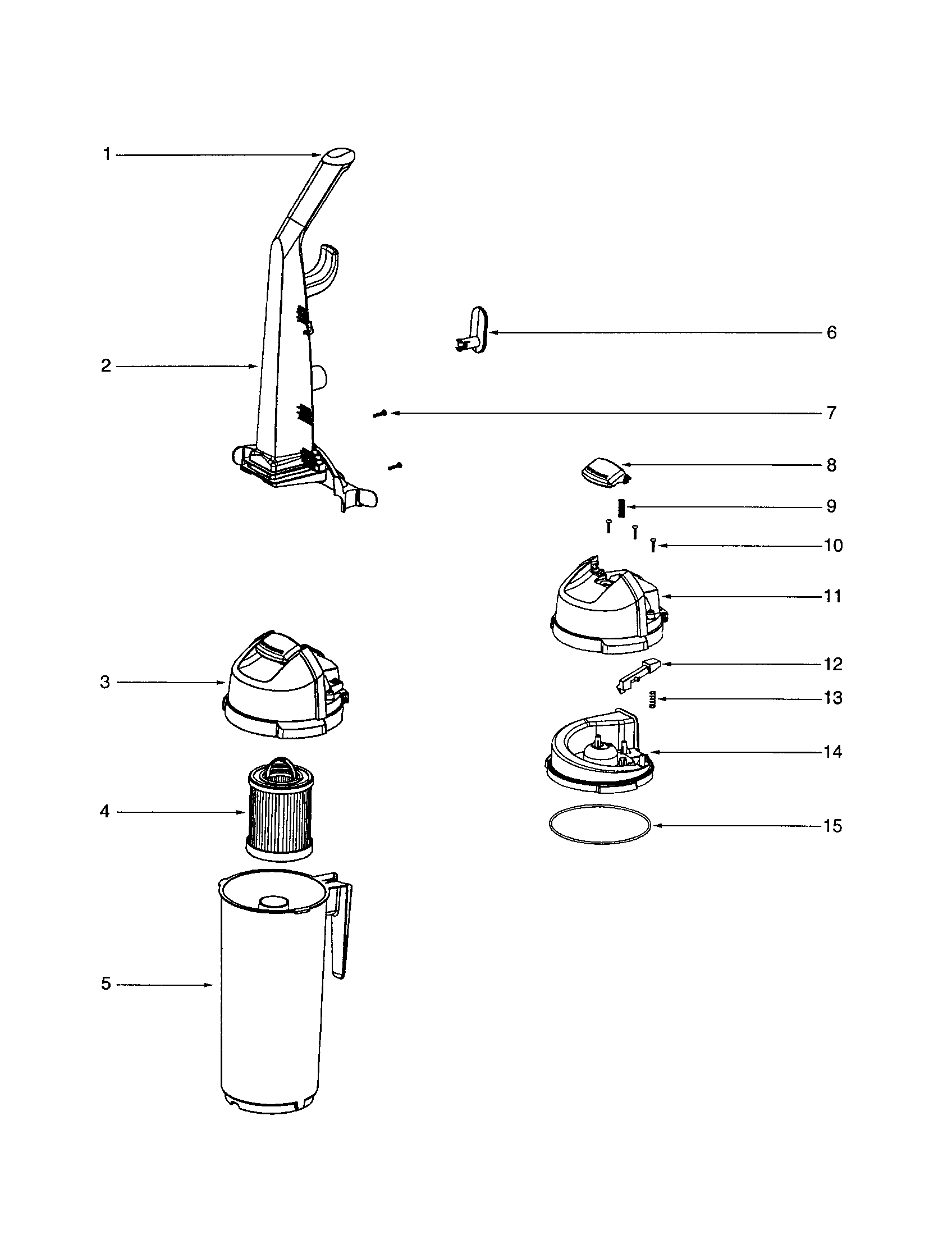

Handle/cyclone diagram

Spring

Part #61866

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Pre-filter 71480
#8

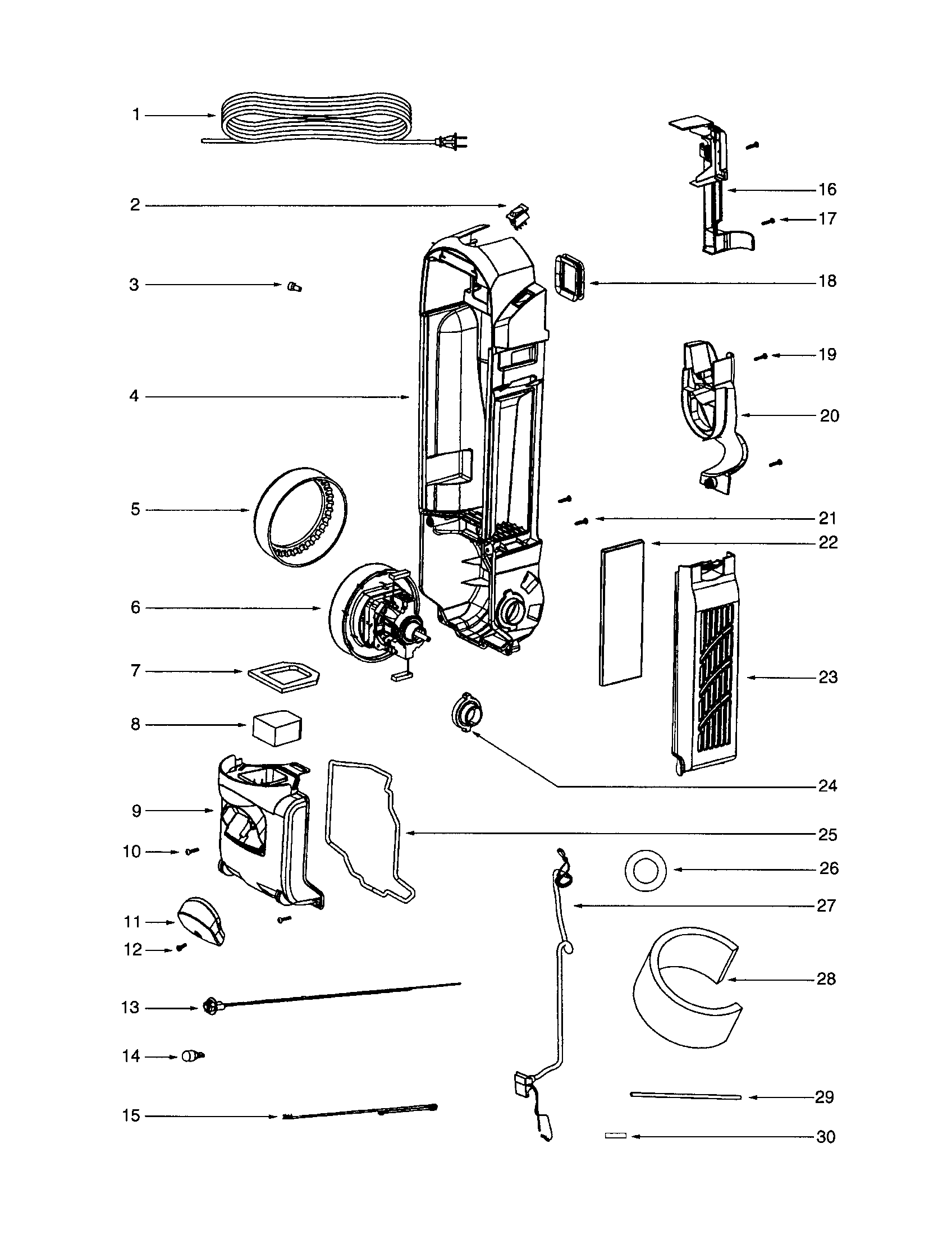

Motor/motor cover diagram

Vacuum pre-filter

Part #71480

The manufacturer no longer makes this part, and there's no substitute part

Catch 71785-119N
#12

Handle/cyclone diagram

Catch

Part #71785-119N

The manufacturer no longer makes this part, and there's no substitute part

Guard 71831-355N
#26

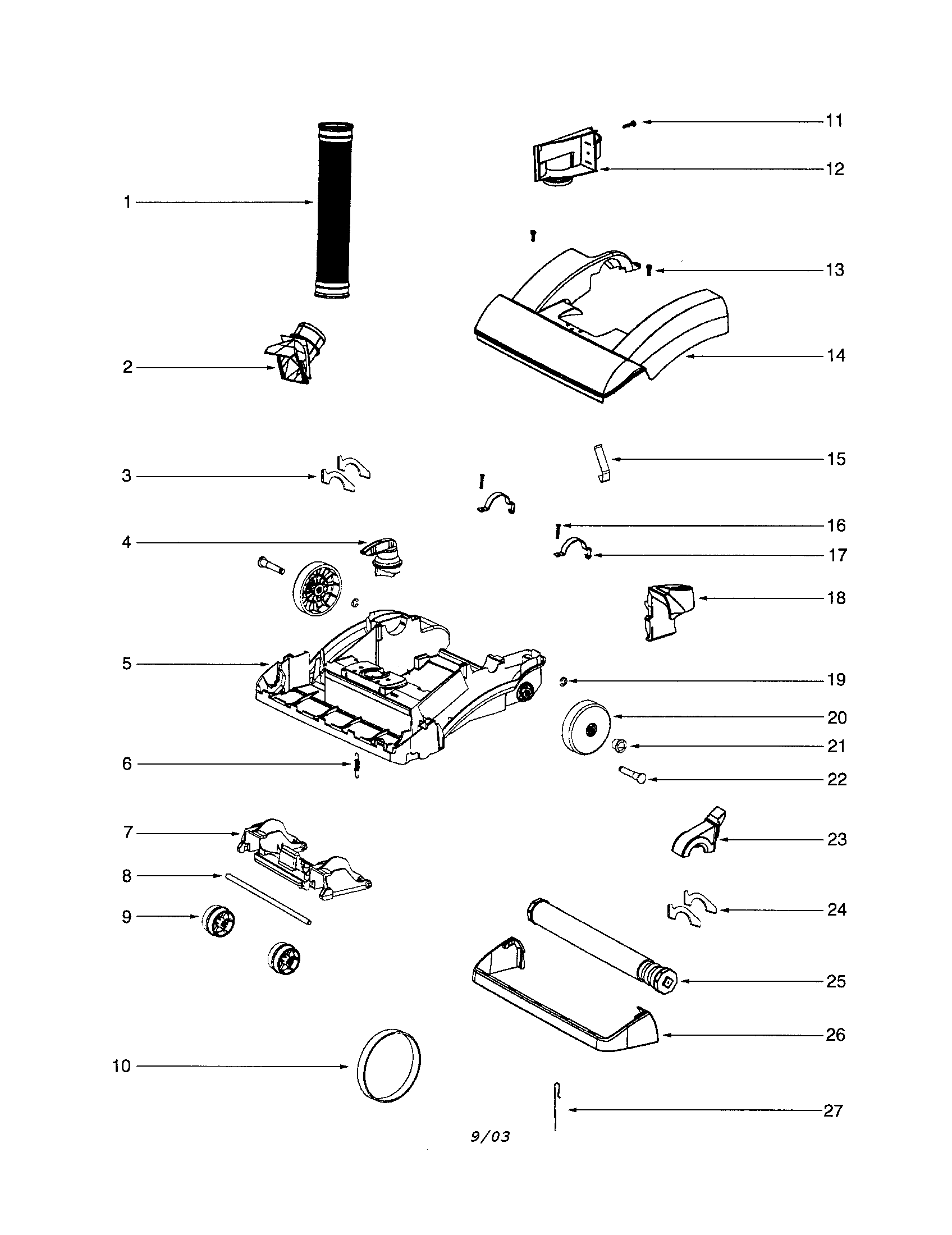

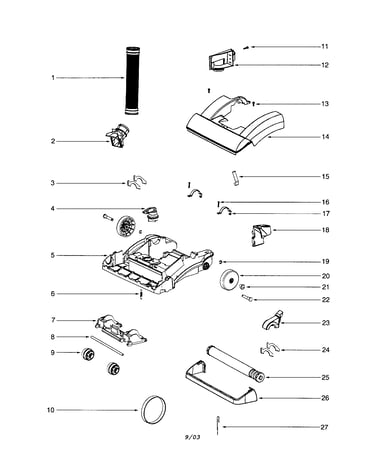

Base/hood/rear axle/wheels diagram

Guard

Part #71831-355N

The manufacturer no longer makes this part, and there's no substitute part

Handle 71574
#15

Base/hood/rear axle/wheels diagram

Handle

Part #71574

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Twist-on Wire Connector, 5-pack 60192-1
#3

Motor/motor cover diagram

Vacuum twist-on wire connector, 5-pack

Part #60192-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Adapter 71725-313N
#2

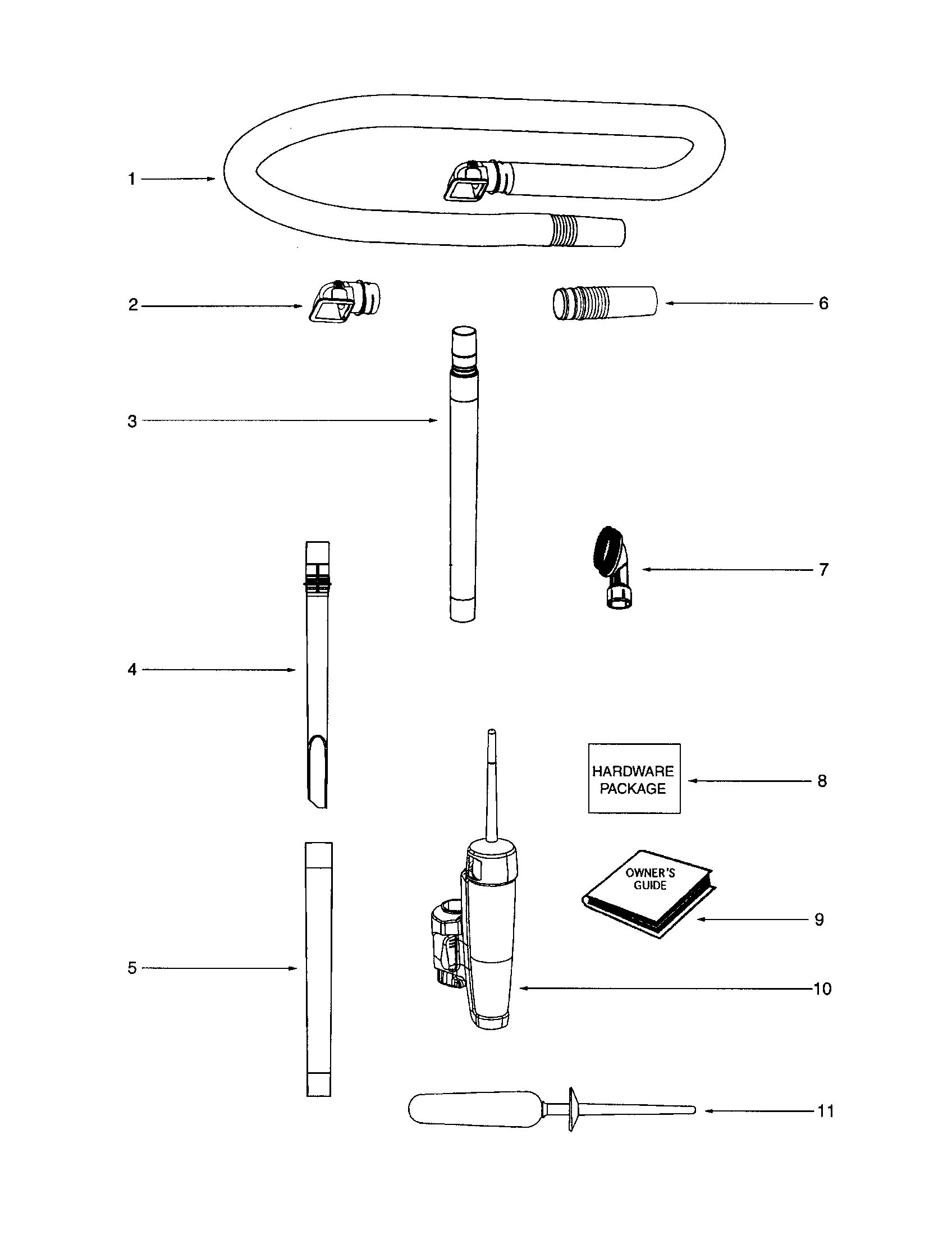

Hose/attachments diagram

Vacuum adapter

Part #71725-313N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Spring 54943
#6

Base/hood/rear axle/wheels diagram

Vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part

Lens 71460-313N
#11

Motor/motor cover diagram

Lens

Part #71460-313N

The manufacturer no longer makes this part, and there's no substitute part

Belt Guard 38063
#27

Base/hood/rear axle/wheels diagram

Belt guard

Part #38063

The manufacturer no longer makes this part, and there's no substitute part
