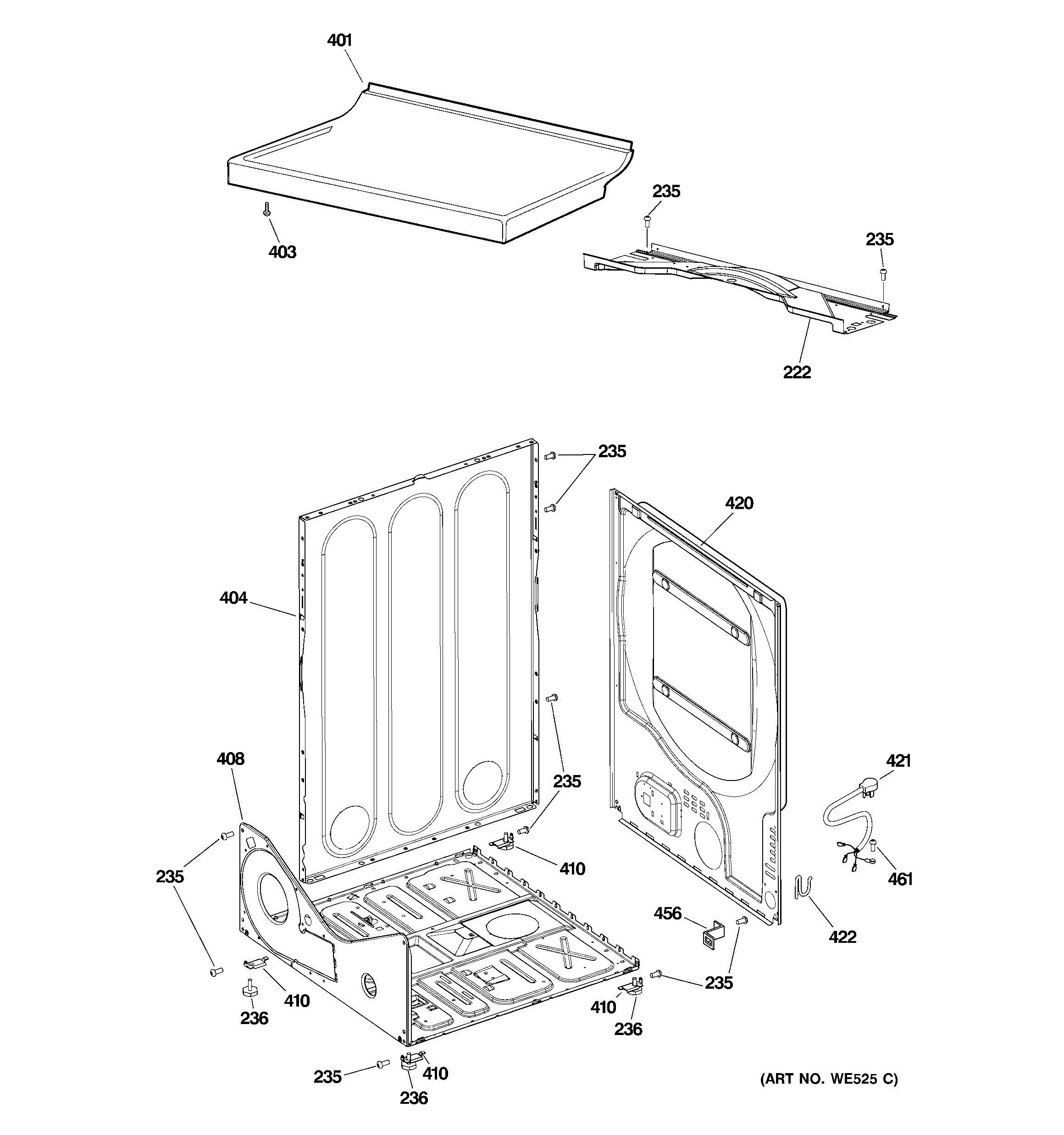

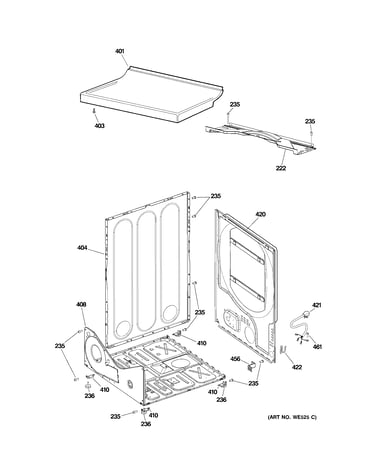

Model #DBLR333GG5CC GE gas dryer

Here are the diagrams and repair parts for GE DBLR333GG5CC gas dryer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 114 parts

Dryer Drum Belt

#213

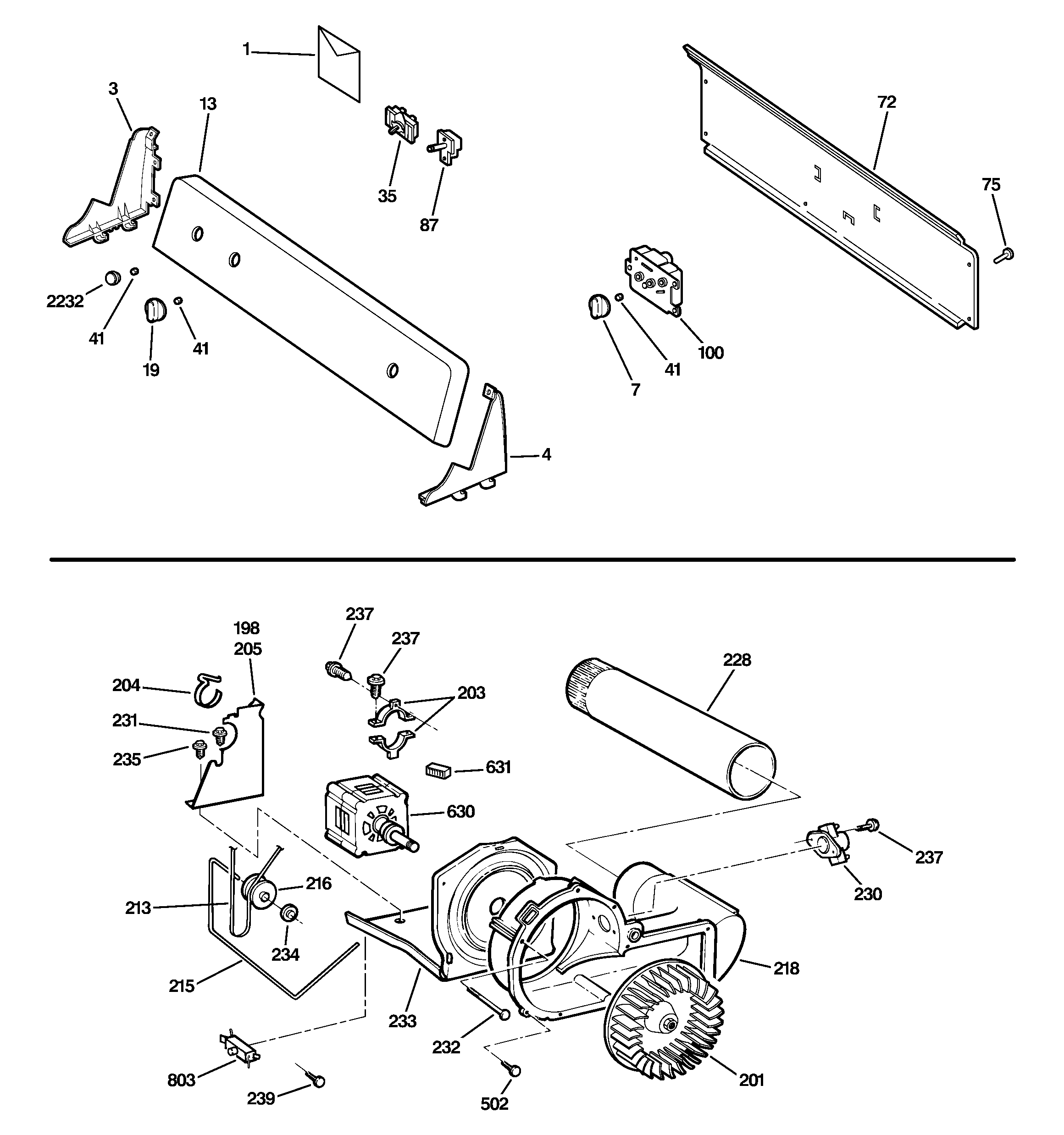

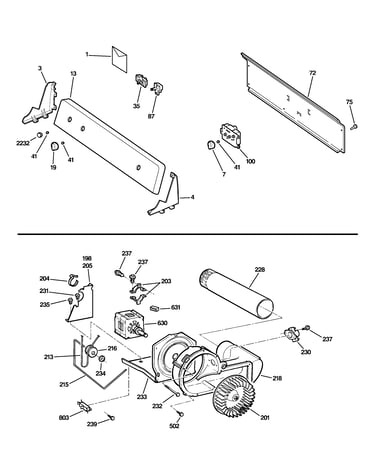

Backsplash, blower & motor assembly Diagram

Dryer drum belt

Part #WE12M29
$20.26

In Stock

Dryer Drum Glide Bearing

#316

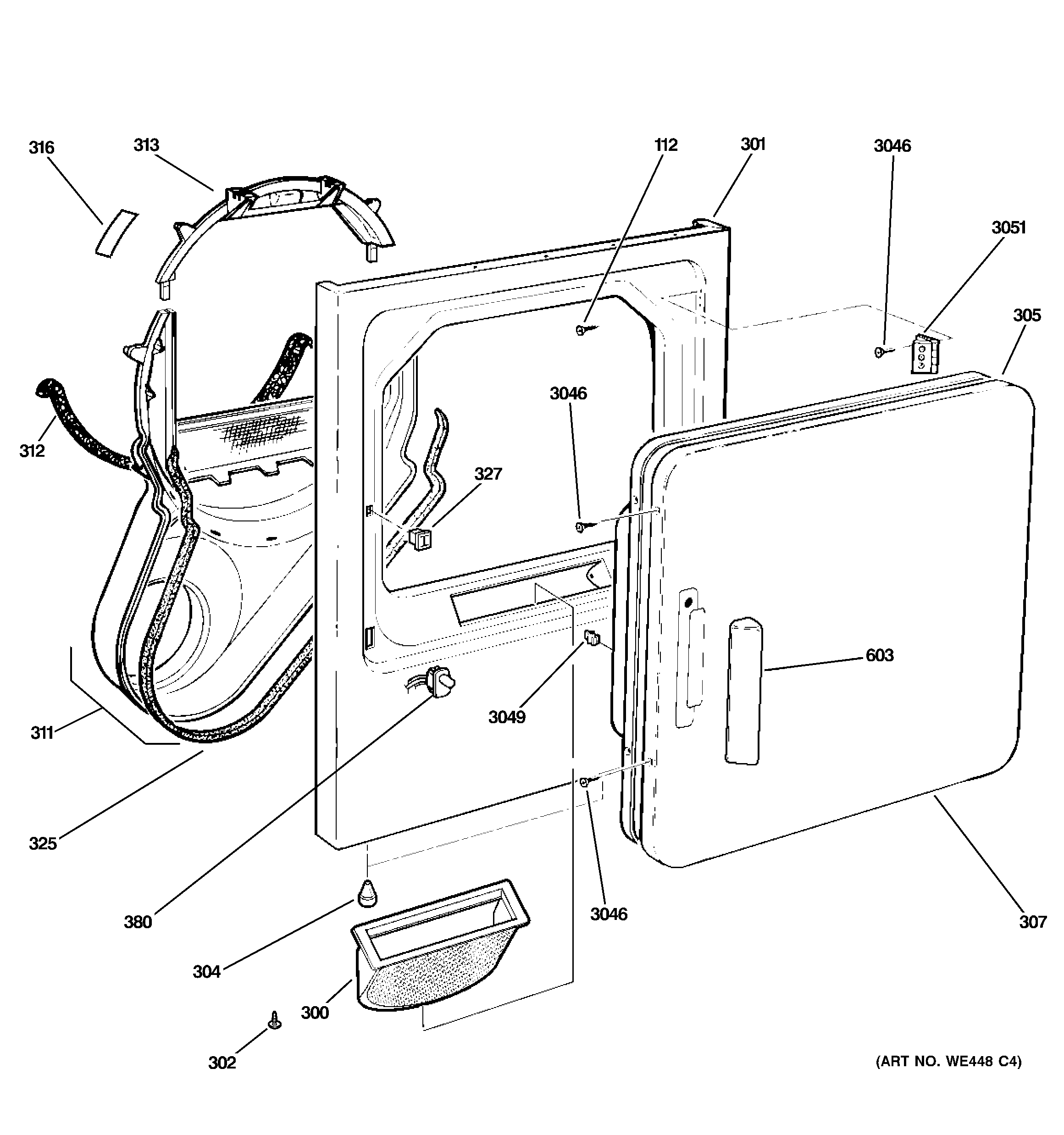

Front panel & door Diagram

$9.20

In Stock

Dryer Drum Glide Bearing

#313

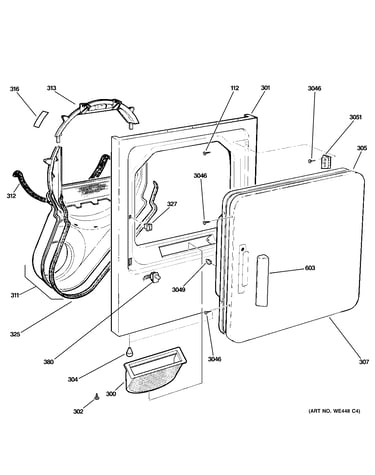

Front panel & door Diagram

$38.31

In Stock

Dryer Timer Knob

#7

Backsplash, blower & motor assembly Diagram

Dryer timer knob

Part #WE1M654
$26.21

In Stock

Dryer Rear Bearing

#3106

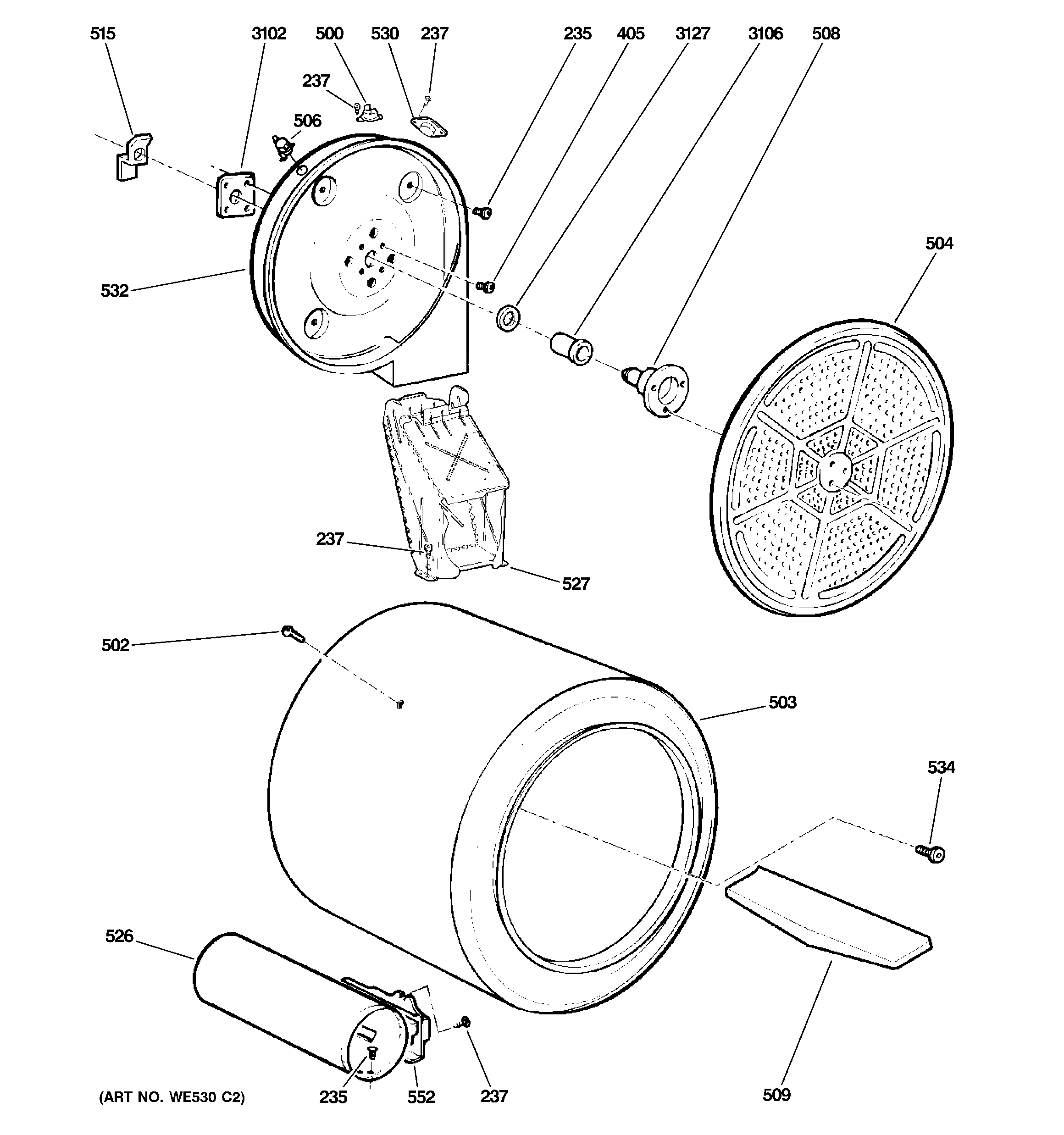

Drum Diagram

Dryer rear bearing

Part #WE1M462
$14.09

In Stock

Dryer Push-to-Start Button

#2232

Backsplash, blower & motor assembly Diagram

Dryer push-to-start button

Part #WE1M659
This item is not returnable
$4.20

In Stock

Dryer Drum Bearing Bracket

#3102

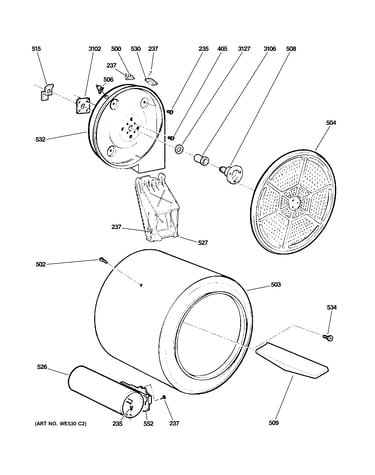

Drum Diagram

$14.27

In Stock

Cap Nut

#234

Backsplash, blower & motor assembly Diagram

Cap nut

Part #WE2M96
This item is not returnable
$5.75

In Stock

Dryer Gas Valve Assembly

#712

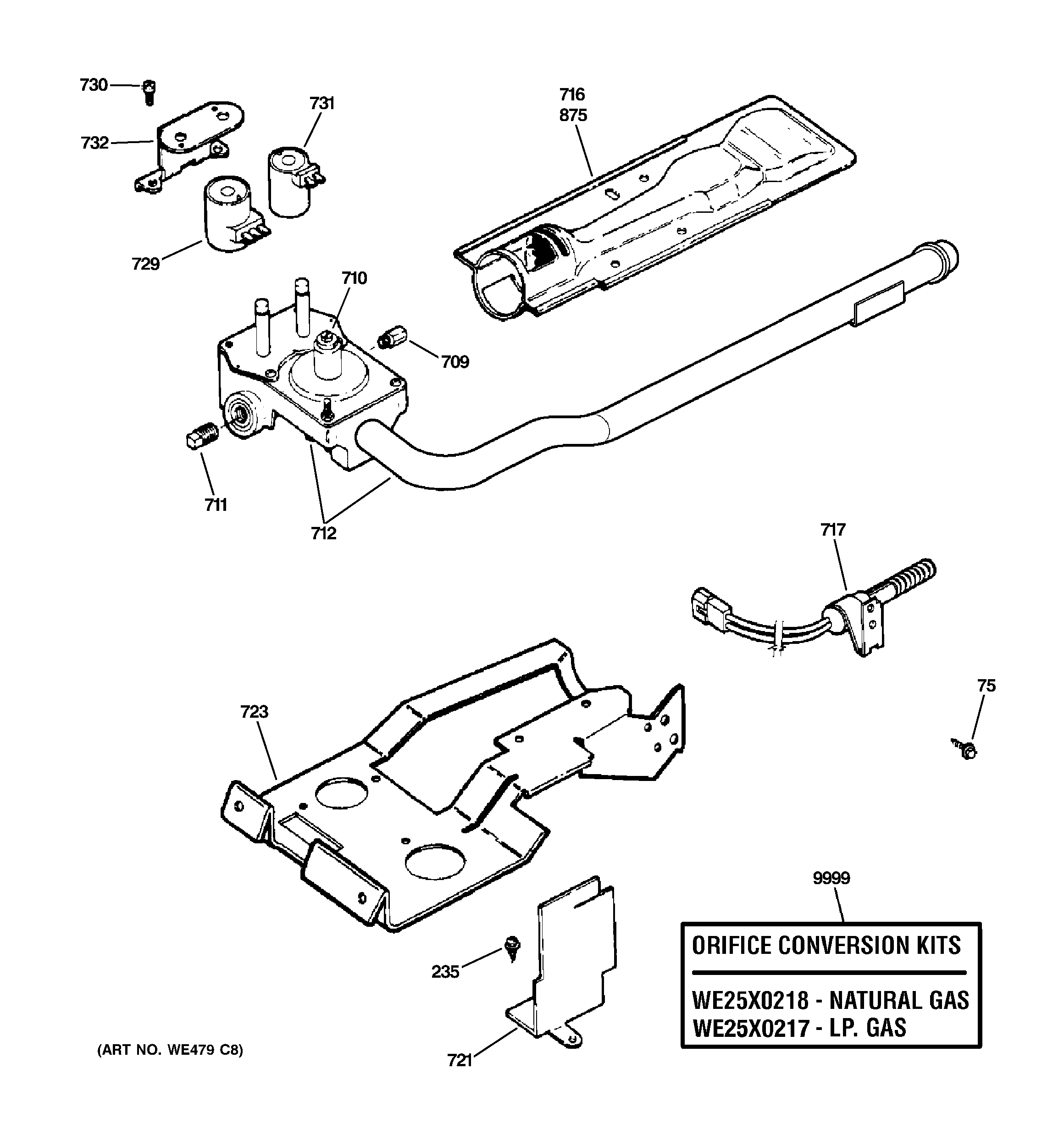

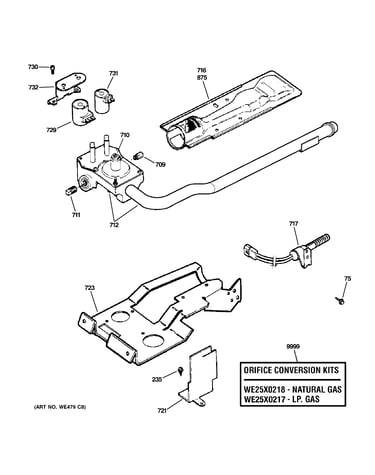

Gas valve & burner assembly Diagram

$195.59

In Stock

Screw

#239

Backsplash, blower & motor assembly Diagram

Screw

Part #WE2M167
This item is not returnable
$2.99

In Stock

Symptoms common to all dryers

Choose a symptom to see related dryer repairs.

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
Main causes: bad timer or electronic control board, door switch failure
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
Main causes: damaged door strike, worn door catch
