Whirlpool WED4720RW0 electric dryer Parts

Yes. For your Whirlpool electric dryer model WED4720RW0, searching by the full model number is the most reliable way to get compatible parts because it filters results to the exact diagrams and part IDs used on your dryer.

How to search by model number (best practice)

• Use the complete model number: WED4720RW0 (match every letter and number).
• Start with the symptom, then confirm the part in the model’s parts list and diagram.
• Compare the part name and part ID before ordering.

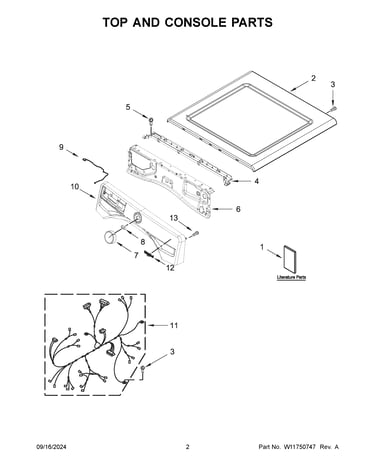

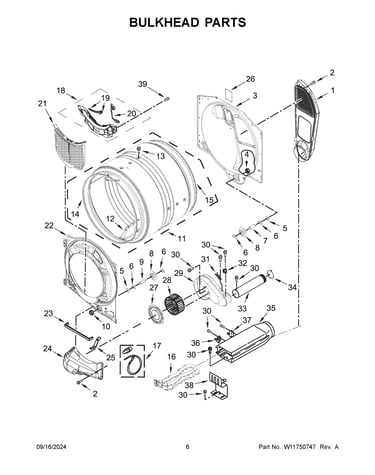

• If multiple similar parts appear, match by location in the diagram (drum area, heater box, console).
• When doing a maintenance refresh, consider a kit that covers common wear items.

Common WED4720RW0 parts customers look up by model

Symptom	Likely area	Example part for this model
Squealing, thumping, rumbling	Drum support and belt path	Dryer drum support roller WPW10314173
Dryer runs but no heat	Heating circuit	Element, heater 5400w WP3387747
Long dry times, weak airflow	Blower and venting	Dryer blower wheel WP697772
Dryer stops mid-cycle or won’t run	Overheat protection	Thermal fuse W10909685

Why it matters

Whirlpool often uses similar-looking parts across many dryer series. Searching by WED4720RW0 helps prevent ordering a look-alike component that does not fit, wires differently, or mounts differently.

Quick safety and fit checks before you order

• Unplug the dryer before inspecting parts.
• Confirm whether your issue is airflow-related (lint screen, vent restriction) before replacing heating parts.
• If you’re replacing wear items, inspect rollers, idler pulley, and belt together.

Last updated: February 2026

Common problems we see on Whirlpool electric dryers like model WED4720RW0 include a no-start condition, no heat, long dry times, loud squealing or thumping, and a drum that will not tumble. Most issues trace back to power supply, airflow restrictions, or a few high-wear parts in the drive and heating systems.

Most common symptoms and likely causes

• Dryer will not start: tripped breaker, door switch issue, timer/control issue, motor problem
• Drum not spinning: worn belt, failed idler pulley, worn drum rollers
• No heat or weak heat: heating element failure, thermal fuse blown, high-limit thermostat issue
• Takes too long to dry: clogged lint screen, crushed/blocked vent, weak airflow from blower wheel
• Loud noise (squeal, rumble, thump): worn rollers, idler pulley wear, drum support wear

Parts that commonly fix these problems (WED4720RW0)

If your symptom matches, these are frequent repair parts for this model:

• Squealing or thumping: dryer drum support roller WPW10314173
• Squealing or belt slack: dryer idler pulley W10837240
• No heat: element, heater 5400w WP3387747
• No heat after overheating/vent issue: thermal fuse W10909685
• Long dry times with poor airflow: dryer blower wheel WP697772

Quick checks before replacing parts

1. Confirm the dryer has 240V at the outlet (electric dryers can run on 120V but not heat).
2. Clean the lint screen and check the vent for kinks, crushing, or blockage.
3. Run a timed dry cycle and verify strong airflow at the outside vent hood.
4. Listen for motor hum with no drum movement (often belt/idler/roller related).

Symptom-to-fix guide

Symptom	Most likely area	Common fix parts
Runs but no heat	Heating circuit	Heater, thermal fuse, high-limit thermostat
Drum will not tumble	Drive system	Rollers, idler pulley, belt/repair kit
Long dry times	Airflow	Vent cleaning, blower wheel

Why it matters

Airflow problems can overheat the dryer and repeatedly blow safety devices, while worn drive parts can damage the drum or motor over time. Fixing the root cause (especially venting) prevents repeat failures.

Last updated: February 2026

A Whirlpool electric dryer like model WED4720RW0 typically lasts 10 to 13 years with normal household use. Keeping airflow strong (lint screen and venting) and fixing wear items early helps you reach the high end of that range.

Typical lifespan and what changes it

Most dryer life comes down to heat stress, airflow restriction, and drum-drive wear.

• 10 to 13 years: typical average lifespan
• Shorter life: frequent heavy loads, restricted venting, overheating
• Longer life: good venting, routine cleaning, prompt repair of squeaks or thumps

Maintenance that adds years (highest impact)

These habits reduce overheating and strain on the motor, heater, and drum support system.

• Clean the lint screen every load
• Check the outside vent hood for strong airflow and a fully opening flap
• Clean the full vent path periodically (especially long runs or many elbows)
• Avoid overloading; heavy loads stress the belt, rollers, and idler
• Stop using the dryer if you smell burning or notice repeated overheating

Parts that commonly limit dryer life

When a dryer is noisy, slow to dry, or overheats, these are common wear or safety parts we see replaced on Whirlpool dryers.

Symptom	Common cause	Example part for WED4720RW0
Squealing, thumping	Worn drum support components	Dryer drum support roller WPW10314173
No heat or weak heat	Failed heater or heat circuit issue	Element, heater 5400w WP3387747
Runs hot, shuts off	Overheat protection opened	Thermal fuse W10909685

Why it matters

A dryer that takes longer to dry or runs hotter than normal uses more electricity and wears out faster. Good airflow and timely replacement of wear parts protect major components like the motor and drum.

Last updated: February 2026
