Model #WFVC844PUC/20 Official Bosch washer

Here are the diagrams and repair parts for Bosch WFVC844PUC-20 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

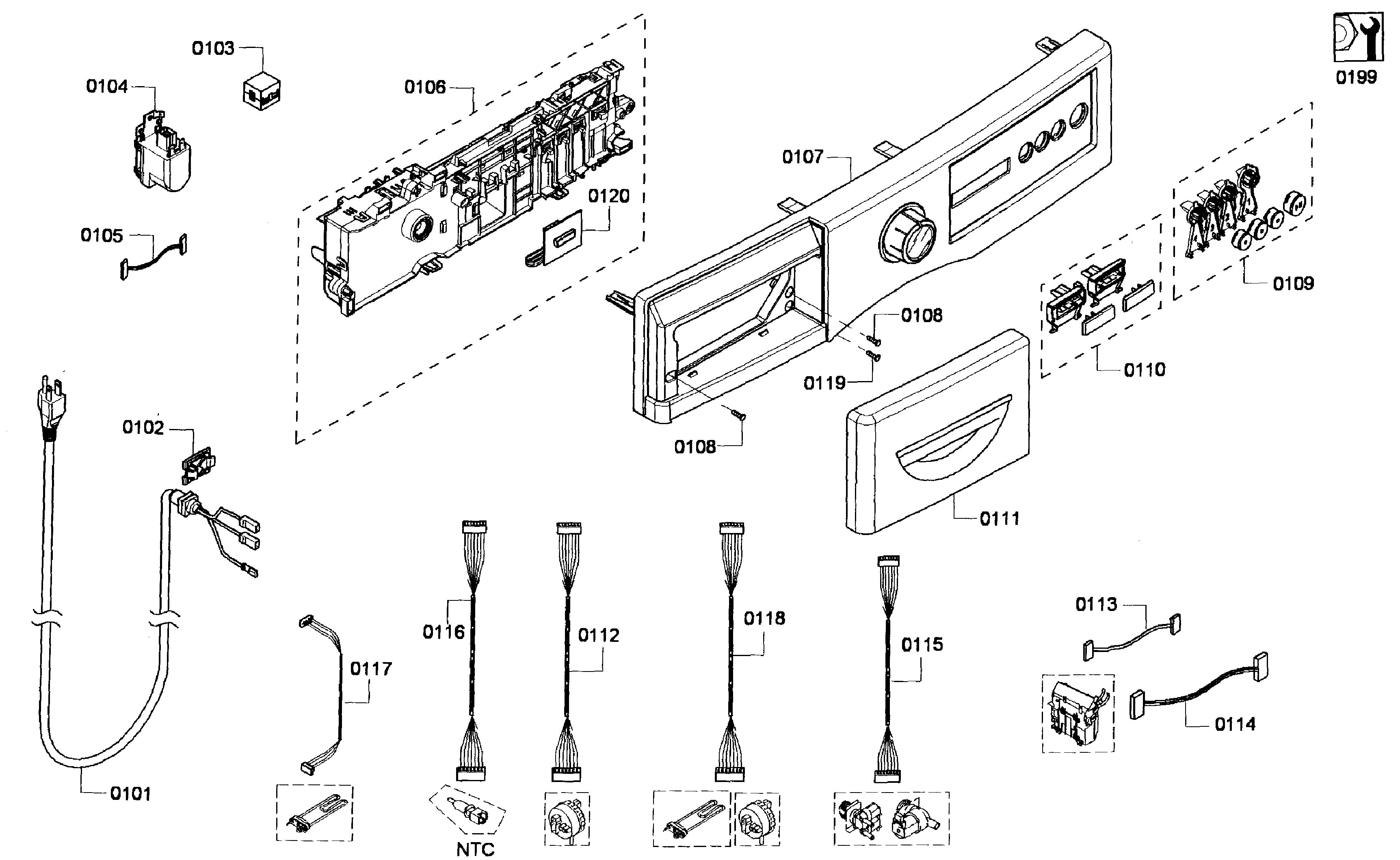

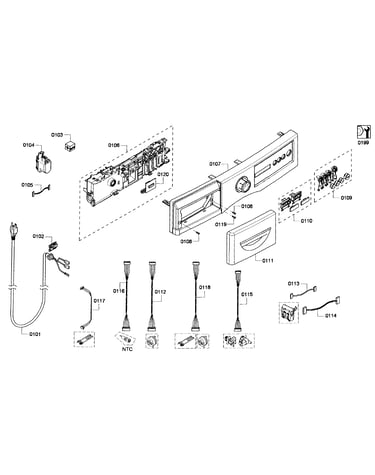

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 135 parts

    Washer Door Boot#318

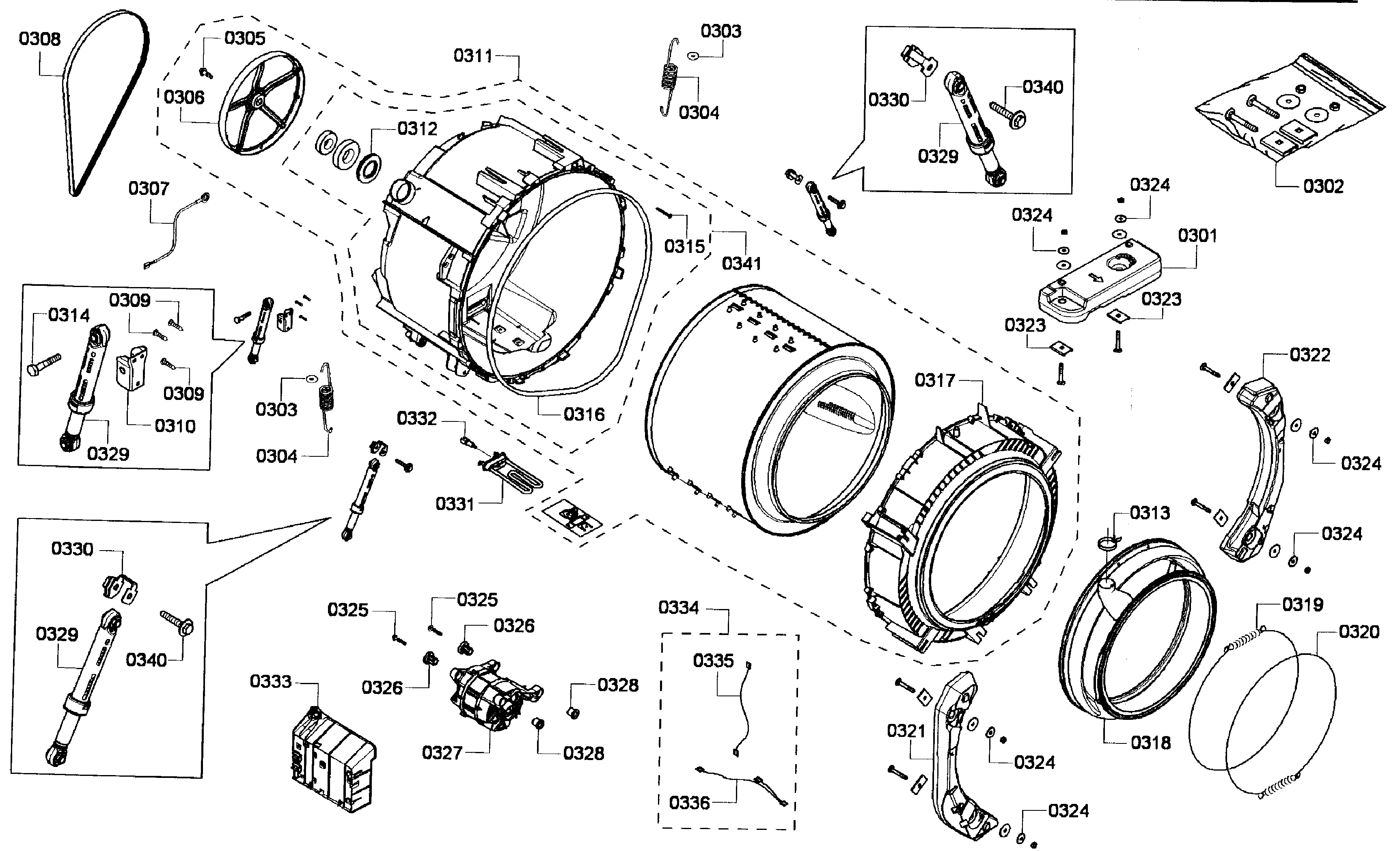

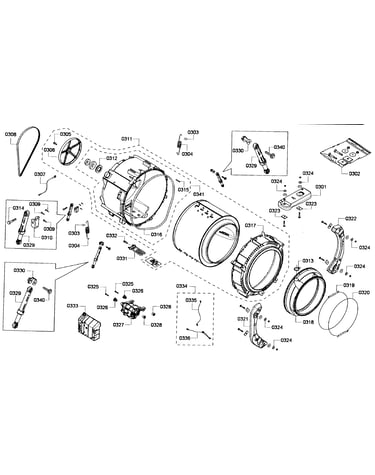

    Drum Diagram

    Washer door boot

    Part #674705
    Replaced by #00701333
    ?
    Manufacturer substitution
    This part replaces 674705. Substitute parts can look different from the original.
    In Stock
    $112.54 |
    13% OFF
    Was: $129.09
    Washer Door Boot Spring Clamp#319

    Drum Diagram

    Clamp

    Part #648264
    Replaced by #00648264
    ?
    Manufacturer substitution
    This part replaces 648264. Substitute parts can look different from the original.
    In Stock
    $15.09 |
    12% OFF
    Phone Price: $17.09

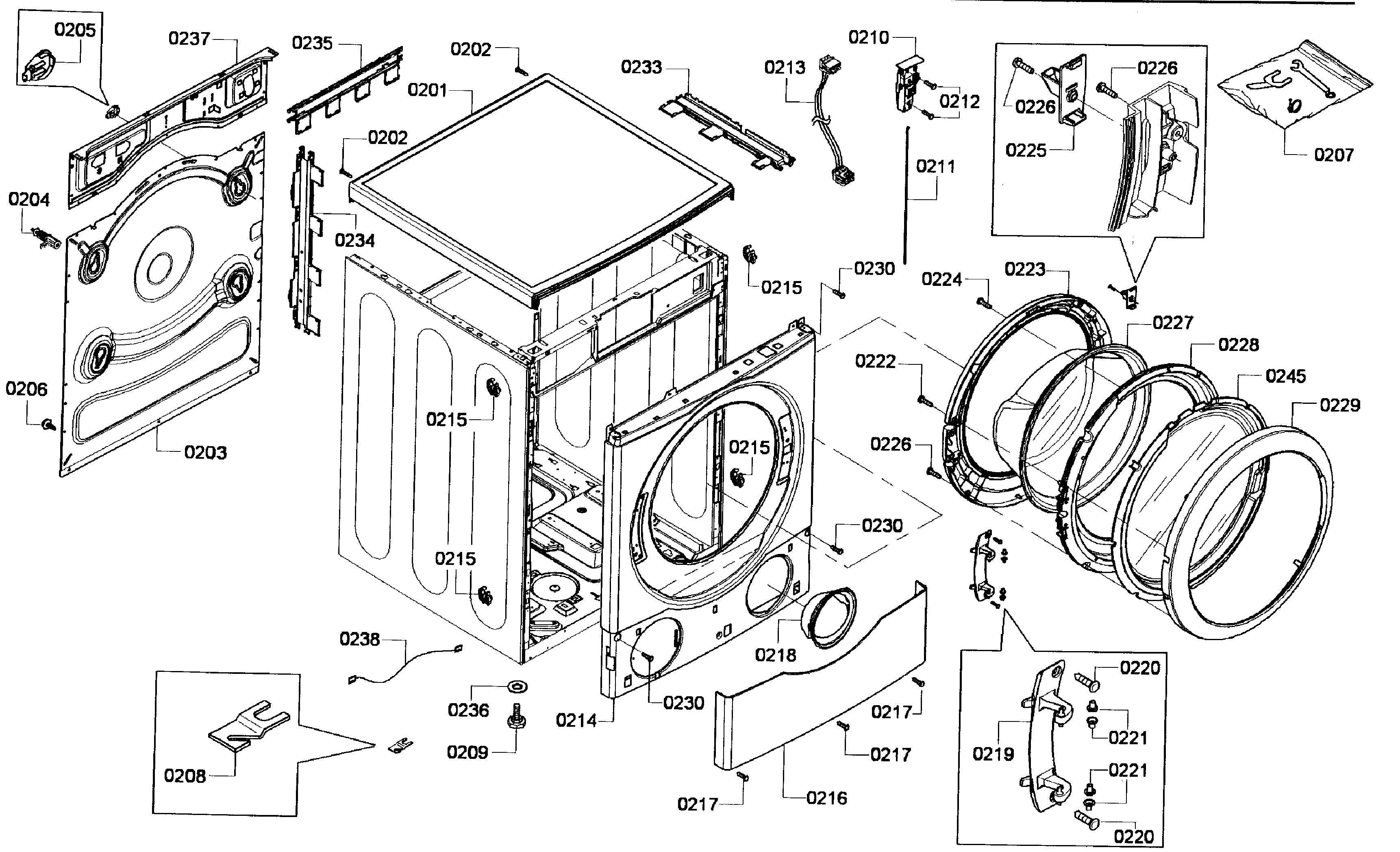

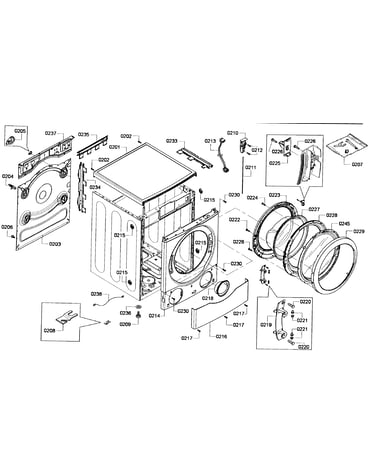

    Washer Cabinet Hole Plug#215

    Cabinet Diagram

    Plug

    Part #427416
    Replaced by #00427416
    ?
    Manufacturer substitution
    This part replaces 427416. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $2.85

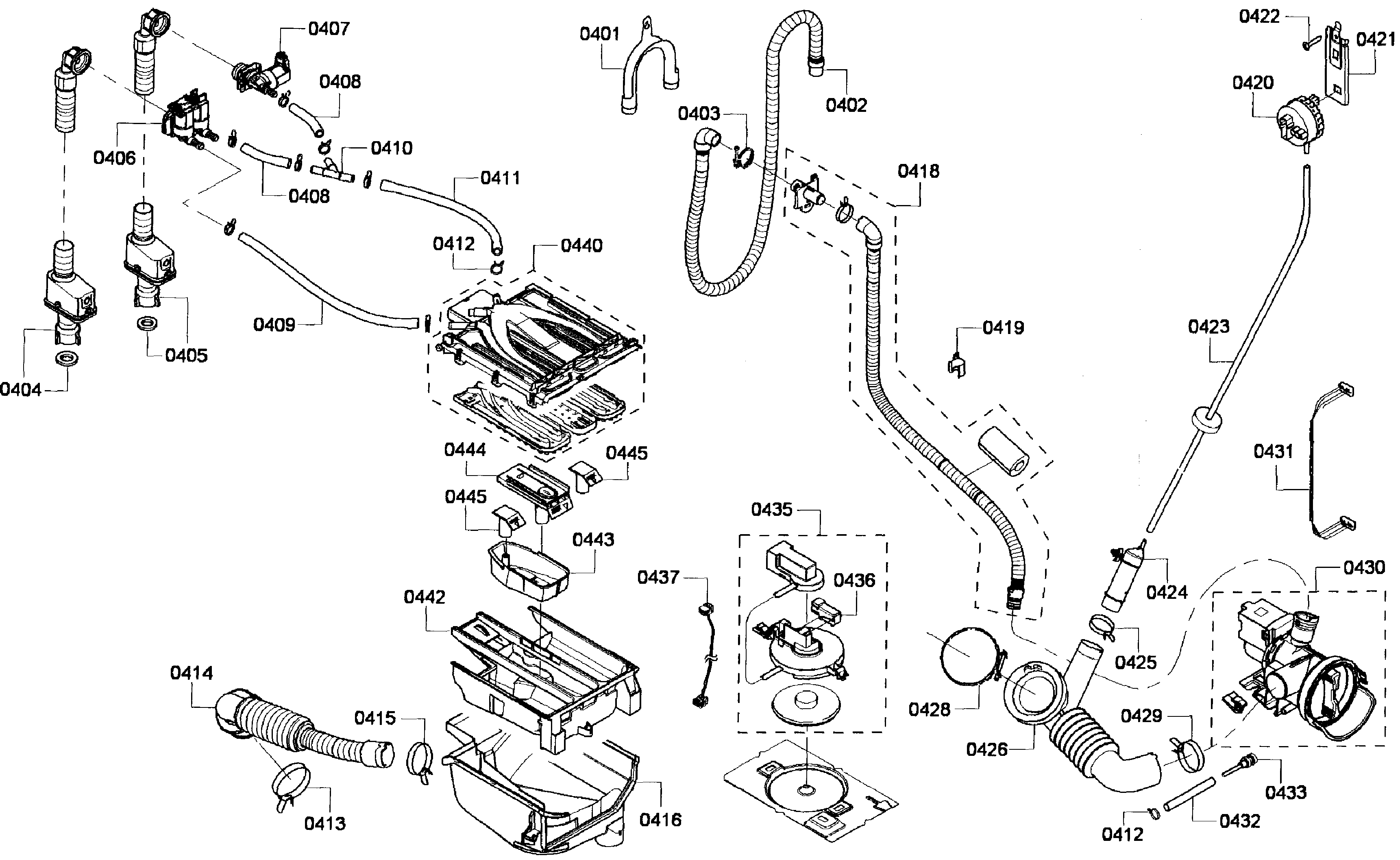

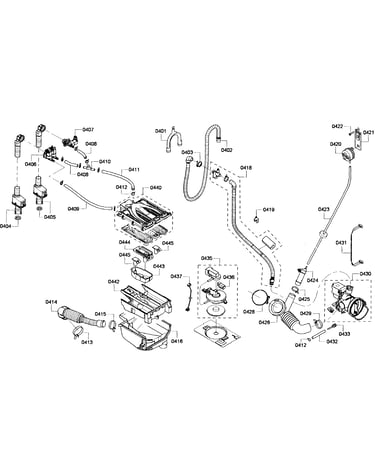

    Washer Dispenser Hose#414

    Dispenser Diagram

    Washer inlet hose

    Part #648274
    Replaced by #00648274
    ?
    Manufacturer substitution
    This part replaces 648274. Substitute parts can look different from the original.
    In Stock
    $17.18
    Washer Hot Water Inlet Hose#407

    Dispenser Diagram

    Washer hot water inlet valve

    Part #422245
    Replaced by #00422245
    ?
    Manufacturer substitution
    This part replaces 422245. Substitute parts can look different from the original.
    In Stock
    $38.99 |
    11% OFF
    Phone Price: $43.99
    Washer Drain Hose Clamp#429

    Dispenser Diagram

    Hose clamp

    Part #422207
    Replaced by #00422207
    ?
    Manufacturer substitution
    This part replaces 422207. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.09 |
    14% OFF
    Phone Price: $7.09
    Washer Door Hinge#219

    Cabinet Diagram

    Dryer door hinge

    Part #649704
    Replaced by #00649704
    ?
    Manufacturer substitution
    This part replaces 649704. Substitute parts can look different from the original.
    In Stock
    $26.69 |
    16% OFF
    Phone Price: $31.69
    Laundry Appliance Screw#220

    Cabinet Diagram

    Laundry appliance screw

    Part #610840
    Replaced by #00610840
    ?
    Manufacturer substitution
    This part replaces 610840. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $12.89 |
    13% OFF
    Phone Price: $14.89
    Washer Door Boot Spring Clamp#320

    Drum Diagram

    Clamp

    Part #648528
    Replaced by #00648528
    ?
    Manufacturer substitution
    This part replaces 648528. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.19 |
    14% OFF
    Phone Price: $7.19
    Magnet Valve#406

    Dispenser Diagram

    Magnet valve

    Part #422244
    In Stock
    $27.99 |
    15% OFF
    Phone Price: $32.99
