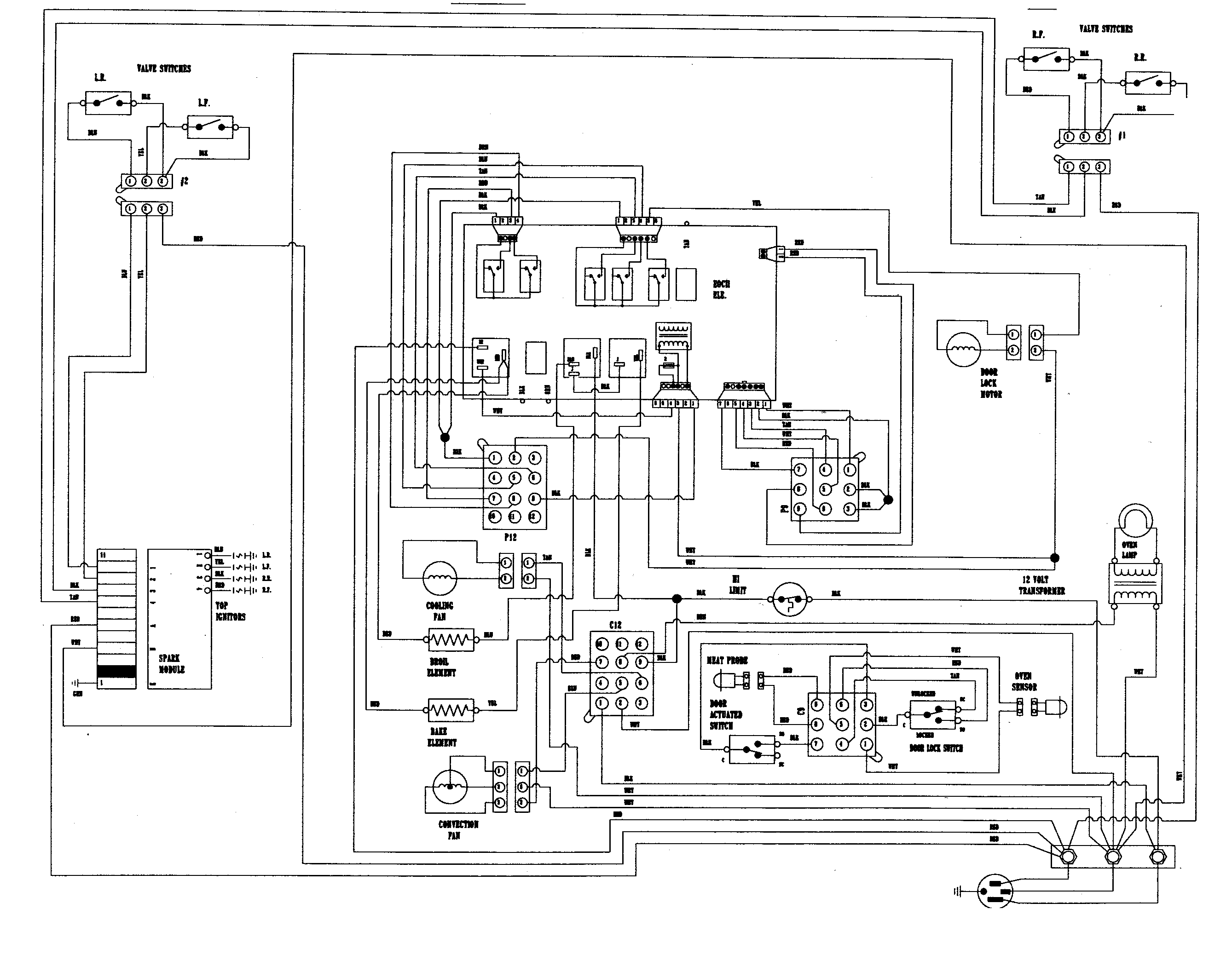

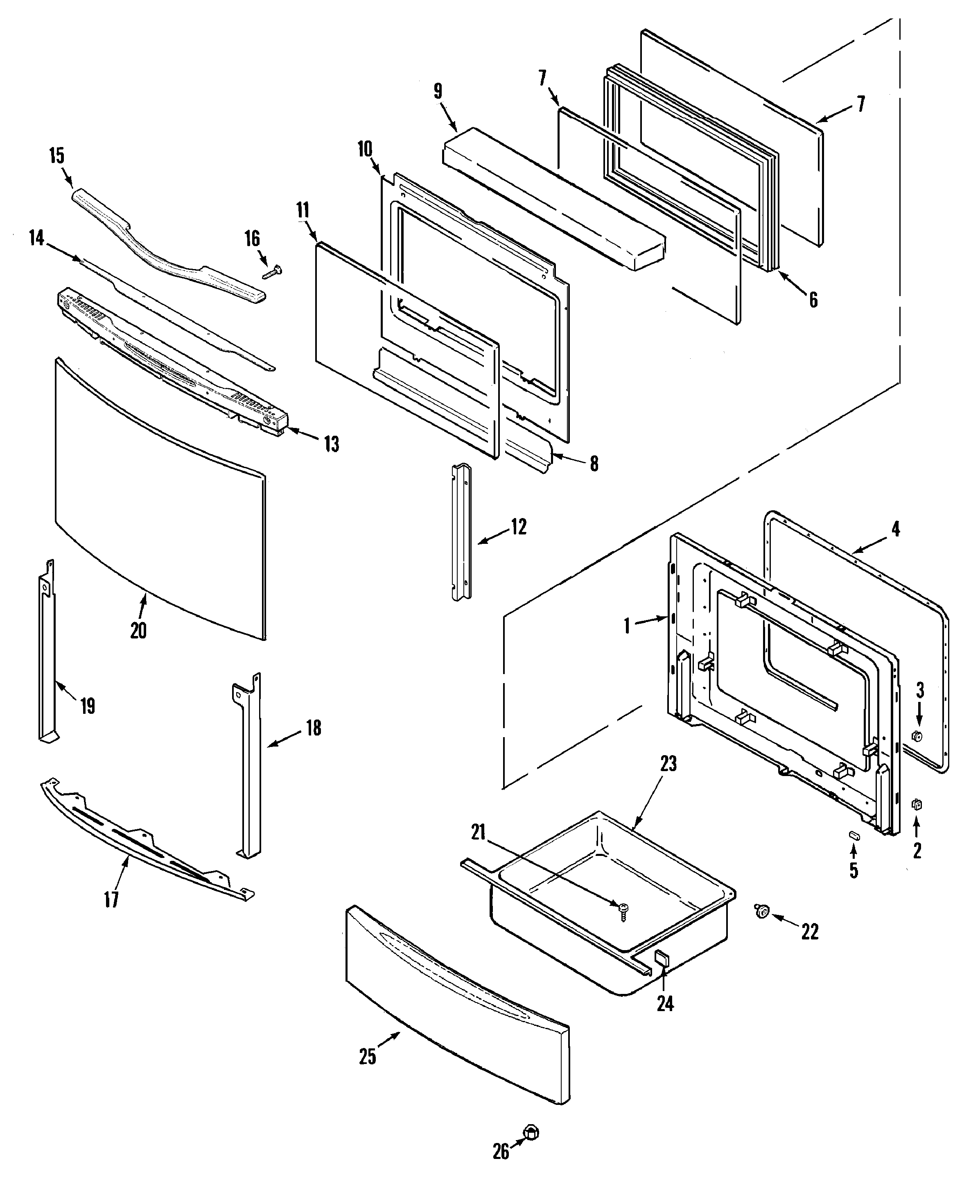

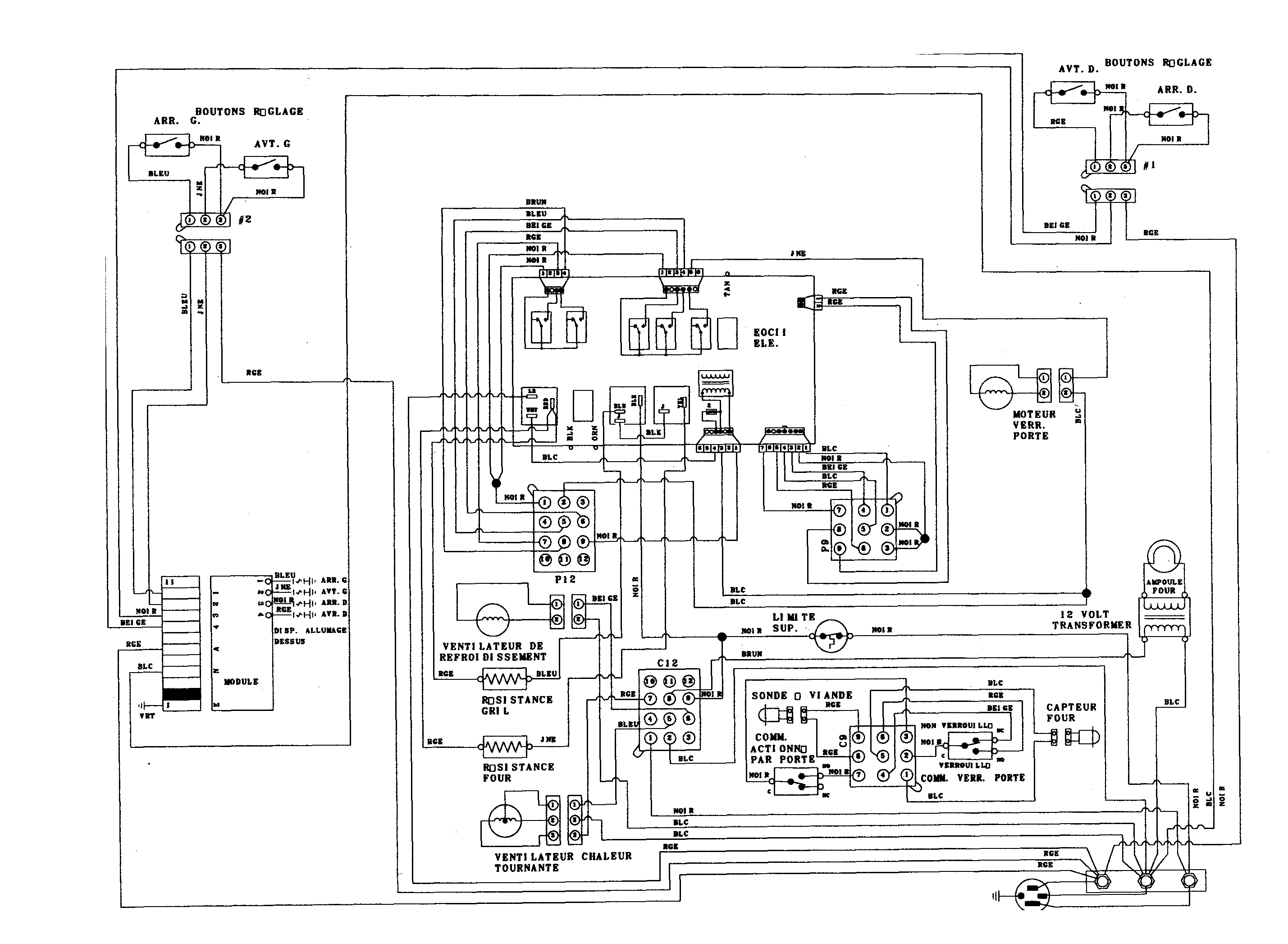

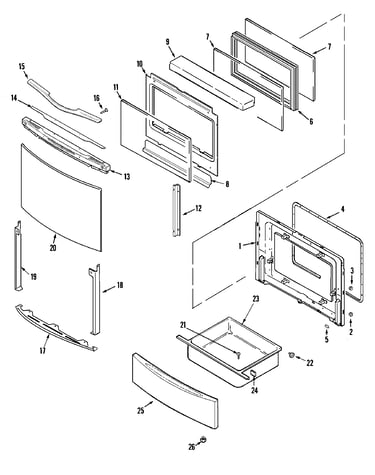

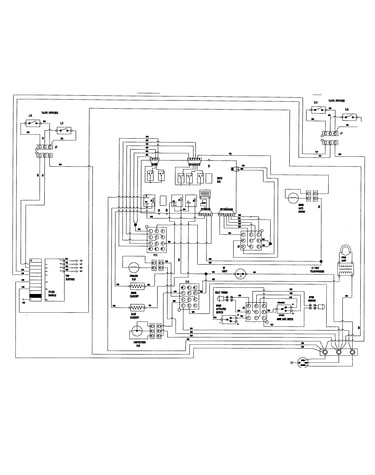

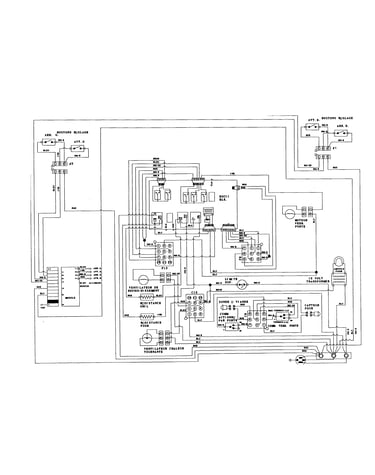

Model #JDS8850ACW Jenn-Air dual-fuel slide-in range

Here are the diagrams and repair parts for Jenn-Air JDS8850ACW dual-fuel slide-in range, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

    Showing 10 of 156 parts

    Range Oven Light Bulb

    #16A

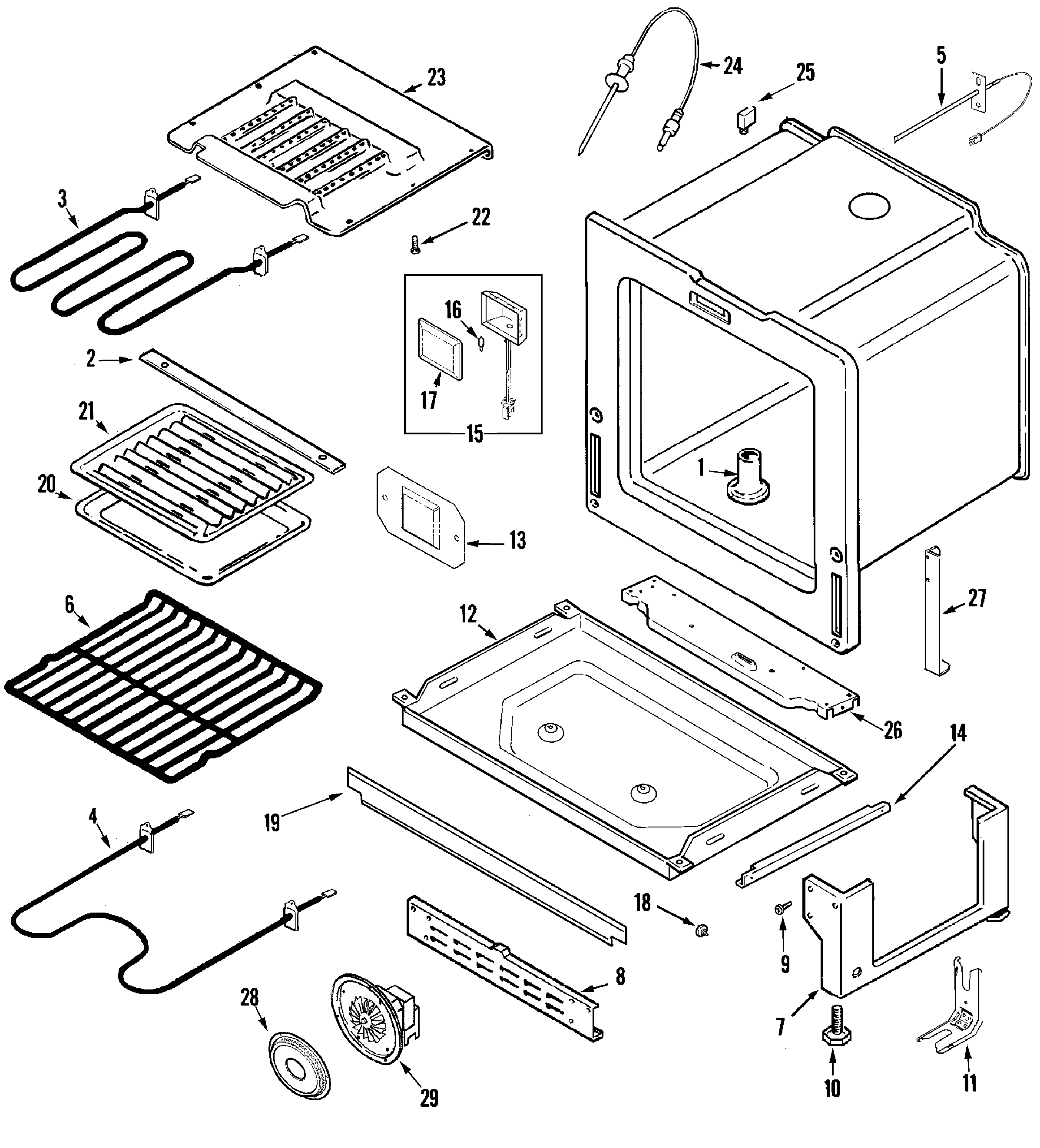

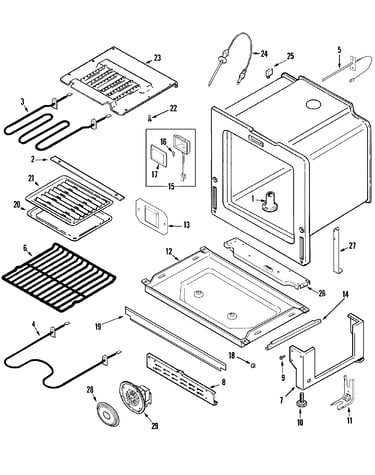

    Oven/base Diagram

    Range oven light bulb

    Part #74004458
    $17.60

    In Stock

    Range Lock Nut, #8-32

    #18A

    Oven/base Diagram

    Range lock nut, #8-32

    Part #74005230
    This item is not returnable
    $7.13 |
    43% OFF MSRP:$12.49

    In Stock

    Range Oven Door Switch Spring

    #23

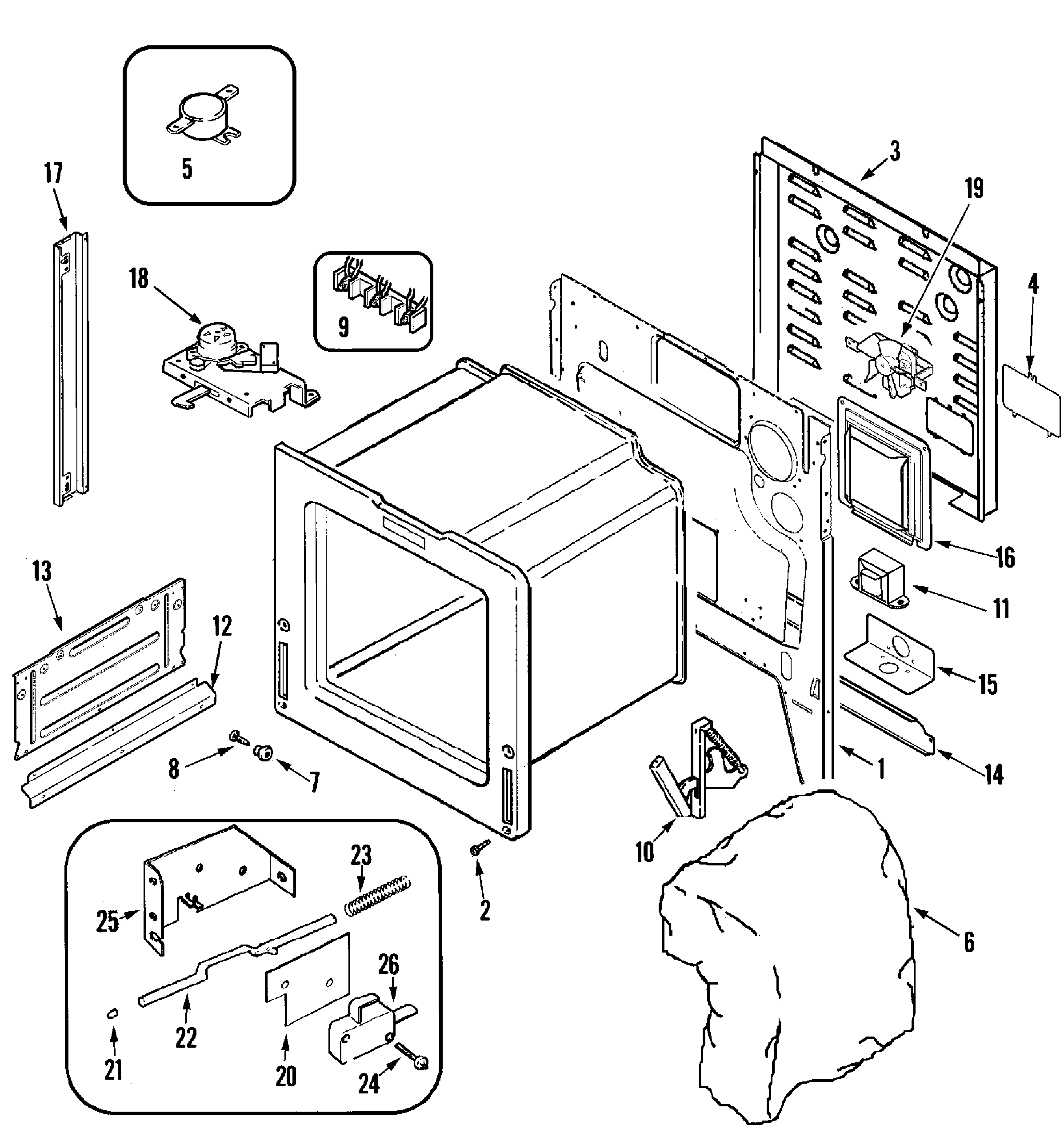

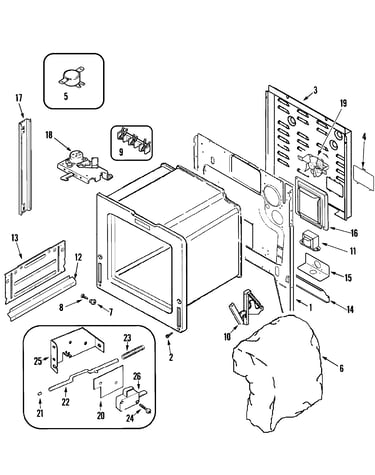

    Body Diagram

    $12.28 |
    13% OFF MSRP:$14.19

    In Stock

    Light Cover

    #13

    Oven/base Diagram

    Light cover

    Part #74005777
    This item is not returnable
    $2.67

    In Stock

    Range Screw

    #2A

    Oven/base Diagram

    Range screw

    Part #7101P345-60
    $12.49

    In Stock

    Screw

    #28A

    Oven/base Diagram

    Screw

    Part #74005401
    This item is not returnable
    $4.99

    In Stock

    Range Screw, #8AB x 3/8-in (Black)

    #18B

    Body Diagram

    $12.49

    In Stock

    Range Broil Element

    #3

    Oven/base Diagram

    Range broil element

    Part #74003042
    $54.39 |
    40% OFF MSRP:$91.00

    In Stock

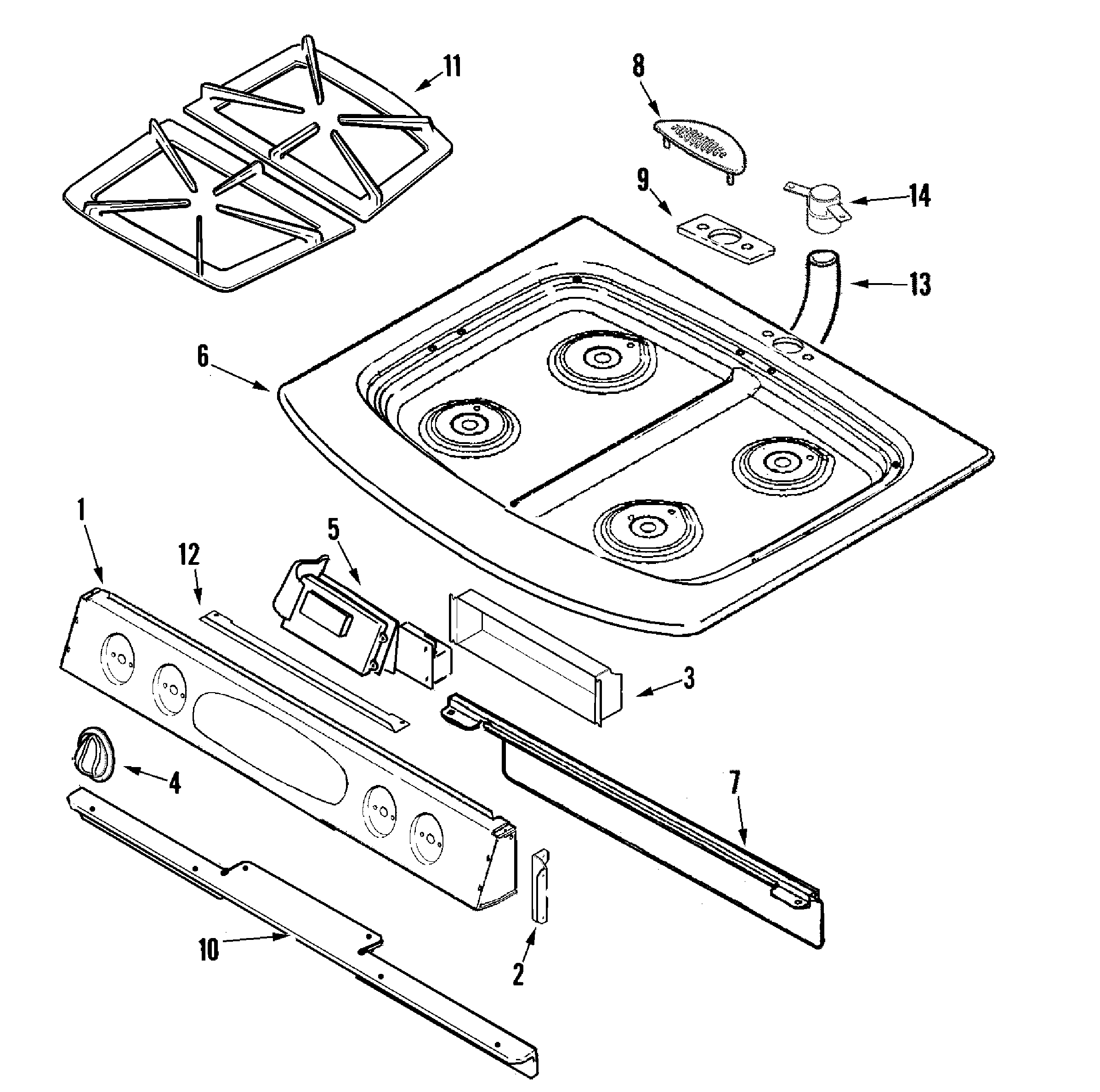

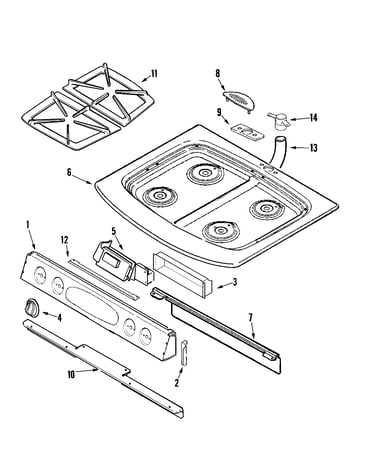

    Cooktop Burner Cap

    #13

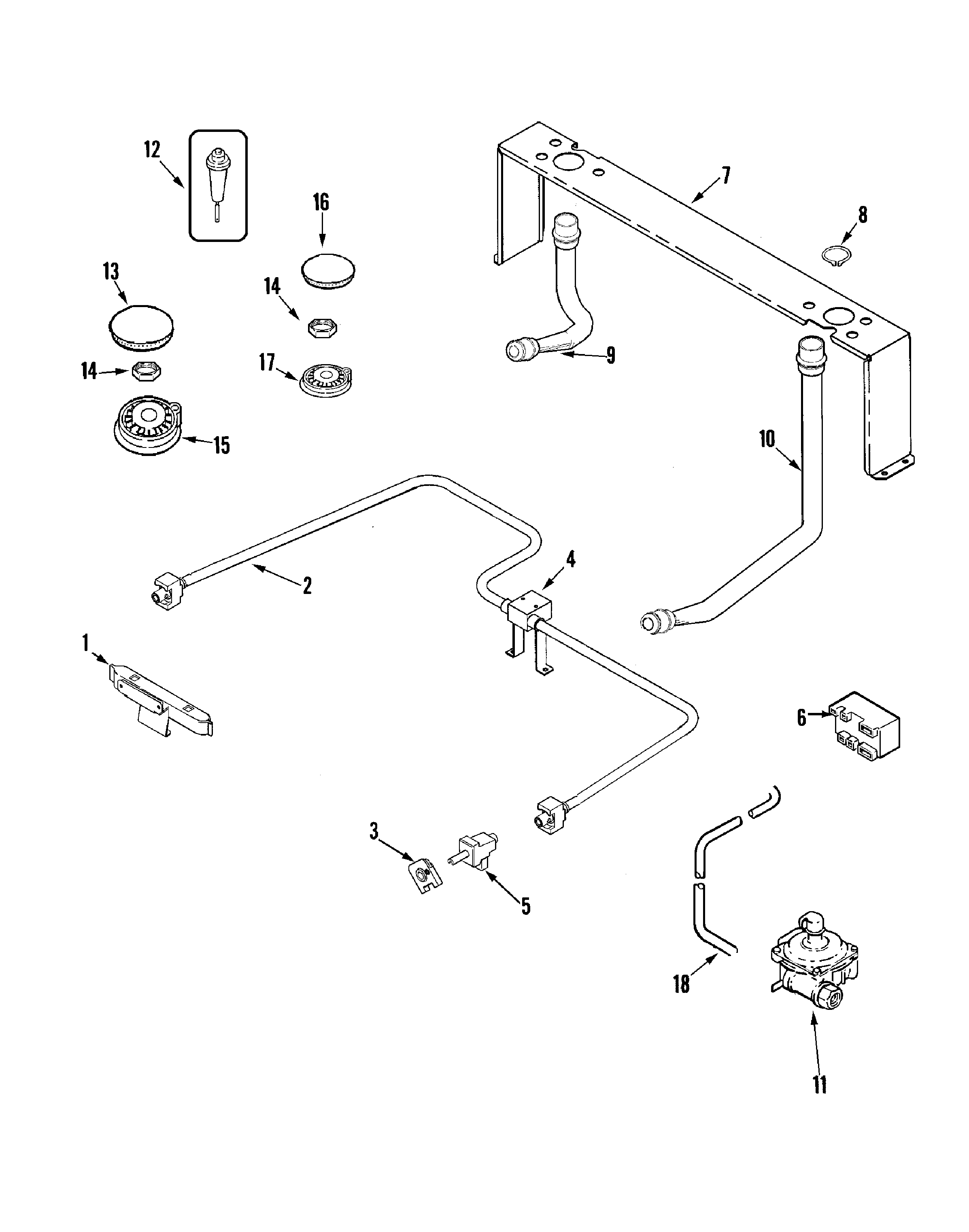

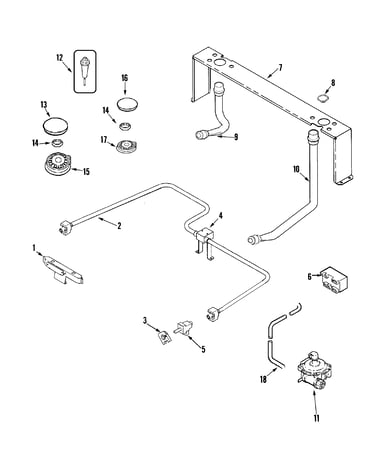

    Gas controls Diagram

    Cooktop burner cap

    Part #74007204
    $63.22

    In Stock

    Range Valve Switch Harness

    #3C

    Gas controls Diagram

    $27.97

    In Stock
