GE GSC3200F01BL dishwasher Parts
Here are the diagrams and repair parts for GE GSC3200F01BL dishwasher, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

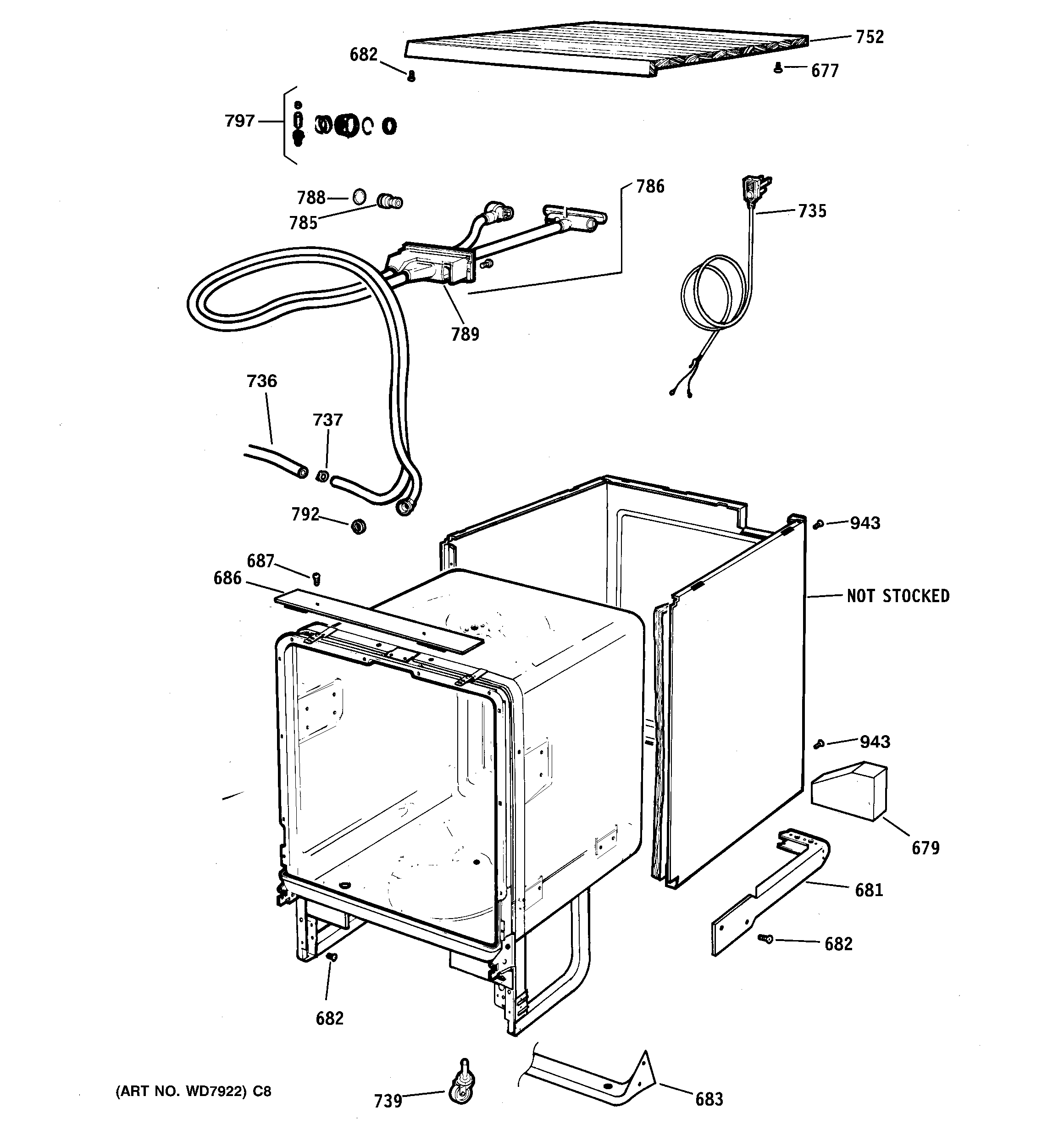

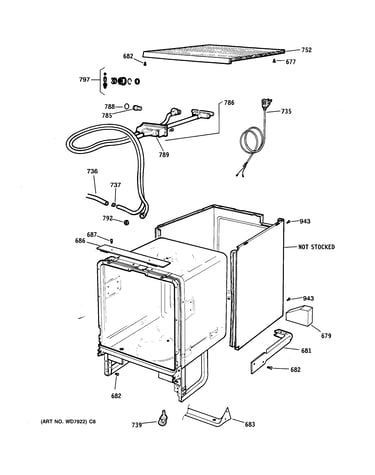

Browse Parts for GSC3200F01BL Dishwasher

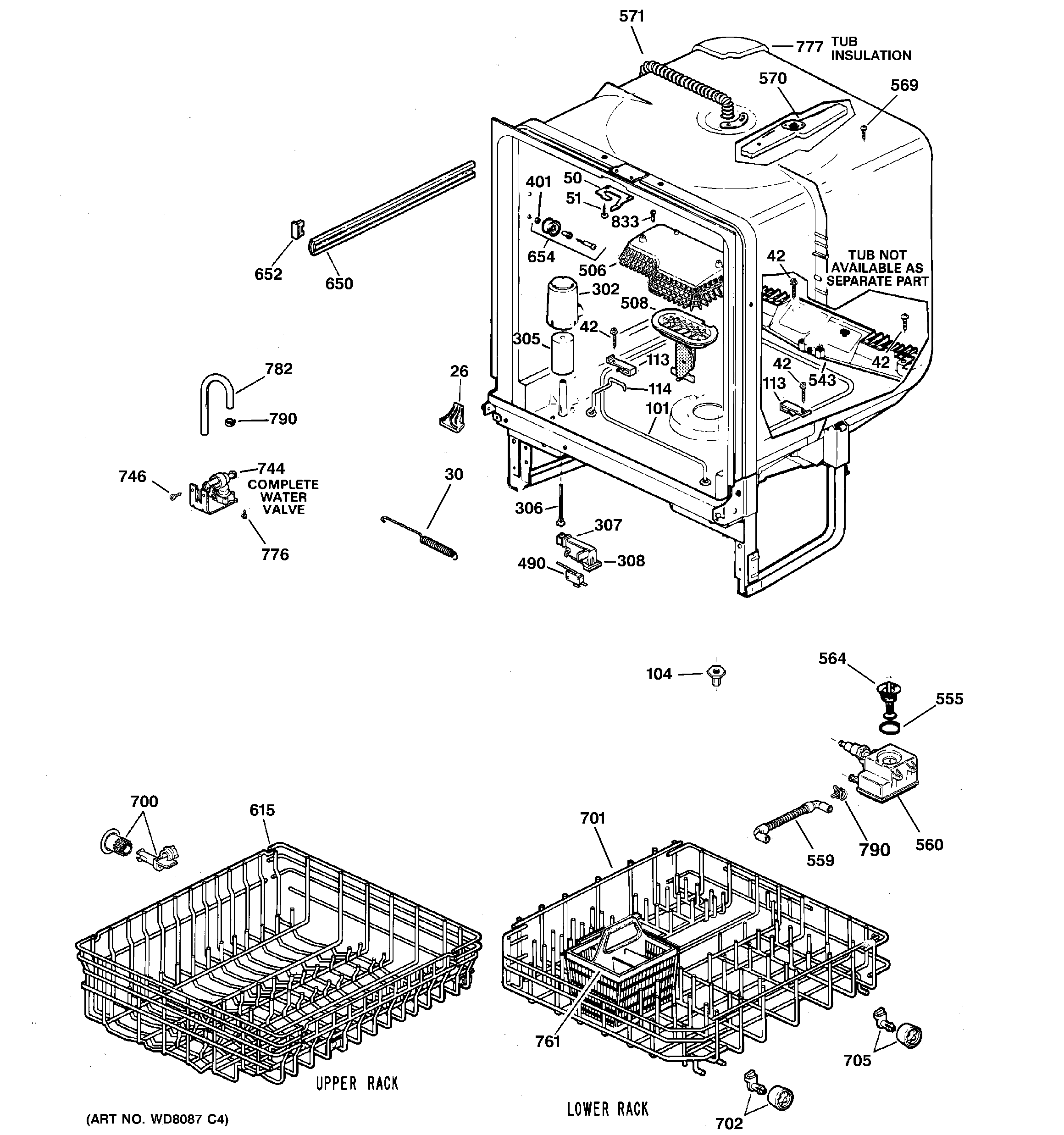

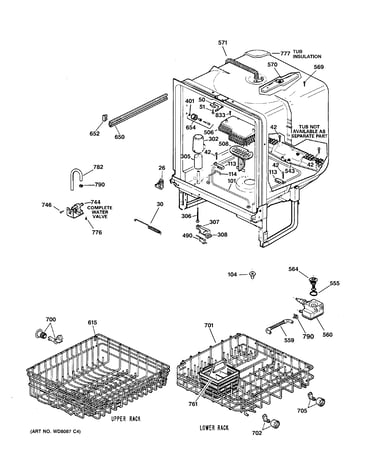

Body parts diagram
Rack Asm Lwr
Part #WD28X0305Replaced by #WD28X31819
Manufacturer substitutionThis part replaces WD28X0305. Substitute parts can look different from the original.In Stock$153.547% OFF Phone Price : $165.54
Qty

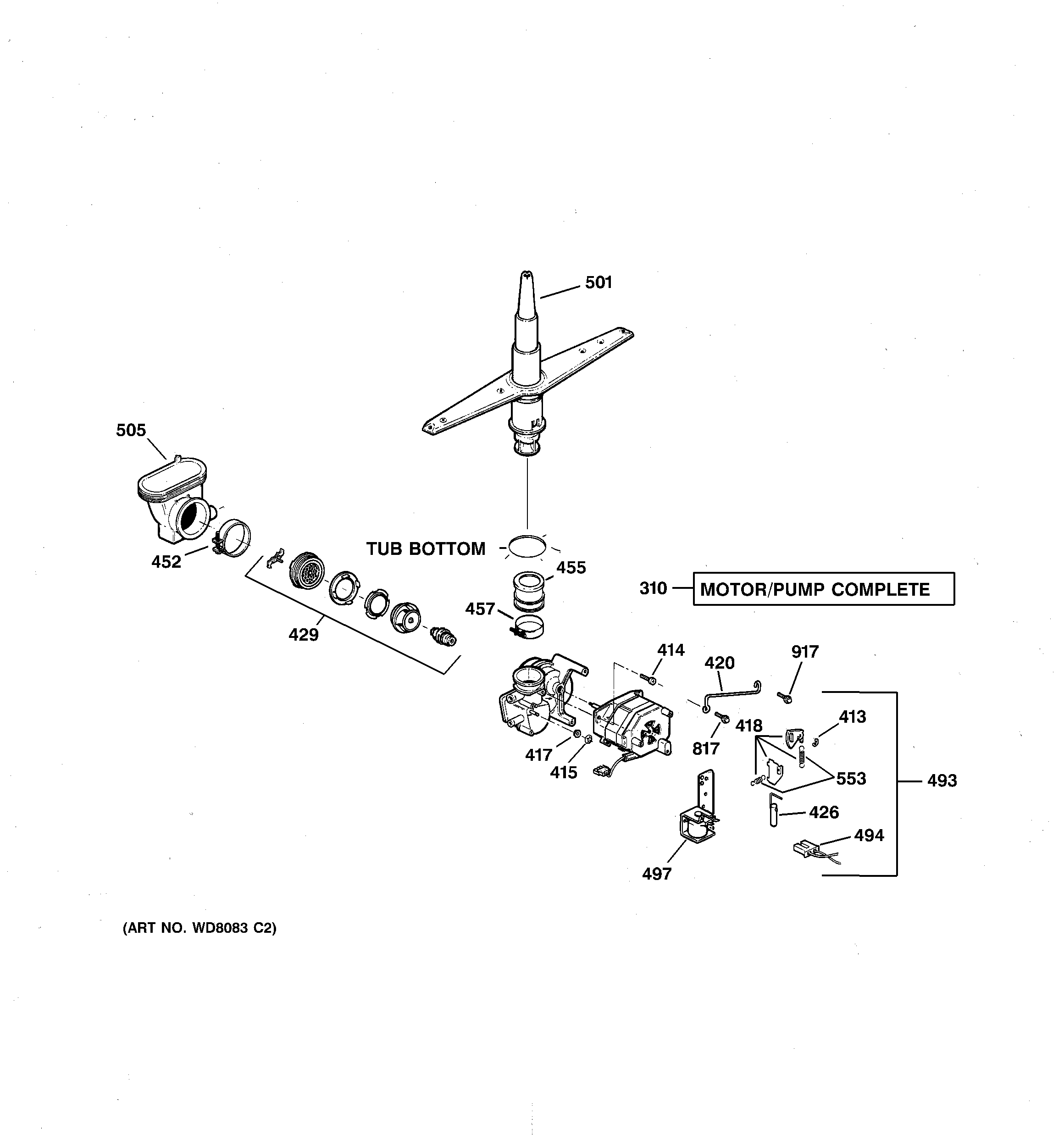

Motor-pump mechanism diagram
Armature&lnk
Part #WD01X1316Replaced by #WD1X1316
Manufacturer substitutionThis part replaces WD01X1316. Substitute parts can look different from the original.In Stock$36.8814% OFF Phone Price : $42.88QtyMotor-pump mechanism diagram
Dishwasher Drain Solenoid Kit

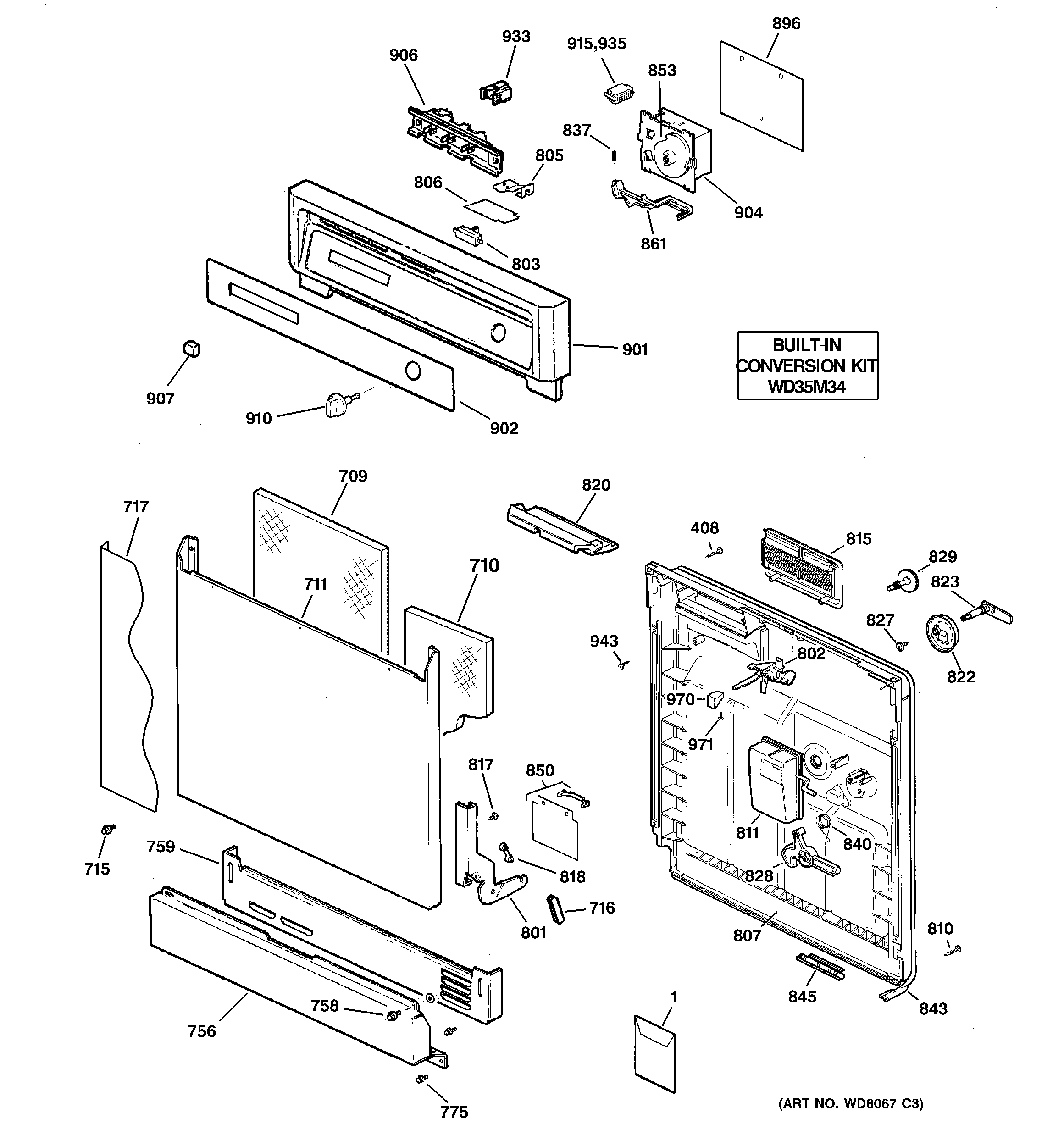

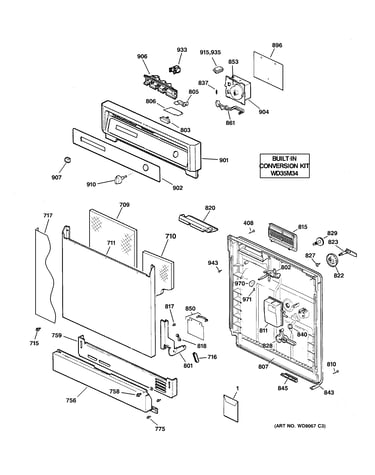

In Stock$66.528% OFF Phone Price : $72.52QtyEscutcheon & door assembly diagram
Interlock Switch
Part #WD21X0557Replaced by #WD21X10261
Manufacturer substitutionThis part replaces WD21X0557. Substitute parts can look different from the original.In Stock$25.5919% OFF Phone Price : $31.59QtyBody parts diagram
Rack
Part #WD12X0383Replaced by #WD12X10327
Manufacturer substitutionThis part replaces WD12X0383. Substitute parts can look different from the original.In Stock$23.8120% OFF Phone Price : $29.81QtyEscutcheon & door assembly diagram
Dishwasher Door Hinge Arm Link
In Stock$9.2010% OFF Phone Price : $10.20QtyEscutcheon & door assembly diagram
Gasket
Part #WD08X10014Replaced by #WD08X10057
Manufacturer substitutionThis part replaces WD08X10014. Substitute parts can look different from the original.In Stock$109.5610% OFF Phone Price : $121.56QtyMotor-pump mechanism diagram
Connect Pump
Part #WD18X0214Replaced by #WD18X214
Manufacturer substitutionThis part replaces WD18X0214. Substitute parts can look different from the original.This item is not returnableIn Stock$29.7917% OFF Phone Price : $35.79QtyBody parts diagram
Rack Roller
Part #WD12X0271Replaced by #WD12X271
Manufacturer substitutionThis part replaces WD12X0271. Substitute parts can look different from the original.In Stock$21.1922% OFF Phone Price : $27.19QtyBody parts diagram
Dishwasher Heating Element Nut
Part #WD01X10070Replaced by #WD02X33462
Manufacturer substitutionThis part replaces WD01X10070. Substitute parts can look different from the original.In Stock$31.68Qty
