GE GTS16DTHBRBB refrigerator Parts

Yes. On the GE GTS16DTHBRBB top-mount refrigerator, we recommend DIY replacement for simple, non-sealed-system items (like a light bulb, door switch, or door gasket) as long as you unplug the refrigerator first and reinstall all panels before restoring power; use the owner's manual for model-specific safety steps.

Parts you can usually replace yourself

These repairs are typically straightforward with basic hand tools:

• Light bulb (use the correct wattage and style)
• Door switch (light and door-alarm related symptoms)
• Door gasket (warm spots, sweating, or poor sealing)

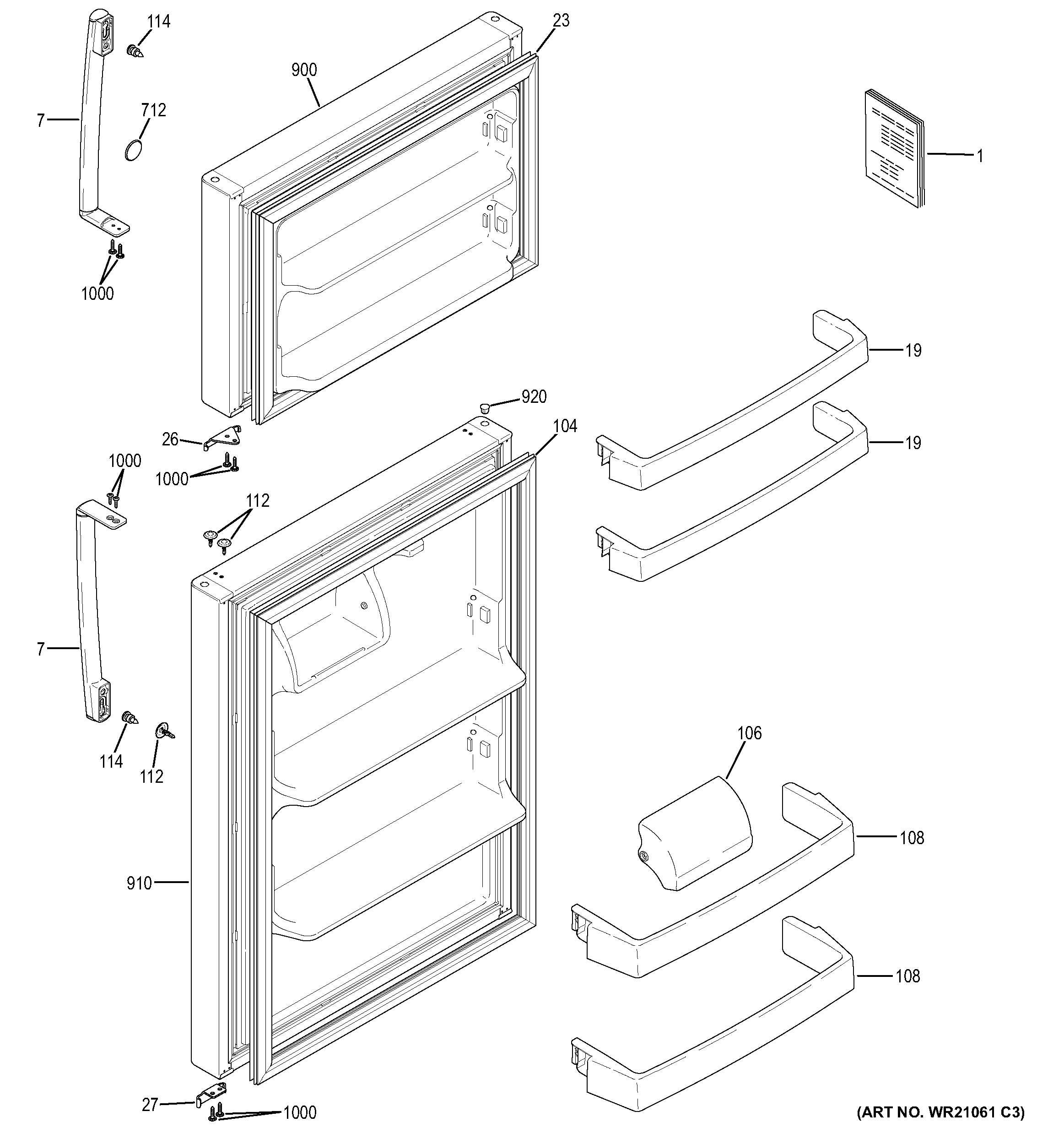

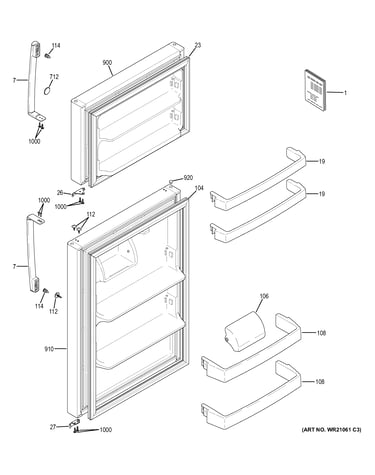

• Door shelf rails and bins (broken or loose door storage)

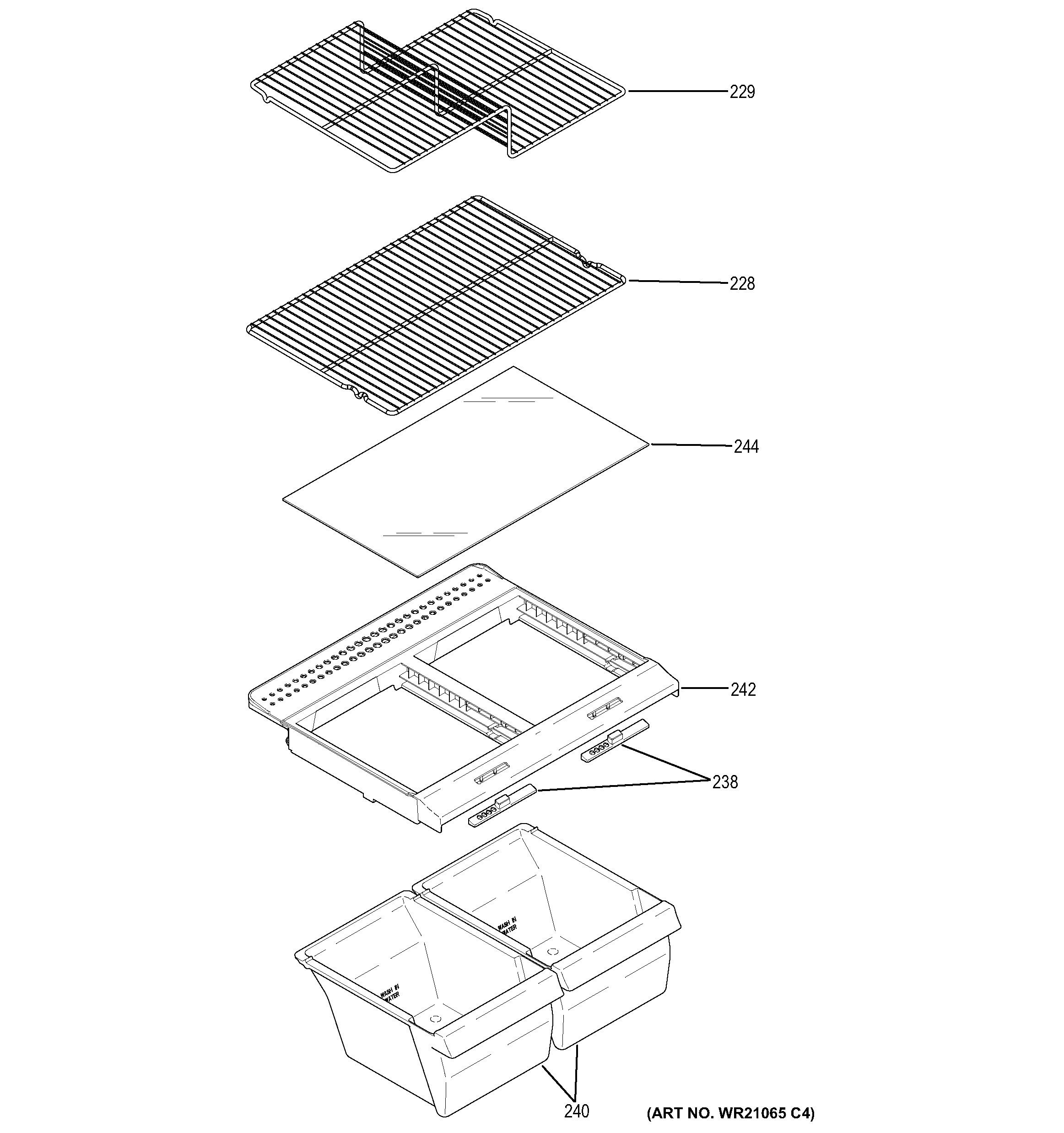

• Crisper drawer and related trim pieces

Repairs we treat as advanced (use a qualified service professional)

The manual calls out that repairs should be performed by a qualified service professional; we follow that guidance for higher-risk work.

• Sealed cooling system work (compressor, evaporator, refrigerant lines)
• Electrical diagnosis beyond simple part swaps
• Fan wiring repairs or control-related troubleshooting
• Any repair requiring extended operation with panels removed

Safety steps we follow before any repair

Unplugging is critical because turning controls “OFF” does not remove power to some circuits (including the light circuit).

• Unplug the refrigerator before replacing parts, bulbs, or removing panels
• Keep hands away from the ice maker mechanism while the unit is plugged in
• Do not damage wiring when panels are off
• Replace all parts and panels before plugging back in
• Pull the refrigerator straight out (avoid side-to-side movement)

Common DIY parts for this model (examples)

Symptom	Likely DIY part	Part anchor
No interior light	Appliance light bulb, 40-watt	Appliance light bulb, 40-watt 40A15
Light stays off when door opens	Refrigerator door switch	Refrigerator door switch WR23X31507
Frost, moisture, or warm air leaks	Refrigerator door gasket	Refrigerator door gasket WR14X27234

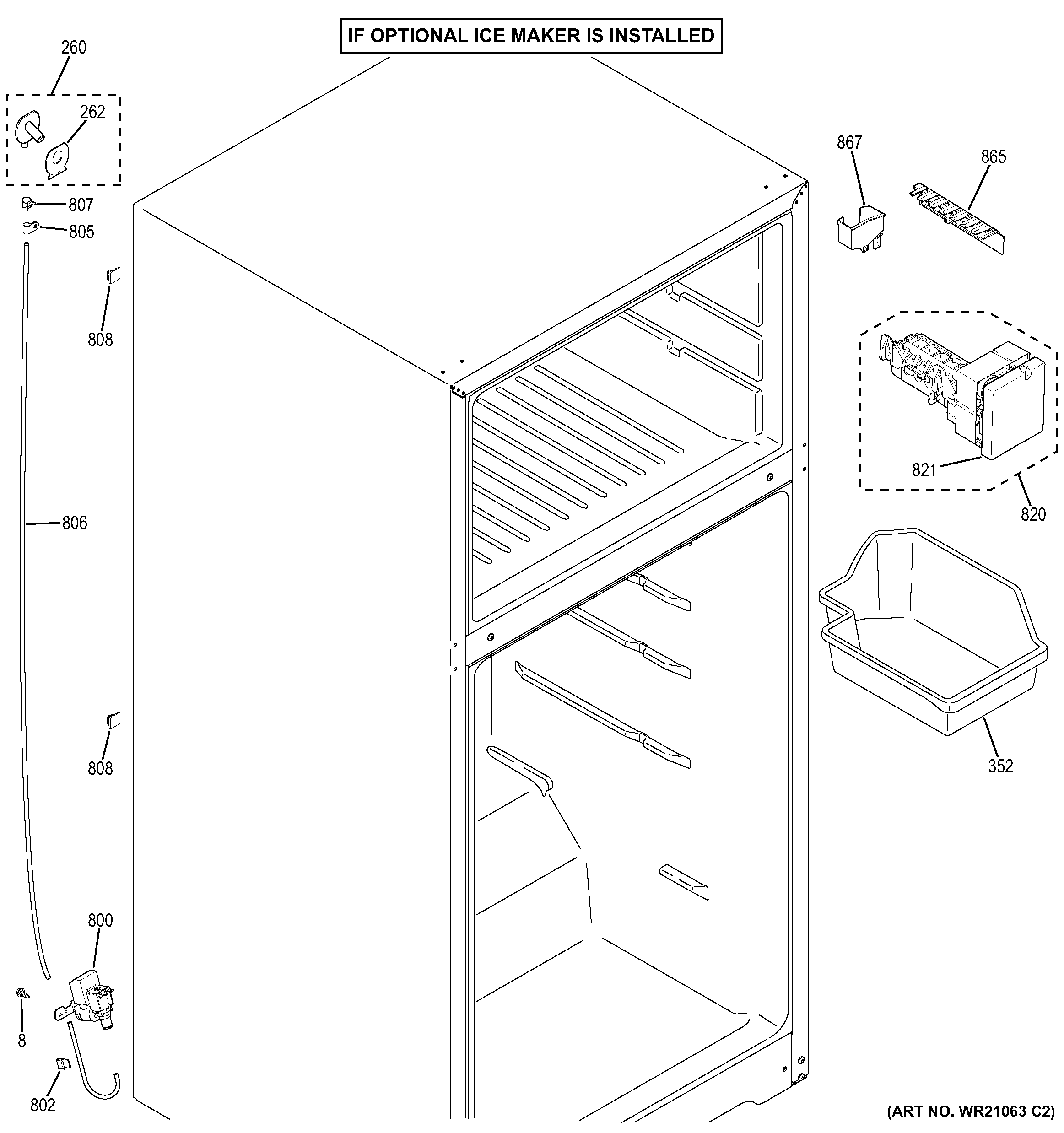

No ice (if equipped)	GE refrigerator ice maker kit	GE refrigerator ice maker kit WR30X10093

Why it matters

Choosing the right DIY repair saves time and prevents repeat failures. Simple mechanical parts (gaskets, shelves, bulbs) are low-risk, but sealed-system and complex electrical work can create shock hazards and cooling damage if handled incorrectly.

Last updated: February 2026

A top-mount (top-freezer) refrigerator like the GE GTS16DTHBRBB typically makes fresh-food access less convenient because the refrigerator section sits lower, and it usually offers fewer premium organization and dispenser features than many bottom-freezer designs.

Common disadvantages you may notice

• More bending for everyday items: fresh food is below the freezer, so you reach down more often.
• Less “eye-level” organization: shelves and drawers can feel less convenient for frequently used items.
• Fewer built-in dispenser options: many top-mount models do not include through-the-door ice or water.
• Smaller freezer usability: the top freezer can be narrower and more “stacking” oriented.
• More temperature swings with frequent freezer use: opening the top freezer often can affect airflow and temps in a simple top-freezer layout.

What you can do to minimize the downsides

We see a few simple setup habits make a top-mount refrigerator easier to live with:

• Keep daily-use items on the most accessible fresh-food shelf.
• Use drawers for produce and group foods by category to reduce door-open time.
• Set the temperature control to the recommended starting point, then adjust gradually; see the owner's manual.
• Make sure shelves are seated correctly on the supports so they do not tilt or slide.
• If you want automatic ice, confirm your unit is equipped or add the correct kit for this model.

Feature comparison (typical)

Feature	Top-mount (top-freezer)	Bottom-mount (bottom-freezer)
Fresh-food access	Lower, more bending	Higher, easier reach
Organization	Often simpler	Often more flexible
Dispensers	Less common	More common
Cost to buy/repair	Often lower	Often higher

Why it matters

Most households use the fresh-food compartment far more than the freezer. With a top-mount design, that means comfort and convenience can be the main tradeoff, even though top-mount refrigerators are often straightforward to maintain.

Last updated: February 2026

For your GE GTS16DTHBRBB top-mount refrigerator, we recommend ordering replacement parts by matching your complete model number and the exact part ID to the part you need. Your model and serial label is located on the left side near the middle of the refrigerator compartment (see the owner's manual).

How we recommend ordering parts (fastest and most accurate)

• Find the model and serial label inside the fresh food compartment (left wall, mid-height).
• Use the exact model number GTS16DTHBRBB when searching.
• Identify the failed part by symptom (no cooling, no light, leaking, door not sealing).
• Match the part by part ID (not just the description).
• Confirm the part fits your exact model before checkout.

Common parts customers order for this model

If you are troubleshooting a specific issue, these are frequently replaced items for the GTS16DTHBRBB:

Symptom	Likely part to check	Example part on this page
No ice production (if equipped)	Ice maker assembly and water supply	GE refrigerator ice maker kit WR30X10093
Refrigerator light out	Bulb, socket, door switch	GE appliance light bulb, 40-watt 40A15
Warm fresh food section	Evaporator fan motor	Refrigerator evaporator fan WR60X31522
Door not closing or warm air leaks	Door gasket	Refrigerator door gasket WR14X27234

Why the model and serial number matter

GE uses model and serial information to ensure the correct revision of parts (like a door gasket, evaporator fan motor, or ice maker kit) is selected. Ordering by exact model number reduces returns and speeds up repair.

Helpful tip before you buy

If your refrigerator has an ice maker or autofill feature, the manual notes it must be connected to a cold water line and a shutoff valve. Reviewing the water line section in the owner's manual helps you confirm what your unit supports before ordering water-related parts.

Last updated: February 2026

The most common issues we see on GE Profile refrigerators are ice maker problems and cooling problems. Even though your GE GTS16DTHBRBB is a top-mount model (not a Profile unit), the same core failure areas apply: water supply to the ice maker, airflow from the evaporator fan, and defrost performance (ice buildup restricting airflow). See the GTS16DTHBRBB owner's manual for model-specific troubleshooting steps.

Most common symptoms and what they usually point to

• Ice maker not making ice: water line not connected, ice maker switched off, or freezer not cold enough
• Warm refrigerator section: weak airflow from the evaporator fan, blocked vents, or heavy frost load

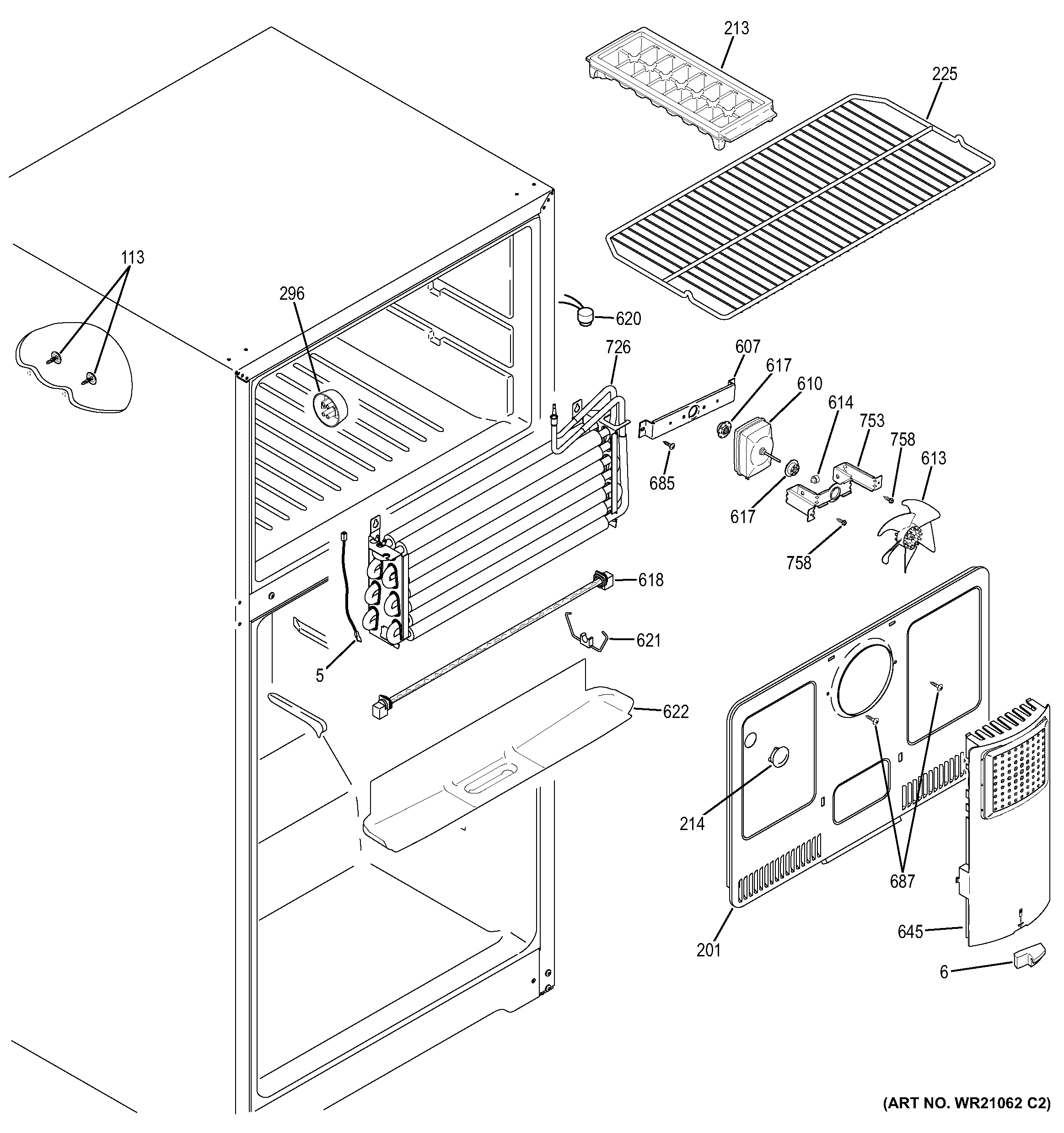

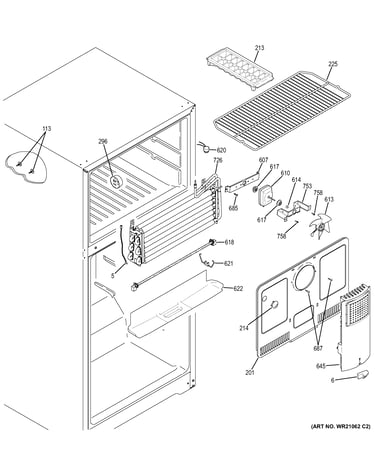

• Frost buildup in freezer: defrost system issue (heater, controls, or airflow restrictions)
• Water leaking or puddles: water line/valve issues or a defrost drain problem
• Lights not working when door opens: door switch or bulb/socket issue

Quick checks we recommend first (fast, no parts)

1. Confirm freezer temperature is cold enough for ice production (many GE units need about 15°F or colder before the ice maker will cycle).
2. Make sure the refrigerator is actually connected to a cold water supply and the shutoff valve is open.
3. Check that freezer vents are not blocked by packages; good circulation prevents frost load and warm spots.
4. Listen for the evaporator fan running when the compressor is on (a stalled fan often causes warming).
5. If the light stays off or flickers, press the door switch by hand to test it.

Parts that commonly solve these problems on GTS16DTHBRBB

Problem area	What fails most often	Example part for this model
Ice maker system	Ice maker module or assembly	GE refrigerator ice maker kit WR30X10093
Cooling airflow	Evaporator fan motor	Refrigerator evaporator fan WR60X31522
Defrost	Defrost heater	Refrigerator defrost heater WR09X21107
Interior light/door sensing	Door switch or bulb	Refrigerator door switch WR23X31507, GE appliance light bulb, 40-watt 40A15

Why it matters

Ice maker and cooling complaints usually share the same root cause: temperature and airflow control. If the freezer cannot stay cold enough or air cannot move through the evaporator area, you will see slow ice production, warming in the fresh food section, and frost buildup.

Last updated: February 2026

Yes. GE Café is considered a high-end (premium) GE appliance line; it’s positioned above standard GE models with upgraded design, finishes, and feature sets. That said, your GE GTS16DTHBRBB is a GE top-mount refrigerator model, not a GE Café model.

How GE lines typically compare

GE uses different product lines to target different budgets and feature needs. Here’s the practical way we see them separated when customers shop for refrigerators and parts:

• GE (standard line): core features, value-focused configurations
• GE Café: premium styling and feature upgrades (often more configuration options)
• GE Monogram: luxury-tier offerings with higher-end design and built-in options
• GE Profile (where applicable): step-up features above standard GE, typically below Café/Monogram

What this means for parts and repairs

Brand line matters most for fit and compatibility. For repairs, we always match parts to the exact model number (GTS16DTHBRBB), not the marketing line name.

Common GTS16DTHBRBB-RELATED parts customers replace include:

• GE refrigerator ice maker kit WR30X10093 (if your unit is ice-maker ready)
• GE appliance light bulb, 40-watt 40A15 (interior light not working)
• Refrigerator door gasket WR14X27234 (warm spots, moisture, or poor door seal)
• Refrigerator evaporator fan WR60X31522 (warm fridge section, weak airflow)

Quick comparison table

Line name	Market position	Typical focus
GE	Standard	Essentials, value
GE Café	High end	Design-forward finishes, upgraded features
GE Monogram	Luxury	Built-in styles, premium materials

Why it matters

Knowing whether a refrigerator is GE, GE Café, or GE Monogram helps set expectations for features and styling, but the model number is what determines the correct replacement parts, wiring, and service procedures. For model-specific details like features and identification label location, use the owner's manual.

Last updated: February 2026
