Does the Whirlpool WRB322DMBW00 have a water filter?

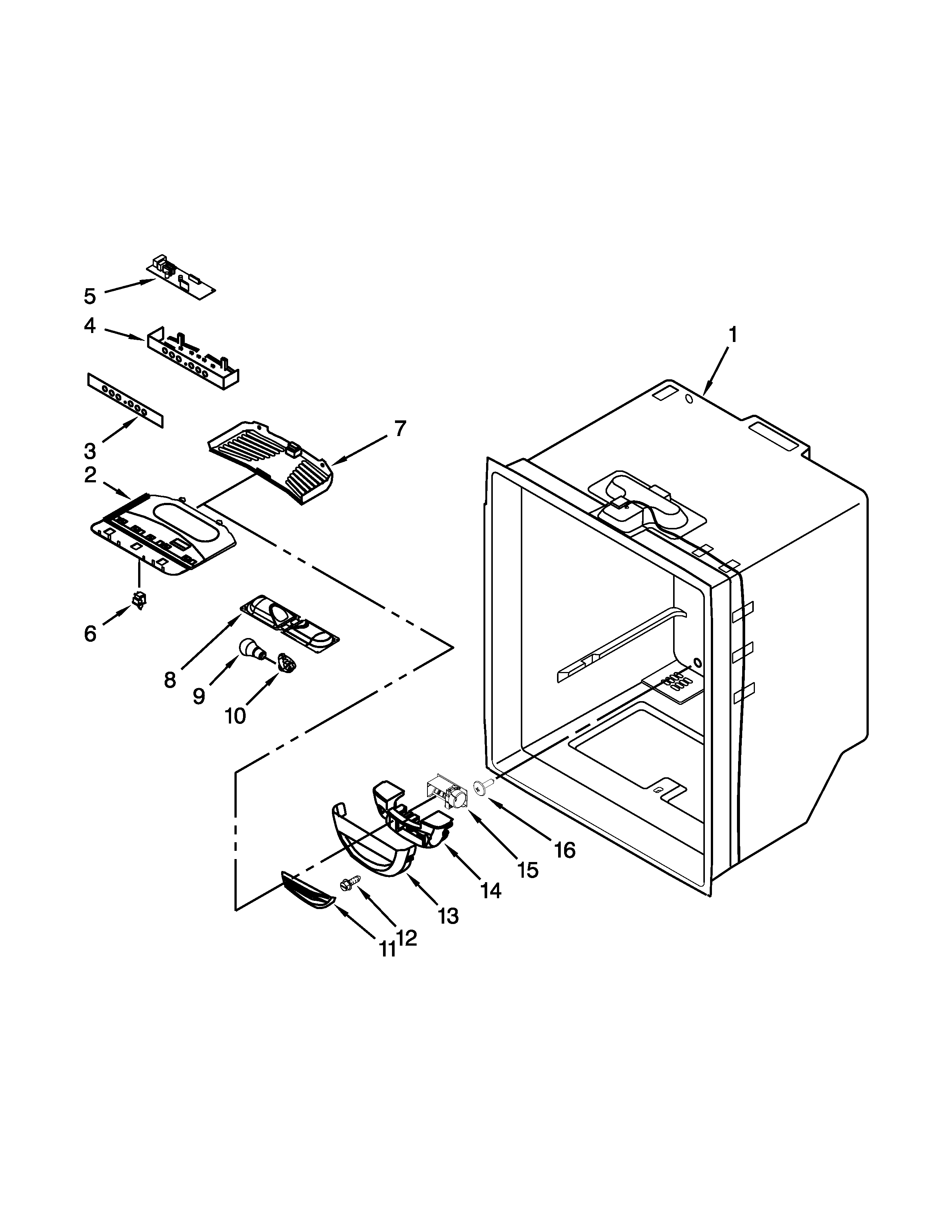

Yes. The Whirlpool WRB322DMBW00 has a built-in water filtration system; the water filter sits in the upper right-hand corner of the refrigerator compartment and is designed to filter water for the dispenser and ice maker. See the owner's manual for the exact location and replacement steps.
On this model, the filter is inside the fresh food (refrigerator) section, not behind the grille or in the freezer drawer.
- Location: upper right-hand corner of the refrigerator compartment
- Purpose: filters water feeding the water dispenser and ice maker
- Replacement interval: at least every 6 months (replace sooner if flow drops)
- Bypass option: the dispenser can run without a filter installed (water will not be filtered)
Use this checklist to confirm what you are seeing:
- Open the refrigerator door and look at the upper right interior area for a filter head and cover
- If you see a blue bypass cap, the filter is currently bypassed
- If water flow is weak, remove and reinstall the filter to ensure it is seated correctly
- If flow improves with the filter removed, the filter is likely clogged and should be replaced
| Symptom | Most common cause | What to do next |
|---|---|---|
| Slow water dispensing | Clogged filter | Replace the filter; then flush the system |
| Filter pops out or sprays when removed | Air trapped in water system | Dispense water for at least 2 minutes before removing filter |
| No water at dispenser | Door not fully closed or low supply pressure | Close door firmly; verify shutoff valve is fully open |

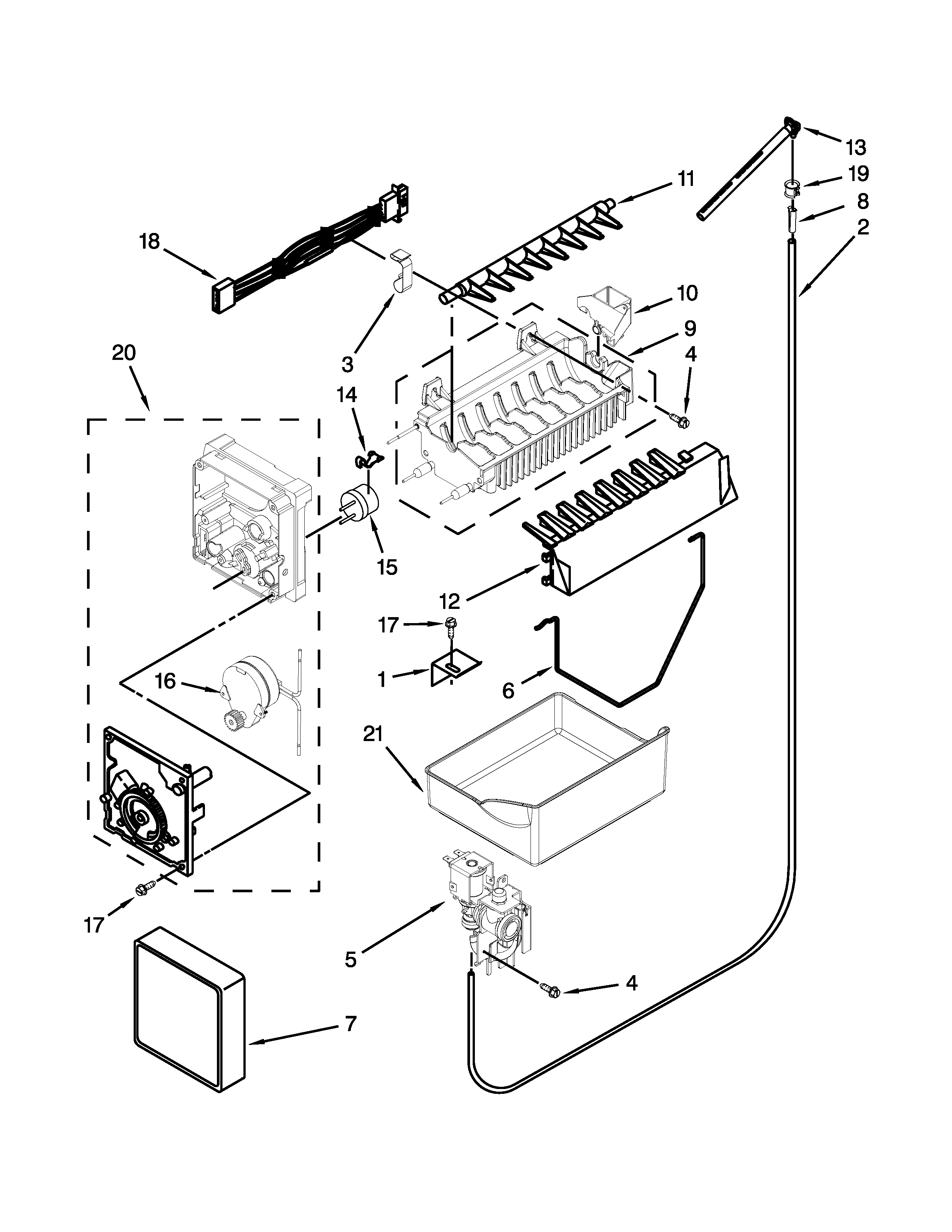

| Ice maker slow | Low pressure or restricted filter | Check pressure (typical minimum is 35 psi); replace filter if needed |
A properly installed, regularly replaced filter helps maintain water taste and flow rate. A clogged filter can mimic bigger problems (like a weak inlet valve) and can reduce dispenser and ice maker performance.
For broader part and model lookups beyond this page, search by model number on Sears PartsDirect.
Last updated: February 2026
How do I remove the base grille on my Whirlpool refrigerator?
On your Whirlpool WRB322DMBW00 bottom-mount refrigerator, remove the base grille by grasping it firmly with both hands and pulling it straight toward you. On some installations, you will remove two mounting screws first, then pull the grille forward; see the owner's manual.
- Unplug the refrigerator (recommended anytime you are working near wiring or moving the unit).
- Look along the top edge of the base grille for mounting screws.
- If your grille has screws, remove the two screws and set them aside.
- Grasp the grille firmly with both hands.
- Pull the grille straight toward you to release the clips.
- Move the grille out of the way so you can access the leveling screws, rollers, or condenser area.
Align the grille and secure it the same way it came off.
| Grille style | What you do | What to keep track of |
|---|---|---|
| Clip-on (no screws) | Align and push until it snaps in | Clip alignment at both ends |
| Screw-mounted | Align holes, install the 2 screws, then snug them | The 2 screws you removed |

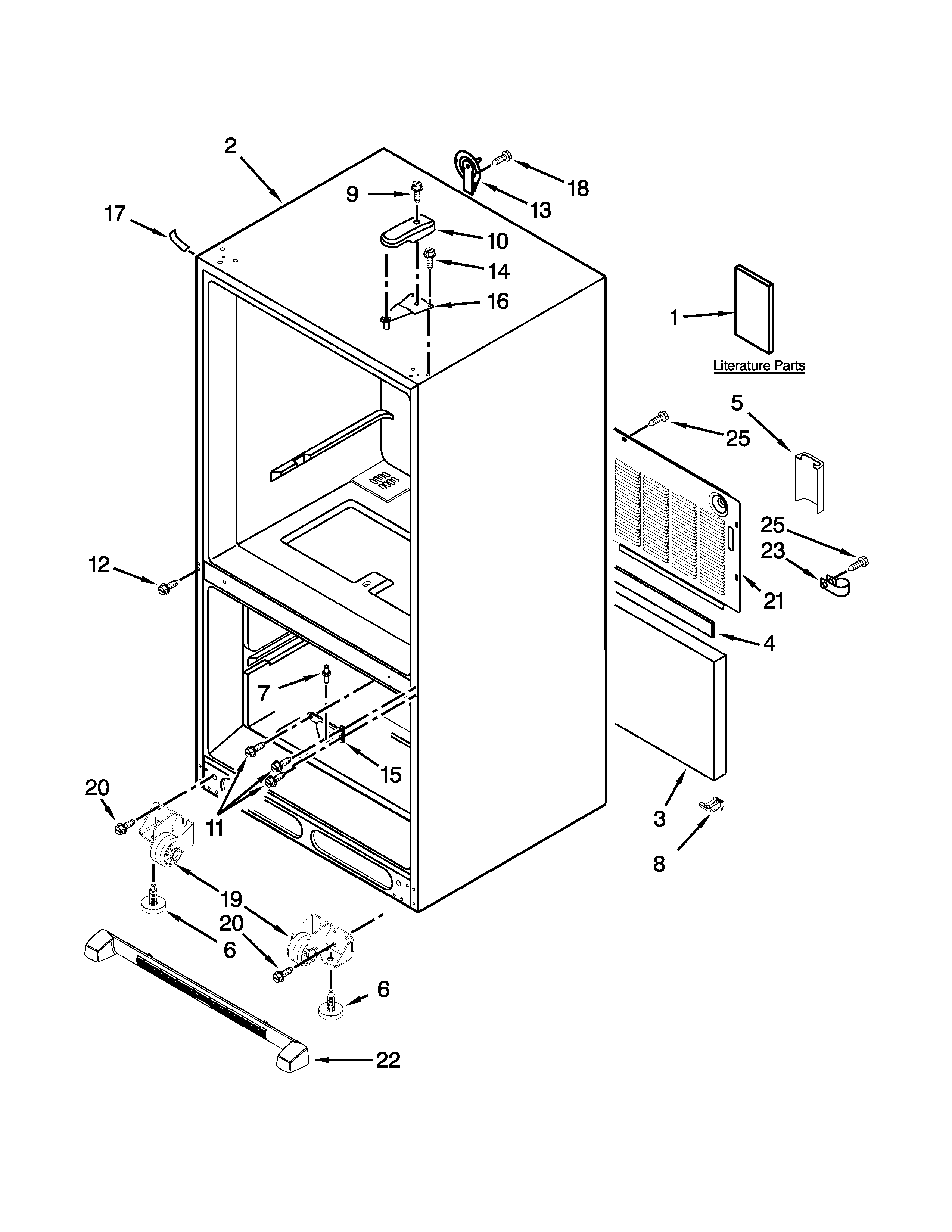

The base grille covers the leveling screws and roller assemblies. Removing it lets us level the refrigerator for better door closing and gives access for cleaning behind the grille (including the condenser area).
If you are removing the grille to troubleshoot cooling or airflow, these model-matched parts are commonly involved:

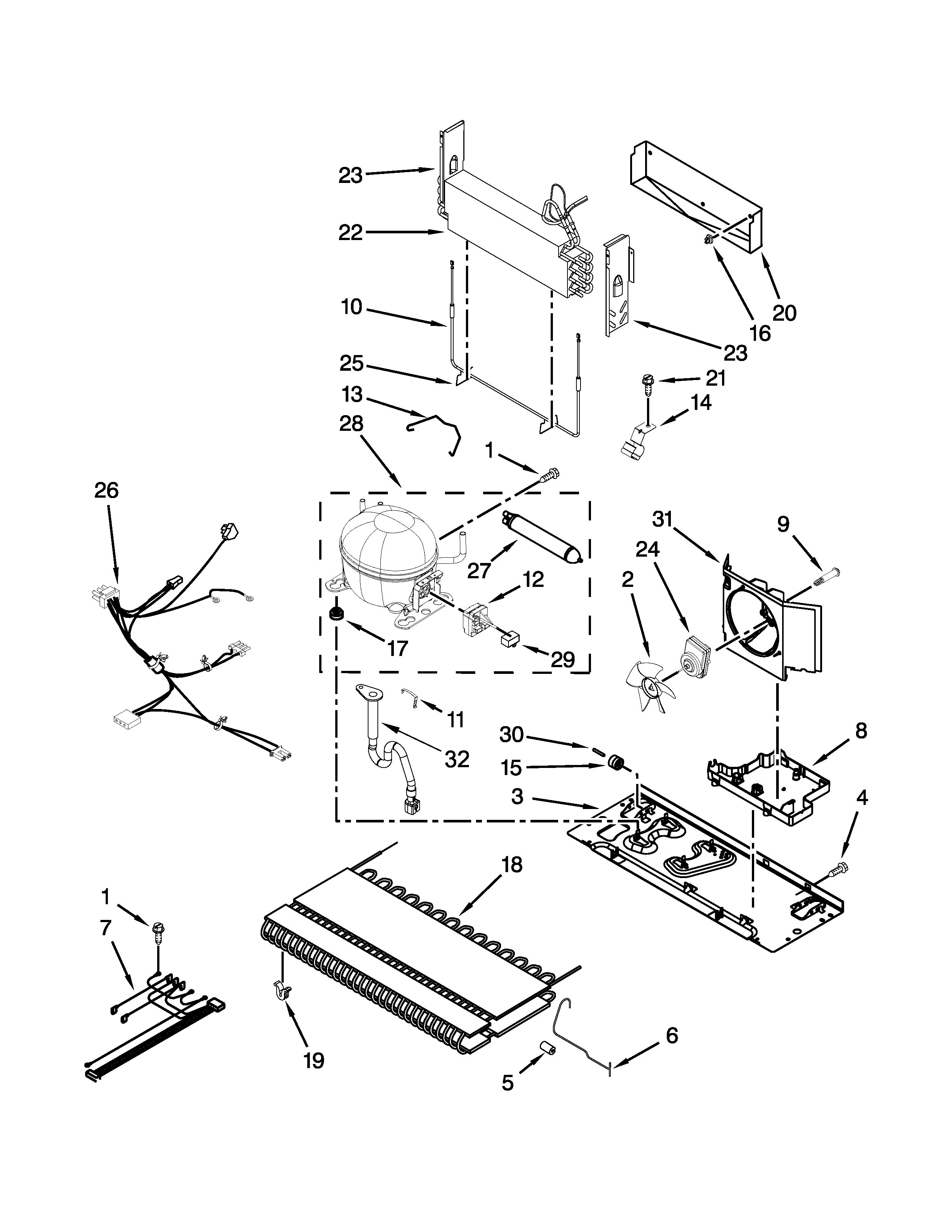

- Refrigerator condenser fan motor W11613295 (moves air across the condenser)
- Refrigerator electronic control board WPW10503278 (controls cooling functions)
- Refrigerator evaporator fan blade WP2169142 (circulates cold air in the cabinet)
You can order WRB322DMBW00 replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.
Last updated: February 2026
How to pull out racks from bottom freezer whirlpool refrigerator?

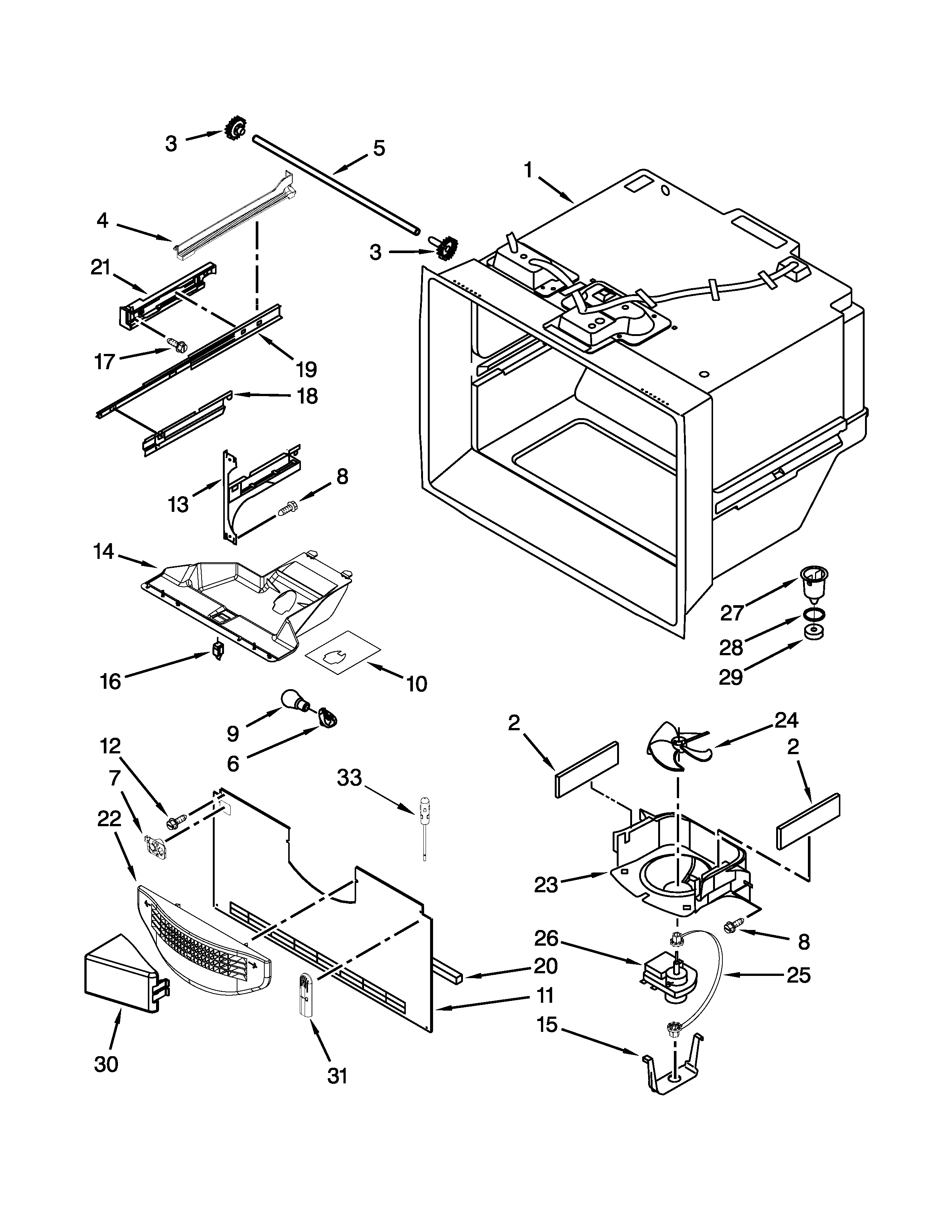

On the Whirlpool WRB322DMBW00 bottom-mount refrigerator, you typically remove the bottom freezer baskets by fully extending the drawer, lifting the basket up to clear the side rails, then pulling it out. If the basket hangs up, check for a rail stop or screw that must be released first; see the WRB322DMBW00 owner's manual for the exact drawer/rail style on your unit.
- Pull the freezer drawer all the way open.
- Remove any loose items so the basket can lift straight up.
- Lift the front of the basket up to unhook it from the slide rails.
- Lift the back of the basket up (if needed) to clear the rear rail tabs.
- Pull the basket out of the drawer opening.
- Repeat for the upper basket (if your configuration has one).
These are the most common causes on bottom-mount freezer drawers:
- Ice buildup along the rails or basket edges; defrost and dry the area.
- A rail stop, clip, or screw is still engaged; look near the front of each slide.
- The drawer is not fully extended; the basket hooks will not clear the rails.
- The basket is twisted from an uneven lift; lift both sides evenly.
- A damaged slide/rail is binding; inspect for bent metal or cracked plastic.
| What you see | Most likely cause | What to do next |
|---|---|---|
| Basket lifts slightly then drops back in | Hooks still engaged on rails | Lift higher at the front, then the rear |
| One side releases, the other stays stuck | Uneven lift or binding rail | Lift both sides together; check for ice |
| Grinding or heavy resistance | Rail/slide problem | Inspect rails; consider replacing the slide |
Removing the freezer baskets the right way prevents cracked basket frames and keeps the slide rails aligned, which helps the freezer drawer seal properly and maintain stable temperatures.
If you find a broken rail component while removing the basket, the refrigerator freezer slide rail W11658402 is a common replacement for this model.
You can also order WRB322DMBW00 replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.
Last updated: February 2026
