Hotpoint RGB524ER1 gas range

Hotpoint RGB524ER1 gas range Parts

Here are the diagrams and repair parts for Hotpoint RGB524ER1 gas range, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for RGB524ER1 Ranges

#461

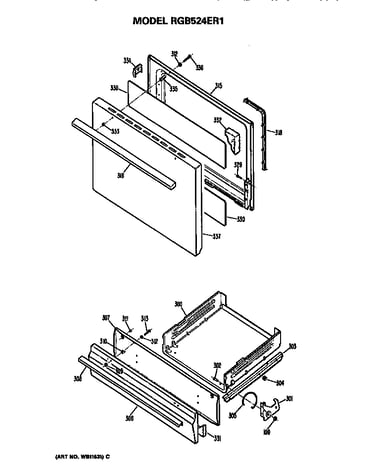

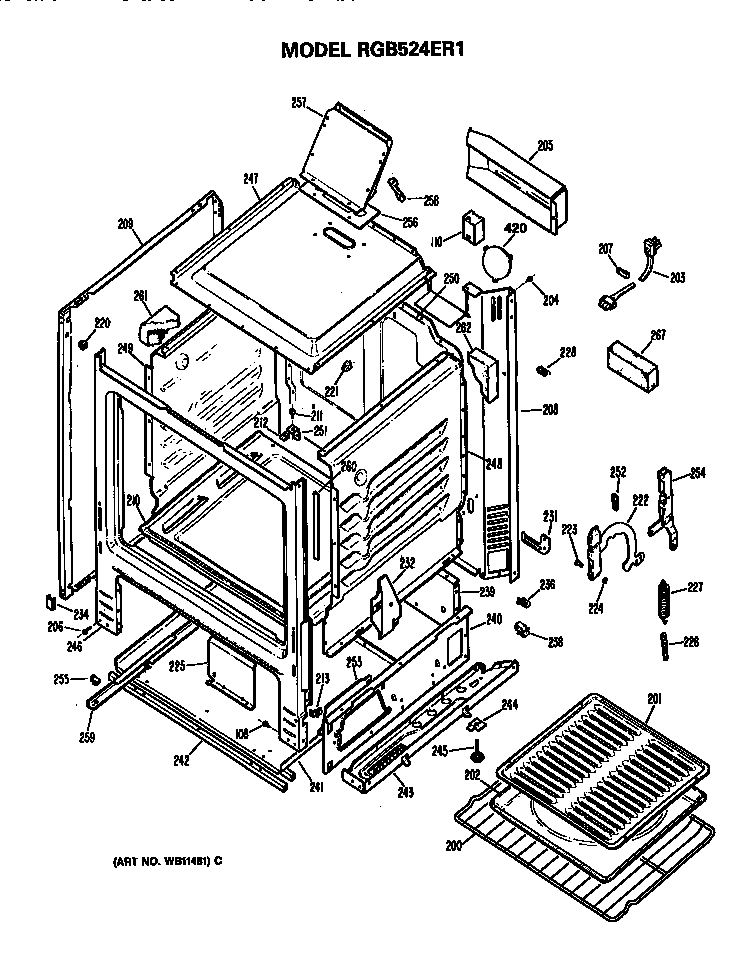

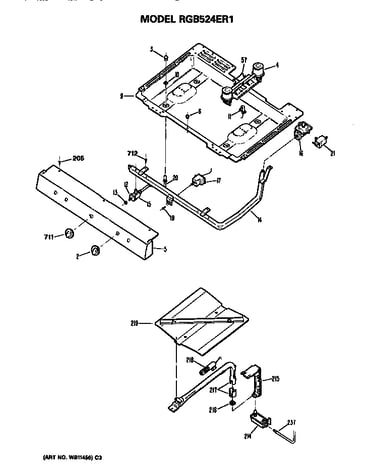

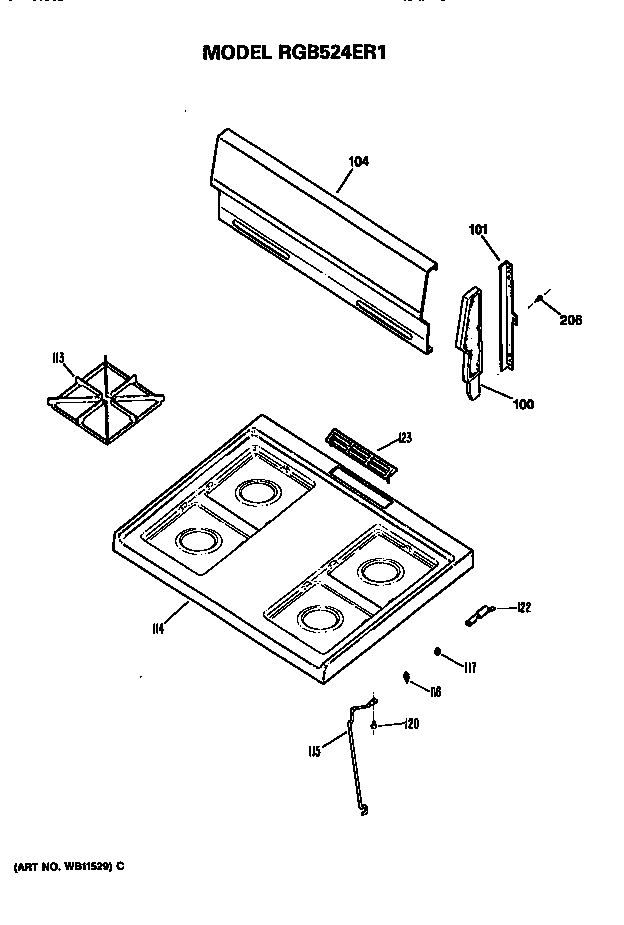

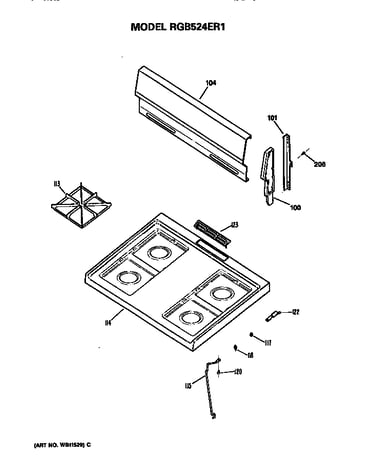

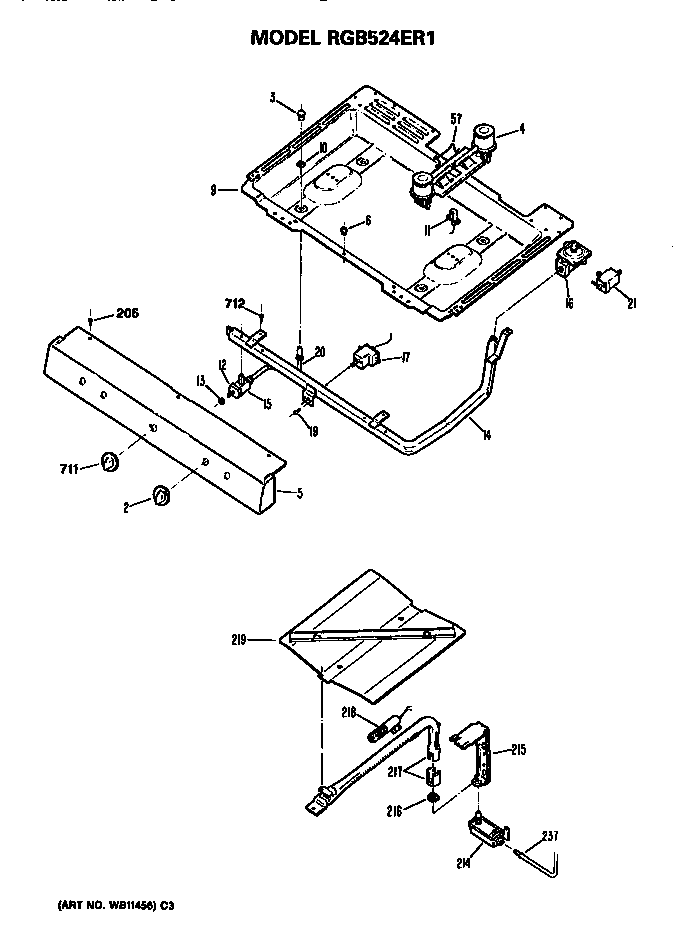

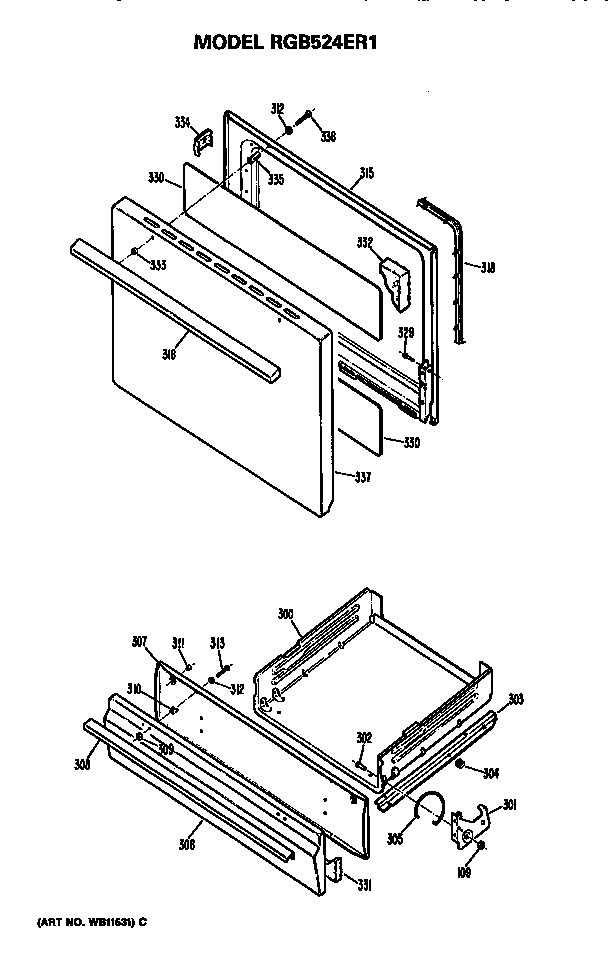

All parts diagram
Screw
Part #WB1X593
Replaced by #WB1X536
Manufacturer substitution
This part replaces WB1X593. Substitute parts can look different from the original.
In Stock
$10.32
16% OFF Phone Price : $12.32
Qty
#262
All parts diagram
Range Oven Insulation, Rear
Part #WB35K16
In Stock
$51.25
10% OFF Phone Price : $57.25
Qty
#311
All parts diagram
Range Door Bumper
Part #WB2K15
In Stock
$10.90
16% OFF Phone Price : $12.90
Qty
#114
All parts diagram
Rgetop Flat
Part #WB62K16
Replaced by #WB62K10001
Manufacturer substitution
This part replaces WB62K16. Substitute parts can look different from the original.
In Stock
$277.13
$12.00 OFF Phone Price : $289.13
Qty
#114
All parts diagram
Range Top
Part #WB62K15
Replaced by #WB62K10001
Manufacturer substitution
This part replaces WB62K15. Substitute parts can look different from the original.
In Stock
$277.13
$12.00 OFF Phone Price : $289.13
Qty
#206
All parts diagram
Range Screw
Part #WB1K21
Replaced by #WR01X10065
Manufacturer substitution
This part replaces WB1K21. Substitute parts can look different from the original.
This item is not returnable
In Stock
$8.38
11% OFF Phone Price : $9.38
Qty
#208
All parts diagram
Range Bac
Part #WB63K20
In Stock
$93.51
Qty
#117
All parts diagram
Range Main Top Guide Pin
Part #WB2K17
In Stock
$55.48
Qty
#207
All parts diagram
Cable Clamp
Part #WB2K36
In Stock
$8.48
11% OFF Phone Price : $9.48
Qty
#13
All parts diagram
Range Surface Burner Valve Guard
Part #WB2K24
This item is not returnable
In Stock
$36.59
14% OFF Phone Price : $42.59
Qty
