To clean the coils on your Kenmore side-by-side refrigerator model 3639512481, unplug the refrigerator, remove dust from the condenser coil area with a coil brush and vacuum, then restore power. Clean coils help the compressor run cooler and improve overall cooling efficiency.

Before you start (safety and access)

• Unplug the refrigerator (or switch off the breaker) before cleaning.
• Pull the refrigerator straight out to avoid damaging the water line.
• If your model has a lower front grille (toe kick), remove it to access the coil area.
• If the coils are on the back, give yourself enough space to work behind the cabinet.
• Keep the vacuum nozzle and brush away from wiring and small plastic tubing.

Step-by-step: cleaning the condenser coils

• Vacuum loose dust and pet hair first (floor and grille area).
• Use a soft coil brush to loosen packed lint on the coils.
• Vacuum again to remove what the brush lifts off.
• Clean the condenser fan area if accessible; built-up lint there can also restrict airflow.
• Reinstall the grille (if removed), push the refrigerator back carefully, then plug it in.

How often we recommend cleaning

Home situation	Typical coil cleaning interval
Pets or heavy dust	Every 3 months
Average household	Every 6 months
Very clean, low dust	Every 12 months

Why it matters

Dirty condenser coils trap heat, which makes the sealed system work harder. That can lead to warmer refrigerator temperatures, longer run times, and extra wear on the compressor.

If cleaning does not fix warm temperatures

After cleaning, give the refrigerator 12 to 24 hours to stabilize. If it still runs warm, these are common next checks:

• Confirm the condenser fan is running when the compressor runs.
• Make sure vents inside the fresh food and freezer compartments are not blocked.
• Check door gaskets for gaps and moisture.
• If you suspect a failed condenser fan motor, match parts by model and consider the refrigerator fan motor WR60X187.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 3639512481 are cooling issues, water leaks, ice maker or dispenser failures, and unusual noises. These typically trace back to airflow restrictions, defrost system trouble, or worn components such as fan motors, water valves, and dispenser parts.

Most common symptoms and what usually causes them

• Not cooling or warm temperatures: dirty condenser coils, failed condenser/evaporator fan, or a defrost problem
• Frost buildup on the freezer back wall: defrost timer/control, defrost thermostat, or airflow blockage
• Water under the refrigerator or in the fresh food section: clogged defrost drain, loose water line, or leaking inlet valve
• Ice maker not making ice: restricted water supply, frozen fill tube, or inlet valve issue
• No ice dispensing or weak dispensing: dispenser solenoid or auger drive problems
• Buzzing, rattling, or grinding noises: fan motor, ice maker mechanism, or items vibrating inside

Quick checks we recommend first (fast, no parts)

1. Confirm temperatures: 0°F freezer and 37°F fresh food.
2. Make sure vents are not blocked by food packages.
3. Clean condenser coils and verify the condenser area has good airflow.
4. Check door closing and sealing; a poor seal causes frost and long run times.
5. If you have an ice maker, confirm the household water supply valve is fully open.

Parts that commonly fix these problems on model 3639512481

If troubleshooting points to a failed component, these are common matches from the parts list for this model:

Symptom	Likely system	Example part on this model
Warm fridge/freezer, noisy rear area	Airflow (condenser side)	Refrigerator fan motor WR60X187
Frost buildup, warming over time	Defrost system	Refrigerator defrost control WR9X502 or refrigerator thermostat WR50X55
No water to ice maker/dispenser, leaking at back	Water supply	Water valve WR57X10033
Ice dispenser not opening/changing modes	Dispenser mechanism	Refrigerator solenoid WR62X23154
Ice maker fill issues (frozen or misdirected fill)	Fill tube/water path	Refrigerator water line WR17X1948

Why it matters

Most “big” refrigerator complaints (not cooling, leaking, no ice) start as small airflow or water-supply problems. Catching them early helps protect food, prevents ice buildup, and reduces strain on major components like the compressor.

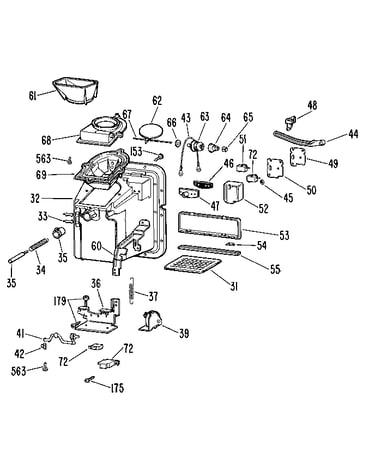

For dispenser-specific issues (ice not dispensing, stuck chute, broken trim), we use the same step-by-step approach shown in how to disassemble a Kenmore refrigerator dispenser.

Last updated: February 2026

On Kenmore side-by-side refrigerators like model 3639512481, the model number is printed on the appliance identification label. You will typically find that label inside the fresh food (refrigerator) compartment on a side wall near the top, or around the door opening.

Common places to check first

Look for a white or silver sticker that lists MODEL and SERIAL information. Check these spots in order:

• Inside the refrigerator section on the left or right wall (often upper area)
• On the frame around the refrigerator door opening (door jamb area)
• Behind the crisper drawers on the side wall
• On the ceiling of the fresh food compartment (less common)
• On the back exterior panel near the power cord (backup location)

What the label looks like (and what to write down)

The label usually includes both a model number and a serial number. For parts lookup and diagrams, we use the model number.

Item on label	What it’s used for	Example format
Model number	Finding correct parts and diagrams	3639512481
Serial number	Production details and dating	Letters and numbers

Tips so you get the exact model number

Small character differences matter when ordering parts such as a water inlet valve, hinge, or dispenser components.

• Copy the model number exactly as printed (all digits)
• Take a clear photo of the label before you close the door
• If the label is worn, use a flashlight and view from an angle
• Use the model number (not the serial number) when searching parts like the water valve WR57X10033

Why it matters

Kenmore side-by-side refrigerators can use different door hardware and water system parts depending on the exact model. Using 3639512481 helps match the correct diagrams and parts the first time.

Last updated: February 2026

On Kenmore model 3639512481, a sudden loss of cooling is usually caused by a power problem, airflow blockage, a failed fan motor, or a defrost system issue that lets frost choke off airflow. Start with the simple checks first, then move to fan and defrost diagnostics.

Quick checks we recommend first

• Confirm the outlet has power and the cord is fully seated; inspect the power cord WR23X10300 for damage.
• Make sure temperature controls were not accidentally changed.
• Check that both doors close and seal fully (warm air leaks can mimic “not cooling”).
• Look for blocked air vents inside the fresh food and freezer sections (packages pushed against vents).
• Clean condenser coils and make sure the unit has breathing room behind and underneath.

Most common “no cool” failures (what to look for)

Symptom	Most likely area	What you can check safely
Lights on, compressor sound normal, but compartments warm	Airflow problem	Vents blocked, heavy frost on freezer back wall
Freezer cold, refrigerator warm	Evaporator airflow/defrost	Frost buildup, weak airflow from vents
No ice, no water, and warm temps	Water supply issue is separate	Cooling issue is not caused by the water valve
Warm and you hear no fan near the back/bottom	Condenser fan	Fan not running, debris in fan area

Parts that commonly relate to cooling problems on this model

If your checks point to a failed component, these are common cooling-related parts listed for model 3639512481:

• Refrigerator fan motor WR60X187 (condenser fan; helps remove heat)
• Refrigerator defrost control WR9X502 (defrost timer/control; prevents frost overload)
• Refrigerator thermostat WR50X55 (defrost bi-metal thermostat; protects the defrost circuit)
• Refrigerator compressor WR87X10082 (sealed system component; typically a pro repair)

Why it matters

A side-by-side refrigerator cools by moving air: the sealed system makes cold, and fans and ducts distribute it. When airflow is blocked (ice, packaging, dirty coils) or a fan/defrost part fails, temperatures rise quickly even though the refrigerator still has power.

Helpful DIY guidance

For step-by-step dispenser and ice area access (often needed when diagnosing airflow and ice-related issues), use our guide: how to disassemble a Kenmore refrigerator dispenser.

Last updated: February 2026

For Kenmore model 3639512481, the cubic-foot capacity is the manufacturer’s listed storage volume (fresh food plus freezer). When the exact published capacity is not shown with the model details you have, the reliable way to get an accurate number is to measure the inside compartments and calculate cubic feet.

How to calculate cubic feet for model 3639512481

Measure the usable interior space (in inches) and convert to cubic feet.

• Unplug the refrigerator and remove bulky bins if they block measuring
• Measure inside width, height, and depth of the fresh food section
• Measure inside width, height, and depth of the freezer section
• Multiply each section’s measurements (in inches)
• Divide each result by 1,728; then add fresh food + freezer

Formula:

• Cubic feet = (W × H × D) ÷ 1,728

Typical capacity range (so you can sanity-check your result)

Most Kenmore side-by-side refrigerators of this style land in a 20 to 26 cu. ft. total-capacity range. If your calculation is far outside that range, recheck that you measured the interior and not the cabinet.

What you measure	Use it for cubic feet?	Why
Outside cabinet dimensions	No	Includes insulation, doors, and machinery space
Inside compartment dimensions	Yes	Reflects usable storage volume

Parts that do not change cubic feet (but affect usable space)

Replacing parts restores function, but it does not change the rated capacity.

• Refrigerator slide WR72X207 (drawer slide rail) affects drawer movement
• Refrigerator fan motor WR60X187 affects airflow and cooling performance
• Water valve WR57X10033 affects ice maker and water dispenser supply

Why it matters

Knowing cubic feet helps you compare like-for-like refrigerators and estimate real storage space. Using interior measurements gives a practical capacity number that matches how you load food day to day.

Last updated: February 2026
