Model # ZGU364LDP6SS Official GE gas cooktop

Here are the diagrams and repair parts for Official GE ZGU364LDP6SS gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

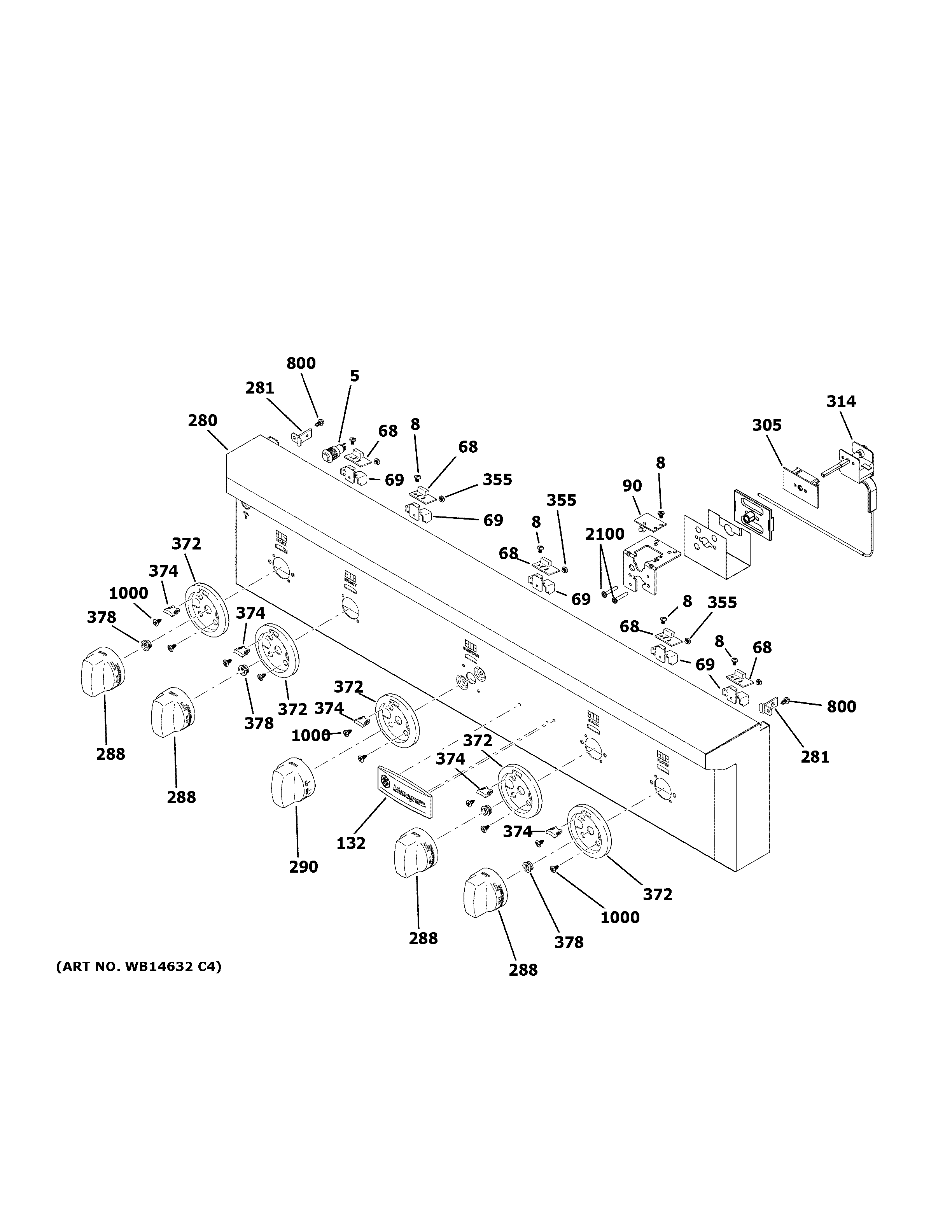

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |

Cerama Bryte Stainless Steel Brightener (replaces Wb06k10005) WB02T10111
Cerama bryte stainless steel brightener (replaces wb06k10005)

Part #WB02T10111

This item is not returnable
$17.00
11% OFF Phone Price : $19.00
In Stock
Range Surface Burner Grate Support (replaces Wb31k10225) WB31K10253
#252

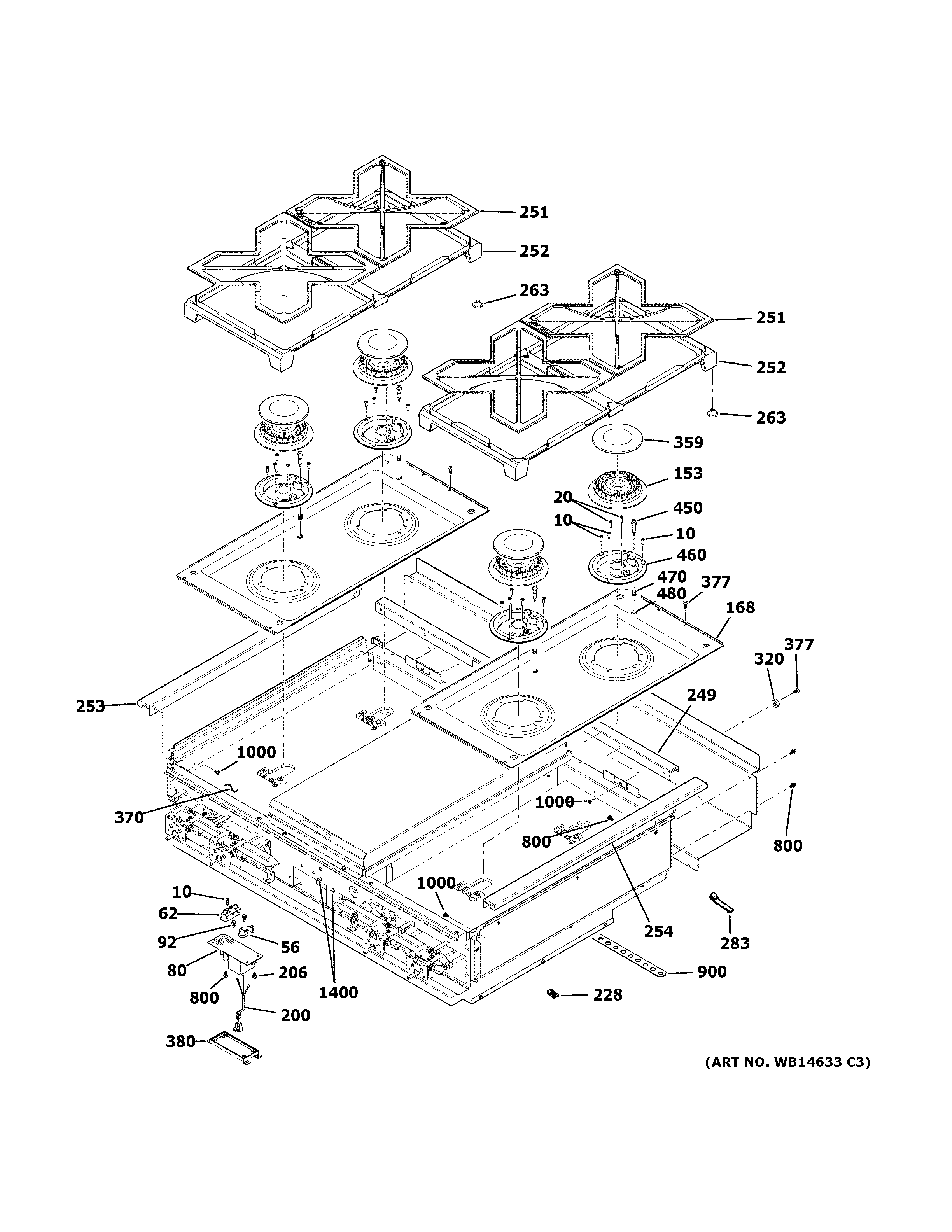

Cooktop diagram

Range surface burner grate support (replaces wb31k10225)

Part #WB31K10253

$209.10
5% OFF Phone Price : $219.10
In Stock
Range Surface Burner Igniter WB13T10065
#450

Cooktop diagram

Range surface burner igniter

Part #WB13T10065

This item is not returnable
$26.21
16% OFF Phone Price : $31.21
In Stock
Foot Grate WB02K10223
#263

Cooktop diagram

Foot grate

Part #WB02K10223

Replaced by #WB02K10364

?
Manufacturer substitution
This part replaces WB02K10223. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Brightener WB06K10004
#999

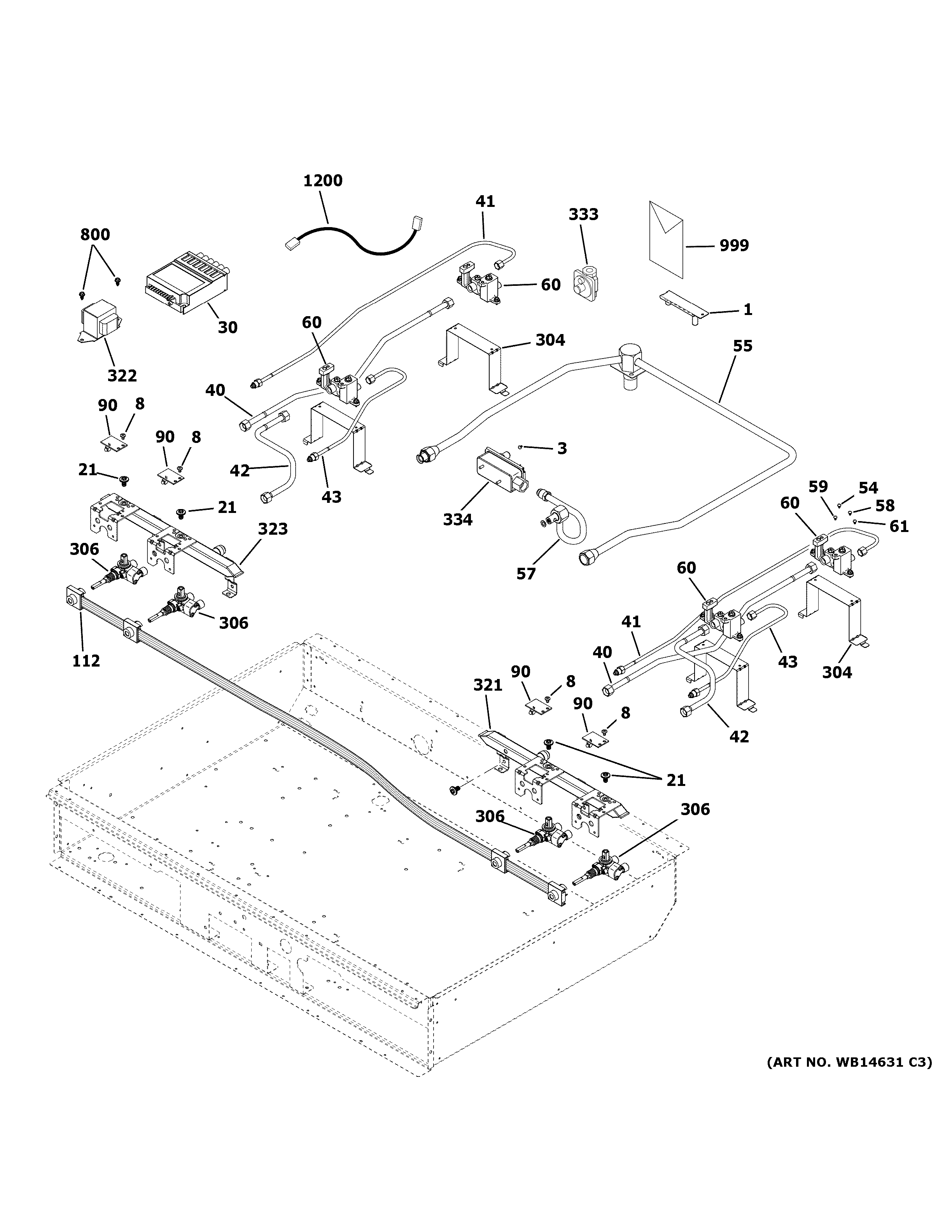

Gas & burner parts diagram

Brightener

Part #WB06K10004

Replaced by #WB02T10111

?
Manufacturer substitution
This part replaces WB06K10004. Substitute parts can look different from the original.
This item is not returnable
$17.00
11% OFF Phone Price : $19.00
In Stock
Range Griddle Butcher Block Cover WB31K10223
#781

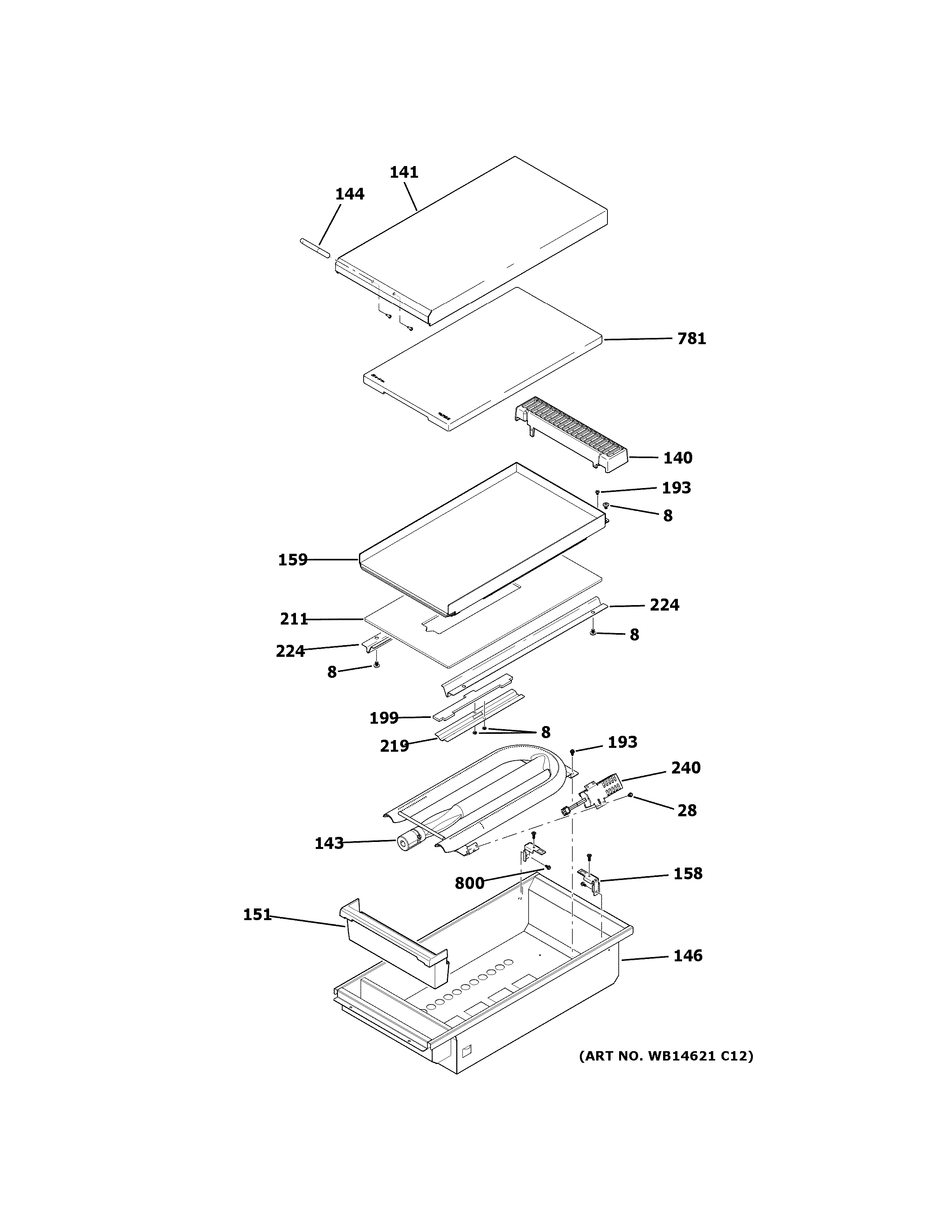

Griddle assembly diagram

Range griddle butcher block cover

Part #WB31K10223

$216.37
$10.00 OFF Phone Price : $226.37
In Stock
Range Surface Burner Igniter Spring WB09T10011
#470

Cooktop diagram

Range surface burner igniter spring

Part #WB09T10011

This item is not returnable
In Stock
Range Surface Burner Base WB28T10114
#60

Gas & burner parts diagram

Range surface burner base

Part #WB28T10114

$69.69
7% OFF Phone Price : $74.69
In Stock
Range Surface Burner Orifice WB28T10118
#58

Gas & burner parts diagram

Range surface burner orifice

Part #WB28T10118

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Range Griddle Grease Tray WB49K10038
#151

Griddle assembly diagram

Range griddle grease tray

Part #WB49K10038

In Stock
