KitchenAid KSM154GBQ2RI0 mixer Parts
Here are the diagrams and repair parts for KitchenAid KSM154GBQ2RI0 mixer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

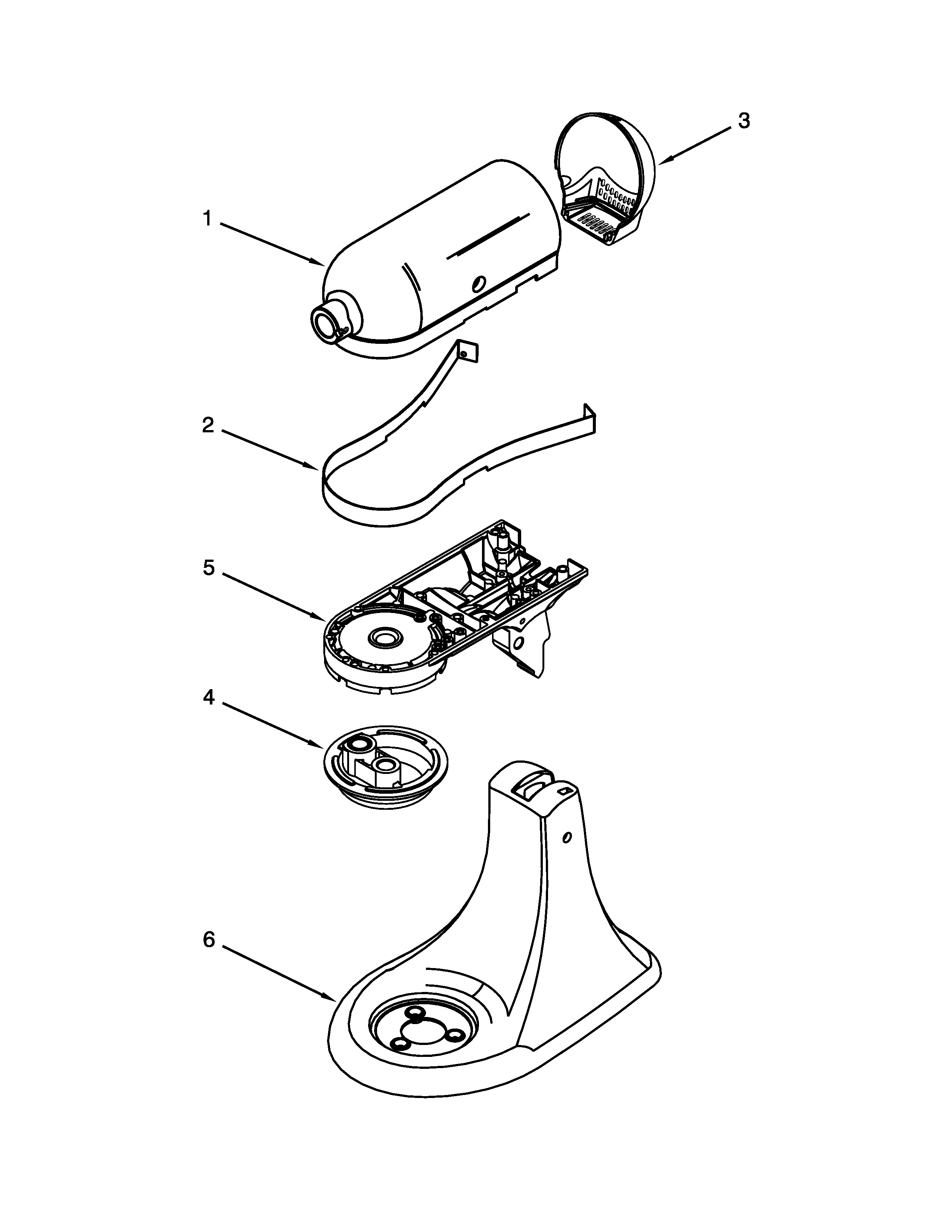

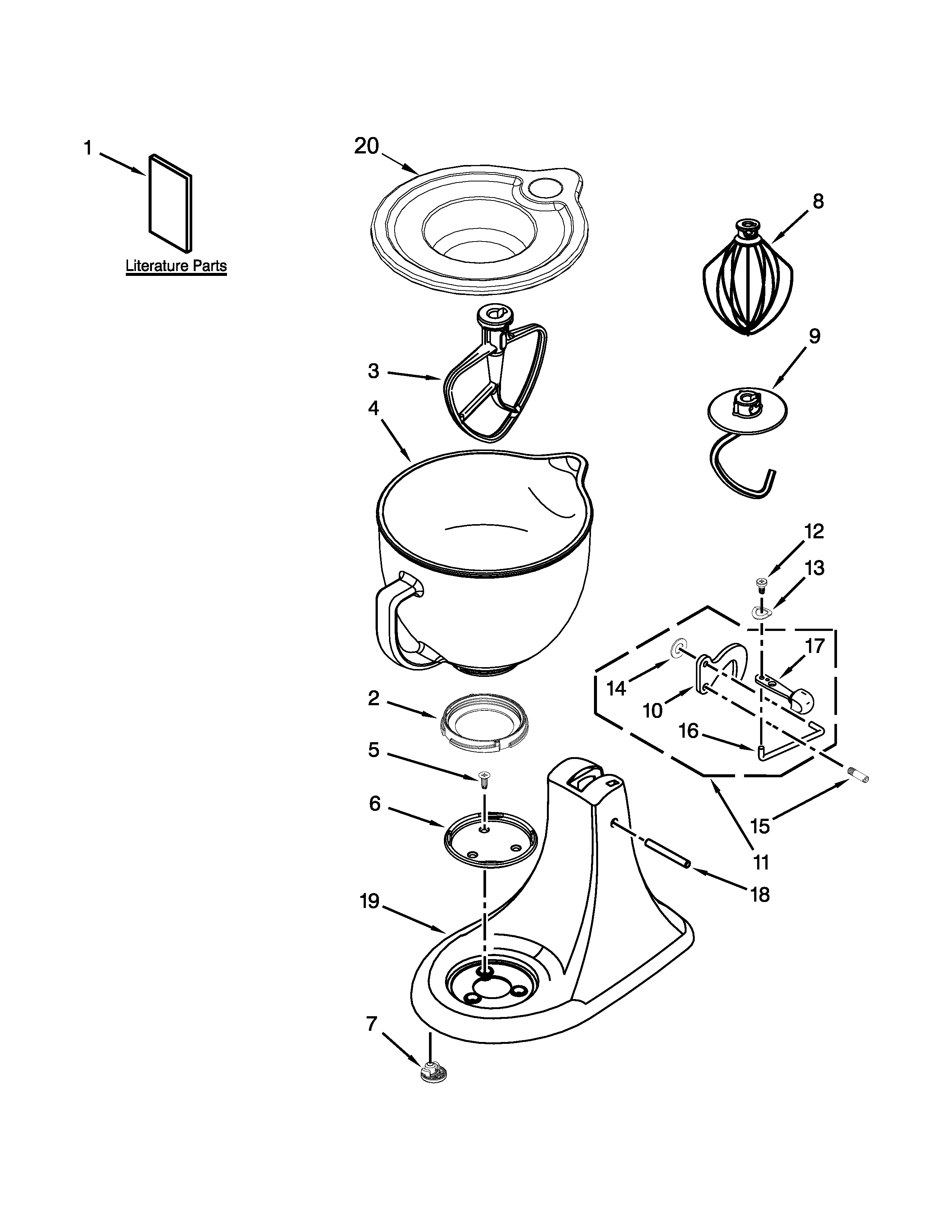

Browse Parts for KSM154GBQ2RI0 Mixer

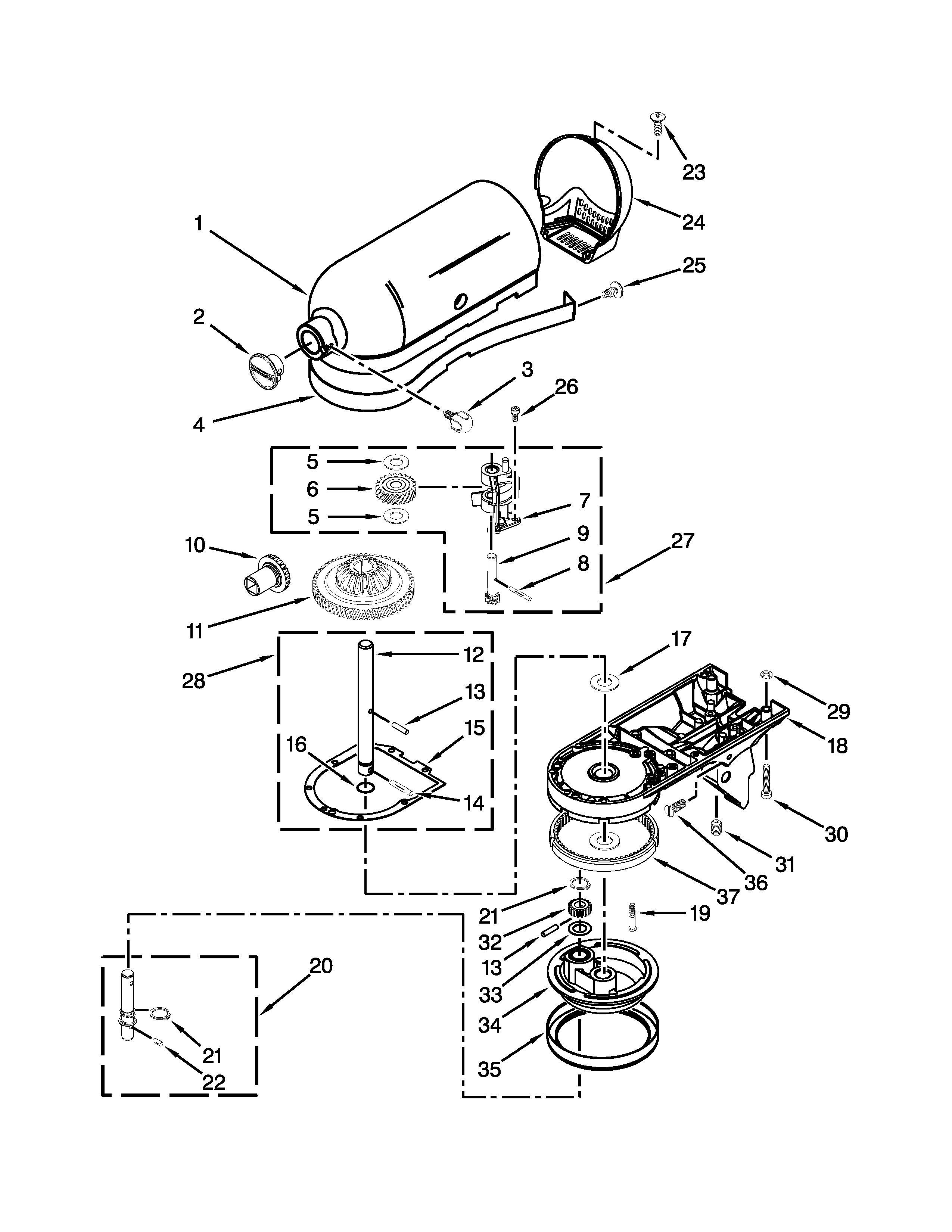

Case, gearing and planetary unit parts diagram
Stand Mixer Worm Gear
Part #W10112253Replaced by #WPW10112253
Manufacturer substitutionThis part replaces W10112253. Substitute parts can look different from the original.In Stock$16.2711% OFF Phone Price : $18.27
Qty
Case, gearing and planetary unit parts diagram
Pin-groove
Part #9705443Replaced by #WP9705443
Manufacturer substitutionThis part replaces 9705443. Substitute parts can look different from the original.This item is not returnableIn Stock$5.6615% OFF Phone Price : $6.66QtyCase, gearing and planetary unit parts diagram
Pin-groove
Part #9705444Replaced by #WP9705444
Manufacturer substitutionThis part replaces 9705444. Substitute parts can look different from the original.This item is not returnableIn Stock$6.4413% OFF Phone Price : $7.44QtyCase, gearing and planetary unit parts diagram
Screw
Part #3400203Replaced by #WP3400203
Manufacturer substitutionThis part replaces 3400203. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0514% OFF Phone Price : $7.05QtyCase, gearing and planetary unit parts diagram
Stand Mixer Worm Gear Assembly
Part #240309-2Replaced by #WP240309-2
Manufacturer substitutionThis part replaces 240309-2. Substitute parts can look different from the original.In Stock$38.6013% OFF Phone Price : $44.60QtyCase, gearing and planetary unit parts diagram
10-24 X 1.03
Part #9708651Replaced by #W11170598
Manufacturer substitutionThis part replaces 9708651. Substitute parts can look different from the original.This item is not returnableIn Stock$28.70QtyCase, gearing and planetary unit parts diagram
Washer
Part #W10323378Replaced by #WPW10323378
Manufacturer substitutionThis part replaces W10323378. Substitute parts can look different from the original.This item is not returnableIn Stock$11.9614% OFF Phone Price : $13.96QtyCase, gearing and planetary unit parts diagram
10-24 X .970
Part #9708652Replaced by #W11173547

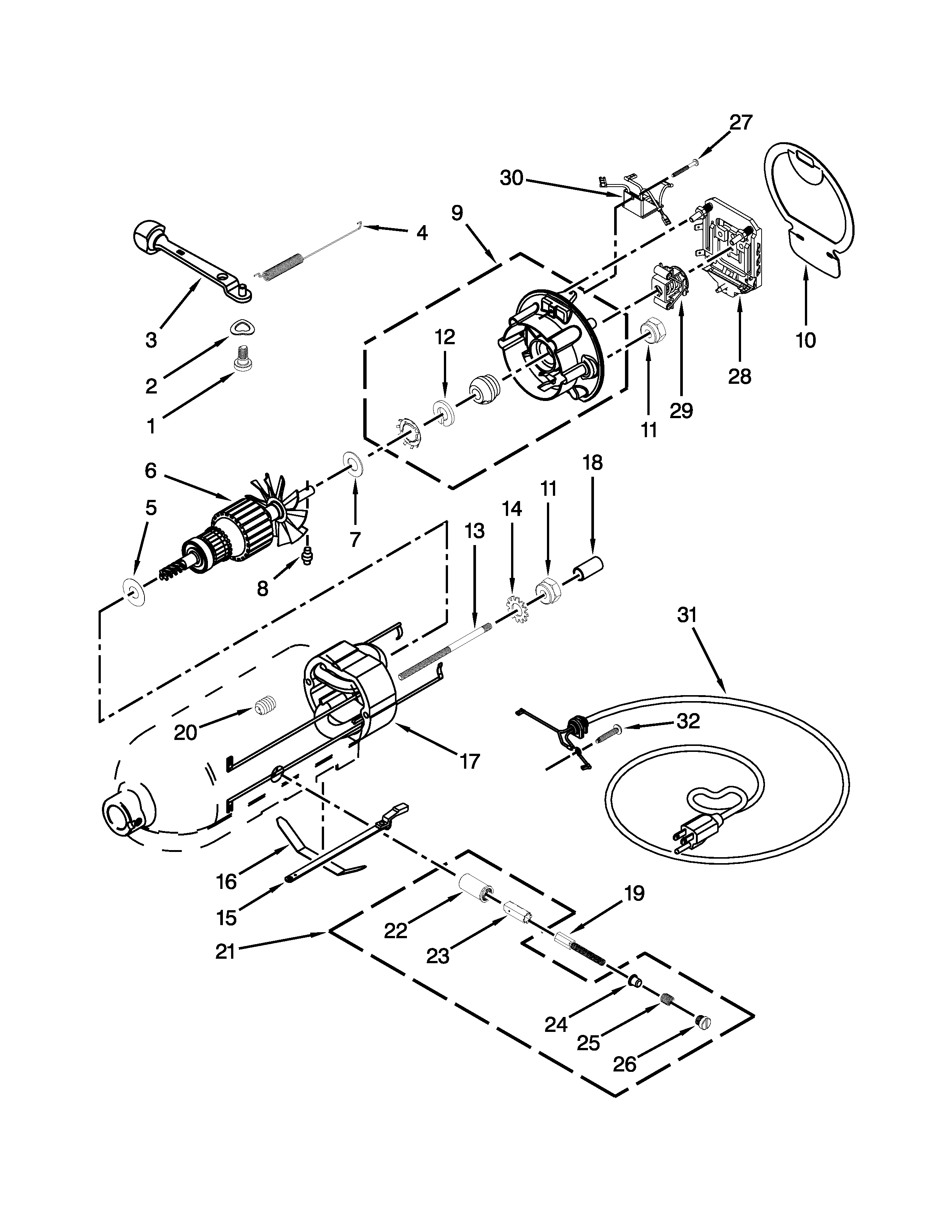

Manufacturer substitutionThis part replaces 9708652. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0314% OFF Phone Price : $7.03QtyMotor and control unit parts diagram
Brush-mtr
Part #W10380496Replaced by #WPW10380496
Manufacturer substitutionThis part replaces W10380496. Substitute parts can look different from the original.In Stock$8.5011% OFF Phone Price : $9.50QtyMotor and control unit parts diagram
Speed Lever
Part #9709276Replaced by #WP9709276
Manufacturer substitutionThis part replaces 9709276. Substitute parts can look different from the original.This item is not returnableIn Stock$7.1012% OFF Phone Price : $8.10Qty
