KitchenAid KRFC302EPA05 refrigerator

KitchenAid KRFC302EPA05 refrigerator Parts

Here are the diagrams and repair parts for KitchenAid KRFC302EPA05 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

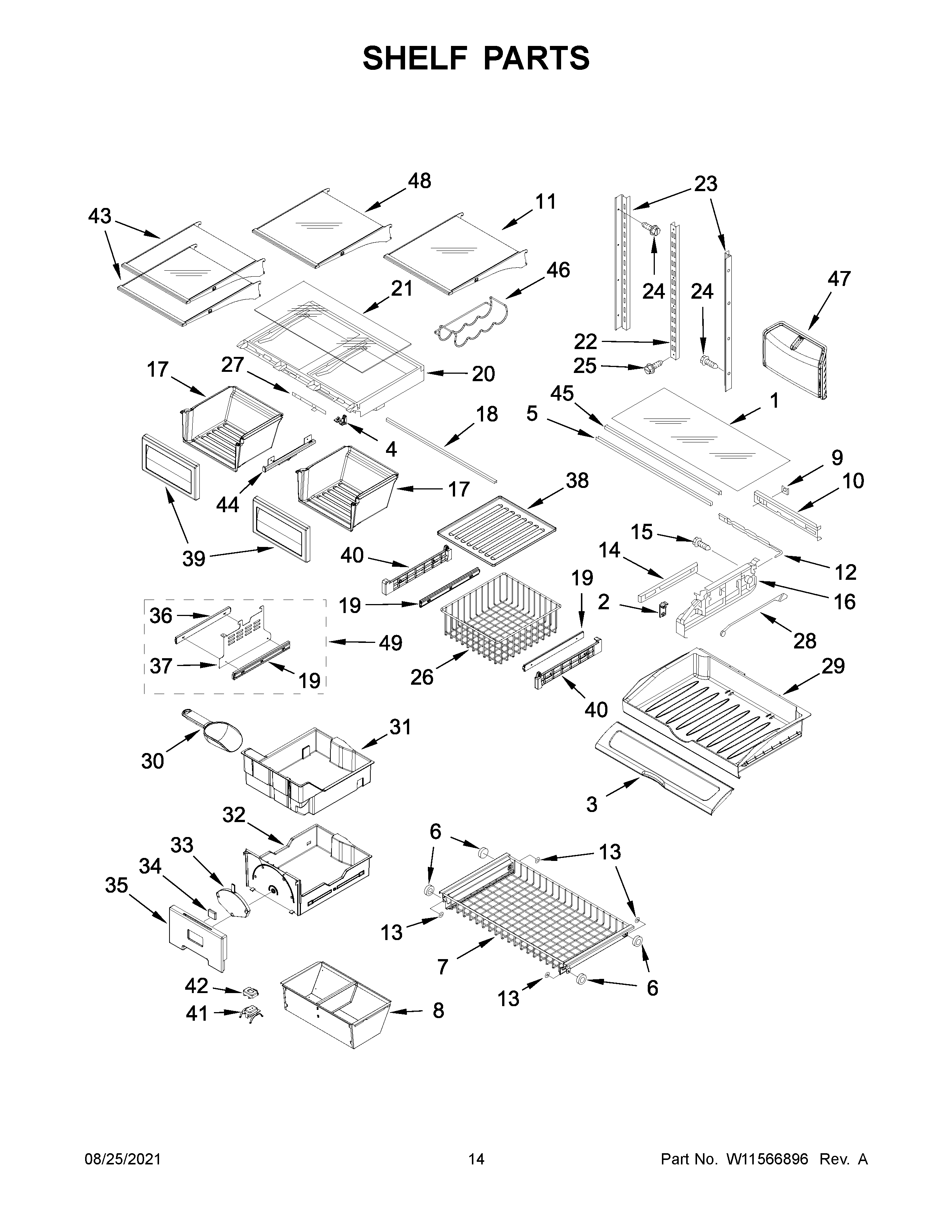

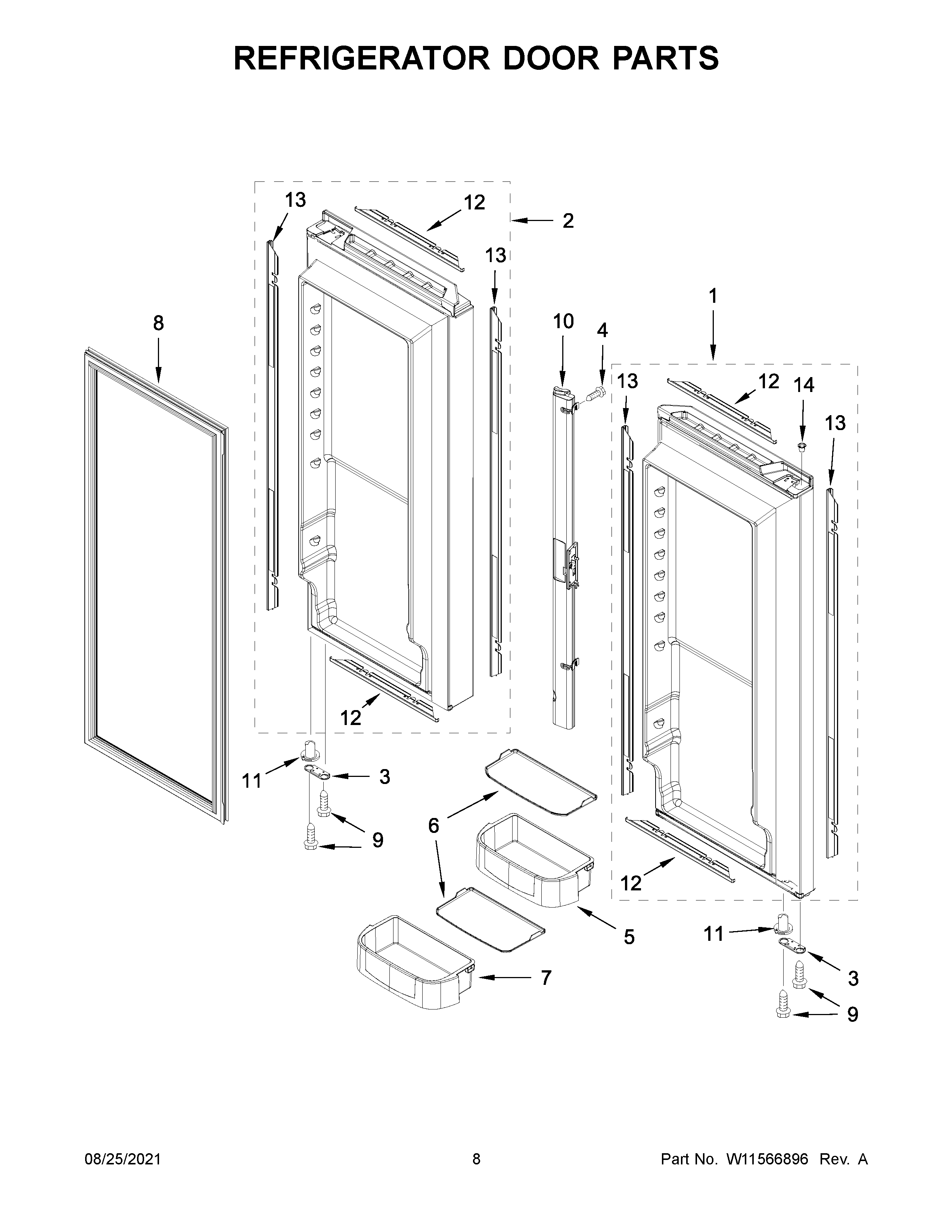

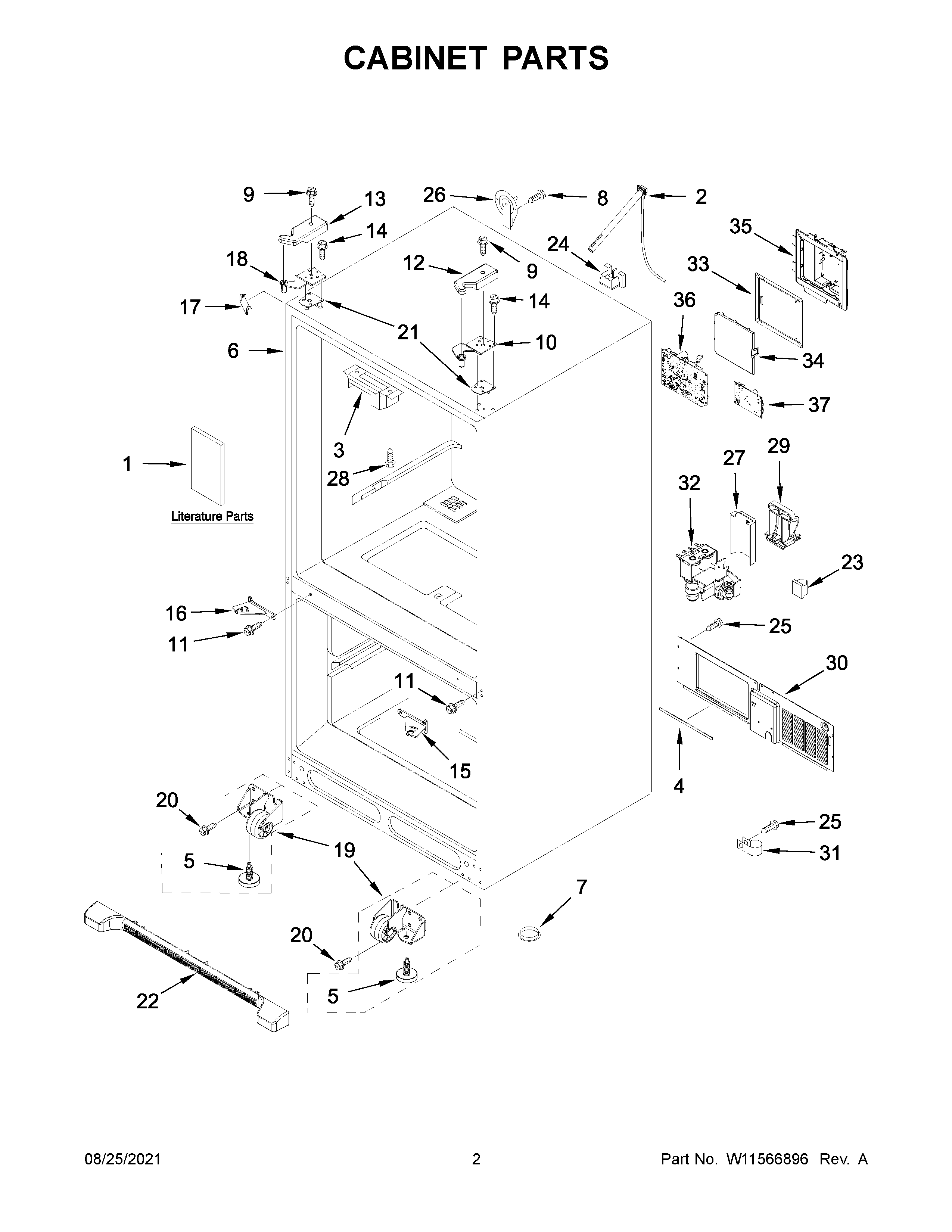

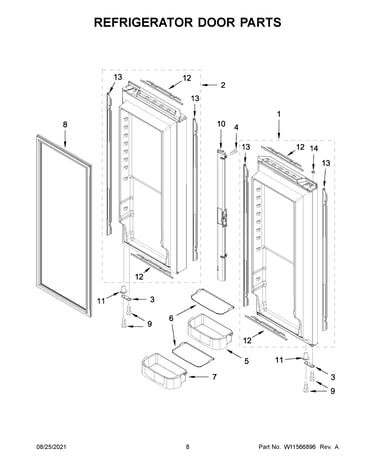

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KRFC302EPA05 Refrigerators

  • Whirlpool Everydrop 4 Refrigerator Water Filter for KitchenAid KRFC302EPA05 - Part EDR4RXD1

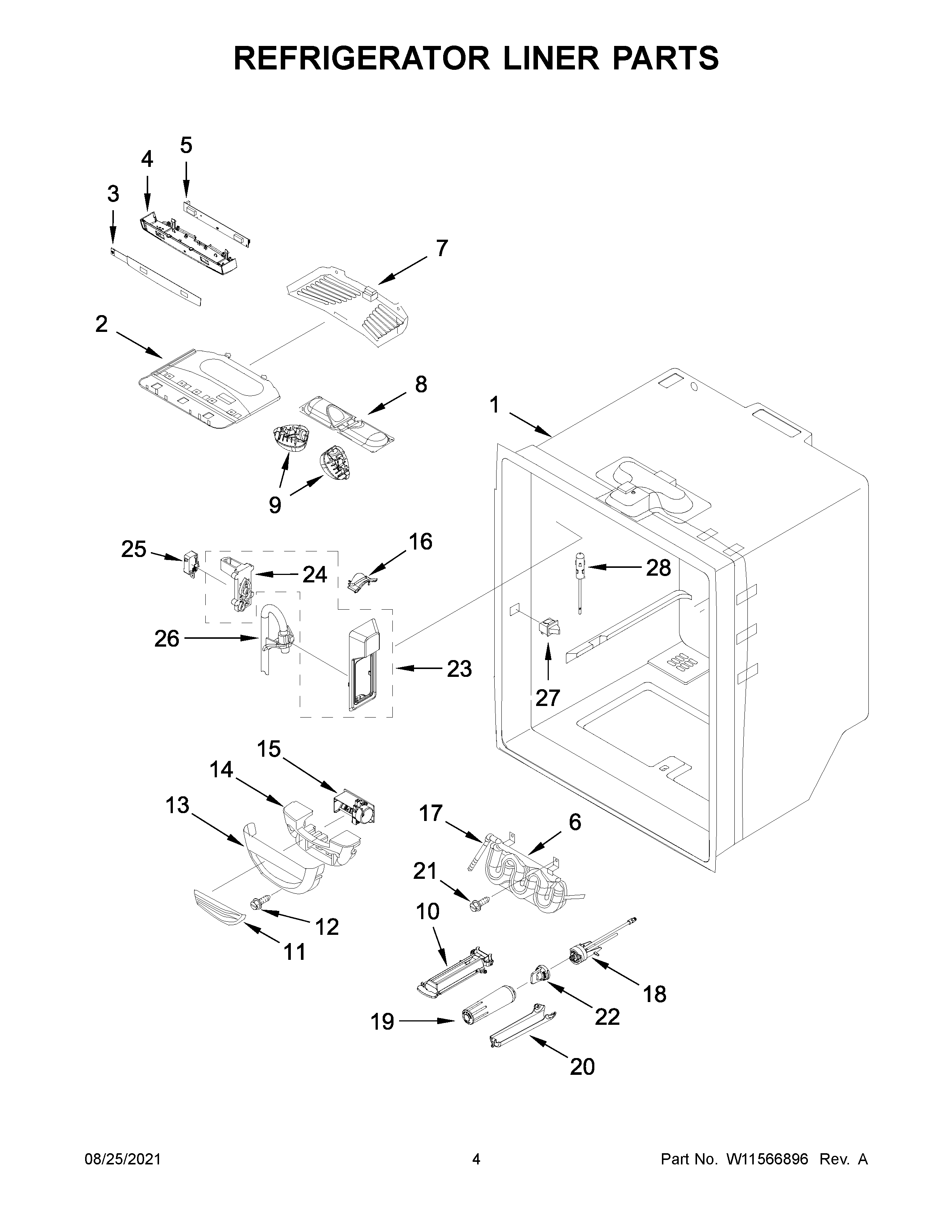

    Refrigerator liner parts diagram

    Filter, Water

    Part #W11256384

    Replaced by #EDR4RXD1

    Info Icon
    Manufacturer substitution
    This part replaces W11256384. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $61.63
    9% OFF Phone Price : $67.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Switch for KitchenAid KRFC302EPA05 - Part W11396033

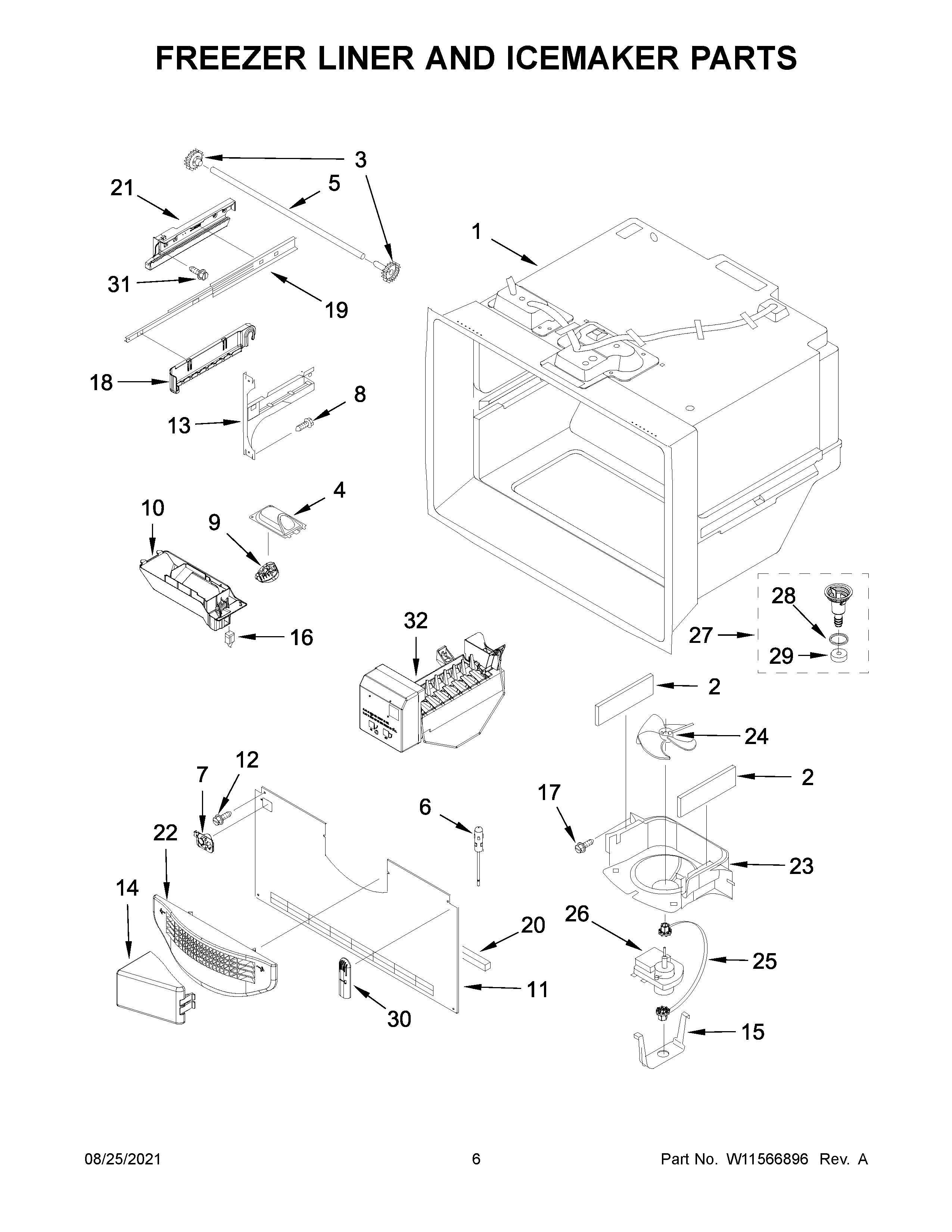

    Freezer liner and icemaker parts diagram

    Refrigerator Door Switch

    Part #W10847849

    Replaced by #W11396033

    Info Icon
    Manufacturer substitution
    This part replaces W10847849. Substitute parts can look different from the original.
    In Stock
    $25.16
    19% OFF Phone Price : $31.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Blade for KitchenAid KRFC302EPA05 - Part WP2169142

    Freezer liner and icemaker parts diagram

    Refrigerator Evaporator Fan Blade

    Part #2169142

    Replaced by #WP2169142

    Info Icon
    Manufacturer substitution
    This part replaces 2169142. Substitute parts can look different from the original.
    In Stock
    $25.00
    19% OFF Phone Price : $31.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Led Light for KitchenAid KRFC302EPA05 - Part W11602886

    Refrigerator Led Light

    Part #W11251749

    Replaced by #W11602886

    Info Icon
    Manufacturer substitution
    This part replaces W11251749. Substitute parts can look different from the original.
    In Stock
    $31.50
    16% OFF Phone Price : $37.50Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor for KitchenAid KRFC302EPA05 - Part WPW10128551

    Freezer liner and icemaker parts diagram

    Refrigerator Evaporator Fan Motor

    Part #W10128551

    Replaced by #WPW10128551

    Info Icon
    Manufacturer substitution
    This part replaces W10128551. Substitute parts can look different from the original.
    In Stock
    $58.33
    9% OFF Phone Price : $64.33Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Drain Tube for KitchenAid KRFC302EPA05 - Part W10619951

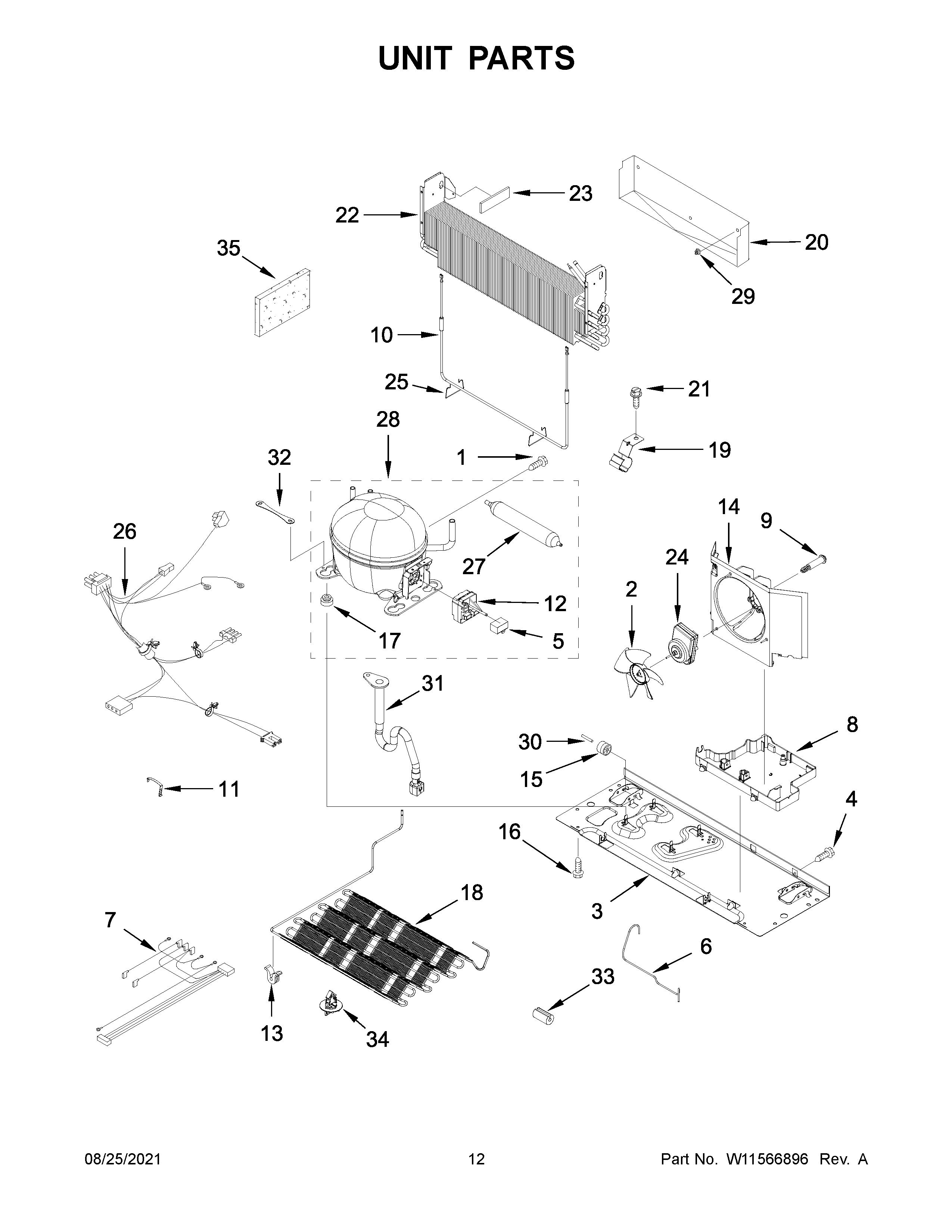

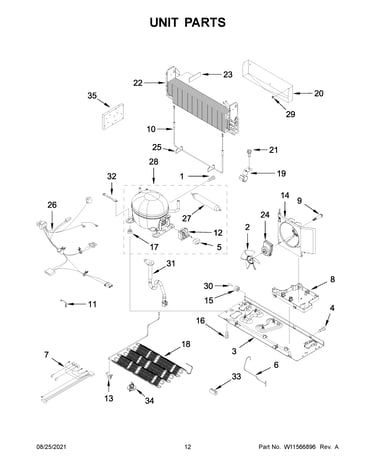

    Unit parts diagram

    Extension-dr

    Part #W10622099

    Replaced by #W10619951

    Info Icon
    Manufacturer substitution
    This part replaces W10622099. Substitute parts can look different from the original.
    In Stock
    $22.71
    27% OFF Was : $31.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Filter Head for KitchenAid KRFC302EPA05 - Part W11346623

    Refrigerator liner parts diagram

    Head, Water Filter (includes Bypass Cartridge)

    Part #W11308018

    Replaced by #W11346623

    Info Icon
    Manufacturer substitution
    This part replaces W11308018. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $74.55
    7% OFF Phone Price : $80.55Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Air Damper Control Assembly for KitchenAid KRFC302EPA05 - Part WPW10594329

    Refrigerator liner parts diagram

    Refrigerator Electronic Damper

    Part #W10594329

    Replaced by #WPW10594329

    Info Icon
    Manufacturer substitution
    This part replaces W10594329. Substitute parts can look different from the original.
    In Stock
    $123.95
    9% OFF Phone Price : $135.95Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Freezer Door Gasket (black) for KitchenAid KRFC302EPA05 - Part W10436252

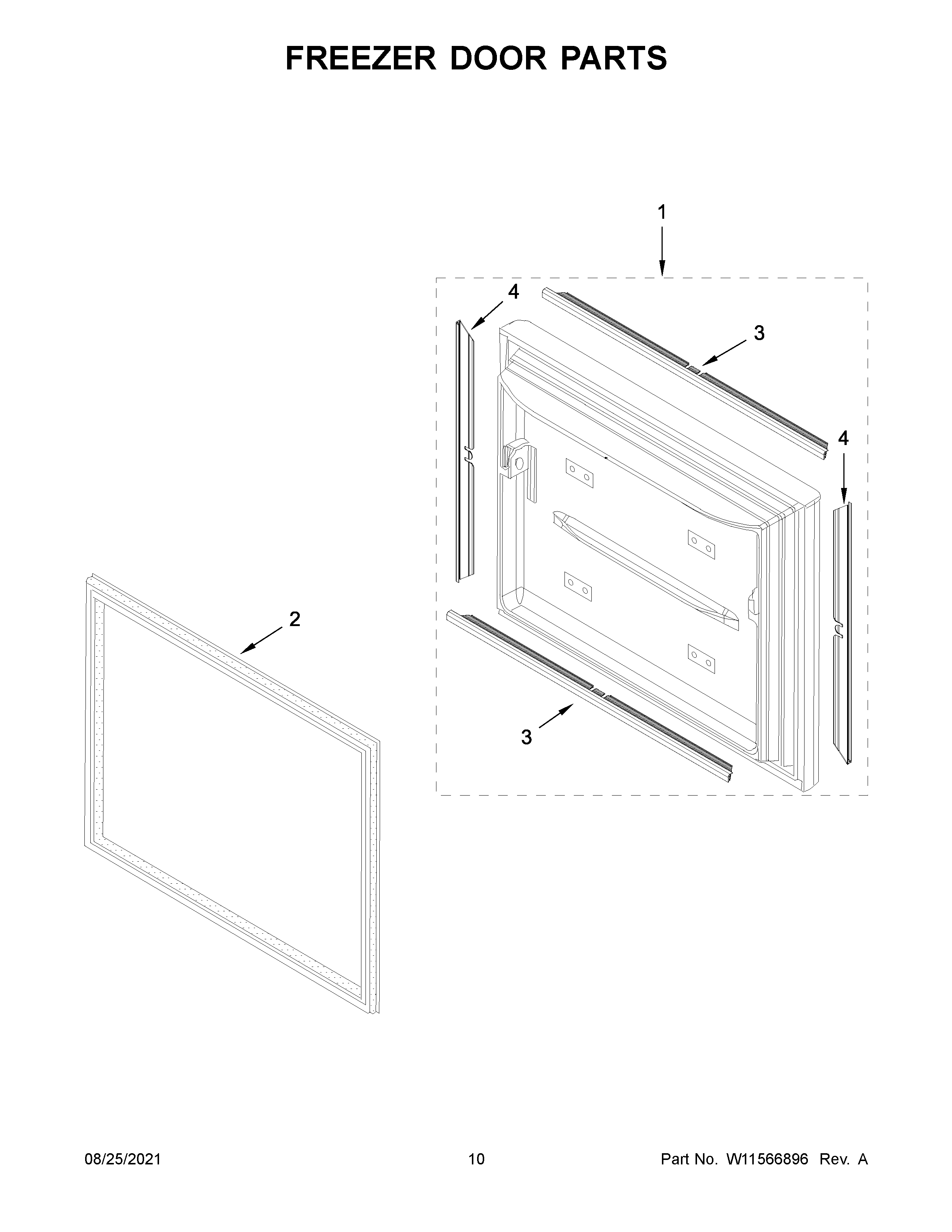

    Freezer door parts diagram

    Whirlpool Refrigerator Freezer Door Gasket (black)

    Part #W10436252
    In Stock
    $155.64
    7% OFF Phone Price : $167.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Freezer Evaporator Cover Louver for KitchenAid KRFC302EPA05 - Part WPW10175909

    Freezer liner and icemaker parts diagram

    Refrigerator Grille

    Part #13024803

    Replaced by #WPW10175909

    Info Icon
    Manufacturer substitution
    This part replaces 13024803. Substitute parts can look different from the original.
    In Stock
    $43.06
    12% OFF Phone Price : $49.06Info Icon
    Minus Item
    Qty
    Plus Item
