Frigidaire FRS24WSCB0 side-by-side refrigerator Parts

The most common Frigidaire refrigerator issue we see (including on model FRS24WSCB0) is a cooling problem, often when the freezer stays cold but the fresh food section warms up. The usual causes are restricted airflow, a failing evaporator fan, dirty condenser coils, or a defrost system problem.

Most common symptoms to watch for

• Freezer temperature seems normal, but the refrigerator side is warm
• Weak airflow from the refrigerator vents
• Frost or ice buildup on the freezer back wall (defrost issue)
• Clicking, buzzing, or intermittent fan noise
• Ice maker or dispenser performance drops when temperatures drift

Quick checks we recommend first (no parts yet)

1. Confirm airflow: Make sure food packages are not blocking the return vents.
2. Check for frost buildup: Heavy frost on the freezer rear panel points to a defrost problem.
3. Listen for the evaporator fan: When the compressor is running, you should typically hear the fan circulating air.
4. Clean condenser coils: Dust buildup underneath or behind the unit commonly reduces cooling.
5. Verify door sealing: A poor seal can cause temperature swings and frost.

Parts that commonly fix “freezer cold, fridge warm”

If your checks point to airflow or temperature control, these parts are frequent culprits for FRS24WSCB0:

Problem pattern	What it usually means	Example part to consider
Little or no airflow, fan noisy or not running	Fan blade damaged or fan system issue	Refrigerator evaporator fan blade 5308000010
Frost buildup, temperatures drift	Defrost control component not opening/closing correctly	Refrigerator thermostat 5303917954

Why it matters

On a side-by-side refrigerator like the FRS24WSCB0, the freezer supplies much of the cold air for the fresh food section. When airflow is restricted (ice buildup, fan issue, blocked vents), the refrigerator side warms first even though the freezer still feels cold.

Helpful DIY guidance

• Use our troubleshooting steps for fan-related cooling issues in how to fix your evaporator cooling fan.
• If your unit displays a fault code, start with Frigidaire refrigerator error codes to narrow the problem faster.

Last updated: February 2026

Yes. For your Frigidaire side-by-side refrigerator model FRS24WSCB0, looking up parts by the full model number is the most accurate way to match compatible replacement parts (ice maker, filter dryer, evaporator fan parts, drawers, and more) to your exact configuration.

How to find the model number on the refrigerator

On most Frigidaire side-by-side refrigerators, the model/serial tag is typically located in one of these spots:

• Inside the fresh food compartment on a side wall
• Along the door frame when you open the refrigerator door
• Behind the crisper drawers near the bottom of the fresh food section
• On the inside wall of the freezer compartment (less common)

How we recommend searching parts by model number

Use the complete model number exactly as shown on the data tag (letters and numbers matter). Then match the part by name and ID to avoid ordering the wrong item.

• Search using the full model number: FRS24WSCB0
• Choose the system you are repairing (cooling, ice maker, lighting, drawers)
• Confirm the part description matches your symptom and location
• Compare the part ID to the listing before ordering

Common FRS24WSCB0 parts customers look up

These are examples of parts shown for model FRS24WSCB0 that people often need during troubleshooting:

What you are fixing	Example part to look up	What it affects

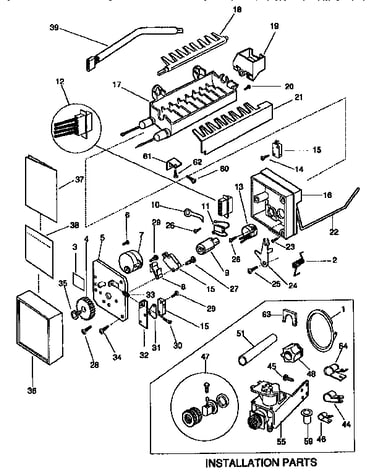

Ice maker not making ice	Molo body 241798231	Ice production and harvesting
Warm refrigerator or noisy fan	Refrigerator evaporator fan blade 5308000010	Airflow across the evaporator
Frost or defrost issues	Refrigerator thermostat 5303917954	Defrost temperature control
Dim or no interior light	Appliance light bulb, 40-watt 316538904	Interior lighting

Why it matters

Frigidaire often uses similar-looking parts across multiple refrigerator series. Searching by FRS24WSCB0 helps us narrow results to the correct fit, which reduces returns and gets your refrigerator back to proper cooling, ice dispensing, and lighting faster.

Helpful DIY guidance

If you are searching by model number because something is not working, these guides can speed up diagnosis:

• Frigidaire refrigerator error codes
• How to replace the water filter in a Frigidaire refrigerator

Last updated: February 2026

Frigidaire Gallery is not a luxury, high-end line; it is Frigidaire’s upper mid-range tier with more features and styling than basic models, but typically below true premium lines. For your Frigidaire FRS24WSCB0 side-by-side refrigerator, parts and repairs are supported like other mainstream models.

How Frigidaire lines typically compare

We see Frigidaire positioned in clear tiers; “high end” usually means premium materials, pro-style performance, and higher price points.

• Frigidaire (base): practical features, value-focused
• Frigidaire Gallery: upgraded finishes and convenience features (often the sweet spot)
• Frigidaire Professional: more premium look and performance-focused features

Line	Typical positioning	What you usually get
Frigidaire	Entry to mid-range	Core cooling, basic controls
Frigidaire Gallery	Upper mid-range	More convenience features, upgraded styling
Frigidaire Professional	Premium (not always “luxury”)	Pro-style design, higher-end feature sets

Why it matters when you’re buying parts or troubleshooting

The “Gallery” label affects features and cosmetics more than basic service needs. What matters most for correct replacement parts is the exact model number (FRS24WSCB0) and the specific symptom.

• Cooling issues often point to airflow or defrost components
• Ice and water issues often point to dispenser and ice maker drive parts
• Interior light problems are usually bulb or socket related
• Water leaks can be tied to drain and defrost drainage

Parts that commonly come up on this model page

If you are repairing your FRS24WSCB0, these are examples of parts we often see customers replace depending on the symptom:

• Refrigerator evaporator fan blade 5308000010 (noisy fan, weak airflow)
• Refrigerator thermostat 5303917954 (temperature control problems)
• Refrigerator drain tube 241957901 (water pooling or leaking)
• Appliance light bulb, 40-watt 316538904 (no interior light)

Quick guidance: “high end” checklist

Use this to decide if a line is truly high-end for your needs.

• Pro-style compressor and advanced temperature management
• Premium interior materials and heavy-duty hardware
• Higher-end noise control and insulation
• Longer feature list (dual ice, advanced filtration, smart features)
• Higher typical price tier

Last updated: February 2026

To identify your Frigidaire model, we recommend finding the model and serial tag on the refrigerator cabinet (not on a removable shelf or drawer). On the Frigidaire side-by-side refrigerator model FRS24WSCB0, the tag is typically inside the fresh food compartment along the side wall or near the door opening.

Where to look on a side-by-side refrigerator

Check these common tag locations first:

• Inside the fresh food (refrigerator) compartment on the left or right side wall
• Along the door opening or door frame area
• Near the top interior ceiling of the fresh food compartment
• Behind the toe grille (kick plate) at the bottom front (less common)
• On the back exterior panel (less common)

What the model number looks like

The model number is usually printed as Model No. and includes letters and numbers (sometimes with a revision suffix). For example, your model number should read FRS24WSCB0.

Quick ID checklist

• Write the model number exactly as shown (letters and numbers matter)
• Record the serial number too (it helps match production changes)
• Take a clear photo of the tag before ordering parts

Why it matters when ordering parts

Frigidaire often uses different parts across production runs, even within the same model family. Using the exact model number helps us match the correct items such as the refrigerator thermostat 5303917954, refrigerator drain tube 241957901, or refrigerator evaporator fan blade 5308000010 for your FRS24WSCB0.

Common mistakes to avoid

Mistake	What to do instead
Using a similar-looking model from the door sticker	Use the cabinet model and serial tag inside the compartment
Swapping characters (O vs 0, I vs 1)	Double-check each character and take a photo
Ordering by “looks like my fridge”	Match parts by model number, then confirm by part description

Last updated: February 2026

Most Frigidaire refrigerators, including side-by-side models like FRS24WSCB0, typically last 10 to 15 years. With steady upkeep (good airflow, clean components, and stable temperatures), it’s common to reach the high end of that range before major cooling or ice maker repairs become more likely.

Typical lifespan ranges (what we see most often)

• Average: 10 to 15 years
• Often achievable with good care: 15 years
• Common “life-shorteners”: dirty condenser area, poor door sealing, frequent overloading, and ignored cooling fan noise

What you notice	What it usually means	What to do first
Temps drift warmer over time	Airflow or defrost issue starting	Check vents, listen for fan, clean condenser area
Frost buildup in freezer	Defrost system problem	Inspect for heavy frost, check defrost components
Loud humming or rattling	Fan blade or motor issue	Inspect evaporator fan area for ice or contact
Ice maker or dispenser issues	Wear in ice system or water flow restriction	Check for clogs, inspect auger and switches

Maintenance that extends refrigerator life

These steps reduce compressor run time and prevent common failures:

• Keep food packages from blocking air vents in the freezer and fresh food sections.
• Maintain steady settings (about 0°F freezer, 37°F to 40°F refrigerator).
• Clean spills quickly to prevent odors and drain issues.
• If you have water and ice, replace restricted filtration components when flow slows.
• Address new noises early; fan problems can turn into cooling problems.

Parts that commonly affect “how long it lasts”

When a refrigerator is aging, these are frequent repair points that can restore performance:

• Airflow: a damaged fan blade such as the refrigerator evaporator fan blade 5308000010
• Defrost control: a failed defrost thermostat such as the refrigerator thermostat 5303917954
• Water system health: a restricted filter dryer such as the filter 5303305677

Why it matters

A refrigerator that is struggling to cool or move air runs longer and hotter, which accelerates wear on sealed-system components. Simple airflow and defrost fixes often prevent the “slow decline” that makes a unit feel worn out before its normal lifespan.

For more Frigidaire-specific troubleshooting patterns, use our Frigidaire refrigerator error codes reference.

Last updated: February 2026
