Craftsman
Gas Snowblower

Model # 536881112 Official Craftsman snow thrower

Here are the diagrams and repair parts for Official Craftsman 536881112 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

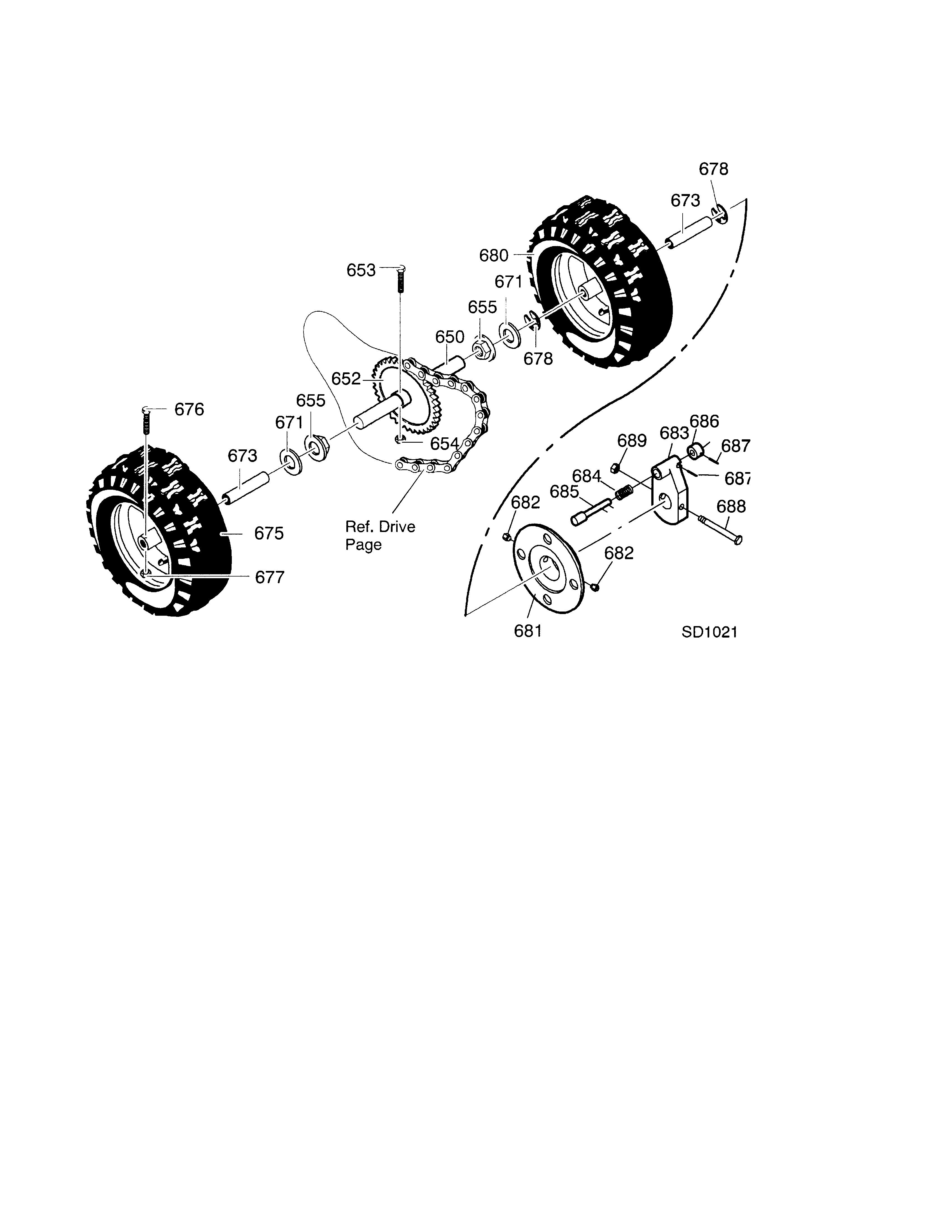

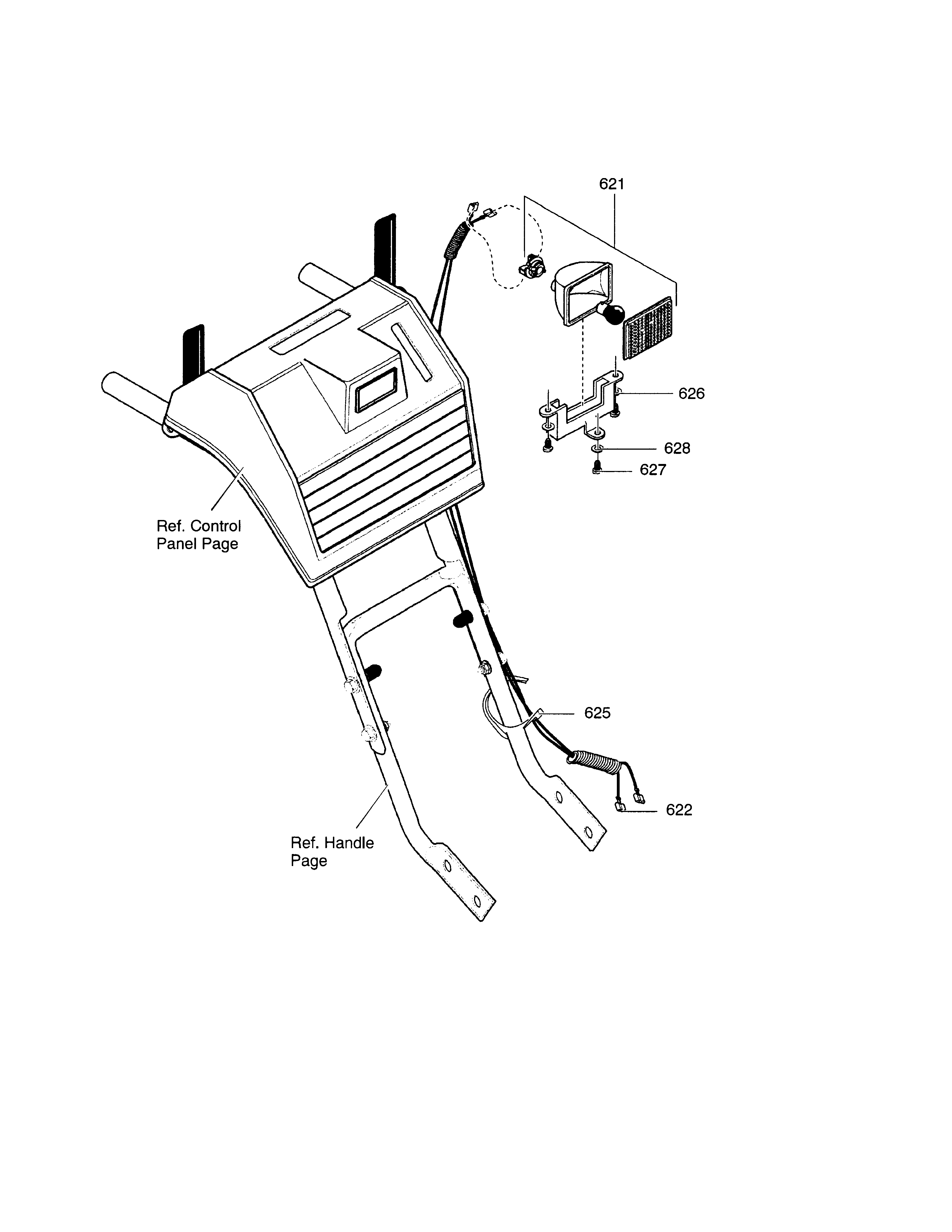

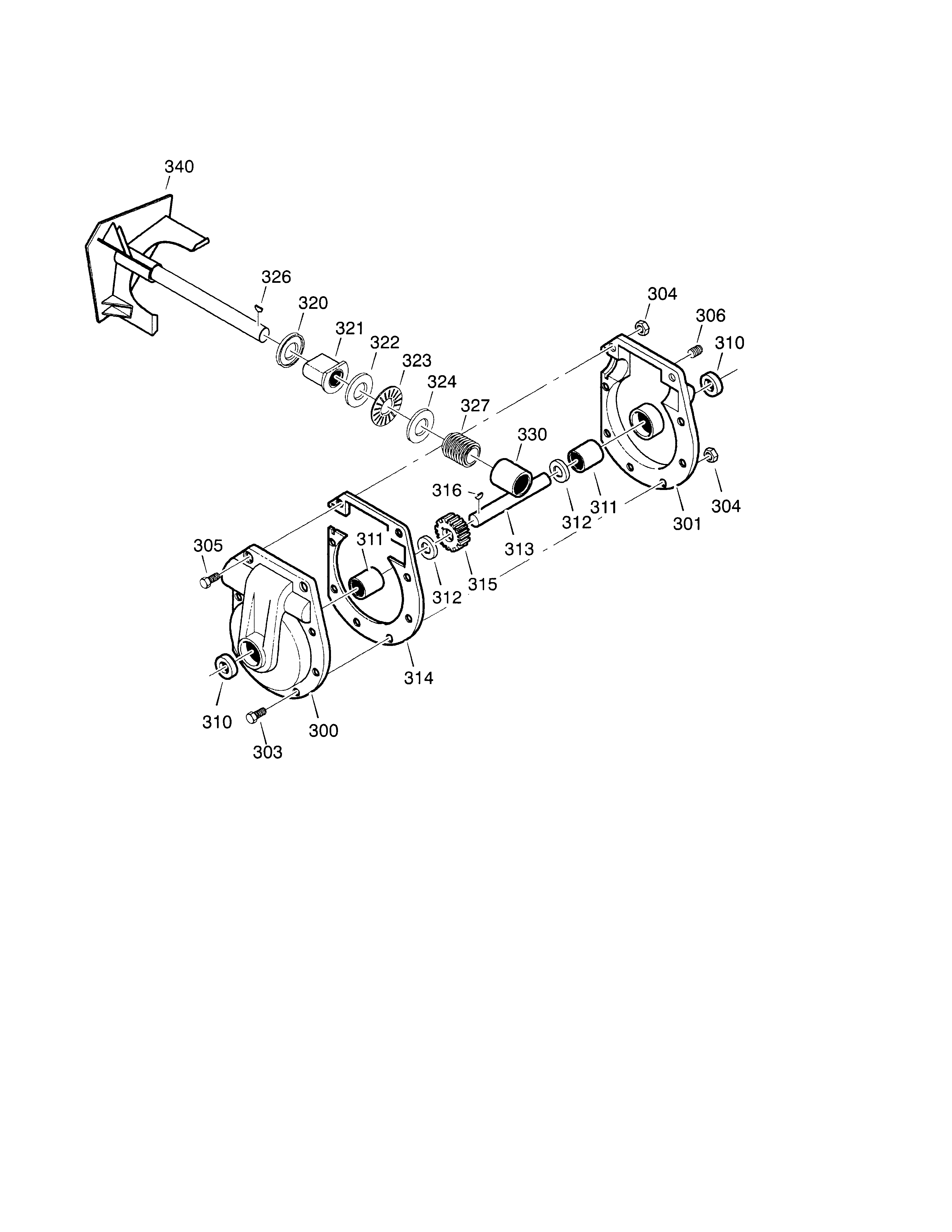

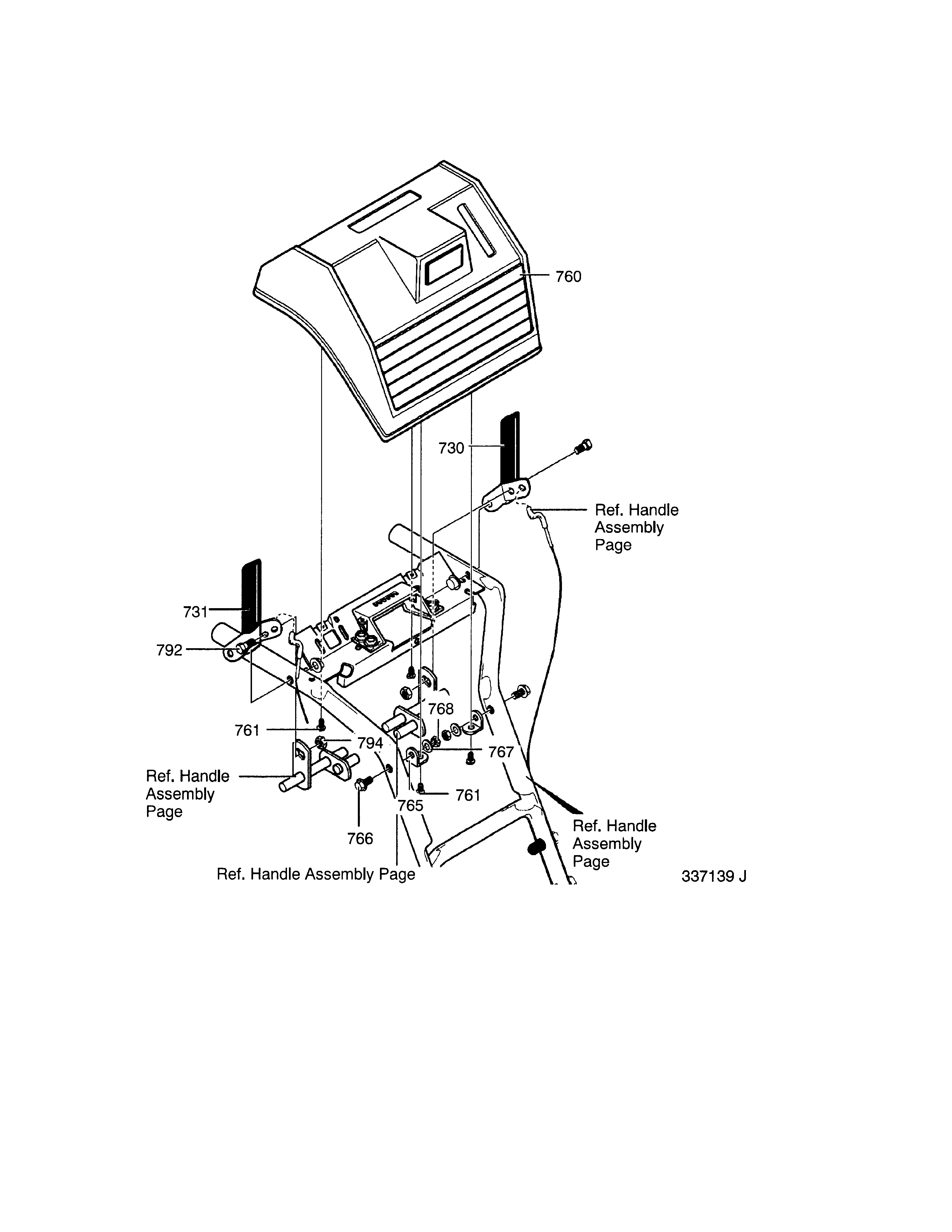

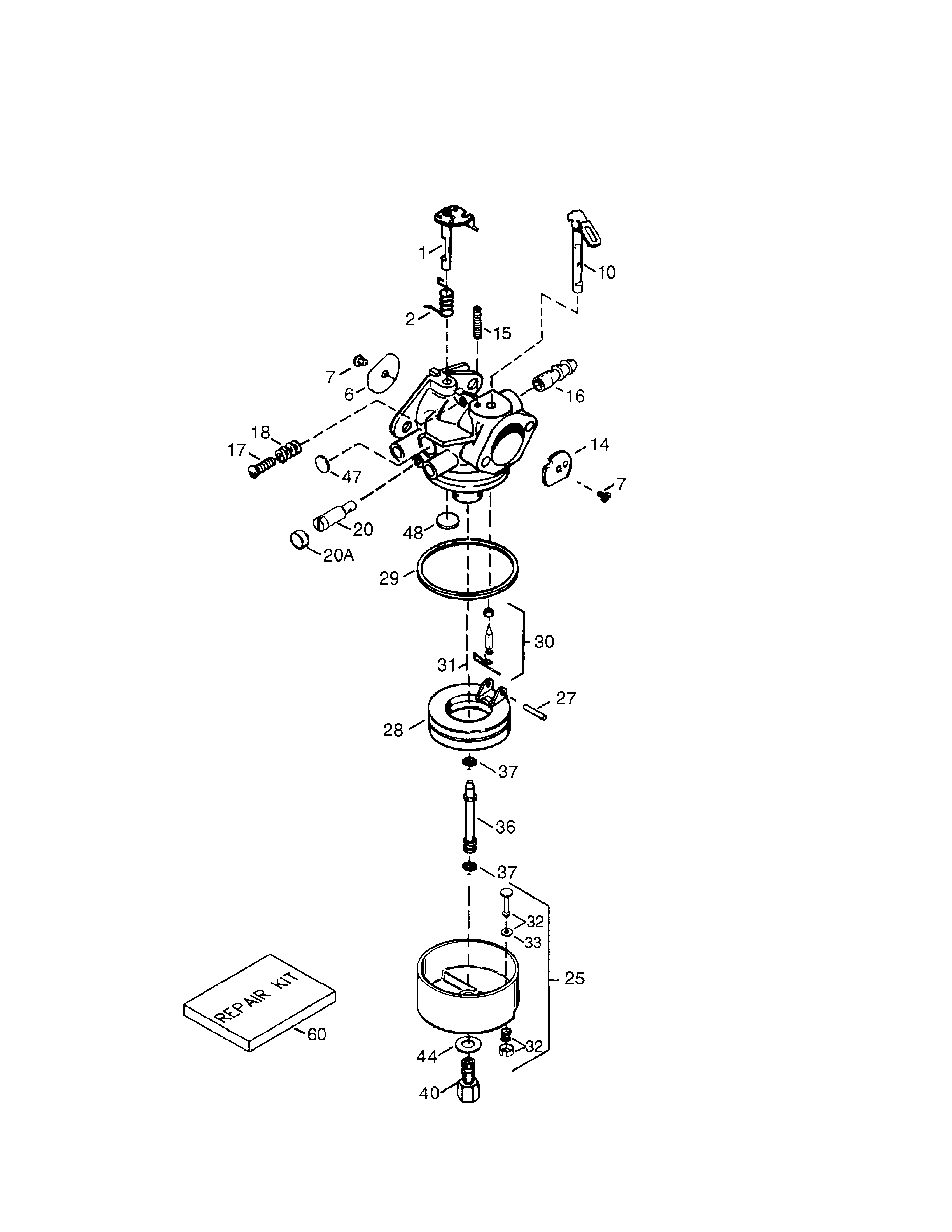

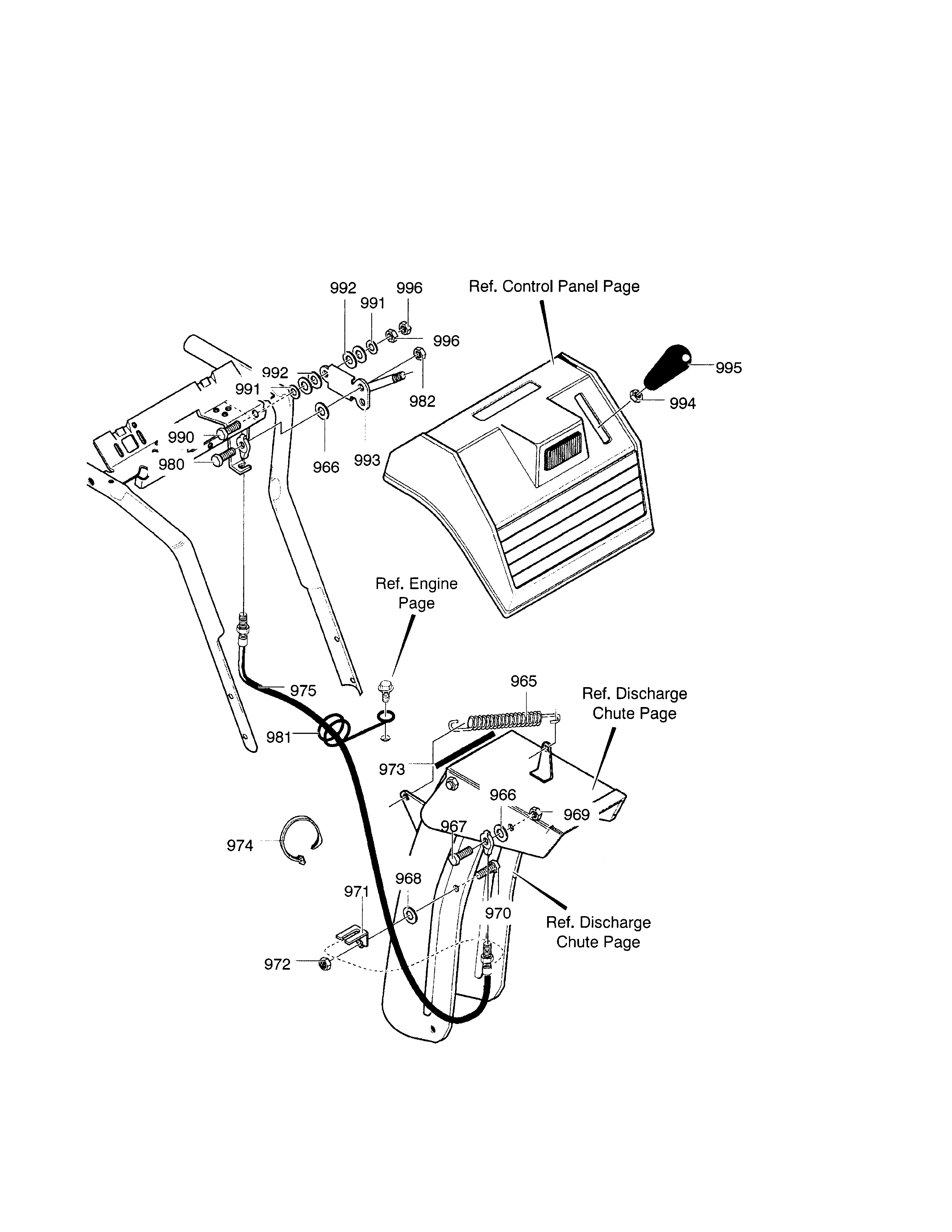

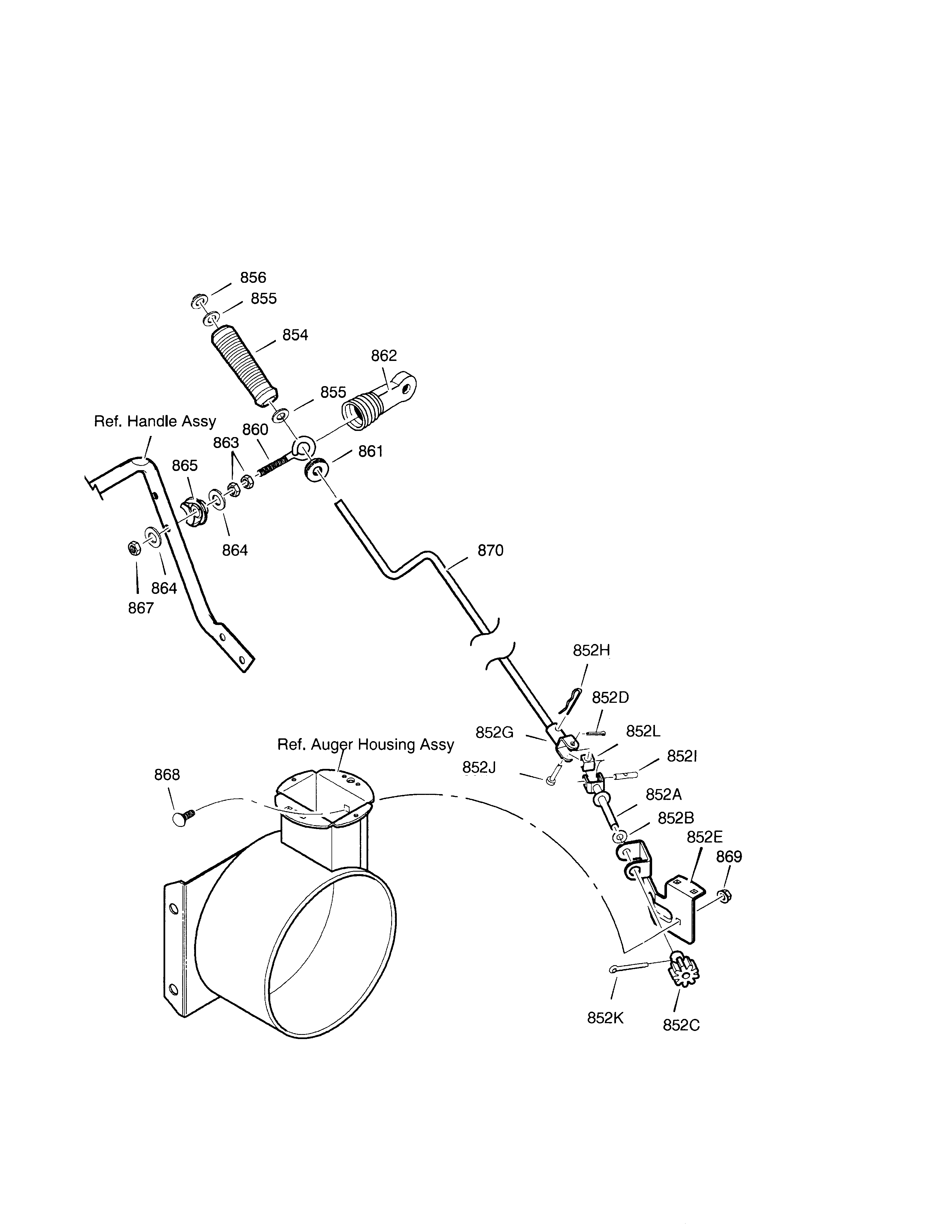

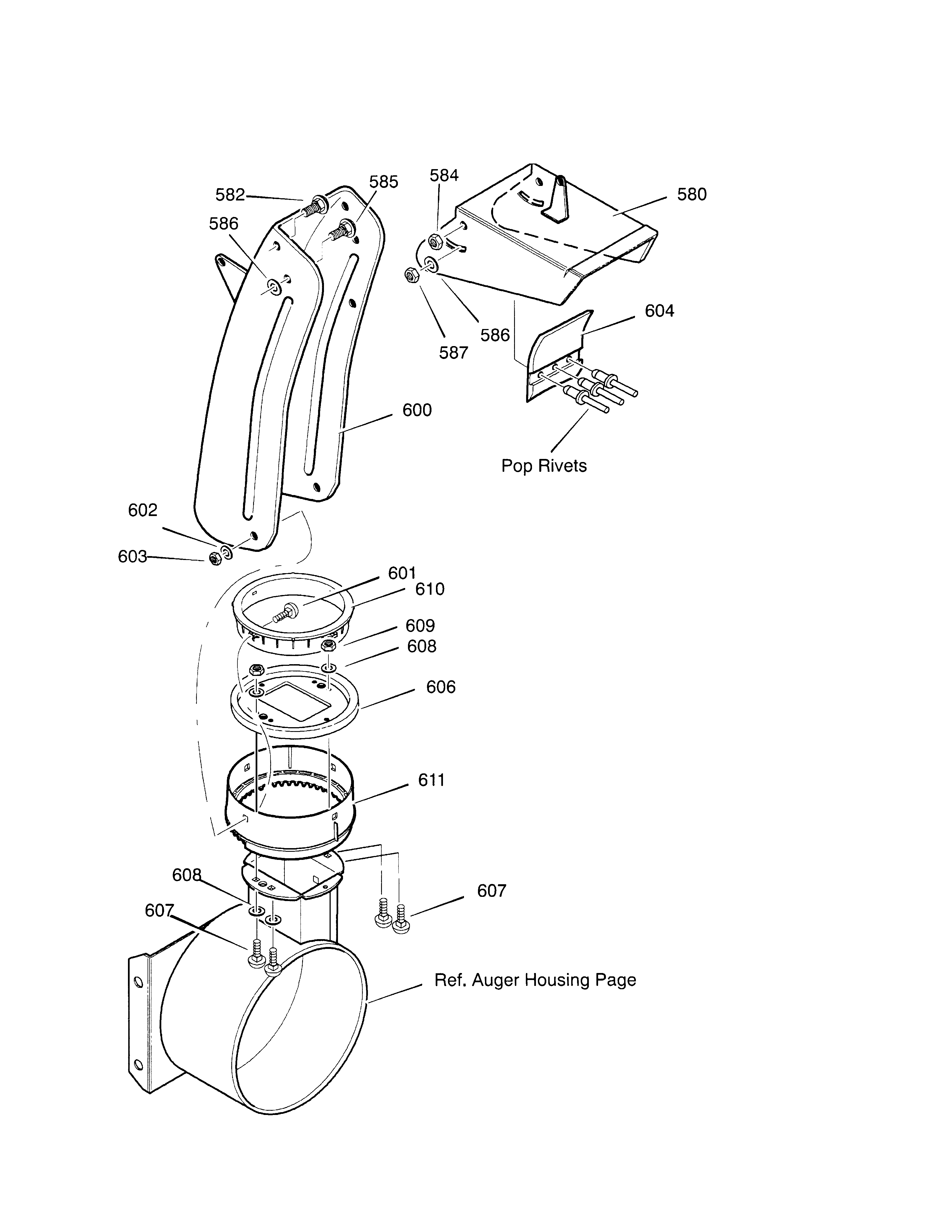

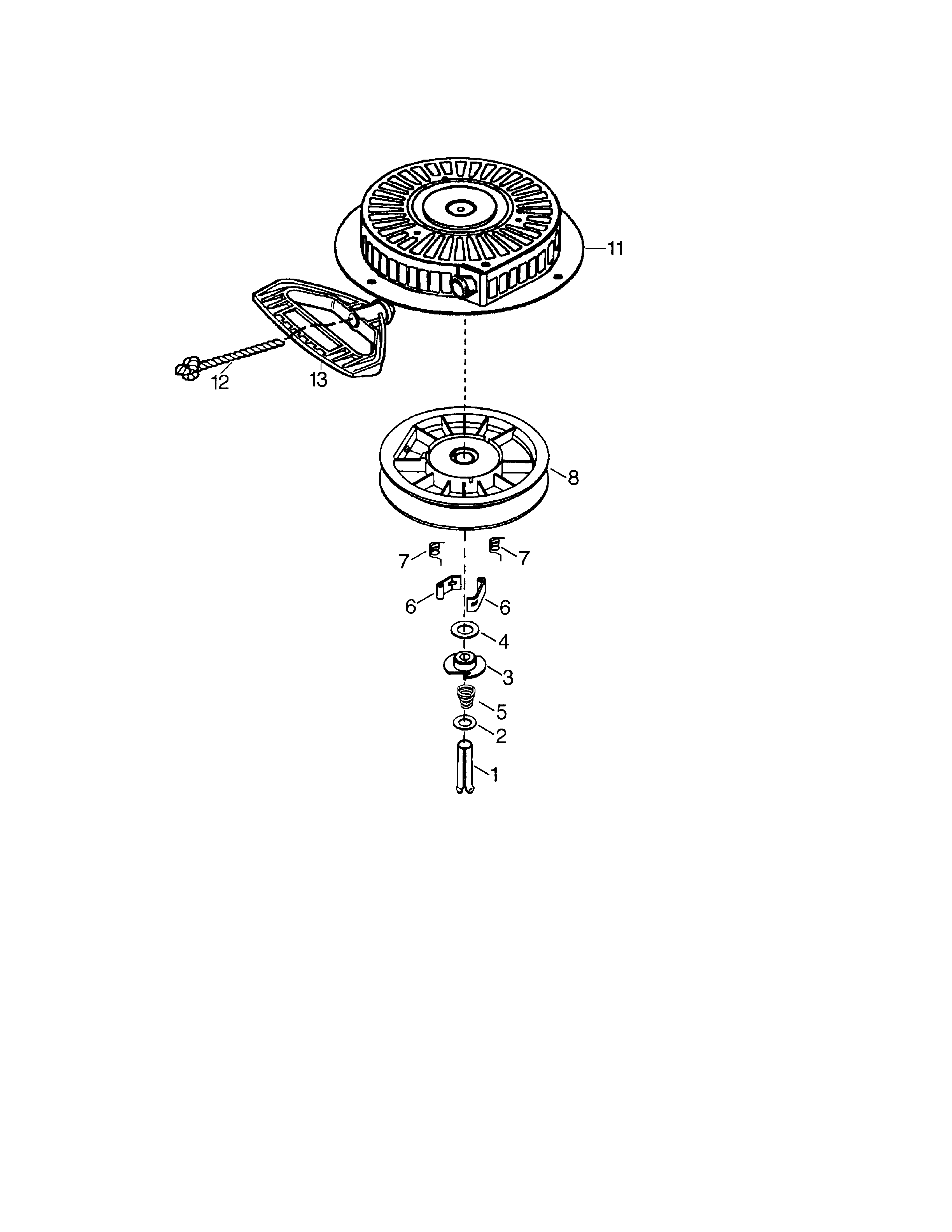

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 442 parts  |

Snowblower Gas Belt 585416
#16

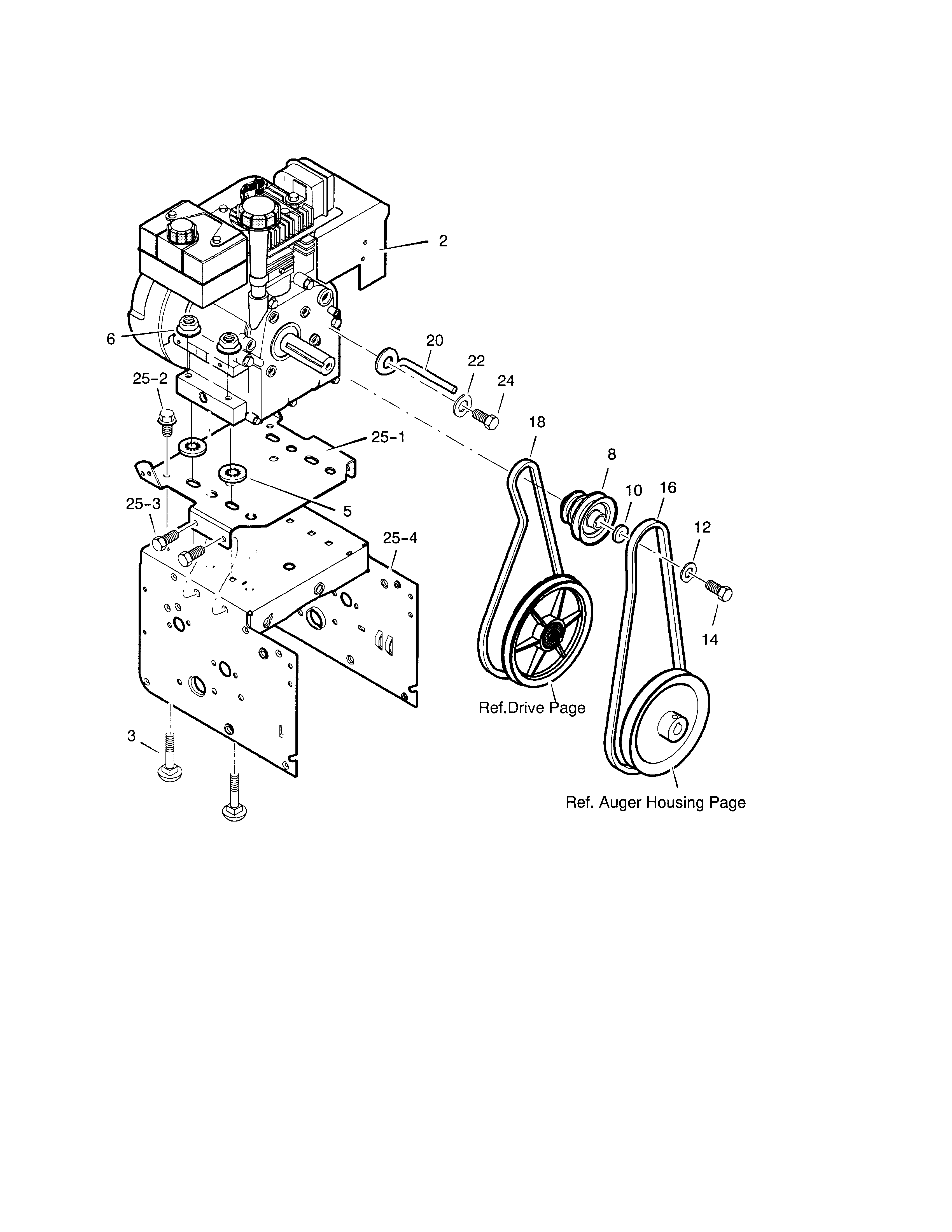

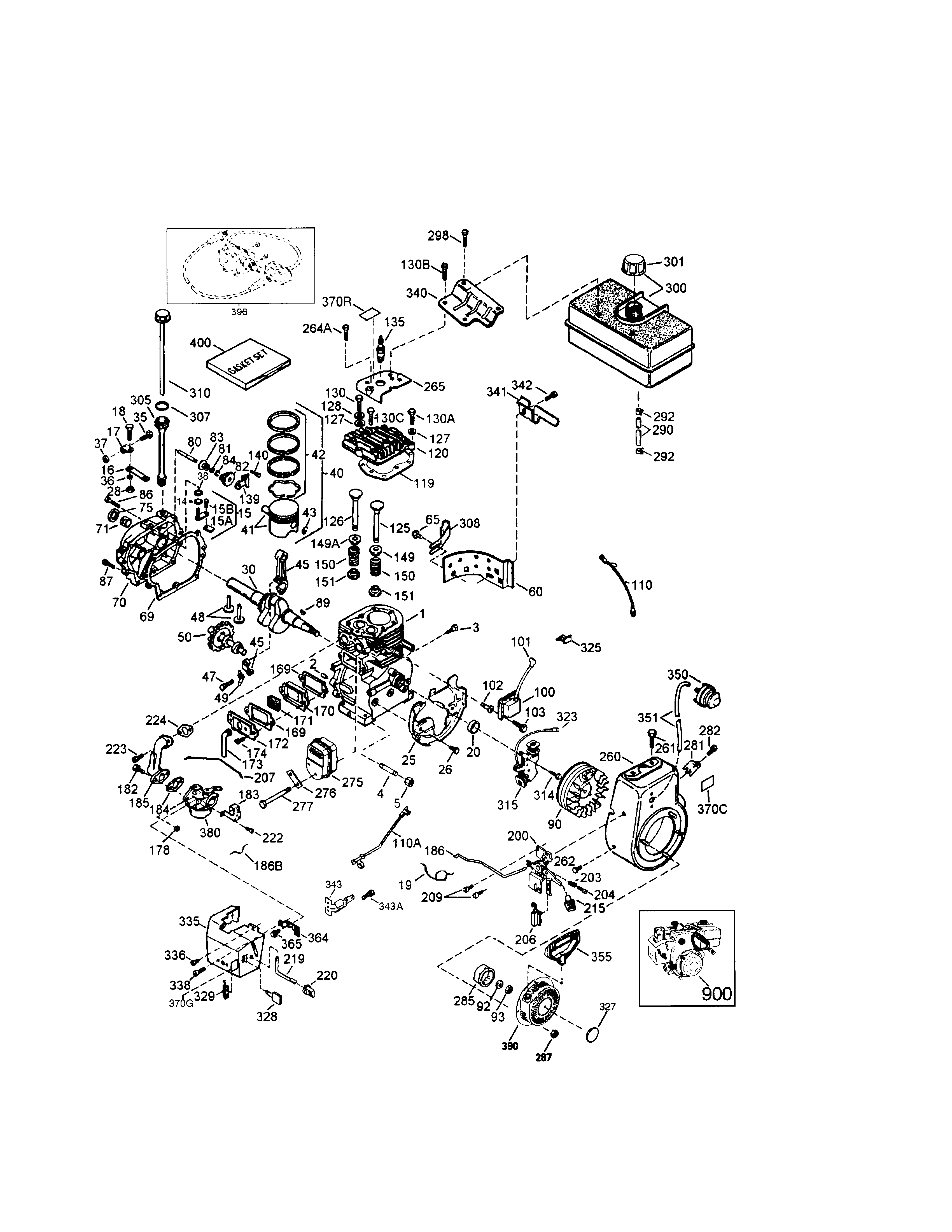

30`` 11hp engine diagram

Snowblower gas belt

Part #585416

Replaced by #585416MA

?
Manufacturer substitution
This part replaces 585416. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$31.61
14% OFF Phone Price : $36.61
In Stock
Snowblower Shear Bolt 9524
#522

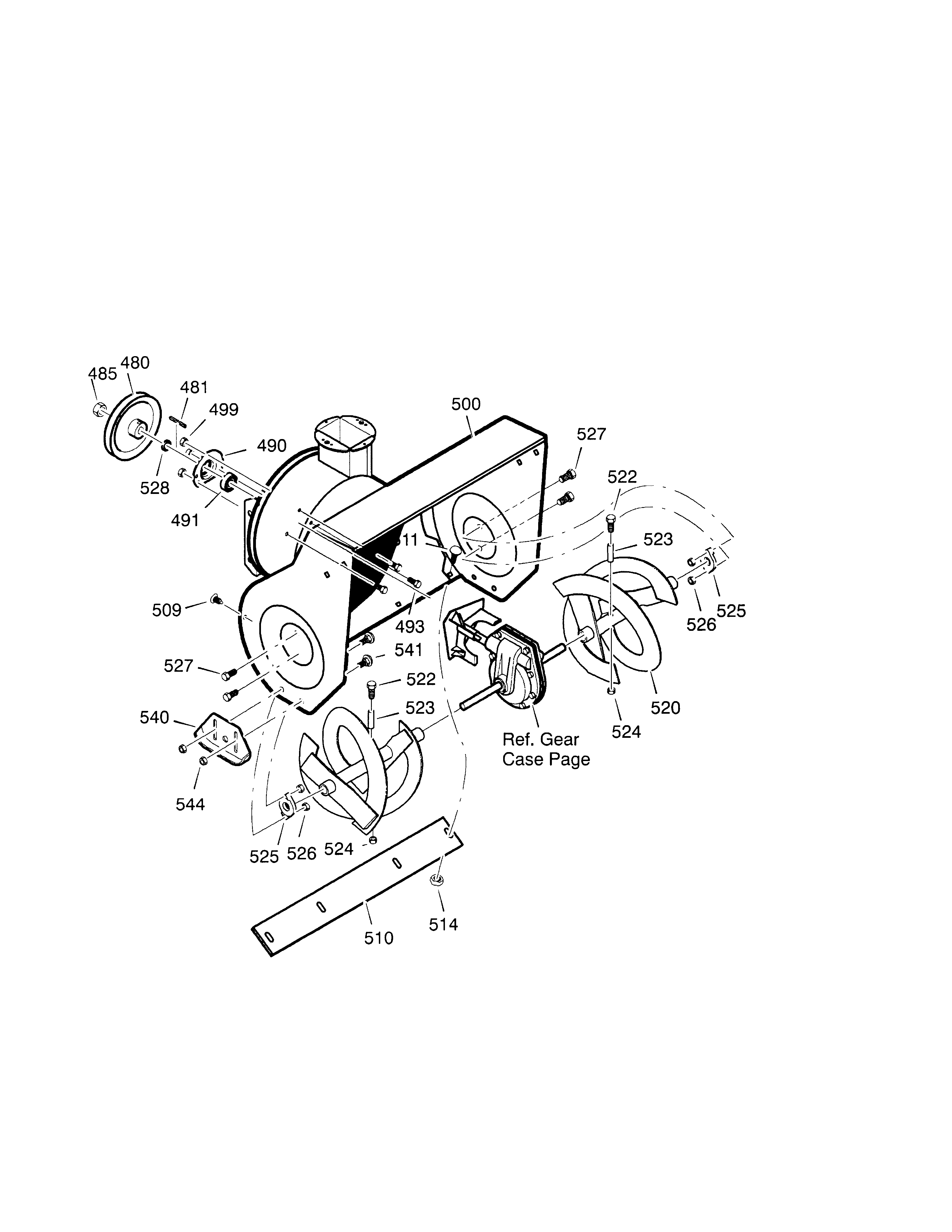

30`` 11hp auger housing diagram

Snowblower shear bolt

Part #9524

Replaced by #703057

?
Manufacturer substitution
This part replaces 9524. Substitute parts can look different from the original.
BEST SELLER
$8.16
11% OFF Phone Price : $9.16
In Stock
Extension Spring 165X112
#234

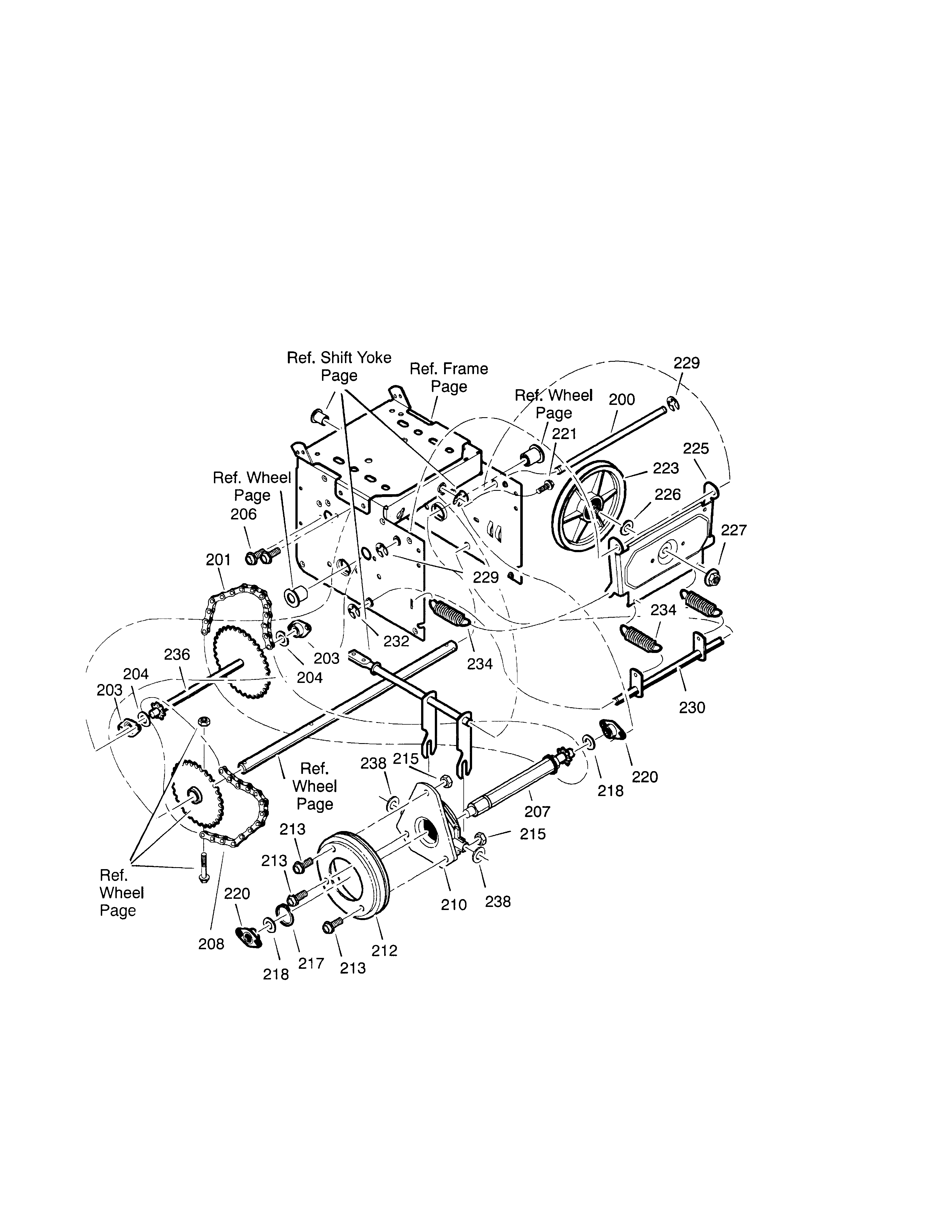

30`` 11hp drive diagram

Extension spring

Part #165X112

Replaced by #1736469YP

?
Manufacturer substitution
This part replaces 165X112. Substitute parts can look different from the original.
BEST SELLER
$11.89
14% OFF Phone Price : $13.89
In Stock
Auger Clutch Spacer 1673
#744

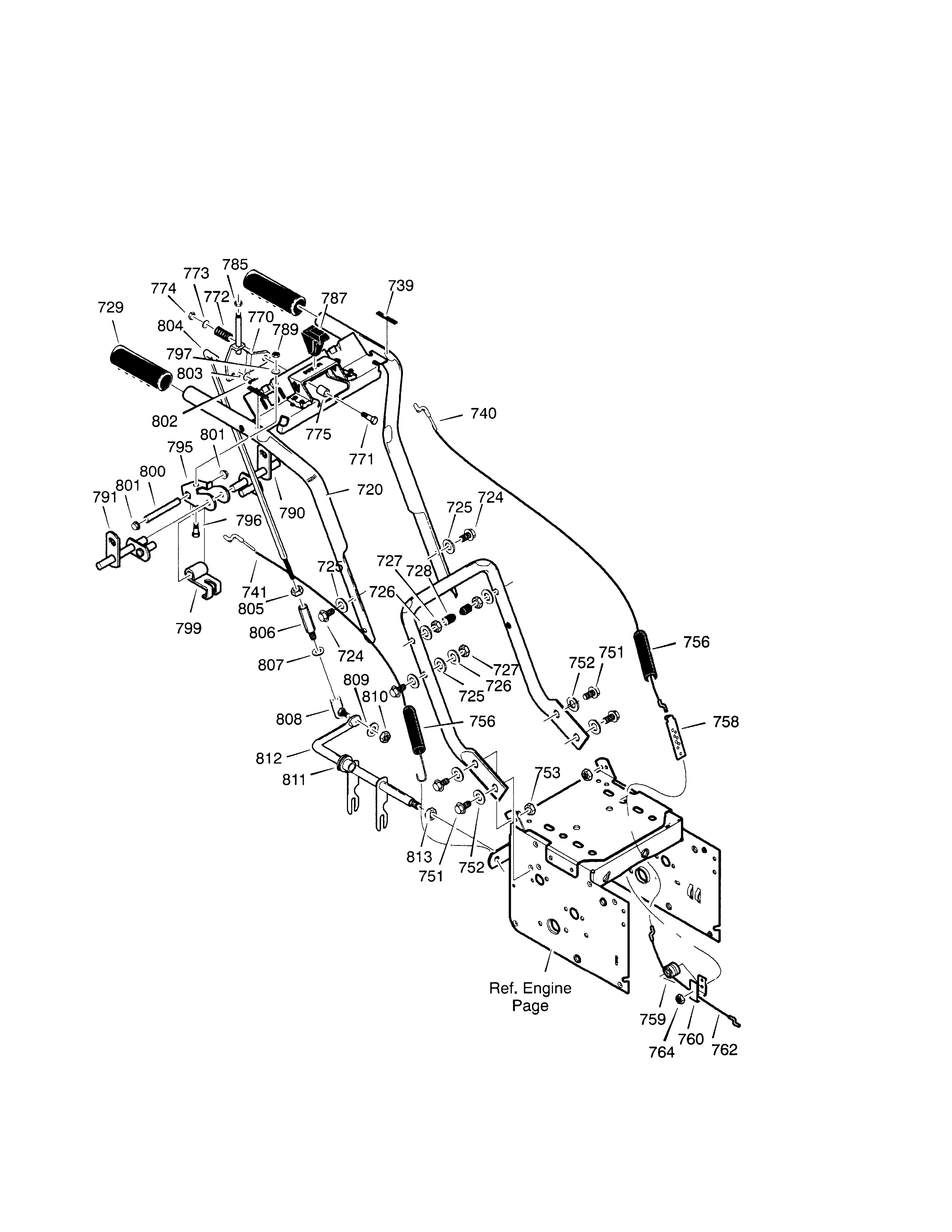

30`` 11hp handle diagram

Auger clutch spacer

Part #1673

Replaced by #1673MA

?
Manufacturer substitution
This part replaces 1673. Substitute parts can look different from the original.
BEST SELLER
$12.31
14% OFF Phone Price : $14.31
In Stock
Ug Dr. P4 P5 1501124
#740

30`` 11hp handle diagram

Ug dr. p4 p5

Part #1501124

Replaced by #762259MA

?
Manufacturer substitution
This part replaces 1501124. Substitute parts can look different from the original.
BEST SELLER
$18.38
10% OFF Phone Price : $20.38
In Stock
Boot Spring 308146
#756

30`` 11hp handle diagram

Boot spring

Part #308146

Replaced by #308146MA

?
Manufacturer substitution
This part replaces 308146. Substitute parts can look different from the original.
$10.97
15% OFF Phone Price : $12.97
In Stock
1/4" Spacer 3943
#523

30`` 11hp auger housing diagram

1/4" spacer

Part #3943

Replaced by #703058

?
Manufacturer substitution
This part replaces 3943. Substitute parts can look different from the original.
$12.09
14% OFF Phone Price : $14.09
In Stock
Lock Nut 73826
#254

30`` 11hp auger housing diagram

Lock nut

Part #73826

Replaced by #703251

?
Manufacturer substitution
This part replaces 73826. Substitute parts can look different from the original.
$8.07
11% OFF Phone Price : $9.07
In Stock
Screw 6218
#6

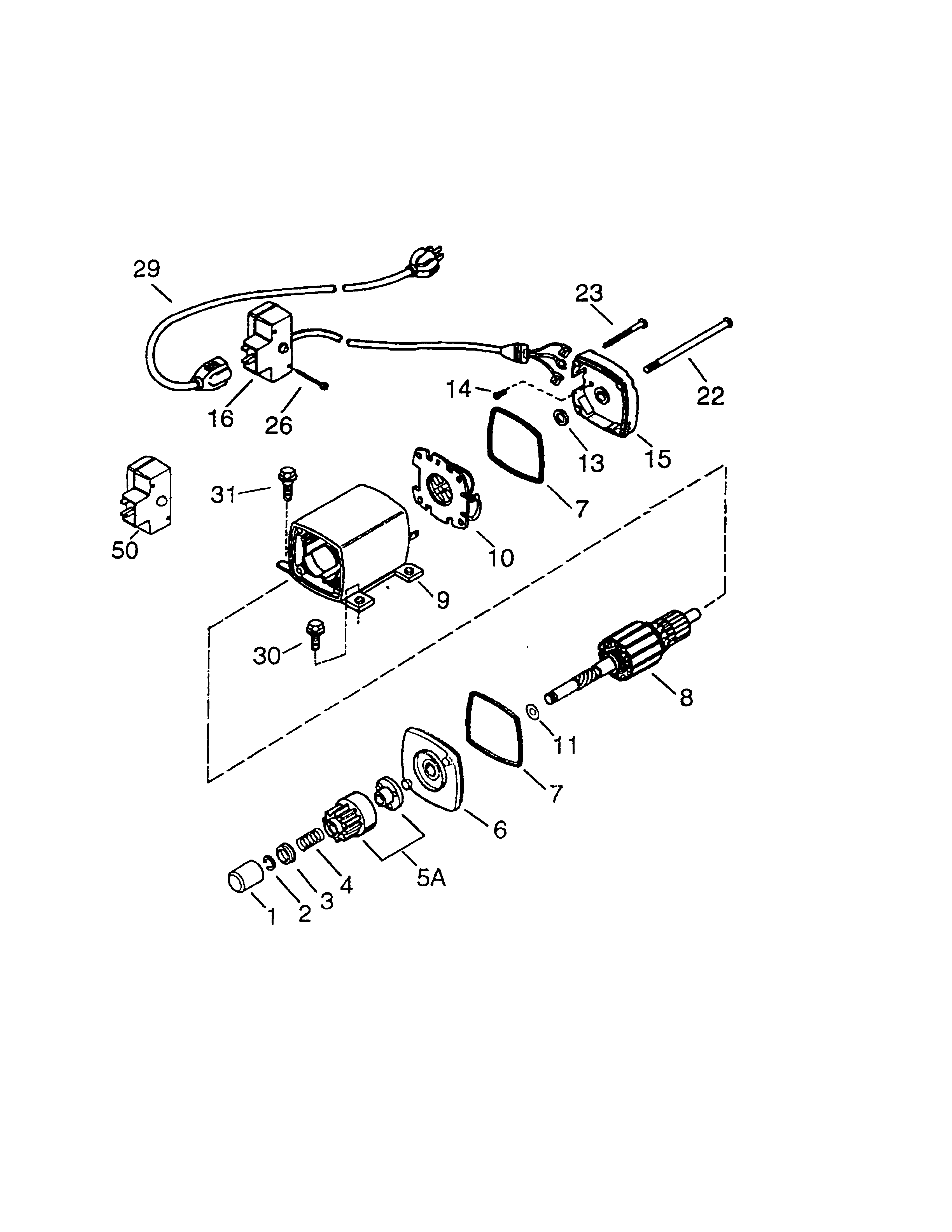

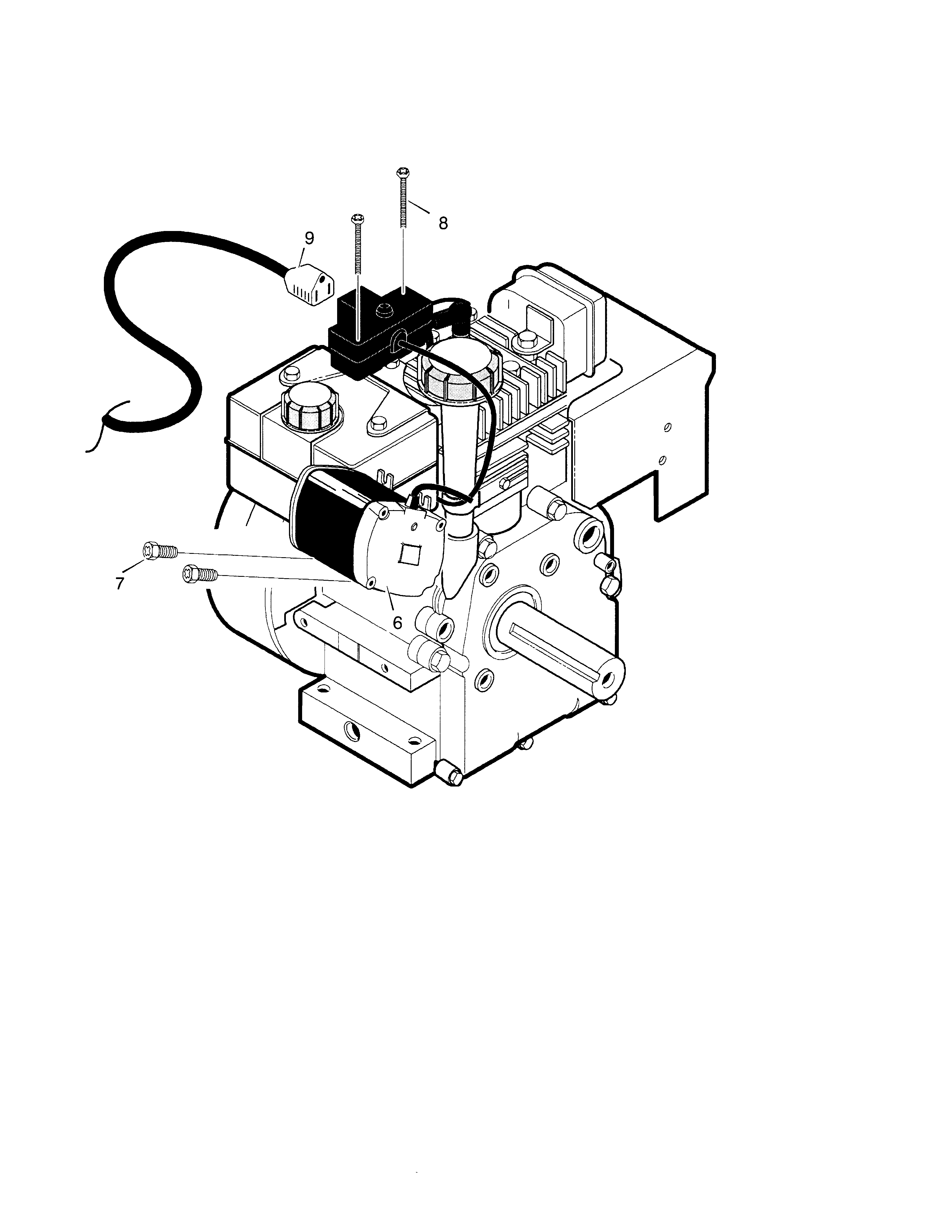

30`` 11hp electric starter diagram

Screw

Part #6218

Replaced by #33329H

?
Manufacturer substitution
This part replaces 6218. Substitute parts can look different from the original.
$226.25
$10.00 OFF Phone Price : $236.25
In Stock
Idler Pulley 50793
#148

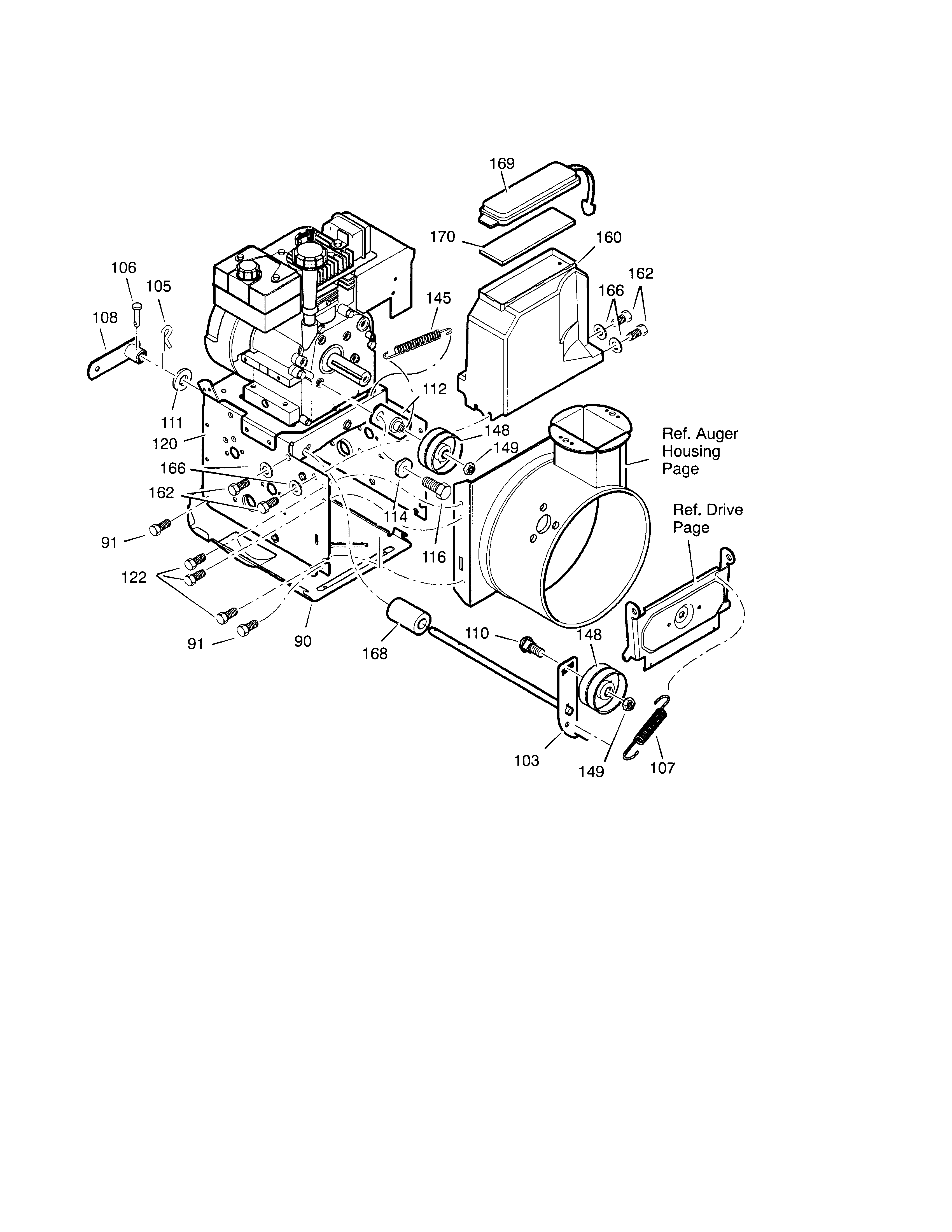

30`` 11hp frame diagram

Idler pulley

Part #50793

Replaced by #1502120MA

?
Manufacturer substitution
This part replaces 50793. Substitute parts can look different from the original.
$34.31
13% OFF Phone Price : $39.31
In Stock
