Kenmore Elite
Gas Cooktop

Model # 79031123510 Official Kenmore Elite cooktop

Here are the diagrams and repair parts for Official Kenmore Elite 79031123510 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

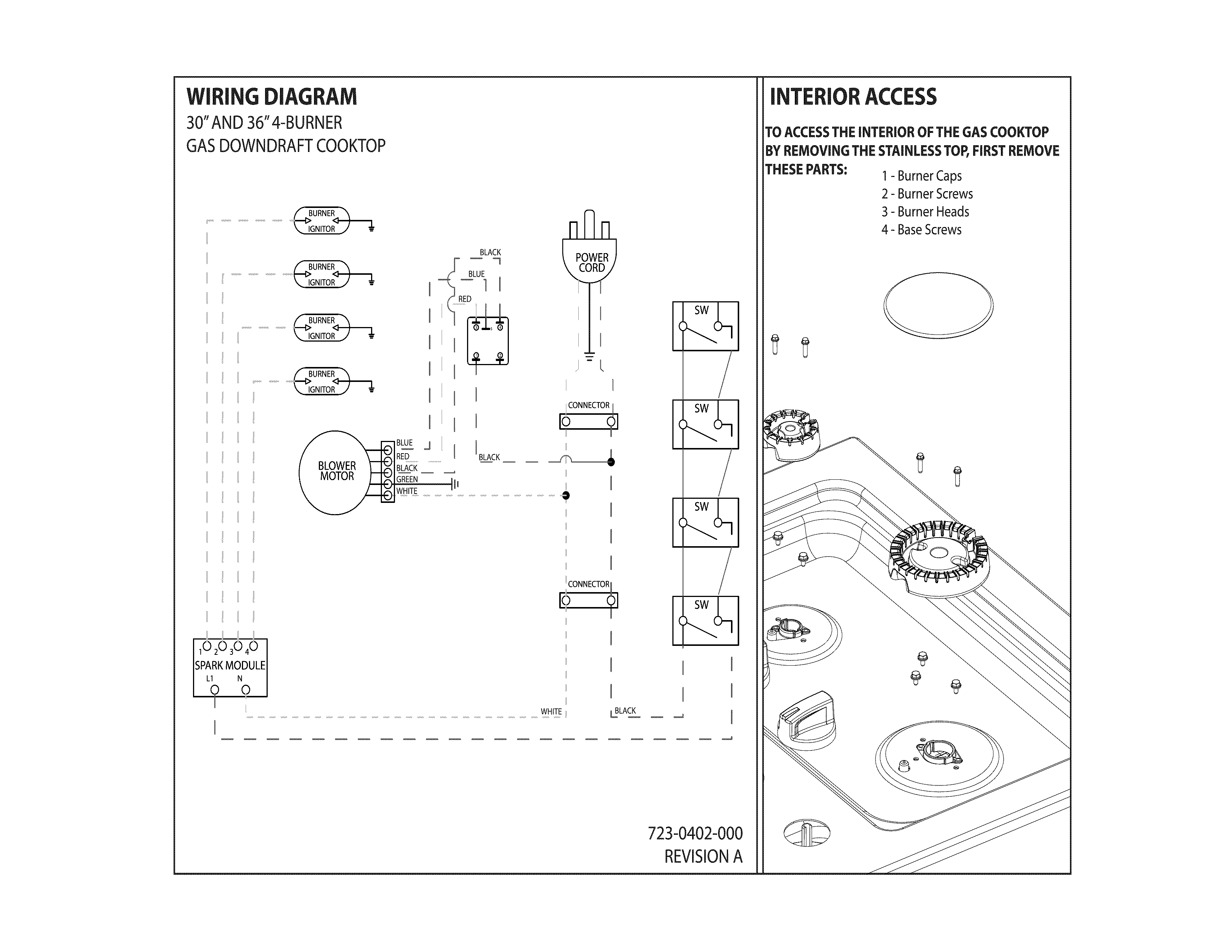

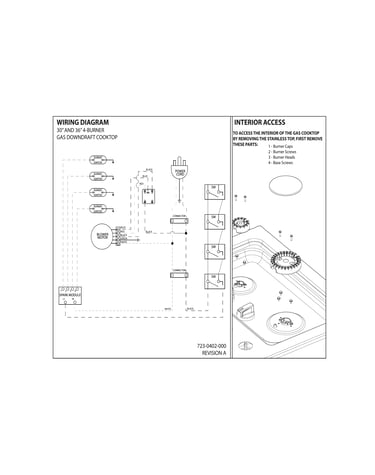

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Range Surface Burner Cap 316262104
#2

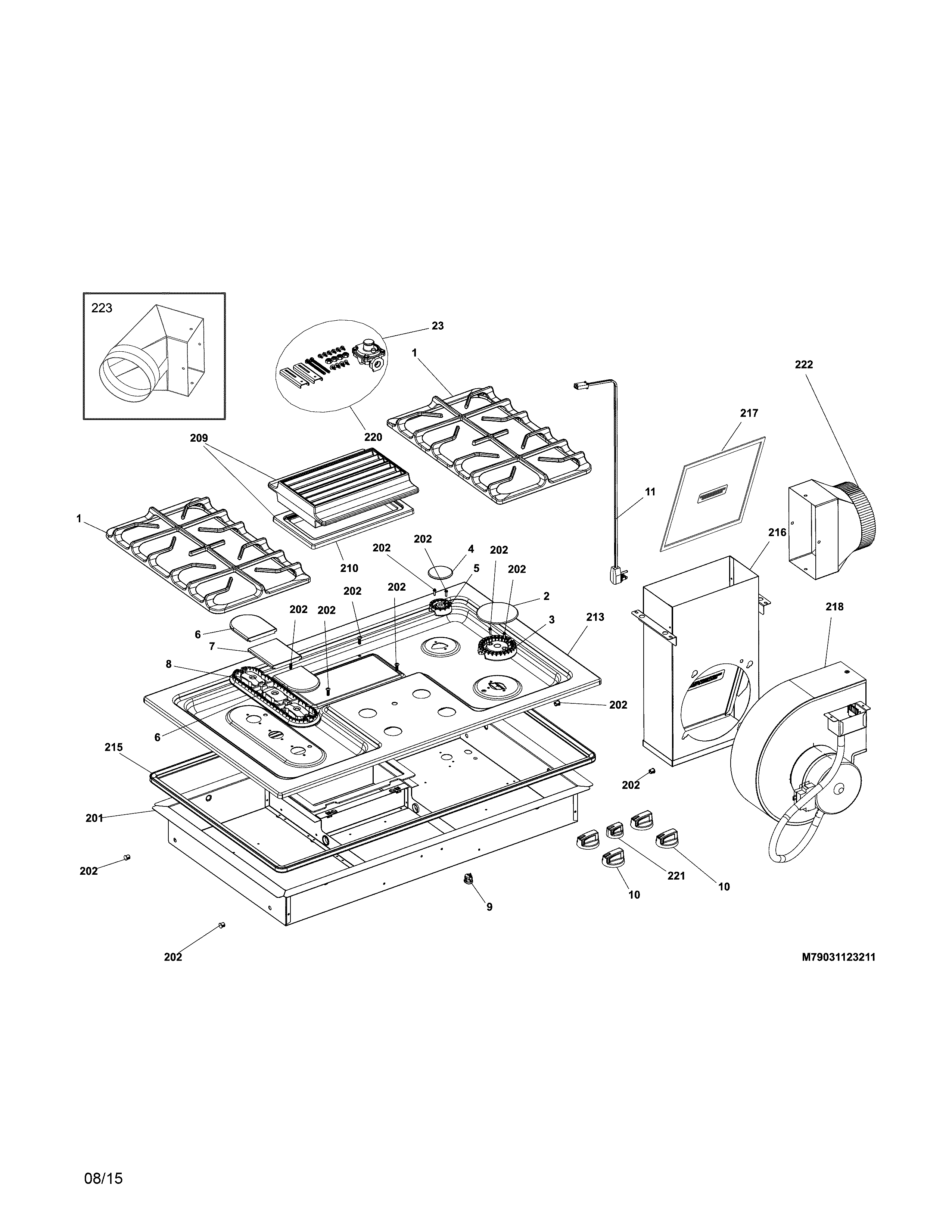

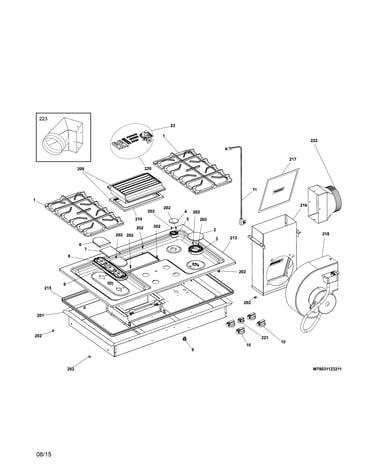

Main top diagram

Range surface burner cap

Part #316262104

Replaced by #5304508468

?
Manufacturer substitution
This part replaces 316262104. Substitute parts can look different from the original.
BEST SELLER
$44.29 |
10% OFF Phone Price : $49.29
In Stock
Range Surface Burner Head (replaces 7316438400) 316438400
#3

Main top diagram

Range surface burner head (replaces 7316438400)

Part #316438400

BEST SELLER
$59.89 |
8% OFF Phone Price : $64.89
In Stock
Range Surface Burner Head (replaces 7316438200) 316438200
#5

Main top diagram

Range surface burner head (replaces 7316438200)

Part #316438200

BEST SELLER
$48.17 |
9% OFF Phone Price : $53.17
In Stock
Range Surface Burner Orifice (replaces 7316527504) 316527504
#14

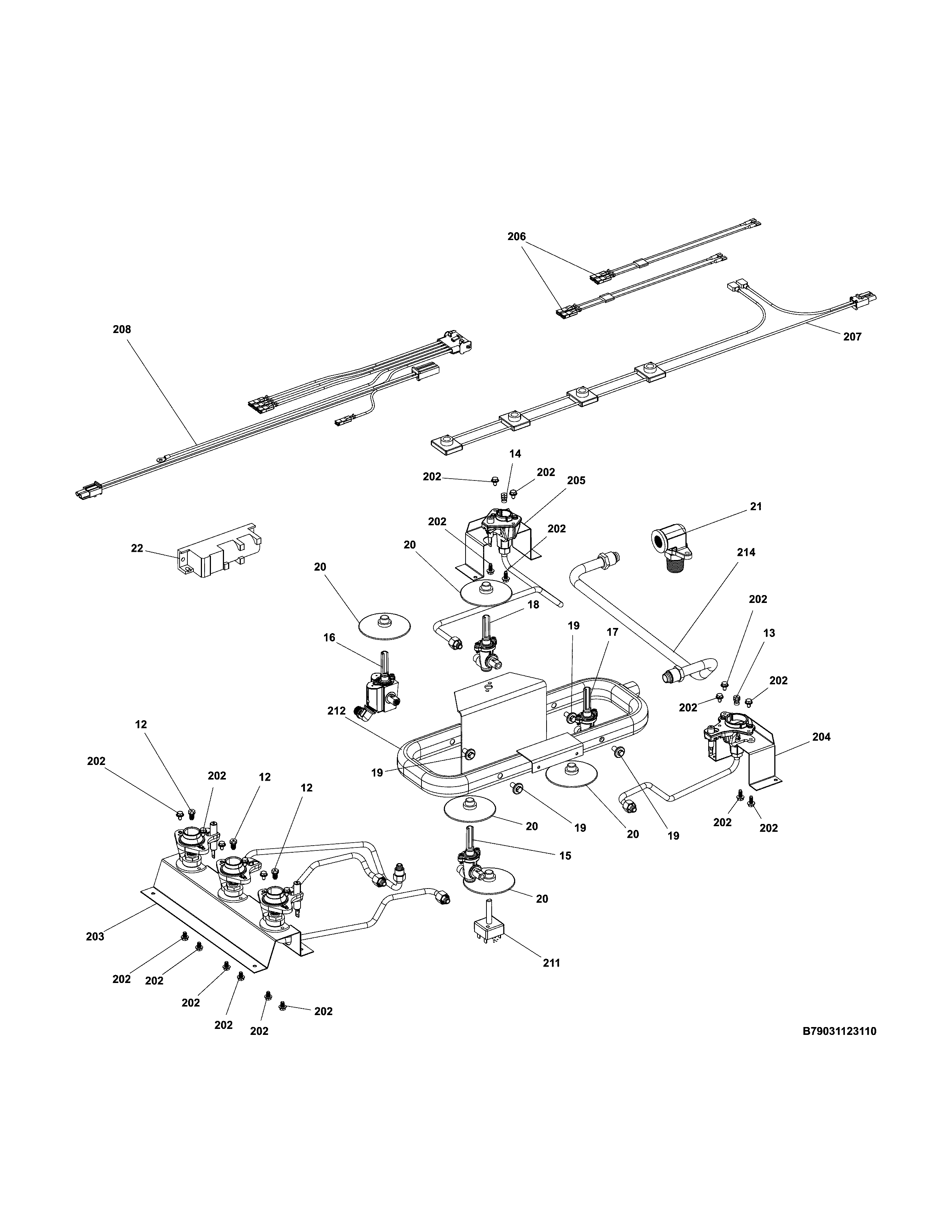

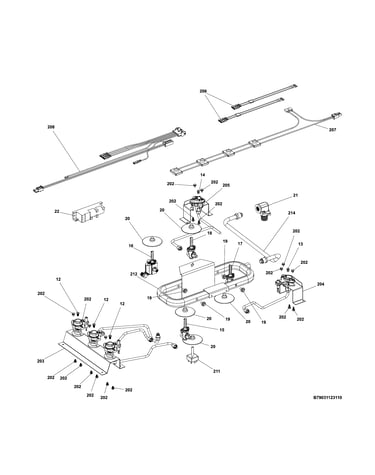

Burners diagram

Range surface burner orifice (replaces 7316527504)

Part #316527504

BEST SELLER
$19.44 |
9% OFF Phone Price : $21.44
In Stock
Range Spark Module (replaces 316135701, 7316135701, 7316135702) 316135702
#22

Burners diagram

Range spark module (replaces 316135701, 7316135701, 7316135702)

Part #316135702

BEST SELLER
$75.37 |
6% OFF Phone Price : $80.37
In Stock
Range Surface Burner Cap, 5,000-btu (matte Black) 316261704
#4

Main top diagram

Range surface burner cap, 5,000-btu (matte black)

Part #316261704

$20.99 |
19% OFF Phone Price : $25.99
In Stock
Range Surface Burner Orifice 316527509
#13

Burners diagram

Range surface burner orifice

Part #316527509

This item is not returnable
$20.44 |
20% OFF Phone Price : $25.44
In Stock
Cooktop Pressure Regulator 318122706
#23

Main top diagram

Cooktop pressure regulator

Part #318122706

$93.59 |
5% OFF Phone Price : $98.59
In Stock
Range Surface Burner Cap 316458703
#6

Main top diagram

Range surface burner cap

Part #316458703

$155.04 |
6% OFF Phone Price : $165.04
In Stock
Range Surface Burner Head 316458900
#8

Main top diagram

Range surface burner head

Part #316458900

$192.19 |
5% OFF Phone Price : $202.19
In Stock

Most common symptoms to help you fix your cooktops

Choose a symptom to see related cooktop repairs.

View all

Why isn't my cooktop working at all?

Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure…

Read more
