Kenmore
Mechanical Sewing Machine

Model # 15810500 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 15810500 sewing machine head, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

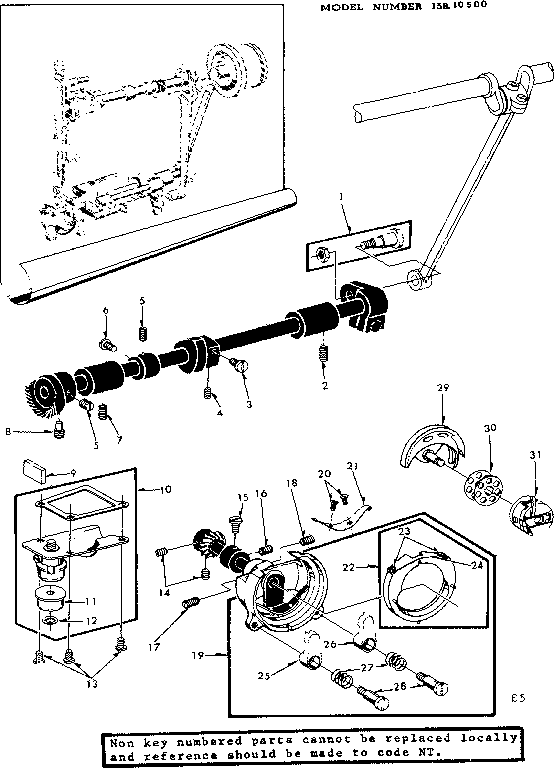

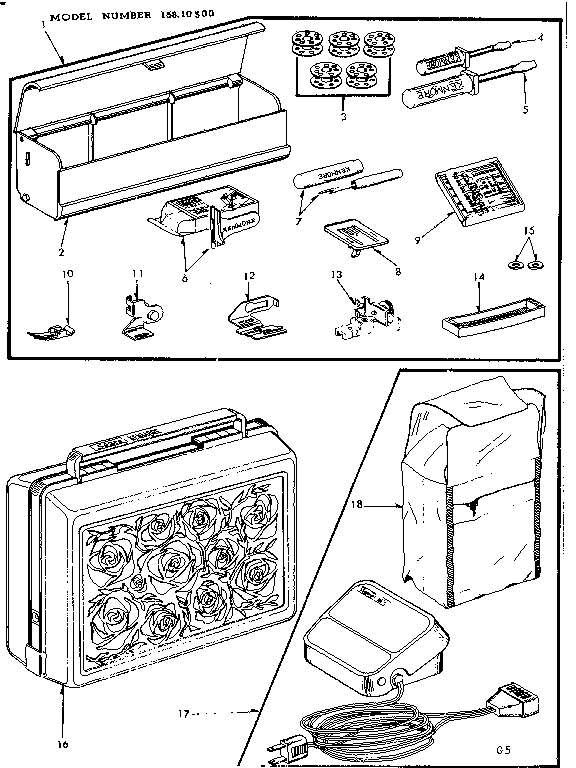

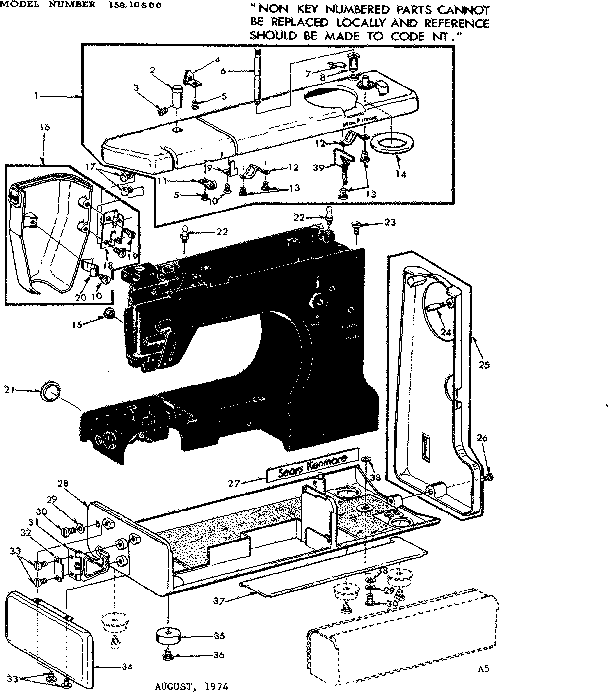

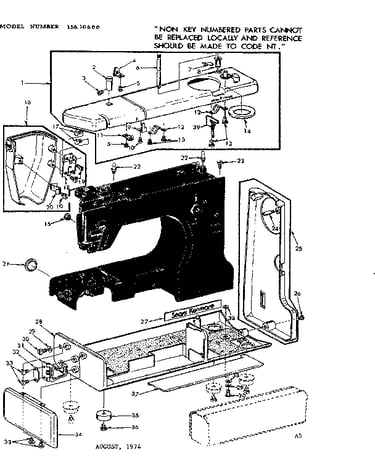

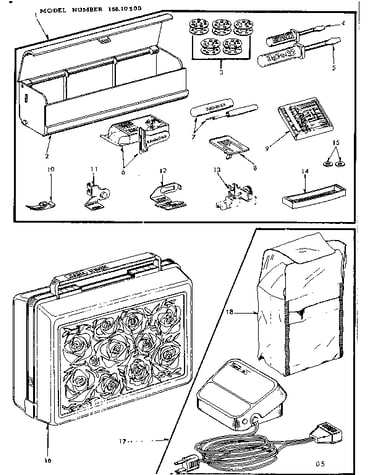

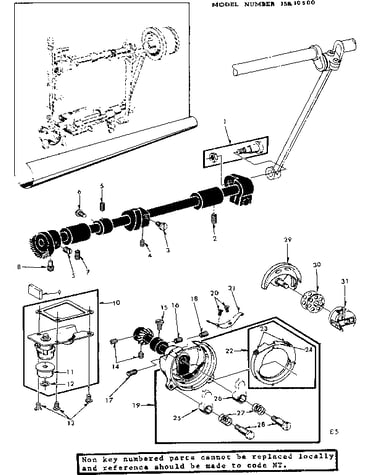

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 229 parts  |
Bracket 37565
#3

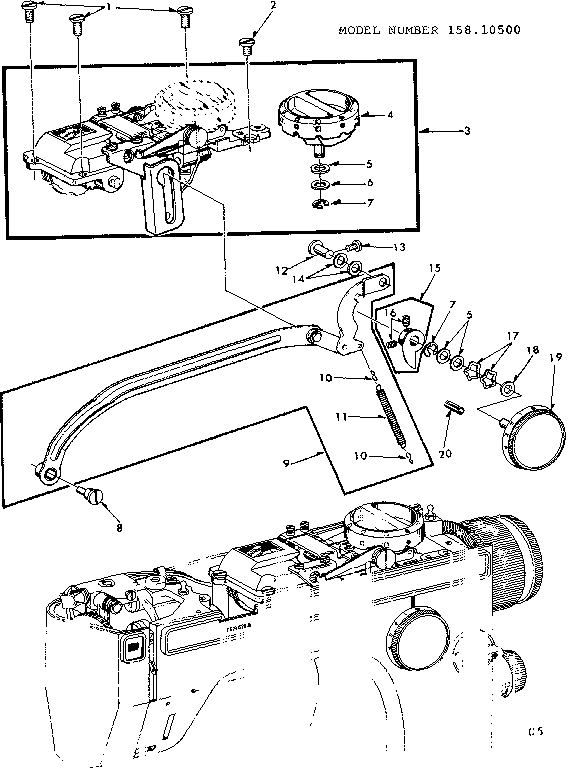

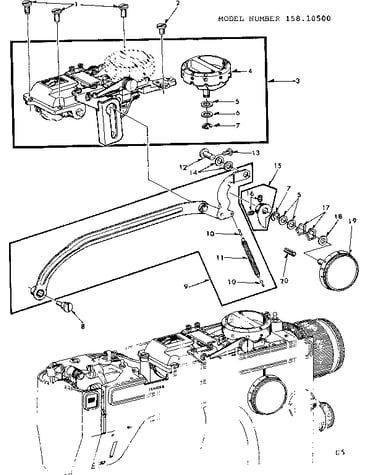

Zigzag guide bar assembly diagram

Bracket

Part #37565

The manufacturer no longer makes this part, and there's no substitute part

Stud 8130
#12

Zigzag guide bar assembly diagram

Stud

Part #8130

The manufacturer no longer makes this part, and there's no substitute part

Washer 26227
#6

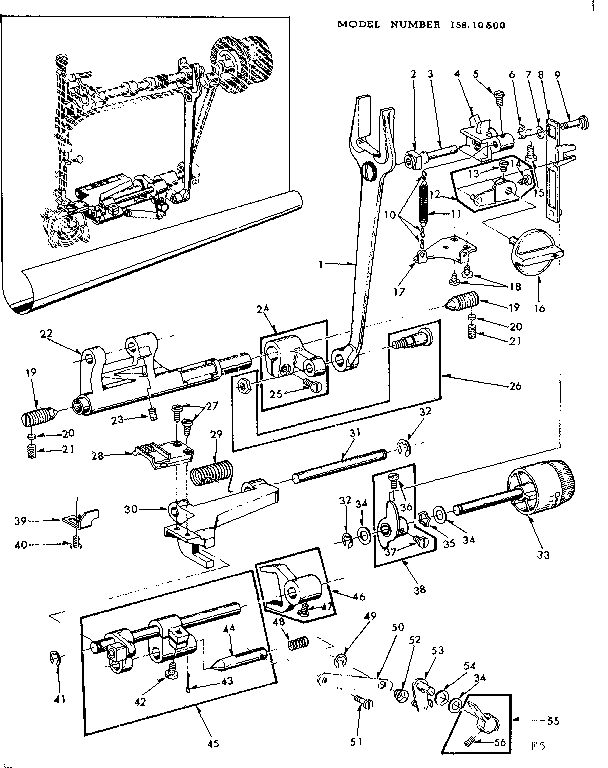

Feed regulator diagram

Washer

Part #26227

The manufacturer no longer makes this part, and there's no substitute part

Pivot Stud 31601
#12

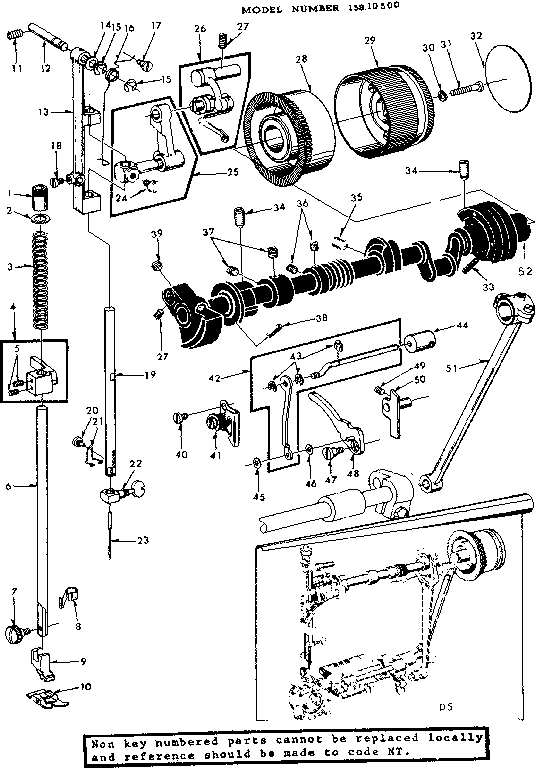

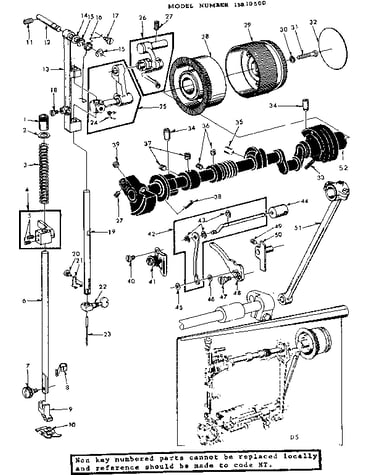

Presser bar guide assembly diagram

Pivot stud

Part #31601

The manufacturer no longer makes this part, and there's no substitute part

Connect Bar 37573
#42

Presser bar guide assembly diagram

Connect bar

Part #37573

The manufacturer no longer makes this part, and there's no substitute part

Support Bar 32559
#13

Presser bar guide assembly diagram

Support bar

Part #32559

The manufacturer no longer makes this part, and there's no substitute part

Guide Spring 36695
#41

Presser bar guide assembly diagram

Guide spring

Part #36695

The manufacturer no longer makes this part, and there's no substitute part

Felt 36611
#42

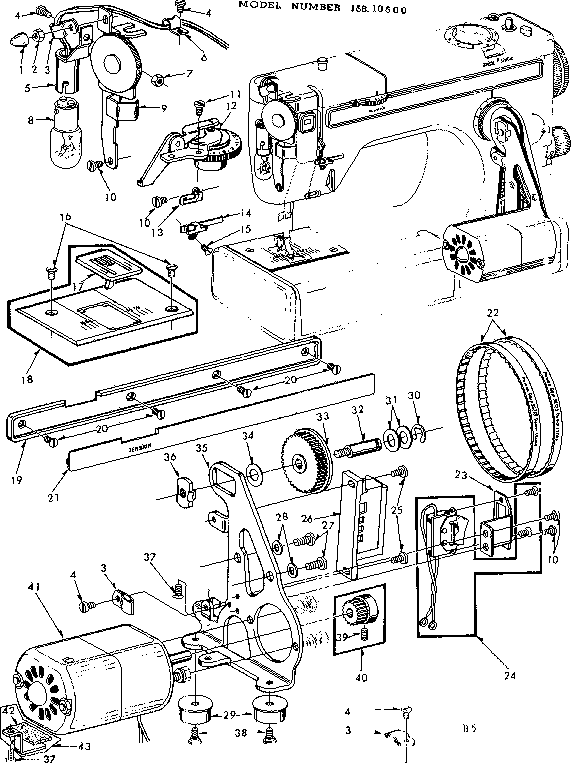

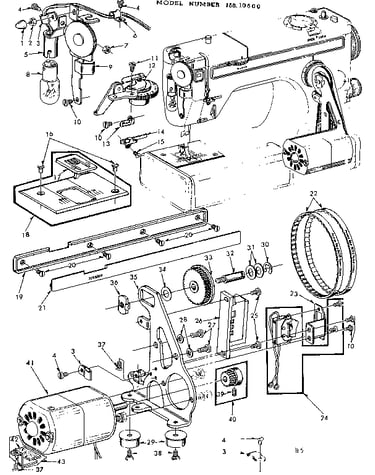

Motor assembly diagram

Felt

Part #36611

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Belt 36775
#22

Motor assembly diagram

Sewing machine belt

Part #36775

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 37240
#39

Motor assembly diagram

Set screw

Part #37240

The manufacturer no longer makes this part, and there's no substitute part
