On Maytag refrigerator model MFX2876DRM00, you typically “lower the wheels” by raising the brake feet so the front rollers touch the floor, then lowering the brake feet again once the refrigerator is in position. The steps and tool sizes are shown in the installation guide.

How to adjust the front rollers and brake feet (MFX2876DRM00)

1. Remove the base grille (open the freezer drawer for access). Pull the grille toward you with both hands.
2. To make it roll easier (front rollers down): turn both brake feet counterclockwise. This raises the brake feet and lets the front rollers touch the floor.
3. Roll the refrigerator into its final location.
4. To steady the refrigerator (rollers up, feet down): use a 1/4-inch hex nut driver to turn both brake feet clockwise until the rollers are off the floor and the brake feet are snug on the floor.
5. Reinstall the base grille.

Tips that prevent rocking or door swing issues

• Turn both brake feet the same amount to keep the cabinet level.
• If the refrigerator rolls forward when you open a door or the freezer drawer, lower the brake feet more (clockwise) in half-turns.
• Having someone push gently against the top of the refrigerator takes weight off the feet and makes turning easier.
• After leveling, confirm the doors close easily and stay closed.

Quick direction guide

What you want to do	Brake feet direction	Result
Roll refrigerator more easily	Counterclockwise	Brake feet raise; front rollers touch floor
Lock refrigerator in place	Clockwise	Brake feet lower; rollers lift off floor

Why it matters

Correct brake-foot adjustment keeps your MFX2876DRM00 from rolling forward when you open the doors or freezer drawer, and it helps the doors seal and close properly (better temperatures, fewer frost and moisture problems).

If you need replacement parts while you are adjusting or servicing the refrigerator, you can shop the parts list for MFX2876DRM00 or search by model on Sears PartsDirect.

Last updated: February 2026

For many households, yes: a bottom-mount refrigerator like the Maytag MFX2876DRM00 keeps fresh-food items at eye level, so everyday groceries are easier to see and reach while the freezer stays in a lower drawer. “Better” depends on how you cook, shop, and use frozen storage.

What makes a bottom-mount “better” for many people

• More ergonomic fresh-food access: you bend less for milk, produce, and leftovers.
• Better visibility: shelves and drawers are easier to scan quickly.
• Freezer organization: pull-out drawers can separate meats, frozen meals, and ice.
• Good for frequent cooking: fresh ingredients stay front-and-center.
• Often quieter day-to-day use: fewer long freezer-door openings compared with top-freezer styles.

When a bottom-mount might not be the best fit

• You use the freezer more than the refrigerator (you will bend more often).
• You prefer wide, open freezer shelves instead of stacked drawers.
• You need the lowest possible purchase price (top-freezer models are often simpler).

Practical install and space considerations (MFX2876DRM00)

Your installation clearances and room conditions matter as much as the layout. For the Maytag MFX2876DRM00, we recommend following the spacing and location guidance in the installation guide.

What to plan for	Typical guidance for this model type	Why it matters
Side and top clearance	About 1/2 inch each side and top	Helps ventilation and cooling efficiency
Rear clearance	About 1 inch behind	Room for airflow and connections
Room temperature	About 55°F to 110°F (preferred 60°F to 90°F)	Stable temps reduce energy use and improve cooling

Why it matters

A refrigerator layout affects comfort, food waste, and energy use. If fresh food is what you access most, bottom-mount designs usually feel more convenient. If frozen food is your priority, another configuration can be a better daily match.

If you are shopping for replacement parts or planning a repair for this model, we list common items like the refrigerator air filter W10311524 and refrigerator cartridge wrap assembly EDR2RXD1 on our parts list, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

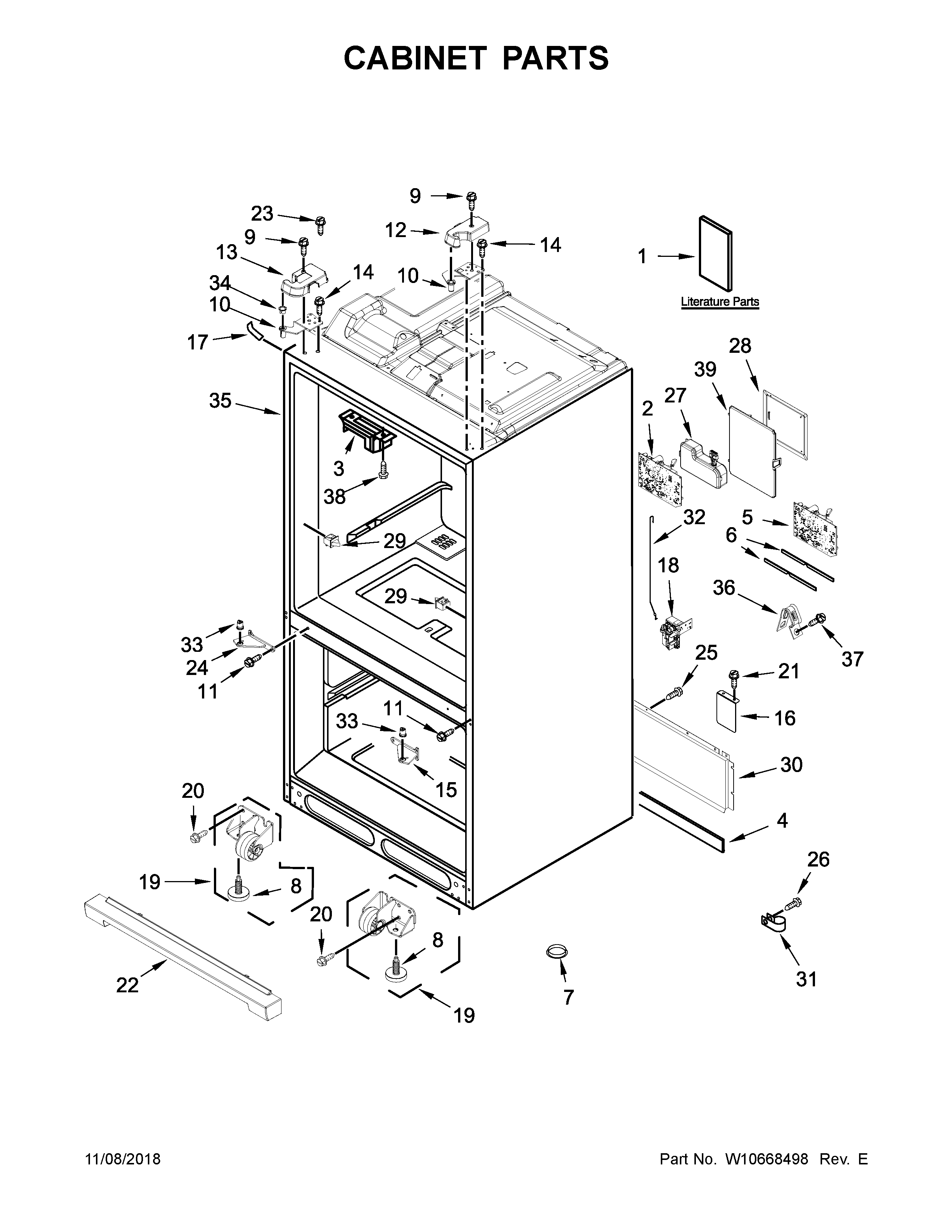

On a Maytag MFX2876DRM00 bottom-mount refrigerator, the “bottom part” most people mean is the base area under the doors and above the floor. That area includes the base grille and the adjustable brake feet and rollers; the compressor is also commonly located in the lower rear section of the refrigerator.

What you can call the “bottom part” (common names)

Depending on what you’re pointing to, these are the most common names:

• Base grille: the front cover at the very bottom, below the freezer drawer
• Brake feet (leveling feet): adjustable feet behind the base grille that stabilize the refrigerator
• Rollers: help you move the refrigerator into position

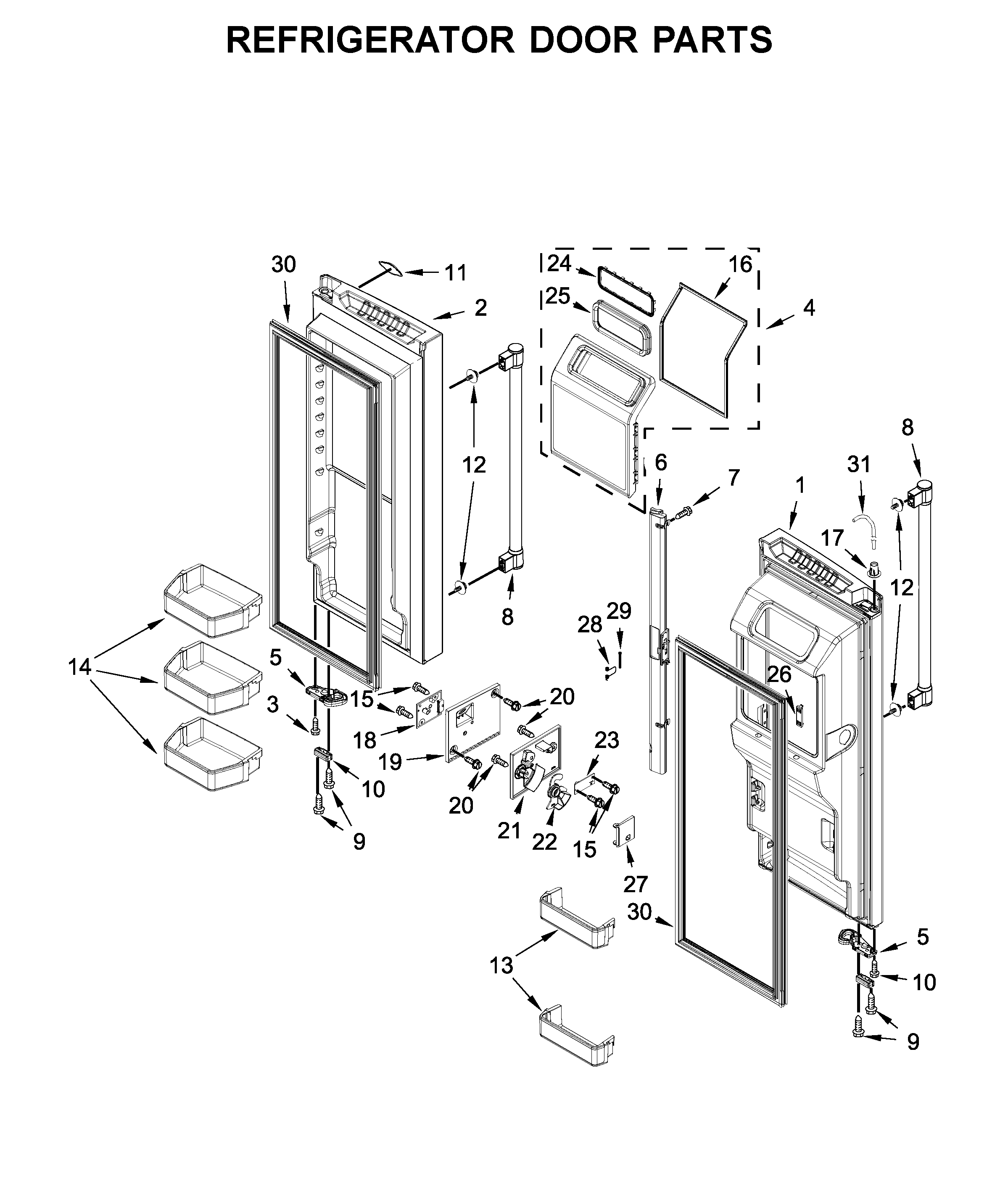

• Bottom hinge pin: the lower hinge point the door sits on
• Compressor compartment (rear, lower area): where the compressor and other sealed-system components are typically located

For model-specific handling and access steps, use the installation guide.

Quick identification guide

Use this to match the name to what you see:

If you’re looking at...	It’s usually called...	Where it is
The snap-off panel at the very bottom front	Base grille	Below the freezer drawer
The adjustable “feet” behind that panel	Brake feet (leveling feet)	Bottom front, behind base grille
The wheels that touch the floor when feet are raised	Rollers	Bottom front
The point the refrigerator door sits on	Bottom hinge pin	Bottom of the door side

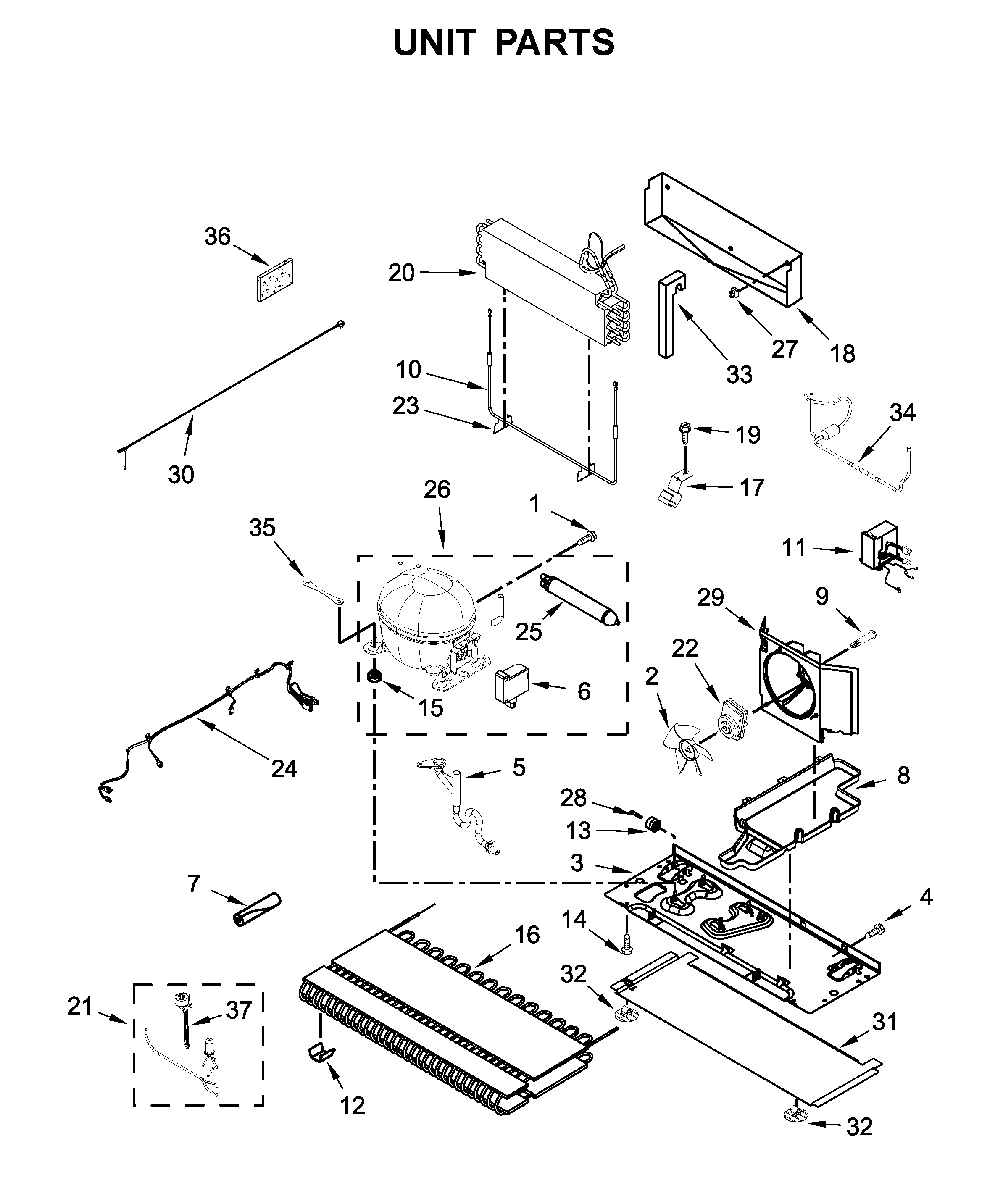

The large motor-like unit (usually rear)	Compressor	Lower rear

Why it matters

Using the right term helps you get the right instructions and parts. For example, door closing and alignment issues often involve the brake feet and bottom hinge pin, not the compressor.

Helpful tips for this model

These steps match common procedures for MFX2876DRM00-STYLE bottom-mount units:

• Remove the base grille by grasping it firmly and pulling it toward you.
• Open the freezer drawer to access the brake feet.
• Turn brake feet clockwise to lower them and stabilize the refrigerator.
• Turn brake feet counterclockwise to raise them so the unit rolls more easily.
• When aligning doors, the adjustment is typically at the bottom hinge pin area.

If you’re shopping for maintenance items that affect air quality and odors in the cabinet, we list the refrigerator air filter W10311524 for this model; you can also search by model on Sears PartsDirect.

Last updated: February 2026

Ice on the bottom of the freezer in your Maytag MFX2876DRM00 almost always happens when meltwater cannot drain away fast enough; moisture then refreezes on the freezer floor. Frequent drawer openings, a drawer not fully closed, or a poor door seal also add humidity that turns into frost and ice. See the owner's manual for the model’s frost and door-seal checks.

Most common causes (and what we do first)

• Clogged or restricted defrost drain: water backs up and freezes on the freezer bottom.
• Freezer drawer left open or opened often: humid air enters and creates frost buildup.
• Poor drawer/door seal: gasket not making full contact lets warm, moist air leak in.
• Temperature settings not ideal: can increase frost and ice accumulation.
• High-humidity room: adds moisture load that becomes frost/ice.

Quick checks you can do in 10 minutes

1. Confirm the drawer closes completely and is not blocked by food packages or a bin.
2. Inspect the gasket contact all the way around; it should sit flat against the cabinet.
3. Clean sticky/dirty gaskets with mild soap and warm water; rinse and dry.
4. Reduce humidity sources: keep liquids covered and minimize door openings.
5. Verify control settings match the recommended ranges in the owner's manual.

If the issue is a drain problem

A drain issue is the classic reason ice forms specifically on the freezer floor. After you remove the ice buildup, the long-term fix is making sure the drain path stays clear so defrost water can flow to the drain pan instead of refreezing.

Parts that can be involved

Symptom you notice	What it points to	Related part on this model page
Ice sheet on freezer bottom	Drain restriction and refreeze	(No drain part listed here; use the parts list by model)
Heavy frost plus warm fridge temps	Airflow/defrost issue	Refrigerator defrost heater WP12729128
Frost pattern and weak airflow	Evaporator fan not moving air	Refrigerator fan motor W10633627

Why it matters

Ice buildup on the freezer bottom can eventually keep the drawer from sealing, increase run time, and cause temperature swings that affect food quality. Fixing airflow, sealing, and drainage early prevents repeat icing.

For replacement parts for your MFX2876DRM00, use the parts list for this model or search by model number on Sears PartsDirect.
