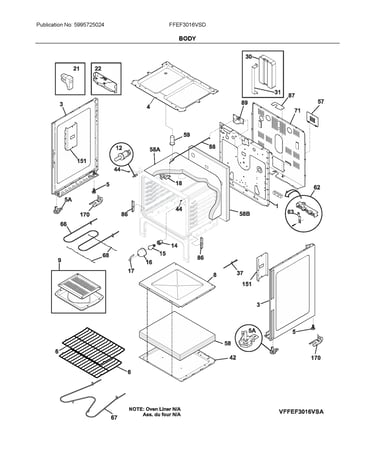

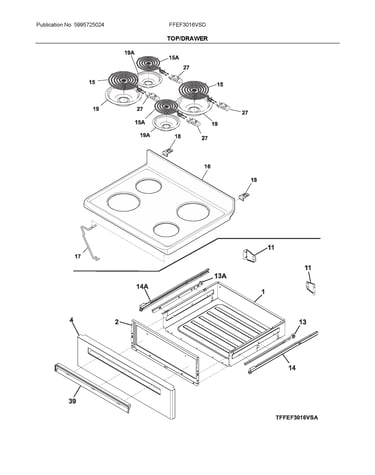

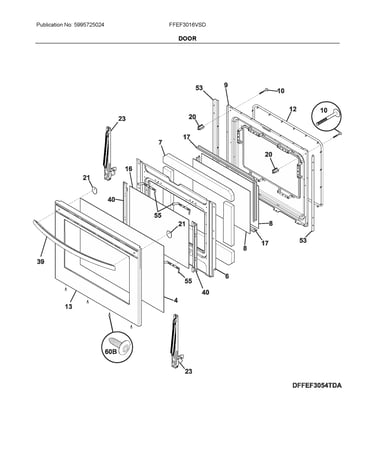

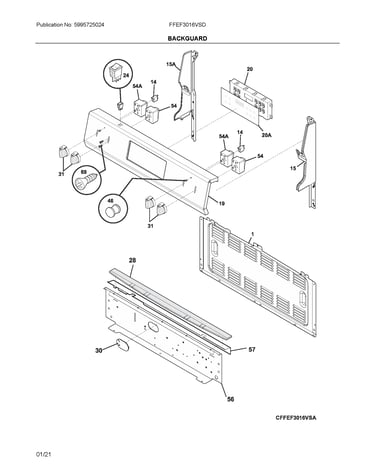

Frigidaire FFEF3016VSD electric range Parts

Your Frigidaire stove’s model number is printed on the serial plate; on the FFEF3016VSD electric range, it’s commonly located behind the lower oven drawer or storage drawer. Write down the full model number and serial number exactly as shown (letters and numbers).

Where to look on a Frigidaire range

Check these common serial plate locations:

• Open the lower oven drawer or storage drawer and look along the frame area
• Check the oven door frame area (around the opening)
• Look just inside the oven cavity on a side panel (use a flashlight)
• Wipe grease or dust off the label so every character is readable
• Copy the model number and serial number exactly; avoid mixing up 0 (zero) and O (letter O)

For the model-specific “serial plate location” notes and examples, use the FFEF3016VSD owner’s manual.

How to record it correctly (and why it matters)

The model number identifies the exact Frigidaire build so we can match the right parts, diagrams, and troubleshooting steps for your electric range.

Quick checklist

• Model number: usually a longer mix of letters and numbers (example format: FFEF3016VSD)
• Serial number: a separate code used to identify the production unit
• Take a photo of the label before ordering parts

What you can do once you have the model number

Here’s how the model number helps you move forward:

What you need	Why you need it	Example part for this model
Model number	Ensures correct fit across versions	Frigidaire range bake element 316075103
Serial number	Helps narrow production variations	Used for service and support
Symptom details	Speeds up troubleshooting	“Oven won’t heat”, “burner won’t turn on”

Why it matters

Even small differences in a range series can change which bake element, control switch, or oven temperature sensor fits. Using the exact model number prevents wrong-part returns and repeat repairs.

Last updated: February 2026

A Frigidaire Gallery oven typically lasts 10 to 15 years. For a Frigidaire electric range like model FFEF3016VSD, lifespan depends most on how often you bake/broil, how well the oven is kept clean, and whether key wear parts (like heating elements) are replaced when they fail; see the FFEF3016VSD owner's manual for care and cleaning guidance.

Typical lifespan and what affects it

Most modern electric ovens land in the 10 to 15 year range. These factors move the needle the most:

• High-heat use (frequent broiling, pizza temps, long bakes)
• Self-clean frequency (high heat stresses components; allow full cool-down time)
• Spills and soil left on the oven bottom or around the door
• Power quality (surges can damage the electronic control)
• Routine maintenance (keeping the door seal tight, replacing failed elements promptly)

Parts that most often end the “good years”

When an oven stops heating evenly or won’t heat at all, it is usually a repairable part, not the whole range.

Symptom	Common cause	Example part for FFEF3016VSD
Oven won’t bake	Failed bake element	Frigidaire range bake element 316075103
Oven temperature off	Weak sensor or calibration issue	Frigidaire range oven temperature sensor 316490000
No heat on broil	Failed broil element	Frigidaire range broil element 316203200
Display issues, erratic operation	Control problem	Frigidaire range oven control board 5304532117

Why it matters

Knowing the typical 10 to 15 year lifespan helps you decide whether to repair or replace. If your FFEF3016VSD is heating poorly but the cooktop still works, replacing a bake element, temperature sensor, or control board often restores normal baking performance for far less than a new range.

Tips to help your oven reach the high end of its lifespan

• Wipe up spills after the oven cools to prevent baked-on soil
• Avoid slamming the oven door; it protects hinges and the door seal
• Use self-clean only when needed and let the oven cool fully before opening
• Confirm racks are seated correctly before cooking to prevent damage
• If you see an error code, use the Frigidaire self-cleaning range error codes guide to narrow the cause

Last updated: February 2026

On the Frigidaire FFEF3016VSD electric range, replacing the broil element is a straightforward rear-mount swap: shut off power, remove the mounting screws inside the oven, pull the element forward a few inches, transfer the wires, then reinstall and test broil.

Before you start (safety and prep)

• Turn off power at the breaker (240V); confirm the control panel is dark.
• Let the oven cool completely; use oven mitts if anything is warm.
• Pull the range forward only if needed for access; avoid stressing the power cord.
• Have a 1/4-inch nut driver or screwdriver ready (fastener type varies).
• Keep one hand on the element when removing the last screw so it does not drop.

Step-by-step: replace the broil element

1. Remove oven racks for working room.
2. Remove the screws securing the broil element to the rear oven wall.
3. Carefully pull the element toward you 2 to 4 inches.
4. Disconnect the two wire terminals (note orientation); do not let wires fall back through the insulation.
5. Connect wires to the new element terminals.
6. Reposition the element, reinstall mounting screws, and reinstall racks.
7. Restore power and run Broil briefly to confirm it heats.

What to check if broil still does not heat

• Loose or burned wire terminals at the element
• A failed temperature sensor affecting oven operation (see Frigidaire range oven temperature sensor 316490000)
• A control issue; clear any fault by pressing OFF, then retry broil (your FFEF3016VSD owner's manual covers broil operation and basic control behavior)

Quick symptoms guide

Symptom	Most common cause	What we do next
No heat, no glow	Open broil element	Replace broil element, inspect terminals
Heats sometimes	Loose connection	Tighten/repair terminals, check harness
Error code beeps	Control detected a fault	Clear with OFF, power reset, then diagnose

Why it matters

A weak or open broil element causes slow browning and uneven top heat. Replacing it restores proper direct-heat cooking performance and helps prevent excessive smoke from prolonged broiling.

Last updated: February 2026

On the Frigidaire FFEF3016VSD electric range, the F30 error code points to a problem in the oven temperature sensing circuit, most often a failed oven temperature sensor, a loose/unplugged sensor connection, or damaged sensor wiring.

What to do first (safe reset and quick checks)

• Press OFF/CANCEL to clear the code.
• If the code returns, turn power off at the breaker for 5 minutes, then restore power.
• Set the clock (some ovens will not operate correctly until time-of-day is set).
• Try Bake again and watch for the code to reappear.
• If the oven was recently moved or serviced, check for a pinched harness at the back or where the sensor wiring routes.

For control and error-code behavior specific to this model, follow the steps in the FFEF3016VSD owner's manual.

Likely causes of an F30 code

• Oven temperature sensor probe is open/failed
• Sensor connector is loose or unplugged
• Sensor wiring harness is damaged (burned, pinched, or broken)
• Less common: electronic oven control problem

Common symptom-to-cause guide

What you notice	Most likely cause	What usually fixes it
Oven will not heat and F30 appears quickly	Sensor circuit open or unplugged	Reseat connector; replace sensor
Oven heats erratically, then throws F30	Intermittent wiring/connector	Repair wiring; replace sensor
F30 returns after reset and clock set	Failed sensor or control issue	Replace sensor first; then diagnose control

Parts that commonly resolve F30 on this model

If the sensor checks out of range or the code persists after reseating connections, the most common replacement is the Frigidaire range oven temperature sensor 316490000.

Why it matters

The oven control relies on the temperature sensor signal to regulate bake and broil safely. When the control cannot read that signal correctly, it stops heating and posts F30 to prevent overheating or inaccurate cooking temperatures.

Last updated: February 2026

On your Frigidaire FFEF3016VSD electric range, the most reliable way to identify the correct oven part number is to first locate the model and serial tag (serial plate), then use that model number when selecting parts. The serial plate is commonly found by opening the lower oven drawer or storage drawer.

Where to look on the range

Check these common serial plate locations on the FFEF3016VSD:

• Open the storage drawer or lower drawer and look along the frame area
• Check the interior-side trim that’s visible when you open the oven door
• Look along the left-side panel area visible with the oven door open
• If your range has a warming drawer, check around that drawer opening

For diagrams and the exact “serial plate location” note for this model, use the FFEF3016VSD owner’s manual.

How to use the information to get the right part

Once you have the model and serial information, use it to match the exact replacement part.

• Write down the full model number: FFEF3016VSD
• Record the serial number (it helps confirm production run compatibility)
• Search parts by model first, then confirm the part number on the part listing
• Compare the part description to what you’re replacing (bake element, control switch, sensor)
• If you’re replacing an oven heating part, match the mounting style and connector type

Quick example (common oven part)

If your oven is not heating and the lower element is visibly damaged, a common replacement is the Frigidaire range bake element 316075103. Always confirm it matches your exact configuration using the model number.

Why it matters

Frigidaire ranges can use different versions of the same component across production runs. Using the model and serial tag prevents ordering a bake element, oven temperature sensor, or control board that looks similar but does not fit or wire up correctly.

What you find	What it’s used for	Why you need it
Model number (FFEF3016VSD)	Parts lookup	Ensures correct fit by design family
Serial number	Version check	Helps match the correct revision
Part number (on listing/part)	Ordering	Identifies the exact replacement

Last updated: February 2026

Frigidaire electric ranges (including model FFEF3016VSD) are made under the Frigidaire brand, which is part of Electrolux. That means Electrolux is the parent manufacturer behind Frigidaire-branded ranges, while the appliance itself is sold and supported as Frigidaire.

How to confirm the manufacturer for your exact range

The quickest way is to match the model number on the serial plate to your documentation.

• Open the lower oven drawer or storage drawer to find the serial plate location
• Verify the model number reads FFEF3016VSD
• Keep the model and serial number handy when ordering parts or requesting service
• Use the FFEF3016VSD owner's manual to confirm product identification details

What “made by Electrolux” means for parts and service

For parts lookup and repairs, the most important detail is the model number, not the corporate parent.

What you need	Why it matters	Example for this range
Model number	Ensures correct fit and wiring	FFEF3016VSD
Part ID / part number	Identifies the exact replacement part	316075103
Serial number	Helps match production variations	Found on serial plate

Why it matters

Frigidaire ranges can share similar styling across years, but parts like a bake element, oven temperature sensor, or control board must match the exact model series. Using FFEF3016VSD prevents ordering a look-alike part that will not mount, connect, or heat correctly.

Last updated: February 2026
