GE JBP30WXB2WW electric range Parts

Yes. On the GE JBP30WXB2WW electric range, we replace a failed bake or broil heating element by shutting off power, removing the mounting screws inside the oven, pulling the element forward to access the wires, then transferring the wires to the new element and reinstalling it.

Before you start (safety and prep)

• Turn off the range at the circuit breaker (240V); confirm the oven is fully off.
• Let the oven cool completely.
• Remove oven racks for working room.
• Wear work gloves; sheet metal edges can be sharp.
• If wiring looks burned or brittle, stop and address the connection issue first.

Which element are you replacing?

Use this quick check to choose the right part for common “oven not heating” symptoms.

Symptom	Most likely part	Example part for this model
Oven will not bake or bakes unevenly	Bake element (bottom)	Range bake element WB44T10011
No broil heat from the top	Broil element (top)	Range broil element WB44T10009

How we replace a bake or broil element

• Shut off power at the breaker.
• Remove the screws holding the element to the rear oven wall.
• Carefully pull the element a few inches into the oven.
• Hold the wires so they do not slip back through the insulation.
• Move the wire connectors to the new element (one at a time).
• Reposition the element, reinstall screws, then restore power and test.

Why it matters

A weak, blistered, or broken element can cause long preheat times, undercooking, or no heat at all. Replacing the correct element restores proper temperature control and helps prevent overheated wiring at the terminals.

Last updated: February 2026

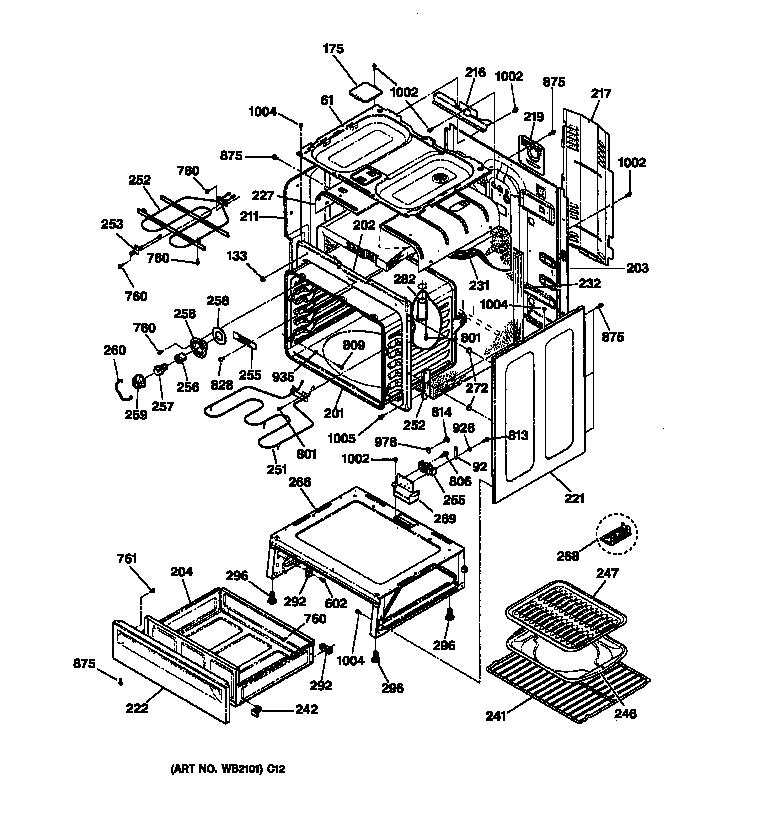

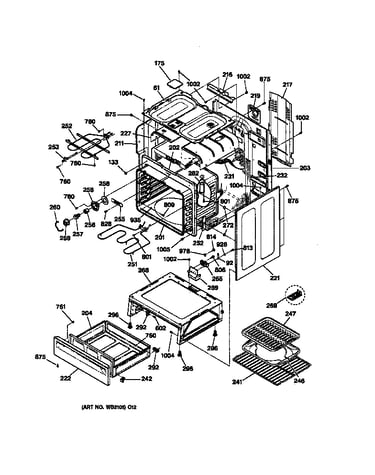

For your GE JBP30WXB2WW electric range, the right part number comes from matching the model number on the appliance ID tag to the exact part listing; once the model is confirmed, we use the part name and diagram location to select the correct GE part number for your specific range.

Step 1: Confirm the model number on the range

Look for the appliance ID tag and verify it reads JBP30WXB2WW (character-for-character). Common places on freestanding electric ranges include:

• The oven frame behind the storage drawer (pull the drawer out)
• The oven door frame area (around the front opening)
• The back panel of the range
• Inside the lower drawer cavity on a side wall

Step 2: Match the part by name and function

Once the model is confirmed, match the failed item by what it does and where it sits on the range.

• Identify the system: oven heat, broil, surface burner, door, or lighting
• Compare the part name to what you are replacing (for example, “bake element” vs “broil element”)
• Check for left/right or size differences (common with surface units and drip pans)
• If the old part has a stamped number, use it as a cross-check (not the only check)

Quick examples for JBP30WXB2WW

What you need	What to look for	Example part on this model
Oven light not working	Bulb vs socket vs cover	Range oven light bulb 40A15
Oven not baking evenly	Bake element vs temperature sensor	Range bake element WB44T10011
Oven over/underheats	Temperature sensor	Wall oven temperature sensor WB23X5340

Why it matters

GE ranges often use similar-looking parts across multiple models; using the exact JBP30WXB2WW model match prevents ordering a part that fits physically but has different wattage, terminals, or mounting.

Helpful DIY reference

If you are troubleshooting heat problems before ordering parts, use oven wont heat troubleshooting electric range problems video to narrow down whether the issue is the bake element, broil element, sensor, or power supply.

Last updated: February 2026

For a GE JBP30WXB2WW electric range, replacing the oven control board typically costs $150 to $600 total (part plus labor). The control board itself is commonly $100 to $350, and professional installation often adds $150 to $250+ depending on service rates and diagnosis time.

What affects the total price?

• Exact board needed (some models use a clock/timer board vs. an electronic oven control)
• Service call/diagnostic fee (often applied toward the repair)
• Wiring condition (burned connectors can add parts and labor)
• Whether the issue is actually the board (sensor, element, or terminal connections can mimic board failure)
• DIY vs. technician repair

Quick cost breakdown (typical ranges)

Cost item	Typical range	Notes
Control board part	$100 to $350	Varies by revision and availability
Labor	$150 to $250+	Includes removal, install, and testing
Extra parts (if needed)	$10 to $60	Terminals, screws, connectors

Before you buy a control board

We recommend ruling out common “no heat” causes first, because they are often cheaper than a board:

• Check for a failed bake element such as the range bake element WB44T10011
• Check for a failed broil element such as the range broil element WB44T10009
• If temps are erratic, test the oven sensor such as the wall oven temperature sensor WB23X5340
• Inspect the power connection for heat damage at the terminal block WB17T10006
• Confirm the range is getting full power (a tripped double breaker can leave you with partial voltage)

Why it matters

A control board is one of the higher-cost range parts. Verifying the bake element, temperature sensor, and power connection first helps avoid replacing an expensive part when the real problem is a simpler electrical or heating component.

Last updated: February 2026

To order parts for your GE electric range model JBP30WXB2WW, order by the full model number and the exact part ID to ensure fit. If you run into warranty questions or availability issues, contact Sears PartsDirect support with your model and serial number.

Best way to order the correct part

• Find the full model number on the range (commonly on the oven frame behind the door, or on the storage drawer frame).
• Match the symptom to the part category (surface heating, oven heating, door, lighting).
• Order using the part ID shown on the part listing (this avoids mix-ups with similar part numbers).
• If the part is out of stock or you have warranty questions, contact Sears PartsDirect support with your model and serial.
• If you are unsure which part fixes the issue, diagnose the problem before ordering.

Common parts customers order for JBP30WXB2WW

What you are fixing	Example part for this model	What it does
Oven light not working	Range oven light bulb 40A15	Restores oven cavity lighting
Oven not baking evenly or not heating	Range bake element WB44T10011	Provides primary bake heat
Broil not working	Range broil element WB44T10009	Provides top broil heat
Burner not heating	Surface unit WB30X20478	Replaces a coil surface element

Before you place the order (avoids returns)

• Confirm the part is for GE JBP30WXB2WW (not a similar JBP model).
• Compare the old part’s shape, terminals, and mounting points.
• For electrical parts (elements, terminal block), shut off the breaker before inspection.
• If the oven will not heat, diagnose first so you do not replace the wrong component.

Why it matters

GE ranges often use multiple similar-looking elements, receptacles, and hardware across model families. Ordering by the exact model number and part ID helps ensure the replacement part fits and performs correctly the first time.

Related help: are diy appliance repairs safe

Last updated: February 2026

On a GE electric range like model JBP30WXB2WW, the model number is typically on the frame around the oven door opening (often along the front edge) or on the back of the range near the rear panel. Checking these spots first is the fastest way to confirm the exact model for parts.

Most common places to look

• Open the oven door and check the front frame around the oven cavity (top, sides, or bottom lip)
• Look on the storage drawer frame area (remove the drawer if needed)
• Check the back of the range near the power cord and rear cover
• Look behind the control panel area if the label is not visible elsewhere

What the label usually shows

Label item	What it’s used for
Model number (example: JBP30WXB2WW)	Matching the correct diagrams and parts
Serial number	Identifying production run details
Electrical rating	Confirming voltage and amperage requirements

Tips to read and record it correctly

• Write the model number exactly as printed (letters and numbers matter)
• Take a clear photo before the label gets worn or greasy
• If the label is hard to read, wipe it gently with a damp cloth and dry it

Why it matters

GE ranges can use different bake elements, broil elements, and surface units across similar-looking models. Using the exact model number helps ensure you order the right replacement part the first time, such as a range bake element WB44T10011 or range broil element WB44T10009.

Last updated: February 2026
