Kenmore
Electric Cooktop

Model # 9114348610 Official Kenmore electric built-in counter unit

Here are the diagrams and repair parts for Official Kenmore 9114348610 electric built-in counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Bowl 292975
#5

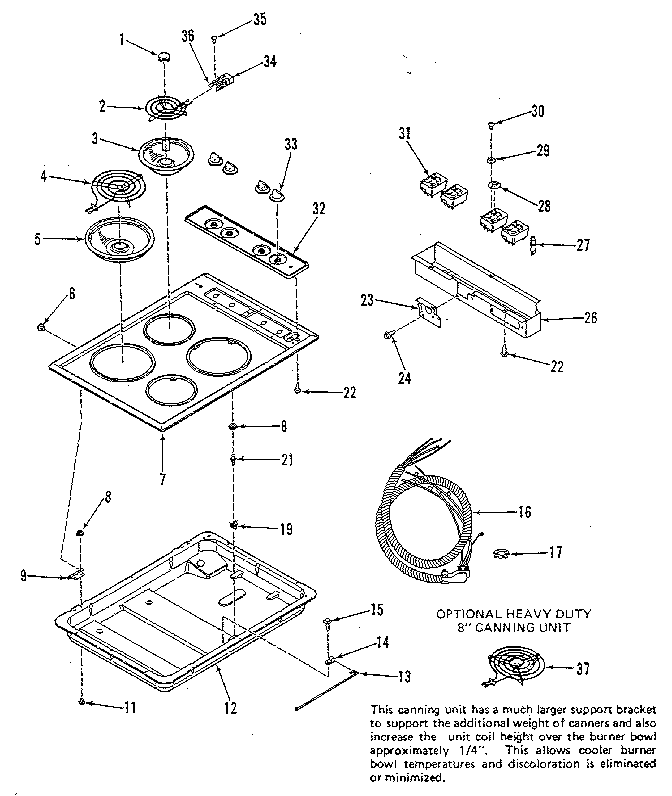

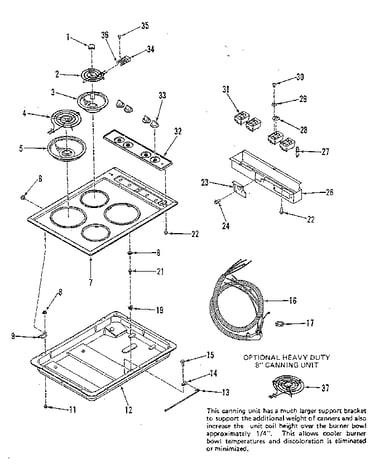

Cooktop diagram

Bowl

Part #292975

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 292975. Substitute parts can look different from the original.
BEST SELLER
$16.49 |
11% OFF Phone Price : $18.49
In Stock
6 In Tp Unit 325507
#2A

Cooktop diagram

6 in tp unit

Part #325507

Replaced by #WB30X254

?
Manufacturer substitution
This part replaces 325507. Substitute parts can look different from the original.
$44.92 |
10% OFF Phone Price : $49.92
Back Order
Screw 311484
#15

Cooktop diagram

Screw

Part #311484

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 311484. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Seal Control 280157
#28

Cooktop diagram

Seal control

Part #280157

Replaced by #WB6X3

?
Manufacturer substitution
This part replaces 280157. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 299632
#35

Cooktop diagram

Screw

Part #299632

Replaced by #WB1X1425

?
Manufacturer substitution
This part replaces 299632. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Nut 110340
#17

Cooktop diagram

Nut

Part #110340

This item is not returnable
$2.16
In Stock
Bracket 318872
#36

Cooktop diagram

Bracket

Part #318872

Replaced by #WB17X211

?
Manufacturer substitution
This part replaces 318872. Substitute parts can look different from the original.
$7.57 |
12% OFF Phone Price : $8.57
In Stock
Terminal Block 318960
#34

Cooktop diagram

Terminal block

Part #318960

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces 318960. Substitute parts can look different from the original.
$22.97 |
18% OFF Phone Price : $27.97
In Stock
Clip 285945
#14

Cooktop diagram

Clip

Part #285945

Replaced by #WB2M87

?
Manufacturer substitution
This part replaces 285945. Substitute parts can look different from the original.
$17.71
In Stock
8 In Top Unt 319268
#4A

Cooktop diagram

8 in top unt

Part #319268

The manufacturer no longer makes this part, and there's no substitute part
