Electrolux
Electric Wall Oven

Model #EW30EW6CGW1 Electrolux wall oven

Here are the diagrams and repair parts for Electrolux EW30EW6CGW1 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 135 parts

    Range Oven Door Inner Glass#8

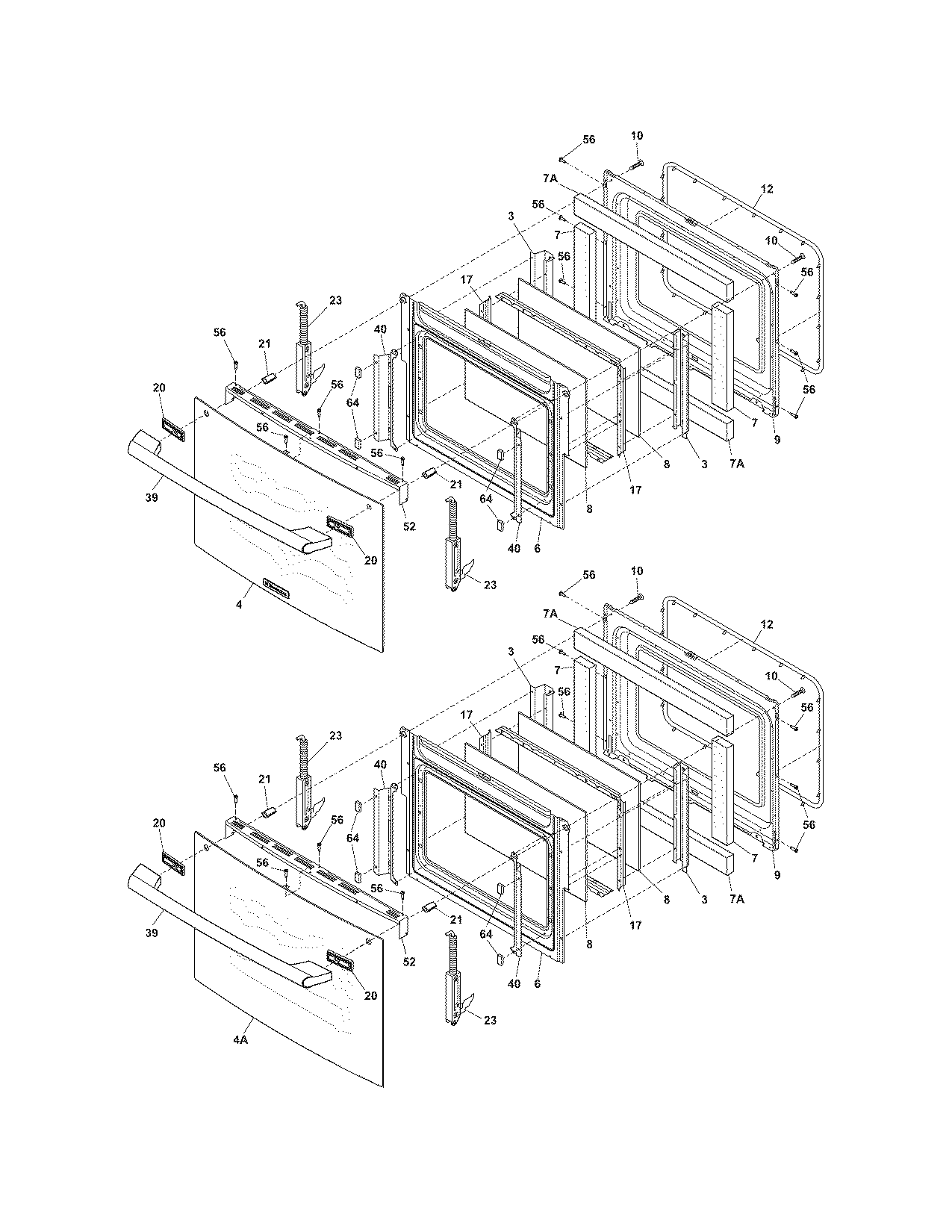

    Doors Diagram

    Glass

    Part #7316117500
    Replaced by #316117502
    ?
    Manufacturer substitution
    This part replaces 7316117500. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $162.39
    Range Oven Meat Probe Sensor

    See All Related Diagrams

    Probe

    Part #7318601302
    Replaced by #5304504202
    ?
    Manufacturer substitution
    This part replaces 7318601302. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $91.79
    Range Washer

    See All Related Diagrams

    Washer

    Part #7316136500
    Replaced by #316008401
    ?
    Manufacturer substitution
    This part replaces 7316136500. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $11.99
    Wall Oven Halogen Light Bulb

    See All Related Diagrams

    Lamp

    Part #7318241002
    Replaced by #318241008
    ?
    Manufacturer substitution
    This part replaces 7318241002. Substitute parts can look different from the original.
    In Stock
    $78.19 |
    17% OFF
    MSRP: $94.00
    Range Convection Fan Blade

    See All Related Diagrams

    Blade

    Part #7318398300
    Replaced by #318398302
    ?
    Manufacturer substitution
    This part replaces 7318398300. Substitute parts can look different from the original.
    In Stock
    $23.89 |
    12% OFF
    MSRP: $27.00
    Range Convection Fan Blade Nut

    See All Related Diagrams

    Speed nut

    Part #7318399800
    Replaced by #316136600
    ?
    Manufacturer substitution
    This part replaces 7318399800. Substitute parts can look different from the original.
    In Stock
    $19.99 |
    5% OFF
    MSRP: $21.00
    Range Oven Door Switch

    See All Related Diagrams

    Light switch

    Part #7316445501
    Replaced by #316445501
    ?
    Manufacturer substitution
    This part replaces 7316445501. Substitute parts can look different from the original.
    In Stock
    $61.29 |
    12% OFF
    MSRP: $70.00
    Range Convection Fan Motor

    See All Related Diagrams

    Motor

    Part #7318398200
    Replaced by #5304467898
    ?
    Manufacturer substitution
    This part replaces 7318398200. Substitute parts can look different from the original.
    In Stock
    $127.19
    Range Oven Control Board#20

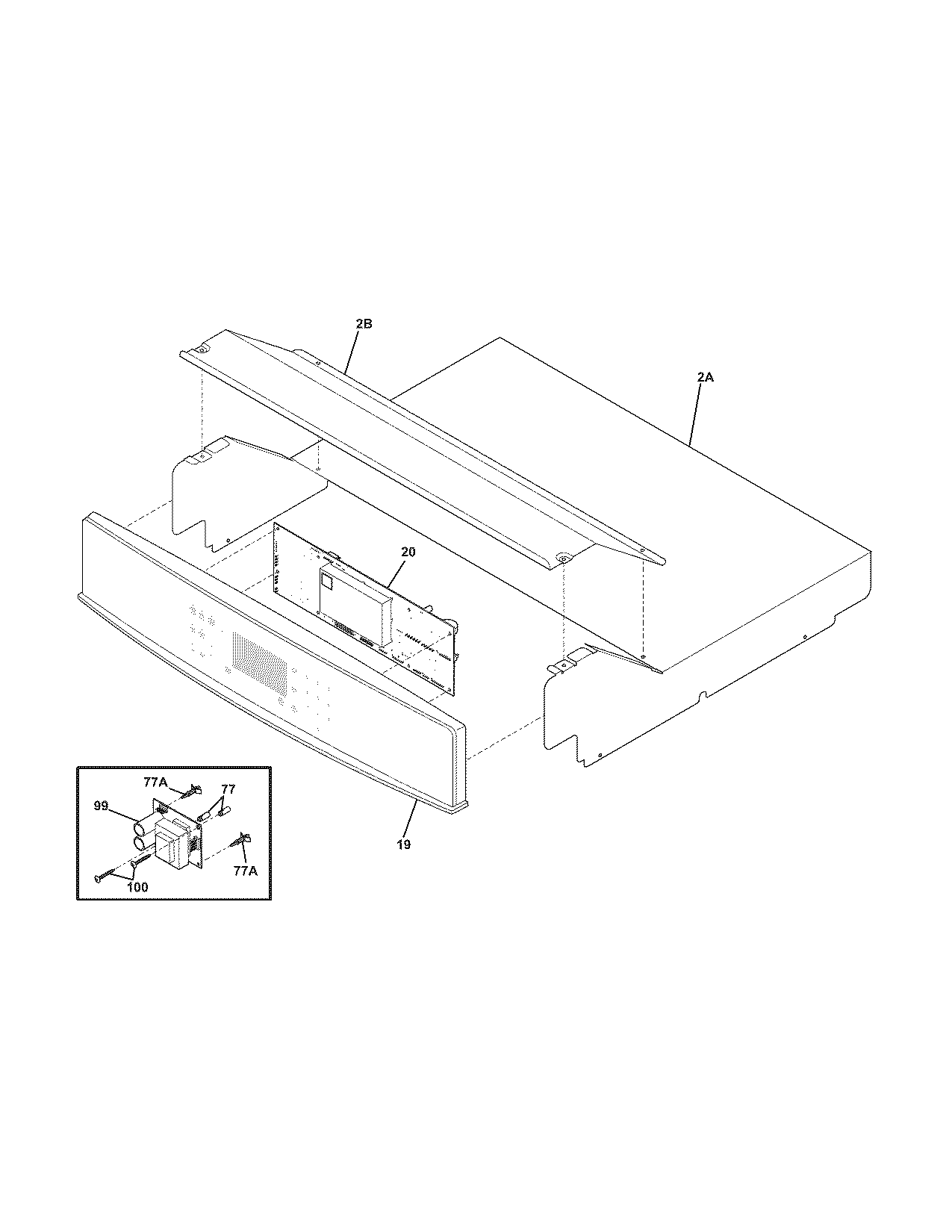

    Control panel Diagram

    Clock

    Part #7316516531
    Replaced by #316576621
    ?
    Manufacturer substitution
    This part replaces 7316516531. Substitute parts can look different from the original.
    In Stock
    $356.69 |
    21% OFF
    MSRP: $450.00
    Range Roasting Rack#6A

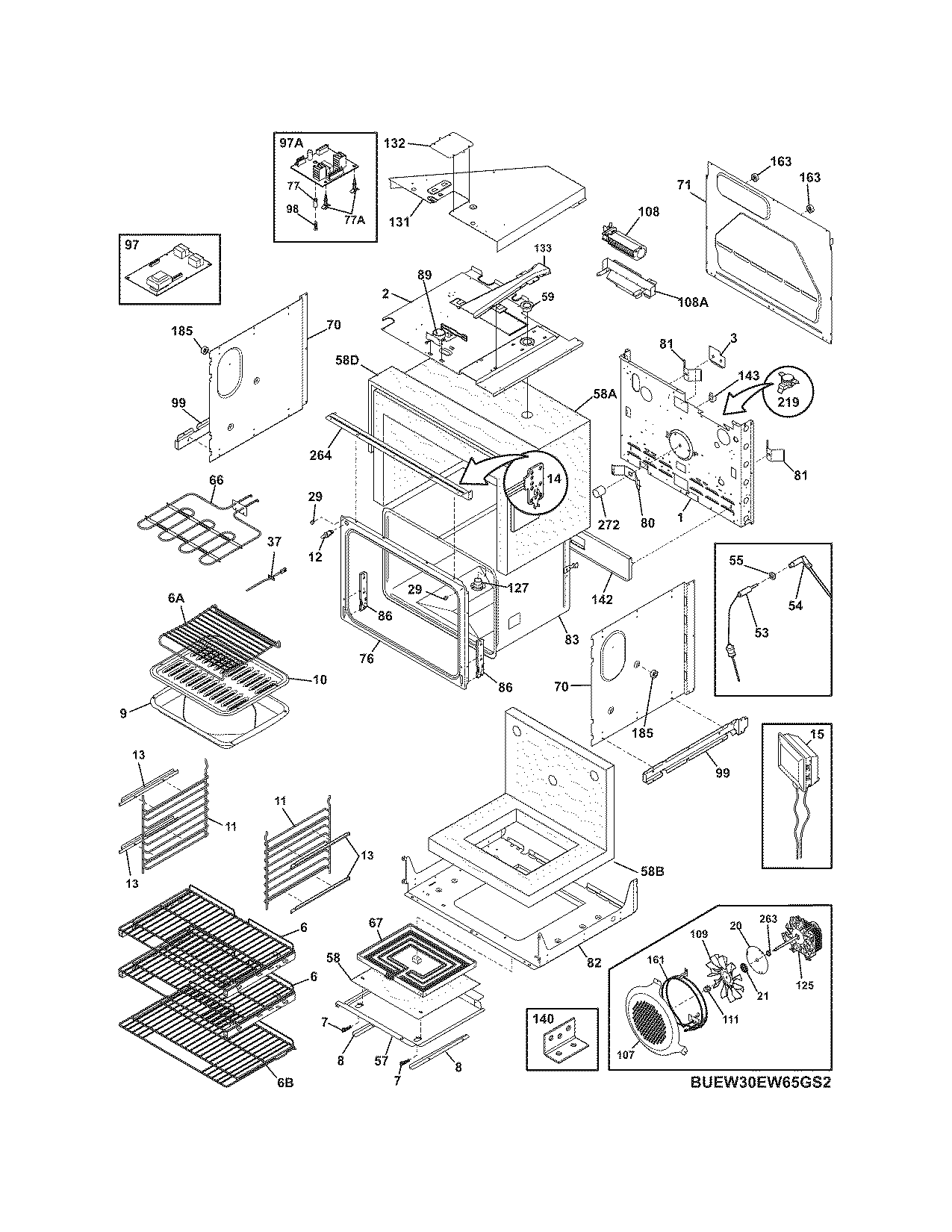

    Upper oven Diagram

    Rack

    Part #7318365800
    Replaced by #318365800
    ?
    Manufacturer substitution
    This part replaces 7318365800. Substitute parts can look different from the original.
    Back Order
    $42.69

    Symptoms common to all wall oven

    Choose a symptom to see related wall oven repairs.

    Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure
    Main causes: broken broil element, faulty broil burner igniter, control system failure
    Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, control system failure
    Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure
    Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat
    Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element
