Whirlpool WDF341PAPM2 dishwasher Parts

A Whirlpool dishwasher like model WDF341PAPM2 typically lasts 10 to 12 years with normal household use. Consistent cleaning, good water quality, and fixing small issues early (drain, heating, spray problems) are what most often determine whether it reaches the high end of that range.

What affects lifespan the most

• Water hardness and mineral buildup (can shorten heater, pump, and valve life)
• How often you run it (1 load/day vs. multiple loads/day)
• Filter and sump cleanliness (prevents pump strain and poor wash results)
• Heating and drying performance (weak heat can signal wear in key components)
• Drain performance (standing water accelerates odors and component stress)

Maintenance that extends the life of WDF341PAPM2

• Clean the filter area regularly; replace the dishwasher filter if it is damaged or won’t rinse clean (see dishwasher filter WPW10463906).

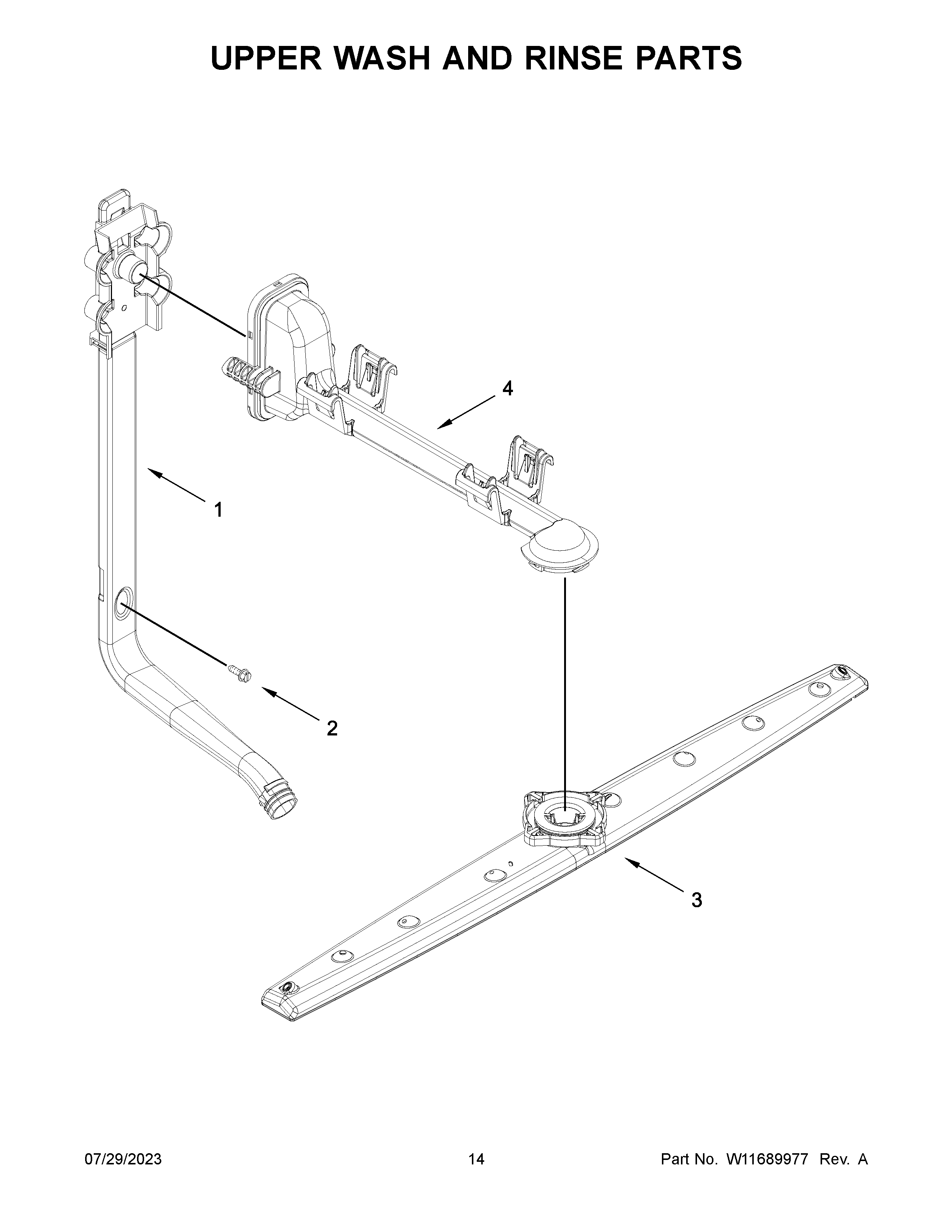

• Keep the spray arm holes clear; replace a cracked or warped arm (see dishwasher spray arm WPW10491331).
• Run a dishwasher cleaner cycle periodically to reduce grease and scale.
• Use the right detergent amount for your water hardness; too much can cause residue, too little can reduce cleaning.
• Address slow draining quickly; a weak or noisy pump often points to a failing drain system (see dishwasher drain pump W10876537).

Quick “repair or replace” guide

What you’re seeing	Most common cause	Typical next step
Dishes not drying well	Heating issue or thermostat problem	Check heat-related parts like element assembly W10518394 and thermostat WP661566

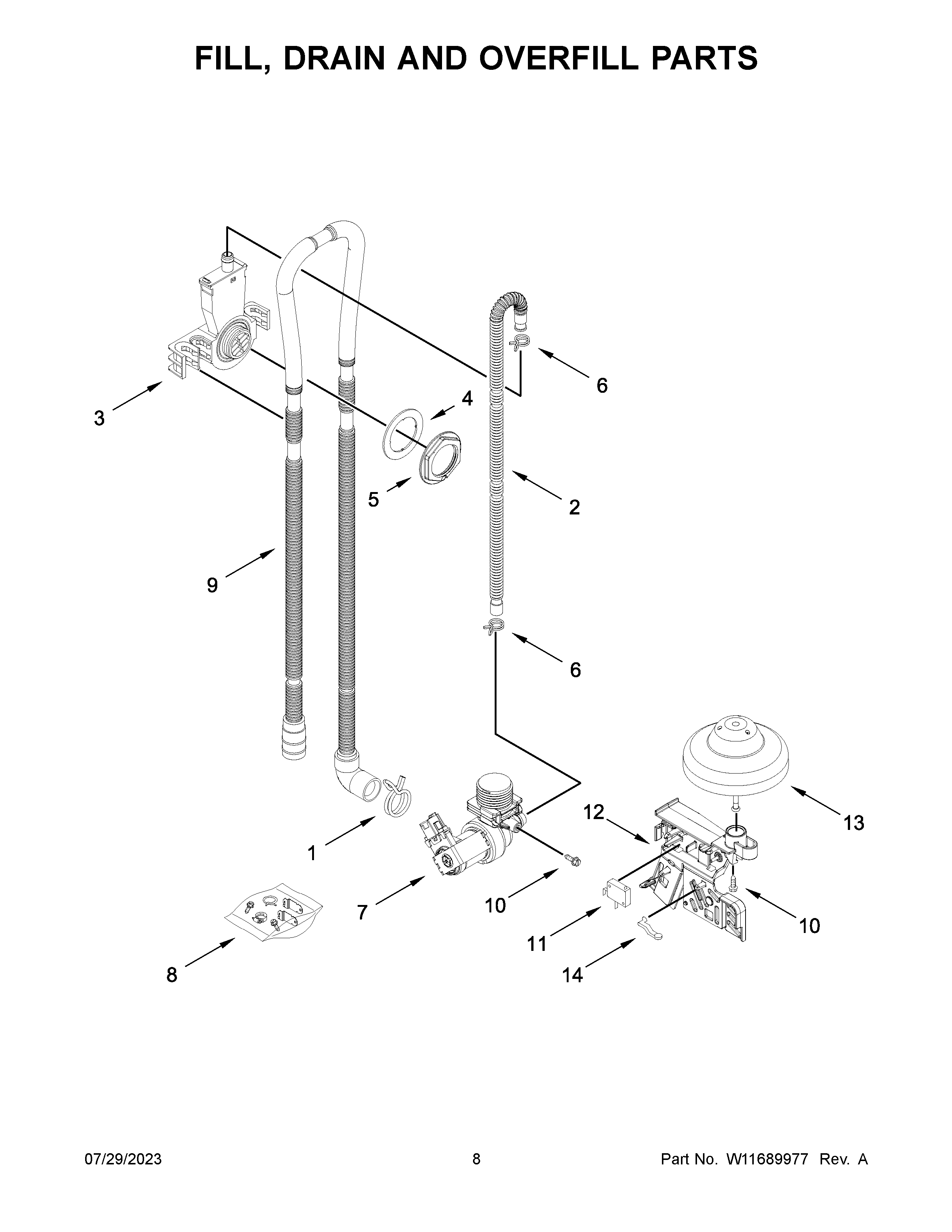

Water left in tub	Drain restriction or failing pump	Inspect hose routing; consider dishwasher drain hose 8269144A or dishwasher drain pump W10876537
Poor cleaning	Clogged filter or spray arm issue	Clean/replace dishwasher filter WPW10463906 or dishwasher spray arm WPW10491331

Why it matters

Most dishwasher “end of life” decisions come down to a few high-wear systems (heating, circulation, draining). Keeping those systems clean and replacing a worn part early often prevents bigger failures and helps your Whirlpool dishwasher reach its full expected lifespan.

For troubleshooting steps when the control panel shows a fault, use our Whirlpool dishwasher error codes reference. For ordering replacement parts for WDF341PAPM2, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

For the Whirlpool WDF341PAPM2 dishwasher, the most common problem we see is a drain or wash-performance issue: water left in the bottom, slow draining, or dishes coming out dirty. In most cases, the root cause is a restriction (filter, hose, spray arm) or a failing pump.

Most common symptoms (and what they usually point to)

• Standing water after the cycle: drain path restriction or a weak drain pump
• Food debris on dishes: clogged filter or spray arm, or low circulation
• Cloudy glassware: poor wash action, low water temperature, or detergent issues
• Wet dishes at the end: heating problem or poor drying conditions
• Intermittent stopping: control sensing a fault, door latch issues, or drain problems

Quick checks you can do first (no parts needed)

• Clean the filter area and remove any debris from the sump.
• Inspect the spray arm holes for clogs; rinse and clear them.
• Check the drain hose routing for kinks or a sag that traps water.
• If the dishwasher connects to a garbage disposal, make sure the disposal inlet knockout plug was removed.
• Run hot water at the sink for 30 to 60 seconds before starting a cycle to improve wash temperature.

Parts that commonly solve these problems on WDF341PAPM2

If cleaning and hose checks do not fix it, these model-matched parts are common next steps:

Problem you notice	Common fix area	Model-matched part to consider
Not draining, water left in tub	Drain system	Dishwasher drain pump W10876537
Poor cleaning, weak spray	Wash action	Dishwasher spray arm WPW10491331
Debris recirculating, gritty water	Filtration	Dishwasher filter WPW10463906
Not drying well, water not heating	Heating	Element assembly W10518394

Why it matters

Drain and wash issues are often connected. A partially clogged filter or a restricted drain can reduce circulation, leave dirty water in the tub, and make drying worse. Fixing the restriction early helps protect the circulation system and improves cleaning results.

When you need error-code help

If your WDF341PAPM2 is flashing lights or showing a fault pattern, use our code guide to narrow it down before replacing parts: Whirlpool dishwasher error codes.

For ordering, you can choose parts from the list for your WDF341PAPM2, or search by model number on Sears PartsDirect.

Last updated: February 2026

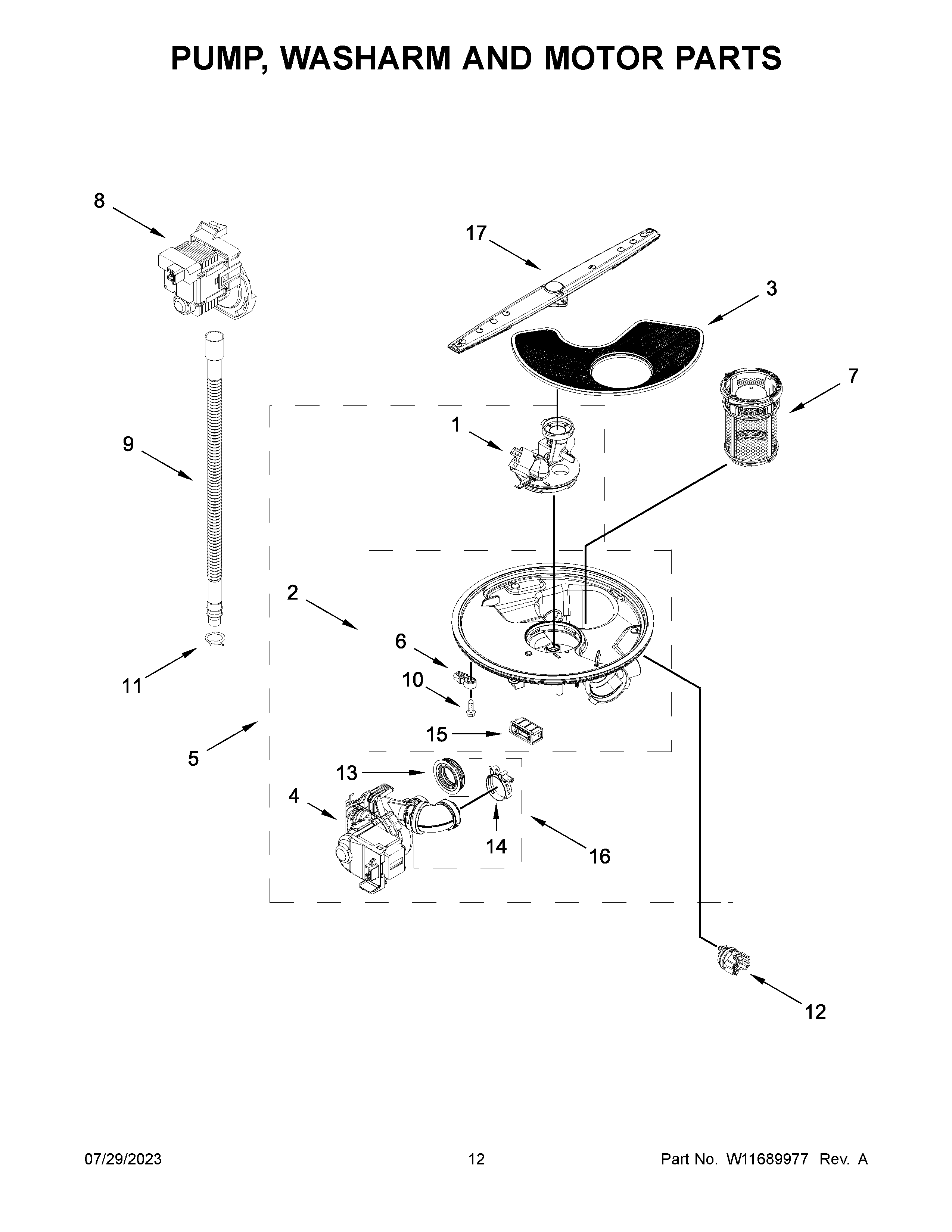

On the Whirlpool WDF341PAPM2 dishwasher, the filter is located in the bottom of the tub, directly under the lower dish rack, around the sump area. You access it from inside the dishwasher by pulling the lower rack out.

How to find and remove the filter

• Turn the dishwasher off; let the unit cool if it just ran.
• Pull the lower rack out to expose the bottom of the tub.
• Look for the round or oval filter assembly near the center bottom.
• Twist the filter counterclockwise (most Whirlpool designs) and lift it out.
• Rinse the filter under warm water; use a soft brush for stuck-on debris.
• Reinstall by seating it fully and twisting clockwise until it locks.

If your filter is cracked, warped, or will not lock back in place, replace it with the correct part for this model, such as the dishwasher filter WPW10463906 or the filter cup a W10872845 (depending on which piece is worn).

What you are looking at (common filter pieces)

Filter-related piece	What it does	Common symptom when dirty or damaged
Dishwasher filter	Catches food soil before it reaches the pump	Grit on dishes, odors, poor cleaning
Filter cup	Helps route water through the filter area	Debris bypassing filter, leaks at sump area

Why it matters

A clogged filter restricts water flow through the wash system, which reduces spray pressure and can leave residue on dishes. Keeping the filter clean also helps protect the circulation and drain components from food buildup.

If cleaning the filter does not fix the problem

• Check the spray arm holes for clogs (see dishwasher spray arm WPW10491331).
• If water is left in the bottom, inspect the drain path and hose routing.
• If the dishwasher will not drain, the drain pump may be the issue (see dishwasher drain pump W10876537).
• If the dishwasher needs a reset after an interruption, follow how to reset a Whirlpool dishwasher.

You can order replacement parts for your Whirlpool WDF341PAPM2 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
