GE JCT3000DF1WW electric range

GE JCT3000DF1WW electric range Parts

Here are the diagrams and repair parts for GE JCT3000DF1WW electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JCT3000DF1WW Wall Ovens

  • Range High-limit Thermostat for GE JCT3000DF1WW - Part WB24X46906

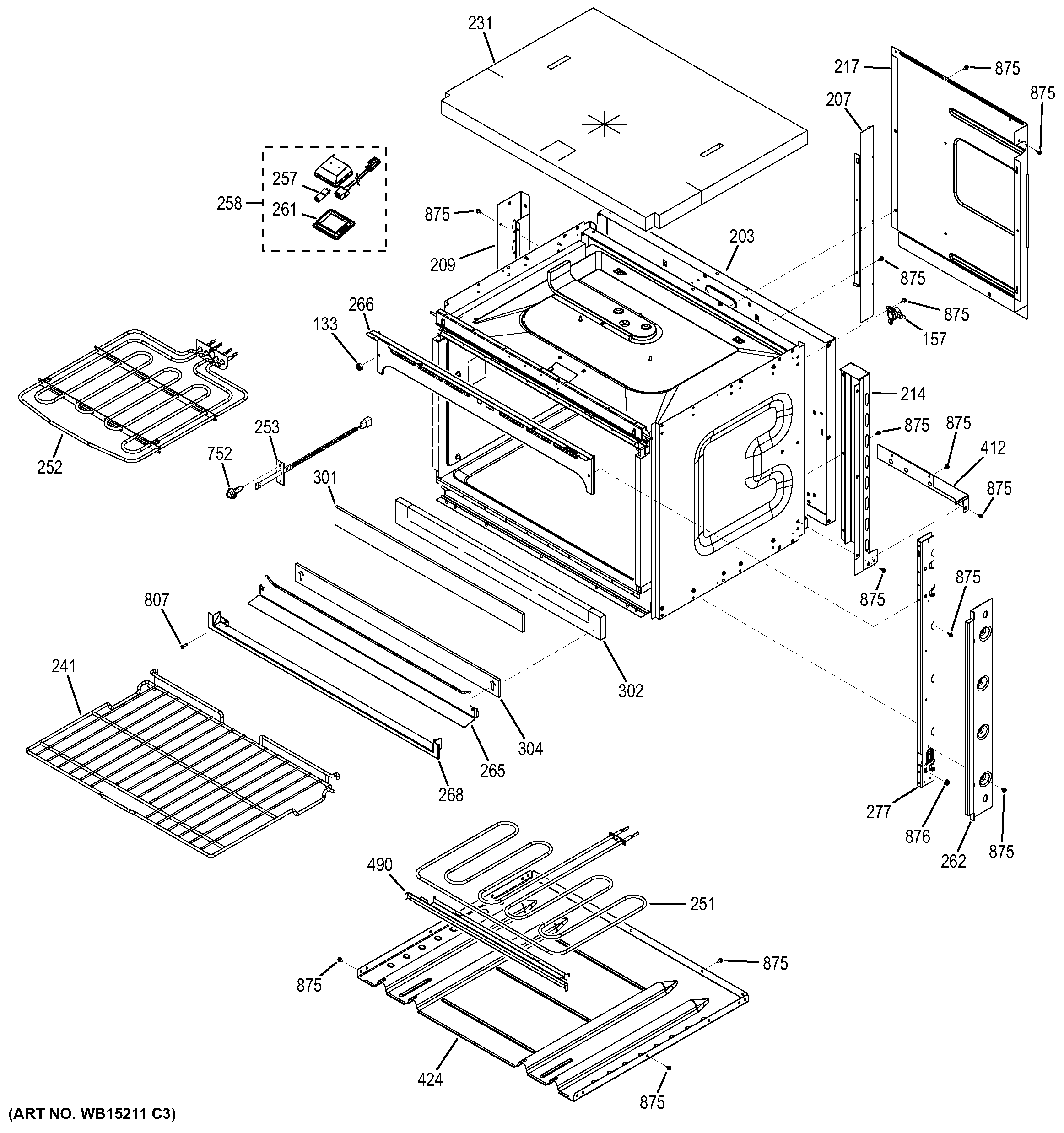

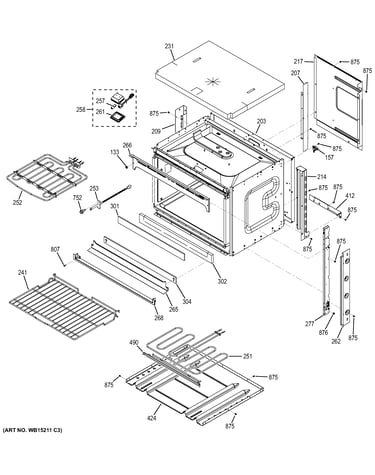

    Body parts diagram

    Range High-limit Thermostat

    Part #WB24T10164

    Replaced by #WB24X46906

    Info Icon
    Manufacturer substitution
    This part replaces WB24T10164. Substitute parts can look different from the original.
    In Stock
    $102.26
    11% OFF Phone Price : $114.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Switch for GE JCT3000DF1WW - Part WB24T10147

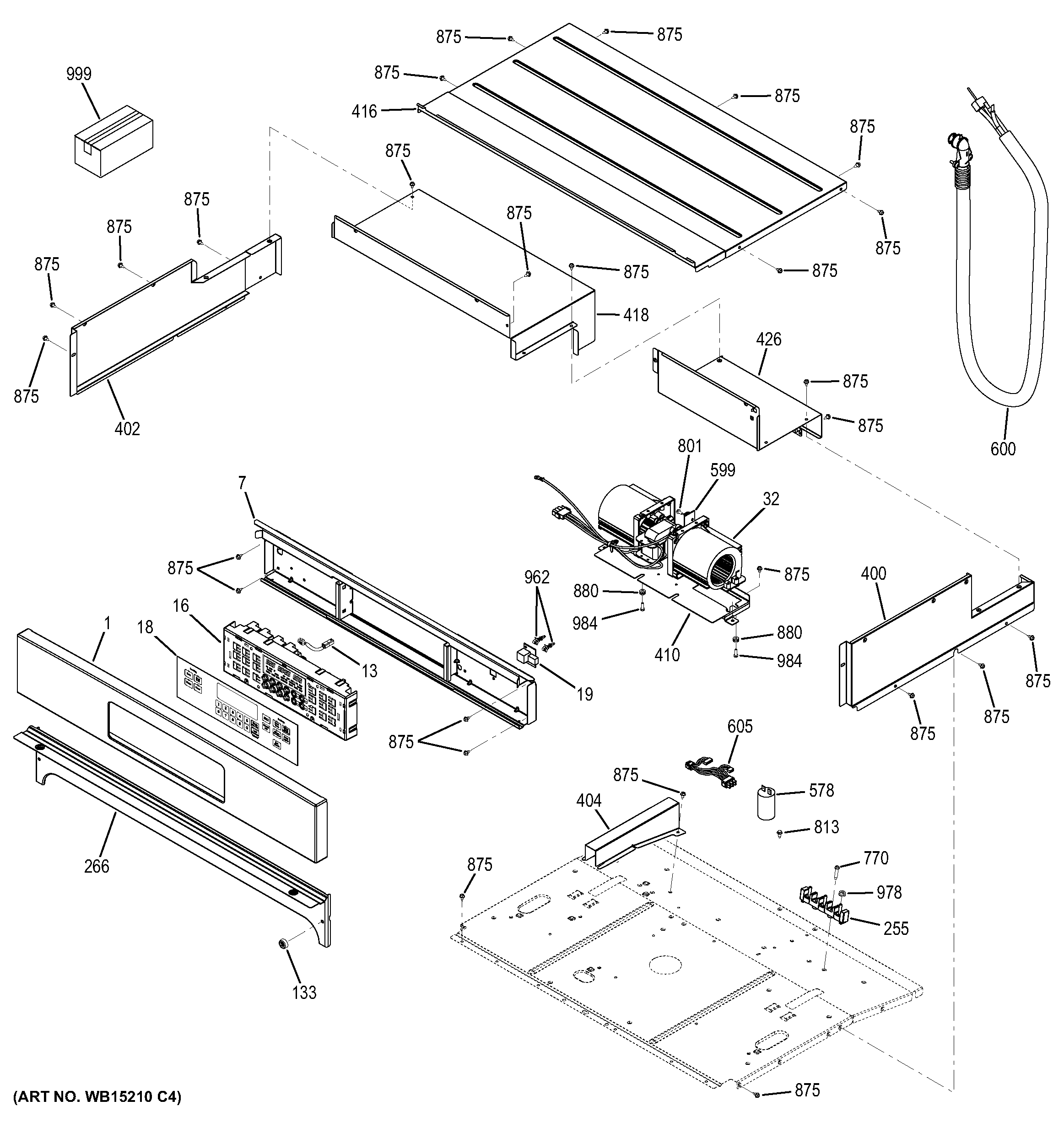

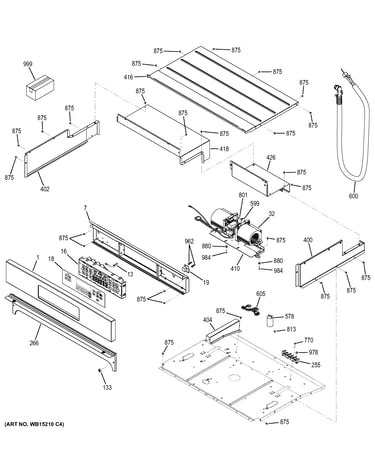

    Control panel diagram

    Range Oven Door Switch

    Part #WB24T10147
    This item is not returnable
    In Stock
    $20.54
    23% OFF Phone Price : $26.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Lock Assembly for GE JCT3000DF1WW - Part WB10X23814

    Door lock diagram

    Latch Assembly

    Part #WB14T10095

    Replaced by #WB10X23814

    Info Icon
    Manufacturer substitution
    This part replaces WB14T10095. Substitute parts can look different from the original.
    In Stock
    $90.39
    6% OFF Phone Price : $96.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Cooling Fan Assembly for GE JCT3000DF1WW - Part WB26T10066

    Control panel diagram

    Wall Oven Cooling Fan Assembly

    Part #WB26T10066
    In Stock
    $127.53
    9% OFF Phone Price : $139.53Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Seal for GE JCT3000DF1WW - Part WB35X32825

    Door diagram

    Wall Oven Door Seal

    Part #WB04T10091

    Replaced by #WB35X32825

    Info Icon
    Manufacturer substitution
    This part replaces WB04T10091. Substitute parts can look different from the original.
    In Stock
    $47.92
    11% OFF Phone Price : $53.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Cooking Appliance Screw, #10-32 for GE JCT3000DF1WW - Part WB01T10008

    Door diagram

    Cooking Appliance Screw, #10-32

    Part #WB01T10008
    This item is not returnable
    In Stock
    $10.87
    16% OFF Phone Price : $12.87Info Icon
    Minus Item
    Qty
    Plus Item
  • Dryer Screw for GE JCT3000DF1WW - Part WH2X930

    Screw

    Part #WH02X0930

    Replaced by #WH2X930

    Info Icon
    Manufacturer substitution
    This part replaces WH02X0930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JCT3000DF1WW - Part WB1M1

    Door diagram

    Screw

    Part #WB01K5150

    Replaced by #WB1M1

    Info Icon
    Manufacturer substitution
    This part replaces WB01K5150. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.13
    11% OFF Phone Price : $9.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for GE JCT3000DF1WW - Part WB1K5200

    Body parts diagram

    Screw

    Part #WB01K5200

    Replaced by #WB1K5200

    Info Icon
    Manufacturer substitution
    This part replaces WB01K5200. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $32.52
    Minus Item
    Qty
    Plus Item
  • Screw for GE JCT3000DF1WW - Part WD02X10129

    Control panel diagram

    Screw

    Part #WD02X10129
    In Stock
    $8.38
    11% OFF Phone Price : $9.38Info Icon
    Minus Item
    Qty
    Plus Item
