Estate TAWL650BN0 washer Parts
Here are the diagrams and repair parts for Estate TAWL650BN0 washer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

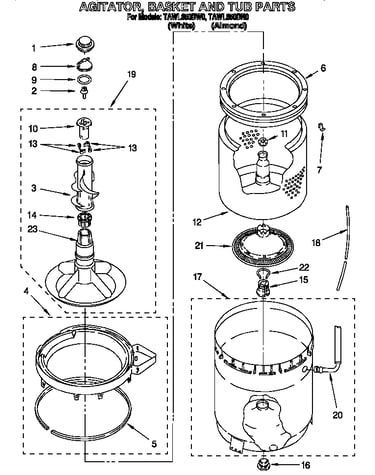

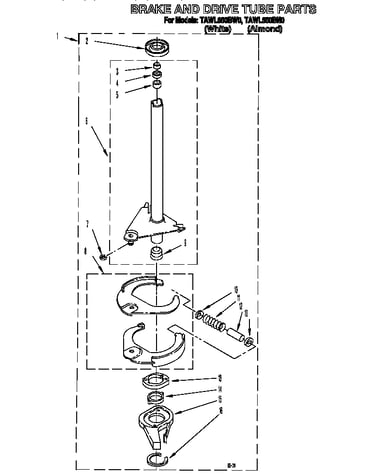

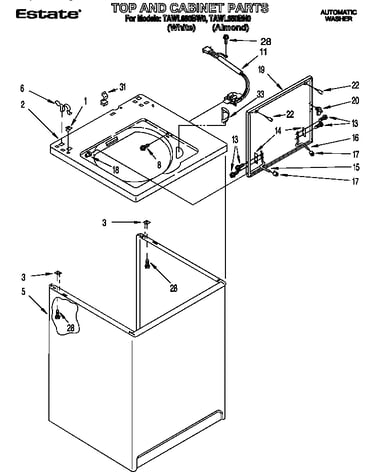

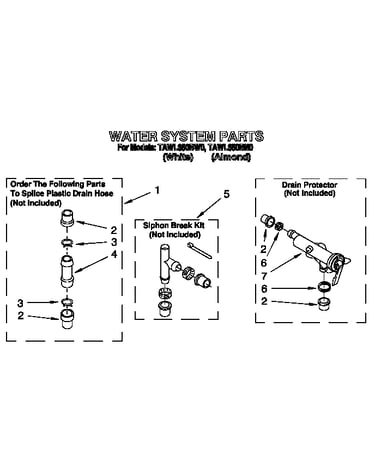

SELECT DIAGRAM
Browse Parts for TAWL650BN0 Washer
#NI
All parts diagram
Wiring Diagram
Part #LIT3361187
The manufacturer no longer makes this part, and there's no substitute part

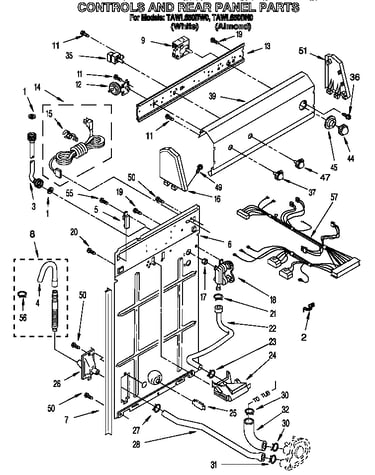

Controls and rear panel diagram
Washer Water-level Pressure Switch
Part #3356467Replaced by #WP3356467
Manufacturer substitutionThis part replaces 3356467. Substitute parts can look different from the original.In Stock$131.108% OFF Phone Price : $143.10
Qty

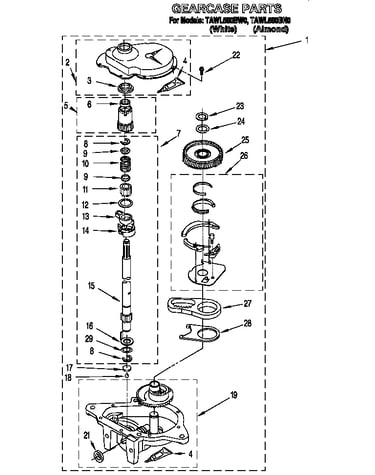

Gearcase diagram
Follower
Part #62580Replaced by #WP389387

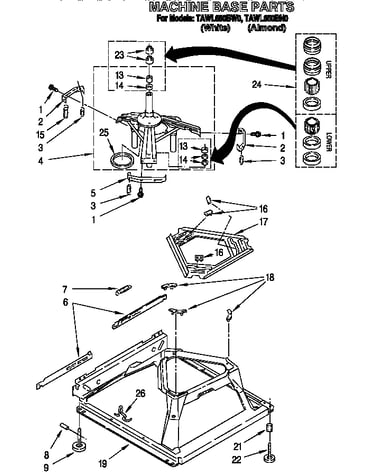

Manufacturer substitutionThis part replaces 62580. Substitute parts can look different from the original.In Stock$133.018% OFF Phone Price : $145.01QtyMachine base diagram
Foot
Part #62596Replaced by #285244

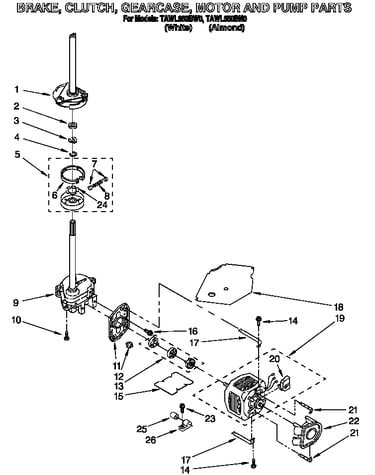

Manufacturer substitutionThis part replaces 62596. Substitute parts can look different from the original.This item is not returnableIn Stock$19.249% OFF Phone Price : $21.24QtyBrake, clutch, gearcase, motor and pump diagram
Ring
Part #63283Replaced by #285353

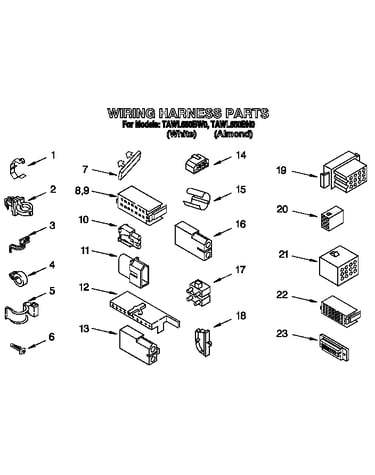

Manufacturer substitutionThis part replaces 63283. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyWiring harness diagram
Connector (black)
Part #352089Replaced by #W10876590
Manufacturer substitutionThis part replaces 352089. Substitute parts can look different from the original.This item is not returnableIn Stock$9.719% OFF Phone Price : $10.71QtyHose Clamp
Part #356138Replaced by #WP356138
Manufacturer substitutionThis part replaces 356138. Substitute parts can look different from the original.In Stock$36.09QtyMachine base diagram
Suspension Spring Retainer
Part #63806Replaced by #WPW10145155
Manufacturer substitutionThis part replaces 63806. Substitute parts can look different from the original.This item is not returnableIn Stock$4.1319% OFF Phone Price : $5.13QtyGearcase diagram
Shaft
Part #389243Replaced by #WP389387
Manufacturer substitutionThis part replaces 389243. Substitute parts can look different from the original.In Stock$133.018% OFF Phone Price : $145.01QtyGearcase diagram
Washer Kit
Part #285292
The manufacturer no longer makes this part, and there's no substitute part
