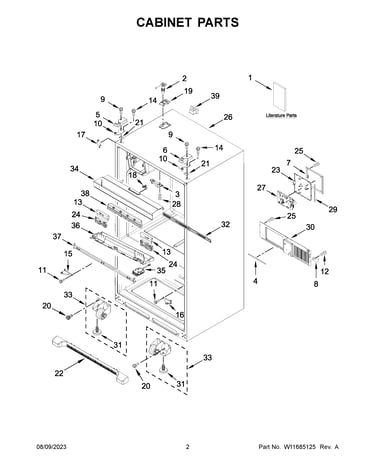

Whirlpool WRX735SDHZ09 bottom-mount refrigerator Parts

Yes. A bottom-mount refrigerator like the Whirlpool WRX735SDHZ09 is a strong choice for most kitchens because it keeps everyday fresh-food items at eye level, typically offers wide shelving, and still provides full freezer capacity below.

Why many owners prefer bottom-mount designs

• Less bending for fresh food: produce, drinks, and leftovers are easier to reach.
• Better organization: wide refrigerator shelves make it easier to see items.
• Good freezer storage: the lower drawer usually holds bulky frozen items well.
• Often quieter in daily use: fewer door openings on the freezer section.
• Works well for families: frequent-use items stay in the upper compartment.

Tradeoffs to consider

Bottom-mount refrigerators are “good” when the layout matches how you use your fridge.

• You will bend more for frozen foods (ice cream, frozen meals).
• Freezer drawers can feel heavier when fully loaded.
• If the refrigerator section is overfilled, airflow can be restricted, which can cause warm spots.

Quick comparison

Feature	Bottom-mount (like WRX735SDHZ09)	Top-freezer
Fresh food access	Best (eye level)	Good (lower shelves require bending)
Freezer access	Requires bending	Best (eye level)
Organization	Typically excellent	Typically simpler
Best for	Fresh-food heavy households	Frozen-food heavy households

Why it matters

Most households open the refrigerator section far more than the freezer. With a bottom-mount layout, we see fewer “forgotten items” and less strain from repeated bending, which improves day-to-day usability.

If performance issues make it seem “not good”

If your WRX735SDHZ09 feels inconvenient due to lighting, door closing, or temperature balance, those are usually fixable issues.

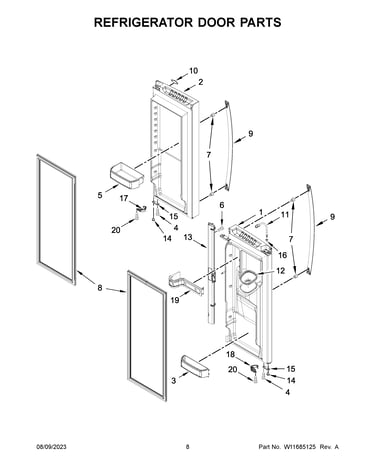

• If the interior light does not respond to the door, check the refrigerator door switch W11396033.

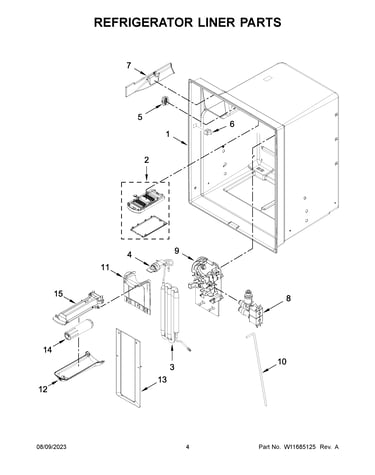

• If the fresh-food section runs warm while the freezer stays cold, the refrigerator damper control assembly WPW10196393 is a common airflow-related part to inspect.
• For display or cooling-related fault indications, use Whirlpool refrigerator error codes.

Last updated: January 2026

EveryDrop filters often cost more because they are built and tested to meet strict filtration and safety performance targets (commonly NSF/ANSI standards), and they are designed to fit and seal correctly in Whirlpool systems like the WRX735SDHZ09. That combination of certification testing, materials, and brand support typically raises the price.

What you are paying for

• Certification and testing: Filters marketed for lead, cyst, and chemical reduction typically require more extensive testing and tighter manufacturing controls.
• Higher-capacity media: Better contaminant reduction usually means more or denser carbon and additional filtration layers.
• Fit and leak prevention: OEM-style filters are engineered to lock in, seal, and maintain flow rate without bypassing.
• Taste and odor performance: Many premium filters focus on chlorine taste and odor reduction while still maintaining good flow.
• Support for dispenser and ice maker reliability: Consistent filtration and flow helps reduce nuisance issues like slow dispensing or hollow ice.

How to decide if the cost is worth it for your WRX735SDHZ09

Use this quick checklist to match the filter to your water and your expectations.

Your situation	Best approach	Why
You want broad contaminant reduction (lead, cysts, VOCs)	Choose a certified premium filter	More testing and tighter specs typically cost more
You mainly want better taste/odor	A basic certified filter can be enough	Chlorine reduction is often the main need
You have low water pressure or slow dispensing	Prioritize correct fit and flow	Poor fit or restrictive media can reduce flow
You use a bypass temporarily	Use a bypass only short-term	You lose filtration protection

Related parts and helpful guidance

If you are troubleshooting flow, leaks, or fitment issues around the filter area, these WRX735SDHZ09 parts are commonly involved:

• Assembly, water tank and head (includes bypass cartridge) W11346622 (filter head and tank assembly that can affect sealing and flow)
• Refrigerator water filter bypass W11395888 (temporary bypass option when diagnosing filter-related issues)

For step-by-step filter replacement best practices, including flushing after installation, use how to replace the water filter in a Whirlpool refrigerator.

Why it matters

A water filter that does not seal correctly or restricts flow can cause slow dispensing, odd-tasting water, or ice maker fill problems. Paying more is often about consistent filtration performance plus reliable fit in the Whirlpool water system.

Last updated: January 2026

The most common Whirlpool refrigerator problem is a cooling complaint (warm fridge, warm freezer, or running constantly). On the Whirlpool WRX735SDHZ09, the fastest wins are cleaning condenser coils, confirming strong airflow, and checking for ice maker or dispenser issues that point to a water or door-related fault.

Most common symptoms we see

• Refrigerator section warms up but freezer seems closer to normal
• Unit runs a lot, or you hear frequent fan noise
• Frost buildup or uneven temperatures (cold spots, warm spots)
• Ice maker stops making ice or makes small/hollow cubes
• Water dispenser flow is slow or sputters

Quick checks you can do first (no parts)

1. Clean the condenser coils and make sure the grille area is not blocked.
2. Confirm door sealing: close a dollar bill in the gasket; it should resist pulling out.
3. Verify airflow: do not block vents with food packages.
4. Set temps correctly: aim for 37°F in the fresh food section and 0°F in the freezer.
5. Reset after changes: give the refrigerator 24 hours to stabilize.

When it’s likely a part issue

If basic checks do not help, these are common failure points tied to the symptoms:

Symptom	Common cause	Example part to check on this model
Warm fresh food, freezer OK	Damper not opening/closing correctly	Refrigerator damper control assembly WPW10196393
Lights or cooling act “door-open”	Door switch not closing reliably	Refrigerator door switch W11396033

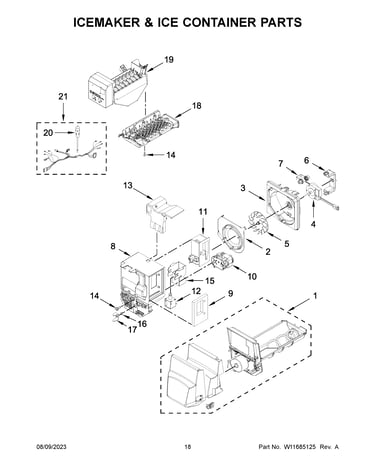

No ice or inconsistent ice	Ice maker module issue	Ice maker as W11692161
Weak water flow, air in line	Filter head/tank restriction or air in system	Assembly, water tank and head (includes bypass cartridge) W11346622

Why it matters

Cooling problems are usually airflow or heat-transfer related; fixing them early helps protect food, reduces compressor run time, and prevents secondary issues like frost buildup and ice maker failures.

Helpful DIY references

• Whirlpool refrigerator error codes
• How to prevent water dispenser and ice maker problems

Last updated: January 2026

Whirlpool refrigerators typically last 10 to 20 years. For a Whirlpool WRX735SDHZ09 bottom-mount refrigerator, we plan around 10 to 15 years for average real-world use; consistent cleaning, correct temperatures, and quick repair of small issues can push lifespan closer to the high end.

Typical lifespan ranges (what to expect)

Most Whirlpool refrigerators fall into these practical ranges:

• 10 to 15 years: common for feature-rich models (ice maker, dispenser, multiple fans)
• 15 to 20 years: more likely with steady maintenance and fewer heavy-use features
• Under 10 years: usually tied to poor airflow, dirty coils, power issues, or unresolved leaks

Usage and care level	Typical outcome	What usually limits life
Light use + good maintenance	15 to 20 years	Normal wear items (fans, switches)
Average household use	10 to 15 years	Ice/water system wear, airflow restrictions
Heavy use or neglected maintenance	Under 10 to 12 years	Compressor strain, repeated icing, leaks

What extends the life of your WRX735SDHZ09

These habits reduce compressor run time and prevent common failures:

• Keep refrigerator at 37°F and freezer at 0°F
• Clean dust from the condenser area regularly (better airflow, less heat)
• Leave space around the cabinet for ventilation (especially at the back)
• Keep door seals clean so doors close fully
• Fix water leaks and puddles quickly to prevent icing and corrosion

Parts that commonly affect longevity

Small parts can create big problems if they fail and go unnoticed:

• A sticking door switch can leave lights on and warm the compartment; see refrigerator door switch W11396033

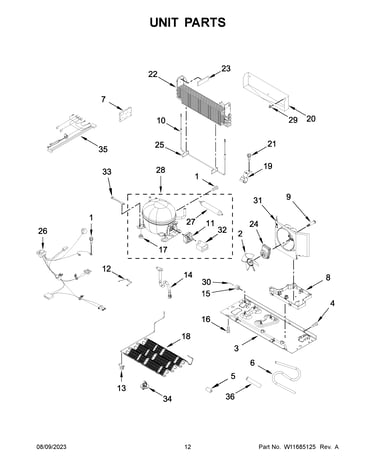

• A failing evaporator fan can reduce airflow and cause warm temps or frost buildup; see refrigeration appliance evaporator fan motor and wire harness W11661931
• A damper issue can cause uneven temperatures between sections; see refrigerator damper control assembly WPW10196393

Why it matters

A refrigerator that runs warmer than normal or runs constantly wears the sealed system faster. Catching airflow, door-closing, and ice maker or dispenser issues early often prevents expensive cooling-system damage.

Last updated: January 2026
