GE TFZ20JABCWW refrigerator - b series Parts
Here are the diagrams and repair parts for GE TFZ20JABCWW refrigerator - b series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for TFZ20JABCWW Refrigerators

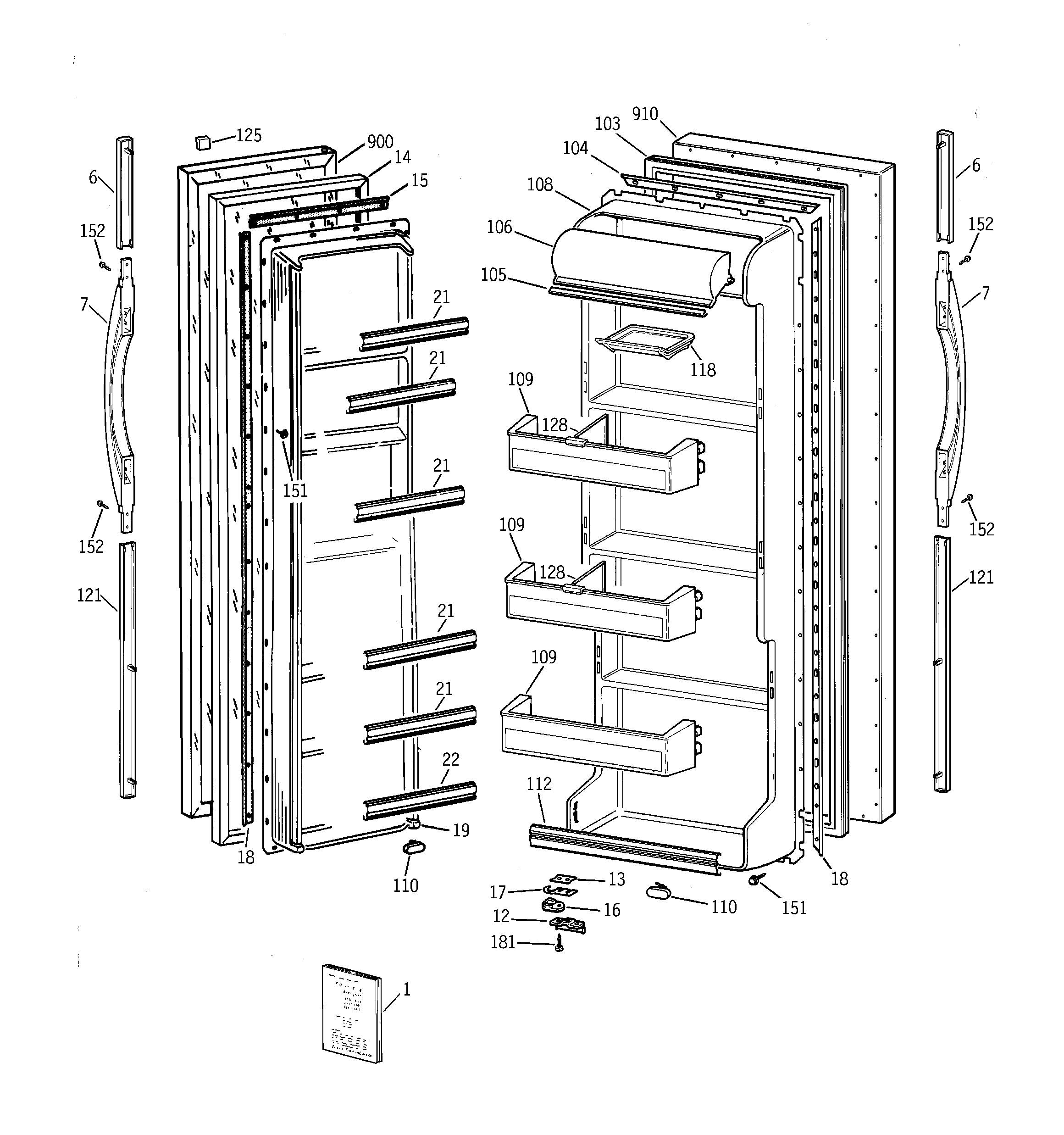

Doors diagram
Scr 8-18 Ab
Part #WR01X10035Replaced by #WR01X10652
Manufacturer substitutionThis part replaces WR01X10035. Substitute parts can look different from the original.In Stock$8.9510% OFF Phone Price : $9.95
Qty

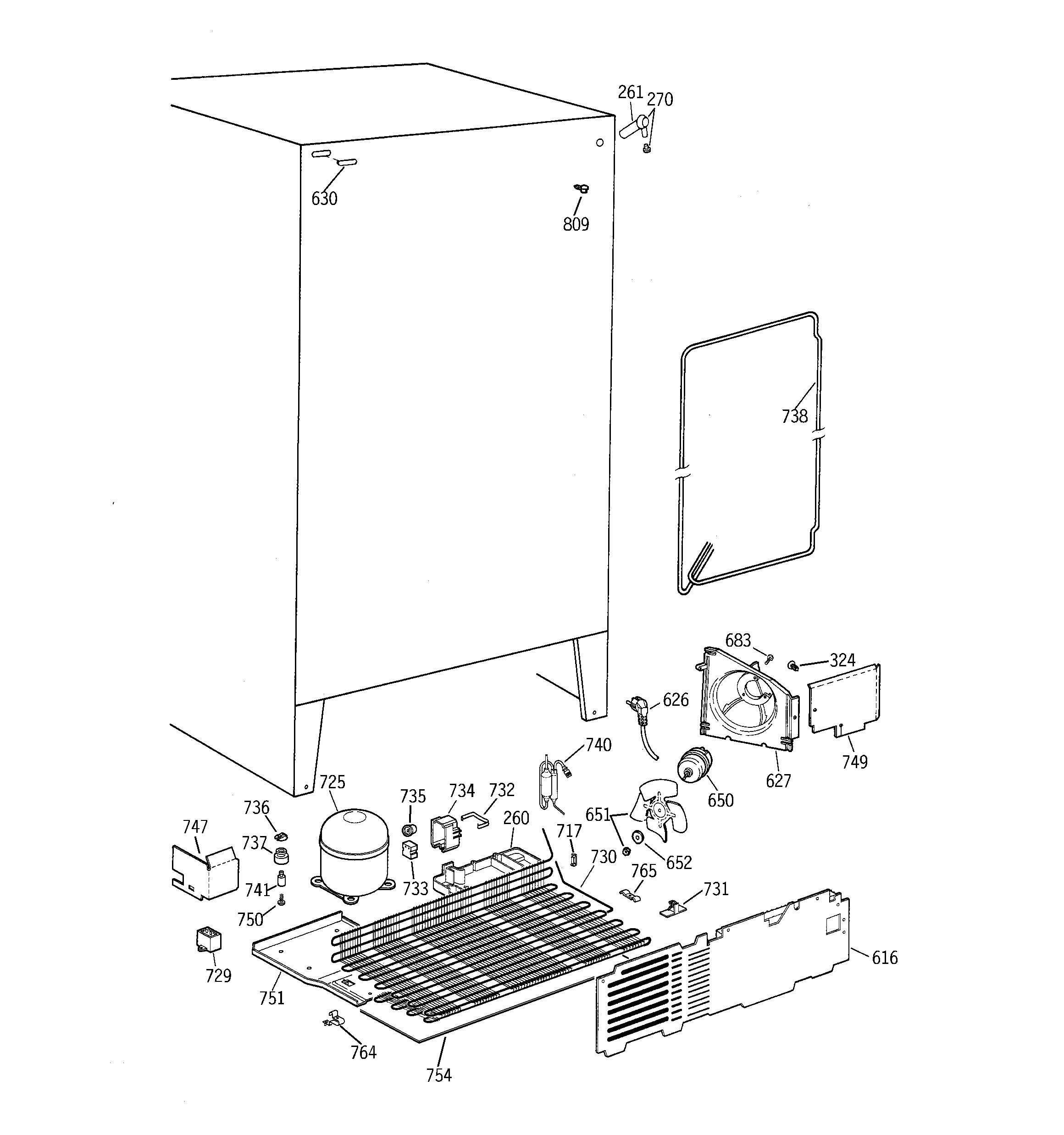

Unit parts diagram
Refrigerator Screw
Part #WR01X1786Replaced by #WR1X1786
Manufacturer substitutionThis part replaces WR01X1786. Substitute parts can look different from the original.In Stock$9.0110% OFF Phone Price : $10.01QtyRefrigerator Screw
Part #WZ02X0464Replaced by #WZ2X464D
Manufacturer substitutionThis part replaces WZ02X0464. Substitute parts can look different from the original.In Stock$35.1515% OFF Phone Price : $41.15QtyFresh food section diagram
Refrigerator Fresh Food Utility Bin
Part #WR32X1575
The manufacturer no longer makes this part, and there's no substitute part
Doors diagram
Refrigerator Retainer Strip
Part #WR17X3119
The manufacturer no longer makes this part, and there's no substitute part

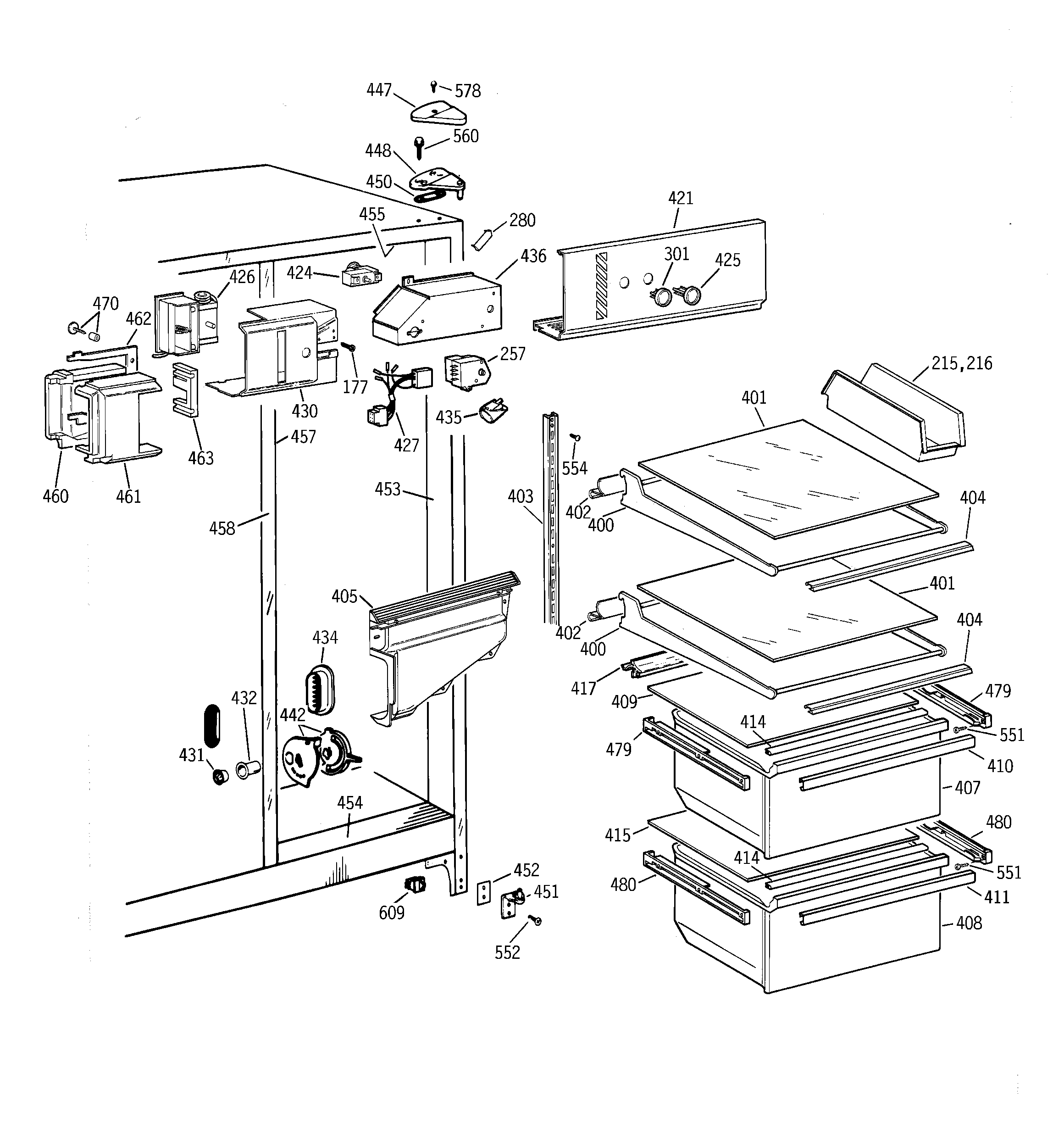

Fresh food section diagram
Refrigerator Bracket Mullion
Part #WR02X9376
The manufacturer no longer makes this part, and there's no substitute part
Fresh food section diagram
Refrigerator Crisper Drawer Cover Insert
Part #WR32X1105
The manufacturer no longer makes this part, and there's no substitute part

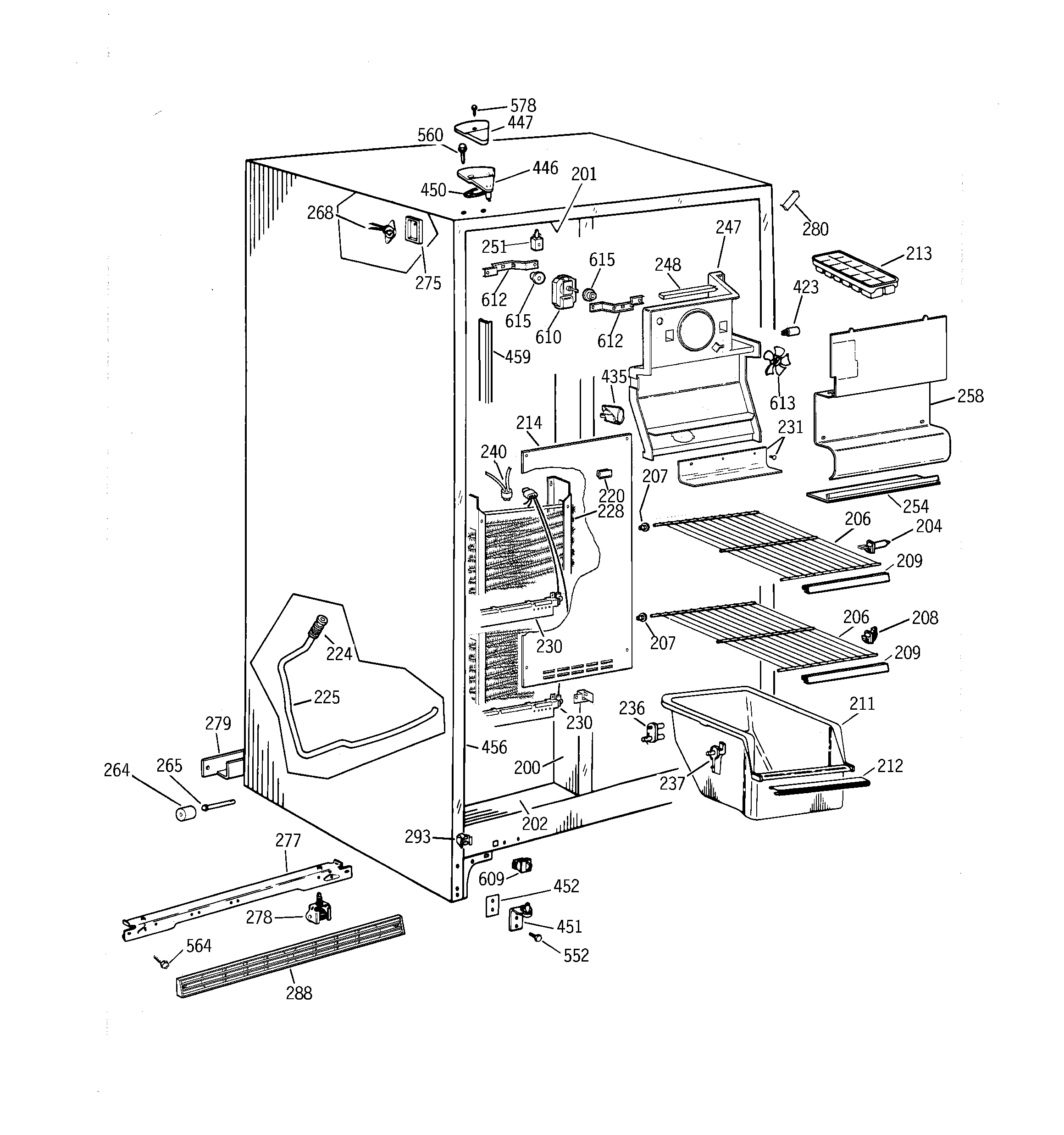

Freezer section diagram
Rail Mach Mt
Part #WR17X3117
The manufacturer no longer makes this part, and there's no substitute part
Freezer section diagram
Refrigerator Fan Cover
Part #WR17X3662
The manufacturer no longer makes this part, and there's no substitute part
Freezer section diagram
Refrigerator Defrost Heater Bracket
Part #WR02X8671
The manufacturer no longer makes this part, and there's no substitute part
