Kenmore 25354673304 refrigerator Parts

Yes. We still support Kenmore refrigerator parts, and for Kenmore model 25354673304 you can replace common wear items like the water filter, door gaskets, ice maker components, and dispenser parts. Use your model number to match parts correctly and avoid fit issues.

Parts you can still commonly buy for Kenmore 25354673304

These are typical replacement categories we see customers order for this side-by-side refrigerator:

• Refrigerator water filter (routine maintenance)
• Door gaskets (air leaks, frost, warm temps)

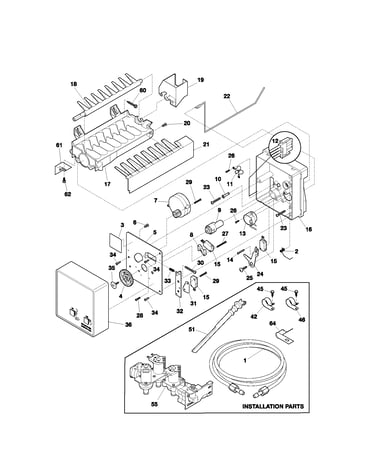

• Ice maker parts (no ice, small cubes, jams)
• Light bulb (interior light out)
• Defrost parts (frost buildup, poor airflow)

Examples of model-matched parts for 25354673304

What you need	Example part for this model	When it helps
Water filter	Genuine Kenmore refrigerator water filter WF2CB	Bad taste/odor, slow dispense, filter light on

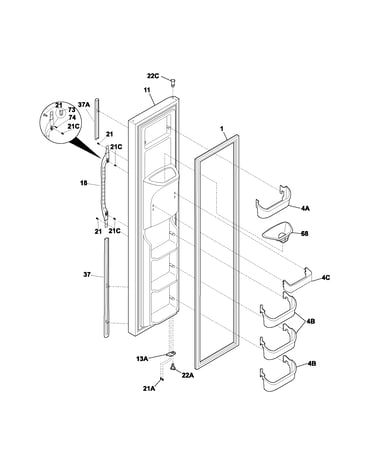

Freezer door gasket	Refrigerator gasket 241786014	Frost, moisture, door not sealing
Defrost thermostat	Refrigerator defrost bi-metal thermostat 5303918214	Heavy frost on evaporator cover, warm fridge

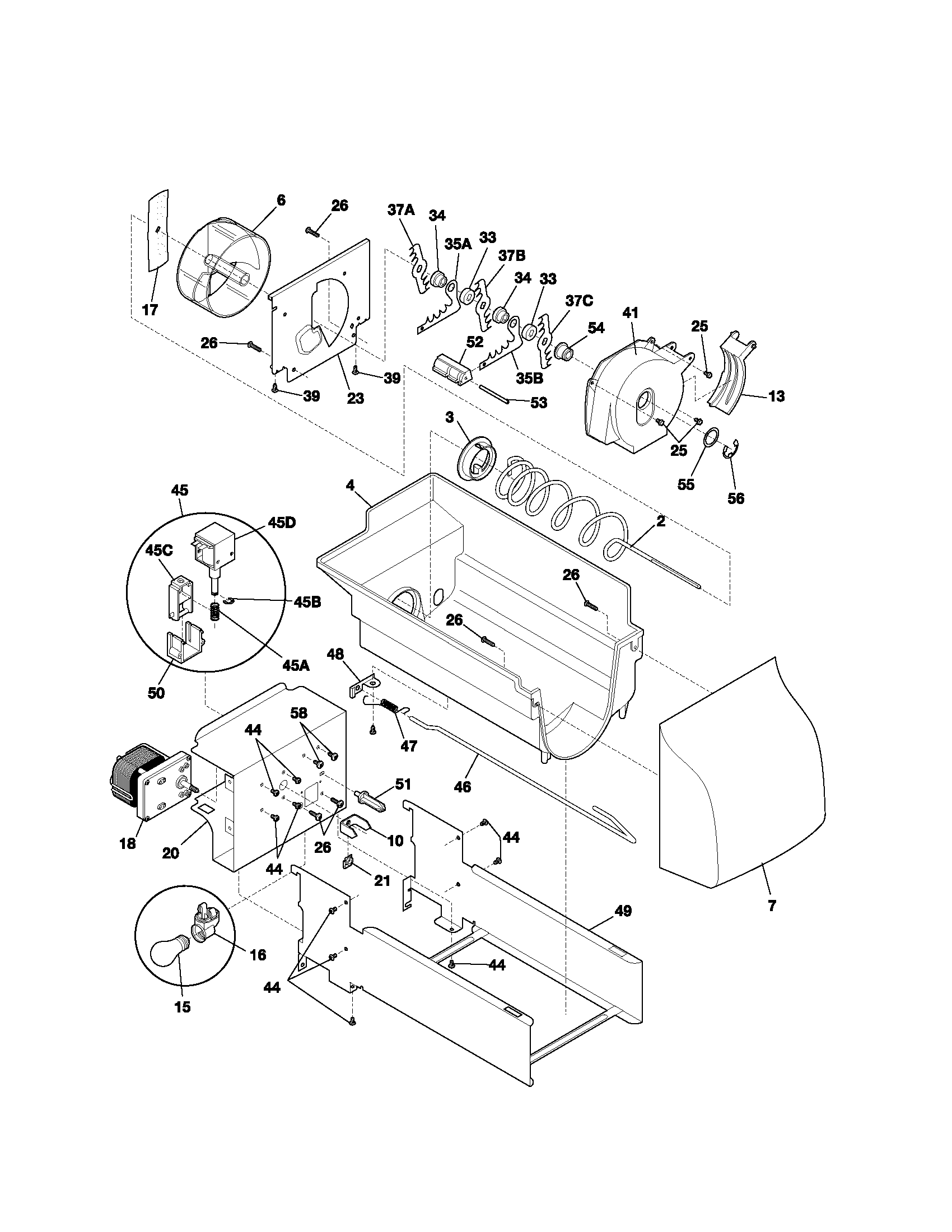

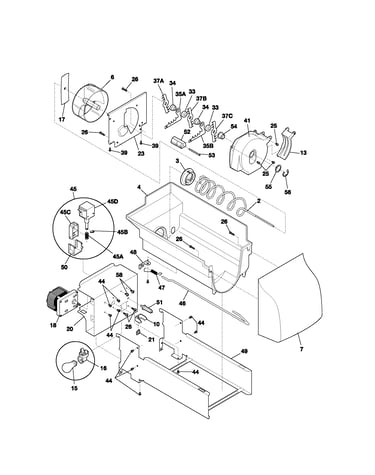

Ice container	Ice container 241860801	Ice clumping, dispenser jams

How we recommend confirming the right part

Even within the Kenmore 253 series, parts can vary by revision. We recommend these checks before ordering:

• Match the full model number: 25354673304
• Compare the part ID and description to the failed part
• Use the exploded views in the 25354673304 owner's manual to confirm location and assembly
• For water filters, follow the change interval and reset steps in the manual

Water filter note (most common request)

For this refrigerator’s ice and water system, the owner’s guide calls out replacing the filter about every 6 to 9 months under normal conditions, or sooner if water flow drops or the status light turns red (often after roughly 400 gallons). Ordering the correct cartridge up front helps protect the dispenser and ice maker.

Why it matters

Using model-matched Kenmore parts helps restore proper temperatures, airflow, and water dispensing. It also prevents repeat failures caused by air leaks (gaskets), restricted filtration, or ice jams in the dispenser path.

Last updated: February 2026

Your Kenmore refrigerator model 25354673304 capacity (cubic feet) is listed on the model’s specification information, not reliably encoded in the model number itself. The fastest accurate method is to check the serial and rating plate inside the fresh food compartment and then confirm the listed capacity in the 25354673304 owner's manual.

Where to find the cubic feet (best to fastest)

• Rating/serial plate inside the refrigerator compartment: look for “Capacity” or “Total capacity” in cubic feet.
• Owner’s manual specifications section: matches your exact model configuration.
• Product label or spec sheet (if you still have it): often shows total and compartment capacities.
• Measure and estimate (last resort): interior volume varies with shelves, bins, and ice maker components.

Quick steps to confirm capacity on the appliance

1. Open the fresh food (refrigerator) door.
2. Locate the serial plate inside the refrigerator compartment (commonly on a side wall).
3. Write down the full model number and serial number.
4. Use the specs section in the 25354673304 owner's manual to confirm the cubic feet.

Why model numbers are not a dependable capacity lookup

Manufacturers reuse model-number families across multiple cabinet sizes and feature packages (ice maker, dispenser, door style). That means two similar-looking Kenmore 253-series refrigerators can have different cubic-foot ratings.

If you need an estimate before you find the label

Most Kenmore side-by-side refrigerators of this style commonly fall in a range like this:

What you need	Typical range (side-by-side)	Notes
Total capacity	20 to 26 cu. ft.	Varies by cabinet width and dispenser features
Refrigerator section	12 to 17 cu. ft.	Shelves and bins reduce usable space
Freezer section	6 to 9 cu. ft.	Ice bin and ice maker reduce usable space

Why it matters

Knowing the correct cubic feet helps us match the right shelves, bins, and airflow parts, and it also helps when comparing replacement refrigerators or planning kitchen fit.

Last updated: February 2026

If your Kenmore refrigerator model 25354673304 is warm even though it runs a lot, makes repeated clicking, or the compressor is unusually hot, the compressor or its start components can be failing. We confirm by checking airflow, power supply, and run behavior before moving to sealed-system diagnosis.

Quick symptoms that point to a compressor problem

• Refrigerator and freezer temperatures stay high even after 24 hours of operation
• Compressor clicks on and off every few minutes (often with a brief hum)
• Compressor runs constantly but cooling is weak
• Compressor is very hot to the touch after trying to run (use caution)
• You hear fans running, but the cabinet does not get cold

Checks to do first (often not the compressor)

Unplug the refrigerator before any inspection. Your 25354673304 owner's manual notes that low voltage can damage the compressor and that performance can be affected if voltage varies by about 10% or more.

• Make sure the freezer control is not set to OFF (0)
• Confirm the unit is not simply in a normal defrost cycle (about 30 minutes periodically)
• Check that doors fully close and are not being held open by bins or food
• Inspect door gaskets for gaps, tears, or poor fit (air leaks mimic “bad compressor” symptoms)
• Clean the condenser area; a dirty condenser can cause long run times and poor cooling

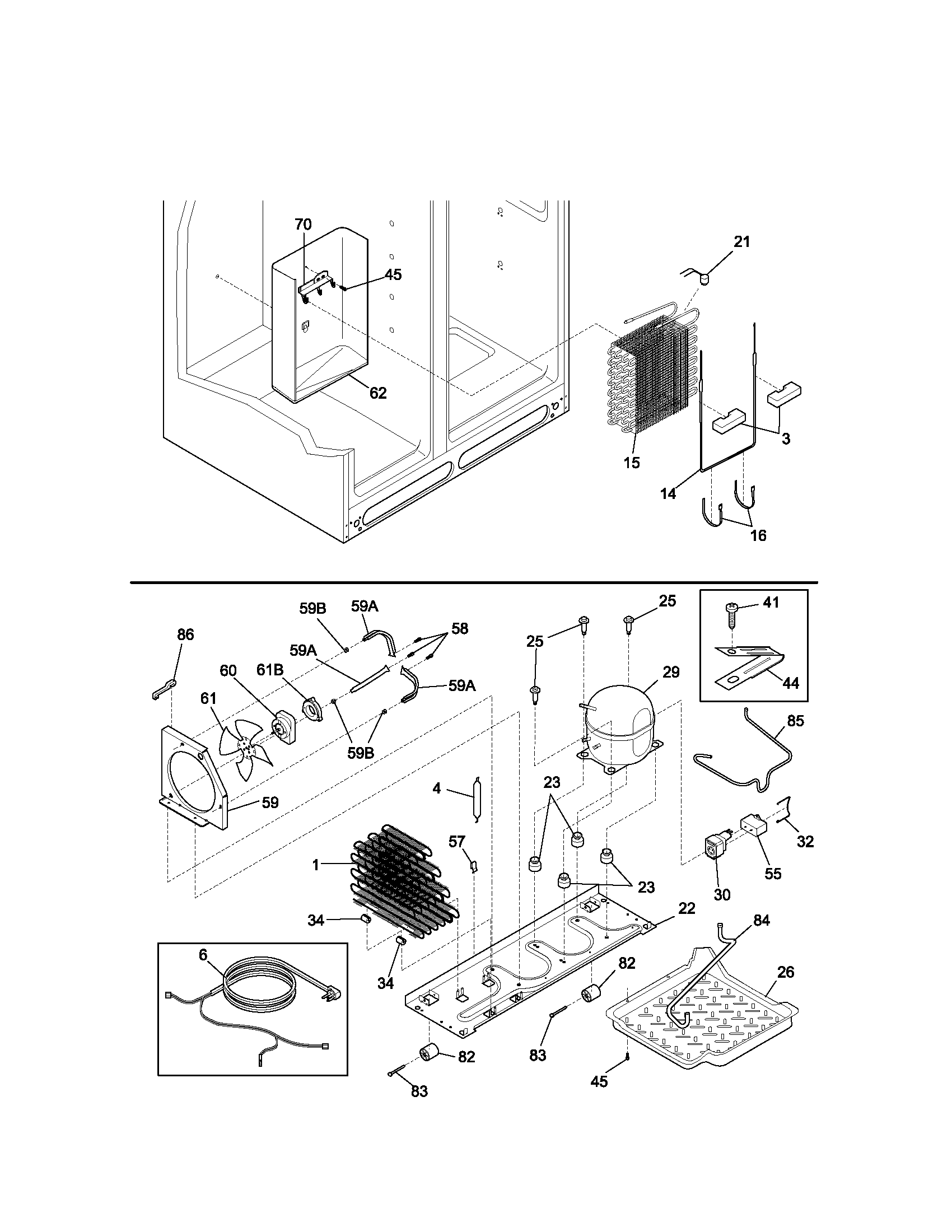

What a technician tests to confirm a bad compressor

A compressor diagnosis is electrical plus sealed-system performance. Typical checks include:

• Compressor start device and overload operation
• Compressor winding resistance and continuity
• Amperage draw at startup and while running
• System pressures and temperature drop across the evaporator (sealed-system check)

Common outcomes and what they mean

What you observe	Most likely cause	Next step
Clicks repeatedly, won’t stay running	Start device/overload, compressor locked	Test start components, then compressor
Runs constantly, little cooling	Sealed-system restriction or weak compressor	Sealed-system diagnosis
Not running at all, no sound	Control, power, or defrost issue	Verify power and controls

Why it matters

Replacing a compressor is a sealed-system repair; confirming basics like controls, condenser cleanliness, and door sealing prevents unnecessary major repairs and helps protect the compressor from damage caused by poor airflow or improper power.

Last updated: February 2026

Most Kenmore side-by-side refrigerators measure about 32 to 36 inches wide. For Kenmore model 25354673304, use the overall width listed in the specifications section of the 25354673304 owner's manual; that is the dimension to match to your cabinet opening.

What “width” should mean for fit

When you are planning space, there are three different widths that can matter.

• Cabinet width: the refrigerator box (no handles)
• Overall width: cabinet plus doors and any trim
• Width with handles: the widest point on many installs

How to measure your opening correctly

Measure the space first, then compare it to the refrigerator’s spec width.

• Measure the opening width at the front, middle, and back
• Check for baseboards, trim, or uneven walls that reduce clearance
• Confirm door swing clearance so bins and drawers open fully
• Leave room for airflow around the cabinet (helps cooling performance)
• Measure the narrowest path for delivery (doorways, hallways)

Typical Kenmore side-by-side width ranges

Refrigerator type	Typical width	Notes
Compact or narrow side-by-side	32 to 33 in.	Smaller capacity, tighter kitchens
Full-size side-by-side	35 to 36 in.	Most common width
Oversize configurations	36 in. and up	More capacity, may need more clearance

Why it matters

If the opening is too tight, doors may not open far enough for shelves and the ice bin, and restricted ventilation can reduce cooling performance and efficiency.

Last updated: February 2026

On Kenmore refrigerator model 25354673304, SY EF is a system error that points to a freezer evaporator airflow problem, most often the evaporator fan not running as expected or heavy frost restricting airflow. Restoring airflow and correcting the fan or defrost issue clears the condition.

What to check first (fast, safe steps)

• Power reset: Unplug the refrigerator for 5 minutes, then plug it back in.
• Confirm the freezer fan runs: Hold the freezer door switch closed; you should hear the evaporator fan.
• Look for frost on the rear freezer panel: A thick frost blanket signals a defrost problem that can stop airflow.
• Check vent airflow: Weak airflow from freezer vents usually matches a fan or frost blockage.
• Verify doors seal tightly: Air leaks add moisture and accelerate frost buildup.

Common causes and what they lead to

What you observe	What it usually indicates	What to do next
No fan sound, warm freezer	Evaporator fan circuit issue	Inspect fan area and wiring; replace failed fan components as needed
Heavy frost on rear panel	Defrost system not clearing ice	Troubleshoot defrost heater, thermostat, and defrost control
Intermittent cooling	Loose connection or failing control	Reseat connectors; check for damaged harnesses

Parts that often relate to SY EF symptoms on this model

If your checks point to airflow or defrost trouble, these model-compatible parts are commonly involved:

• Refrigerator evaporator fan blade 5308000010 (fan airflow at the evaporator)
• Refrigerator defrost bi-metal thermostat 5303918214 (defrost temperature sensing and safety)
• Refrigerator control board 241708307 (dispenser/control functions that can be involved in error conditions)

For component locations, access steps, and wiring guidance, use the 25354673304 owner's manual.

Why it matters

When the evaporator area cannot move cold air, freezer temperature rises and the fresh food section can warm up too. Fixing the airflow or defrost root cause prevents food spoilage and reduces strain on the compressor.

Last updated: February 2026

Kenmore side-by-side refrigerator model 25354673304 is typically about 32 inches wide, 65-3/4 inches tall, and 26-5/8 inches deep (not counting extra clearance needed behind and above the cabinet). For the exact measurement method and required clearances, use the 25354673304 owner's manual.

Quick size and fit checklist

Before you measure your opening, we recommend:

• Measure width, height, and depth in at least 3 spots (floors and walls are rarely perfectly square).
• Add rear clearance for the power cord and water line (if you have an ice maker or water dispenser).
• Leave top clearance for airflow and easier installation.
• Confirm the door swing and handle clearance so doors open fully.
• Plan a path through doorways and hallways; side-by-sides often need extra turning room.

Size summary

Measurement	Approx. size
Width	32 in.
Height	65-3/4 in.
Depth	26-5/8 in.

Why it matters

A refrigerator that is even 1/2 inch too large can bind in the opening, restrict airflow (which hurts cooling performance), or prevent doors from opening fully. Measuring carefully also helps avoid kinks in the water supply line and reduces the chance of door seal gaps.

Related parts that affect “fit”

If you are troubleshooting space, sealing, or door-closing issues, these parts commonly matter:

• Door gaskets: refrigerator gasket 241786013 and refrigerator gasket 241786014
• Door bins and shelves that can interfere with closing if overloaded or mis-seated
• Leveling and alignment adjustments (covered in the manual)

Last updated: February 2026

On Kenmore model 25354673304 side-by-side refrigerators, the model number is printed on the serial plate located inside the refrigerator (fresh food) compartment. Use the 25354673304 owner's manual as a quick reference for the exact label location and how to record the model and serial.

Where to look (fast checklist)

• Open the fresh food (refrigerator) door, not the freezer door
• Look along the inside walls of the refrigerator compartment
• Check near the upper area and side walls where a serial plate is commonly mounted
• Use a flashlight; the print can be small
• Write down the full model number and serial number exactly as shown

What the label typically includes

The serial plate usually lists both identifiers. Here is what you should capture:

Item	What to record	Why it matters
Model number	25354673304	Ensures parts diagrams and replacement parts match your exact unit
Serial number	Full serial as printed	Helps confirm production details when ordering parts or service

Why it matters

Kenmore refrigerators often have similar-looking doors, shelves, and dispenser parts across multiple models. Using the exact model number helps us match the correct refrigerator water filter, door gasket, ice maker components, and control parts for your specific configuration.

Pro tip for parts and maintenance

If you are also checking the label because you need routine maintenance items, this model commonly uses the Kenmore replacement water filter cartridge 9911. When it is time to replace it, the matching part page is genuine Kenmore refrigerator water filter WF2CB.

Last updated: February 2026
