Kelvinator REP307CW4 electric range - lk32089050

Kelvinator REP307CW4 electric range - lk32089050 Parts

Here are the diagrams and repair parts for Kelvinator REP307CW4 electric range - lk32089050, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for REP307CW4 Ranges

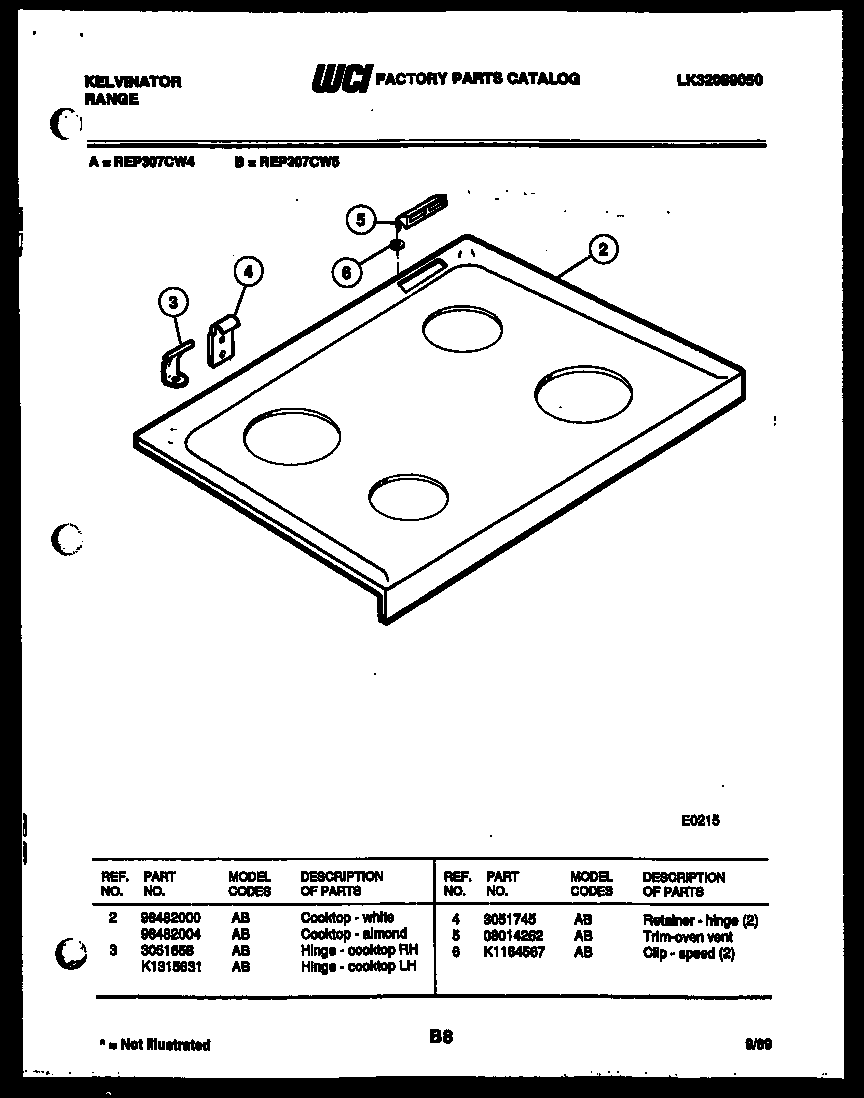

  • Cooktop Knob for Kelvinator REP307CW4 - Part 5303015698

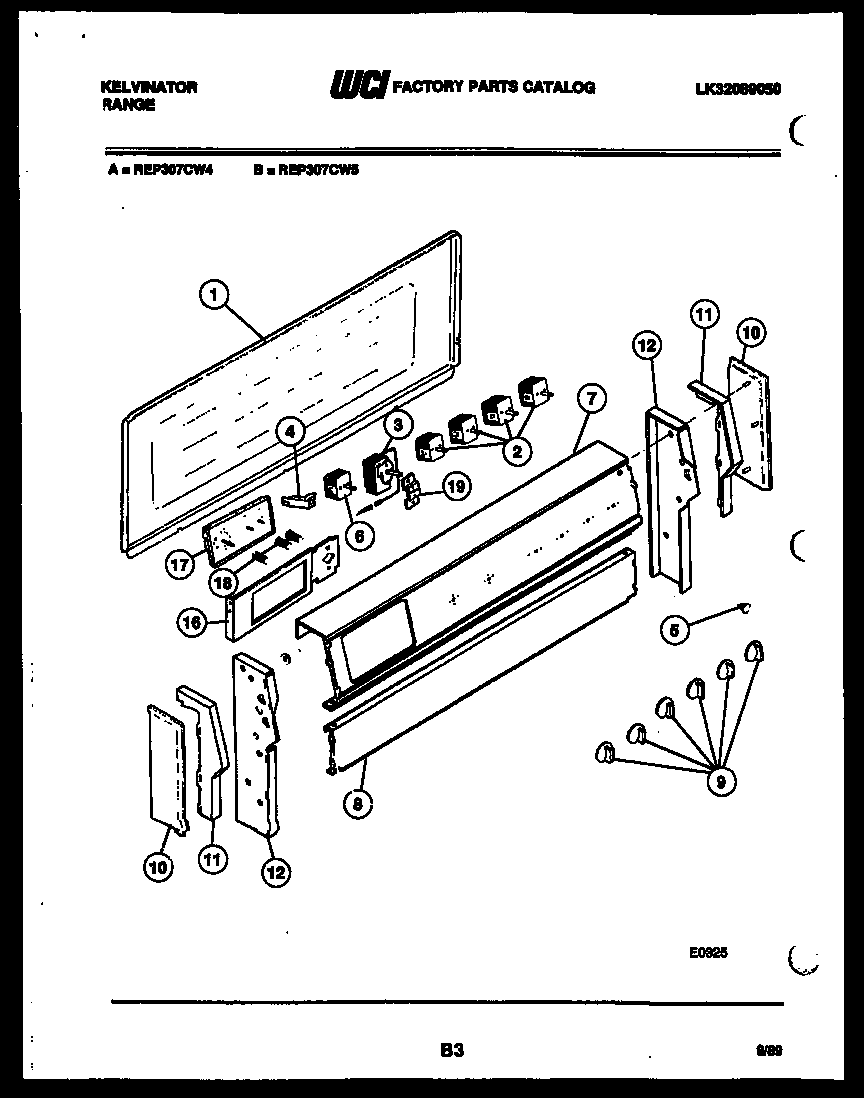

    Backguard diagram

    Knob

    Part #3015698

    Replaced by #5303015698

    Info Icon
    Manufacturer substitution
    This part replaces 3015698. Substitute parts can look different from the original.
    In Stock
    $97.48
    Minus Item
    Qty
    Plus Item
  • Panel Splash for Kelvinator REP307CW4 - Part K5137606

    Backguard diagram

    Panel Splash

    Part #K5137614

    Replaced by #K5137606

    Info Icon
    Manufacturer substitution
    This part replaces K5137614. Substitute parts can look different from the original.
    In Stock
    $110.42
    Minus Item
    Qty
    Plus Item
  • Washer for Kelvinator REP307CW4 - Part 3051785

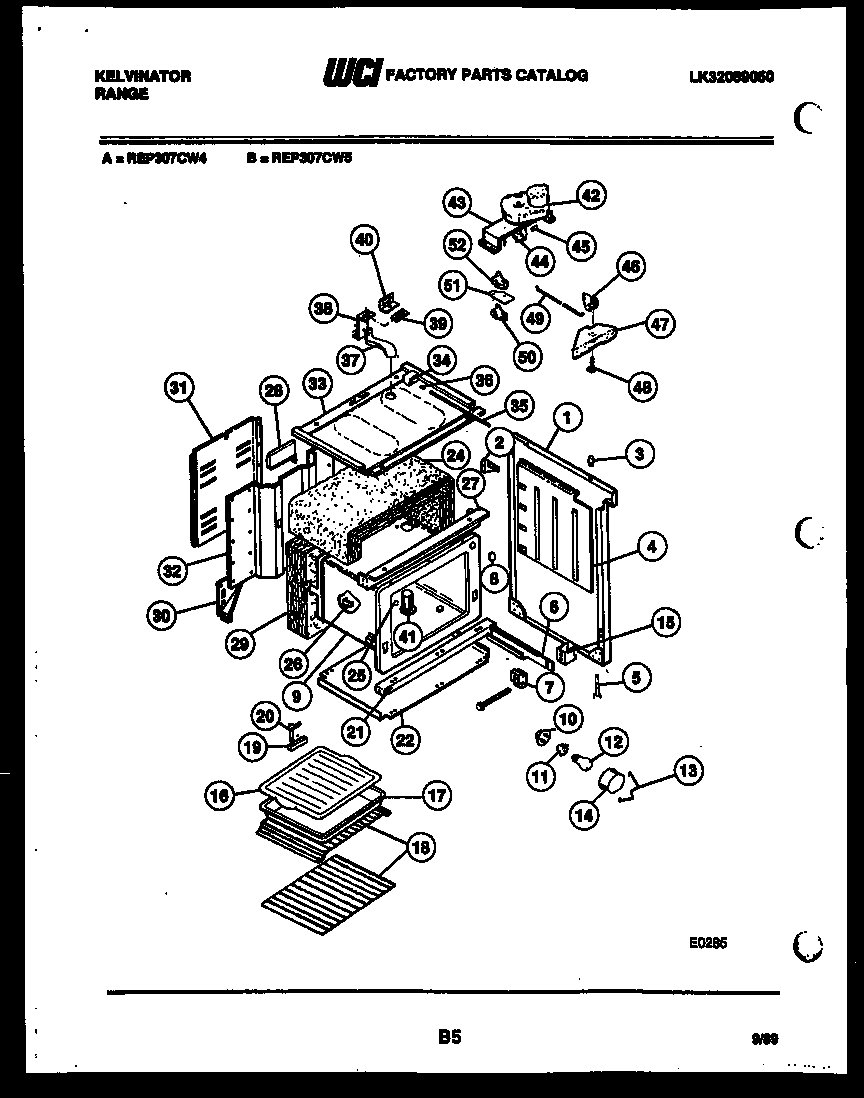

    Body diagram

    Washer

    Part #K1313226

    Replaced by #3051785

    Info Icon
    Manufacturer substitution
    This part replaces K1313226. Substitute parts can look different from the original.
    In Stock
    $31.77
    Minus Item
    Qty
    Plus Item
  • Bracket for Kelvinator REP307CW4 - Part 3051643

    Body diagram

    Bracket

    Part #K1311371

    Replaced by #3051643

    Info Icon
    Manufacturer substitution
    This part replaces K1311371. Substitute parts can look different from the original.
    In Stock
    $27.17
    Minus Item
    Qty
    Plus Item
  • Shield for Kelvinator REP307CW4 - Part 5308014551

    Broiler parts diagram

    Pan Element

    Part #K5129601

    Replaced by #5308014551

    Info Icon
    Manufacturer substitution
    This part replaces K5129601. Substitute parts can look different from the original.
    In Stock
    $100.21
    Minus Item
    Qty
    Plus Item
  • Clock Timer for Kelvinator REP307CW4 - Part 5303298204

    Backguard diagram

    Clock Timer

    Part #K5260501

    Replaced by #5303298204

    Info Icon
    Manufacturer substitution
    This part replaces K5260501. Substitute parts can look different from the original.
    In Stock
    $263.59
    Minus Item
    Qty
    Plus Item
  • Push Rod for Kelvinator REP307CW4 - Part 3051645

    Body diagram

    Light Switch Rod

    Part #K1322683

    Replaced by #3051645

    Info Icon
    Manufacturer substitution
    This part replaces K1322683. Substitute parts can look different from the original.
    In Stock
    $36.76
    Minus Item
    Qty
    Plus Item
  • Switch for Kelvinator REP307CW4 - Part 5303051740

    Body diagram

    Switch

    Part #K1315370

    Replaced by #5303051740

    Info Icon
    Manufacturer substitution
    This part replaces K1315370. Substitute parts can look different from the original.
    In Stock
    $107.58
    Minus Item
    Qty
    Plus Item
  • Insulation for Kelvinator REP307CW4 - Part 5301322652

    Door parts diagram

    Insulation-a

    Part #K1322652

    Replaced by #5301322652

    Info Icon
    Manufacturer substitution
    This part replaces K1322652. Substitute parts can look different from the original.
    In Stock
    $55.66
    Minus Item
    Qty
    Plus Item
  • Panel for Kelvinator REP307CW4 - Part 5301325100

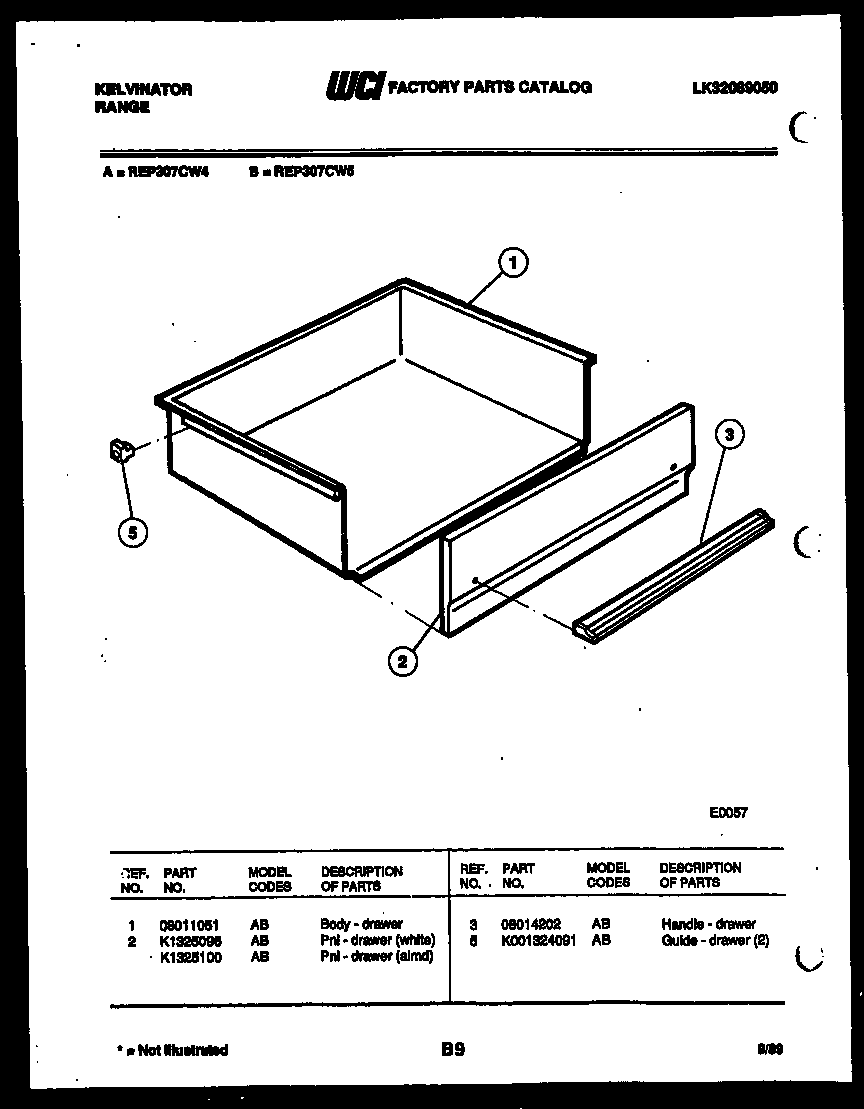

    Drawer diagram

    Drawer Panel

    Part #K1325100

    Replaced by #5301325100

    Info Icon
    Manufacturer substitution
    This part replaces K1325100. Substitute parts can look different from the original.
    In Stock
    $147.58
    Minus Item
    Qty
    Plus Item
