Frigidaire PHS67EHSB3 refrigerator

Frigidaire PHS67EHSB3 refrigerator Parts

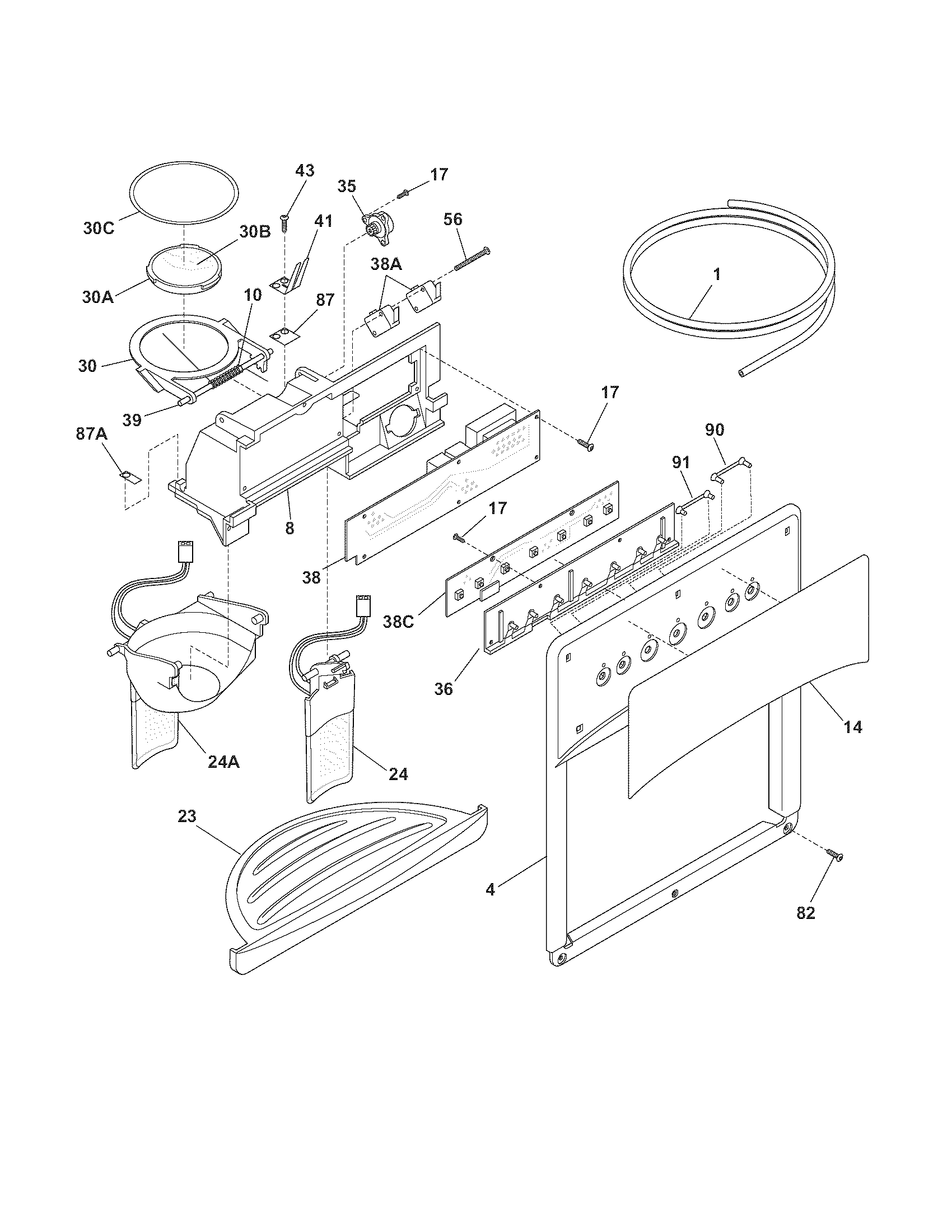

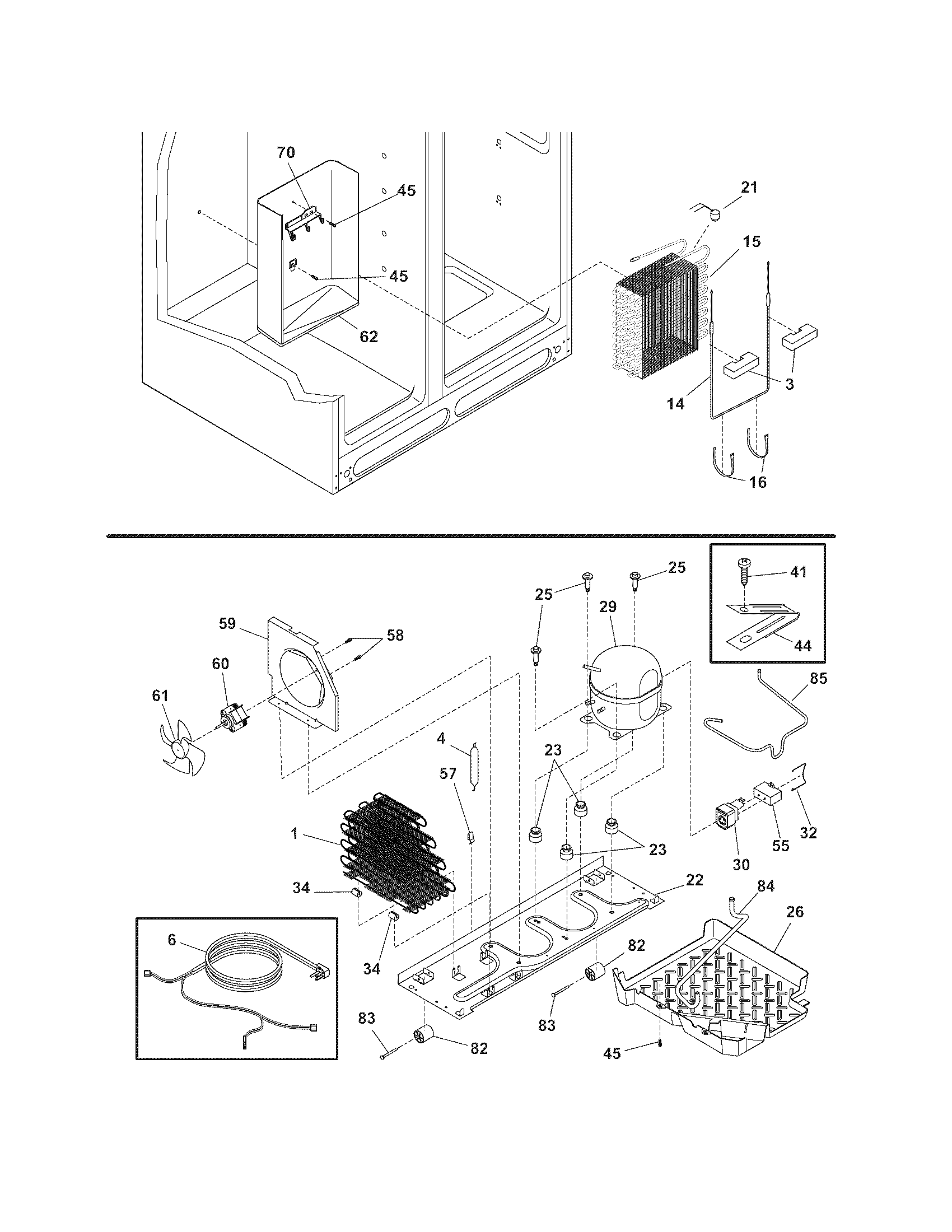

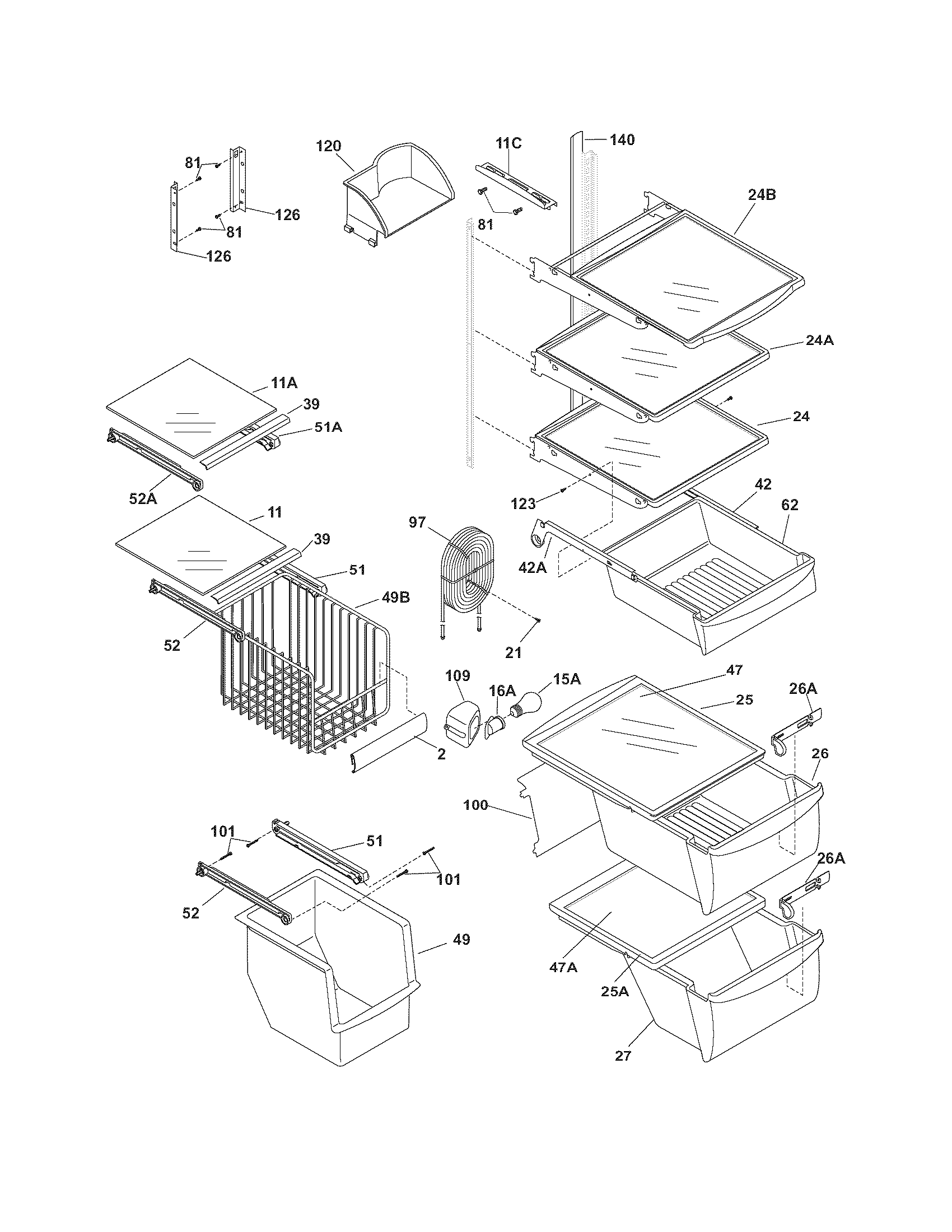

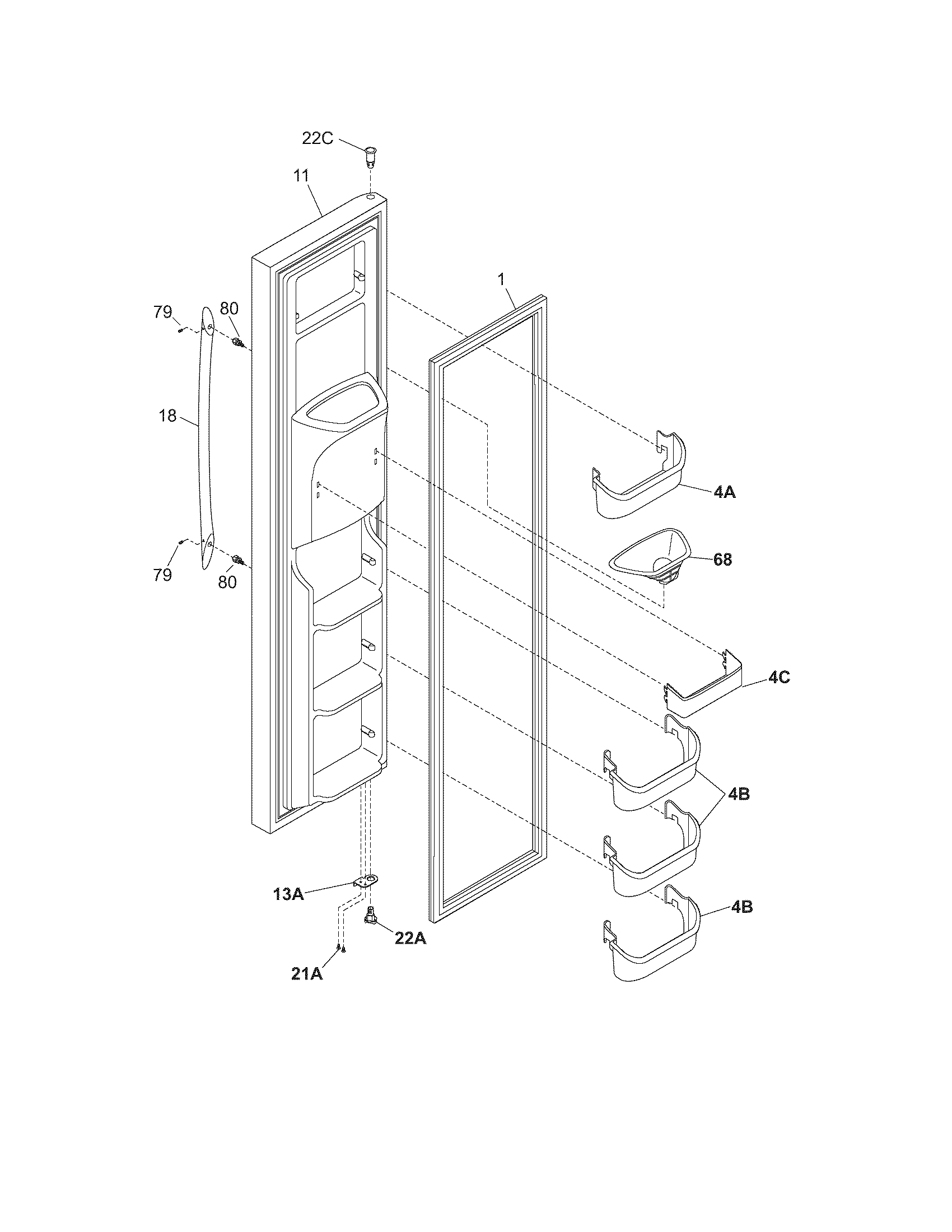

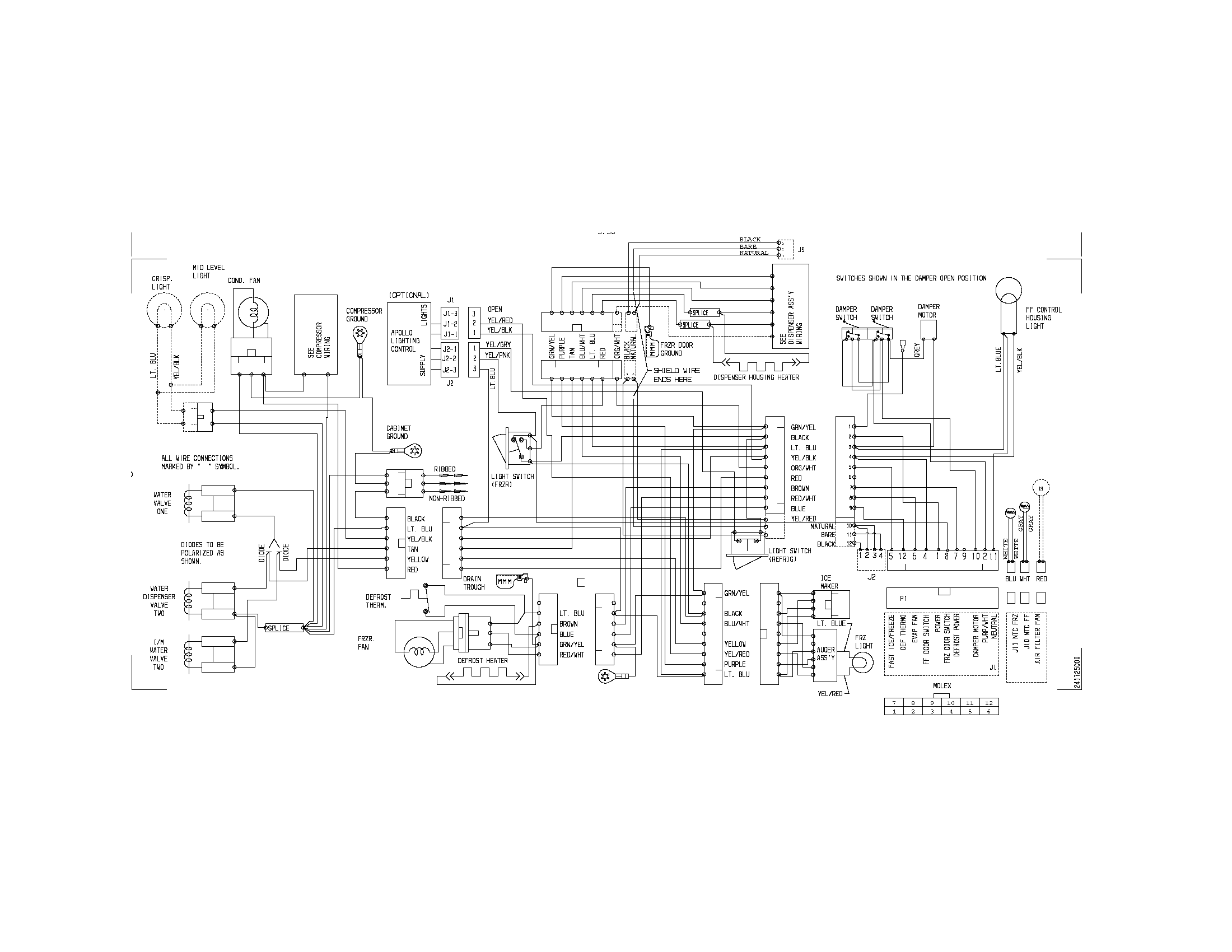

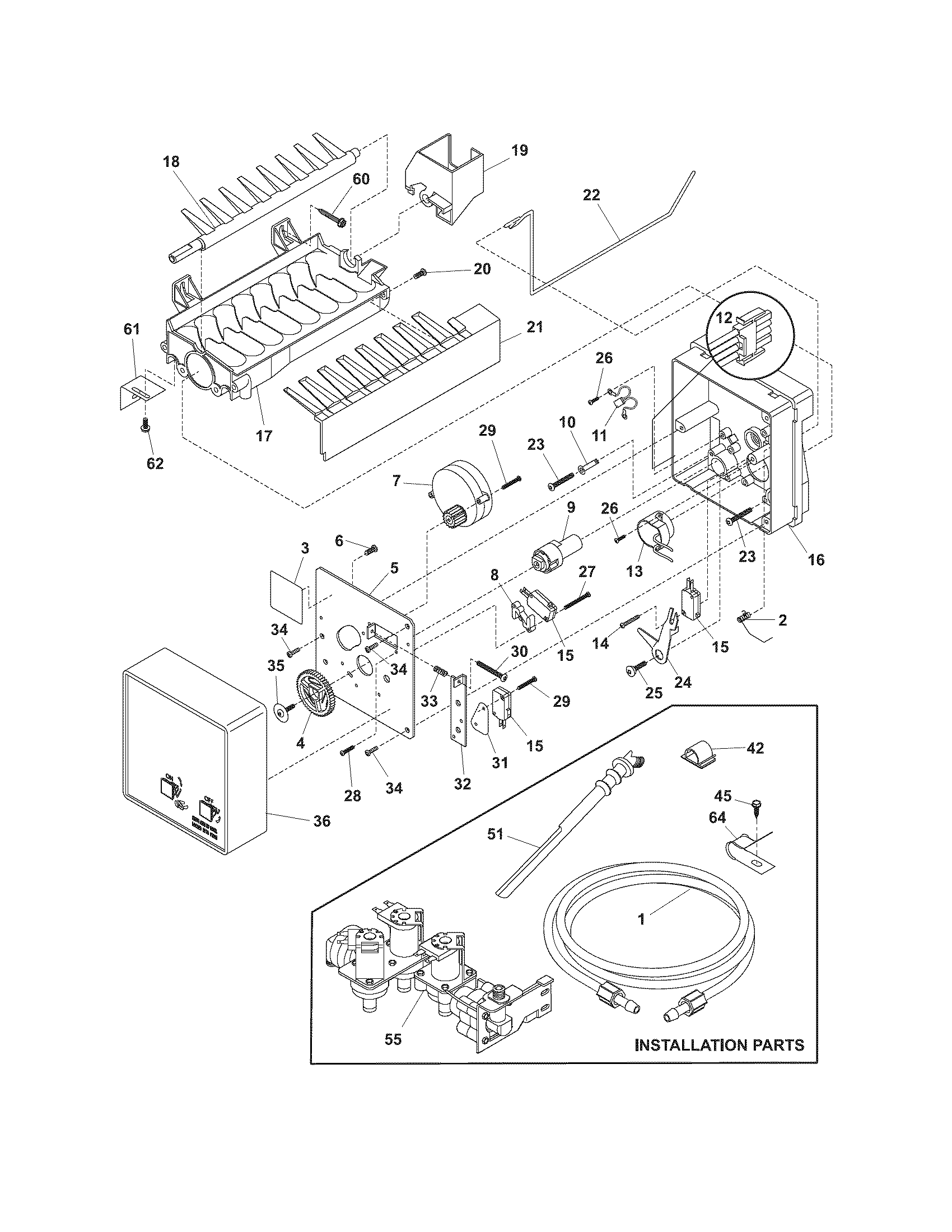

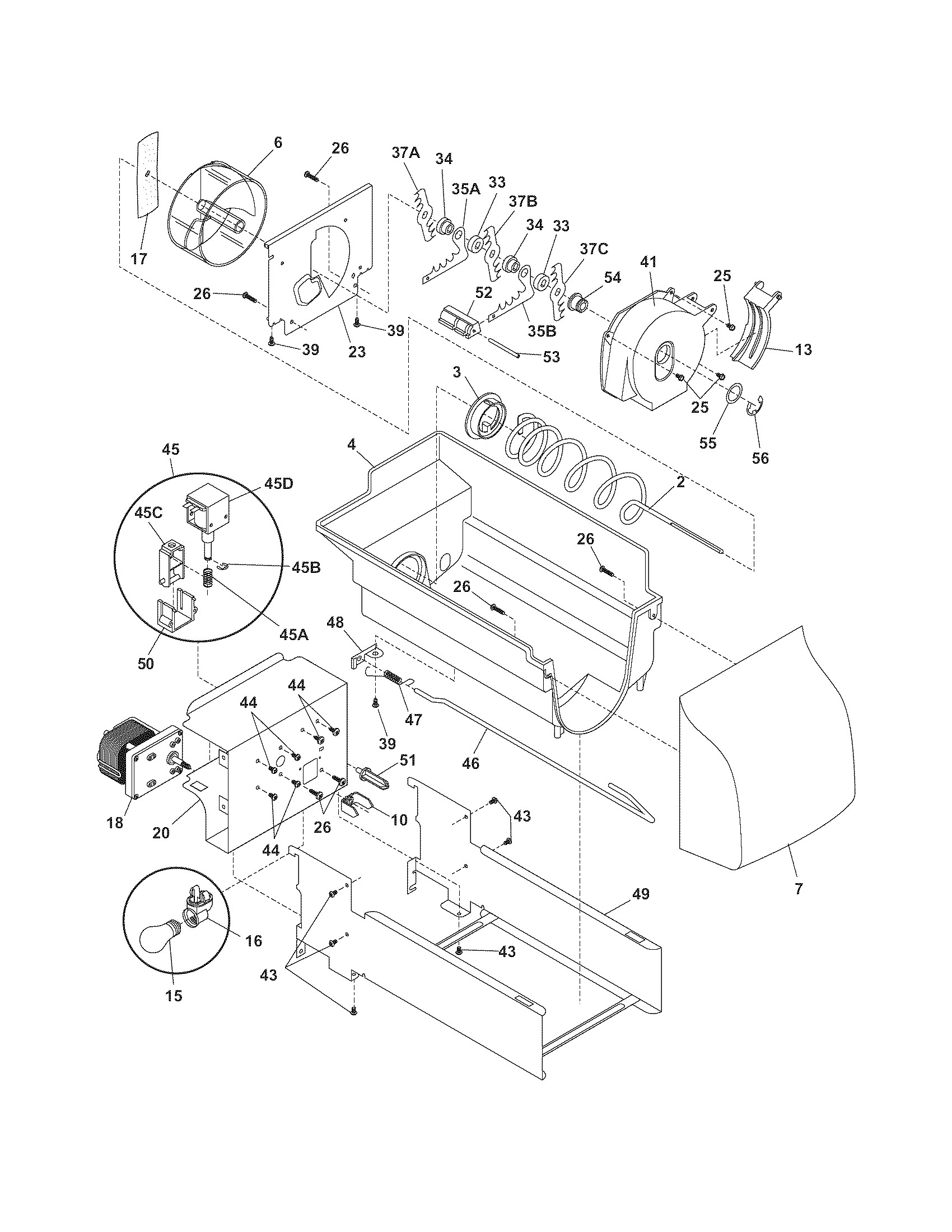

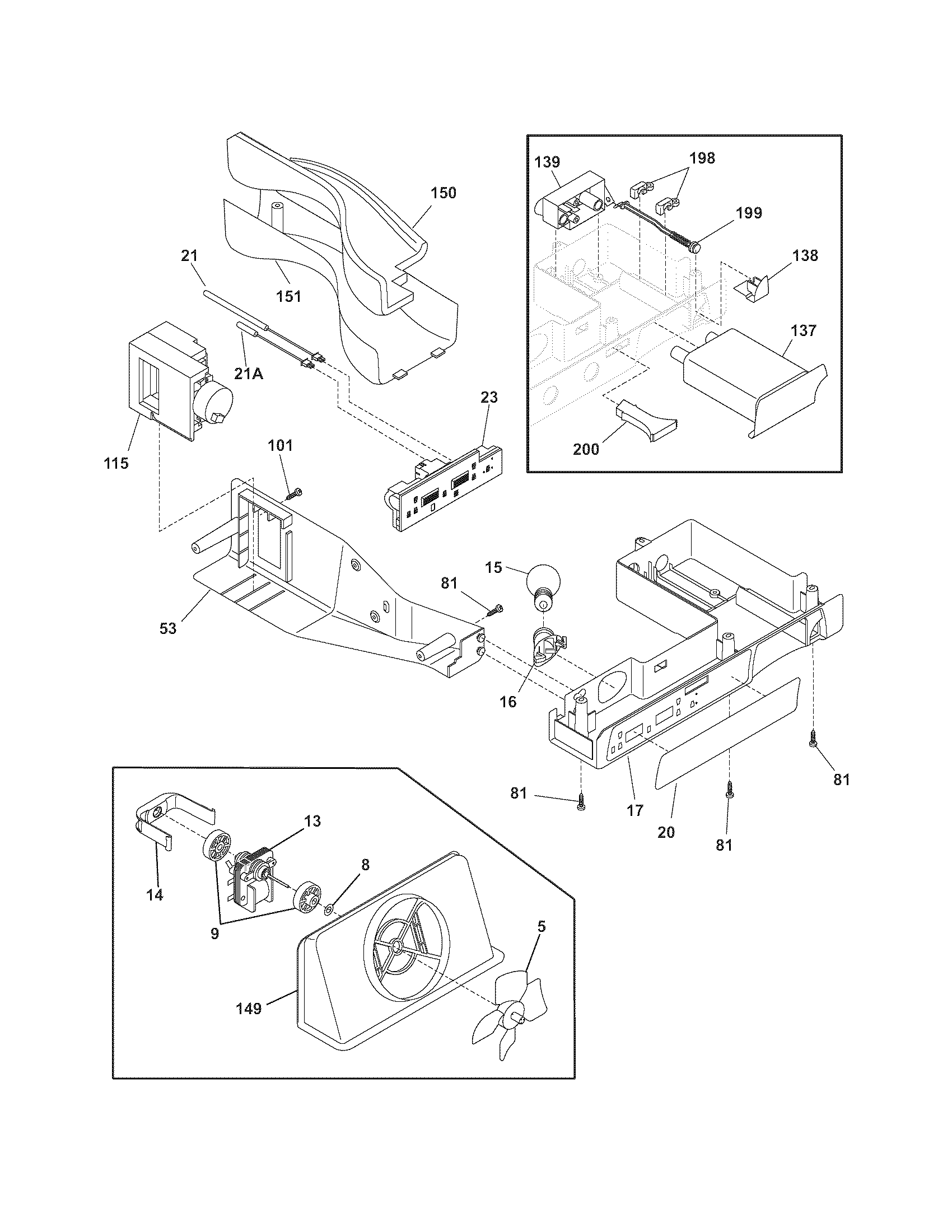

Here are the diagrams and repair parts for Frigidaire PHS67EHSB3 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for PHS67EHSB3 Refrigerators

Frigidaire Refrigerator PHS67EHSB3 FAQs

Frigidaire Gallery is a premium, mid-range line, not a true luxury high-end brand. Compared with basic Frigidaire models, Gallery typically adds more features, upgraded finishes, and a more built-in look, while staying below the price and performance tier of luxury brands.

What “high end” usually means for refrigerators

When shoppers say “high end,” they usually mean a combination of price, materials, and advanced performance features.

  • Premium materials and fit and finish (often stainless steel)
  • Quieter operation and tighter temperature control
  • More advanced ice and water features
  • More specialized storage and lighting
  • Longer feature lists and more configuration options
Where Gallery fits for a Frigidaire refrigerator like PHS67EHSB3

For a Frigidaire side-by-side refrigerator such as model PHS67EHSB3, “Gallery” is best thought of as an upgrade tier: you often get convenience features (like ice and water dispensing and filter status indicators) without stepping into luxury pricing.

A quick way to compare tiers:

Tier (common shopper meaning) Typical focus What you usually get
Value / basic Lowest cost Core cooling, fewer extras
Premium mid-range (Gallery) Features + style More convenience, upgraded finishes
Luxury / true high end Top performance + design Highest-end materials, advanced systems
Why it matters

Knowing the tier helps set expectations for repair decisions and part replacement. For example, if you want the refrigerator’s ice and water system to perform its best, staying on top of filter changes and dispenser maintenance can prevent common flow and ice-quality issues.

For model-specific feature details and care guidance, use the PHS67EHSB3 owner's manual.

If your question is really about water quality or dispenser performance, our how to replace the water filter in a Frigidaire refrigerator guide is a practical next step.

Last updated: January 2026

A side-by-side is “better” than a French door when you want easy access to both fresh and frozen foods at eye level and you prefer narrower door swing clearance; a French door is “better” when you want wider refrigerator shelves for platters and large fresh-food storage. For Frigidaire model PHS67EHSB3, the best choice depends on your kitchen layout and how you store food.

Quick comparison: side-by-side vs. French door
Feature Side-by-side (like PHS67EHSB3) French door
Fresh-food shelf width Narrower Wider (better for trays and platters)
Freezer access Eye-level shelves Lower pull-out drawer
Door swing space Typically less per door Typically more per door
Organization style More vertical storage More wide, open storage
When a side-by-side is the better fit
  • You use the freezer daily and want frozen foods at eye level.
  • Your kitchen aisle is tight and you want narrower doors.
  • You like door storage for frequently used items.
  • You prefer more vertical organization (bins, shelves, and compartments).
  • You want quick access to ice and water through the door dispenser.
When a French door is the better fit
  • You often store wide items (pizza boxes, party platters, sheet pans).
  • You keep lots of fresh ingredients and want a larger fresh-food section.
  • You prefer a bottom freezer drawer for bulk frozen storage.
  • You want a more open shelf layout for meal prep and entertaining.
Why it matters (kitchen fit and day-to-day use)

Refrigerator style affects how the doors open, how you organize groceries, and how easily you can reach what you use most. For example, proper positioning and leveling helps doors seal correctly and close smoothly, which supports consistent temperatures and reduces moisture issues.

Tips to get the most from your side-by-side
  • Confirm the refrigerator is level and the doors seal on all sides; this helps cooling performance.
  • Leave installation clearance for airflow (typical guidance is small side/top clearance and about 1 inch at the back).
  • If you rely on filtered water and ice, replace the filter on schedule; a restricted filter can reduce dispenser flow.
  • Use the temperature controls as recommended for your household habits.

For model-specific setup and clearance guidance, follow the PHS67EHSB3 owner’s manual. If you are comparing filtration needs, the how to replace the water filter in a Frigidaire refrigerator guide helps you match filter type and replacement steps.

Last updated: January 2026

For the Frigidaire PHS67EHSB3 side-by-side refrigerator, the most common issue we see is a cooling complaint (temperatures too warm or the unit running too long), usually tied to airflow and heat removal problems like dirty condenser coils, doors being left slightly open, or worn door gaskets.

Quick checks that fix many “not cold enough” complaints
  • Make sure both doors fully close and seal; a slightly open door lets warm air in.
  • Reduce door openings; frequent openings quickly warm the fresh food and freezer sections.
  • Clean the condenser coils; a dirty condenser makes the refrigerator run longer and cool poorly.
  • Confirm temperature settings and give changes time; allow about 24 hours for temperatures to stabilize.
  • If you hear repeated door-alarm beeps, close the door to reset the “Door Ajar” alarm.
Common problem areas and what they usually look like
Symptom Most common cause What to do first
Fresh food or freezer too warm Warm air entering through doors, dirty condenser Close doors fully; clean condenser coils
Refrigerator runs too long Dirty condenser, doors opened often, gasket leak Clean coils; limit openings; inspect gaskets
Door ajar alarm (beeps) Door left open 5+ minutes Close door to stop alarm
Ice or water dispenser issues Clogged filter, air in water line, low flow Replace filter; purge air; check supply
Parts that often solve the underlying cause

If you confirm the issue is water flow or dispensing related, replacing the filter is a common first step for this model.

For model-specific operating details (temperature controls, alarms, and care steps), follow the instructions in the PHS67EHSB3 owner's manual.

Why it matters

Cooling and run-time problems usually get worse over time: the refrigerator may struggle to hold safe food temperatures, run constantly, and build up extra frost or moisture. Addressing airflow (doors, gaskets, condenser cleanliness) is the fastest way to restore normal performance.

Last updated: January 2026
