Amana TR522SW-P1182701WW refrigerator/freezer Parts
Here are the diagrams and repair parts for Amana TR522SW-P1182701WW refrigerator/freezer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

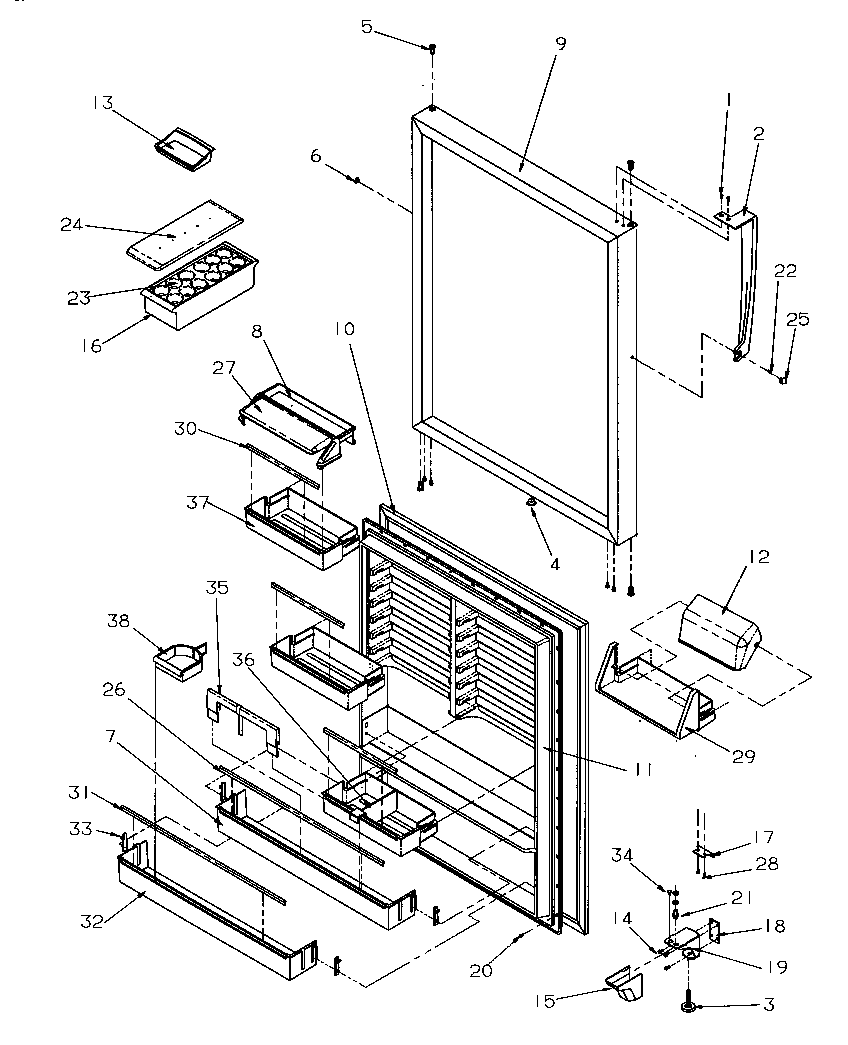

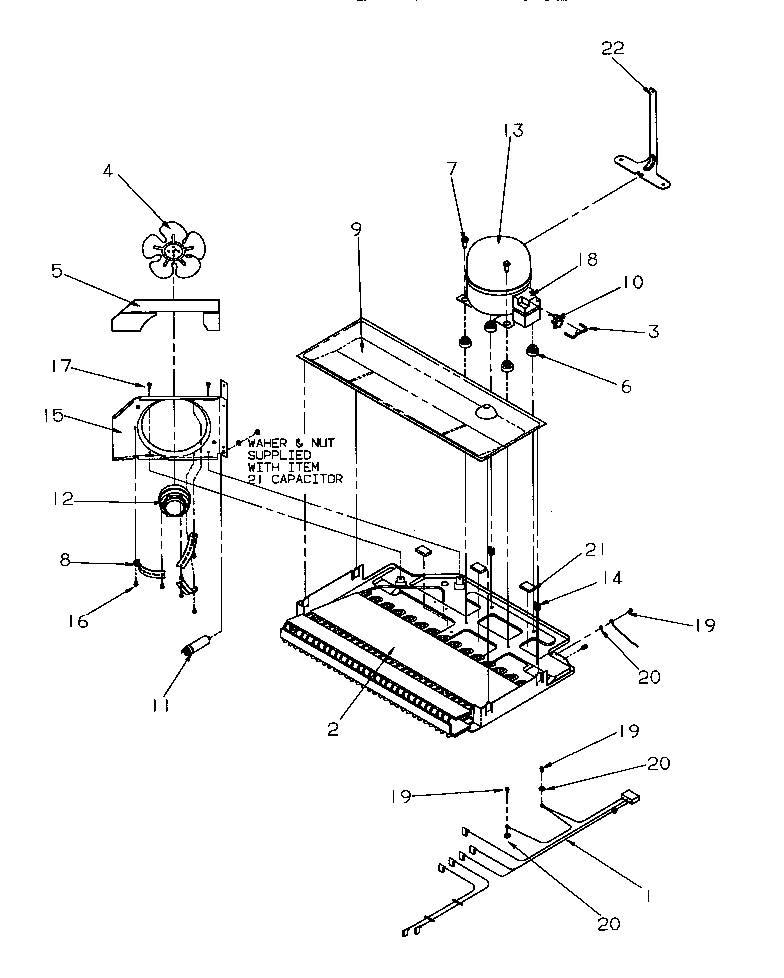

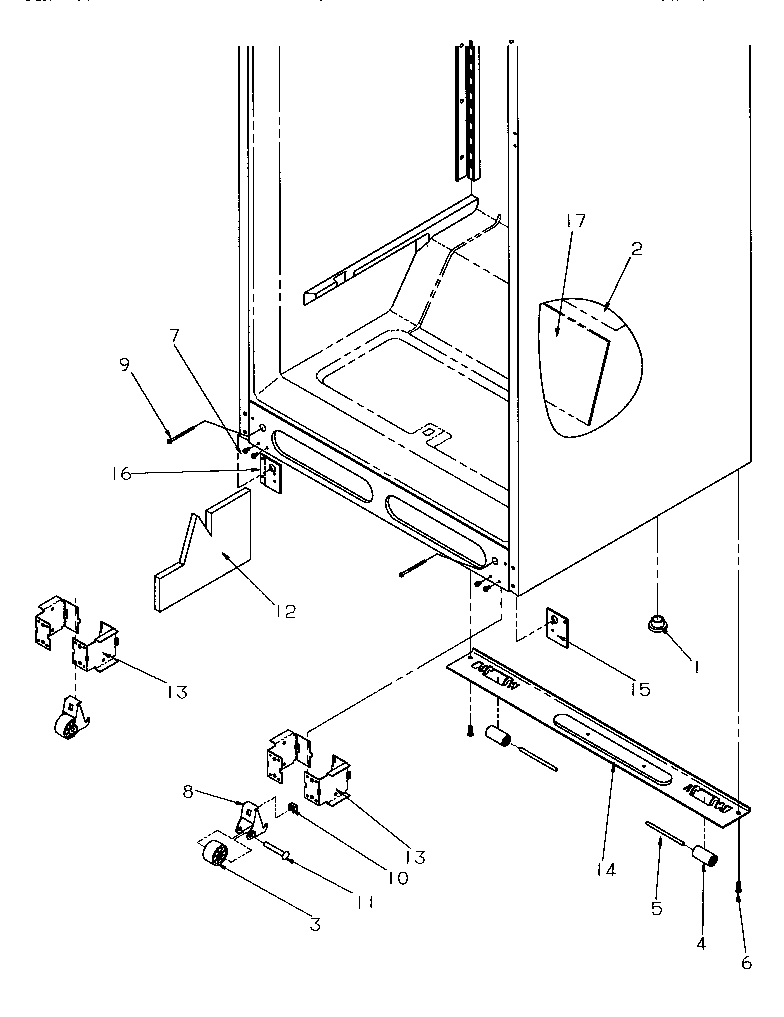

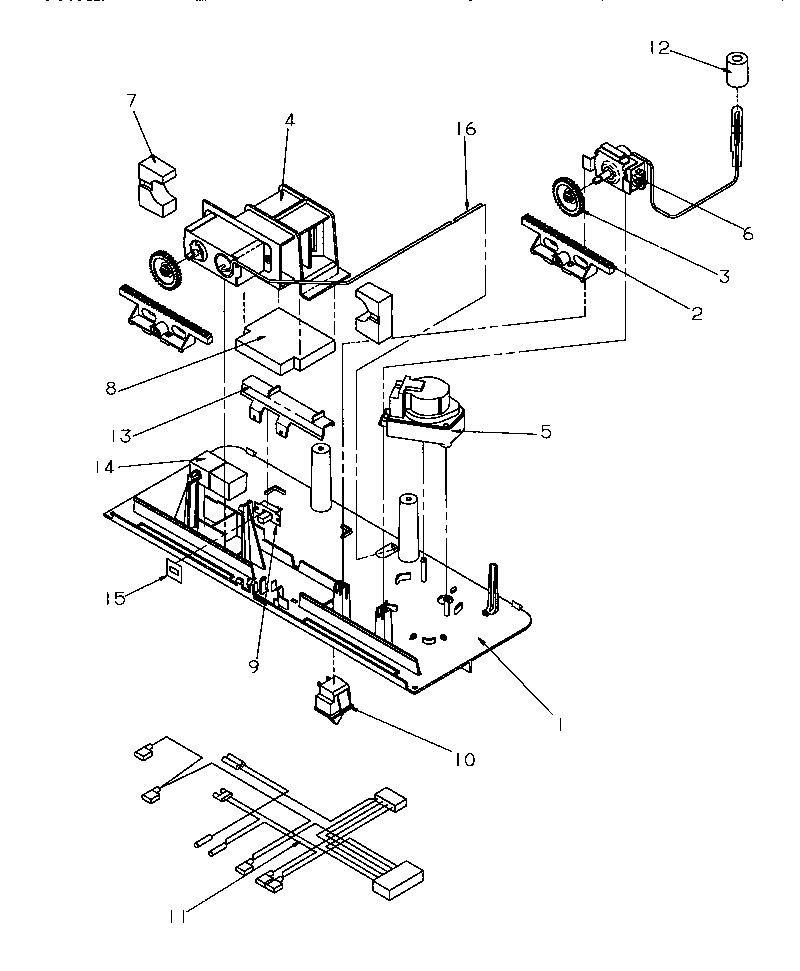

Browse Parts for TR522SW-P1182701WW Refrigerators

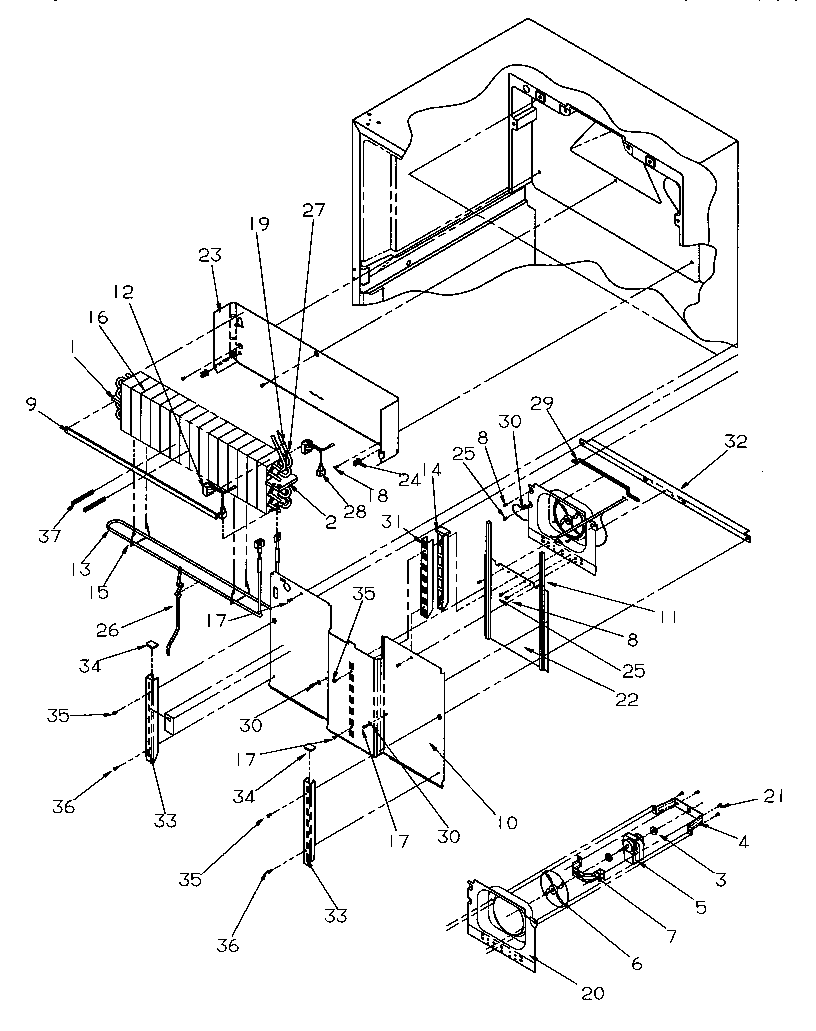

Evaporator area diagram
Refrigerator Grommet
Part #A1017202Replaced by #WP2264462
Manufacturer substitutionThis part replaces A1017202. Substitute parts can look different from the original.This item is not returnableIn Stock$27.5218% OFF Phone Price : $33.52
Qty
Evaporator area diagram
Refrigerator Ladder
Part #10439402
The manufacturer no longer makes this part, and there's no substitute part

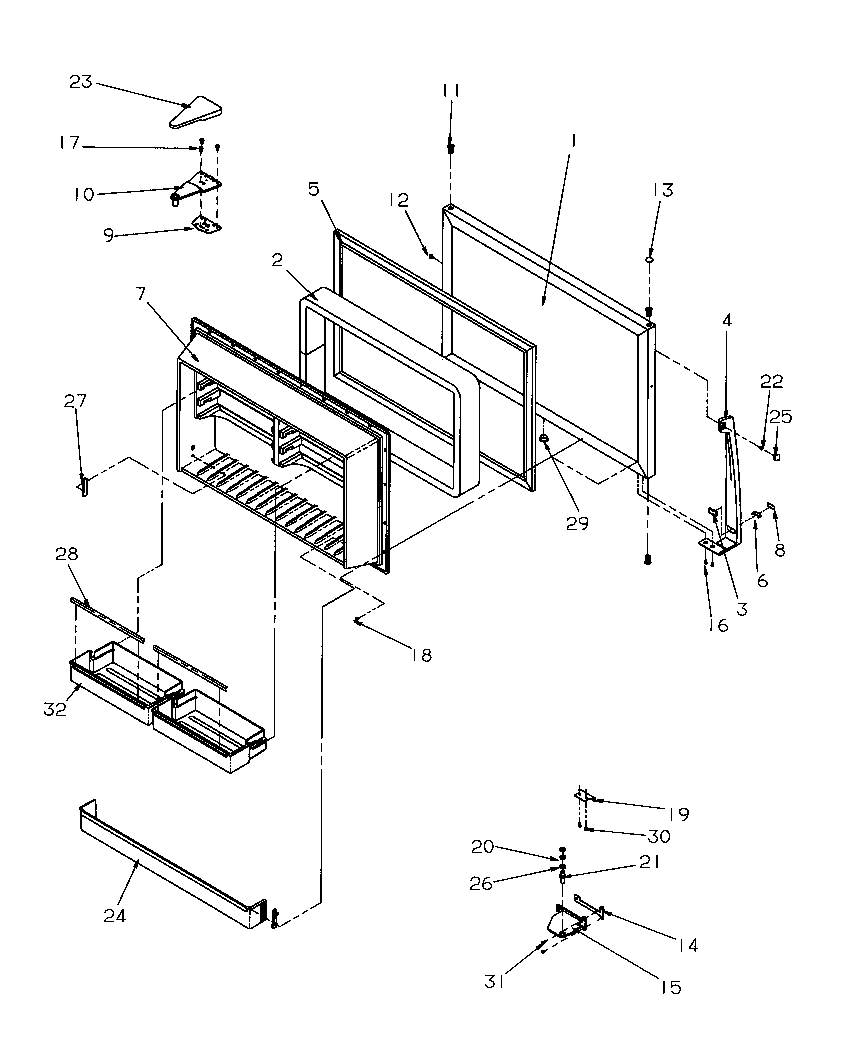

Freezer door diagram
Refrigerator Plug (white)
Part #10184301
The manufacturer no longer makes this part, and there's no substitute part

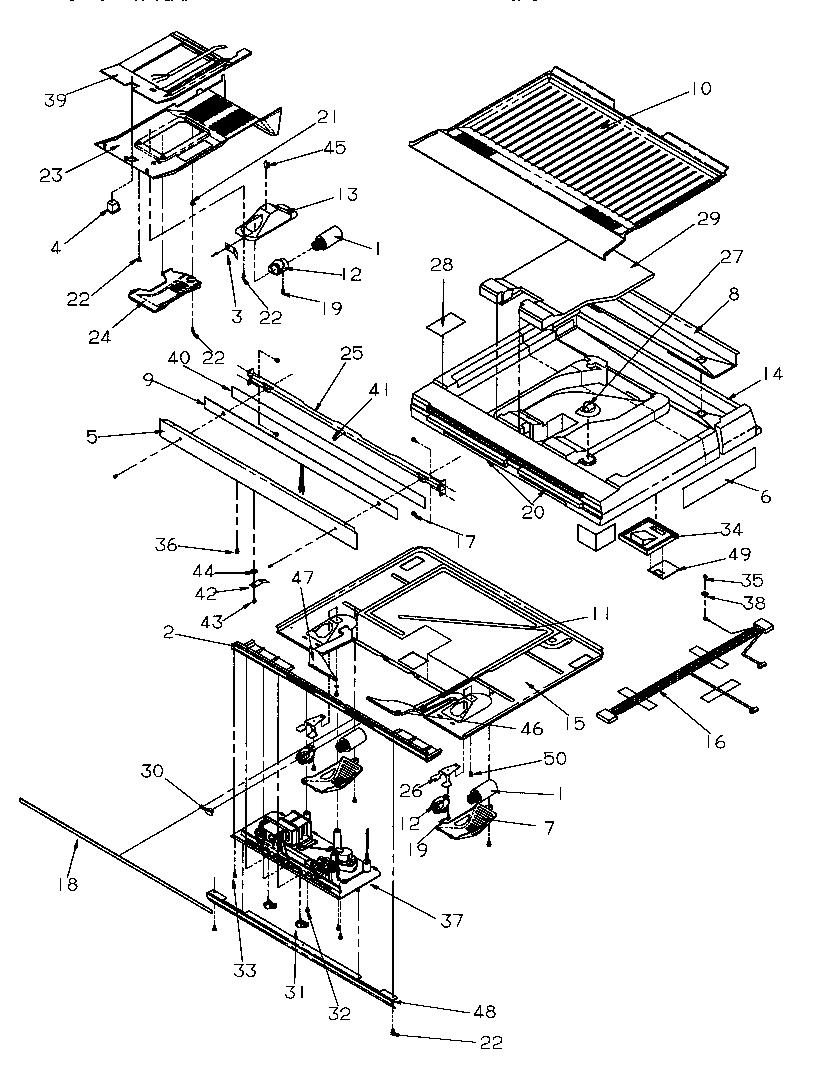

Divider block diagram
Refrigerator Gasket
Part #B5759626
The manufacturer no longer makes this part, and there's no substitute part
Evaporator area diagram
Shield - Evap - E Ct
Part #10427714
The manufacturer no longer makes this part, and there's no substitute part

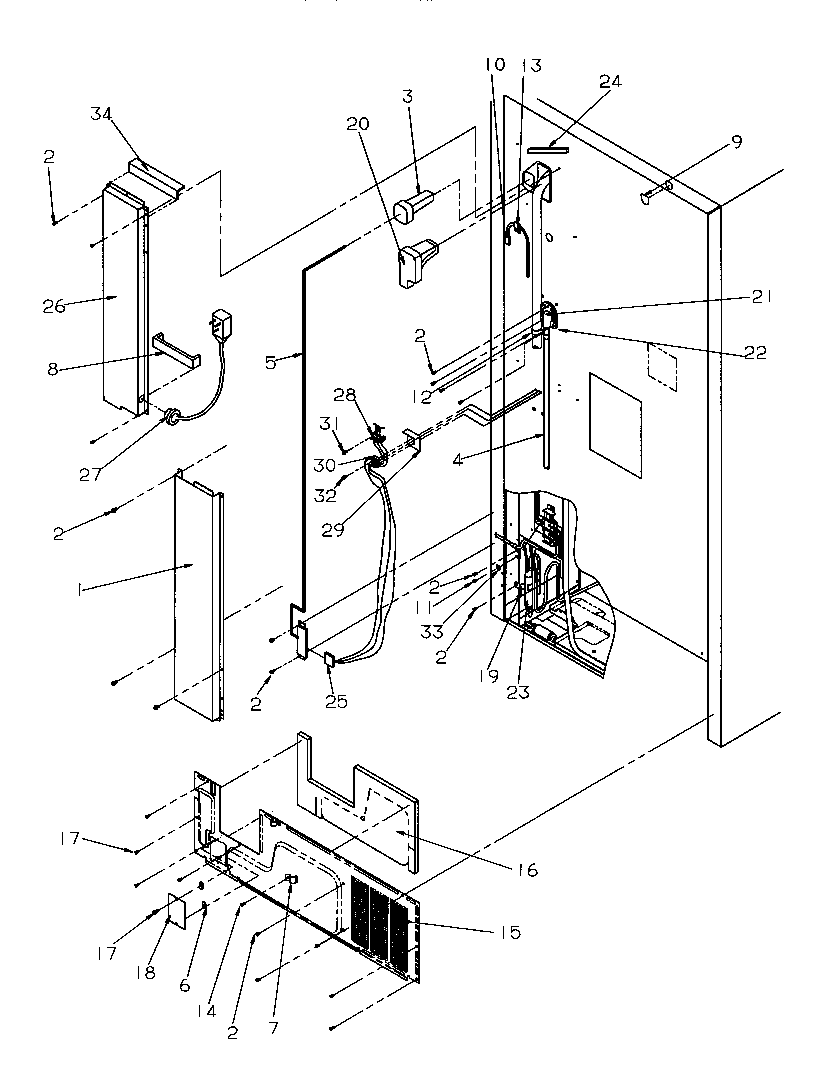

Cabinet back diagram
Refrigerator Gasket
Part #A3132301
The manufacturer no longer makes this part, and there's no substitute part
Freezer door diagram
Refrigerator Shim
Part #10451303
The manufacturer no longer makes this part, and there's no substitute part
Cabinet back diagram
Insul-term Block
Part #10377603
The manufacturer no longer makes this part, and there's no substitute part

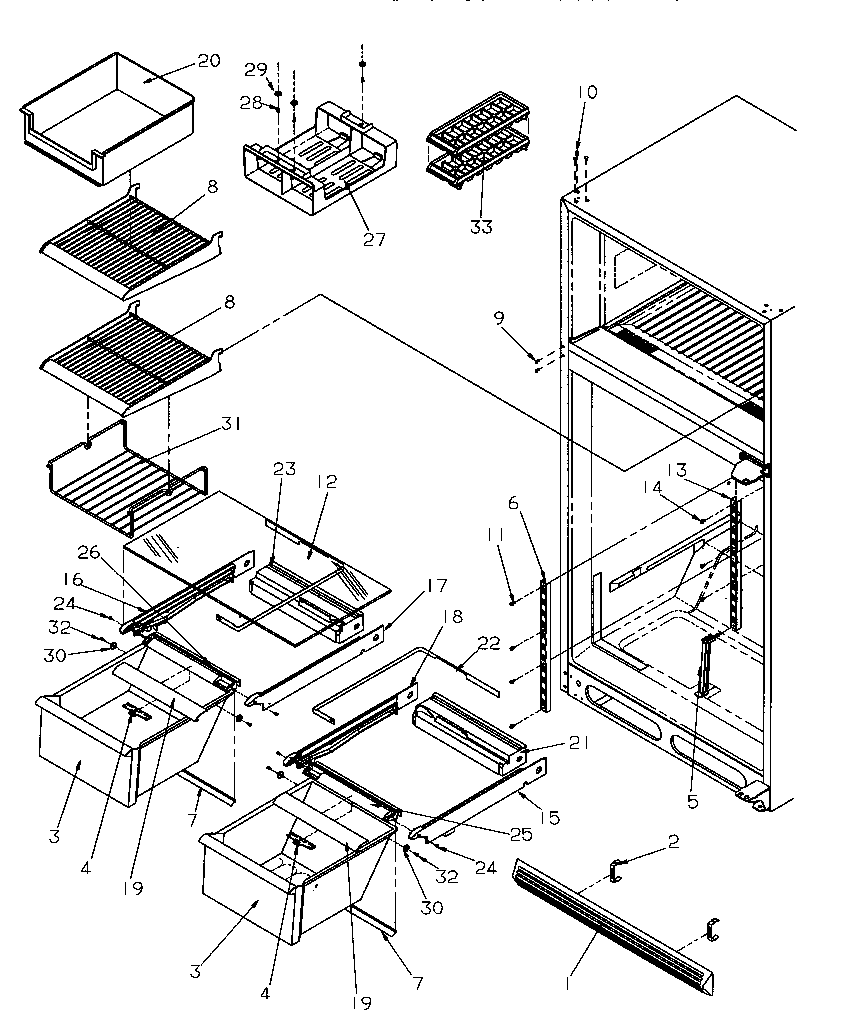

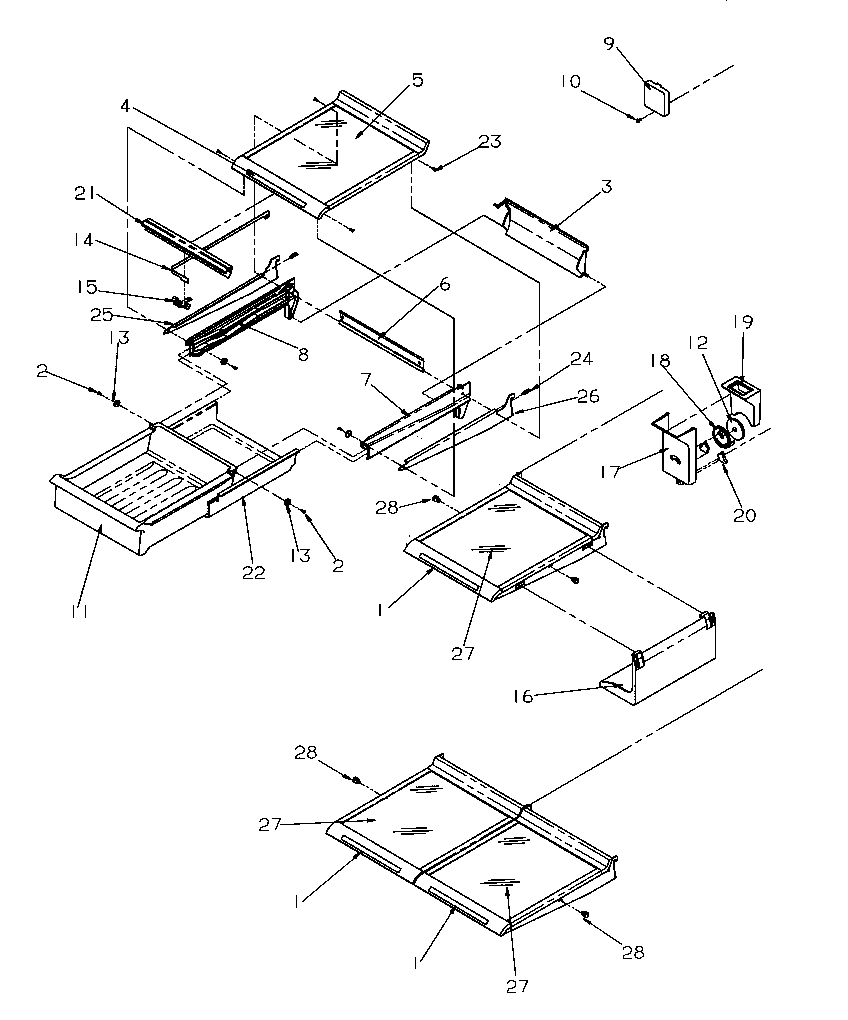

Cabinet shelving diagram
Refrigerator Ice Bin
Part #D7806201
The manufacturer no longer makes this part, and there's no substitute part
Divider block diagram
Heater-mullion
Part #10543609
The manufacturer no longer makes this part, and there's no substitute part
