Bottom-Mount Refrigerator

Model #PFSE5NJZCDSS GE bottom-mount refrigerator

Here are the diagrams and repair parts for GE PFSE5NJZCDSS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

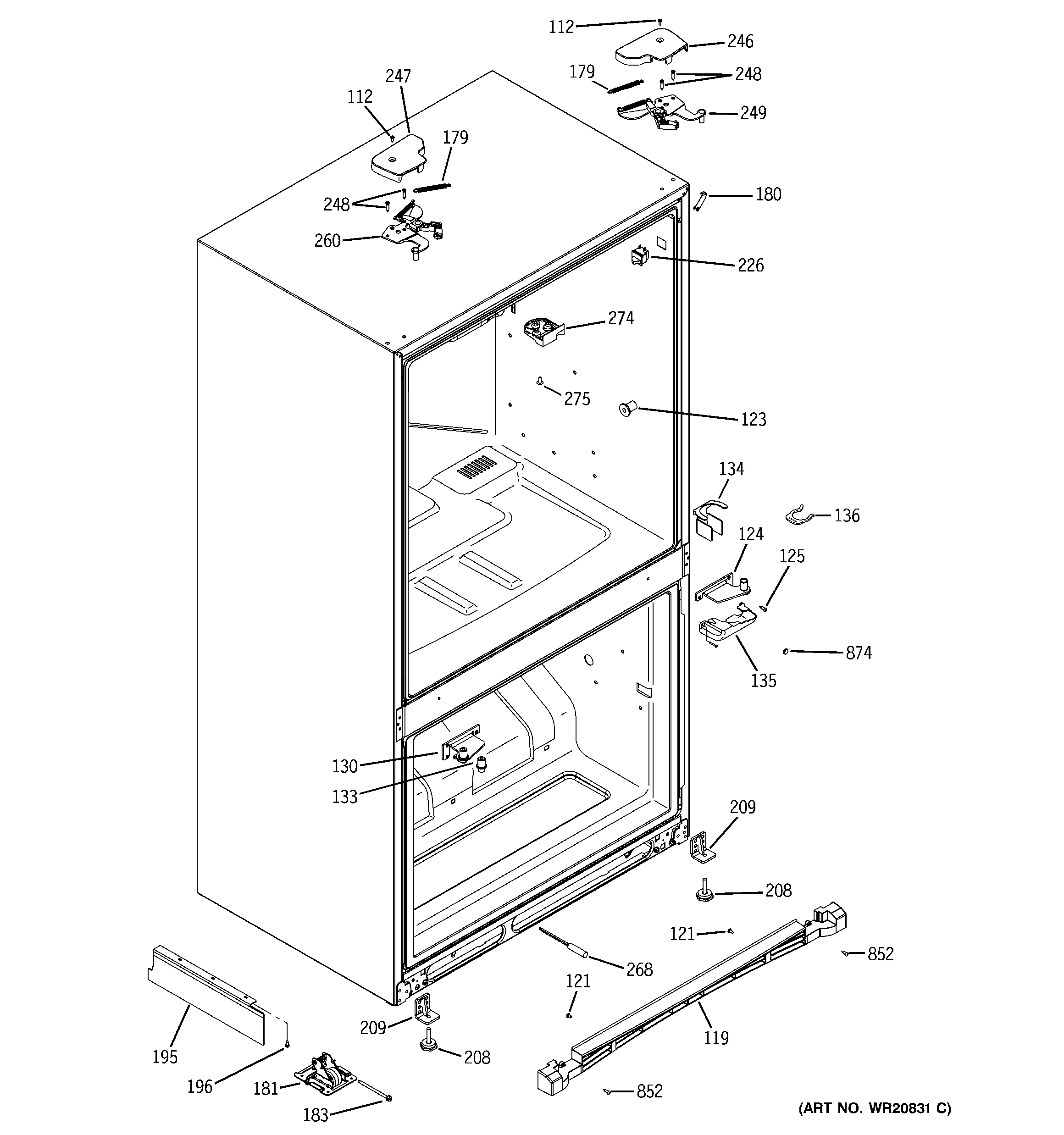

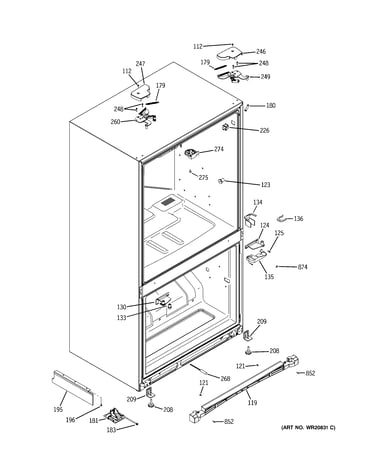

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 234 parts

    GE Refrigerator Water Filter#264

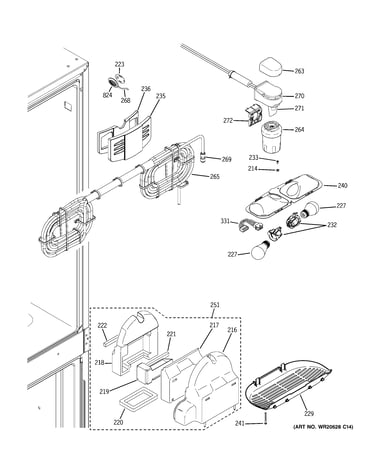

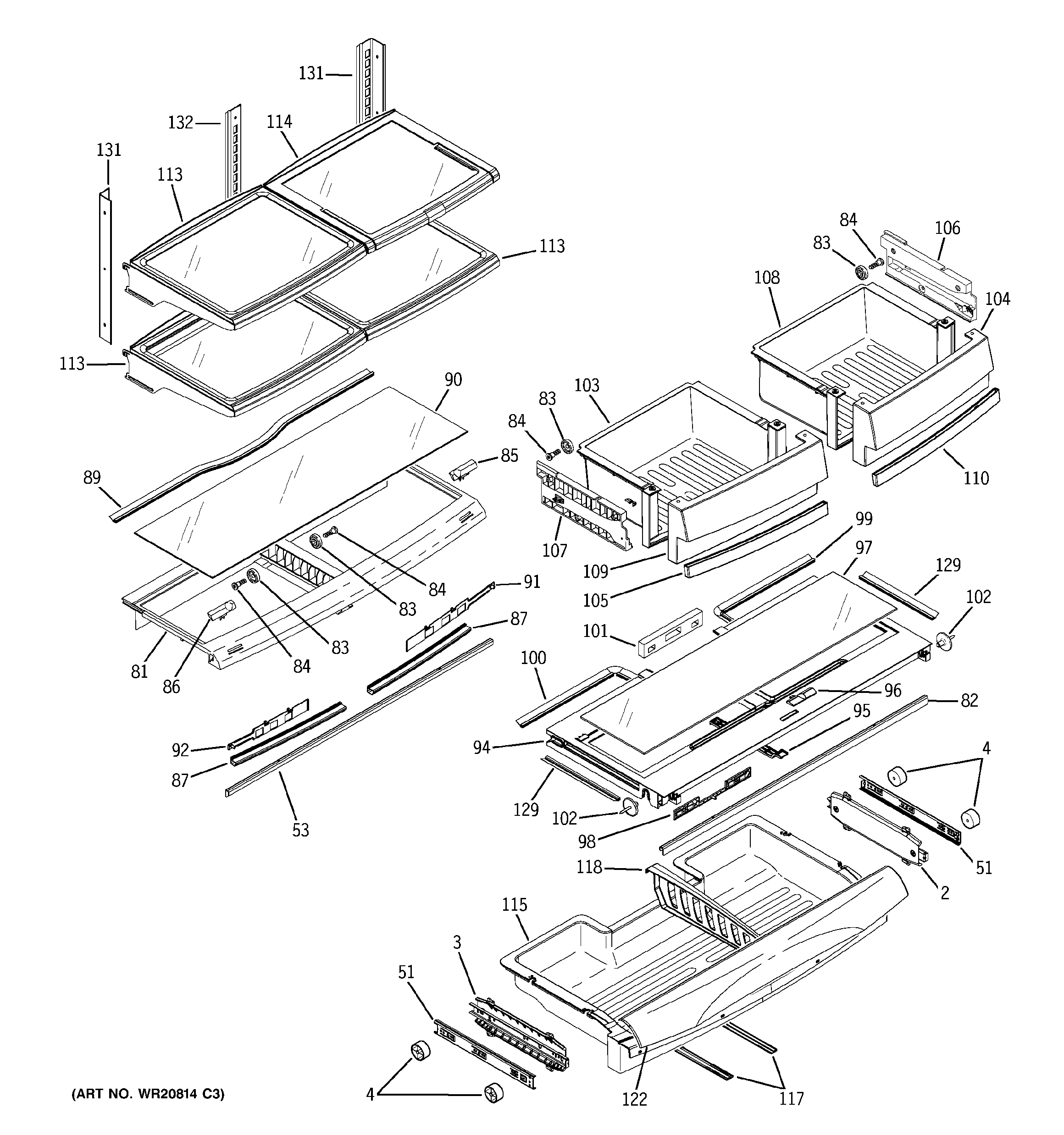

    Fresh food section Diagram

    Ge refrigerator water filter

    Part #MWF
    BEST SELLER

    Get free shipping with Automatic Reorder

    In Stock
    $49.99
    Refrigerator Temperature Sensor

    See All Related Diagrams

    Temperature sensor

    Part #WR55X10711
    Replaced by #WR55X10025
    ?
    Manufacturer substitution
    This part replaces WR55X10711. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $20.89 |
    19% OFF
    Phone Price: $25.89
    Refrigerator Light Switch

    See All Related Diagrams

    Refrigerator light switch

    Part #WR23X10143

    The manufacturer no longer makes this part, and there's no substitute part

    Refrigerator Air Damper Assembly

    Refrigerator air damper assembly

    Part #WR60X10239
    BEST SELLER
    In Stock
    $78.19 |
    6% OFF
    Phone Price: $83.19

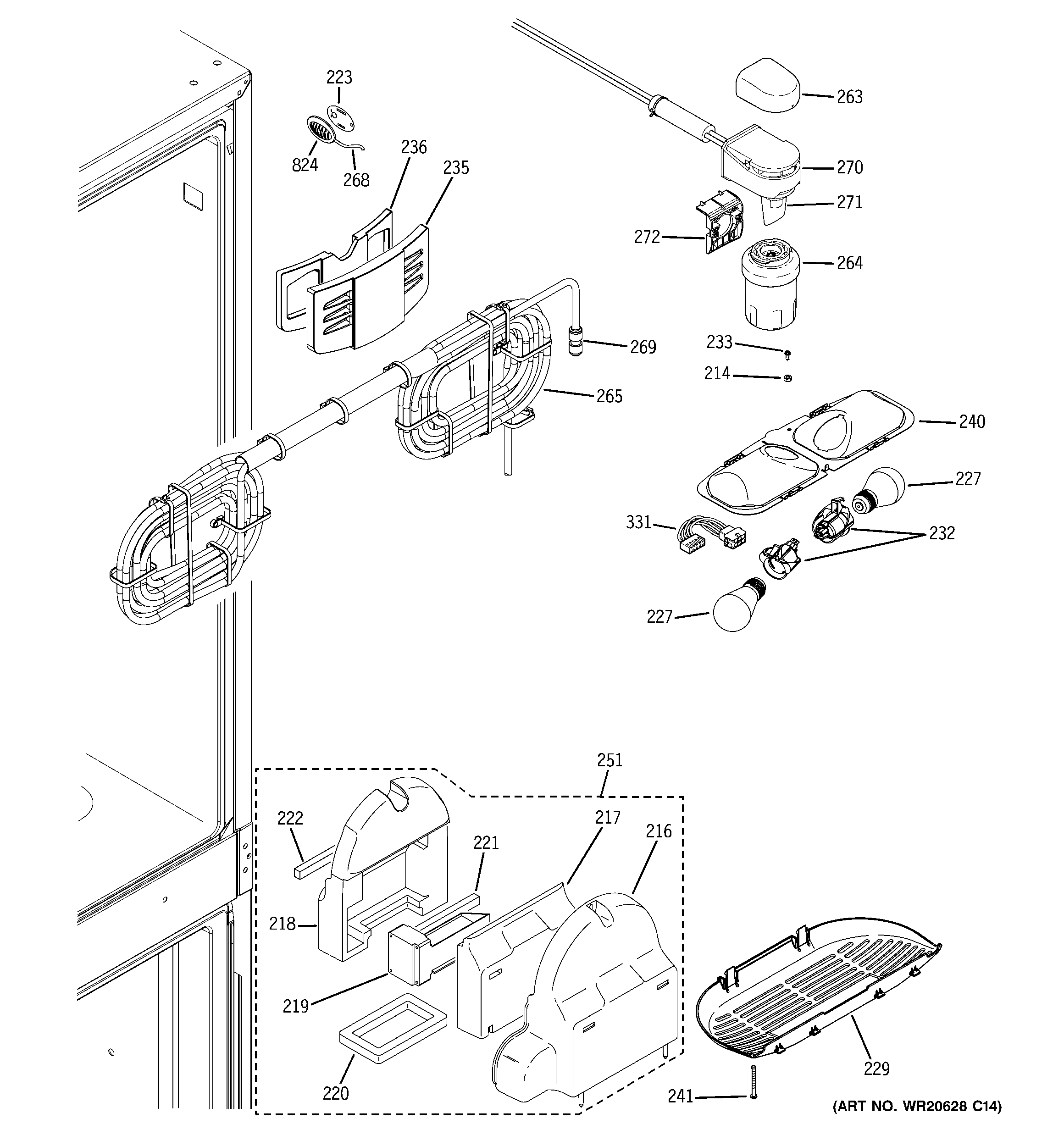

    Refrigerator Air Damper Assembly#251

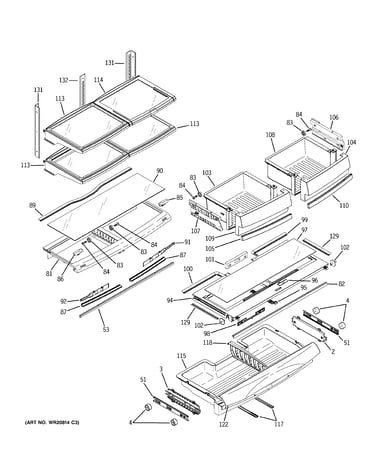

    Fresh food section Diagram

    Refrigerator air damper

    Part #WR17X12456
    Replaced by #WR60X10239
    ?
    Manufacturer substitution
    This part replaces WR17X12456. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $78.19 |
    6% OFF
    Phone Price: $83.19

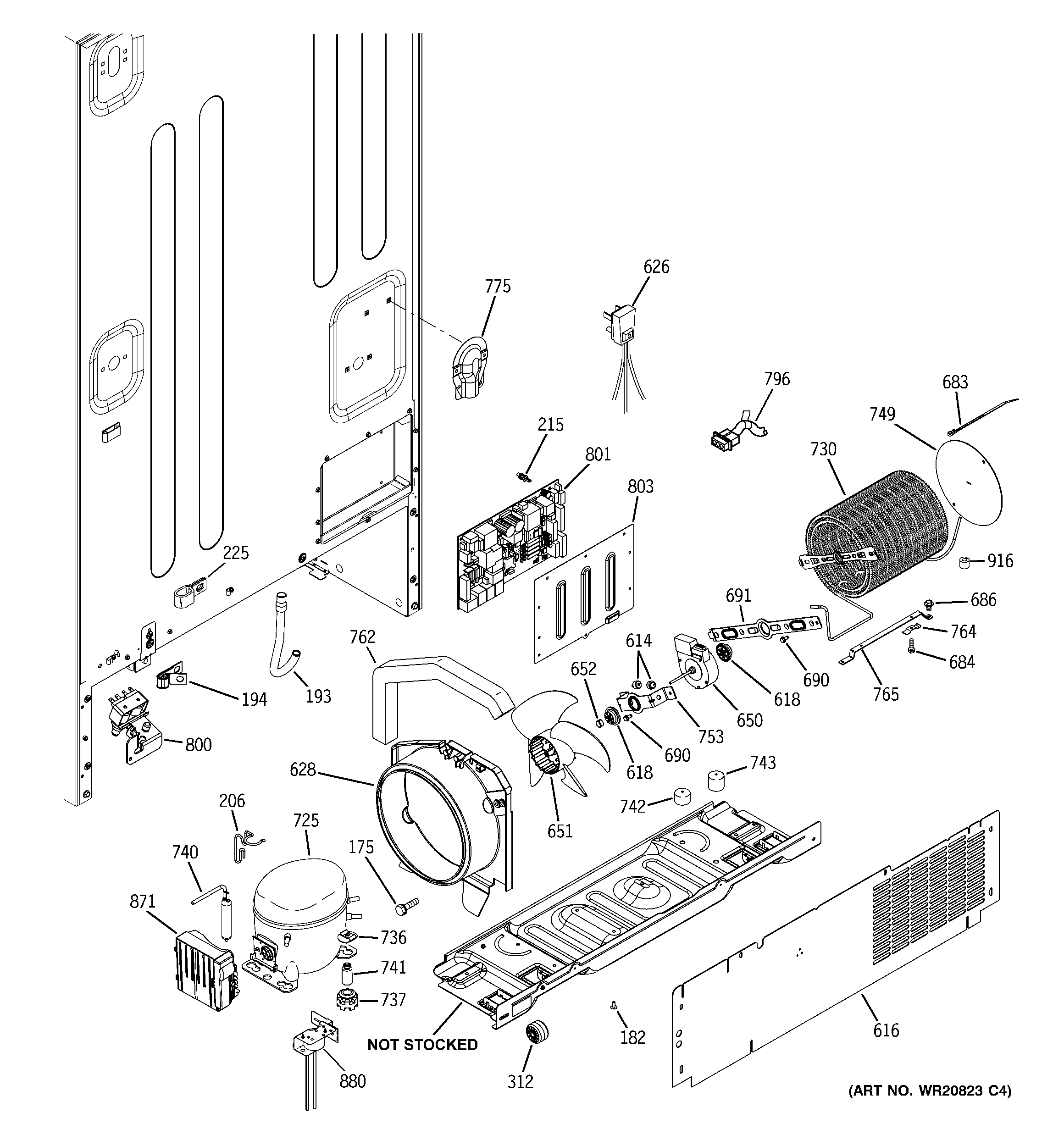

    Refrigerator Fan Blade Retainer Ring#652

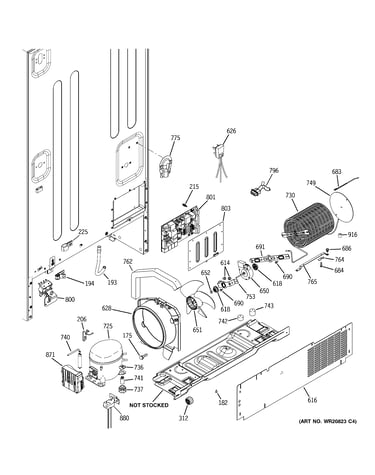

    Machine compartment Diagram

    Refrigerator fan blade retainer ring

    Part #WR02X12149
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69

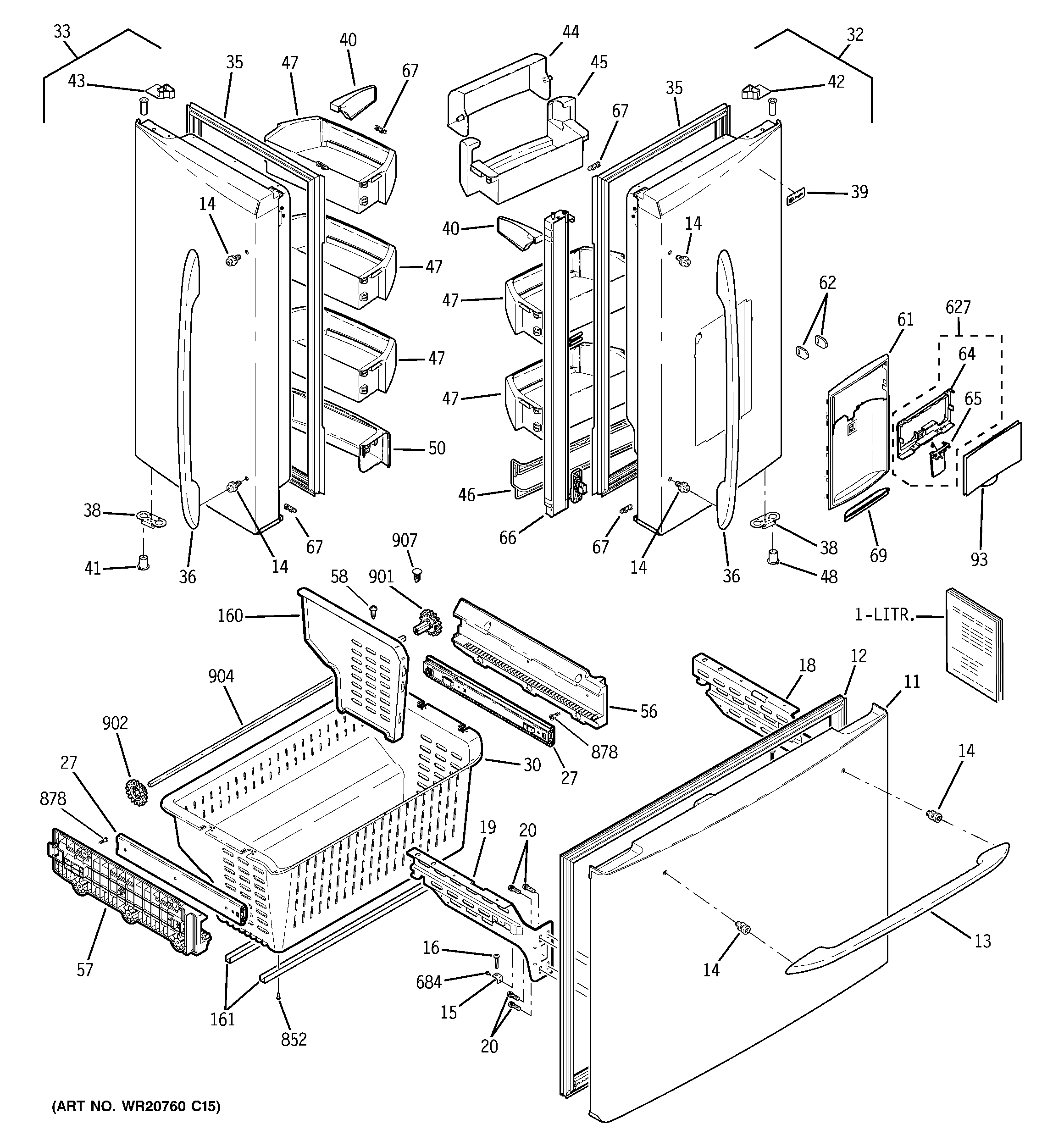

    Refrigerator Door Gasket (Gray)#35

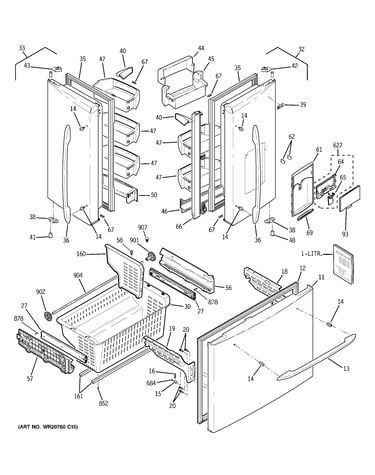

    Doors Diagram

    In Stock
    $133.19 |
    7% OFF
    Phone Price: $143.19
    Refrigerator Water Filter Bypass#271

    Fresh food section Diagram

    Refrigerator water filter bypass

    Part #WR02X11705
    Replaced by #WR17X22070
    ?
    Manufacturer substitution
    This part replaces WR02X11705. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.39 |
    12% OFF
    Phone Price: $8.39

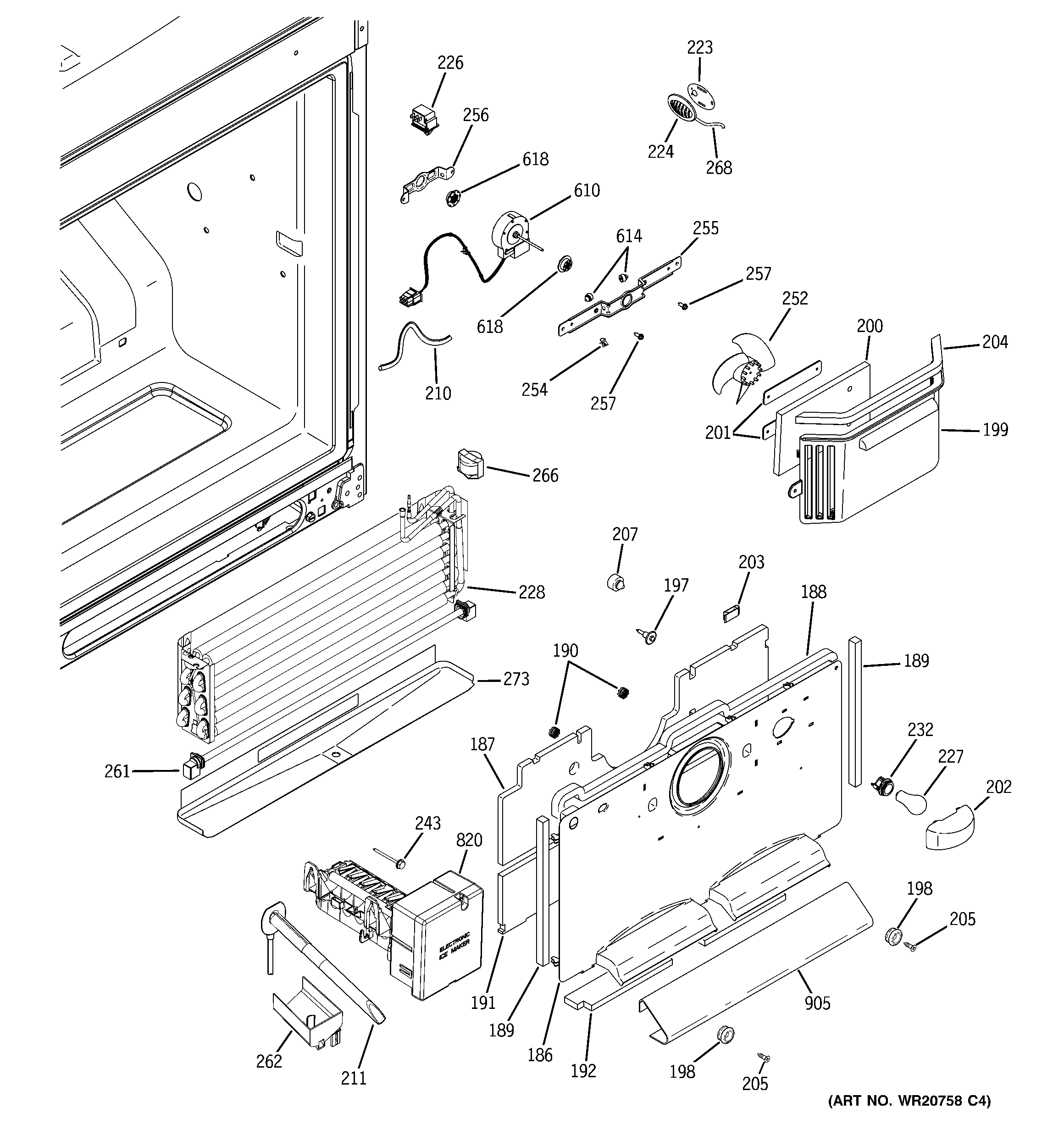

    Refrigerator Defrost Bi-Metal Thermostat#266

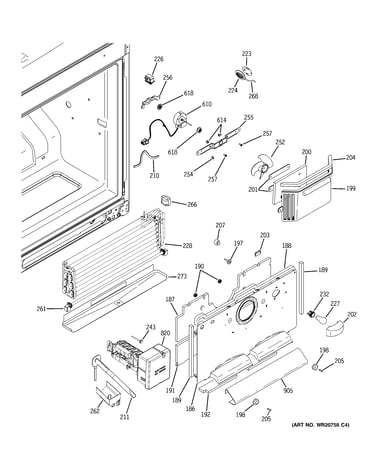

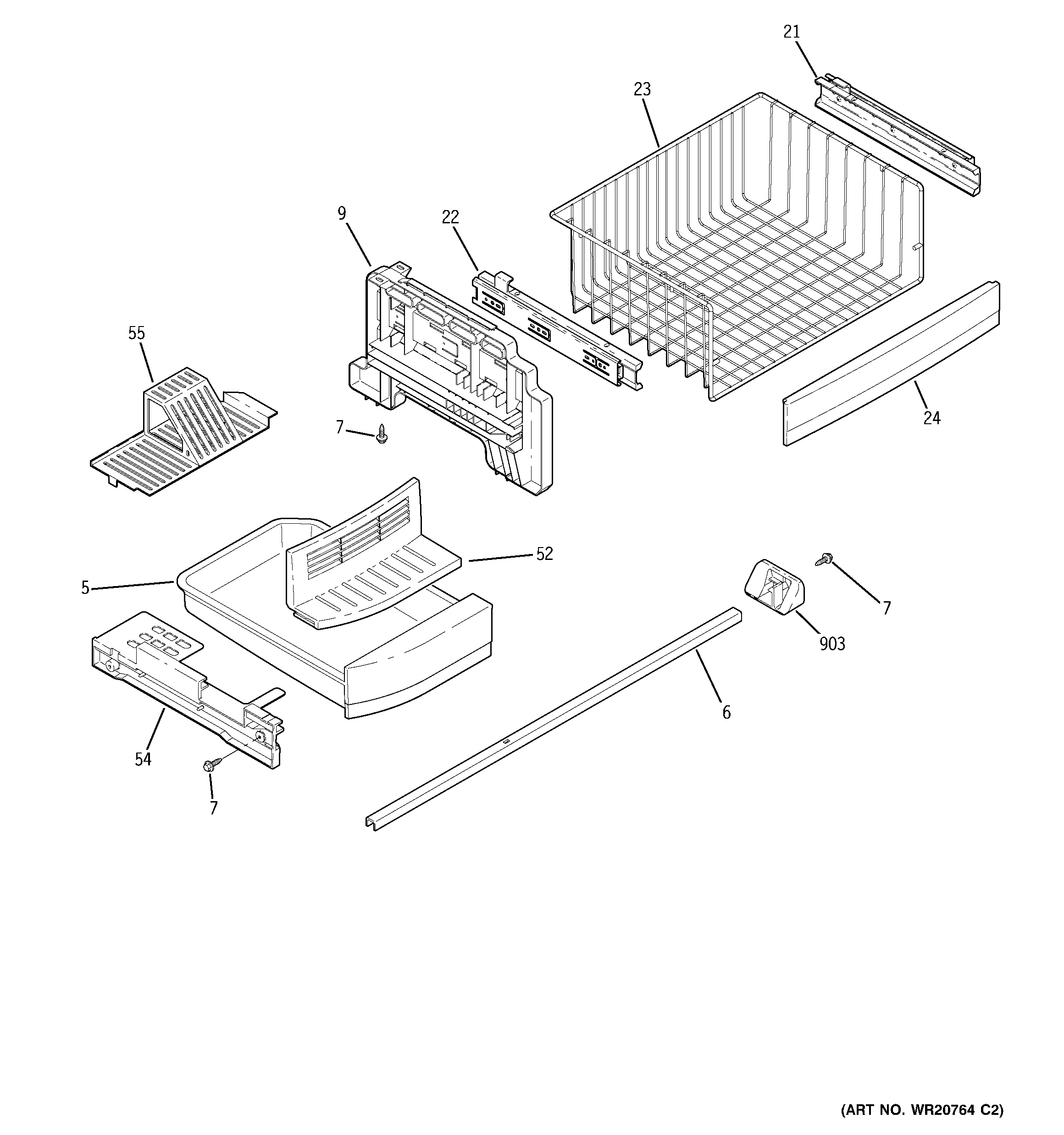

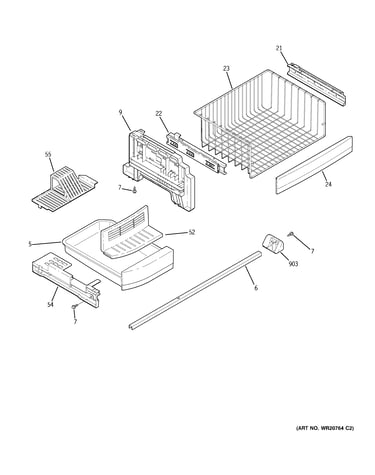

    Freezer section Diagram

    Refrigerator defrost bi-metal thermostat

    Part #WR50X10069
    This item is not returnable
    In Stock
    $22.29 |
    18% OFF
    Phone Price: $27.29
    Refrigerator Roller, Rear#312

    Machine compartment Diagram

    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
