Admiral
Dishwasher

Model # DWUA800AAX Official Admiral dishwasher

Here are the diagrams and repair parts for Official Admiral DWUA800AAX dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

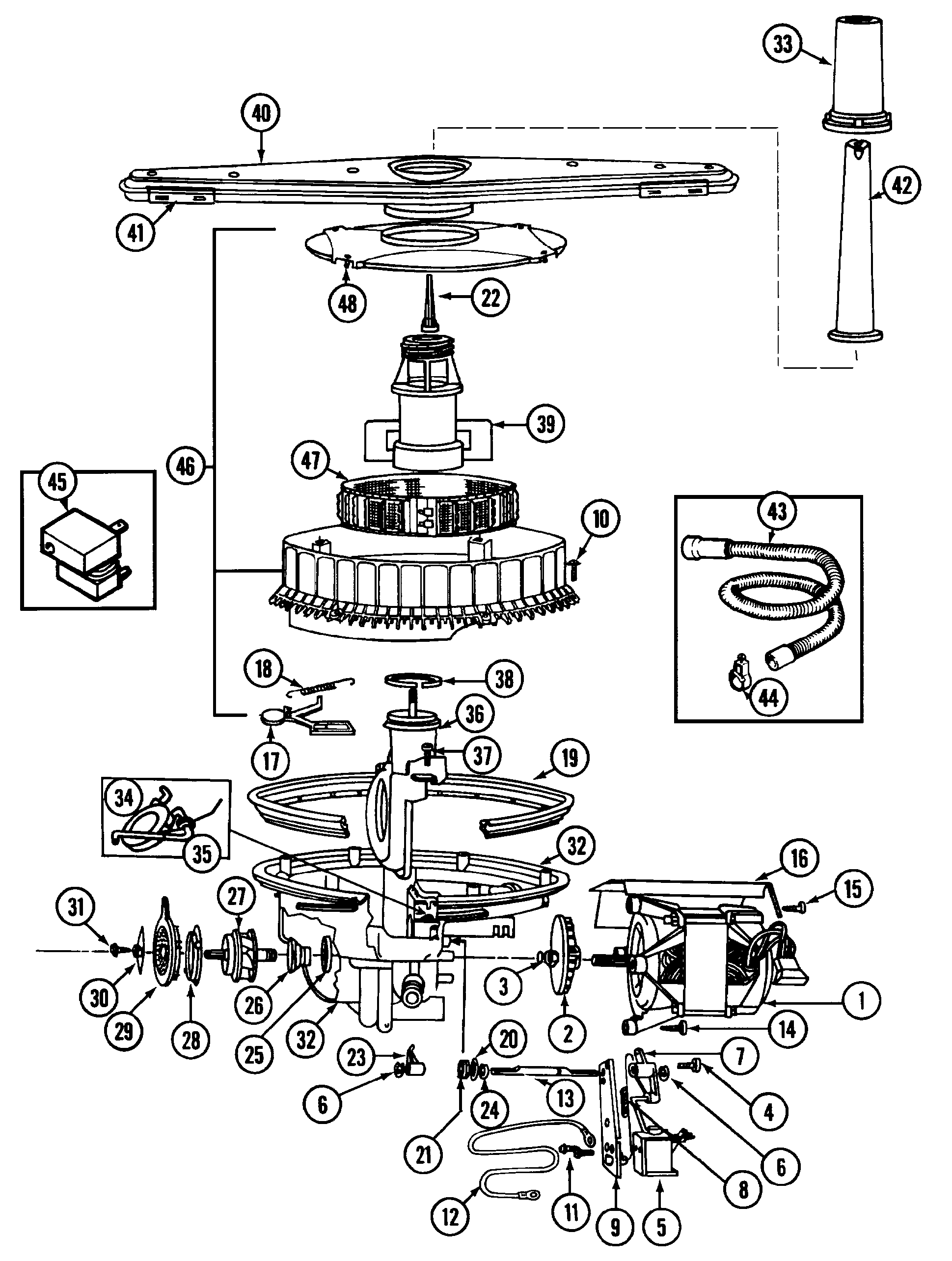

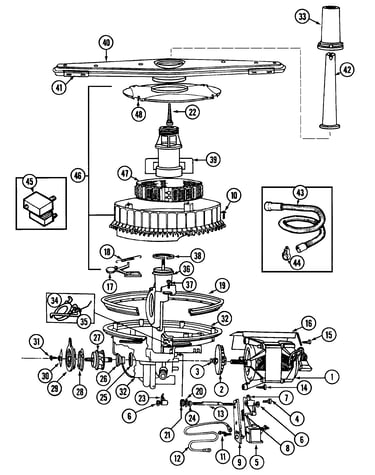

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Dishwasher Door Seal 902894
#1

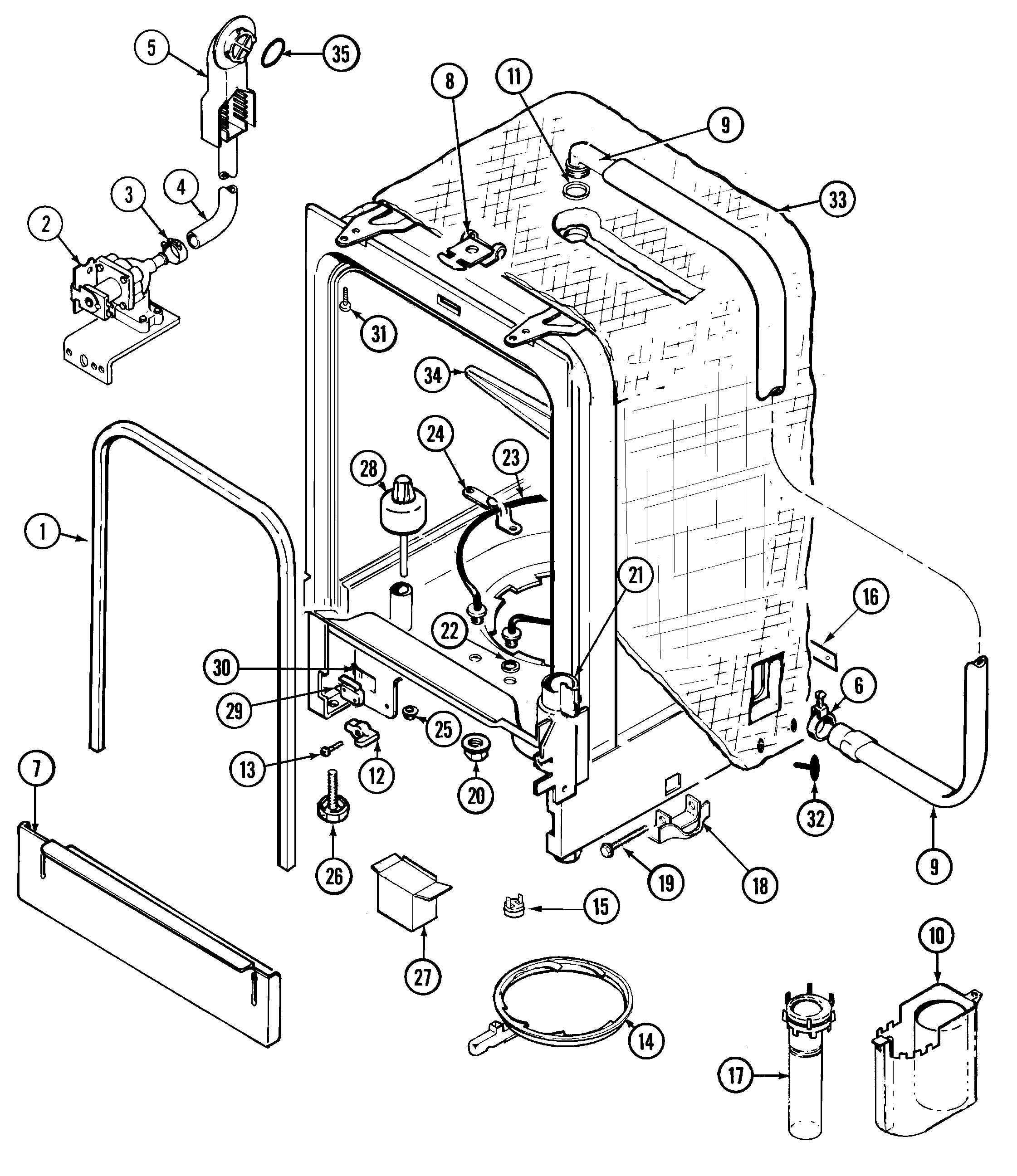

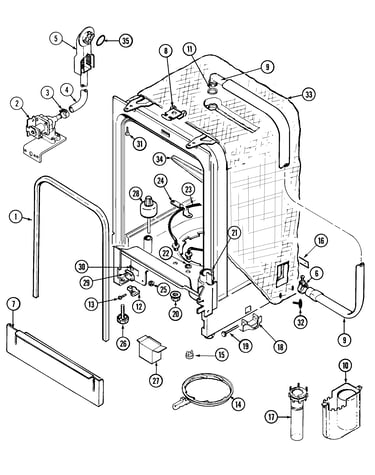

Tub diagram

Dishwasher door seal

Part #902894

Replaced by #WP902894

?
Manufacturer substitution
This part replaces 902894. Substitute parts can look different from the original.
BEST SELLER
$59.60 |
12% OFF MSRP : $68.00
In Stock
Dishwasher Door Spring 912652
#7

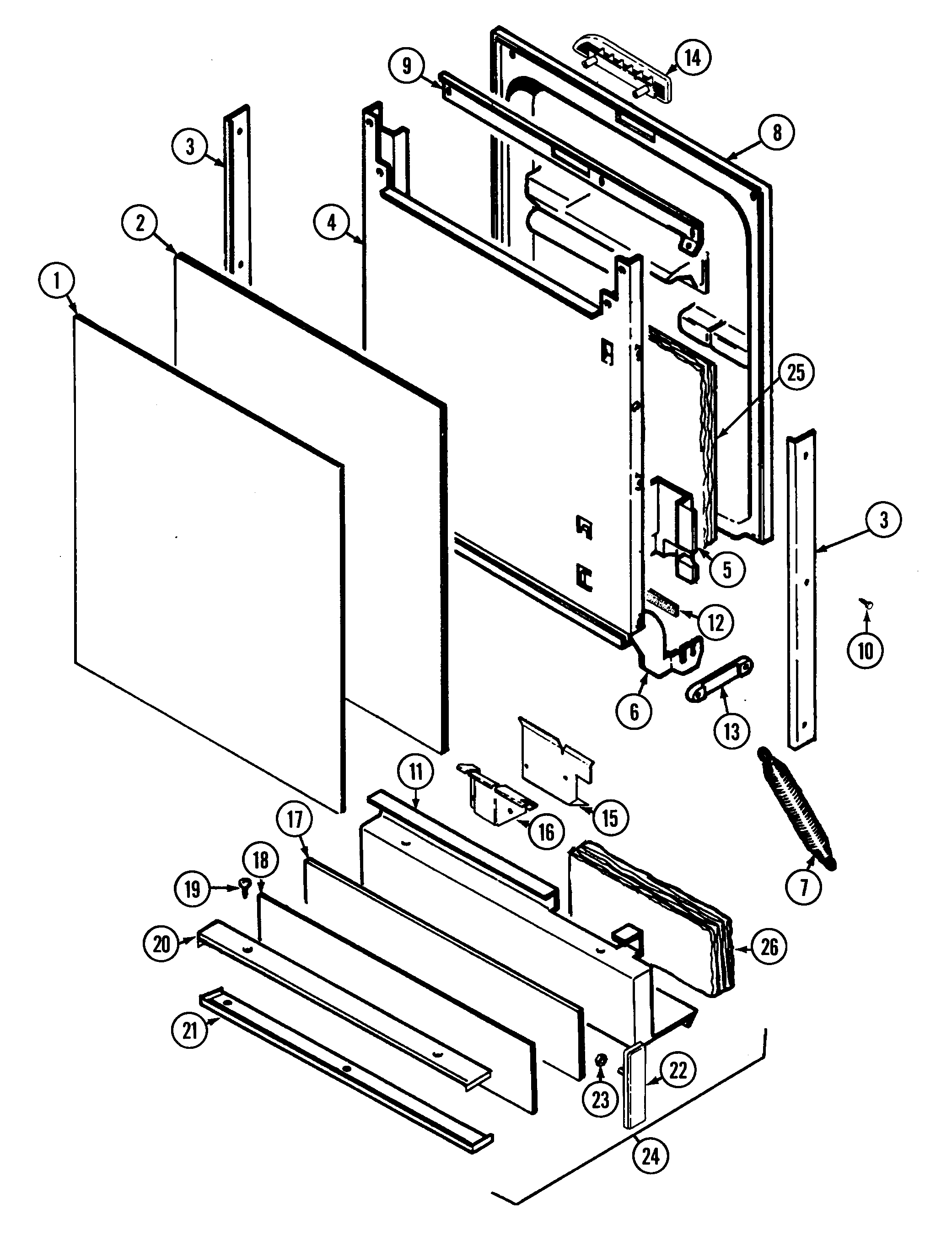

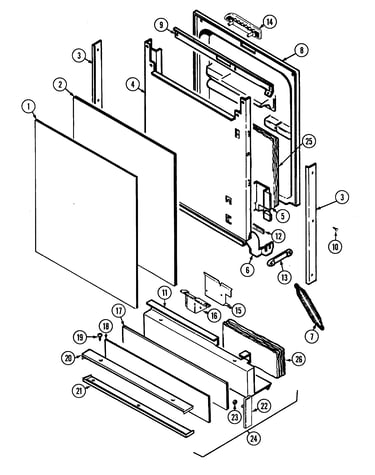

Door diagram

Dishwasher door spring

Part #912652

Replaced by #WP912652

?
Manufacturer substitution
This part replaces 912652. Substitute parts can look different from the original.
This item is not returnable
$7.89 |
11% OFF Phone Price : $8.89
In Stock
Door Switch 903086
#9

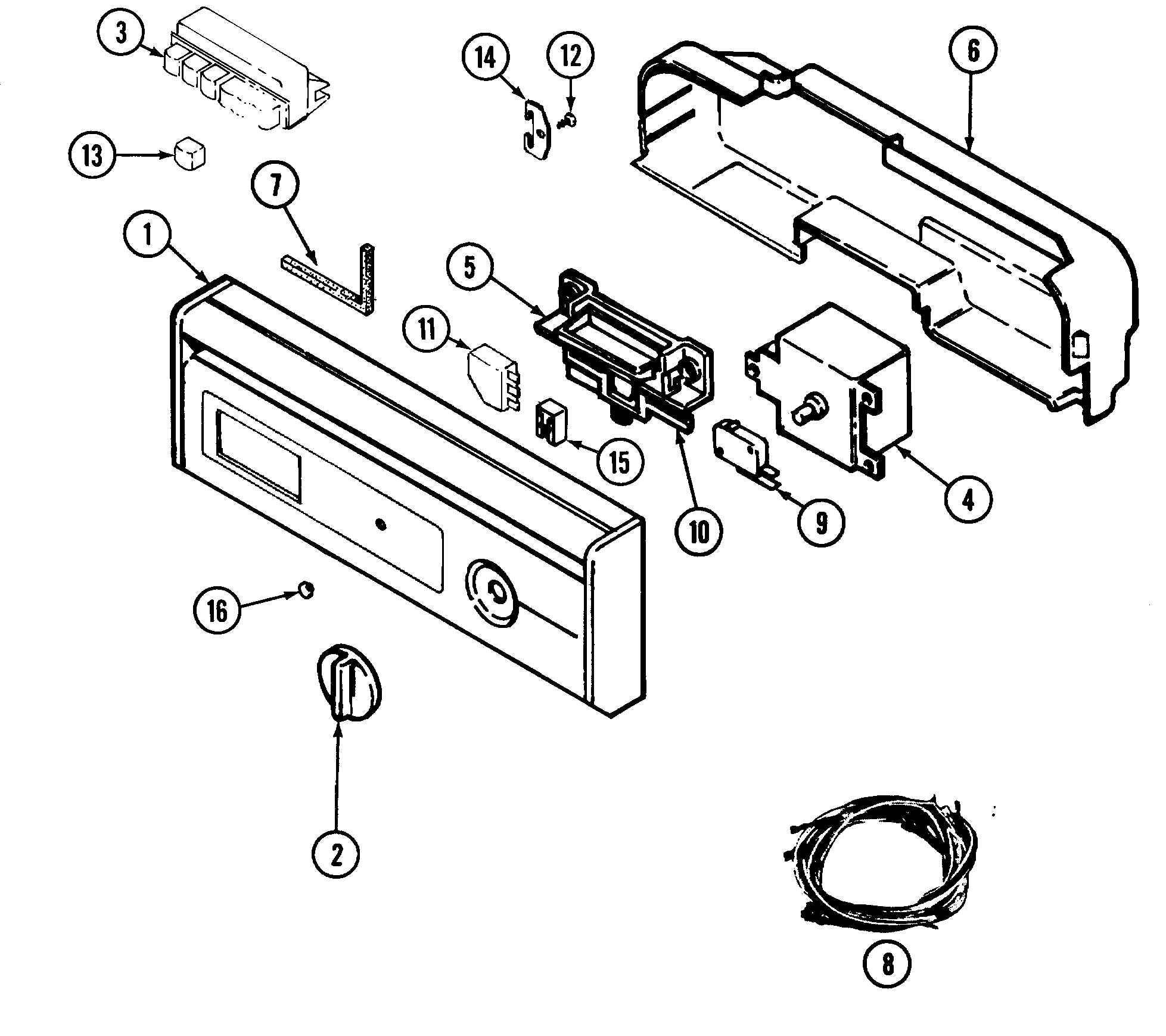

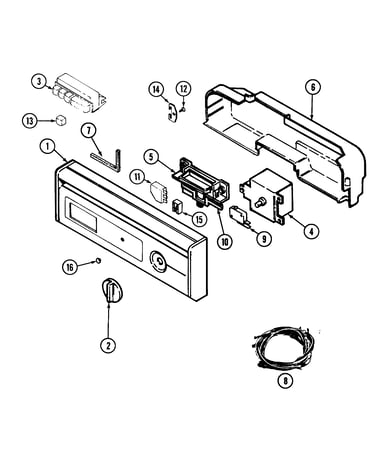

Control panel diagram

Door switch

Part #903086

Replaced by #99002254

?
Manufacturer substitution
This part replaces 903086. Substitute parts can look different from the original.
$57.92 |
8% OFF Phone Price : $62.92
In Stock
Hinge Screw 912623
Hinge screw

Part #912623

Replaced by #WP179051

?
Manufacturer substitution
This part replaces 912623. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Plate Screw 912365
Plate screw

Part #912365

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 912365. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Door Screw 912620
Door screw

Part #912620

Replaced by #WPY912620

?
Manufacturer substitution
This part replaces 912620. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Tub Wheel 912548
#9

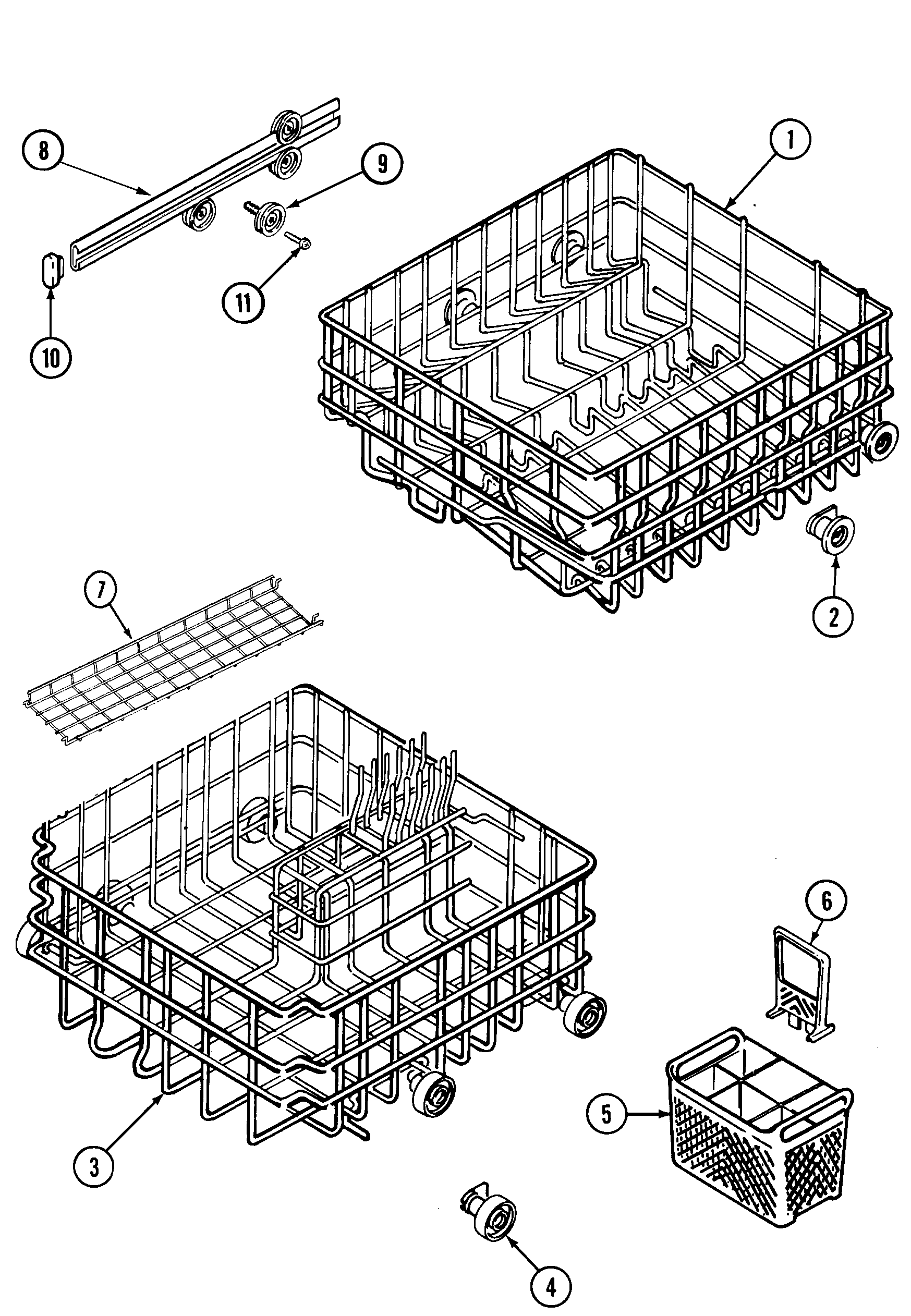

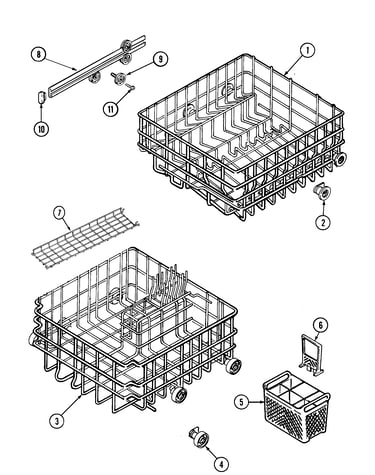

Racks diagram

Tub wheel

Part #912548

Replaced by #WP99002342

?
Manufacturer substitution
This part replaces 912548. Substitute parts can look different from the original.
$8.40 |
11% OFF Phone Price : $9.40
In Stock
Gasket Reservoir 913061
#11

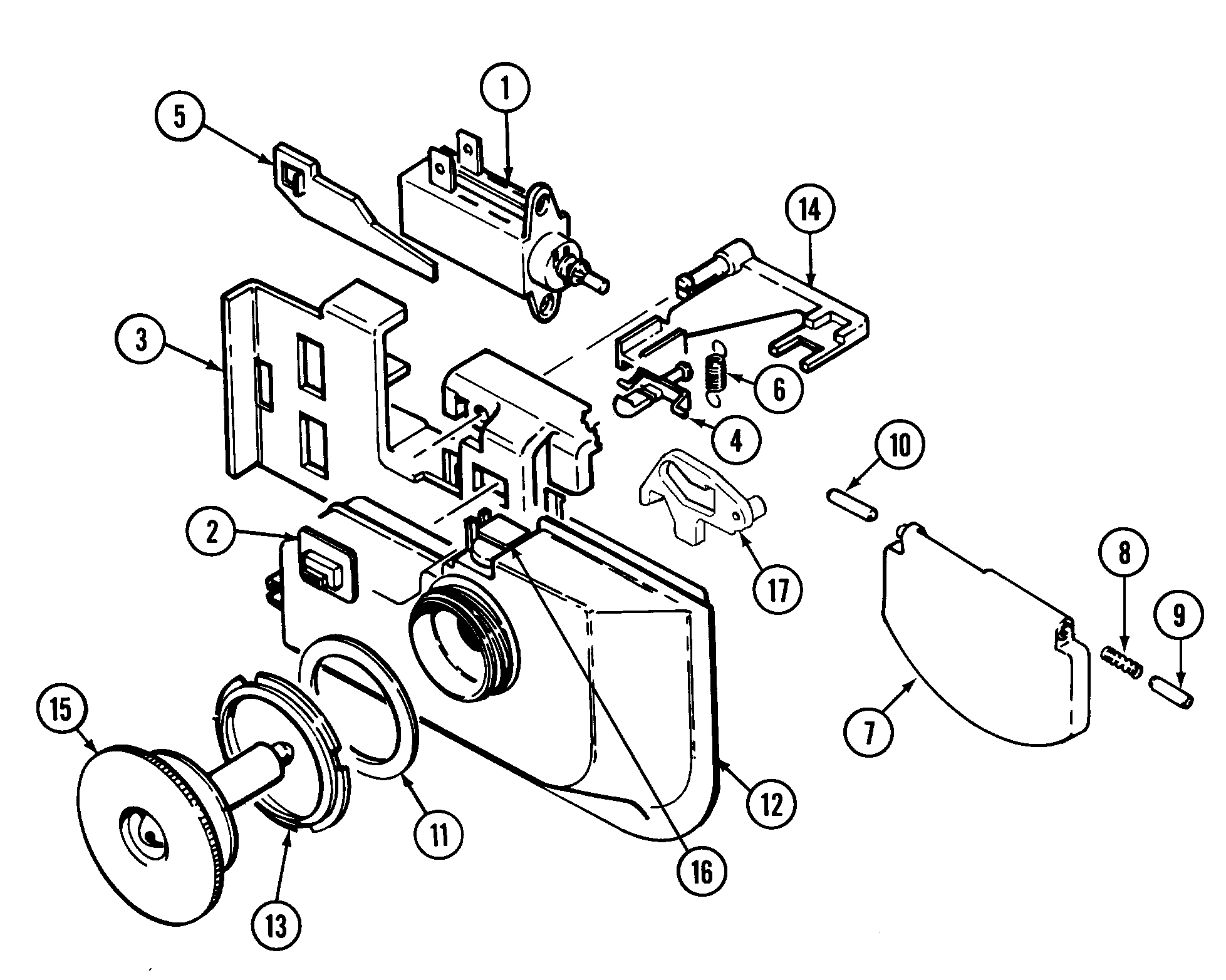

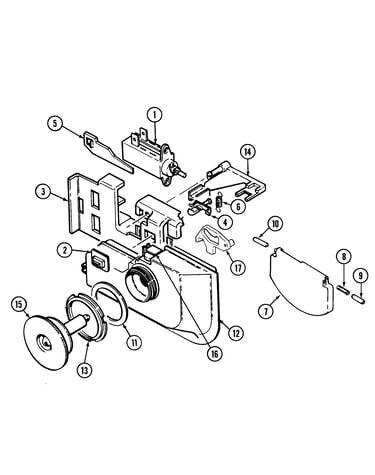

Rinse aid & soap dispenser diagram

Gasket reservoir

Part #913061

Replaced by #WP99002003

?
Manufacturer substitution
This part replaces 913061. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Insulation 912655
#33

Tub diagram

Insulation

Part #912655

Replaced by #WPW10223013

?
Manufacturer substitution
This part replaces 912655. Substitute parts can look different from the original.
$33.82 |
13% OFF Phone Price : $38.82
In Stock
Screw, Tub W 912549
#11

Racks diagram

Screw, tub w

Part #912549

Replaced by #WP99002947

?
Manufacturer substitution
This part replaces 912549. Substitute parts can look different from the original.
$9.89 |
9% OFF Phone Price : $10.89
In Stock
