Husqvarna
Front-Engine Lawn Tractor

Model # 917502140 Official Husqvarna lawn tractor

Here are the diagrams and repair parts for Official Husqvarna 917502140 lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

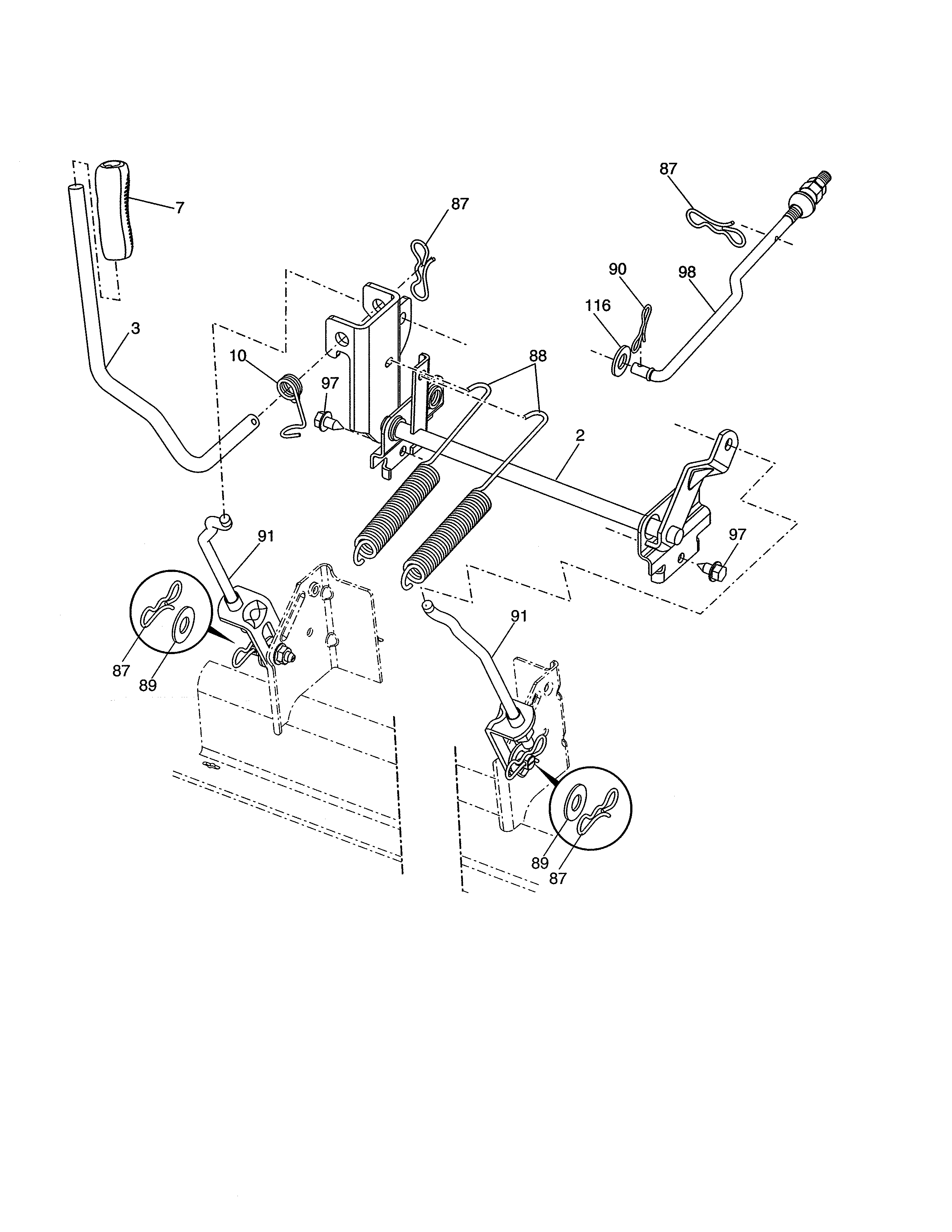

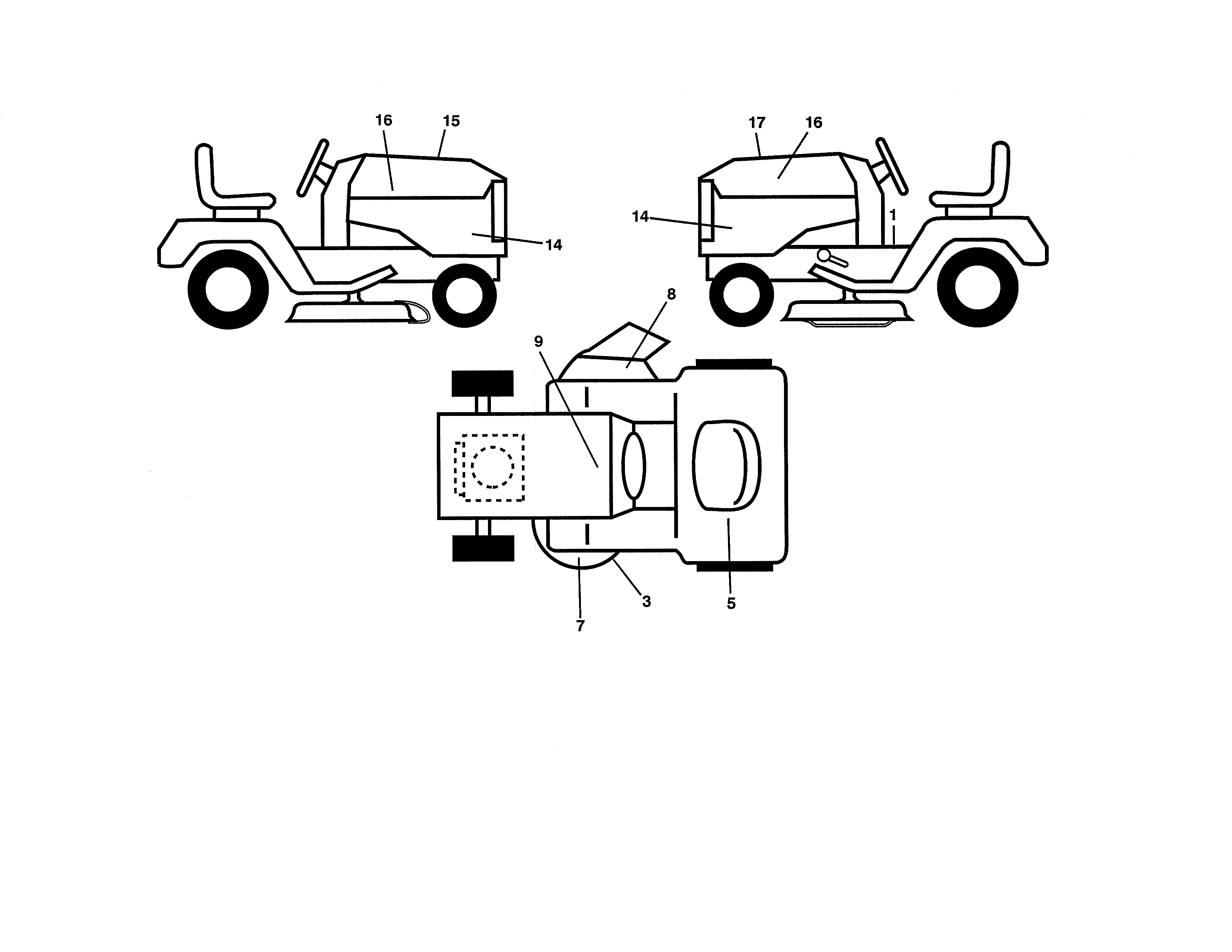

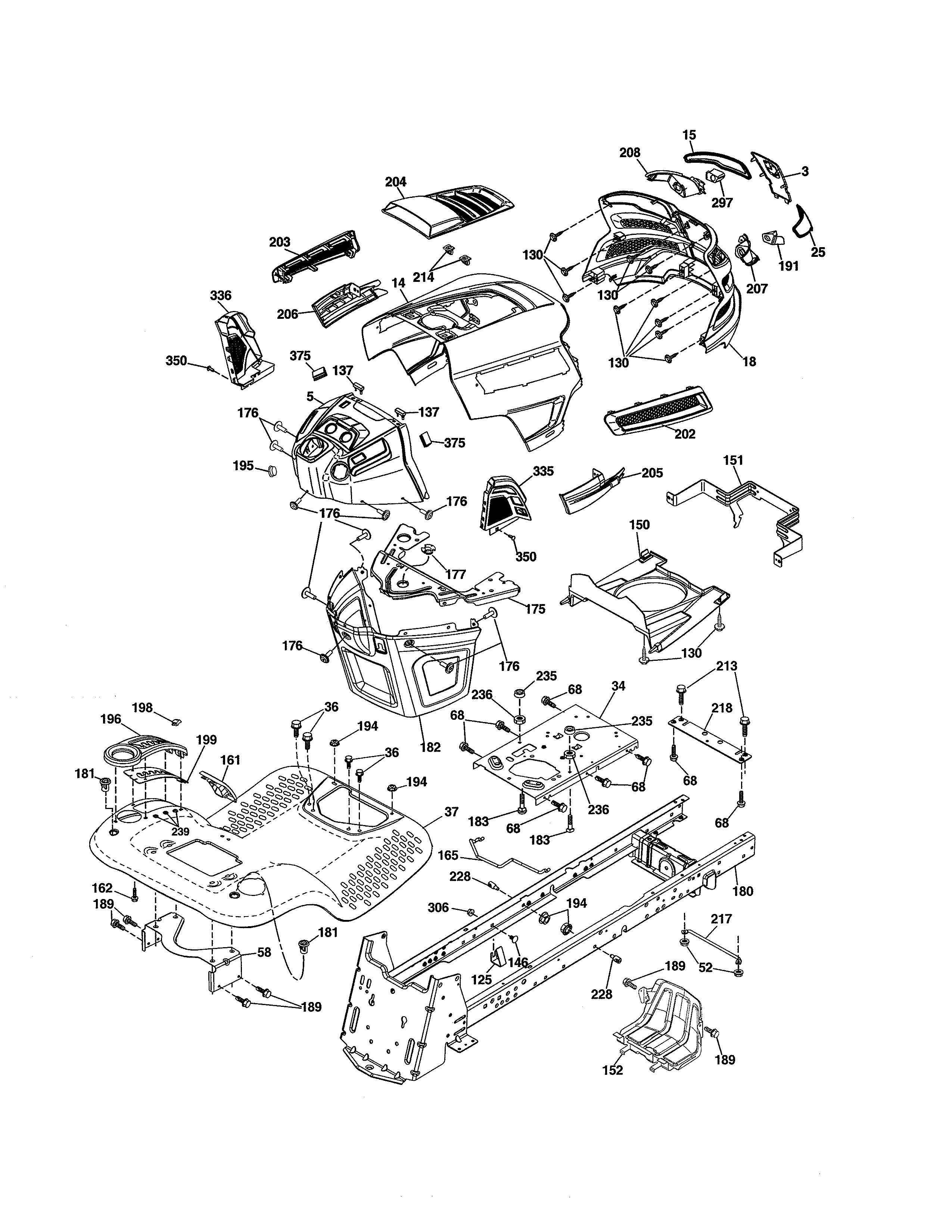

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 396 parts  |

Hub Cap 532175039
#8

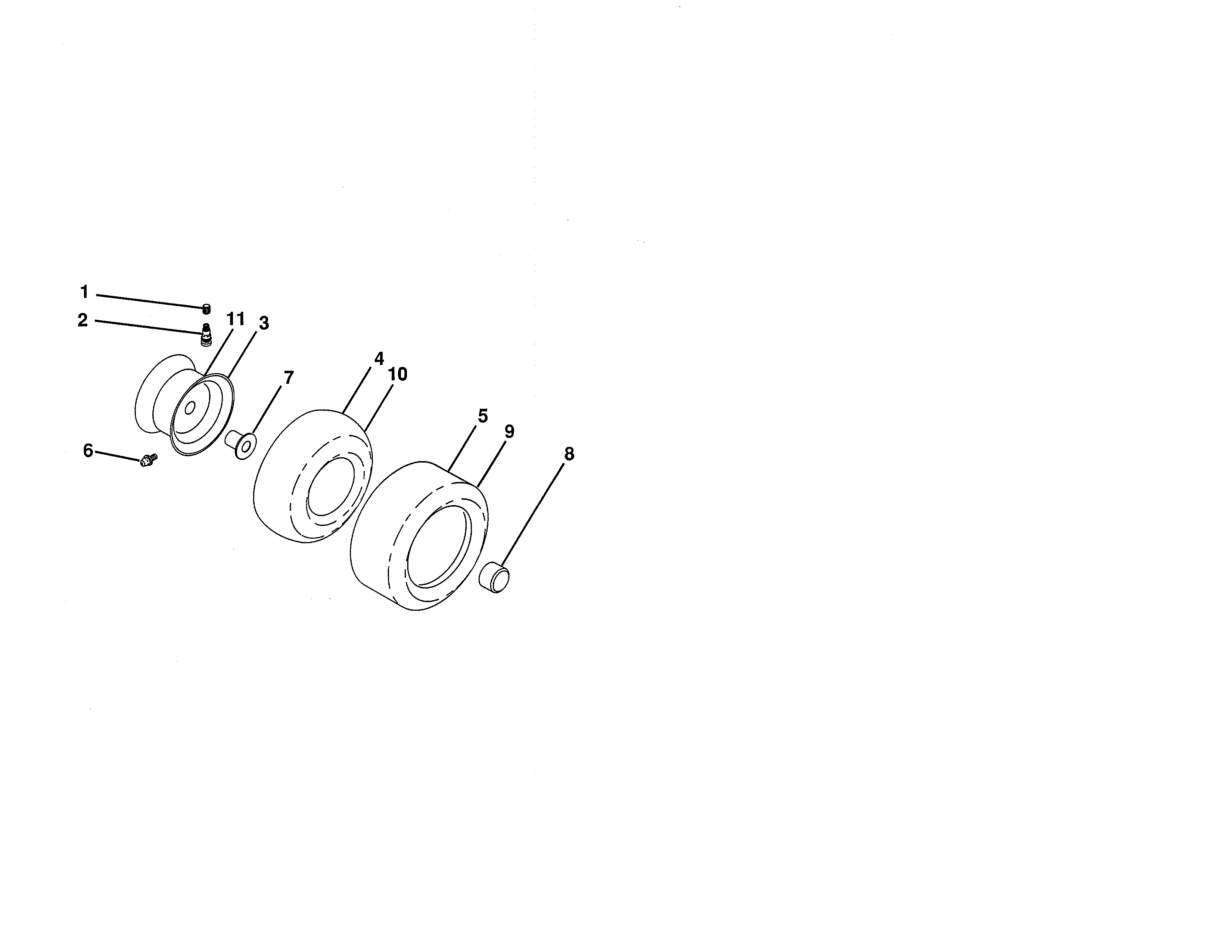

Wheels & tires diagram

Hub cap

Part #532175039

Replaced by #532104757

?
Manufacturer substitution
This part replaces 532175039. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.51
22% OFF Phone Price : $4.51
In Stock
Lawn Tractor Blade Drive Belt, 5/8 X 145-in (replaces 196103, 33155) 587686701
#47

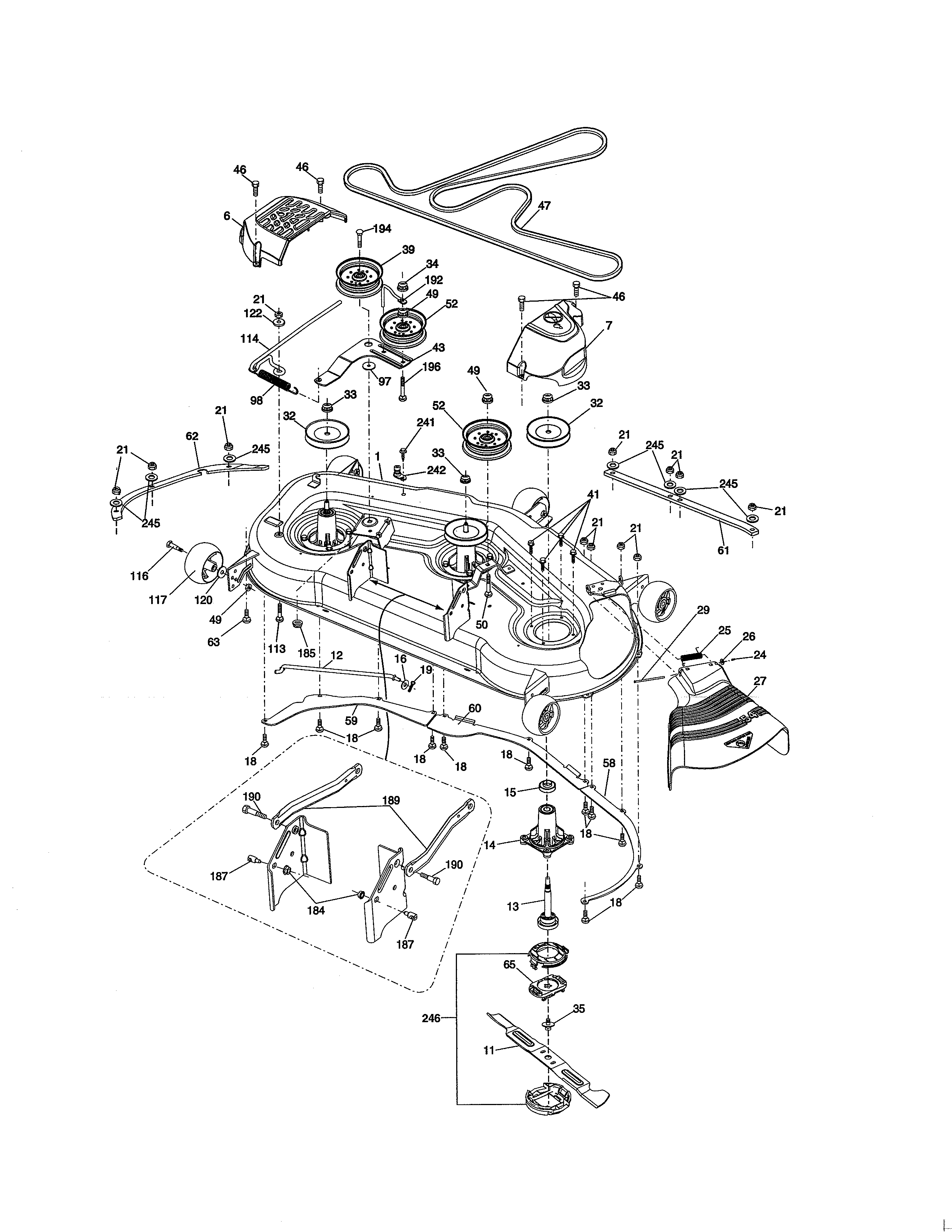

Mower deck diagram

Lawn tractor blade drive belt, 5/8 x 145-in (replaces 196103, 33155)

Part #587686701

BEST SELLER

Get free shipping with Automatic Reorder

$48.50
9% OFF Phone Price : $53.50
In Stock
Subassembly Link 532436887
#81

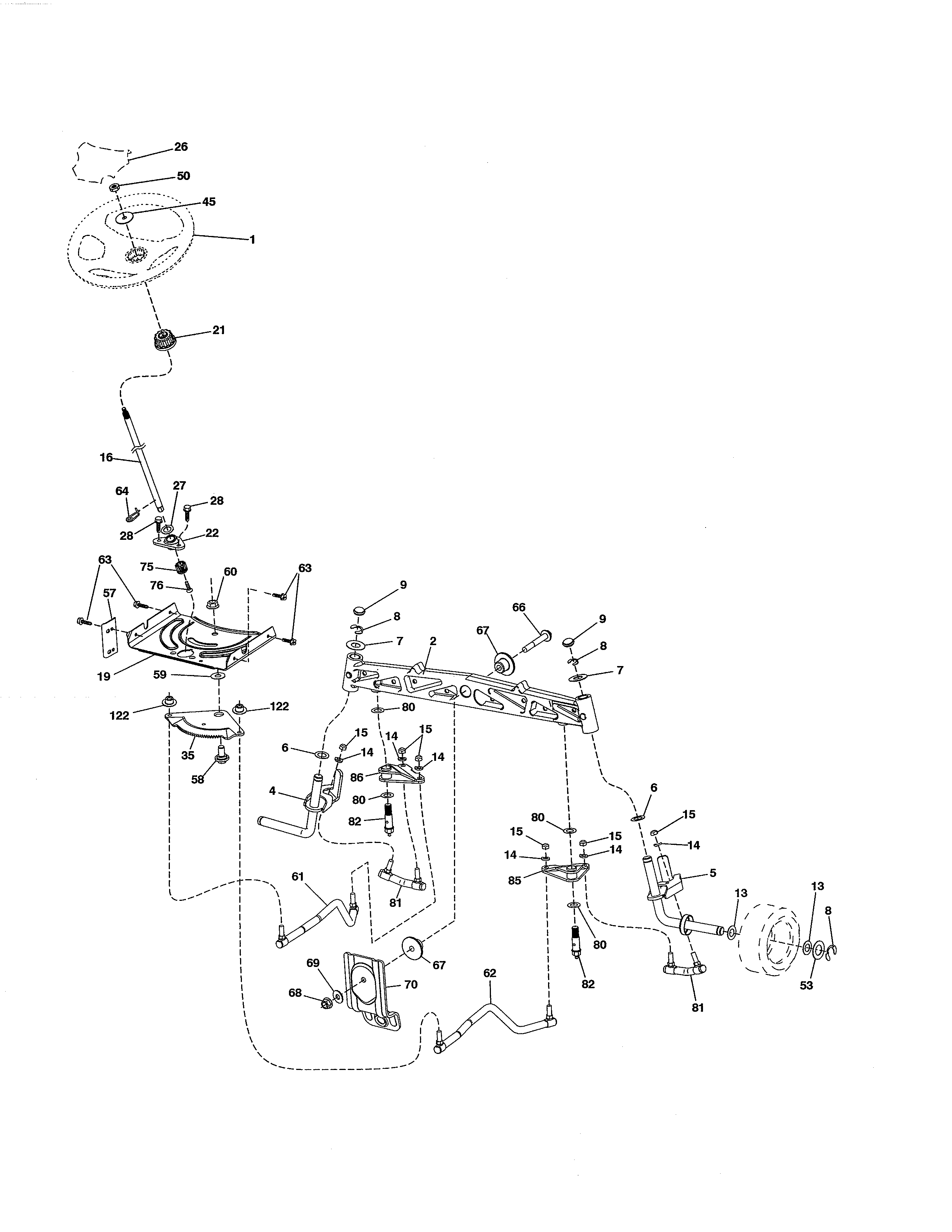

Steering diagram

Subassembly link

Part #532436887

Replaced by #597069702

?
Manufacturer substitution
This part replaces 532436887. Substitute parts can look different from the original.
BEST SELLER
$12.89
13% OFF Phone Price : $14.89
In Stock
Flange Bearing 532124959
#7

Wheels & tires diagram

Flange bearing

Part #532124959

Replaced by #9040H

?
Manufacturer substitution
This part replaces 532124959. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.80
61% OFF MSRP : $15.00
In Stock
Lawn Tractor Self-tapping Bolt (replaces 173984) 584953901
#41

Mower deck diagram

Lawn tractor self-tapping bolt (replaces 173984)

Part #584953901

BEST SELLER
This item is not returnable
$3.92
20% OFF Phone Price : $4.92
In Stock
Idler Pulley 532197379
#52

Mower deck diagram

Idler pulley

Part #532197379

Replaced by #196106

?
Manufacturer substitution
This part replaces 532197379. Substitute parts can look different from the original.
BEST SELLER
$24.06
17% OFF Phone Price : $29.06
In Stock
Lawn Tractor Starter Solenoid 532192507
#43

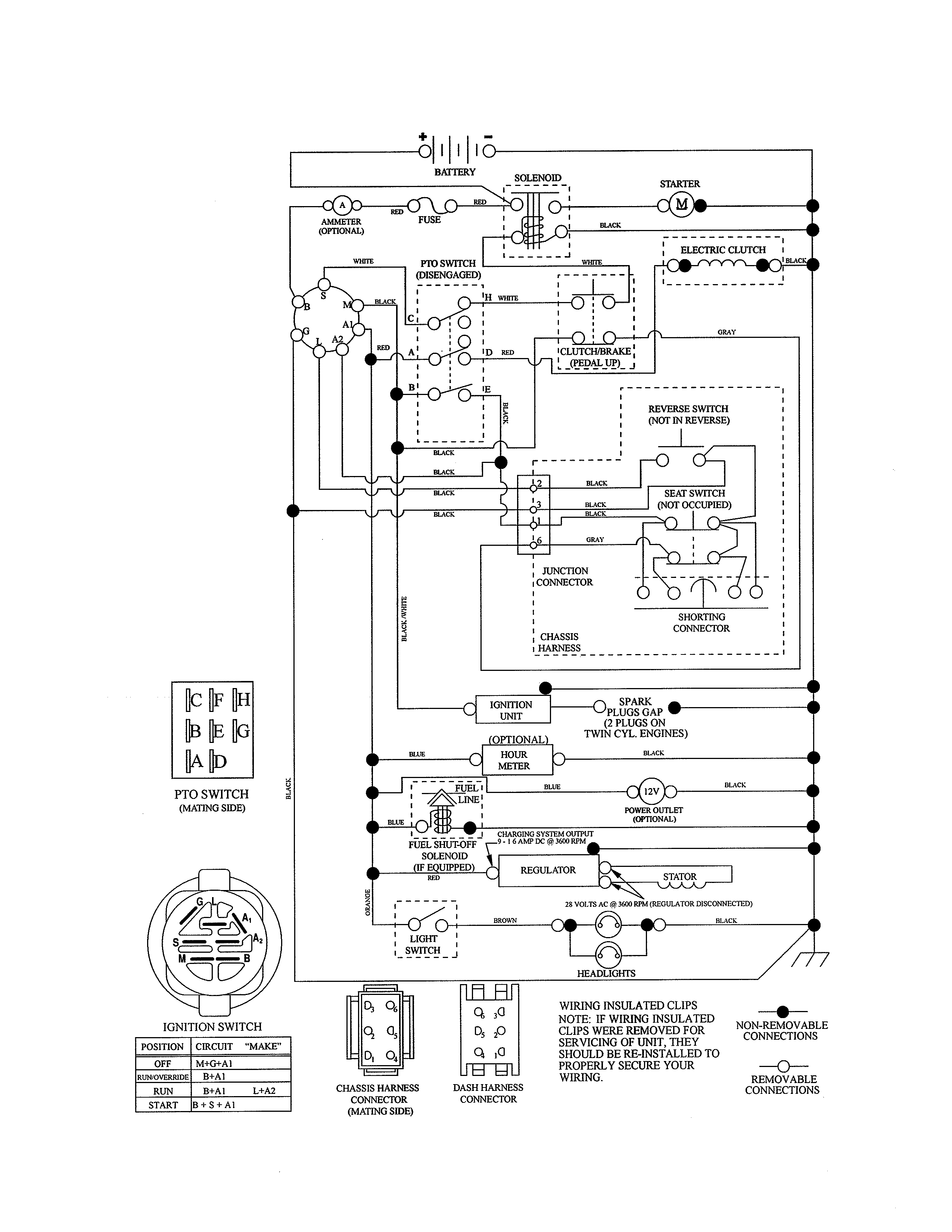

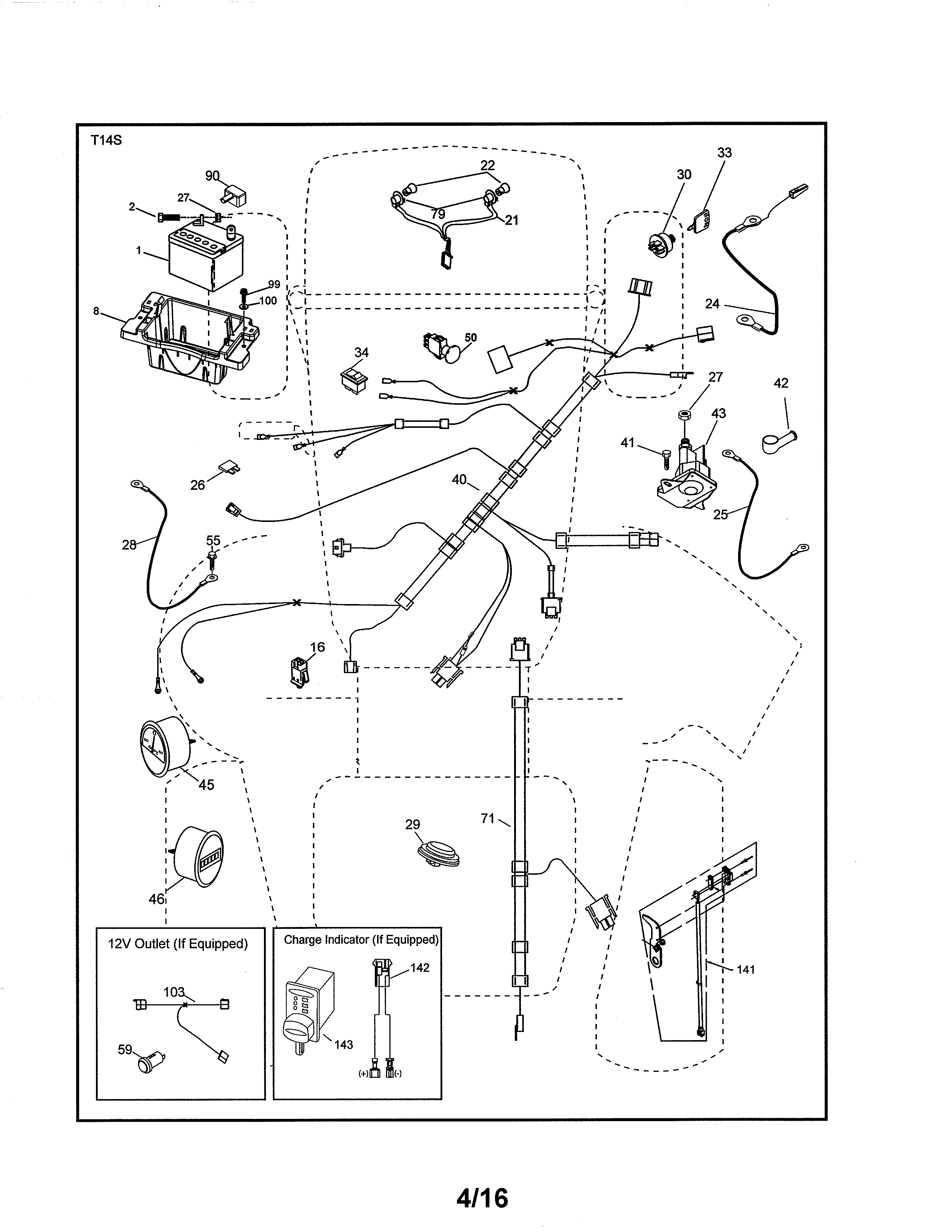

Electrical diagram

Lawn tractor starter solenoid

Part #532192507

Replaced by #582042802

?
Manufacturer substitution
This part replaces 532192507. Substitute parts can look different from the original.
BEST SELLER
$15.99
11% OFF Phone Price : $17.99
In Stock
Subassembly Link 532436884
#61

Steering diagram

Subassembly link

Part #532436884

Replaced by #597069802

?
Manufacturer substitution
This part replaces 532436884. Substitute parts can look different from the original.
BEST SELLER
$25.00
17% OFF Phone Price : $30.00
Back Order
Lawn Tractor Ground Drive Idler Pulley 532194326
#52

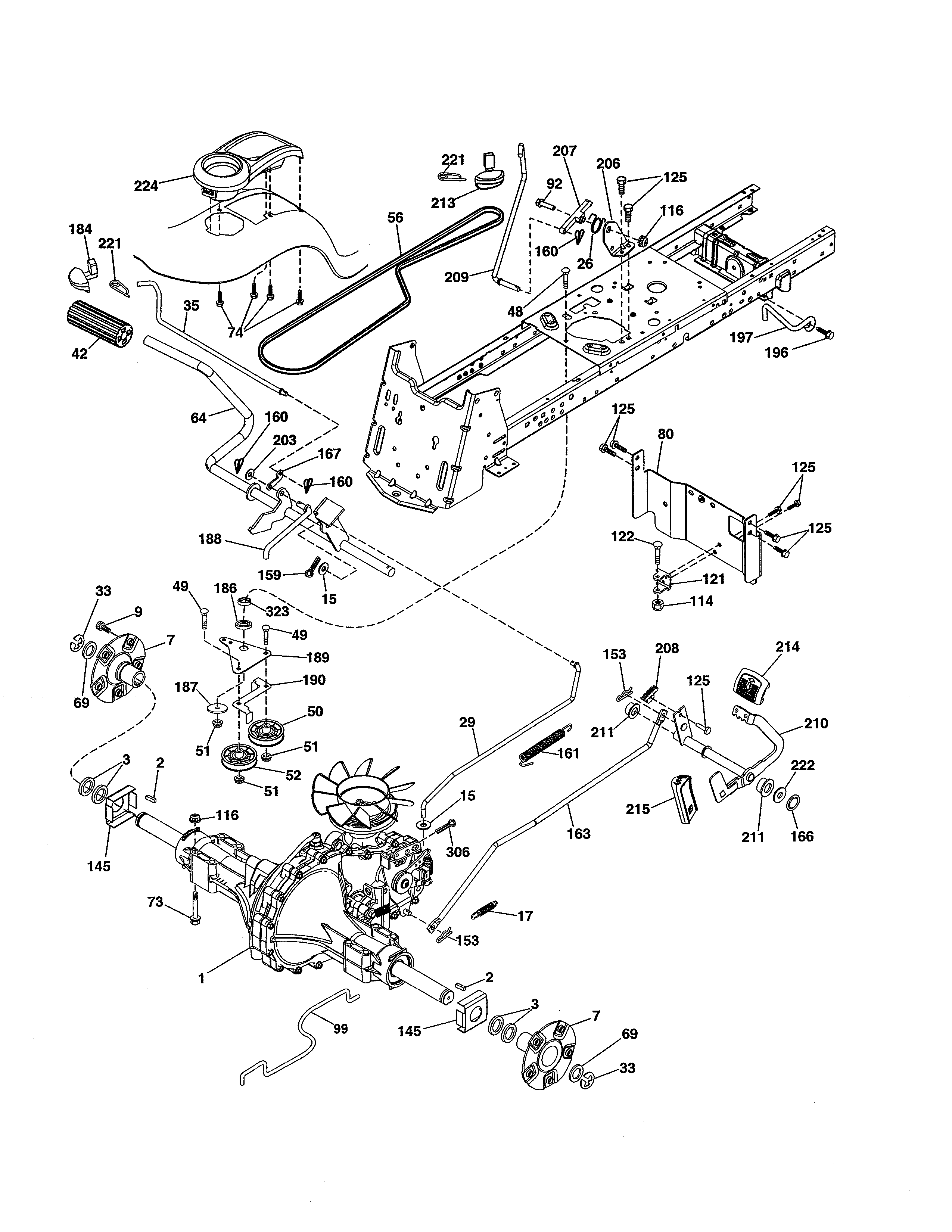

Drive diagram

Lawn tractor ground drive idler pulley

Part #532194326

Replaced by #194326

?
Manufacturer substitution
This part replaces 532194326. Substitute parts can look different from the original.
BEST SELLER
$16.23
11% OFF Phone Price : $18.23
In Stock
Subassembly Link 532436885
#62

Steering diagram

Subassembly link

Part #532436885

Replaced by #597069902

?
Manufacturer substitution
This part replaces 532436885. Substitute parts can look different from the original.
BEST SELLER
$23.56
19% OFF MSRP : $29.00
In Stock
