Kenmore 25360082415 refrigerator Parts

On the Kenmore 25360082415 top-mount refrigerator, the upper section is the freezer compartment. It’s the coldest area of the appliance and is designed to keep foods frozen; on models equipped with an ice maker, it’s also where ice is produced and stored.

What you’ll typically find in the upper (freezer) compartment

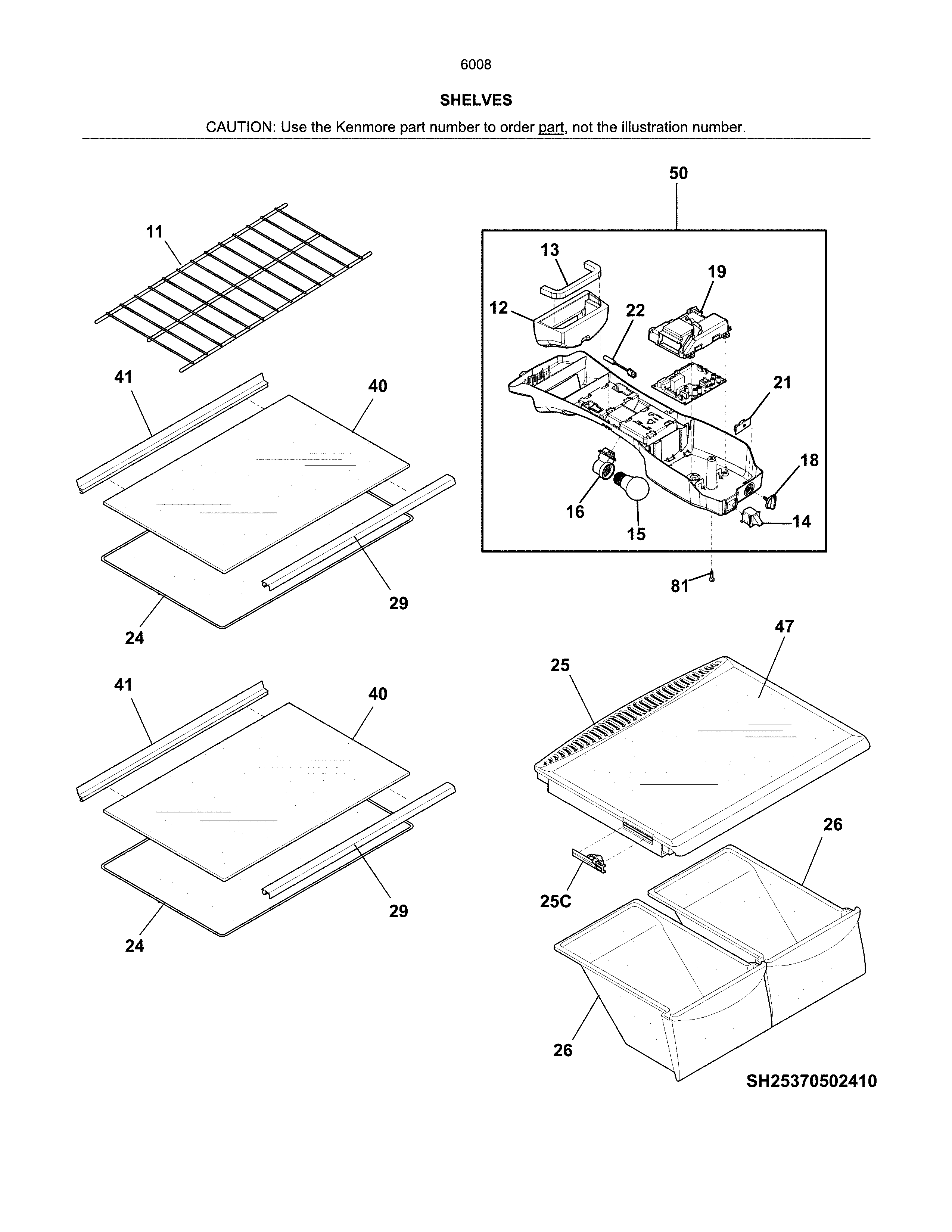

• Freezer shelf or shelves for organizing frozen foods
• Air vents that circulate cold air between freezer and fresh food sections
• Ice maker components on equipped models (wire signal arm, ice container)

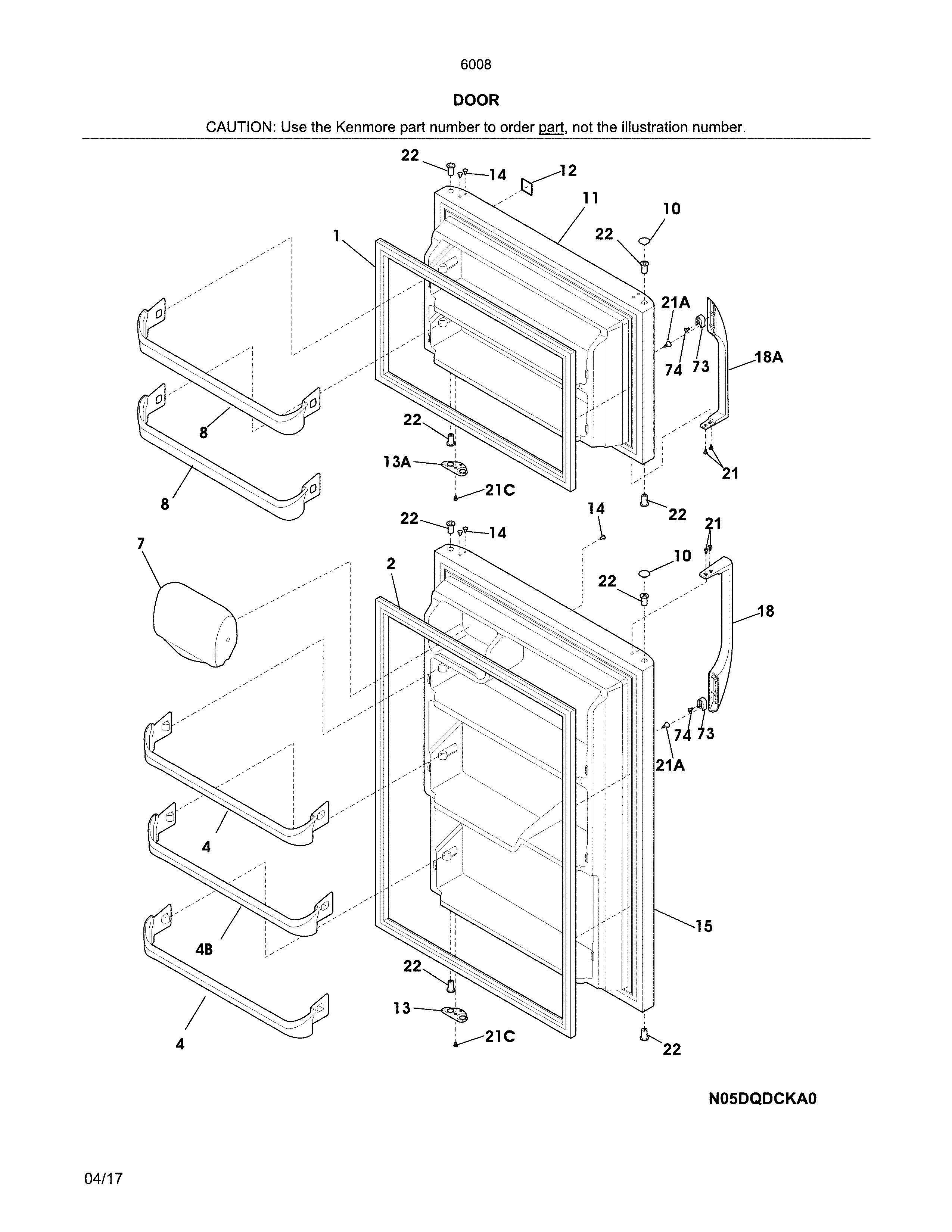

• Freezer door gasket that seals in cold air
• Temperature control features (varies by model)

Ice maker note (common on this style of Kenmore refrigerator)

If your 25360082415 has an automatic ice maker, it’s controlled by a wire signal arm:

Wire signal arm position	What it means	What to expect
Down	Ice maker ON	No ice for the first 24 hours after initial startup is normal
Up (clicked/locked)	Ice maker OFF	Ice production stops

For the exact operating details and compartment features for your unit, use the 25360082415 owner's manual.

Why it matters

Knowing the correct name helps when you’re troubleshooting cooling issues (freezer cold but fridge warm), checking airflow, or ordering the right parts like a door gasket, fan motor, or temperature sensor.

Last updated: January 2026

For Kenmore model 25360082415, the model number by itself usually does not state the exact cubic-foot capacity; the most reliable way is to look up the capacity in the 25360082415 owner's manual or the model specifications, then use a quick interior measurement method only if you need an estimate.

Fast ways to find the cubic feet

• Check the manual/specs first: Capacity is typically listed with the model’s features and specifications in the 25360082415 owner's manual.
• Use the serial plate to confirm the full model number: The manual notes the serial plate is inside the refrigerator compartment, which helps ensure you are searching the exact model/series.
• Estimate by measuring interior space (good for a rough number): Measure usable interior width, depth, and height (in inches), multiply them, then divide by 1,728.
• Do not rely on “253” or other digits as capacity: On Kenmore 253-series refrigerators, those digits identify the manufacturer series, not a guaranteed cubic-foot value.

How to estimate cubic feet (step-by-step)

1. Empty the section you are measuring (fresh food and freezer are often measured separately).
2. Measure usable interior dimensions (exclude thick walls, ducts, and fixed housings).
3. Calculate:
   • Cubic inches = width × depth × height
   • Cubic feet = cubic inches ÷ 1,728

Quick reference table

What you measure	What you get	Best use
Manual/spec capacity	Exact rated cubic feet	Comparing models, resale, planning space
Interior measurement	Approximate usable cubic feet	Storage planning, bin/shelf fit

Why it matters

Cubic feet is a rated capacity, while your day-to-day storage depends on shelves, air ducts, and features like an ice maker. Using the manual gives the true spec; measuring helps you understand real usable space.

Last updated: January 2026

For Kenmore model 25360082415, the correct water filter is the one specified for your exact model and water system (ice maker and any dispenser); the fastest way to confirm the right cartridge style and replacement interval is to match your model information in the 25360082415 owner's manual.

How to identify the correct filter type for 25360082415

Use these checks to avoid ordering the wrong filter:

• Confirm your refrigerator model number is 25360082415 (usually on the inside wall of the fresh food section).
• Check whether your unit has an ice maker water line connection; this model’s installation instructions call for a cold water supply connection.
• Look for a filter location: inside the fresh food compartment, in the base grille, or as an inline filter on the water line.
• If you do not see a cartridge housing in the refrigerator, you may have an inline filter setup instead.
• If your ice has odor or taste issues, filtration may be needed on the supply line (even if the refrigerator does not use a cartridge filter).

What “fits” means (cartridge vs inline)

Different Kenmore refrigerators use different filtration styles. Here’s how they compare:

Filter style	Where you’ll find it	What you replace	Common clue
Cartridge filter	Inside fridge or base grille	A twist-in or push-in cartridge	Visible filter head/housing
Inline filter	Behind fridge on the water line	A small cylinder in the tubing	No cartridge housing inside

If you’re connecting or re-connecting the water line

For this model, the water supply connection is designed around standard refrigerator plumbing parts. The installation guide calls for:

• Cold water line pressure of 30 to 100 psi
• 1/4-inch (6.4 mm) OD copper tubing
• A shut-off valve (avoid self-piercing valves)
• Compression nut and ferrule (sleeve) at the rear connection

Refer to the 25360082415 installation guide for the full hookup diagram and parts list.

Why it matters

Using the correct filter type protects water flow to the ice maker, helps reduce taste and odor issues, and prevents leaks caused by forcing the wrong cartridge or mismatching tubing connections.

Last updated: January 2026

ER IF (sometimes shown as ER/IF) is an evaporator fan related error used on certain Kenmore Elite electronic-control refrigerators; it indicates the control is not sensing normal freezer fan operation or airflow. On Kenmore top-mount model 25360082415, focus troubleshooting on the freezer evaporator fan and airflow path; use the 25360082415 owner's manual for model-specific control and service information.

What to do first (safe checks)

• Power reset: unplug the refrigerator for 5 minutes, then restore power.
• Confirm the freezer door closes fully and the gasket seals all the way around.
• Make sure packages are not blocking the rear freezer air vents.
• Listen for the evaporator fan running when the compressor is running (door switch held in).
• Check for heavy frost on the rear freezer panel; frost can stop airflow and fan movement.

Likely causes and the best next step

What you notice	What it usually means	Best next step
Fan is silent, freezer warming	Fan motor not running	Test and replace the fan motor if failed
Fan runs but airflow is weak	Ice or blockage in vents/cover	Defrost and clear vents and fan cover area
Fan is noisy (rubbing, clicking)	Ice contact or damaged blade	Clear ice; replace blade if damaged

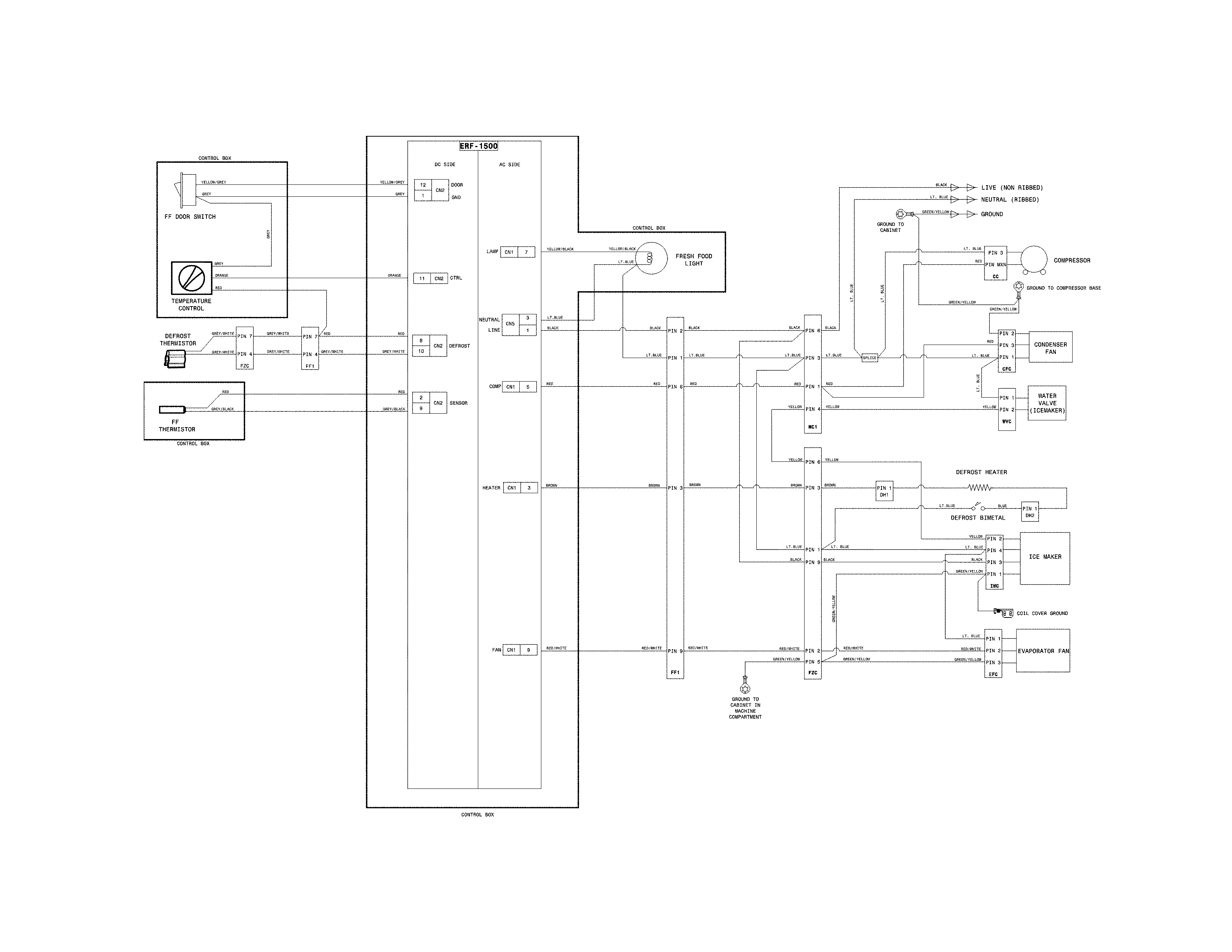

Code returns after reset	Ongoing fan circuit or control issue	Inspect wiring, connectors, and control inputs

Parts that commonly relate to this symptom on model 25360082415

If airflow checks and a full defrost do not restore normal cooling, these parts are the most common fixes for this model’s freezer airflow system:

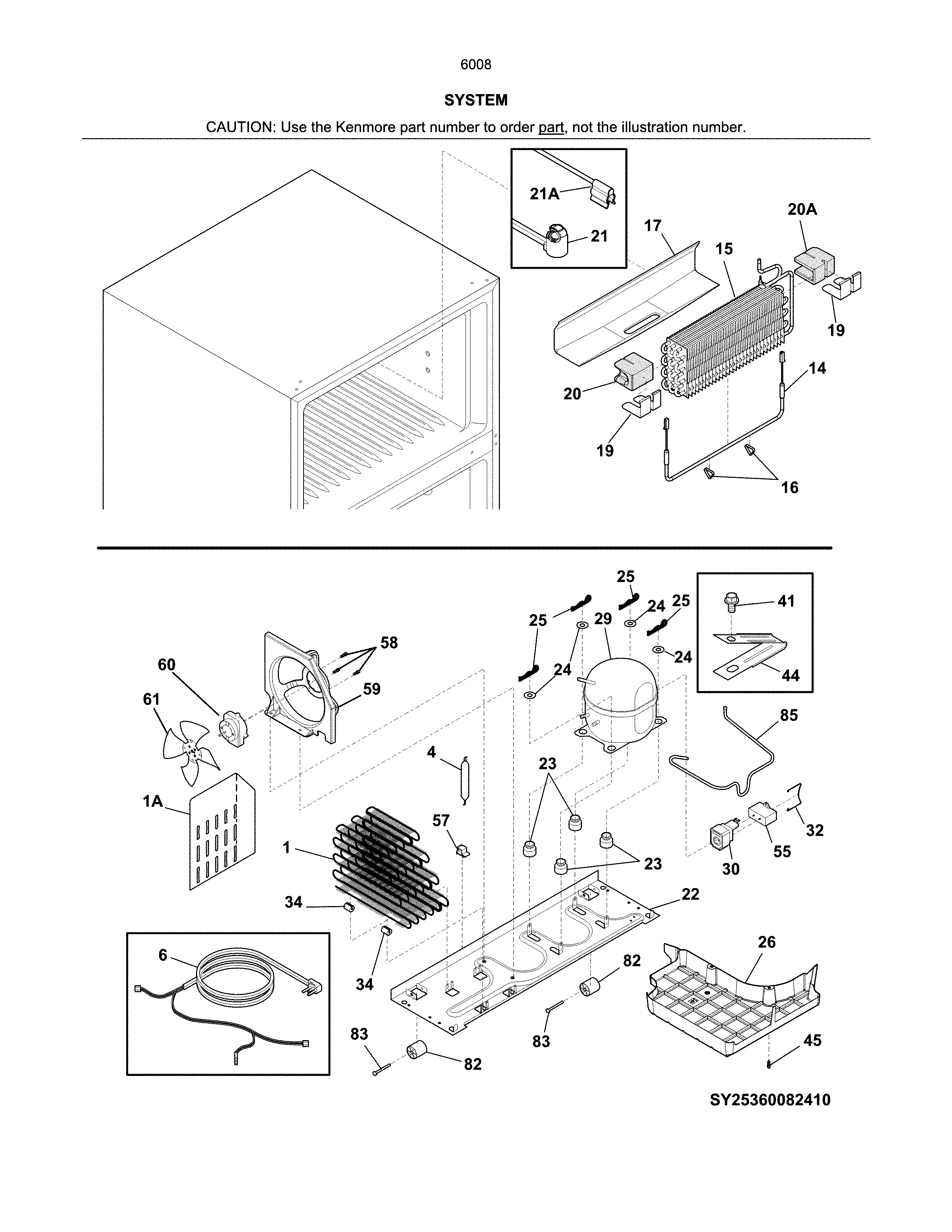

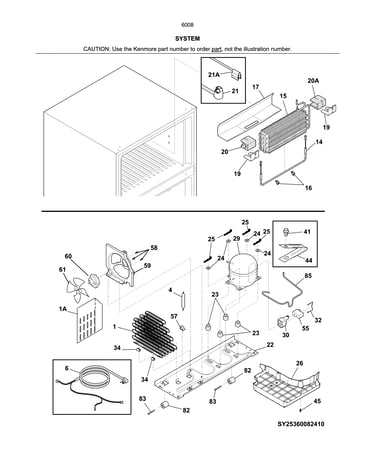

• Refrigerator evaporator motor 242077705 (drives freezer air circulation)
• Refrigerator evaporator fan blade 242219302 (moves air; can crack or rub after icing)

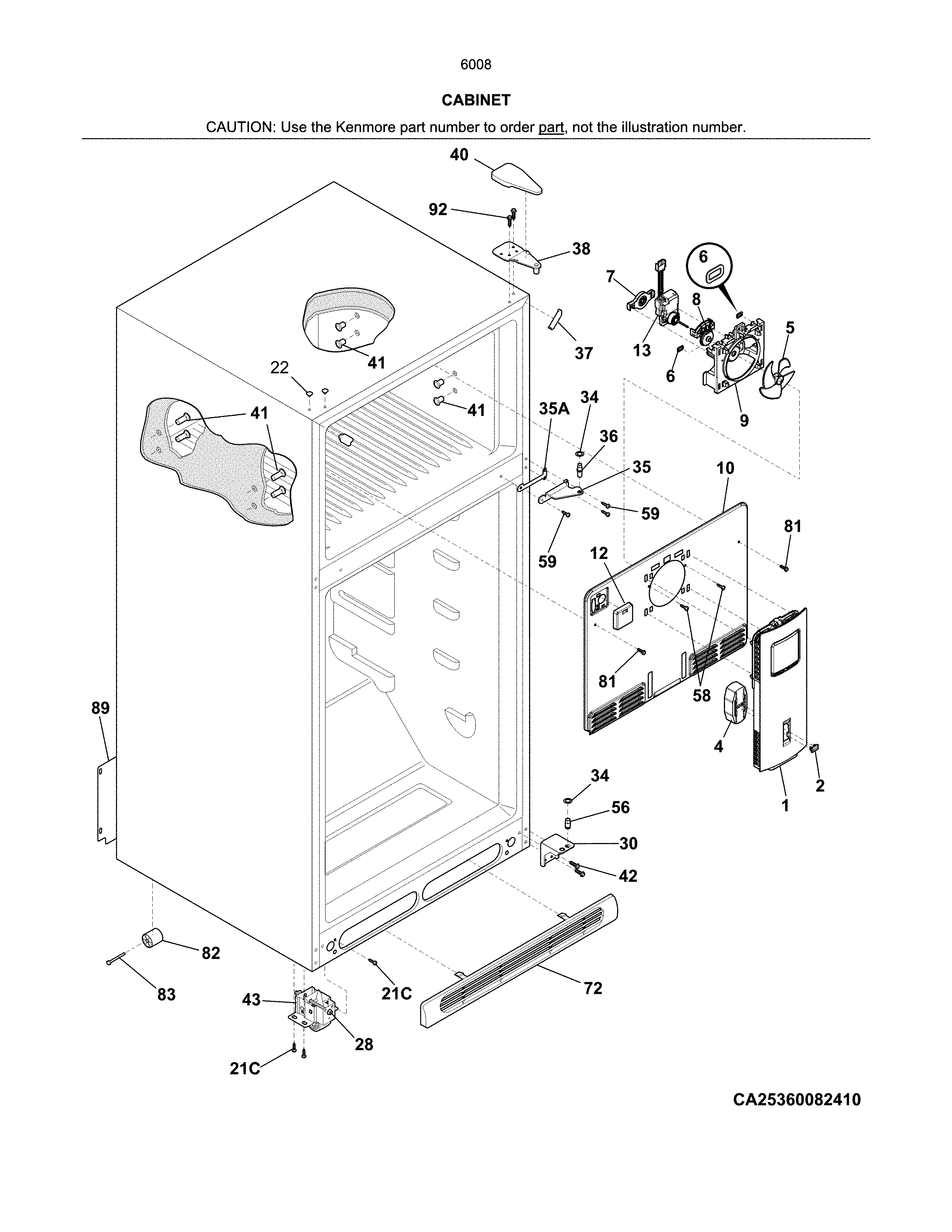

• Refrigerator fan cover 242294704 (air ducting and fan shroud; can ice up or warp)

Why it matters

When the evaporator fan cannot move cold air through the freezer and into the fresh food section, temperatures rise, ice production drops, and the compressor can run longer than normal.

Last updated: January 2026
