Maytag
Gas Range

Model #MGR5729ADT Maytag range

Here are the repair parts and diagrams for your Maytag MGR5729ADT range.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Showing 10 of 156 parts

Range Surface Burner Igniter

#10

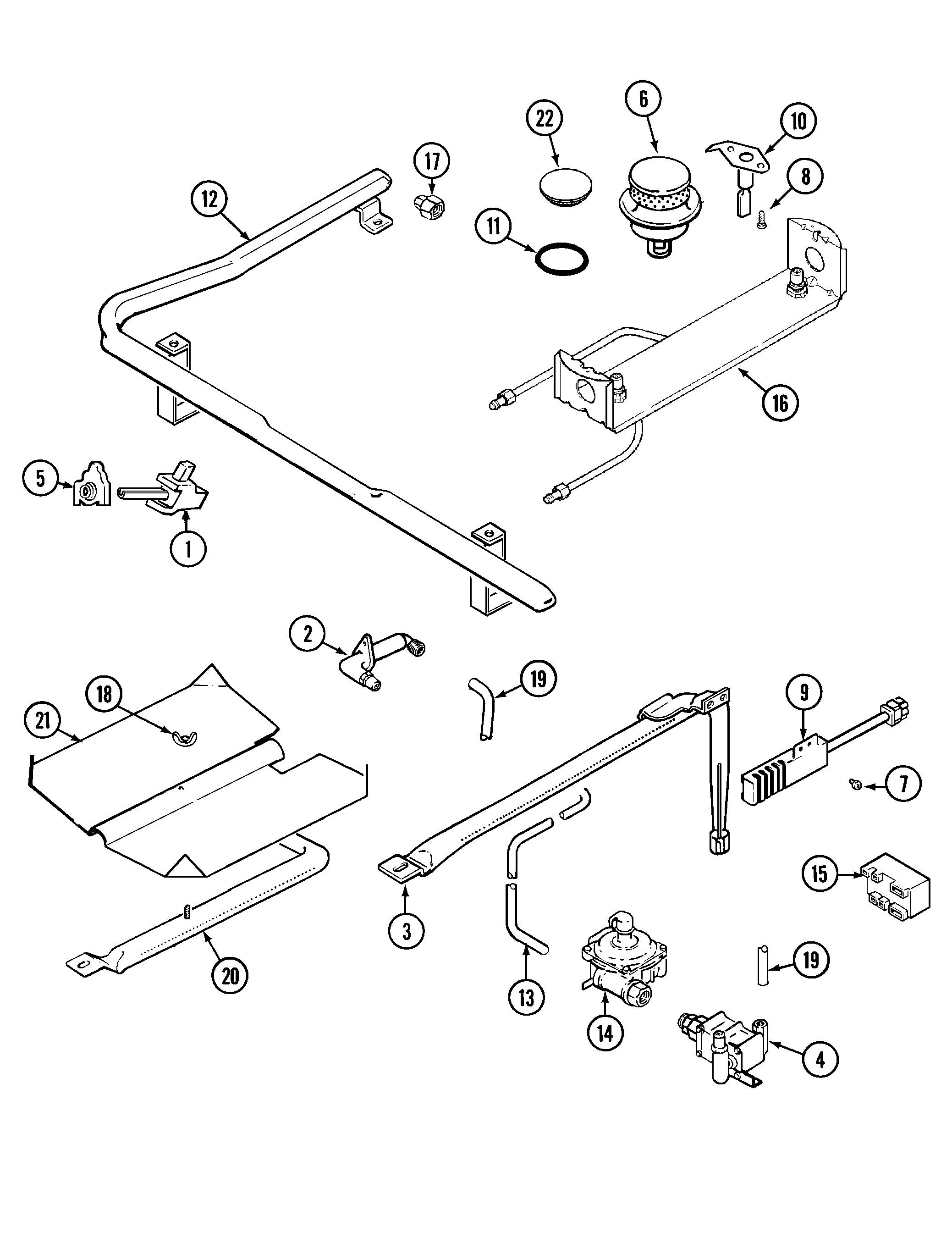

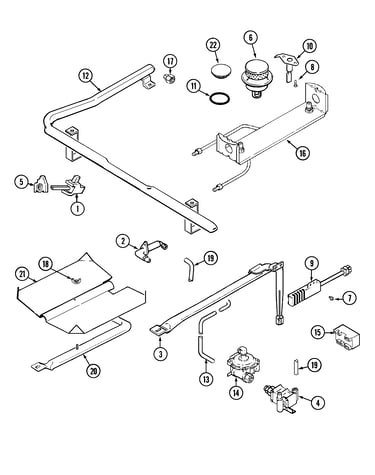

Gas controls (adt) Diagram

$18.08

In Stock

Range Bake Burner

#3

Gas controls (adt) Diagram

Range bake burner

Part #74003960

$72.60

In Stock

Range Wing Nut

#18

Gas controls (adt) Diagram

Range wing nut

Part #7103P030-60
This item is not returnable

$4.99

In Stock

Main Cover

#9

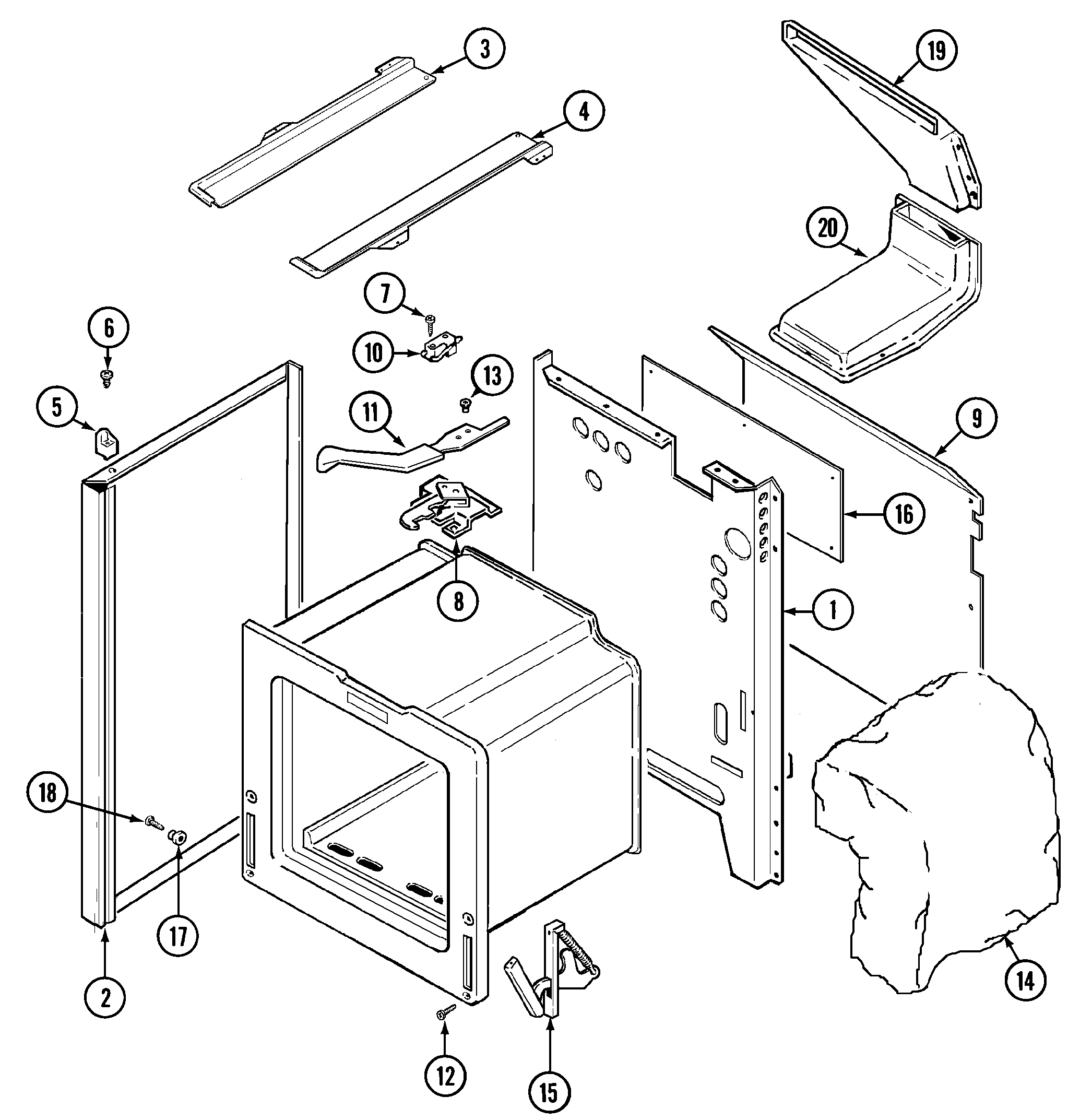

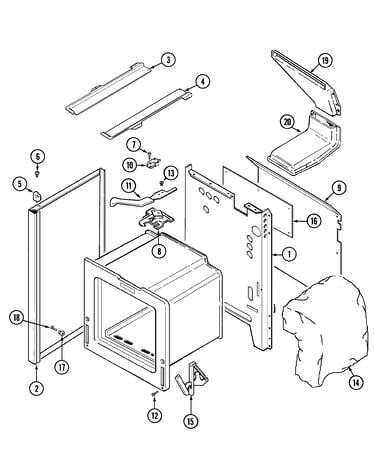

Body (adt) Diagram

Main cover

Part #74003816

$28.49

In Stock

Range Screw, #8AB x 3/8-in (Black)

#8B

Body (adt) Diagram

$12.49

In Stock

Range Screw

#20A

Gas controls (adt) Diagram

Range screw

Part #7101P287-60

$12.49

In Stock

Range Oven Rack

#6

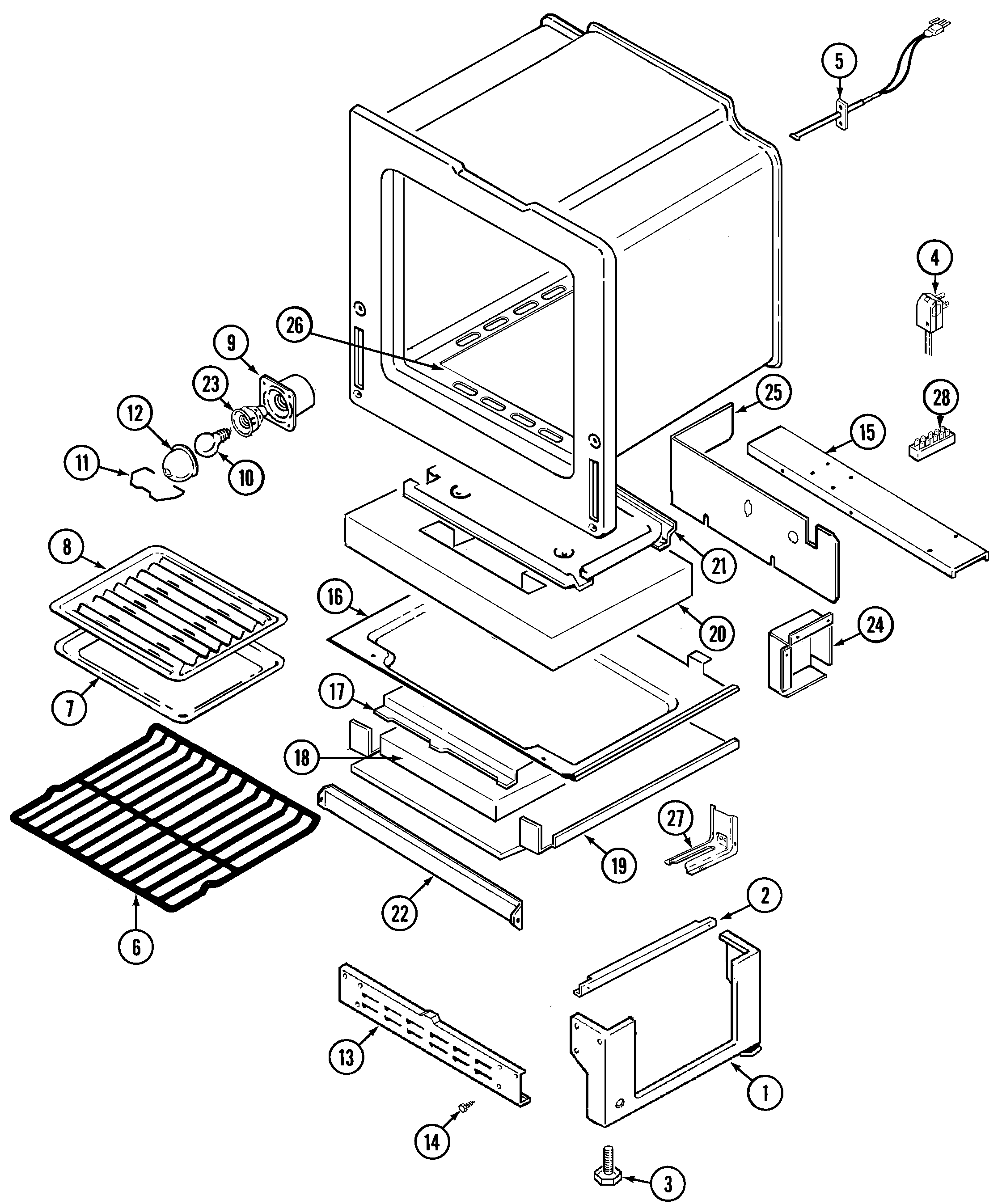

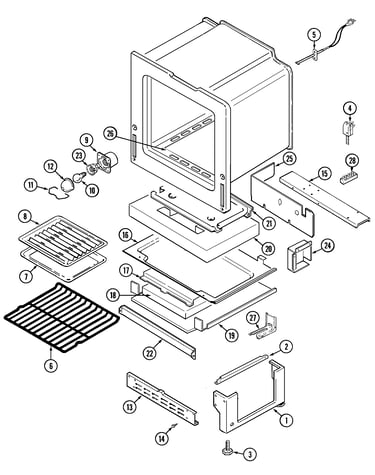

Oven/base (adt) Diagram

Range oven rack

Part #WPW10282492
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  74001757
This part replaces 74001757

$45.87

Back Order

Burner Baffle

#21

Gas controls (adt) Diagram

Burner baffle

Part #3601F307-45
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  3601F217-47
This part replaces 3601F217-47

$123.19

In Stock

Range Oven Door Hinge

#15

Body (adt) Diagram

Range oven door hinge

Part #WP74011140
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  74003243
This part replaces 74003243

$48.81

Back Order

Range Anti-Tip Bracket Screw

#27A

Oven/base (adt) Diagram

Range anti-tip bracket screw

Part #WP7101P485-60
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  7101P344-60
This part replaces 7101P344-60

$15.31

In Stock
