KitchenAid KSSS42QHX00 built-in refrigerator Parts

Most KitchenAid refrigerators, including built-in models like KitchenAid KSSS42QHX00, typically last 14 to 17 years with normal household use. Regular maintenance (cleaning condenser coils, keeping door gaskets sealing, and addressing water leaks early) is what most often determines whether you land closer to 10 years or closer to 17.

Typical lifespan ranges we see

Lifespan varies by installation, usage, and maintenance, but these ranges are reliable for premium refrigerators.

• Average expected lifespan: 14 to 17 years
• Common overall range: 10 to 17 years
• Often shortened by: dirty condenser coils, poor airflow, frequent door openings, and worn door seals
• Often extended by: steady temperatures, clean coils, good door gasket seal, and prompt repair of small issues

Refrigerator type	Typical lifespan	Notes
Built-in (like KSSS42QHX00)	14 to 17 years	Designed for long service life when ventilation stays clear
Standard freestanding	10 to 15 years	More sensitive to heat and airflow restrictions

Maintenance that most affects lifespan

These are the highest-impact steps we recommend for a KitchenAid built-in refrigerator.

• Vacuum and brush condenser coils on a regular schedule
• Confirm the doors close firmly and the gasket seals all the way around
• Keep vents inside the fresh food and freezer compartments unblocked
• Replace failed door switches or light switches promptly (a stuck switch can affect operation)
• Fix water dispenser or ice maker leaks quickly to prevent corrosion and icing

Parts that commonly come up as the unit ages

If you are troubleshooting cooling, ice production, or door sealing, these model-compatible parts are common starting points.

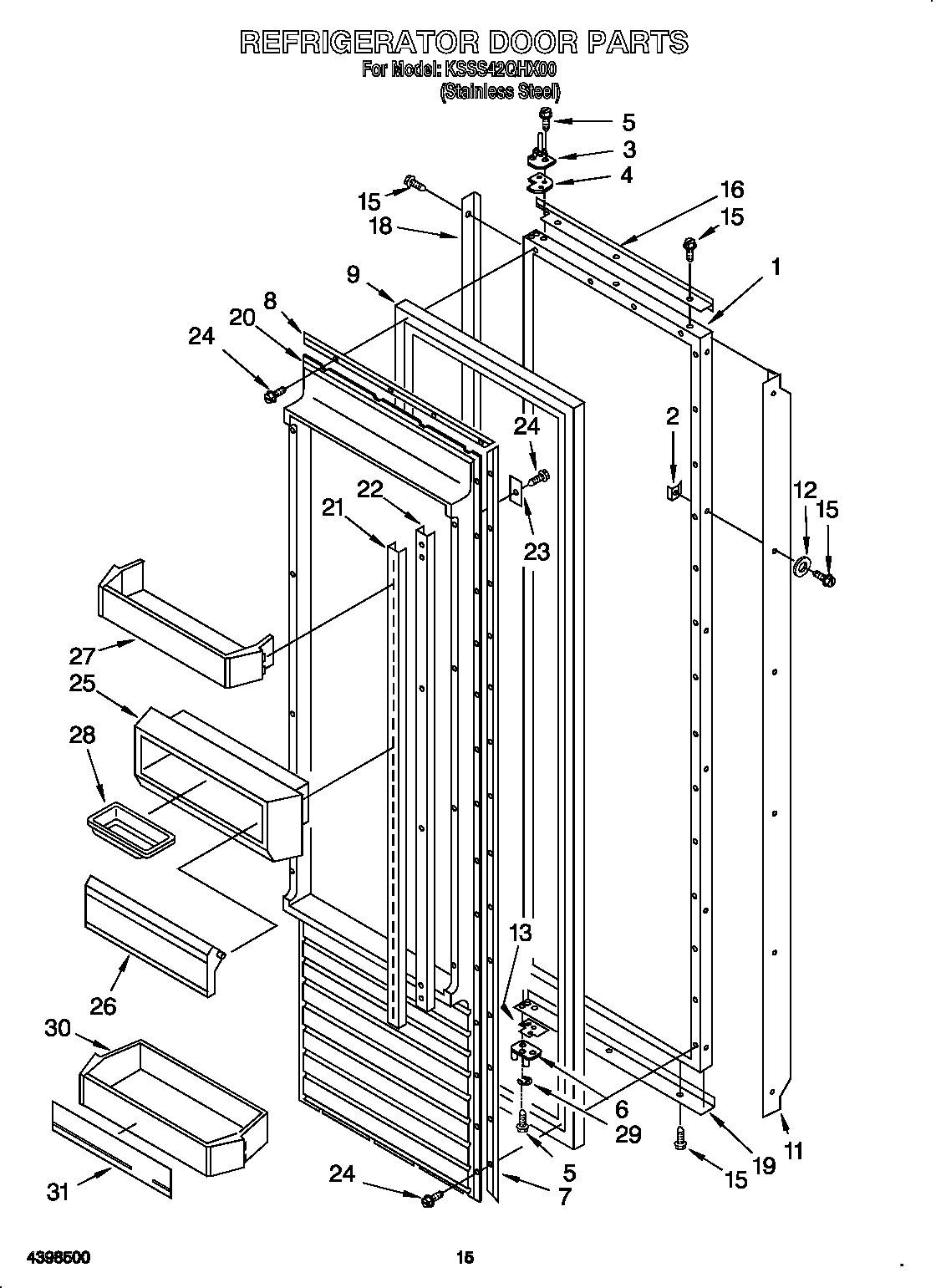

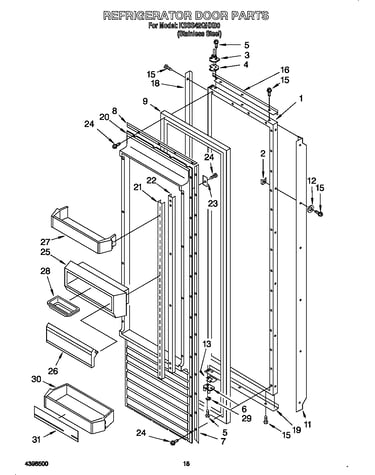

• Refrigerator door gasket 2188318A (fresh food door sealing)

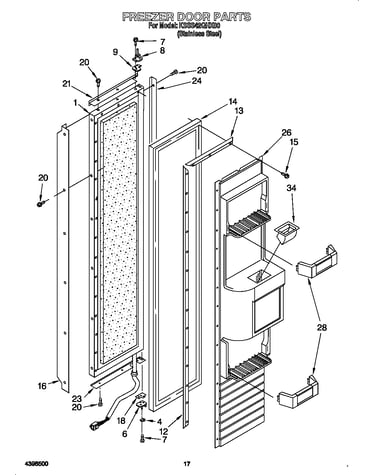

• Refrigerator door gasket 2188320A (freezer door sealing)

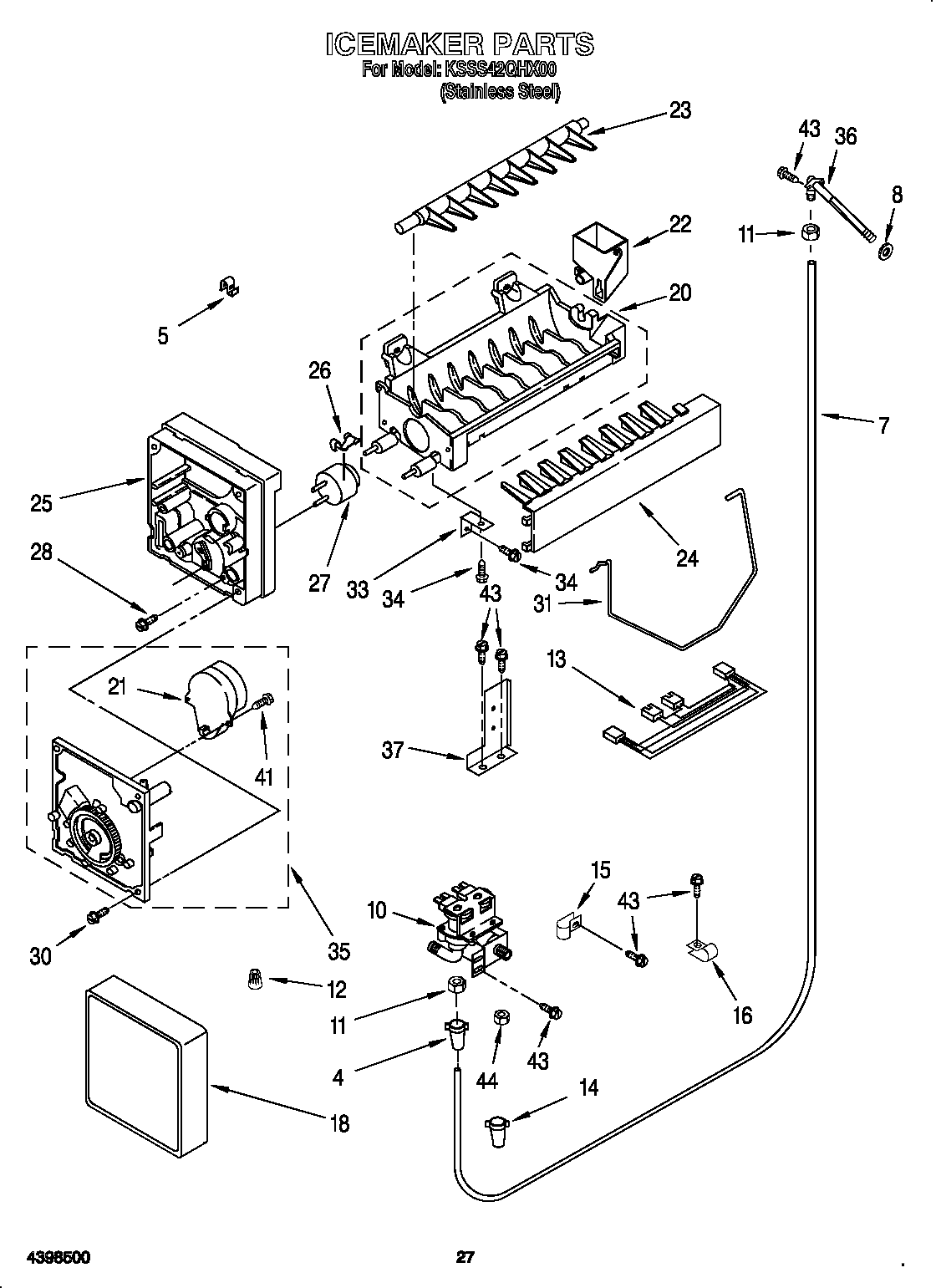

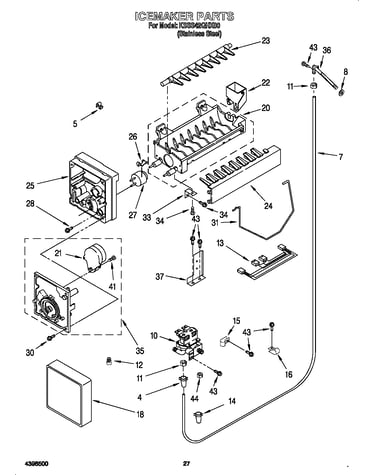

• Ice maker assembly - refrigerator ice maker by whirlpool 4317943 (no ice or poor ice production)
• Evaporator motor WP4389155 (warm temps, weak airflow, fan noise)

Why it matters

A refrigerator that is nearing end-of-life often shows early warning signs (temperature swings, frost buildup, louder fan noise, or water leaks). Catching those issues early can prevent compressor strain and help your KSSS42QHX00 reach the upper end of its expected lifespan.

Last updated: February 2026

Sabbath mode on your KitchenAid KSSS42QHX00 refrigerator is a special setting that keeps your temperature set points steady while turning off most “activity” features, such as interior and dispenser lights, sounds, alarms, and dispenser controls, to reduce changes caused by normal use.

What changes when Sabbath mode is on

• Interior lights stay off, even when you open the doors
• Dispenser light and display backlight turn off
• Dispenser pads and user inputs at the dispenser are disabled
• Audible sounds and alarms are disabled
• Cooling continues to maintain the existing temperature set points

What Sabbath mode does not do

Sabbath mode is often misunderstood. It does not change the refrigerator into a different cooling program; it mainly disables lights, tones, and certain controls.

Feature	Normal operation	Sabbath mode
Cooling system	Maintains set temps	Maintains same set temps
Interior lights	On with door open	Off
Door alarms/tones	On	Off
Dispenser controls	Active	Disabled

Why it matters

If you are troubleshooting “no lights,” “no dispenser response,” or “no beeping,” Sabbath mode can look like a failure when the refrigerator is actually operating normally. Confirming this setting can save time before replacing parts like a door switch.

If the dispenser or lights still do not work after turning it off

We recommend checking these common causes on KSSS42QHX00:

• Door switch not closing properly (freezer or fresh food door)
• Loose wiring at the switch or dispenser area
• Failed light switch or door switch
• Burned-out dispenser bulb

Helpful model-matched parts to consider:

• Refrigerator light switch W11384469
• Refrigerator freeer door switch W11457217
• Dispenser bulb WP22002263

Last updated: February 2026

The most common KitchenAid refrigerator problems are ice maker issues, warm temperatures from poor airflow, water leaks, and unusual noises. On the KitchenAid built-in refrigerator model KSSS42QHX00, these symptoms most often trace back to the ice maker system, evaporator fan airflow, or a clogged/iced defrost drain.

Most common symptoms and what they usually mean

• Ice maker not making ice: water supply restriction, frozen fill path, or failed ice maker
• Fridge warm but freezer cold: weak evaporator fan airflow or frost buildup on the evaporator
• Water under the refrigerator or in the fresh food section: defrost drain issue or water line leak
• Buzzing, clicking, or rattling: fan blade hitting ice, worn fan motor, or loose parts
• Slow water dispensing: restricted filter or air trapped in the water line

Quick checks we recommend first (10 to 20 minutes)

1. Confirm temperature settings: 37°F fresh food, 0°F freezer.
2. Make sure vents are not blocked by food packages.
3. Clean condenser coils (dust buildup commonly causes temperature complaints).
4. If you hear a ticking or rubbing noise, inspect the freezer evaporator area for ice contacting the fan.
5. For dispenser issues, purge air and verify steady household water pressure.

Parts that commonly solve these problems on KSSS42QHX00

Symptom	Common part to check/replace	What it affects
No ice	Ice maker assembly - refrigerator ice maker by whirlpool 4317943	Ice production and harvest cycle
Loud fan noise or poor cooling	Evaporator motor WP4389155	Air circulation across the evaporator
Fan noise from rubbing	Refrigerator evaporator fan blade WP2169142	Fan balance and clearance
Water leaking inside	Refrigerator water tube W10823511	Water routing to dispenser/ice maker

Why it matters

Ice maker, airflow, and water system problems can look like “the refrigerator is failing,” but they are often isolated to a single component (fan motor, ice maker assembly, or a water line). Fixing the root cause restores stable temperatures, protects food, and prevents repeat leaks.

For step-by-step help on water and ice issues, use how to prevent water dispenser and ice maker problems.

Last updated: February 2026

For a KitchenAid built-in refrigerator model KSSS42QHX00, the most reliable “reset” after a power failure is a full power cycle: turn the unit off (or unplug it) for about 5 minutes, then restore power and allow 24 hours for temperatures to stabilize. If cooling or dispensing does not recover, troubleshoot the affected system next.

Quick reset steps (power cycle)

• Set the temperature controls to their normal settings (avoid extreme cold settings right away).
• Unplug the refrigerator or switch the dedicated breaker OFF.
• Wait 5 minutes (this lets the control board fully reboot).
• Restore power.
• Confirm interior lights and fans come on when doors are closed.
• Give the refrigerator 24 hours to return to normal temperatures.

What to check if it still is not acting normal

After a power outage, symptoms usually point to one system. Use this checklist:

• No cooling or weak cooling: listen for the evaporator fan; check for heavy frost on the back wall.
• Ice maker not making ice: confirm the ice maker is on and the freezer is at 0°F to 5°F.
• Water dispenser not working: purge air from the water line and confirm household water supply is on.
• Lights not working: check door switches and the dispenser light.
• Clicking or repeated restarting: allow 10 to 15 minutes; then recheck power at the outlet/breaker.

Common symptoms and the most likely next step

Symptom after power failure	Most likely next step
No ice production	Follow common refrigerator ice maker problems and solutions
Water sputters or stops	Follow how to purge air from a refrigerator water dispenser video
Warm fridge, freezer OK	Inspect evaporator fan operation; see how to fix your evaporator cooling fan
Dispenser area dark	Replace the dispenser bulb WP22002263

Why it matters

A power failure can leave air in the water system, interrupt ice maker cycling, and force the control to restart. A proper power cycle prevents repeated short restarts and gives the compressor and fans time to resume normal operation.

Last updated: February 2026

If your KitchenAid built-in refrigerator model KSSS42QHX00 is not dispensing ice, the most common causes are a dispenser selection or paddle issue, an ice clump or jam in the chute/bucket, or the freezer door switch not closing. Start by confirming “ice” is selected and the paddle fully engages.

Quick checks we recommend first

• Confirm Cubed/Crushed (ice) is selected on the dispenser controls (if your unit has a selector).
• Press the dispenser paddle firmly with a sturdy cup; a light touch may not trigger the switch.
• Open the freezer door and check for ice clumps in the bin; dump and break up clumps.
• Look up the ice chute for a jam; clear any stuck cubes.
• Make sure the freezer door closes completely; a door that is slightly open can disable dispensing.

Common causes and what to do

Symptom	Likely cause	What to do next
No sound when pressing paddle	Door switch not closing or dispenser switch issue	Test the freezer door switch; replace if intermittent
Motor hums but no ice drops	Ice jam in chute or frozen clumps in bin	Clear chute; empty bin and dry it
Ice dispenses slowly	Frost buildup or partially blocked chute	Defrost chute area; keep door openings brief
Ice maker makes ice but won’t dispense	Dispenser mechanism issue	Inspect lever/retainer and chute door movement

Parts that commonly fix “no ice dispensing”

If the freezer thinks the door is open, it can stop the dispenser from operating. For this model, the door switch is a common, straightforward fix.

• Refrigerator freeer door switch W11457217: restores proper “door closed” signal

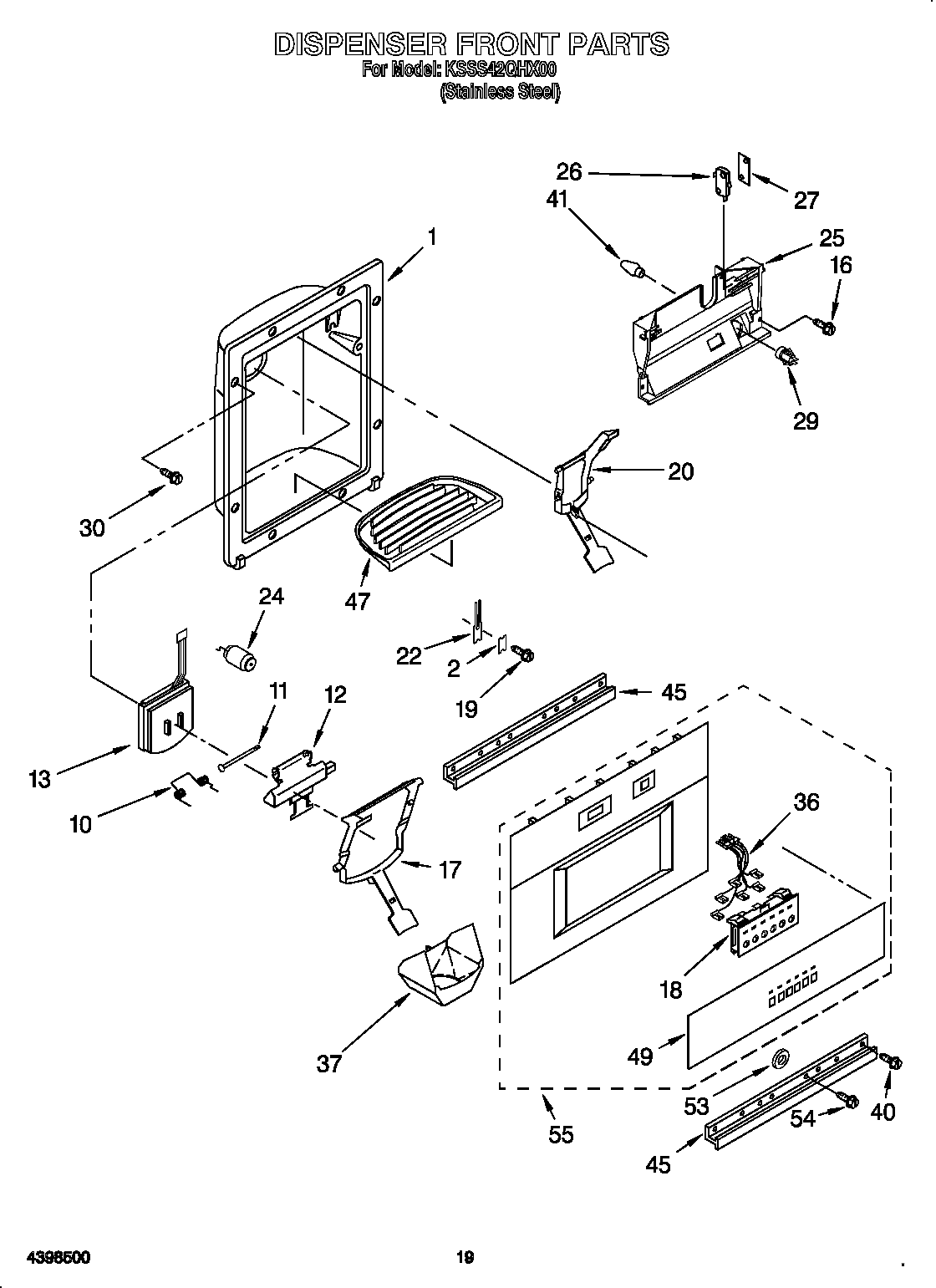

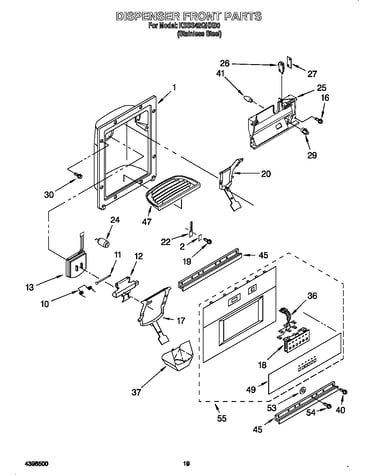

• Refrigerator dispenser lever retainer WP2194719: helps the lever/paddle mechanism actuate correctly
• Ice maker assembly - refrigerator ice maker by whirlpool 4317943: relevant if you also have low or no ice production

Why it matters

A non-dispensing ice issue is often a simple mechanical or switch problem, but it can look like a bigger failure. Checking the door switch, chute, and bin first prevents unnecessary part replacement and gets ice dispensing back quickly.

Last updated: February 2026
