Model #MDB4600AWX Official Maytag dishwasher

Here are the diagrams and repair parts for Maytag MDB4600AWX dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

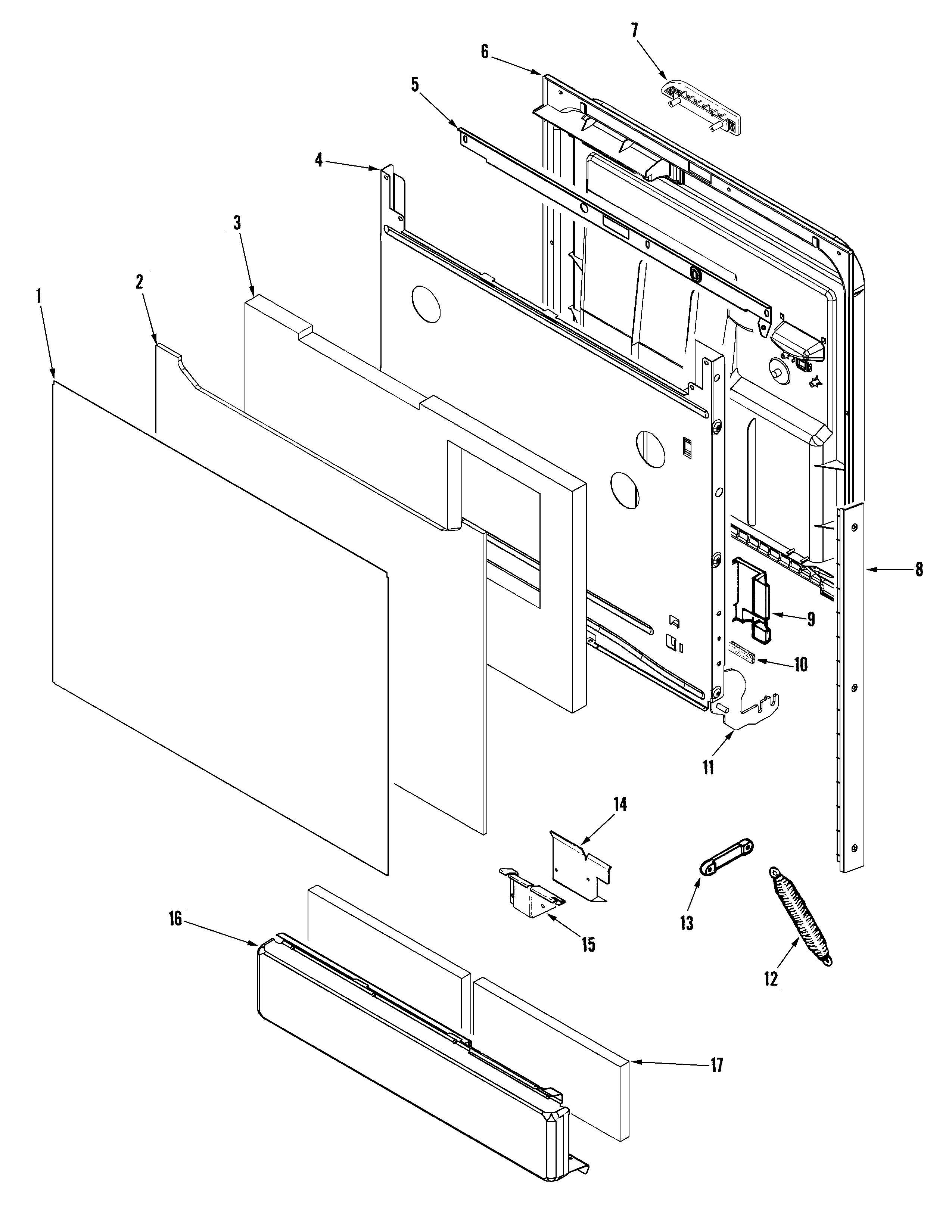

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

?

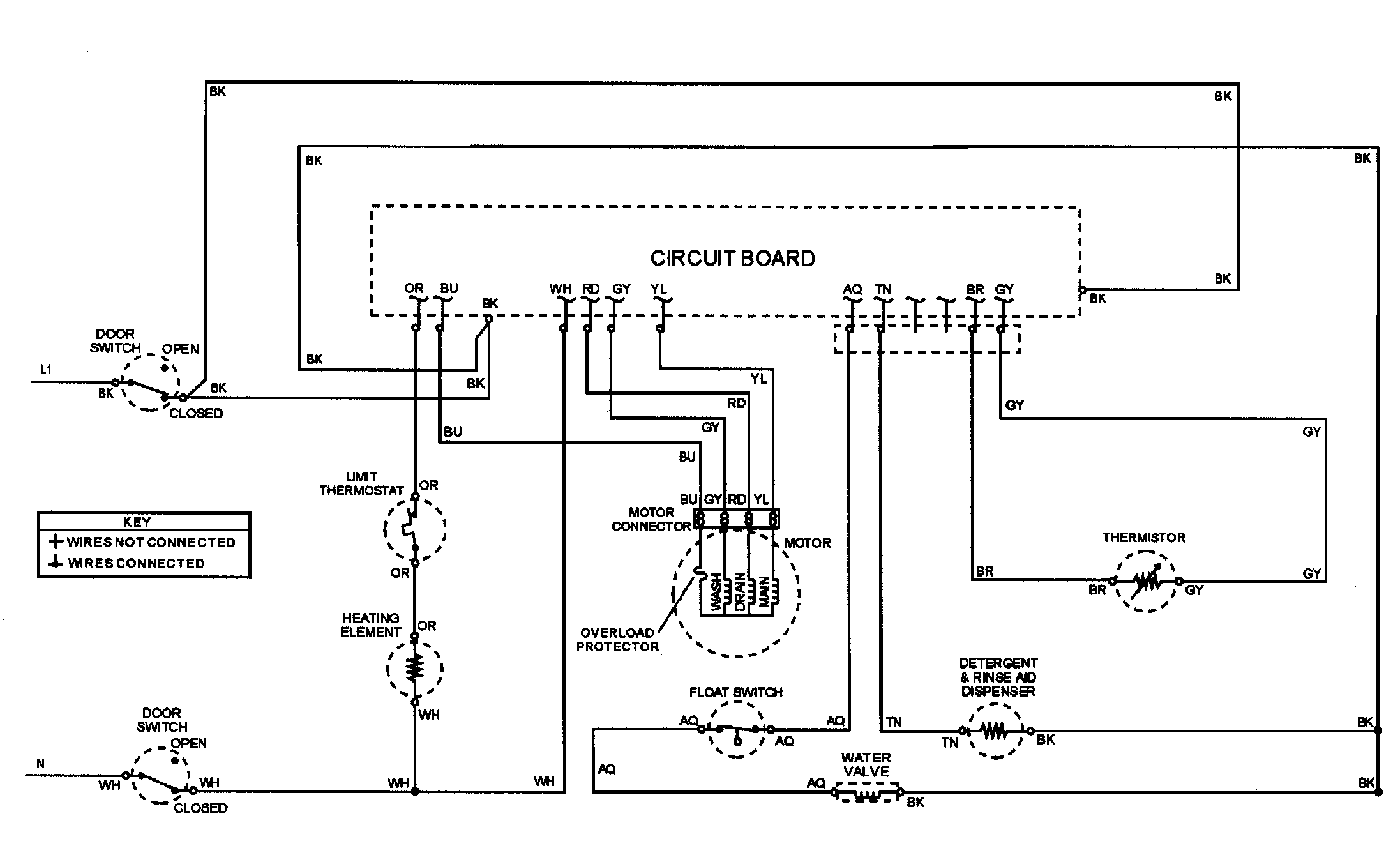

This is the number corresponding to the part on the diagram / schematic

Showing 10 of 172 parts

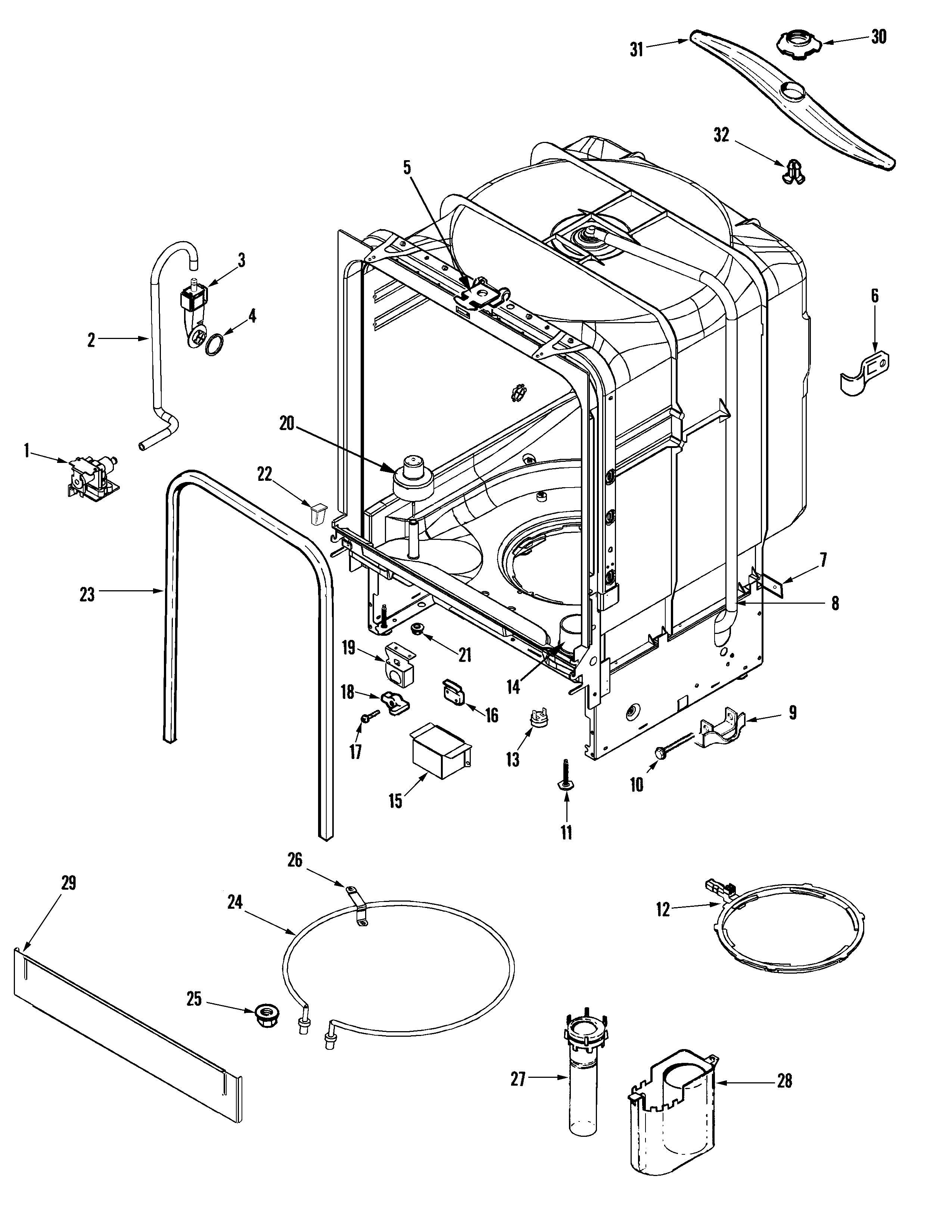

Dishwasher Door Seal (replaces 902894)#23

Tub Diagram

Dishwasher door seal

Part #902894
Replaced by #WP902894
?
Manufacturer substitution
This part replaces 902894. Substitute parts can look different from the original.
BEST SELLER
In Stock
$55.61 |
10% OFF
Was: $61.79

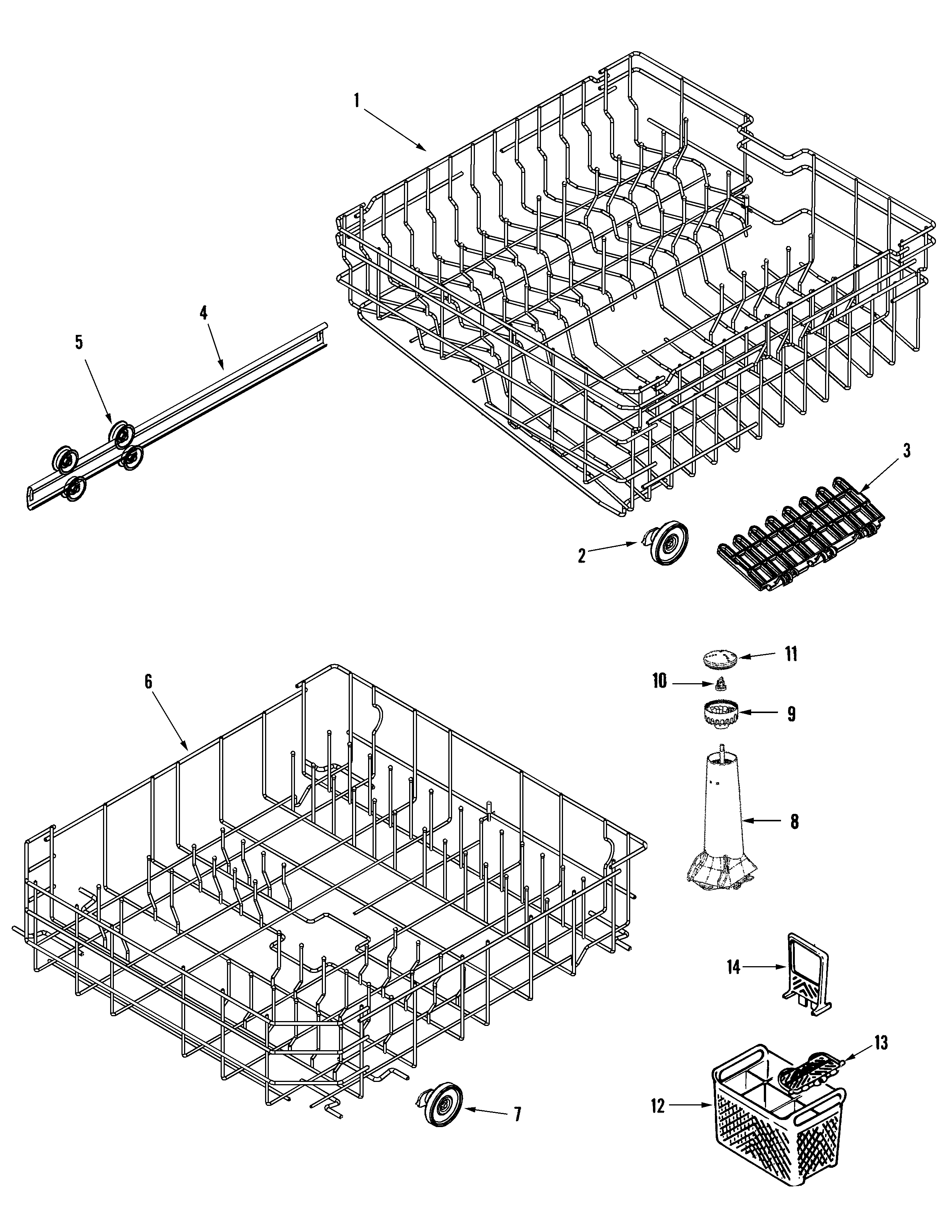

Dishwasher Dishrack, Lower (replaces 99002199, 99002387, 99002396, 99002459)#6

Track & rack assembly Diagram

Rack

Part #99002459
Replaced by #W10139223
?
Manufacturer substitution
This part replaces 99002459. Substitute parts can look different from the original.
In Stock
$297.77 |
24% OFF
MSRP: $390.00
Dishwasher Water Inlet Valve (replaces 99001359)#1

Tub Diagram

Dishwasher water inlet valve

Part #99001359
Replaced by #WP99001359
?
Manufacturer substitution
This part replaces 99001359. Substitute parts can look different from the original.
In Stock
$36.79 |
12% OFF
MSRP: $42.00
Refrigerator Screw

See All Related Diagrams

Plate screw

Part #912365
Replaced by #WP489128
?
Manufacturer substitution
This part replaces 912365. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.99 |
11% OFF
Phone Price: $8.99
Refrigerator Screw

See All Related Diagrams

Screw

Part #99002553
Replaced by #WP489128
?
Manufacturer substitution
This part replaces 99002553. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.99 |
11% OFF
Phone Price: $8.99

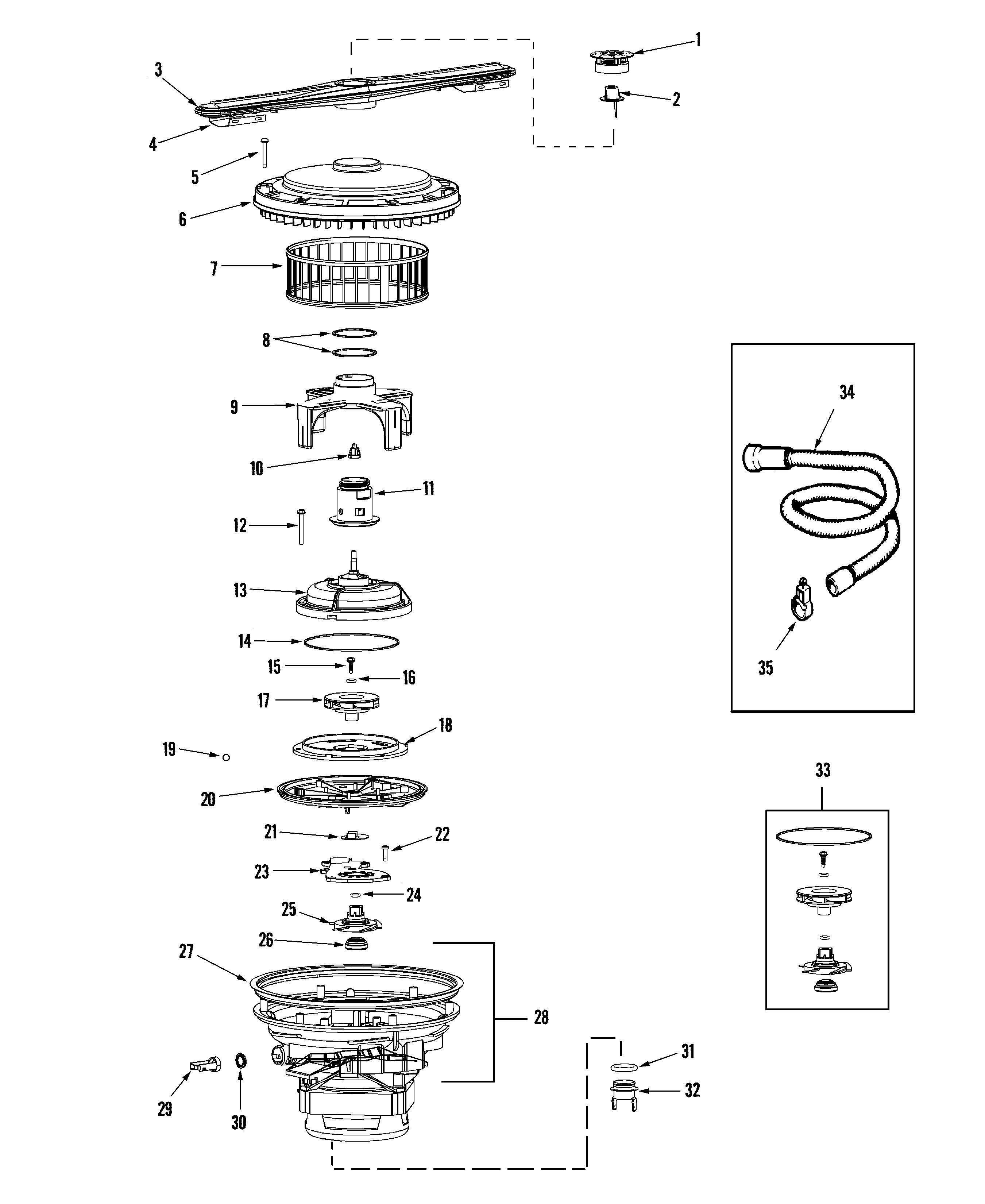

Dishwasher Circulation Pump Micro Filter#7

Pump & motor Diagram

Dishwasher pump housing filter

Part #99001791
Replaced by #WP99001791
?
Manufacturer substitution
This part replaces 99001791. Substitute parts can look different from the original.
Back Order
$38.29 |
12% OFF
Phone Price: $43.29
Dishwasher Silverware Basket#12

Track & rack assembly Diagram

Dishwasher silverware basket

Part #99001576
Replaced by #WP99001576
?
Manufacturer substitution
This part replaces 99001576. Substitute parts can look different from the original.
In Stock
$26.99 |
16% OFF
Phone Price: $31.99

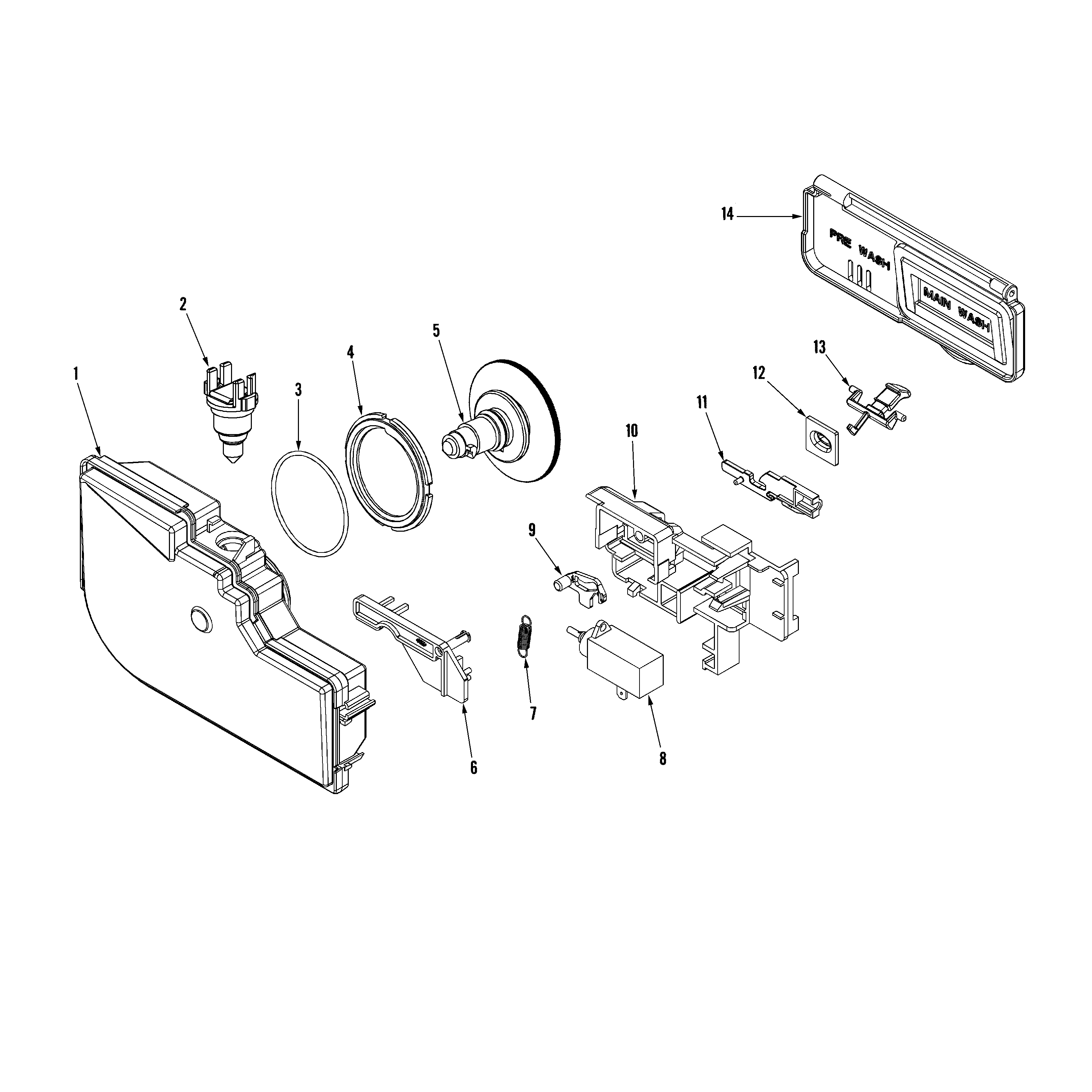

Dishwasher Detergent Dispenser Cover Hinge Pin#14C

Rinse aid & soap dispenser Diagram

Short pin

Part #912679
Replaced by #WPY912679
?
Manufacturer substitution
This part replaces 912679. Substitute parts can look different from the original.
This item is not returnable
In Stock
$2.99 |
25% OFF
Phone Price: $3.99

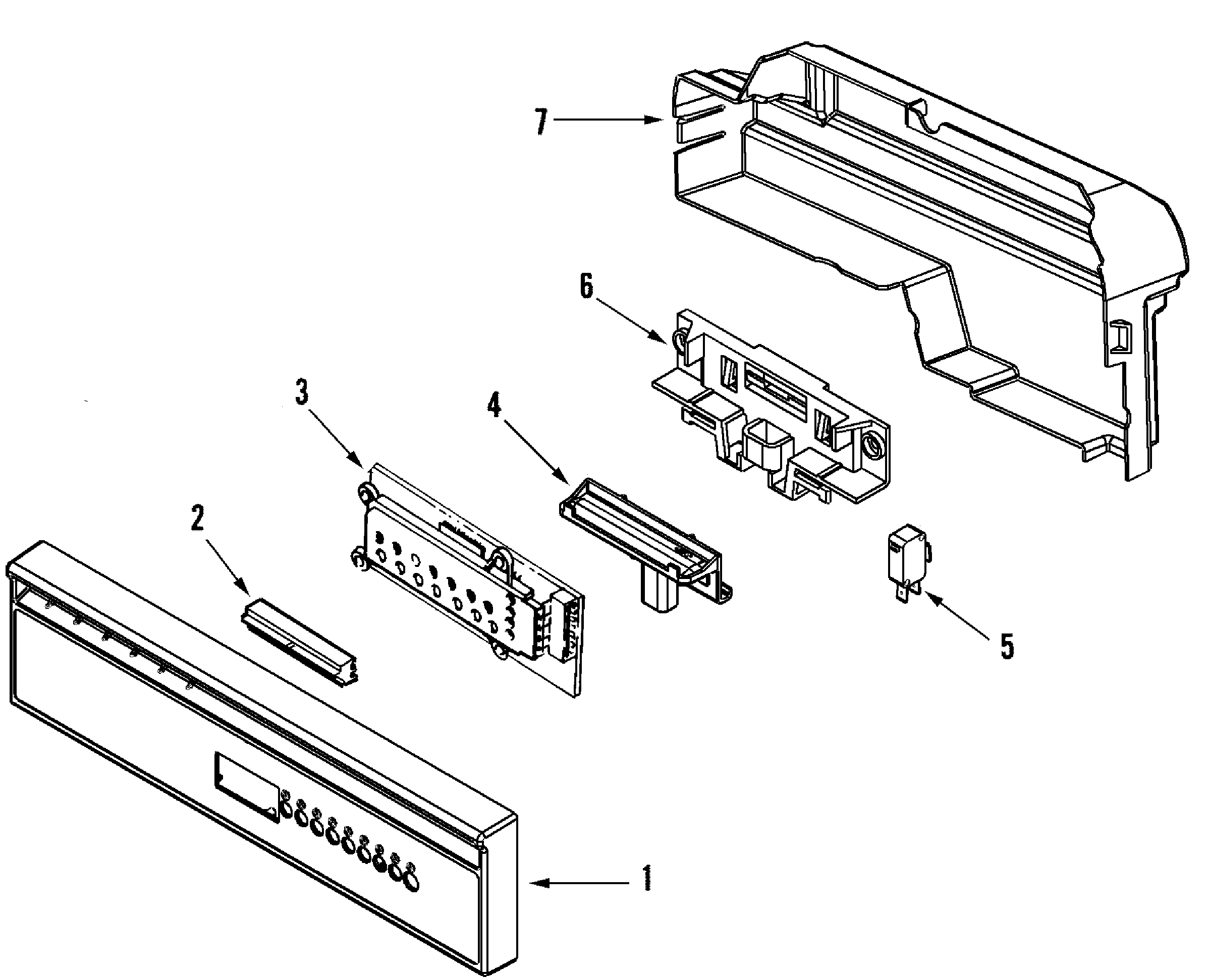

Dishwasher Door Handle#4

Control panel Diagram

Dishwasher door handle

Part #99002084
Replaced by #W10834433
?
Manufacturer substitution
This part replaces 99002084. Substitute parts can look different from the original.
In Stock
$56.79 |
8% OFF
Phone Price: $61.79
Dishwasher Door Latch Handle (White)#4A

Control panel Diagram

Latch handle

Part #99002085
Replaced by #WP99002085
?
Manufacturer substitution
This part replaces 99002085. Substitute parts can look different from the original.
In Stock
$59.09 |
8% OFF
Phone Price: $64.09
