Model # 5460 Official Milwaukee 7" variable-speed polisher

Here are the diagrams and repair parts for Official Milwaukee 5460 7" variable-speed polisher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Screw 05-78-0305
#53

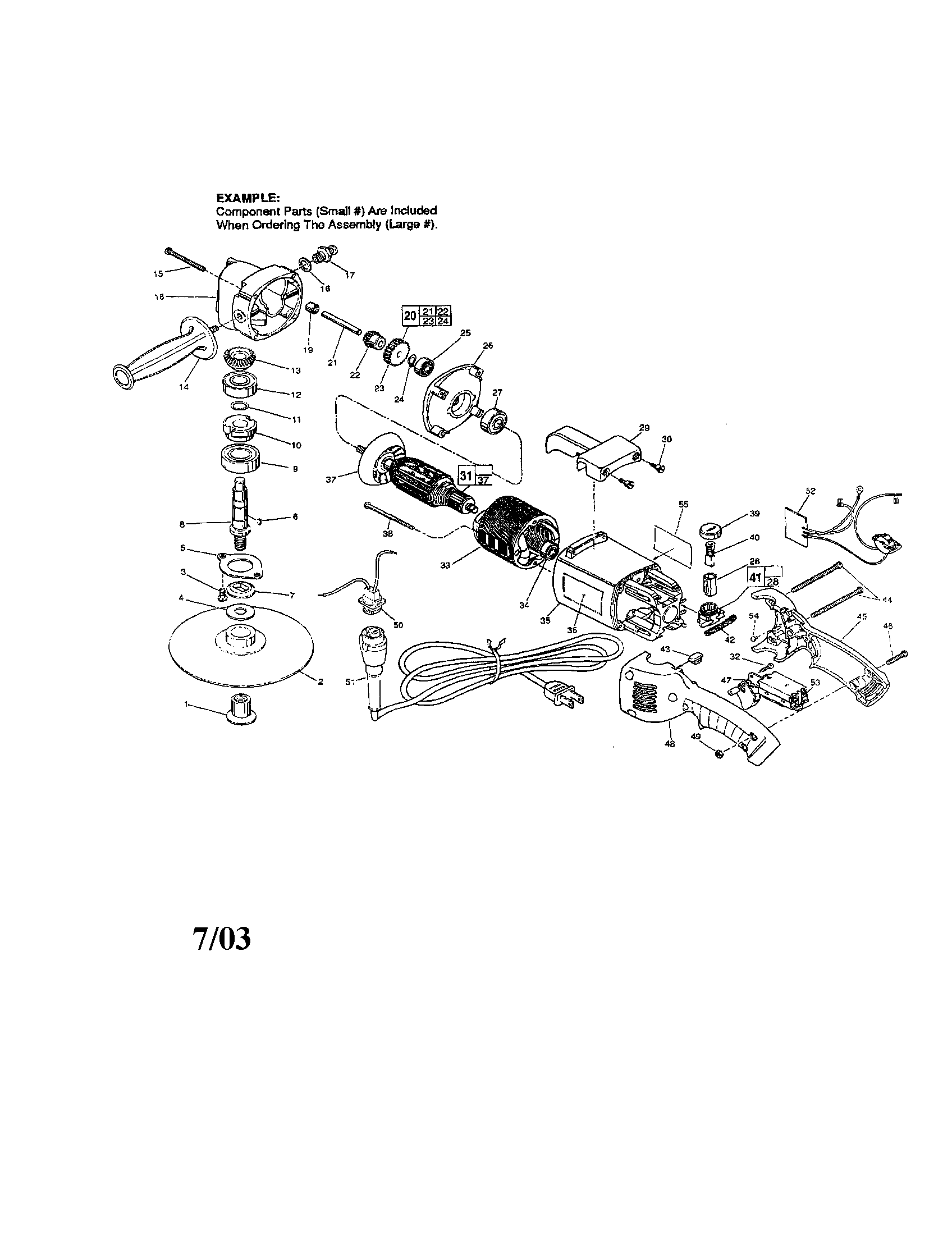

Polisher diagram

Screw

Part #05-78-0305

The manufacturer no longer makes this part, and there's no substitute part

Module Assembly 14-20-0571
#52

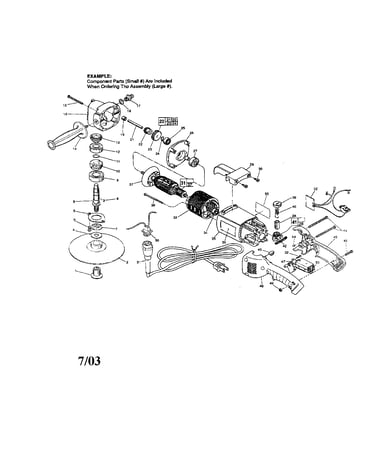

Polisher diagram

Module assembly

Part #14-20-0571

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-82-7375
#38

Polisher diagram

Screw

Part #06-82-7375

The manufacturer no longer makes this part, and there's no substitute part

Handle, Left 31-44-1771
#48

Polisher diagram

Handle, left

Part #31-44-1771

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-82-2598
#44

Polisher diagram

Screw

Part #06-82-2598

The manufacturer no longer makes this part, and there's no substitute part

Armature 16-50-1090
#31

Polisher diagram

Armature

Part #16-50-1090

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord 48-76-5010
#51

Polisher diagram

Power tool power cord

Part #48-76-5010

The manufacturer no longer makes this part, and there's no substitute part

Bevel Gear 32-05-1081
#13

Polisher diagram

Bevel gear

Part #32-05-1081

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-82-7409
#32

Polisher diagram

Screw

Part #06-82-7409

The manufacturer no longer makes this part, and there's no substitute part

Backing Pad 49-36-2500
#2

Polisher diagram

Backing pad

Part #49-36-2500

The manufacturer no longer makes this part, and there's no substitute part
