Edgestar CWR262DZ wine cooler

Edgestar CWR262DZ wine cooler Parts

Here are the diagrams and repair parts for Edgestar CWR262DZ wine cooler, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for CWR262DZ Wine Cooler

  • Edgestar Owner's Manual for Edgestar CWR262DZ - Part OM-CWR262DZ

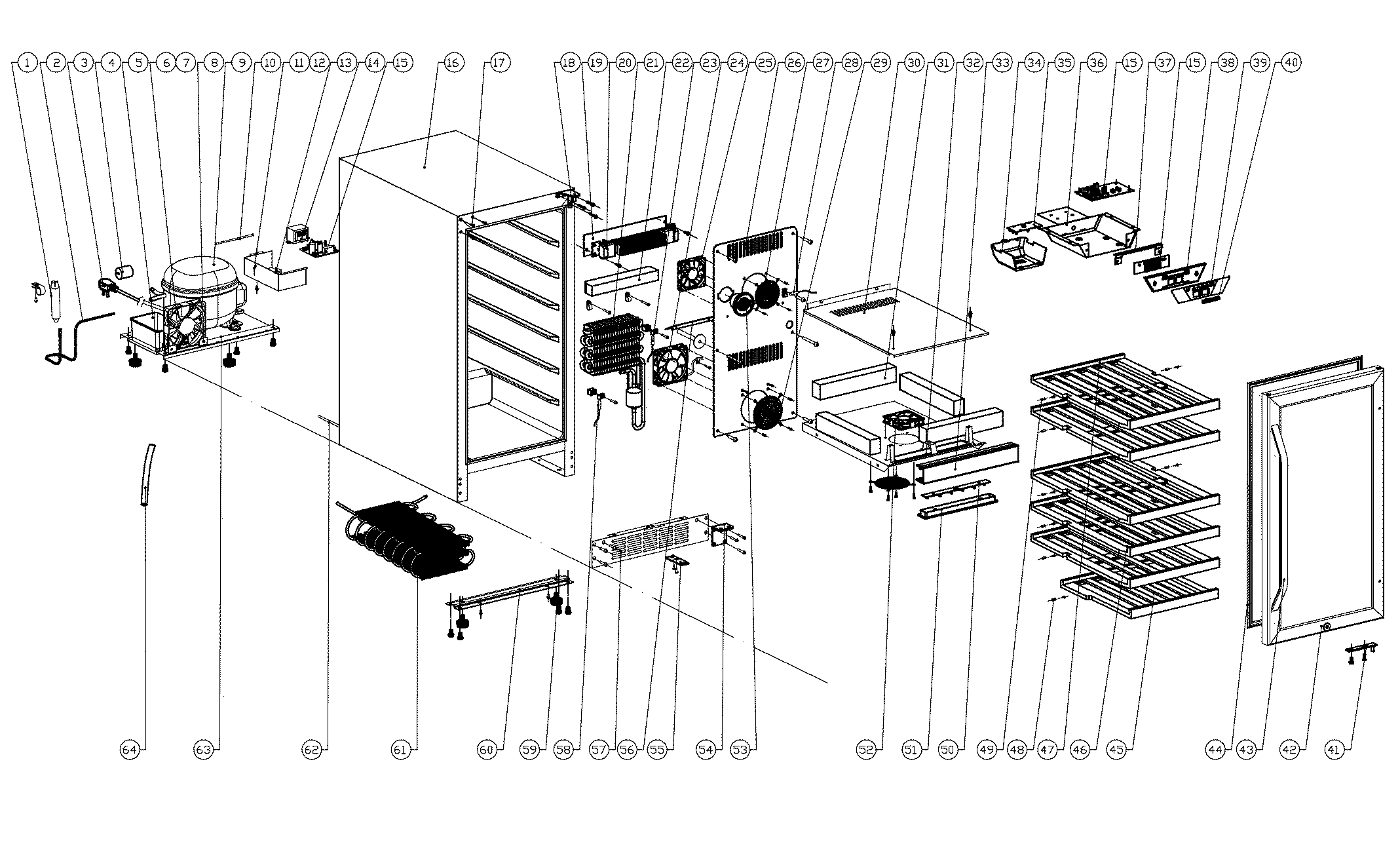

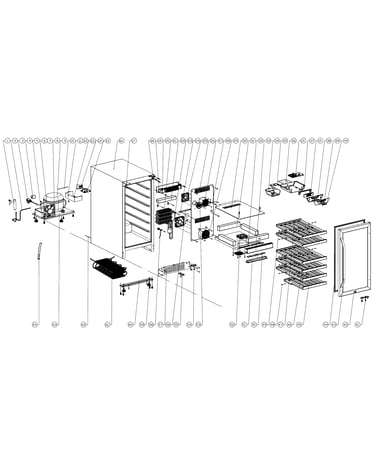

    Cooler assy diagram

    Edgestar Owner's Manual

    Part #OM-CWR262DZ

    The manufacturer no longer makes this part, and there's no substitute part

  • Water Pipe for Edgestar CWR262DZ - Part FL-107

    Cooler assy diagram

    Water Pipe

    Part #FL-107

    The manufacturer no longer makes this part, and there's no substitute part

  • Heater for Edgestar CWR262DZ - Part DG111-18.1

    Cooler assy diagram

    Heater

    Part #DG111-18.1

    The manufacturer no longer makes this part, and there's no substitute part

  • Water Box for Edgestar CWR262DZ - Part DG13-1

    Cooler assy diagram

    Water Box

    Part #DG13-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Axis for Edgestar CWR262DZ - Part DG14-1014

    Cooler assy diagram

    Door Axis

    Part #DG14-1014

    The manufacturer no longer makes this part, and there's no substitute part

  • Handle for Edgestar CWR262DZ - Part DG14-1077

    Cooler assy diagram

    Handle

    Part #DG14-1077

    The manufacturer no longer makes this part, and there's no substitute part

  • Button for Edgestar CWR262DZ - Part DG13-50

    Cooler assy diagram

    Button

    Part #DG13-50

    The manufacturer no longer makes this part, and there's no substitute part

  • Condensator for Edgestar CWR262DZ - Part DG12-3

    Cooler assy diagram

    Condensator

    Part #DG12-3

    The manufacturer no longer makes this part, and there's no substitute part

  • Bracket Bottom for Edgestar CWR262DZ - Part DG22-1016.1

    Cooler assy diagram

    Bracket Bottom

    Part #DG22-1016.1

    The manufacturer no longer makes this part, and there's no substitute part

  • Shelf Fixer for Edgestar CWR262DZ - Part DG13-7.3

    Cooler assy diagram

    Shelf Fixer

    Part #DG13-7.3

    The manufacturer no longer makes this part, and there's no substitute part

Edgestar Wine Cooler CWR262DZ FAQs

Yes. Edgestar wine coolers like the Edgestar CWR262DZ are a solid choice when they’re installed correctly, run on a properly grounded 115V/60Hz outlet, and have the ventilation they need. In normal home use, they cool quietly and hold temperature well when the door stays closed.

What “good” looks like in real use

A wine and beverage cooler performs well when it can maintain stable temperatures without short-cycling (turning on and off frequently) and without excess frost.

Common signs your CWR262DZ is operating as expected:

  • Temperatures recover steadily after the door is opened
  • The door seals tightly and closes fully
  • The unit has adequate airflow around the cabinet and front vent
  • The compressor runs, then cycles off (not constant rapid cycling)
  • Noise stays at a low, steady hum (some fan and compressor sound is normal)
Setup details that make the biggest difference

The owner’s manual calls out a few installation and electrical basics that directly affect performance and reliability.

  • Let the cooler stand upright for at least 24 hours before first use (helps compressor oils settle)
  • Use a properly grounded wall outlet on a dedicated circuit when possible
  • Avoid placing the cooler near heat sources
  • Follow the manual’s clearance and ventilation guidance so it can reject heat properly
Quick checklist
Item Target Why it matters
Rest time after moving 24 hours upright Protects the compressor and improves startup performance
Power 115V, 60Hz grounded outlet Reduces nuisance trips and electrical issues
Door use Minimize openings Helps maintain stable temperature
Ventilation Keep airflow clear Prevents frequent cycling and warm temps
Why it matters

Most “bad cooler” complaints come from installation conditions, not the cooler itself. Poor ventilation, frequent door openings, or a weak door seal can cause temperature swings, frequent cycling, frost, and extra noise.

Parts and support

If you’re shopping for replacement parts for the Edgestar CWR262DZ, start with the model’s parts list, or search by model number on Sears PartsDirect. For operating, safety, and installation requirements, use the CWR262DZ owner’s manual.

Last updated: February 2026

A wine cooler is built to hold wine at steady, moderate temperatures for flavor and cork protection, while a beverage cooler is built to chill cans and bottles colder for quick drinking. The Edgestar CWR262DZ is a dual-zone unit that supports both.

Key differences (and how CWR262DZ fits)

Wine and beverages overlap, but they perform best at different targets and storage styles.

  • Wine storage prioritizes stable temperature and gentle handling
  • Beverage storage prioritizes colder temps and flexible shelf space
  • Dual-zone designs let you separate wine from sodas, beer, and mixers
  • Real-world cooling depends on room temperature, ventilation, and door openings
Feature Wine cooler focus Beverage cooler focus Edgestar CWR262DZ (dual-zone)
Temperature goal Moderate, steady Colder for ready-to-drink Upper zone 54°F to 64°F; lower zone 40°F to 54°F
Typical contents Wine bottles Cans, beer, water, mixers Split wine and beverages by zone
Storage layout Bottle-friendly racks Adjustable shelves Use the zone and shelving that fits the drink
Setup tips that affect temperature and performance

These steps help either type of cooler hold temperature and run normally.

  • Keep the cabinet level so the door seals evenly
  • Leave the required ventilation space, even for built-in installs
  • Keep it away from heat sources and direct sunlight
  • Limit long or frequent door openings
  • Put in only room-temperature items (do not load hot bottles)
Why it matters

Using the right temperature range protects taste. Wine benefits from stable, moderate storage; beverages taste best colder, and colder storage helps maintain carbonation.

Where to confirm exact operation and clearances

For control-panel steps, temperature behavior, and installation clearance requirements, use the CWR262DZ owner's manual. For model-based parts lookup by diagram, search by model on Sears PartsDirect.

Last updated: February 2026

Most wine coolers, including the Edgestar CWR262DZ, last 10 to 15 years with normal home use. Lifespan depends most on ventilation, ambient temperature, and how often the door is opened; steady conditions and routine cleaning help the compressor and controls last longer.

Typical lifespan and what affects it

A wine and beverage cooler is basically a small refrigeration system (compressor, condenser, evaporator, fans, controls). The parts that wear fastest are the compressor and fan motors, usually due to heat and restricted airflow.

  • Ventilation and clearance: poor airflow makes the unit run longer and hotter.
  • Room temperature: this model is designed to run where ambient temperature stays above 50°F and below 95°F.
  • Door openings: frequent openings add moisture and heat load.
  • Level installation: reduces vibration and noise and helps the door seal.
  • Cleanliness: dust buildup and spills increase run time and corrosion risk.
How to get the longest life from an Edgestar CWR262DZ

Use these habits to reduce compressor run time and prevent icing.

  • Keep the cooler in a well-ventilated indoor location (not in direct sun or next to an oven).
  • Minimize door openings; confirm the door closes fully each time.
  • Keep the door gasket clean so it seals tightly.
  • Let warm bottles/cans cool to room temperature before loading.
  • Defrost and wipe down the interior when frost builds up.
  • If you power the unit off, wait at least 5 minutes before turning it back on.
Quick reference: what “normal” looks like
What you notice Usually normal Usually shortens lifespan
Compressor cycles on/off Yes, especially after door openings Rapid cycling all day from heat or poor airflow
Temperature varies slightly Yes Large swings from frequent openings or warm room
Frost appears Light frost can happen Heavy frost from humid room or frequent openings
Why it matters

A wine cooler that runs hot or runs constantly ages faster and struggles to hold set temperatures. Keeping the CWR262DZ within its recommended ambient range and giving it proper ventilation protects cooling performance and extends service life; see the safety, operation, and troubleshooting guidance in the CWR262DZ owner's manual.

For replacement parts and model lookups, start with the parts list for CWR262DZ, or search by model on Sears PartsDirect.

Last updated: February 2026

The most common wine cooler problem is inconsistent cooling (the unit will not reach or hold the set temperature). On the Edgestar CWR262DZ, this is most often tied to installation and airflow issues such as warm room conditions, frequent door openings, poor door sealing, or not enough ventilation clearance (all of which make the compressor run harder and temperatures swing). See the owner's manual for the model’s operating and troubleshooting checks.

Most common causes (and what to check first)
  • Room temperature too warm: Keep the cooler in a well-ventilated area between 50°F and 95°F ambient.
  • Door opened too often or left open: Limit openings and confirm the door fully closes every time.
  • Door gasket not sealing: Look for gaps, tears, or debris on the gasket that prevents a tight seal.
  • Insufficient ventilation clearance: Make sure the unit has the recommended airflow space around it.
  • Heat sources nearby: Avoid placing the cooler near ovens, grills, or direct sunlight.
Quick troubleshooting steps for temperature fluctuations
  1. Verify the cooler is upright and level; an unlevel cabinet can affect door sealing and noise.
  2. Confirm the door closes squarely and the gasket seals all the way around.
  3. Reduce door openings for 24 hours and recheck temperature stability.
  4. Move the unit away from heat sources and confirm the room stays within the recommended ambient range.
  5. If the unit cycles on and off frequently, recheck ventilation clearance and door sealing.
Symptom-to-cause guide
Symptom Most likely cause What to do
Won’t reach set temp Warm room, heat source nearby, poor ventilation Improve placement, airflow, and ambient conditions
Temp swings Frequent door openings, gasket leak Minimize openings; clean/inspect gasket
Runs a lot Door not fully closed, warm room Confirm closure; stabilize room temperature
Frost forming Humid environment, door opened often Open less; keep door sealed
Why it matters

Wine and beverages store best when temperature stays steady. When airflow is restricted or the door seal leaks, the compressor and fans work harder, temperatures fluctuate, and you can see frost, excess cycling, and uneven cooling.

Parts and model lookup

If you need replacement parts for your Edgestar CWR262DZ wine cooler, we recommend searching by the full model number to match the correct components and diagrams on Sears PartsDirect.

Last updated: February 2026
