Model # 20-140 Official Delta 14" cutoff saw

Here are the diagrams and repair parts for Official Delta 20-140 14" cutoff saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Clamp 1341308
#10

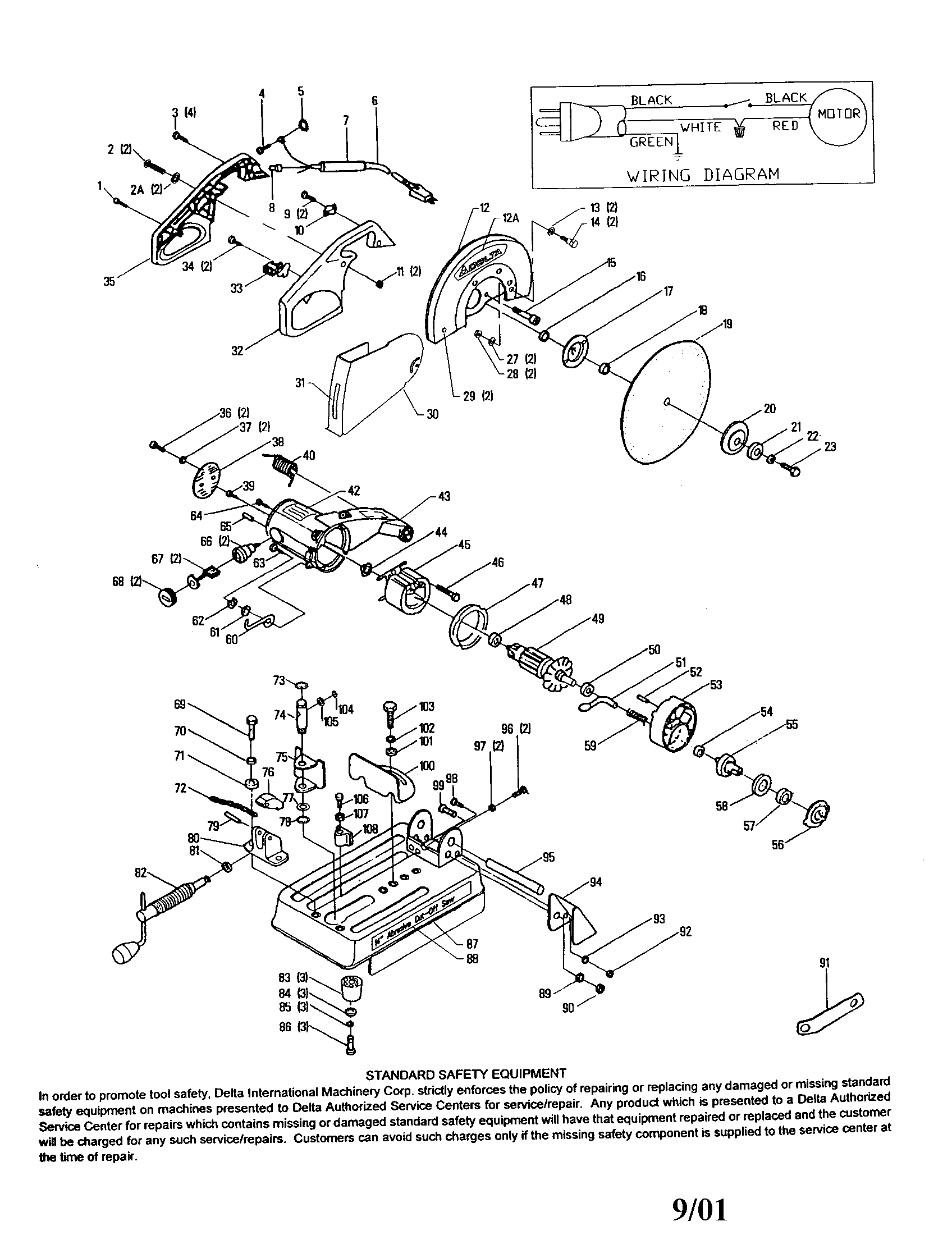

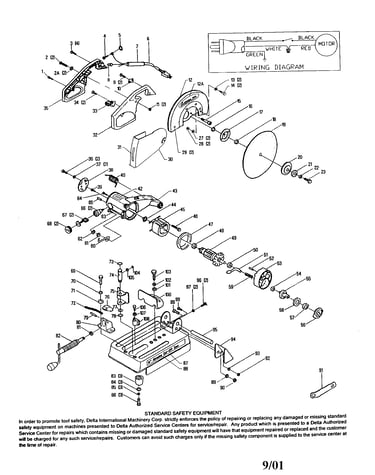

14" cut-off saw diagram

Clamp

Part #1341308

The manufacturer no longer makes this part, and there's no substitute part

Handle Rt 1341311
#32

14" cut-off saw diagram

Handle rt

Part #1341311

The manufacturer no longer makes this part, and there's no substitute part

Band Saw Foot Cap Screw 1246017
#106

14" cut-off saw diagram

Band saw foot cap screw

Part #1246017

The manufacturer no longer makes this part, and there's no substitute part

Handle Lt 1341310
#35

14" cut-off saw diagram

Handle lt

Part #1341310

The manufacturer no longer makes this part, and there's no substitute part

Screw 1246018
Screw

Part #1246018

The manufacturer no longer makes this part, and there's no substitute part

Spring 1341284
#40

14" cut-off saw diagram

Spring

Part #1341284

The manufacturer no longer makes this part, and there's no substitute part

Screw 1343265
#46

14" cut-off saw diagram

Screw

Part #1343265

The manufacturer no longer makes this part, and there's no substitute part

Housing 1341285
#43

14" cut-off saw diagram

Housing

Part #1341285

The manufacturer no longer makes this part, and there's no substitute part

Washer 1243502
Washer

Part #1243502

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 1341287
#45

14" cut-off saw diagram

Field assembly

Part #1341287

The manufacturer no longer makes this part, and there's no substitute part
