Schwinn AD4 cycle Parts

Here are the diagrams and repair parts for Schwinn AD4 cycle, as well as links to manuals and error code tables, if available.

Schwinn AD4 cycle
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forAD4 Fitness & Exercise

  • Roller Bearing With Snap Ring for Schwinn AD4 - Part 91055

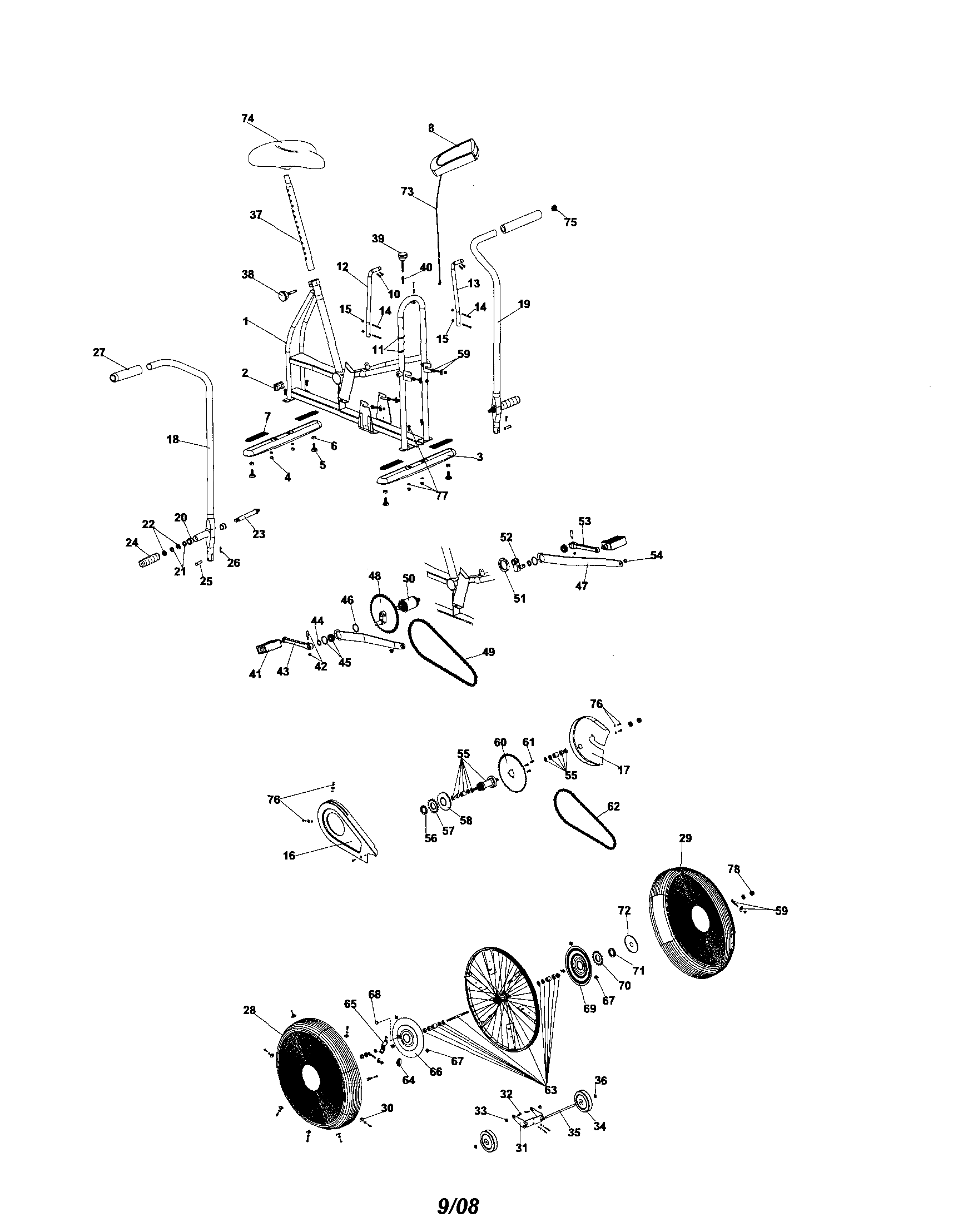

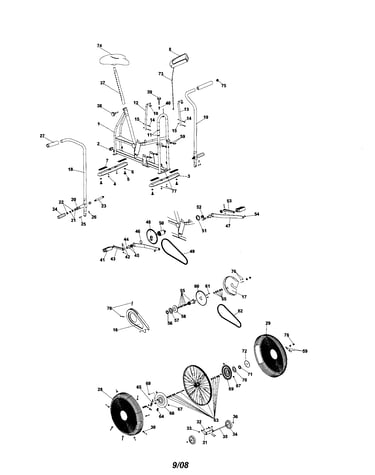

    Cycle diagram

    Roller Bearing With Snap Ring

    Part #91055

    The manufacturer no longer makes this part, and there's no substitute part

  • Exercise Cycle Lever Arm Lock Washer for Schwinn AD4 - Part 90482

    Cycle diagram

    Exercise Cycle Lever Arm Lock Washer

    Part #90482

    The manufacturer no longer makes this part, and there's no substitute part

  • Pivot Bolt for Schwinn AD4 - Part 90484

    Cycle diagram

    Pivot Bolt

    Part #90484

    The manufacturer no longer makes this part, and there's no substitute part

  • Exercise Cycle Wedge Pin for Schwinn AD4 - Part 90821

    Cycle diagram

    Exercise Cycle Wedge Pin

    Part #90821

    The manufacturer no longer makes this part, and there's no substitute part

  • Exercise Cycle Stabilizer for Schwinn AD4 - Part 98632

    Cycle diagram

    Exercise Cycle Stabilizer

    Part #98632

    The manufacturer no longer makes this part, and there's no substitute part

  • Computer Wire for Schwinn AD4 - Part 95535

    Cycle diagram

    Computer Wire

    Part #95535

    The manufacturer no longer makes this part, and there's no substitute part

  • Cotter Pin for Schwinn AD4 - Part 90810

    Cycle diagram

    Cotter Pin

    Part #90810

    The manufacturer no longer makes this part, and there's no substitute part

  • Exercise Cycle Lever Arm Bushing for Schwinn AD4 - Part 90481

    Cycle diagram

    Exercise Cycle Lever Arm Bushing

    Part #90481

    The manufacturer no longer makes this part, and there's no substitute part

  • Lft Crnk for Schwinn AD4 - Part 90841

    Cycle diagram

    Lft Crnk

    Part #90841

    The manufacturer no longer makes this part, and there's no substitute part

  • Exercise Cycle Lever Arm Lock Nut for Schwinn AD4 - Part 90483

    Cycle diagram

    Exercise Cycle Lever Arm Lock Nut

    Part #90483

    The manufacturer no longer makes this part, and there's no substitute part
