Whirlpool WRF555SDFZ12 refrigerator Parts

For many households, yes: a bottom-mount refrigerator like the Whirlpool WRF555SDFZ12 keeps fresh-food items at eye and waist level, so daily-use groceries are easier to see and reach while the freezer stays in a lower pull-out drawer. That layout typically improves convenience and organization.

What “better” usually means with a bottom-mount design

Bottom-mount models tend to fit the way most people use a refrigerator day to day.

• Fresh-food section is higher, so you bend less for milk, produce, and leftovers
• Freezer drawer can hold bulky items and stacks well with baskets/dividers
• Wide shelves make it easier to store platters and meal-prep containers
• Door bins are easy to access for condiments and beverages
• Better visibility reduces forgotten food and helps limit temperature swings from long door-open time

Trade-offs to consider

A bottom-mount is not automatically the best choice for every kitchen or user.

What you care about most	Bottom-mount tends to be best when…	Another style may be better when…
Ergonomics	You use the fresh-food section most often	You access frozen foods constantly
Freezer access	You like a deep drawer for bulk storage	You prefer shelves at eye level (upright freezer)
Organization	You want wide shelves and clear sight lines	You want narrow zones and quick grab-and-go
Maintenance	You are comfortable with periodic filter changes	You want the simplest water system (no dispenser/filter)

Model-specific notes for Whirlpool WRF555SDFZ12

This model’s setup and performance depend heavily on correct placement and leveling.

• Allow ventilation clearance: about 1/2 inch on the sides and top, and about 1 inch behind
• If installed next to a fixed wall, leave about 3 3/4 inches so the door can swing open
• If doors do not close easily, adjust the front leveling screws to tilt the cabinet slightly to the rear

For the exact installation and door-adjustment steps, follow the WRF555SDFZ12 owner’s manual.

Why it matters

A refrigerator that matches your daily habits (fresh-food-first vs freezer-first) is easier to live with, helps the doors stay closed properly, and supports steadier temperatures. Proper clearances and leveling also reduce warm spots, moisture issues, and door-seal wear over time.

Last updated: February 2026

No. On Whirlpool refrigerator model WRF555SDFZ12, the cardboard you see underneath is used as floor protection when moving the unit; it is not packaging to remove. Keep any factory bottom covers in place because they help protect components and support proper airflow. See the WRF555SDFZ12 owner's manual for handling and care guidance.

What cardboard should be removed vs. left in place

Use this quick check before pulling anything off the refrigerator:

• Remove loose shipping materials (tape, foam blocks, plastic wrap) that are clearly temporary.
• Leave in place any rigid panel or cover that looks fastened or integrated into the base.
• Leave in place any rear lower cover or panel that shields the compressor/condenser area.
• Remove the cardboard you place under the refrigerator while sliding it out for cleaning (that is just to protect your floor).

Safe way to move the refrigerator for cleaning or service

Our recommended approach matches the care instructions for moving this model:

• Unplug the refrigerator before moving it.
• Protect the floor with cardboard or hardboard.
• Pull the refrigerator straight out; do not “walk” or wiggle it.
• Use two or more people to move it safely.

Quick decision table

What you’re looking at	Typical location	What to do
Loose cardboard sheet used to slide the fridge	Under front wheels/feet during moving	Remove after positioning
Fastened bottom/rear cover panel	Back or underside near compressor area	Leave installed
Temporary tape/foam used for shipping	Around doors, shelves, drawers	Remove

Why it matters

Leaving factory covers and shields in place helps protect wiring and refrigeration components and supports proper airflow for efficient cooling. Removing the wrong piece can lead to noise, poor cooling, or damage.

If you need replacement parts for your WRF555SDFZ12 (for example, a filter, water EDR4RXD1 or refrigerator ice maker assembly WPW10300024), you can order from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common Whirlpool refrigerator problem is a cooling issue (warm fridge, warm freezer, or temperature swings) caused by restricted airflow or heat not being released properly. On the Whirlpool WRF555SDFZ12, the next most frequent complaint is ice maker or water dispenser trouble tied to the water supply, filter, or inlet valve; use the WRF555SDFZ12 owner's manual for model-specific checks.

Most common symptoms we see

• Fresh food section too warm but freezer seems OK
• Frost buildup on the back wall or evaporator cover
• Ice maker not making ice, slow ice production, or hollow cubes
• Water dispenser flow is weak or sputters
• Water puddles under the refrigerator (often a drain issue)

Quick checks that fix many “no cool” and “poor ice” calls

1. Confirm airflow: Don’t block interior vents with food packages.
2. Clean condenser coils (if accessible): Dust buildup raises temps and run time.
3. Check door sealing: A poor seal lets in warm, moist air that drives frost and temp swings.
4. Verify water supply (for ice and water): Use a cold water line and check for leaks.
5. Replace the water filter on schedule: A clogged filter commonly reduces dispenser flow and can affect ice fill.

Parts that commonly solve the underlying cause (when checks don’t)

Problem area	What fails most often	Part for WRF555SDFZ12
Weak water flow, ice maker not filling	Clogged filter	Filter, water EDR4RXD1
No ice, slow fill, dispenser issues	Water inlet valve not opening fully	Valve-dual w W11043013
Erratic temps, false temp readings	Temperature sensor (thermistor)	Refrigerator thermistor W10316760

Why it matters

Cooling and ice maker problems usually get worse over time. A warm refrigerator can lead to food spoilage, and a restricted water path can strain the inlet valve and reduce ice production. Addressing airflow, sealing, and filtration early keeps temperatures stable and helps the sealed system run efficiently.

Helpful DIY guidance

• Use Whirlpool refrigerator error codes to interpret control or sensor-related faults.
• Follow how to replace the water filter in a Whirlpool refrigerator for filter location, flushing, and reset tips.

You can order replacement parts for your Whirlpool WRF555SDFZ12 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Bottom-freezer refrigerators like the Whirlpool WRF555SDFZ12 keep fresh food at eye level, but the tradeoffs are a harder-to-reach freezer, bulkier drawer storage, and a higher chance of drain or ice-related maintenance compared with simpler top-freezer designs. For model-specific use and care details, use the WRF555SDFZ12 owner's manual.

Common disadvantages you may notice

• More bending for frozen foods: You access the freezer from a low drawer, so heavy items (meat, bulk bags, ice) require more lifting.
• Deep drawer organization: Items can stack and get buried; it is easy to forget what is in the bottom.
• Freezer access is slower: A full-width drawer often needs more clearance to open than a swing door.
• More moisture and drain maintenance: Bottom-freezer designs commonly deal with frost, defrost water routing, and drain clogs that can lead to puddles.
• Ice and water complexity (if equipped): Dispensers, filters, valves, and ice makers add parts that can need periodic service.

What this means for day-to-day use

If you do this often	Bottom-freezer impact	Practical workaround
Grab frozen items multiple times a day	More bending and longer access time	Keep “daily use” items in top freezer basket/bin
Buy bulk frozen foods	Drawer can get crowded and hard to sort	Use labeled bins to separate categories
Notice water on the floor	Drain/defrost issues are more likely	Check for ice buildup and clear the drain path
Use ice/water frequently	More components to maintain	Replace the water filter on schedule

Parts that commonly relate to these drawbacks

If you are troubleshooting ice or water performance on the WRF555SDFZ12, these model-matched parts are often involved:

• Filter, water EDR4RXD1 (water taste/flow, dispenser performance)
• Valve-dual w W11043013 (no water to dispenser or ice maker)

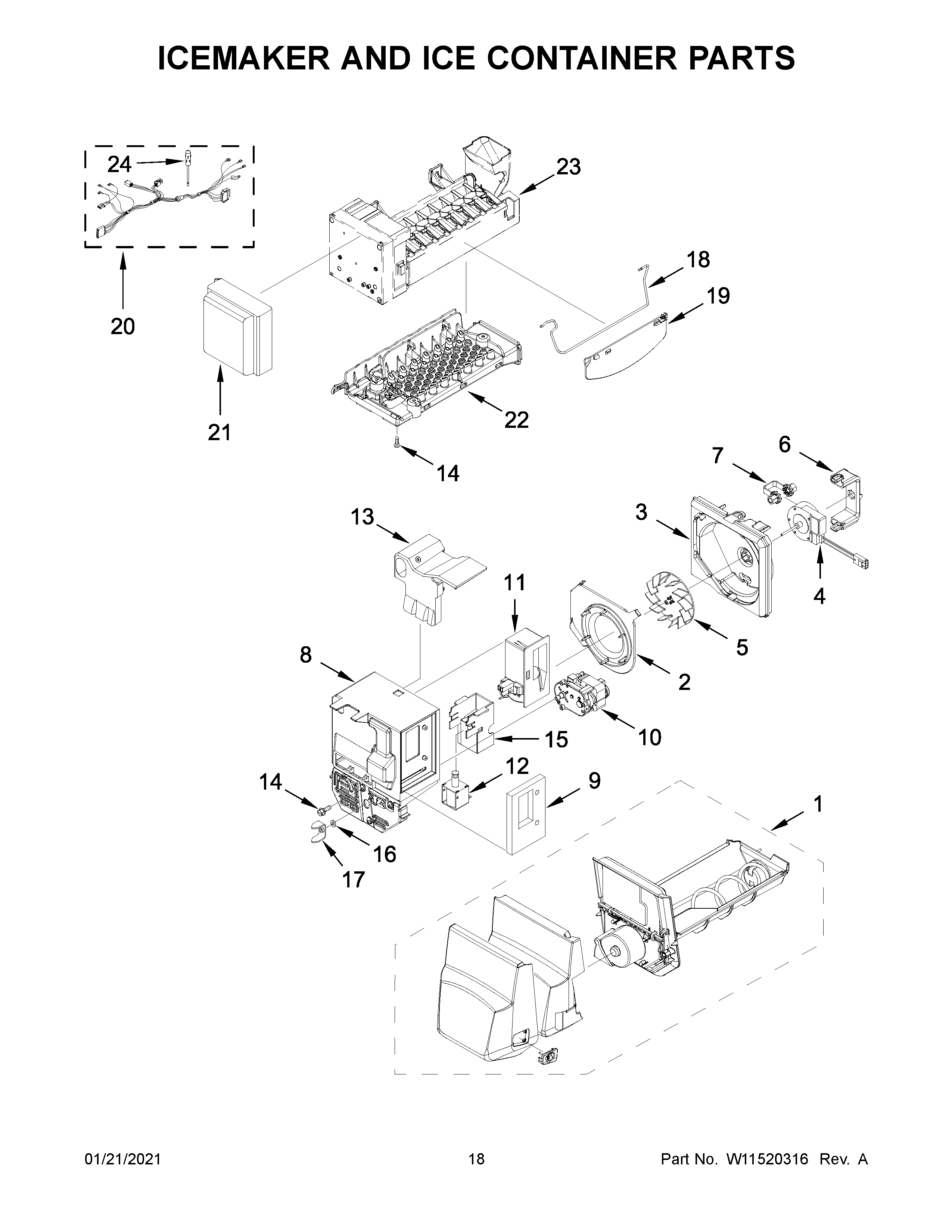

• Refrigerator ice maker assembly WPW10300024 (no ice, small cubes, intermittent harvest)
• Whirlpool refrigerator door gasket, right (gray) W10830055 (warm spots, frost, moisture)

Why it matters

Most “disadvantages” come down to ergonomics and maintenance. If your household uses the refrigerator section far more than the freezer, bottom-freezer models are usually a good fit. If you live out of the freezer drawer or store heavy frozen items, the bending and drawer organization can become a daily annoyance.

Last updated: February 2026
