Maytag LAT8705AAM washer/dryer Parts
Here are the diagrams and repair parts for Maytag LAT8705AAM washer/dryer, as well as links to manuals and error code tables, if available.

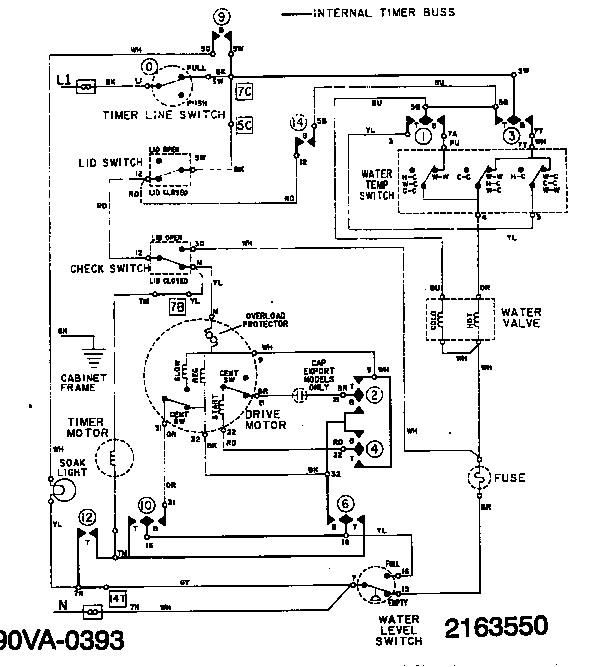

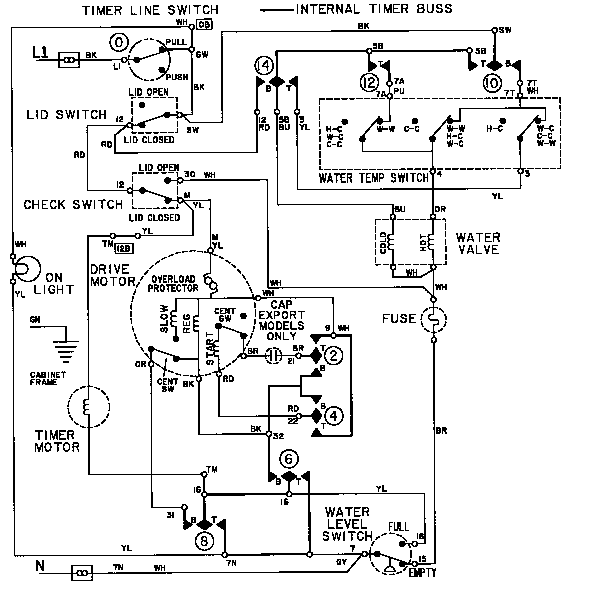

Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for LAT8705AAM Washer/Dryer
Control panel diagram
Washer Timer
Part #22001638
The manufacturer no longer makes this part, and there's no substitute part
Water Tube
Part #22001036Replaced by #WP22001619
Manufacturer substitutionThis part replaces 22001036. Substitute parts can look different from the original.In Stock$46.7435% OFF Was : $72.12
Qty
Hose Clamp
Part #202574Replaced by #WP3367052
Manufacturer substitutionThis part replaces 202574. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyCabinet diagram

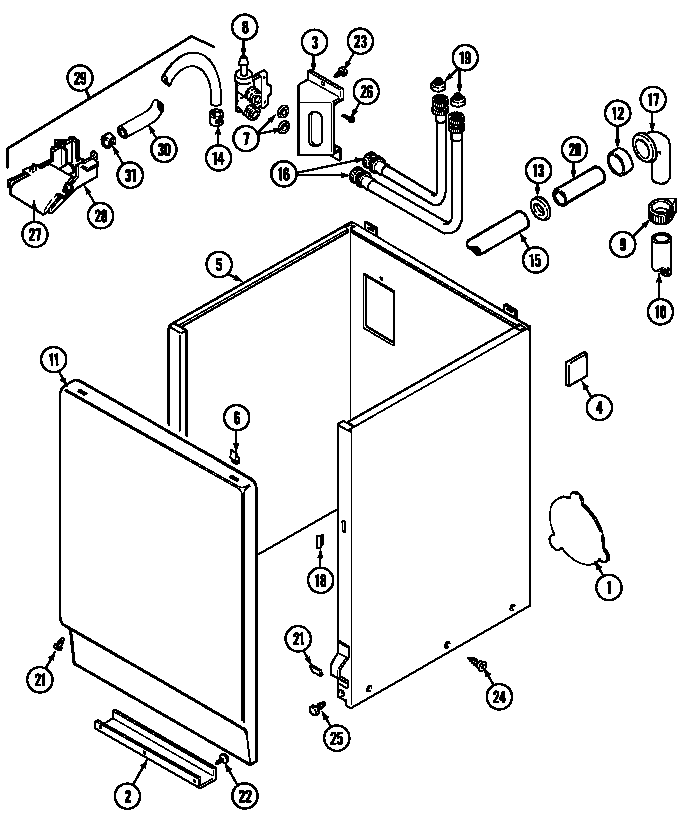

Hose Clamp
Part #216170Replaced by #WP489503
Manufacturer substitutionThis part replaces 216170. Substitute parts can look different from the original.This item is not returnableIn Stock$9.3710% OFF Phone Price : $10.37QtyBase diagram
Screw, Hex H
Part #211880Replaced by #WPY014874
Manufacturer substitutionThis part replaces 211880. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyScrew
Part #315483Replaced by #WP489128
Manufacturer substitutionThis part replaces 315483. Substitute parts can look different from the original.This item is not returnableIn Stock$9.4510% OFF Phone Price : $10.45QtyControl panel diagram
Washer Timer
Part #22001026
The manufacturer no longer makes this part, and there's no substitute part

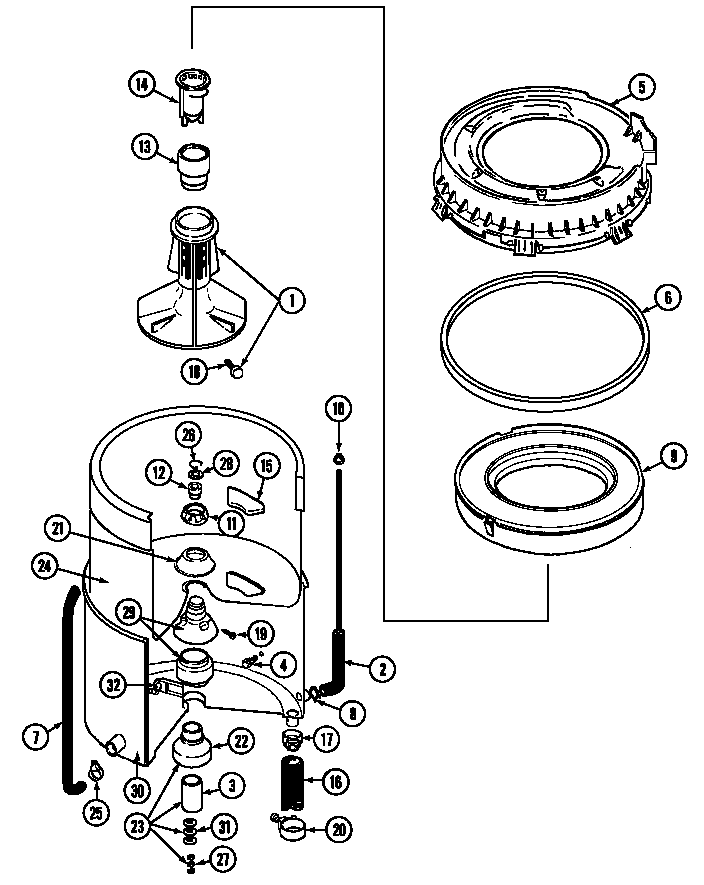

Tub diagram
Bleach Clamp
Part #205161Replaced by #WP489503

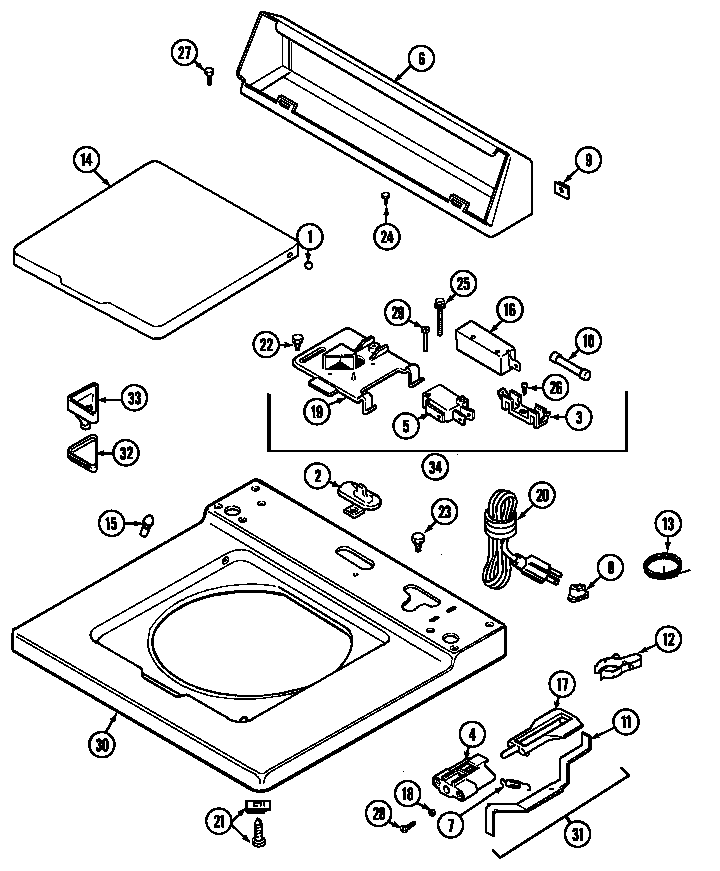

Manufacturer substitutionThis part replaces 205161. Substitute parts can look different from the original.This item is not returnableIn Stock$9.3710% OFF Phone Price : $10.37QtyTop diagram
Screw
Part #216423Replaced by #WP489128

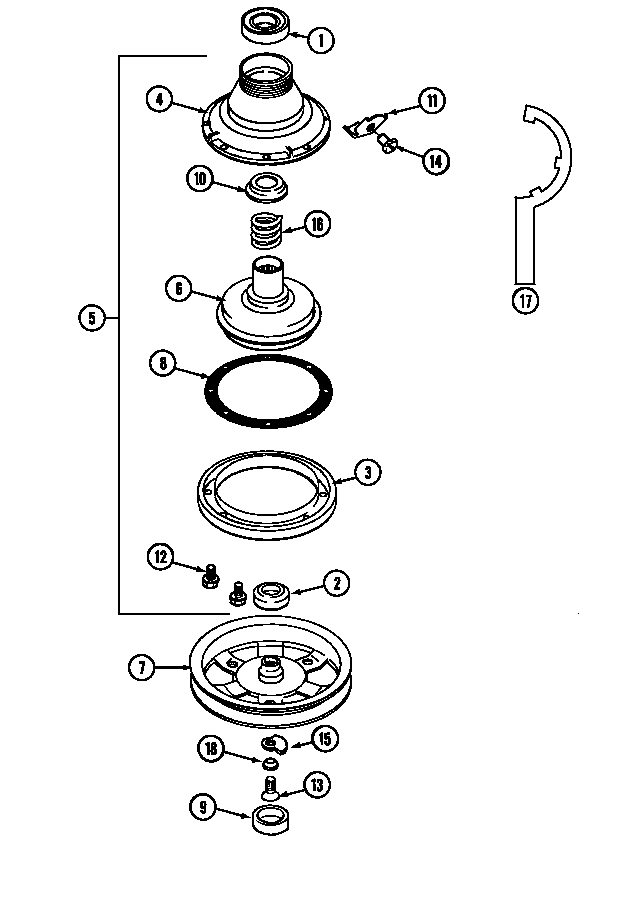

Manufacturer substitutionThis part replaces 216423. Substitute parts can look different from the original.This item is not returnableIn Stock$9.4510% OFF Phone Price : $10.45QtyClutch, brake & belts diagram
Screw,hex He
Part #211000Replaced by #WP8281227
Manufacturer substitutionThis part replaces 211000. Substitute parts can look different from the original.This item is not returnableIn Stock$9.4810% OFF Phone Price : $10.48Qty
