Model # 973114240 Official Craftsman 14.4-v cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 973114240 14.4-v cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

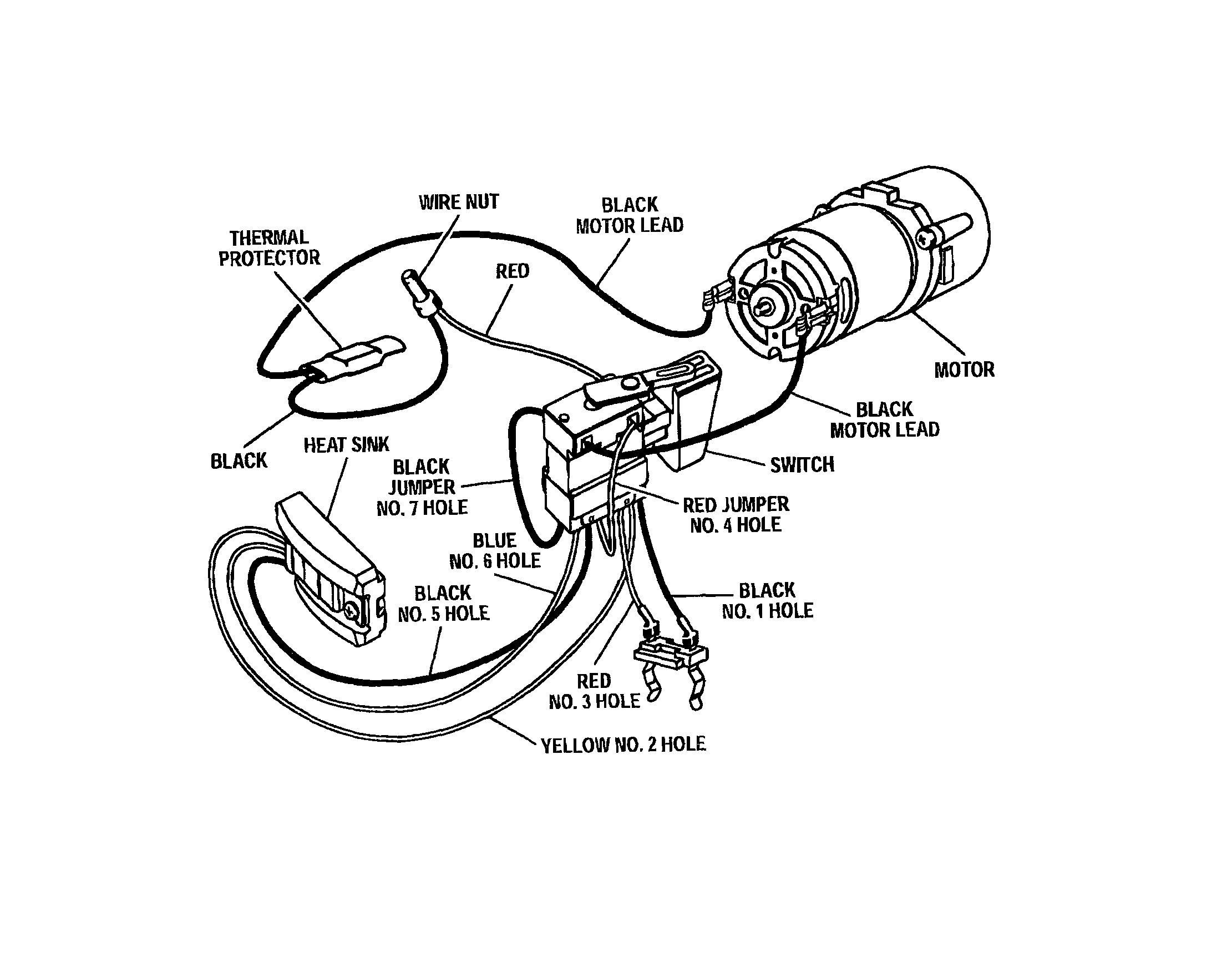

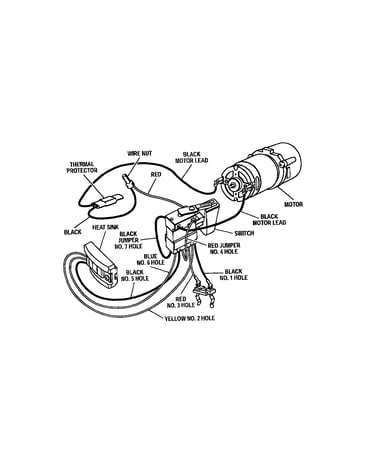

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |

Clutch Washer 974356-000
#5

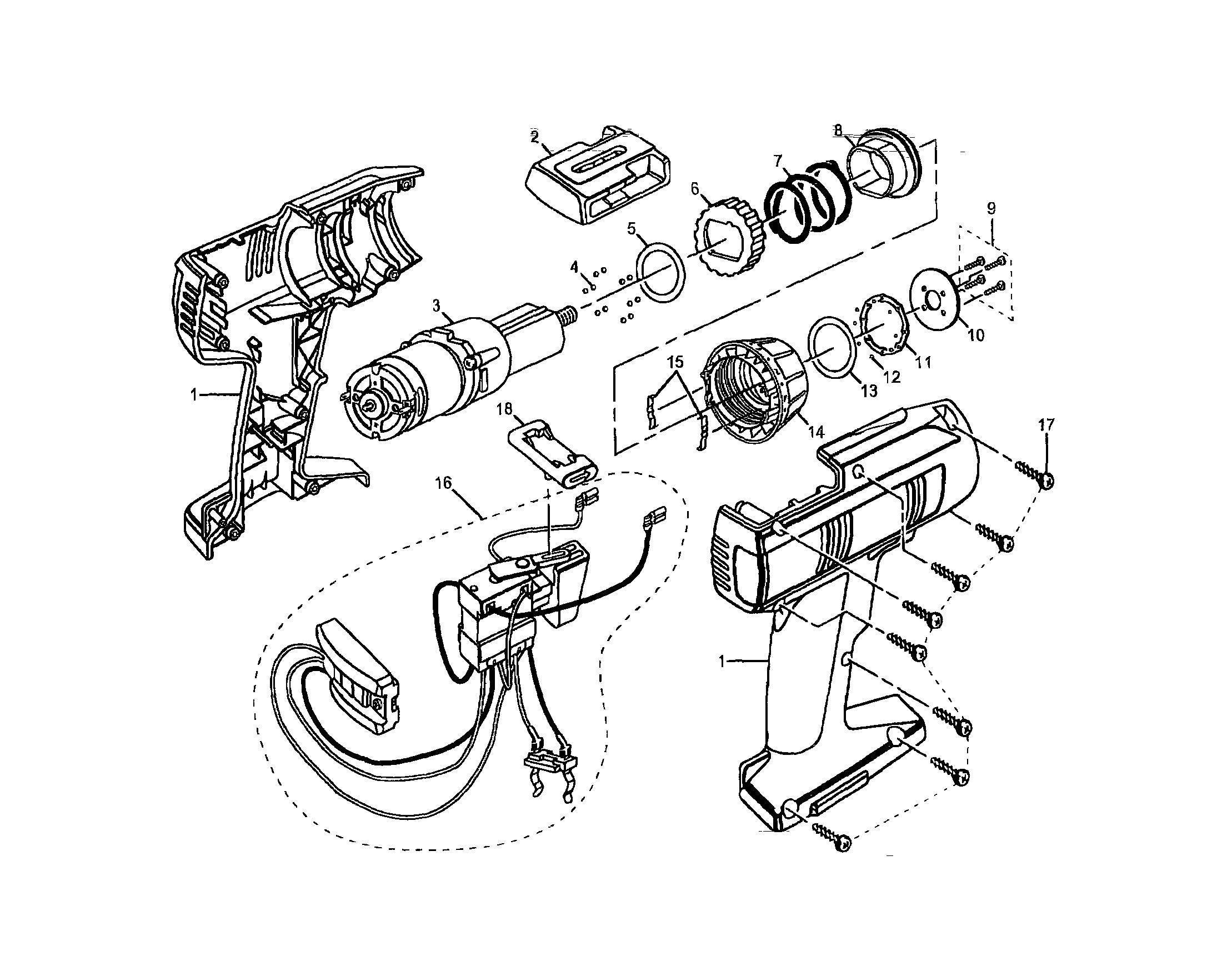

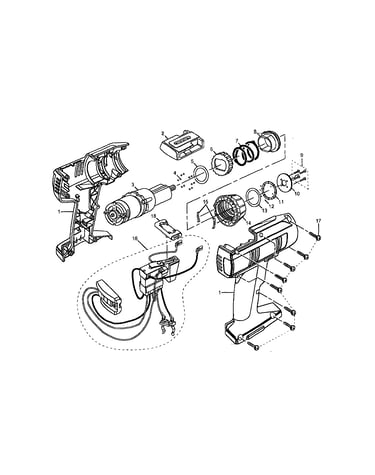

Housing and motor diagram

Clutch washer

Part #974356-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 974367-000
#4

Housing and motor diagram

Screw

Part #974367-000

The manufacturer no longer makes this part, and there's no substitute part

Cl Balls 974366-000
#12

Housing and motor diagram

Cl balls

Part #974366-000

The manufacturer no longer makes this part, and there's no substitute part

Hub 974358-000
#8

Housing and motor diagram

Hub

Part #974358-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 974349-000
#17

Housing and motor diagram

Screw

Part #974349-000

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 981480-001
#3

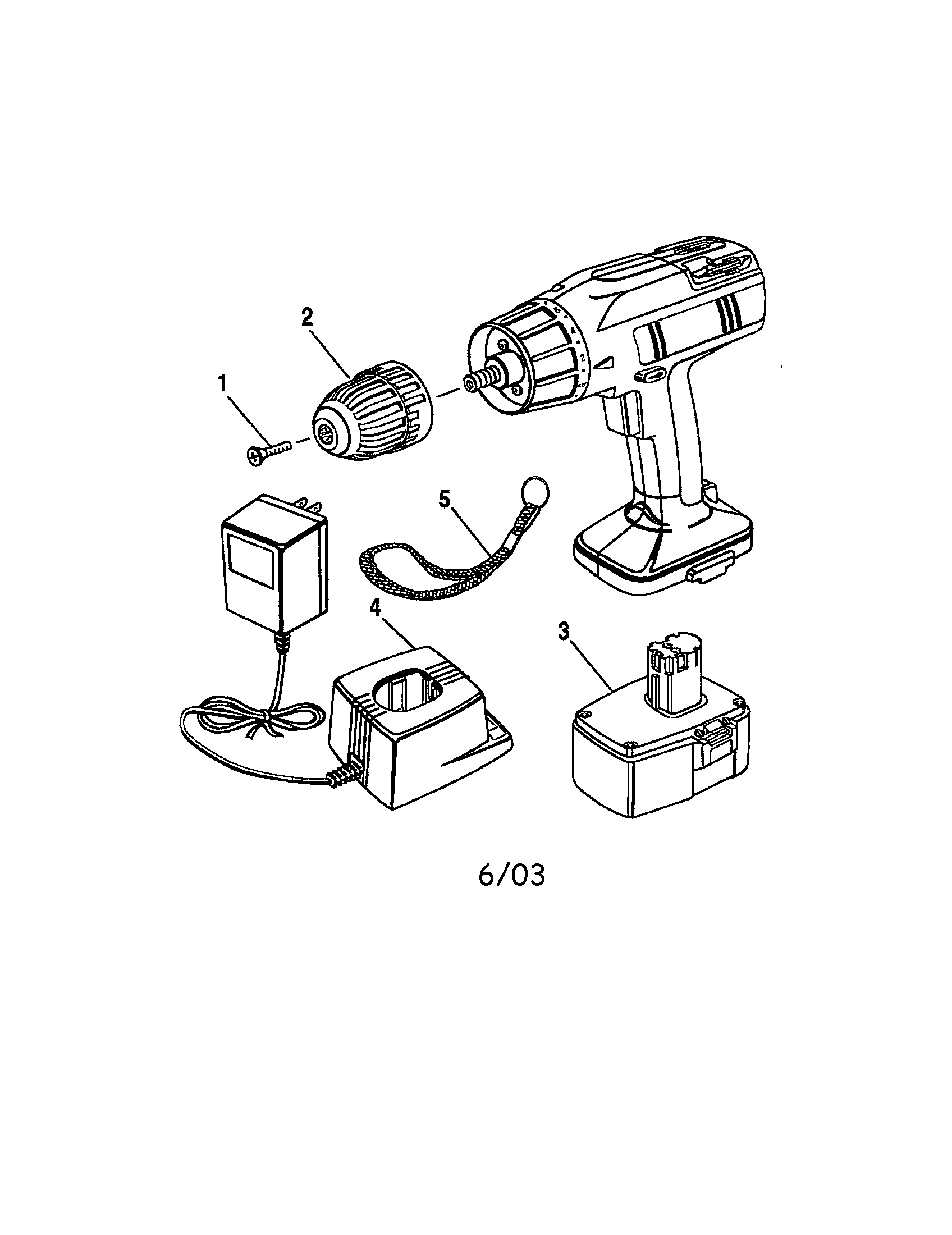

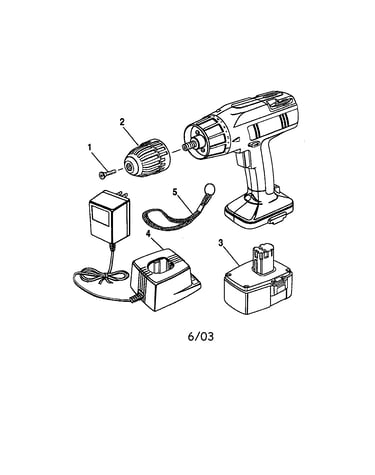

Chuck/battery pack/charger diagram

Battery pack

Part #981480-001

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver On/off Switch 2700944
#16

Housing and motor diagram

Drill/driver on/off switch

Part #2700944

The manufacturer no longer makes this part, and there's no substitute part

Strap 967216-007
#5

Chuck/battery pack/charger diagram

Strap

Part #967216-007

The manufacturer no longer makes this part, and there's no substitute part

Charger 981481-001
#4

Chuck/battery pack/charger diagram

Charger

Part #981481-001

The manufacturer no longer makes this part, and there's no substitute part

Spring 974357-000
#7

Housing and motor diagram

Spring

Part #974357-000

The manufacturer no longer makes this part, and there's no substitute part
