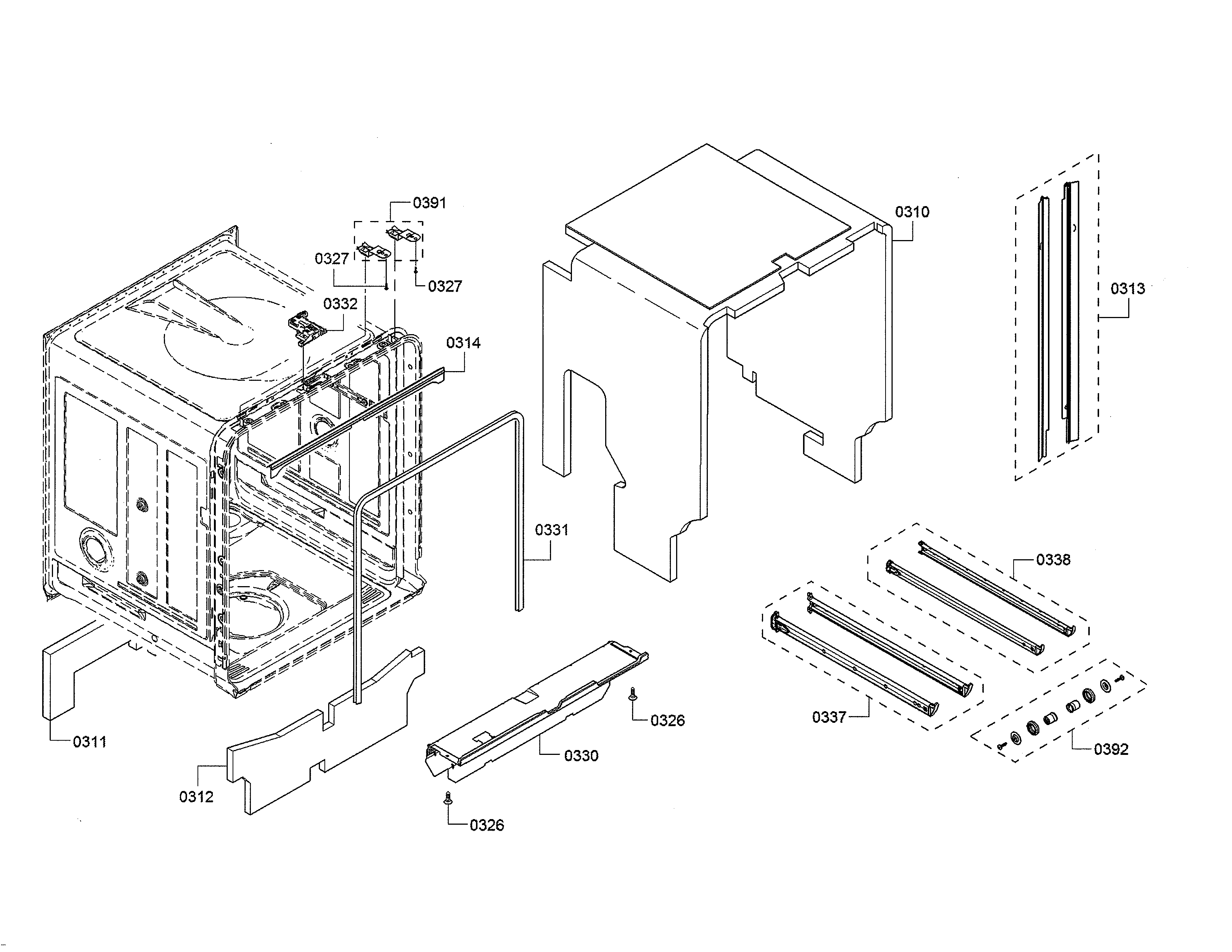

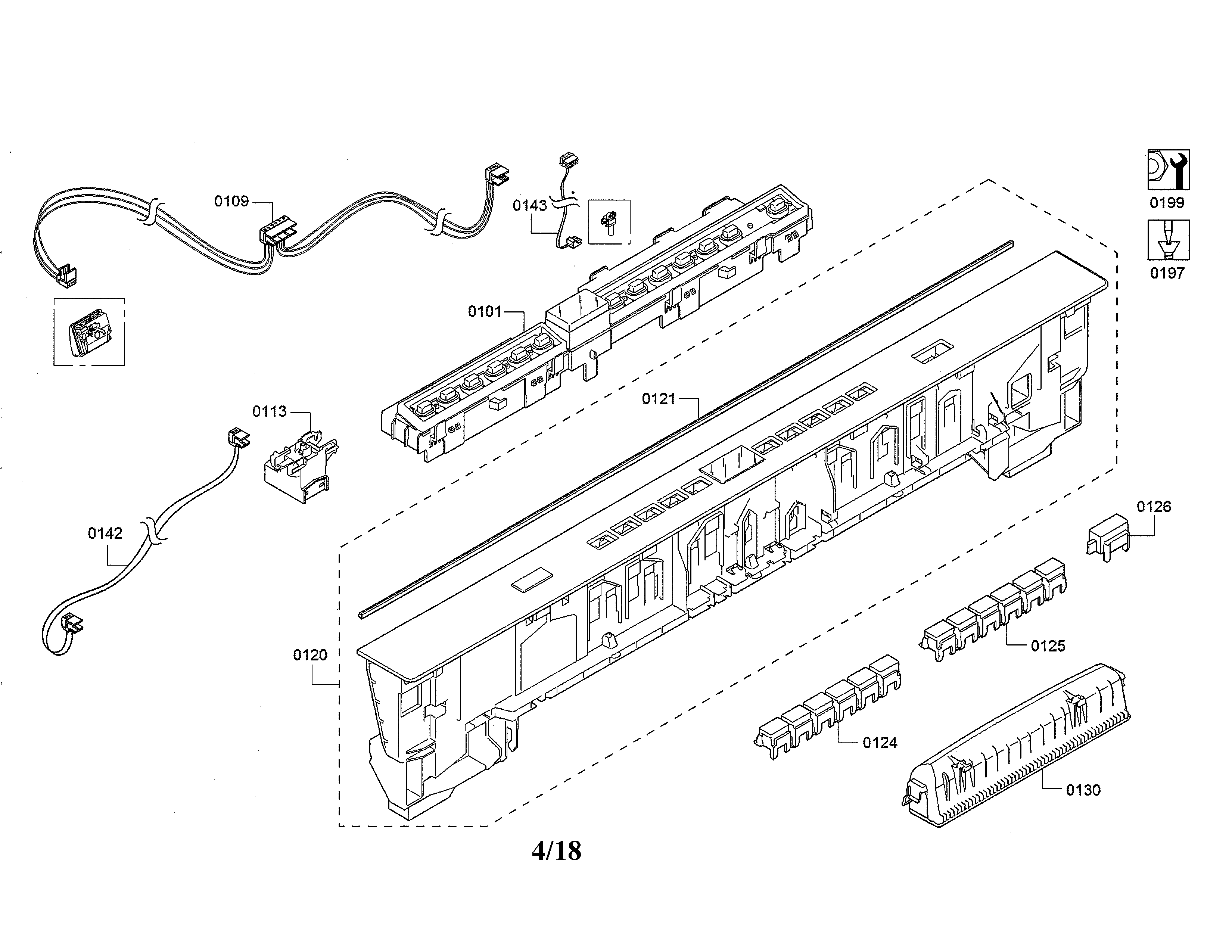

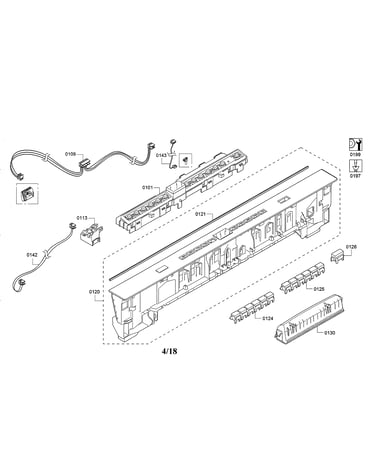

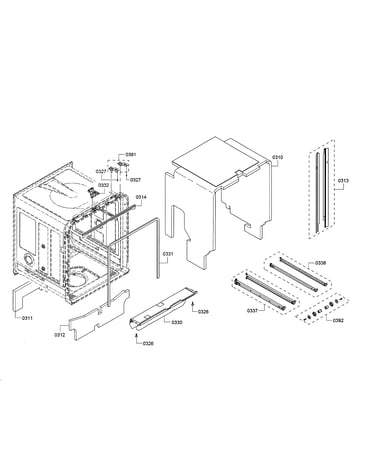

Bosch SHX863WD5N/01 dishwasher Parts

For Bosch dishwashers like model SHX863WD5N, the most common problems we see are maintenance-related: restricted water flow from a dirty filter or clogged spray arms, which leads to poor cleaning and sometimes draining complaints. When it is not maintenance, the next most common issues involve water fill or drain components.

Most common symptoms and what they usually point to

• Dishes come out dirty: clogged spray arm holes, blocked filter area, or weak circulation
• Standing water in the tub: drain path restriction, drain hose issue, or a failing drain pump
• Not filling or filling slowly: water supply issue or a failing inlet valve
• Detergent not dispensing well: dispenser door sticking or dispenser failure
• Odd wash performance (intermittent, changing spray): diverter problems or circulation issues

Quick checks we recommend first (no parts needed)

1. Clean the filter area and remove any debris (labels, glass, food).
2. Spin the spray arms by hand and clear clogged holes.
3. Confirm the sink drain is flowing freely and the disposer knockout (if present) is removed.
4. Check the drain hose routing for kinks and make sure it has a proper high loop.
5. Run a cleaning cycle and follow a regular maintenance routine using our guide: how to clean and maintain your dishwasher.

Common part fixes for SHX863WD5N when cleaning is not enough

If the basic checks do not restore normal operation, these are the parts most often involved:

Problem you notice	Part commonly involved	What it does

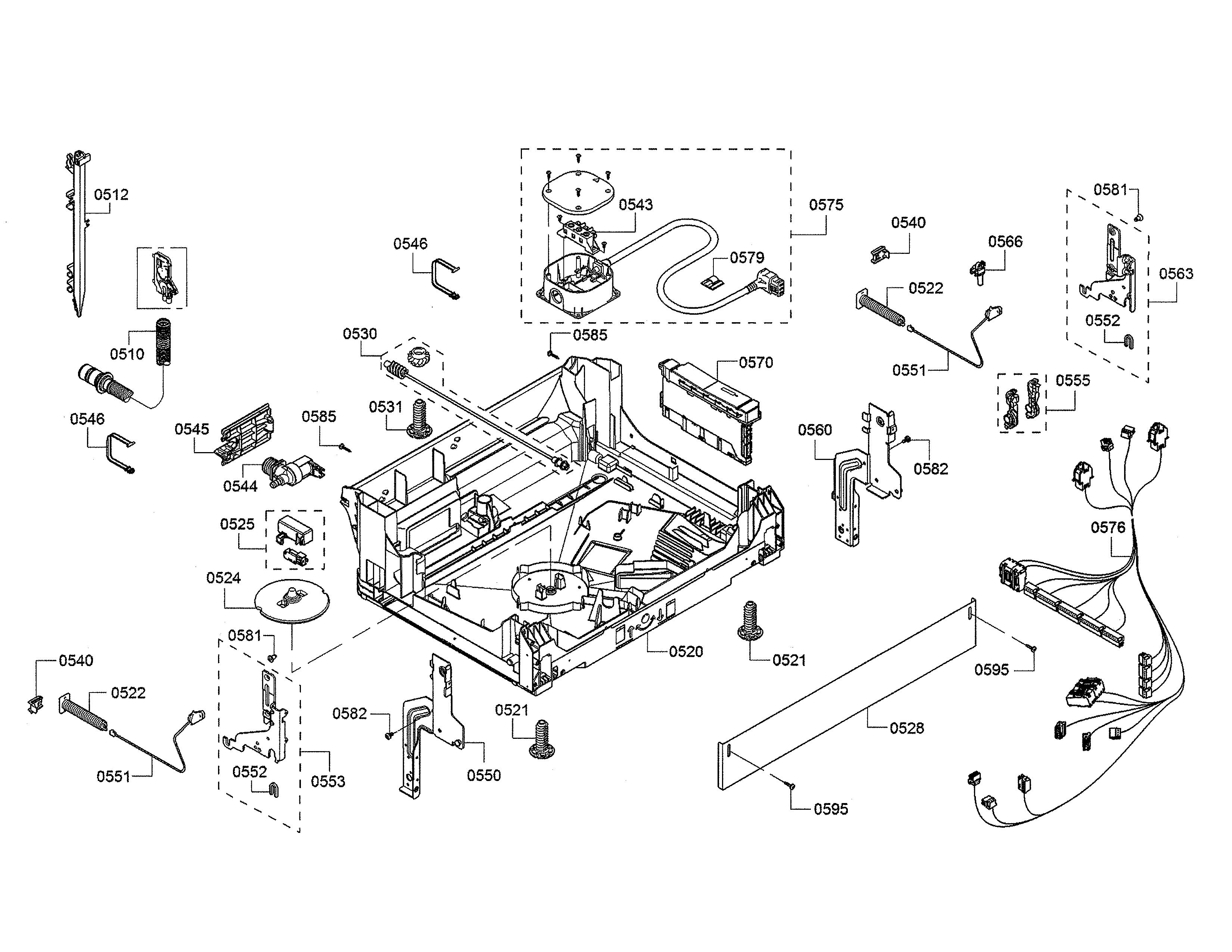

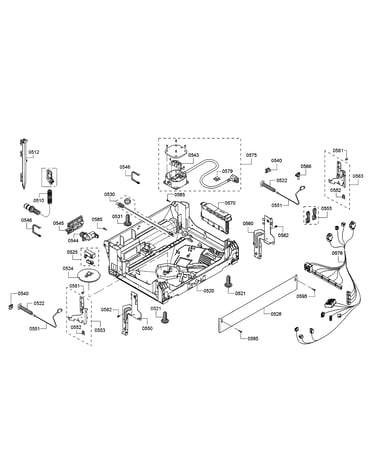

Won’t drain, water left behind	Dishwasher drain pump 00631200	Pumps water out to the drain

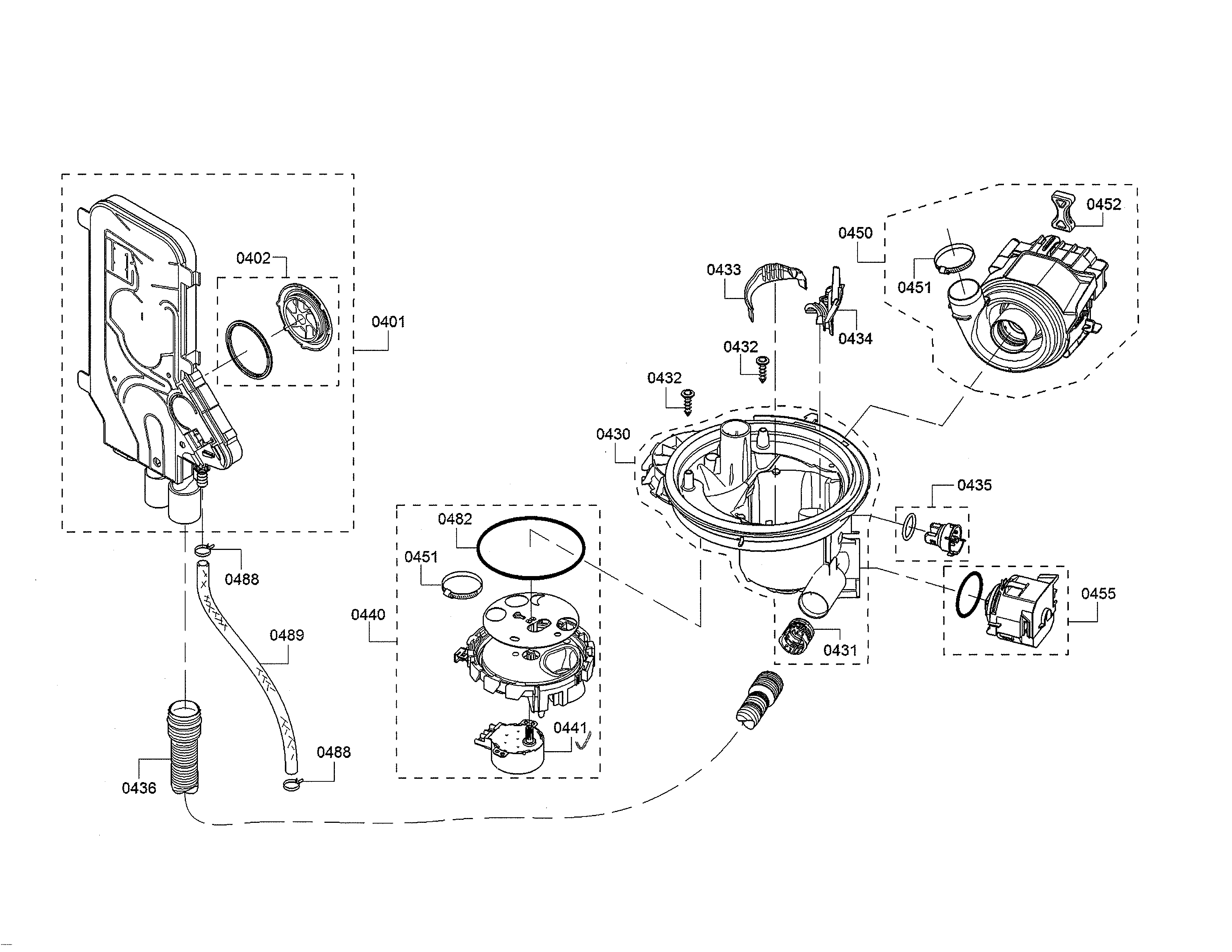

Not cleaning well, weak spray	Dishwasher circulation pump with heater 12008381	Drives wash pressure and heats water
Not filling or fills slowly	Dishwasher water inlet valve 10023852	Opens to let water into the dishwasher

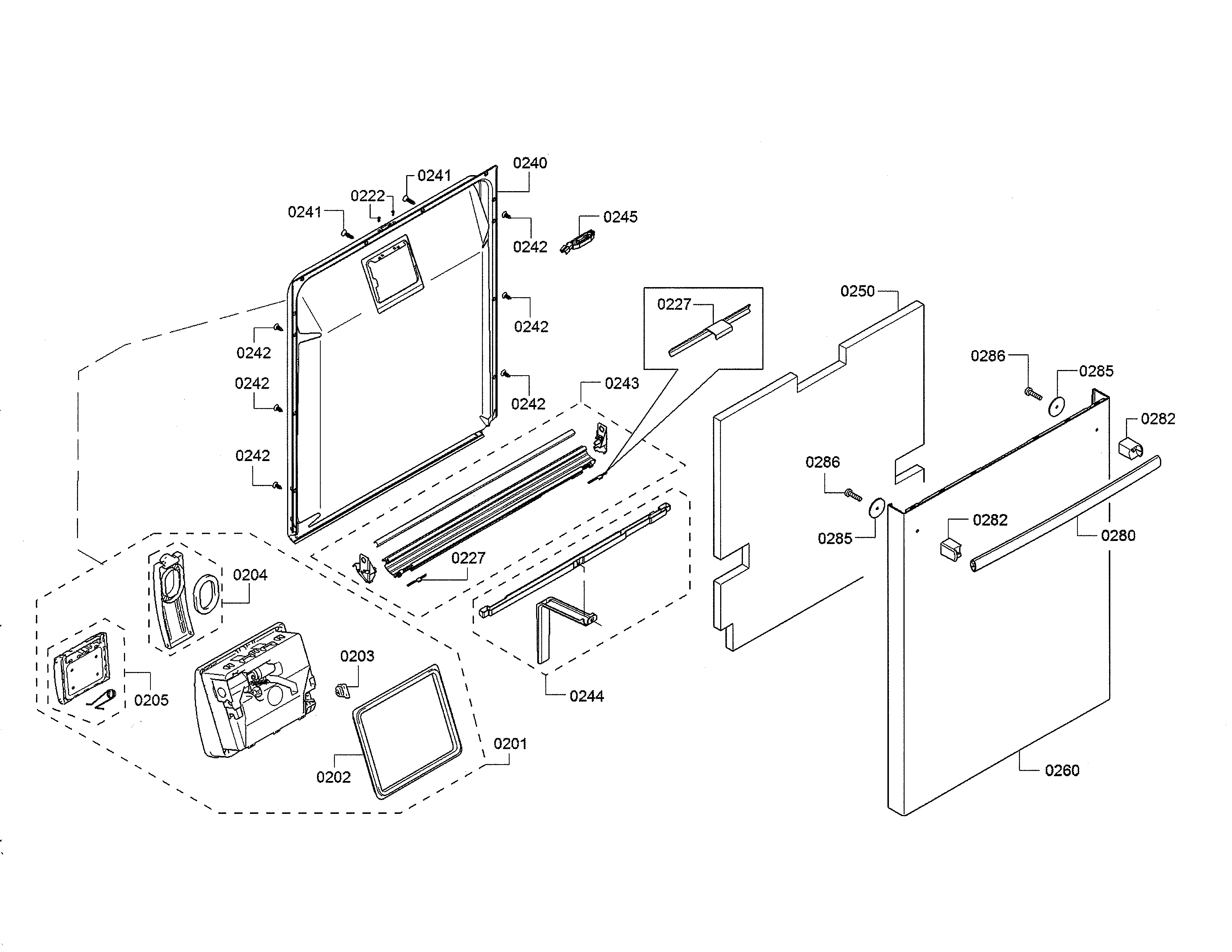

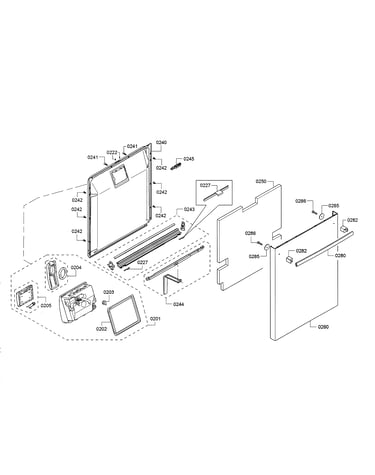

Detergent door issues	Dishwasher detergent dispenser assembly 12008380	Releases detergent at the right time

Why it matters

Most “Bosch dishwasher problems” start as restricted flow (dirty filter, clogged spray arms). Fixing that early prevents repeat wash issues and reduces strain on key components like the circulation pump and drain pump.

Ordering the right part

We recommend matching parts to your exact Bosch SHX863WD5N configuration using the parts list for this model; you can also search by model on Sears PartsDirect.

Last updated: February 2026

To reset your Bosch dishwasher model SHX863WD5N, press and hold Start (or Start/Reset) for about 3 to 5 seconds to cancel the cycle; the dishwasher will typically drain, then you can start a new wash. If it stays unresponsive, do a power reset at the breaker.

Quick reset steps (most common)

• Close the door fully and make sure the latch is engaged.
• Press and hold Start (or Start/Reset) for 3 to 5 seconds.
• Wait for the unit to cancel and drain (you may hear the drain pump run).
• When the display clears or returns to standby, select a new cycle and press Start.
• If the controls are locked, turn off Control Lock first (varies by Bosch series).

Hard reset (power reboot)

Use this when the keypad is frozen, the cycle will not cancel, or the dishwasher will not respond.

1. Turn the dishwasher OFF.
2. Turn OFF power at the breaker (or unplug if accessible).
3. Leave power off for 1 to 5 minutes.
4. Restore power, then start a normal cycle.

If “reset” does not fix the problem

A reset clears a stuck cycle, but it will not correct a drain, fill, or heating failure. These checks isolate the most common causes:

• Won’t drain after cancel: check the sink/disposer connection and drain path; a weak or jammed pump can point to the dishwasher drain pump 00631200.
• Not filling: confirm the water supply valve is open; a failed inlet valve can point to the dishwasher water inlet valve 10023852.
• Stops mid-cycle or shows an error: look up the code and follow the guided checks in Bosch dishwasher error codes.

What the reset is actually doing (why it matters)

Resetting cancels the active program and reinitializes the control logic so the dishwasher can drain and accept a new cycle. If an underlying fault remains (drain restriction, fill issue, heater/circulation problem), the same symptom usually returns.

Symptom-to-next-step guide

What you see	What to do next
Cycle won’t cancel	Do the hard reset at the breaker
Cancels but won’t drain	Check drain hose routing and pump area
Powers on but won’t run	Check door latch engagement and control lock
Error code appears	Use Bosch dishwasher error codes to pinpoint the failure

Ordering parts

If troubleshooting points to a failed component, you can order replacement parts for Bosch SHX863WD5N from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

We do not recommend running your Bosch dishwasher model SHX863WD5N with an E22 error because it commonly points to a drain or filter restriction; continuing to run cycles can leave dirty water in the tub and strain the drain system.

What E22 usually means on a Bosch dishwasher

E22 is most often tied to restricted water flow through the filter area or a drain problem. Start with the simplest checks first.

• Clean the filter area and remove debris (glass, labels, food)
• Check the drain path for kinks or clogs
• Confirm the dishwasher is actually pumping out during drain
• If the unit hums but does not drain, the drain pump can be jammed or failing

For code lookups and what to check next, use our Bosch dishwasher error codes.

Quick checks to do before you run another cycle

1. Cancel the cycle and let the dishwasher attempt a drain.
2. Remove standing water (if present) so you can inspect the sump area.
3. Inspect the drain hose routing for kinks or a blockage.
4. If the dishwasher will not drain, focus on the drain components.

Parts that commonly fix “won’t drain” symptoms

If cleaning and hose checks do not restore draining, these model-matched parts are common next steps:

• Dishwasher drain pump 00631200 (pumps water out during the drain portion)
• Dishwasher drain hose 00744881 (carries drain water to the sink drain or disposer)

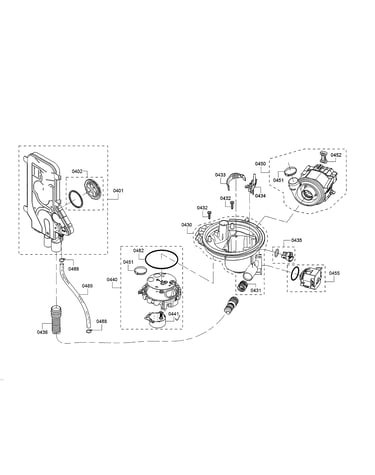

• Dishwasher sump 00668102 (can trap debris and restrict flow through the drain path)

Symptom	Most likely area	What to do first
Water left in bottom after cycle	Drain path restriction	Clean filter area; check hose routing
Humming during drain, no water movement	Drain pump jam/failure	Inspect for debris; replace pump if needed
Drains slowly	Partial clog in hose/sump	Clear blockage; verify free flow

Why it matters

Running with an E22 condition usually means the dishwasher is not moving water correctly. Fixing the restriction early helps prevent poor cleaning, odors from standing water, and extra wear on the drain pump.

Ordering the right parts

We list model-specific replacement parts for SHX863WD5N on this page; you can also search by model number on Sears PartsDirect if you are shopping for additional Bosch dishwasher parts.

Last updated: February 2026

Bosch “Silence Plus 44 dBA” is a quietness rating used on multiple Bosch dishwasher models, not one single model number. For your Bosch dishwasher model SHX863WD5N, confirm the exact dBA rating on the model’s rating label or product specs, then match parts from this page or search by model on Sears PartsDirect.

How to identify the exact model and dBA rating

Use these quick checks to make sure you are matching the right Bosch Silence Plus dishwasher:

• Look for the rating label on the tub frame (typically along the door edge) and record the full model number and FD number.
• Check the dBA rating on the label or in the product specs (44 dBA is a common “very quiet” tier).
• If your model number includes a suffix like “/01”, keep it with your records because it can affect part compatibility.
• Match replacement parts by the exact model number, not by “Silence Plus” branding.

Common “quiet dishwasher” symptoms that get mistaken for a model issue

If you are trying to identify the model because the dishwasher sounds different than expected, these are common causes:

• Grinding or rattling: debris in the sump area or a failing pump
• Loud draining: drain hose routing issue or a worn drain pump
• Humming with poor wash: circulation pump or diverter not moving water correctly
• Clicking or beeping: control or user interface input issues

A fast first step is to check for stored fault codes using our Bosch dishwasher error codes guide.

Parts that often relate to noise or wash performance (SHX863WD5N)

These parts are commonly involved when a Bosch dishwasher gets louder or stops cleaning well:

Symptom	Part to check	What it does
Loud or slow draining	Dishwasher drain pump 00631200	Pumps water out during drain
Weak wash, unusual hum	Dishwasher circulation pump with heater 12008381	Circulates water and heats during wash

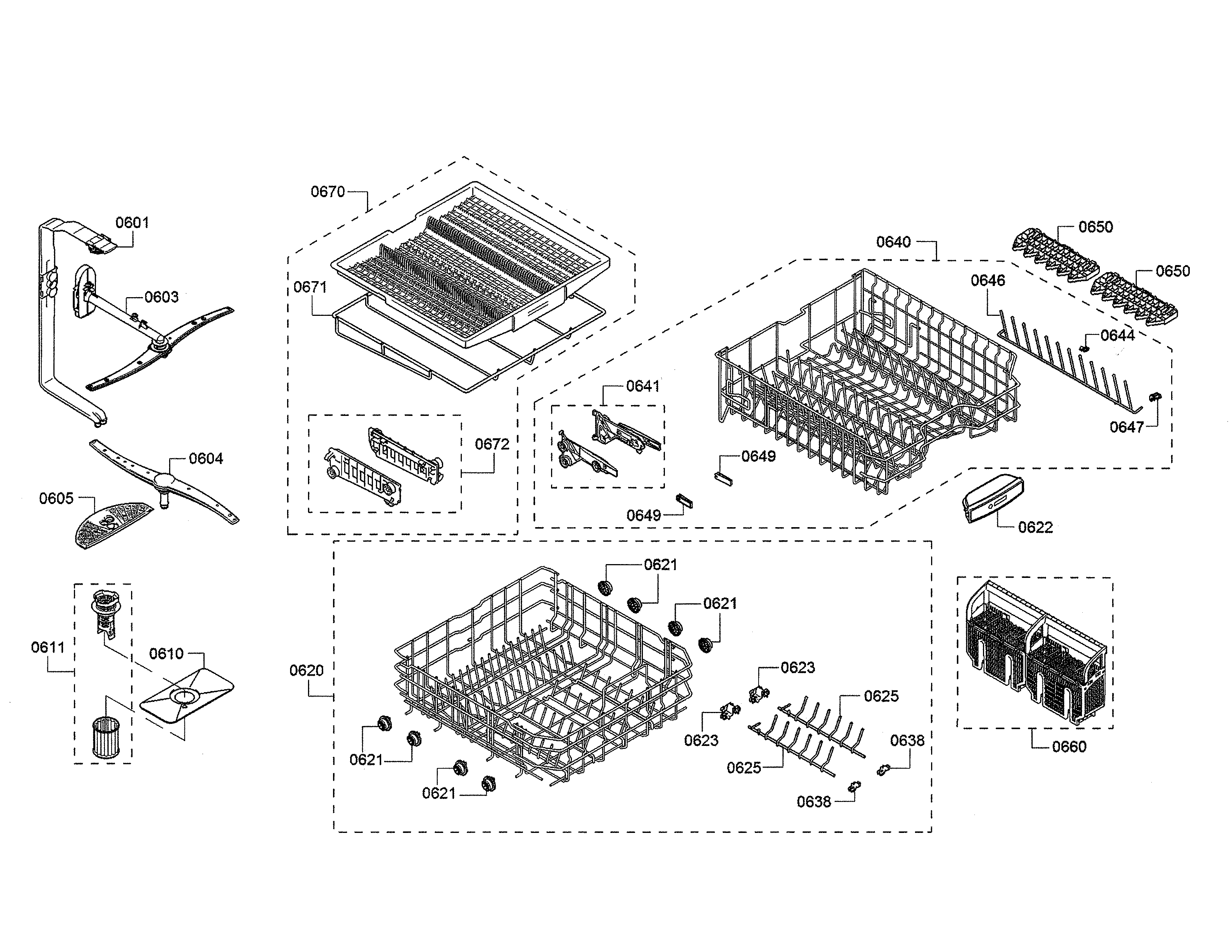

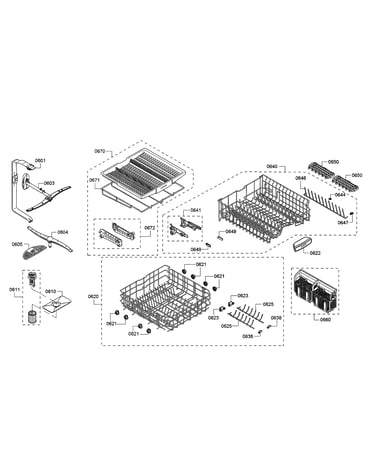

Poor spray, rattling	Dishwasher spray arm 00744883	Distributes wash water in the tub
Not filling, noisy fill	Dishwasher water inlet valve 10023852	Controls water entering the dishwasher

Why it matters

Bosch uses “Silence Plus” across many series and years, so the same 44 dBA label can apply to different platforms. Using the exact model number (SHX863WD5N) is what ensures you get the correct Bosch dishwasher parts and avoid returns.

Last updated: February 2026
