Ikea IMH172FS2 microwave/hood combo

Ikea IMH172FS2 microwave/hood combo Parts

Here are the diagrams and repair parts for Ikea IMH172FS2 microwave/hood combo, as well as links to manuals and error code tables, if available.

By Schematic

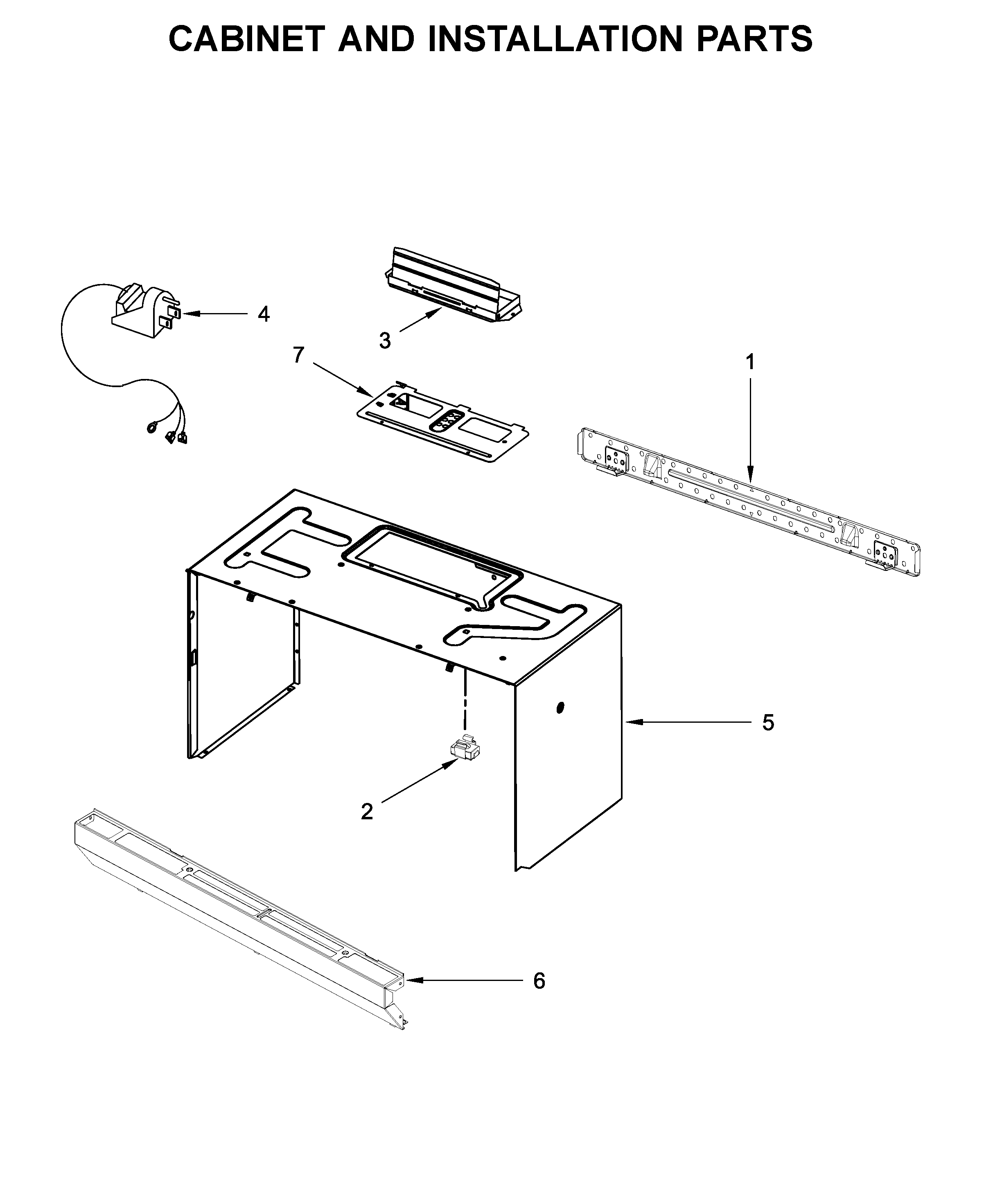

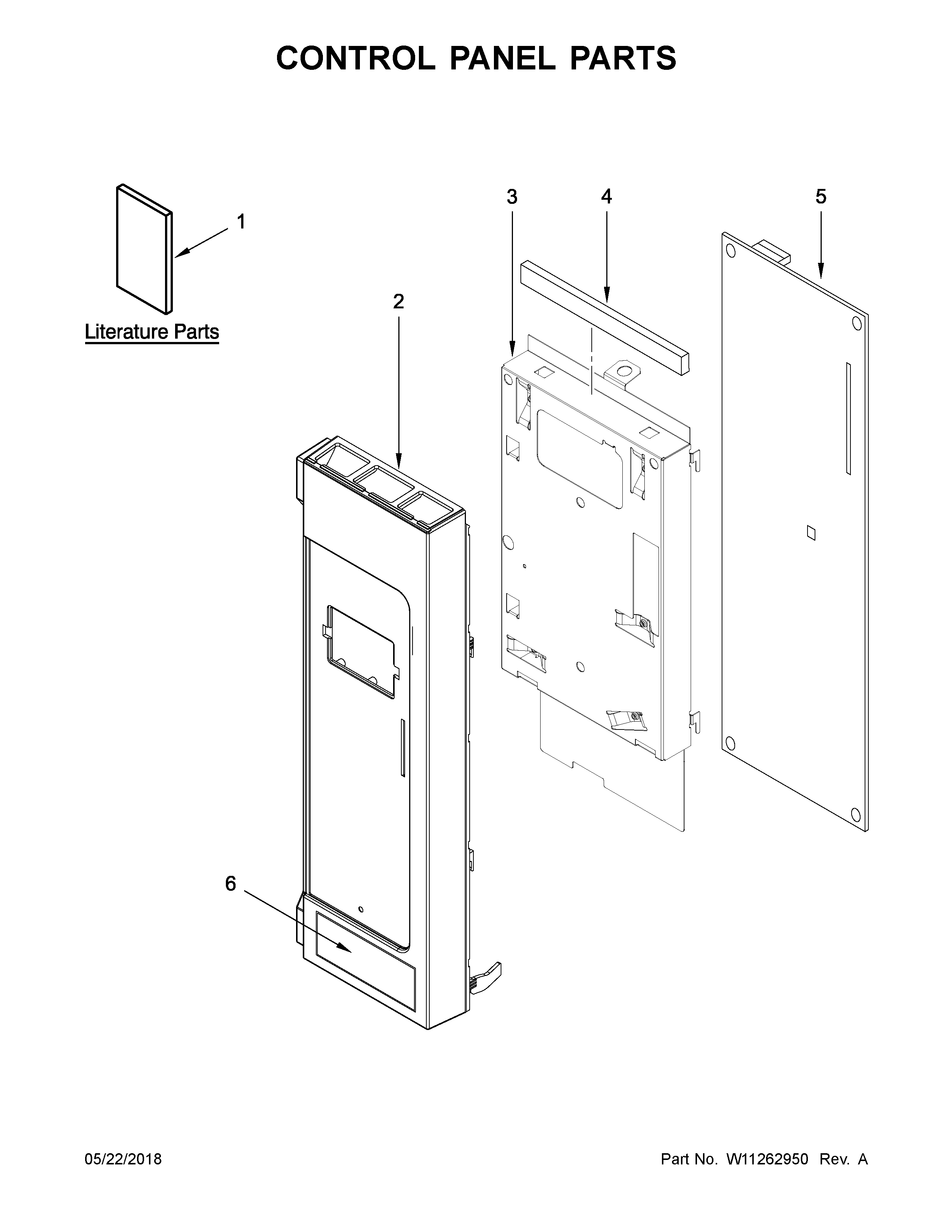

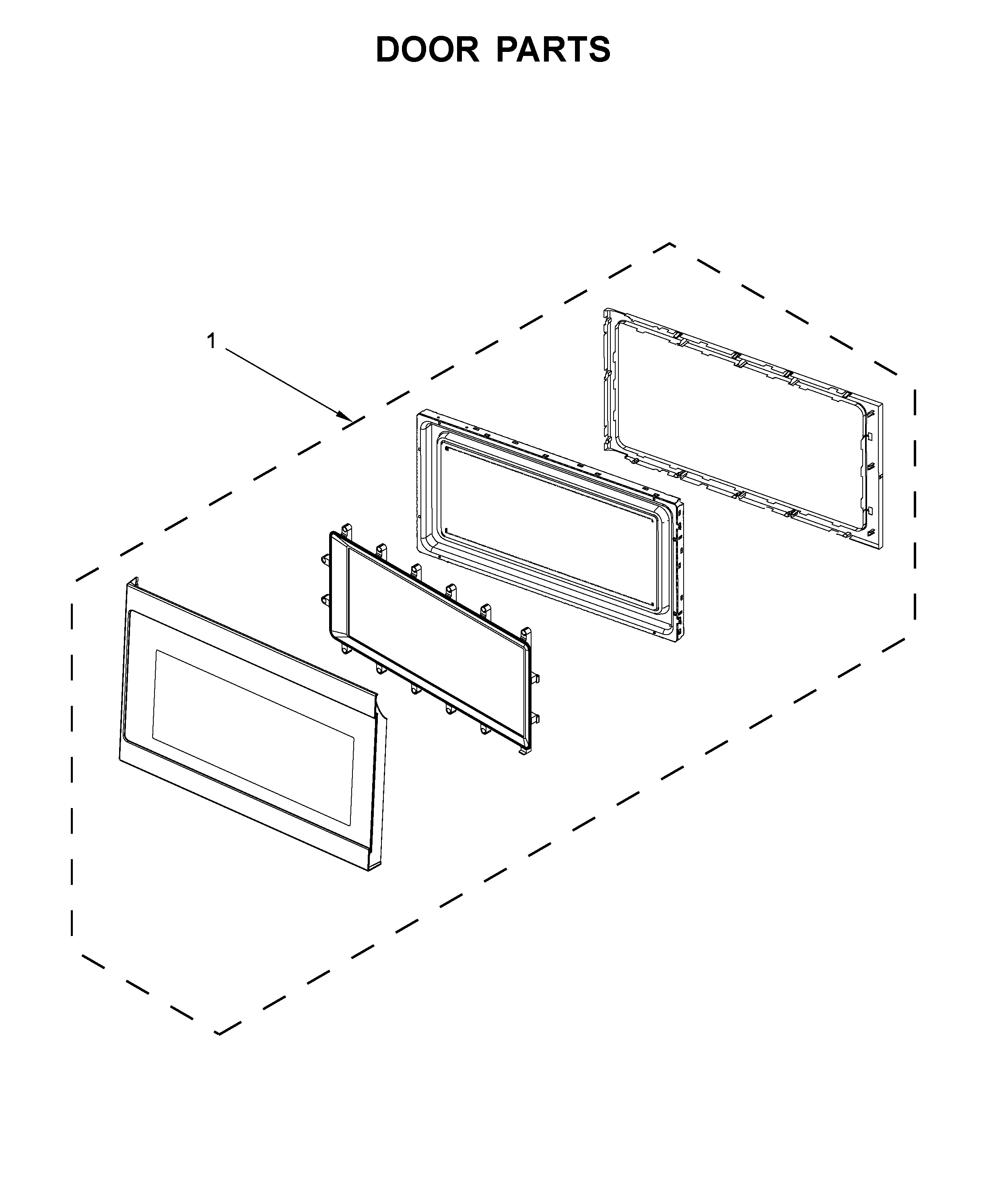

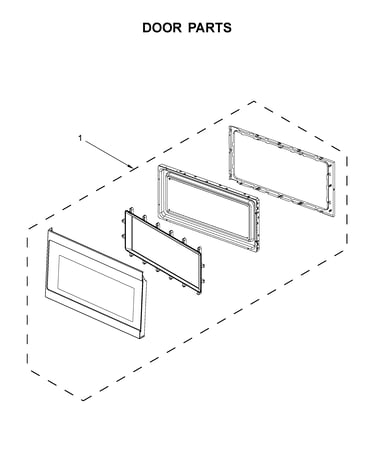

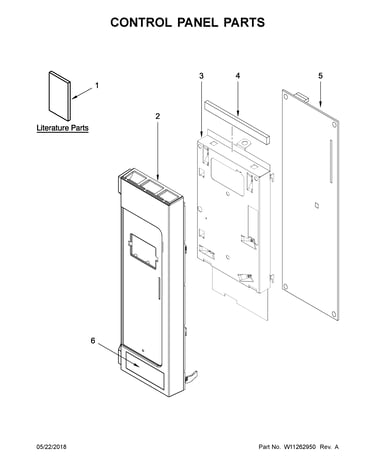

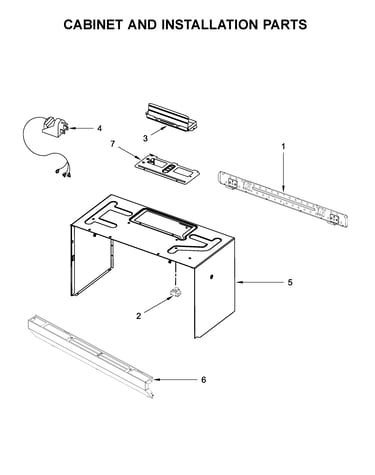

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for IMH172FS2 Microwave/Hood Combo

  • Microwave High-voltage Diode for Ikea IMH172FS2 - Part W11256462

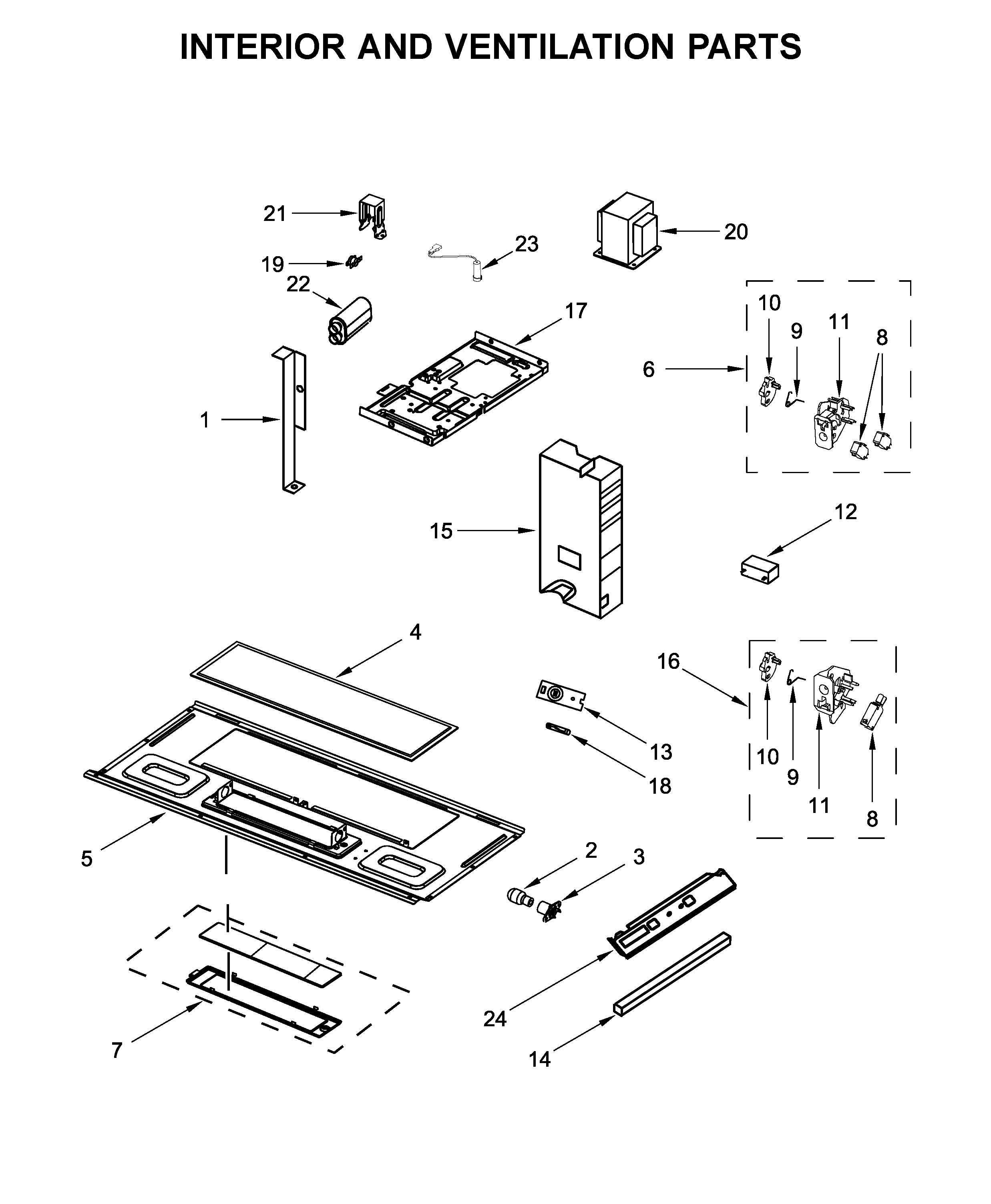

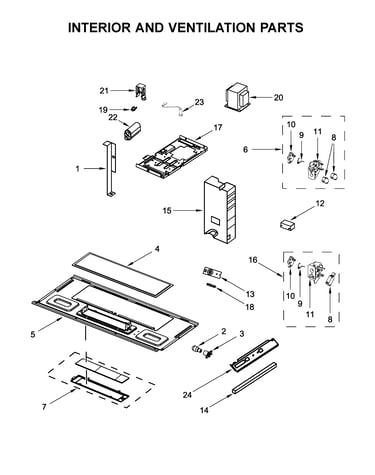

    Interior and ventilation parts diagram

    Diode

    Part #W10886077

    Replaced by #W11256462

    Info Icon
    Manufacturer substitution
    This part replaces W10886077. Substitute parts can look different from the original.
    In Stock
    $26.84
    18% OFF Phone Price : $32.84Info Icon
    Minus Item
    Qty
    Plus Item
  • R Ceramic Fu for Ikea IMH172FS2 - Part W11707984

    Interior and ventilation parts diagram

    Microwave Fuse

    Part #W10138793

    Replaced by #W11707984

    Info Icon
    Manufacturer substitution
    This part replaces W10138793. Substitute parts can look different from the original.
    In Stock
    $73.63
    8% OFF Phone Price : $79.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Support, Upper for Ikea IMH172FS2 - Part WP8206419

    Interior and ventilation parts diagram

    Microwave Door Interlock Support, Upper

    Part #8206419

    Replaced by #WP8206419

    Info Icon
    Manufacturer substitution
    This part replaces 8206419. Substitute parts can look different from the original.
    In Stock
    $13.72
    13% OFF Phone Price : $15.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Support, Lower for Ikea IMH172FS2 - Part WPW10156813

    Interior and ventilation parts diagram

    Interlock

    Part #W10156813

    Replaced by #WPW10156813

    Info Icon
    Manufacturer substitution
    This part replaces W10156813. Substitute parts can look different from the original.
    In Stock
    $8.14
    11% OFF Phone Price : $9.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Vent Louver Motor Cam Plate for Ikea IMH172FS2 - Part W10562613

    Interior and ventilation parts diagram

    Microwave Vent Louver Motor Cam Plate

    Part #W10562613
    In Stock
    $12.85
    13% OFF Phone Price : $14.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Spring for Ikea IMH172FS2 - Part W10156812

    Interior and ventilation parts diagram

    Microwave Door Interlock Spring

    Part #W10156812
    In Stock
    $8.57
    10% OFF Phone Price : $9.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Grease Filter for Ikea IMH172FS2 - Part W10208631A

    Interior and ventilation parts diagram

    Filter

    Part #W10208631

    Replaced by #W10208631A

    Info Icon
    Manufacturer substitution
    This part replaces W10208631. Substitute parts can look different from the original.
    In Stock
    $25.84
    19% OFF Phone Price : $31.84Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Magnetron for Ikea IMH172FS2 - Part WPW10693025

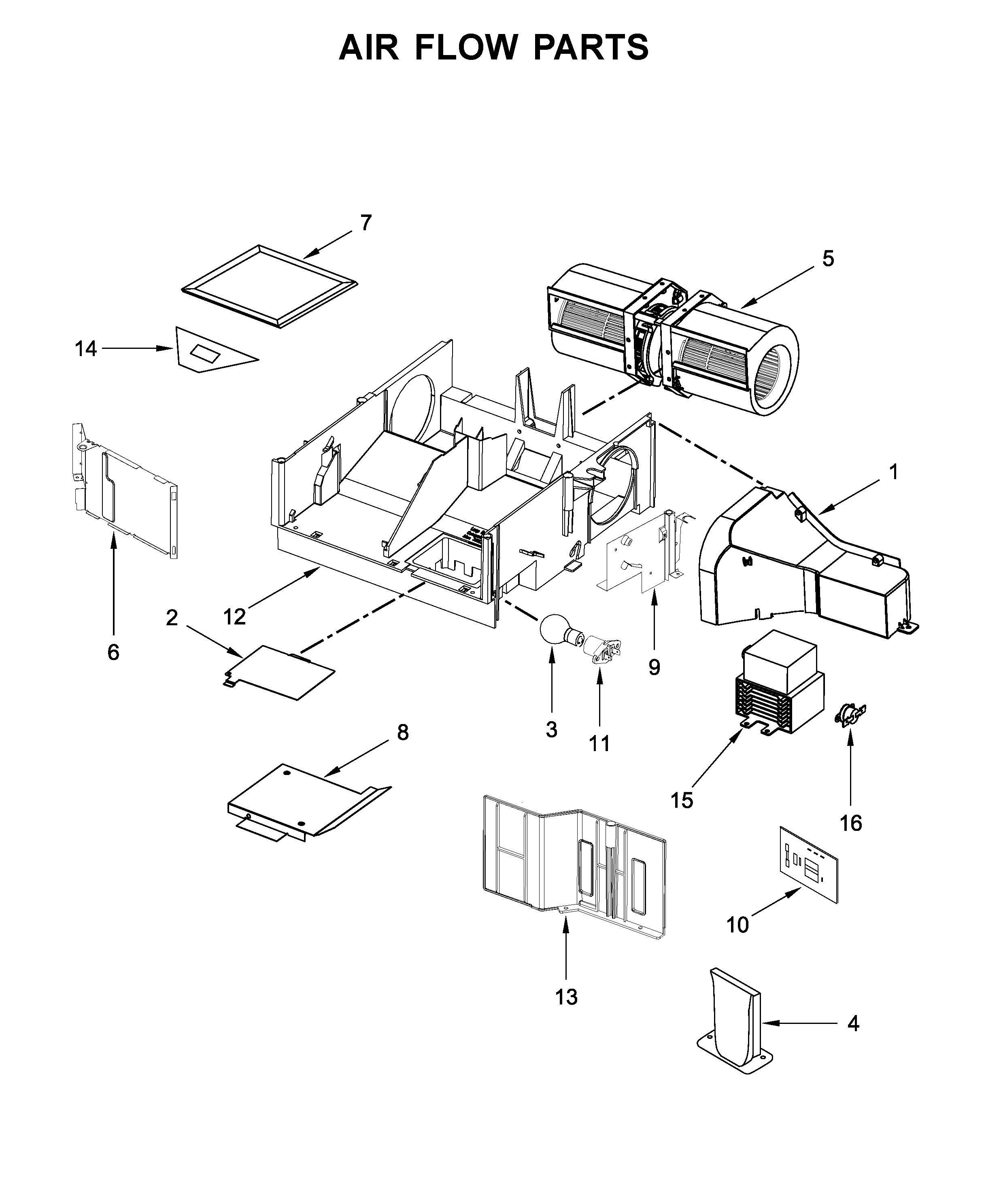

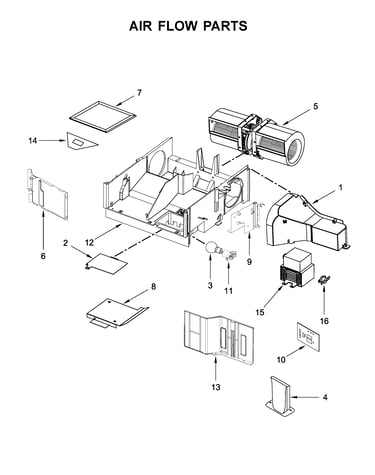

    Air flow parts diagram

    Magnetron

    Part #W10693025

    Replaced by #WPW10693025

    Info Icon
    Manufacturer substitution
    This part replaces W10693025. Substitute parts can look different from the original.
    In Stock
    $149.01
    7% OFF Phone Price : $161.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Magnetron Thermostat for Ikea IMH172FS2 - Part W10832024

    Air flow parts diagram

    Microwave Magnetron Thermostat

    Part #W10832024
    In Stock
    $45.30
    12% OFF Phone Price : $51.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Motor for Ikea IMH172FS2 - Part W10642989

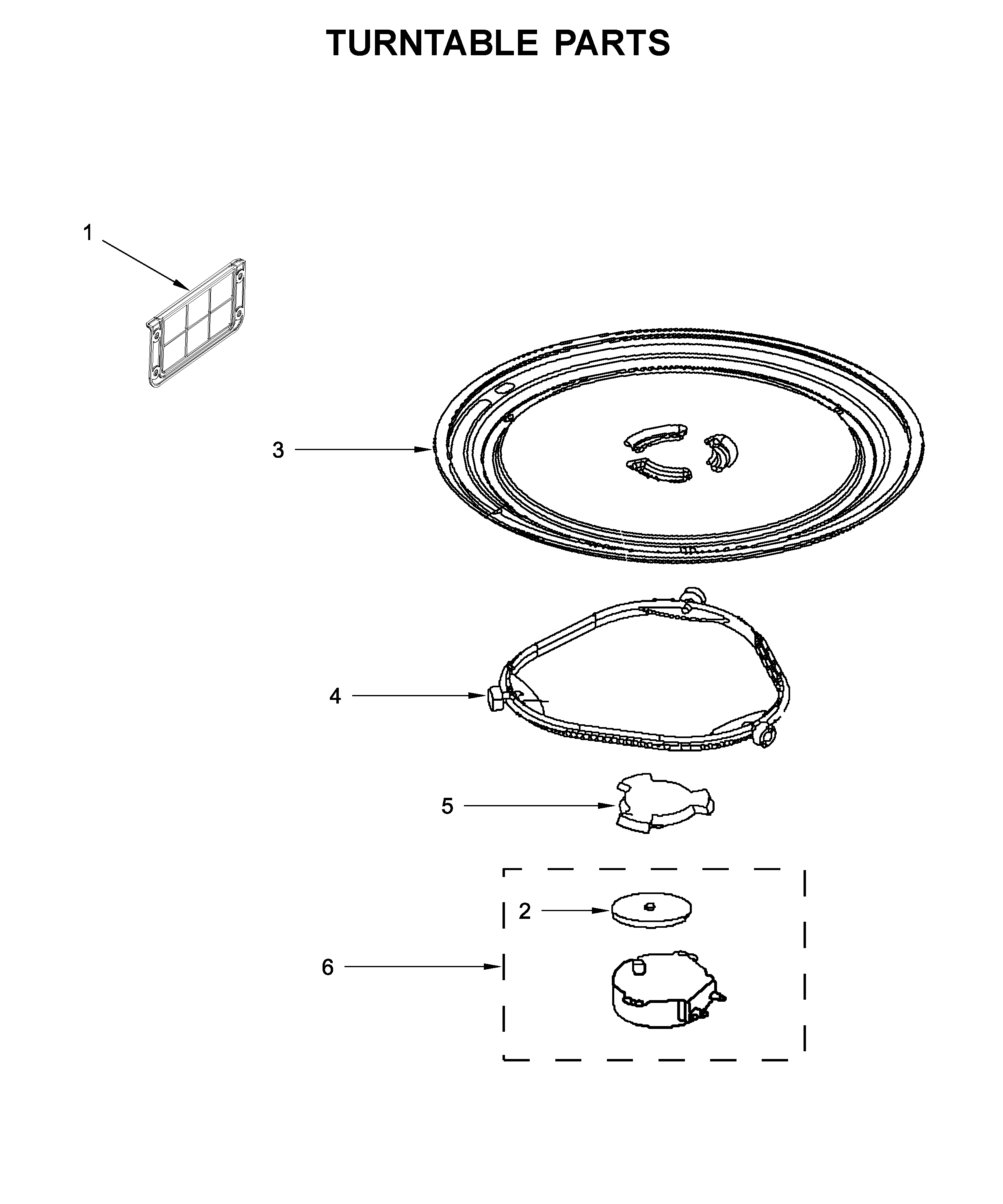

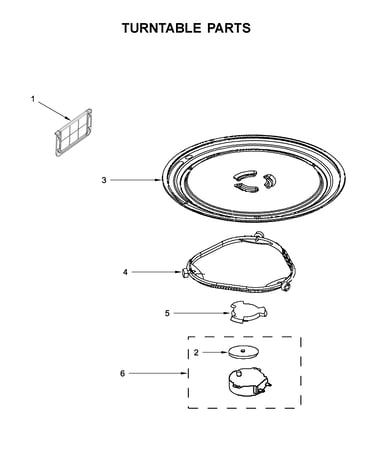

    Turntable parts diagram

    Microwave Turntable Motor

    Part #W10642989
    In Stock
    $92.62
    6% OFF Phone Price : $98.62Info Icon
    Minus Item
    Qty
    Plus Item
