Model # MC-UL427-00 Official Panasonic vacuum

Here are the diagrams and repair parts for Official Panasonic MC-UL427-00 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

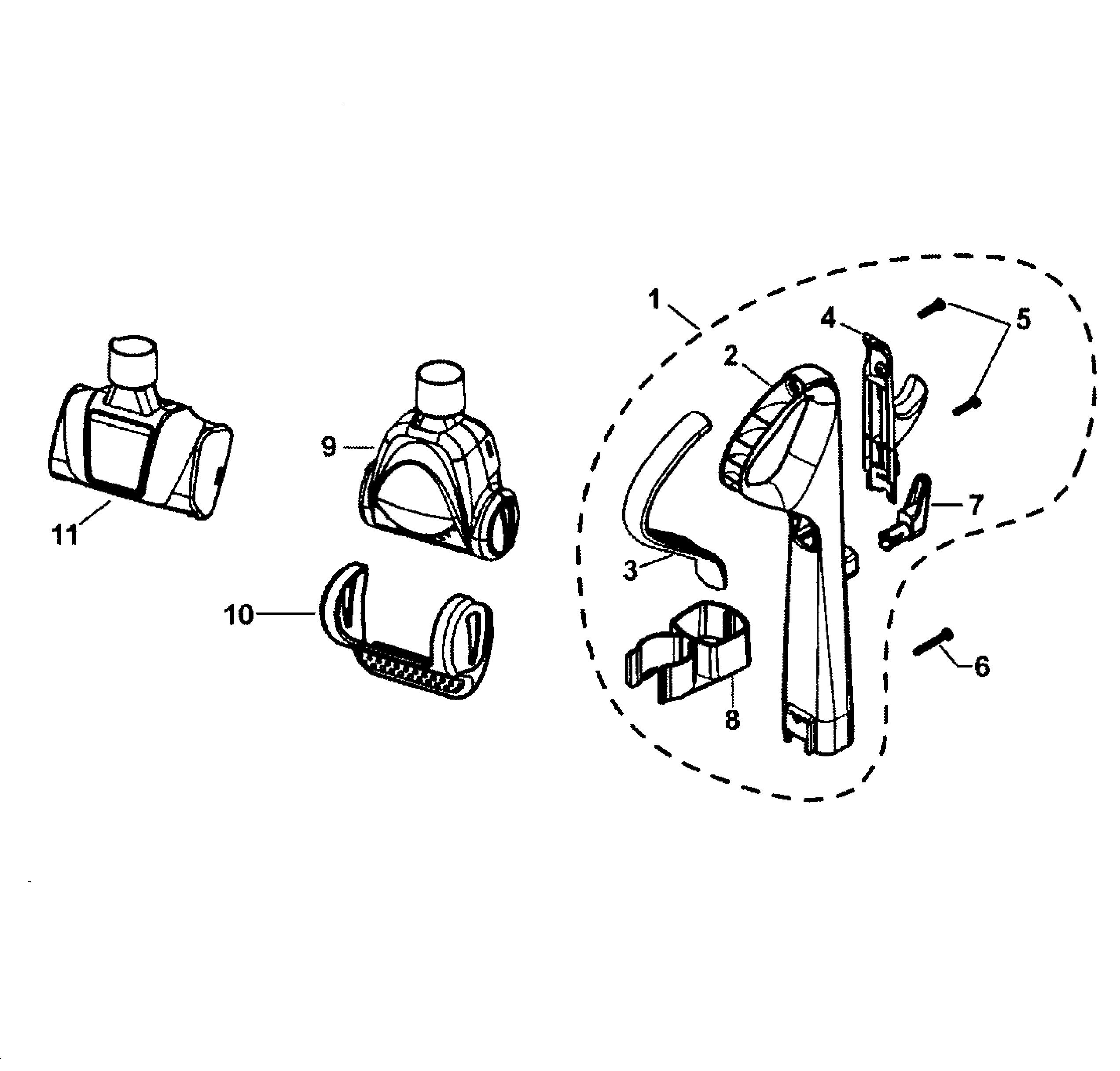

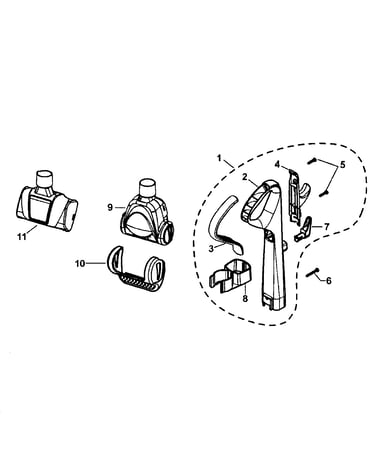

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Panasonic Agitator AC84RDRZZ000
#4

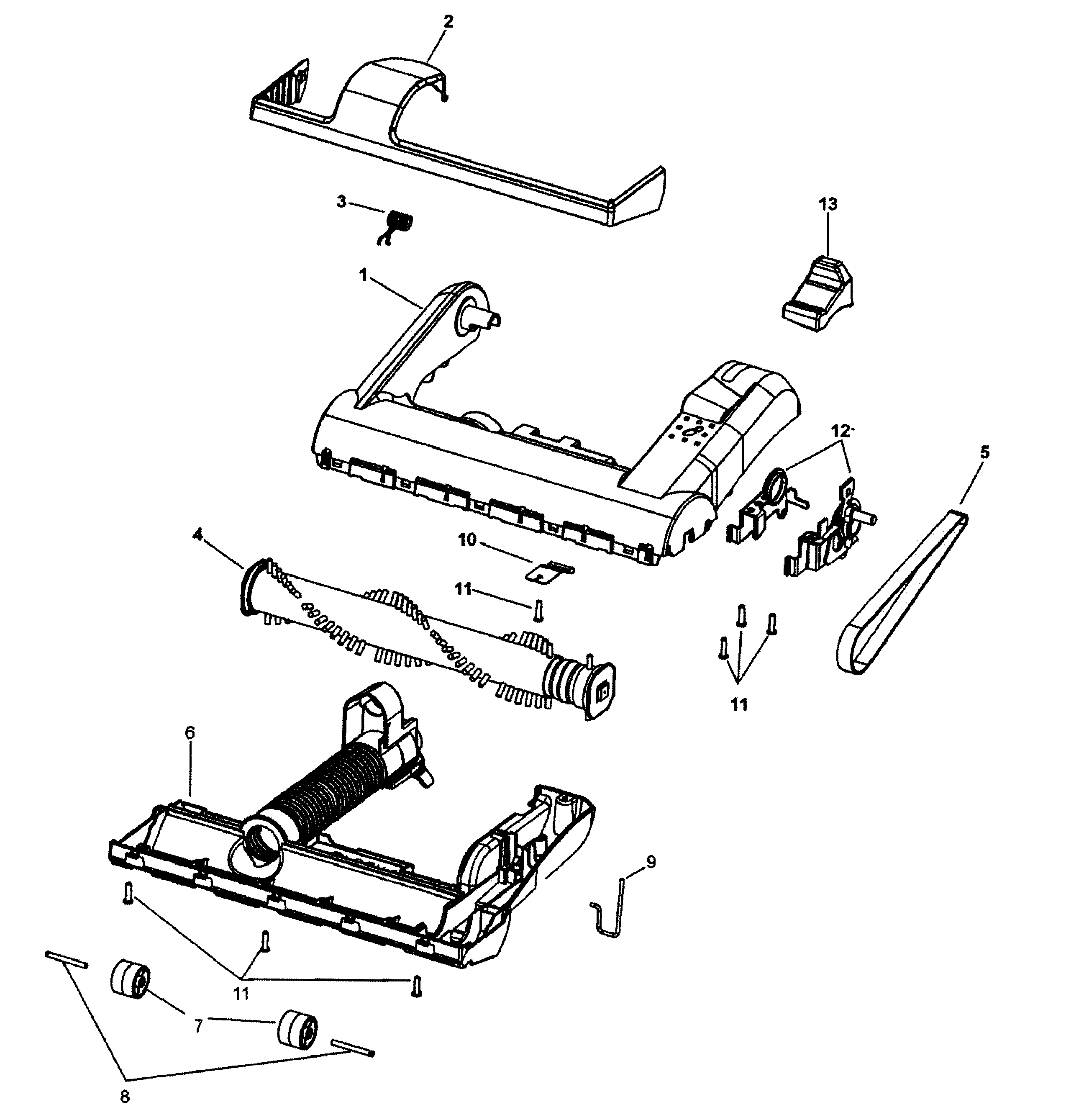

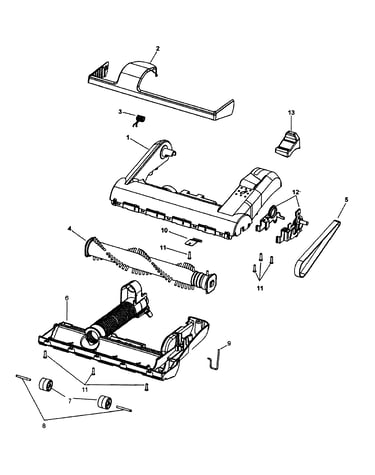

Nozzle housing diagram

Panasonic agitator

Part #AC84RDRZZ000

$40.89 |
11% OFF Phone Price : $45.89
In Stock
Panasonic Cover AC42AAFYZP0F
#13

Nozzle housing diagram

Panasonic cover

Part #AC42AAFYZP0F

This item is not returnable
$7.49
In Stock
Panasonic Plate AC25KDRZZ000
#16

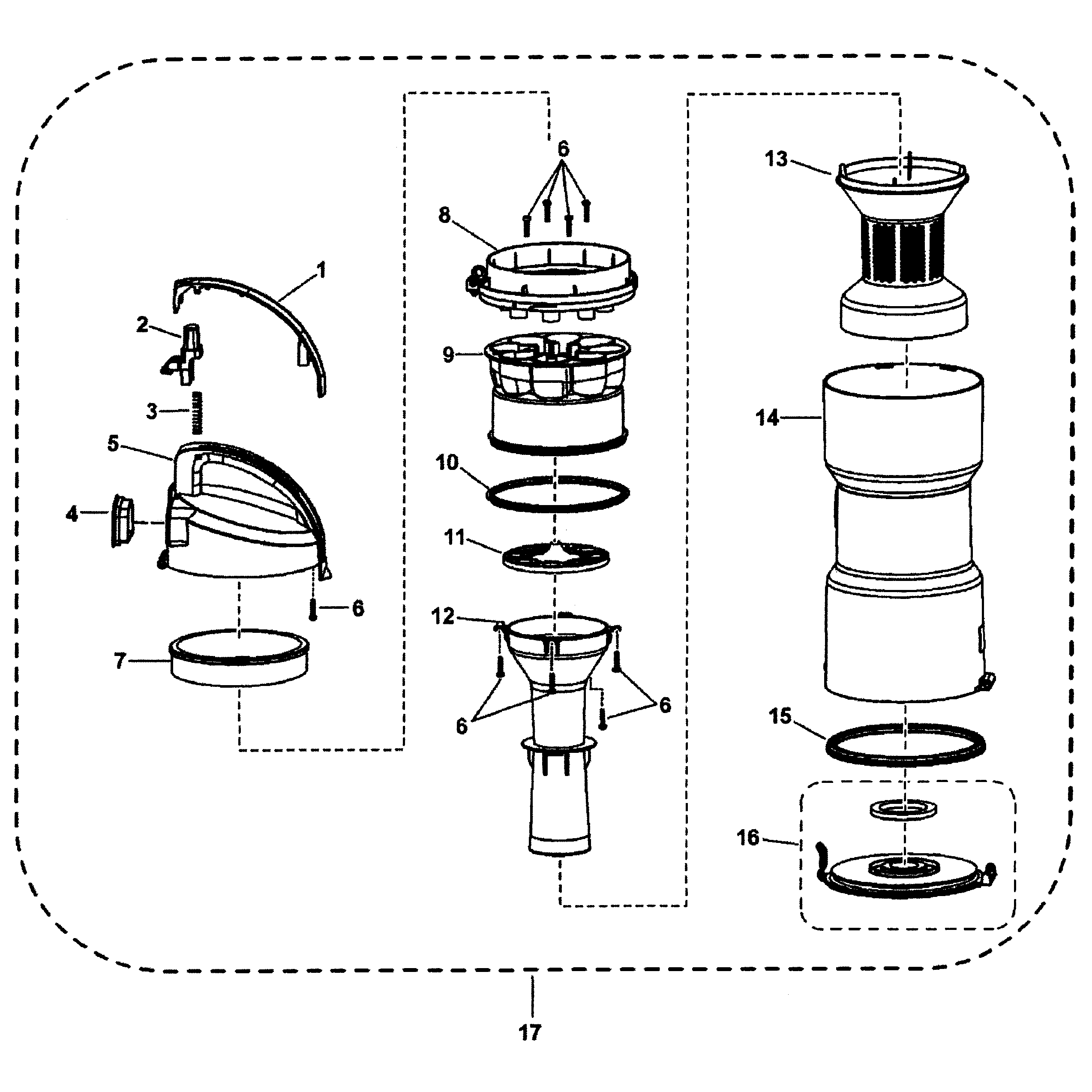

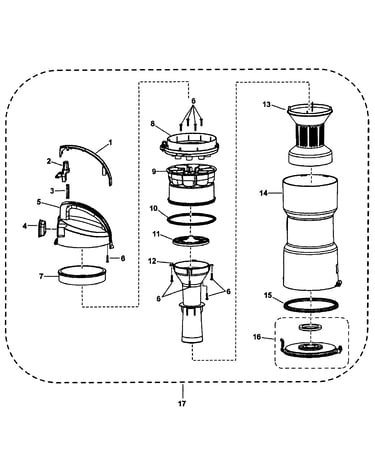

Dust bin ass diagram

Panasonic plate

Part #AC25KDRZZ000

$17.99
In Stock
Panasonic Rubber,mot AC03FAFYZ000
#37

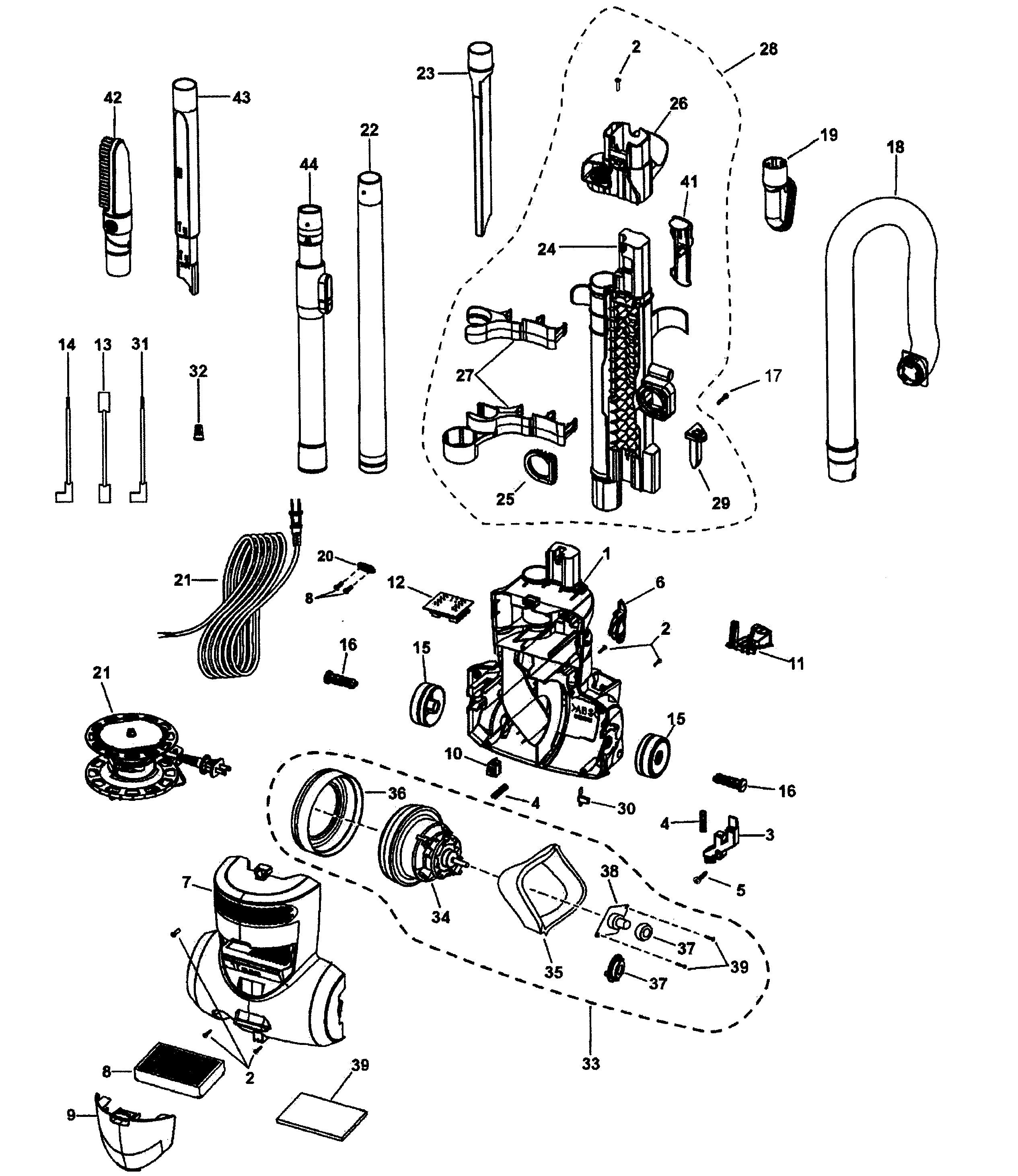

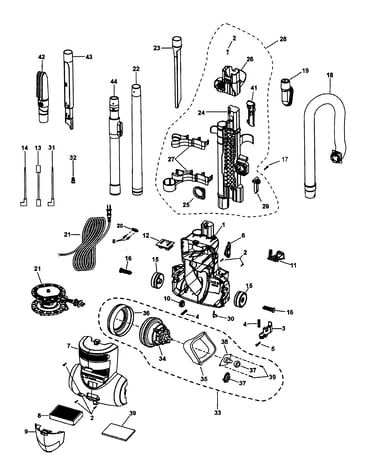

Main body diagram

Panasonic rubber,mot

Part #AC03FAFYZ000

$43.99
In Stock
Panasonic Rubber,fr AC02FDRZZ000
#36

Main body diagram

Panasonic rubber,fr

Part #AC02FDRZZ000

$9.99
In Stock
Panasonic Instruct AC01ZDRZZ000
#NI

Main body diagram

Panasonic instruct

Part #AC01ZDRZZ000

$33.99
In Stock
Panasonic Belt Cover AC43SAFVZ000
#9

Nozzle housing diagram

Panasonic belt cover

Part #AC43SAFVZ000

This item is not returnable
$2.99
In Stock
Panasonic Guide AC14NDRZZP0F
#6

Main body diagram

Panasonic guide

Part #AC14NDRZZP0F

This item is not returnable
$5.99
In Stock
Panasonic Wheel AC99CDRZZV07
#15

Main body diagram

Panasonic wheel

Part #AC99CDRZZV07

$17.99
In Stock
Panasonic Spring AMC57A-V00
#10

Nozzle housing diagram

Panasonic spring

Part #AMC57A-V00

This item is not returnable
$3.99
In Stock
