Model #GCE23LBYDFBB GE refrigerator - y series

Here are the diagrams and repair parts for GE GCE23LBYDFBB refrigerator - y series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 190 parts

    Refrigerator Door Bin Guard

    #127

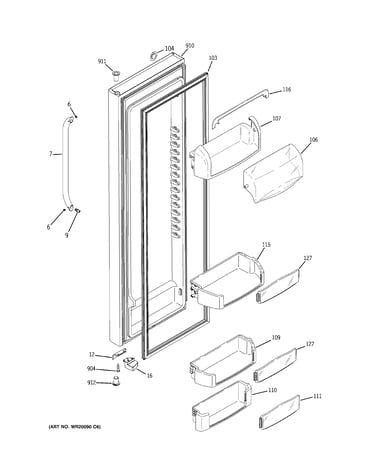

    Fresh food door Diagram

    $17.99

    In Stock

    Refrigerator Defrost Bi-Metal Thermostat

    #240

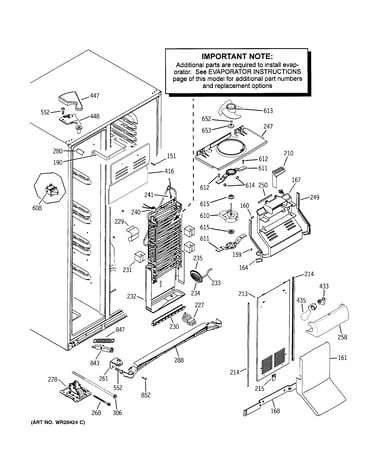

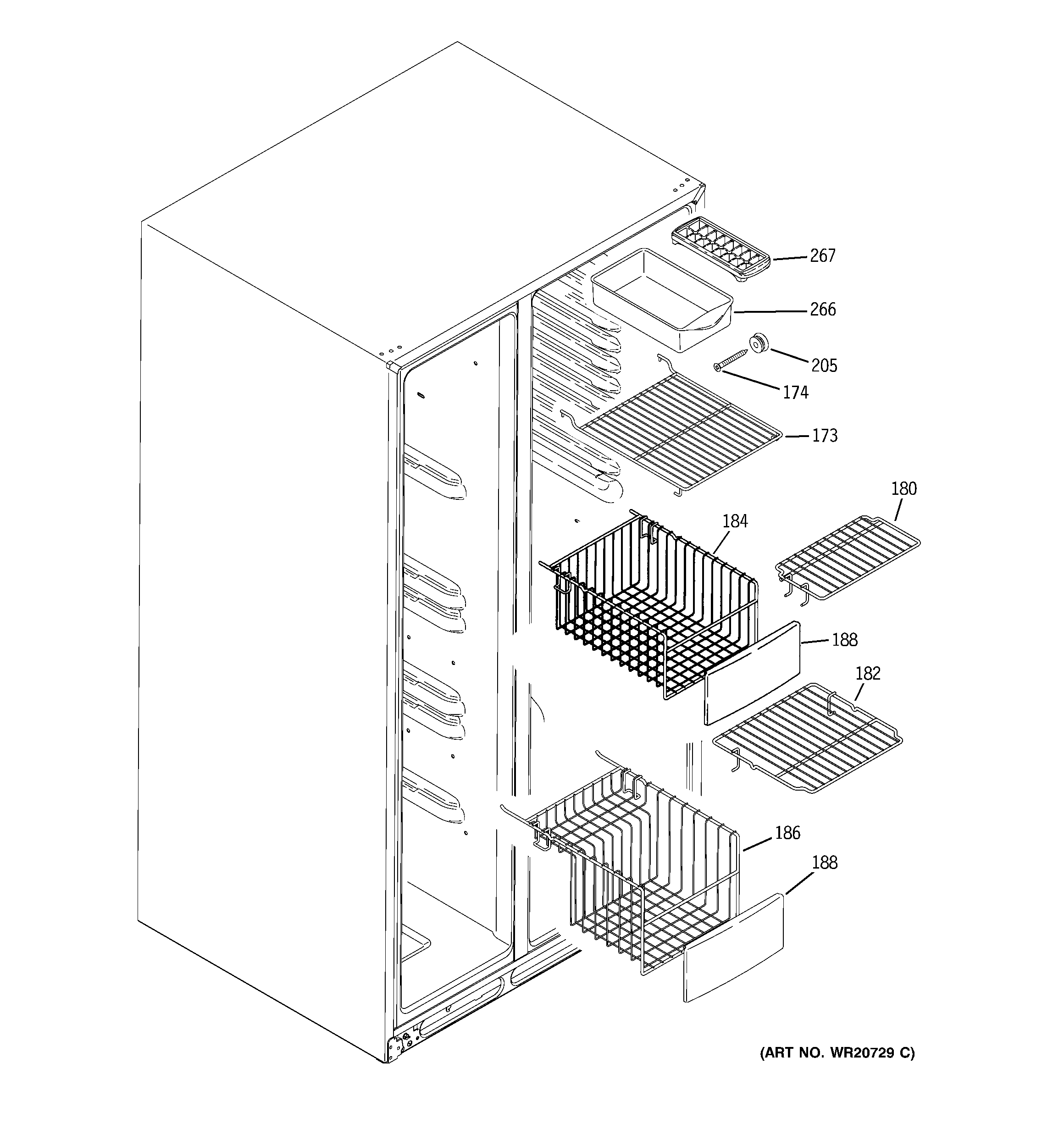

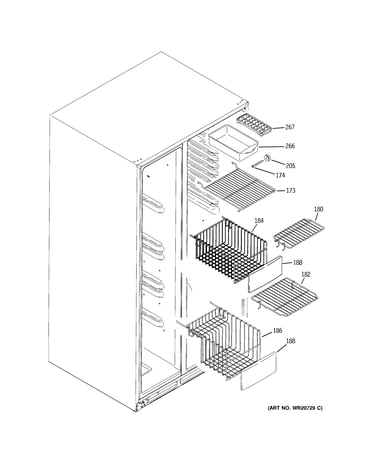

    Freezer section Diagram

    $48.99

    In Stock

    Refrigerator Door Bin, Center

    #115

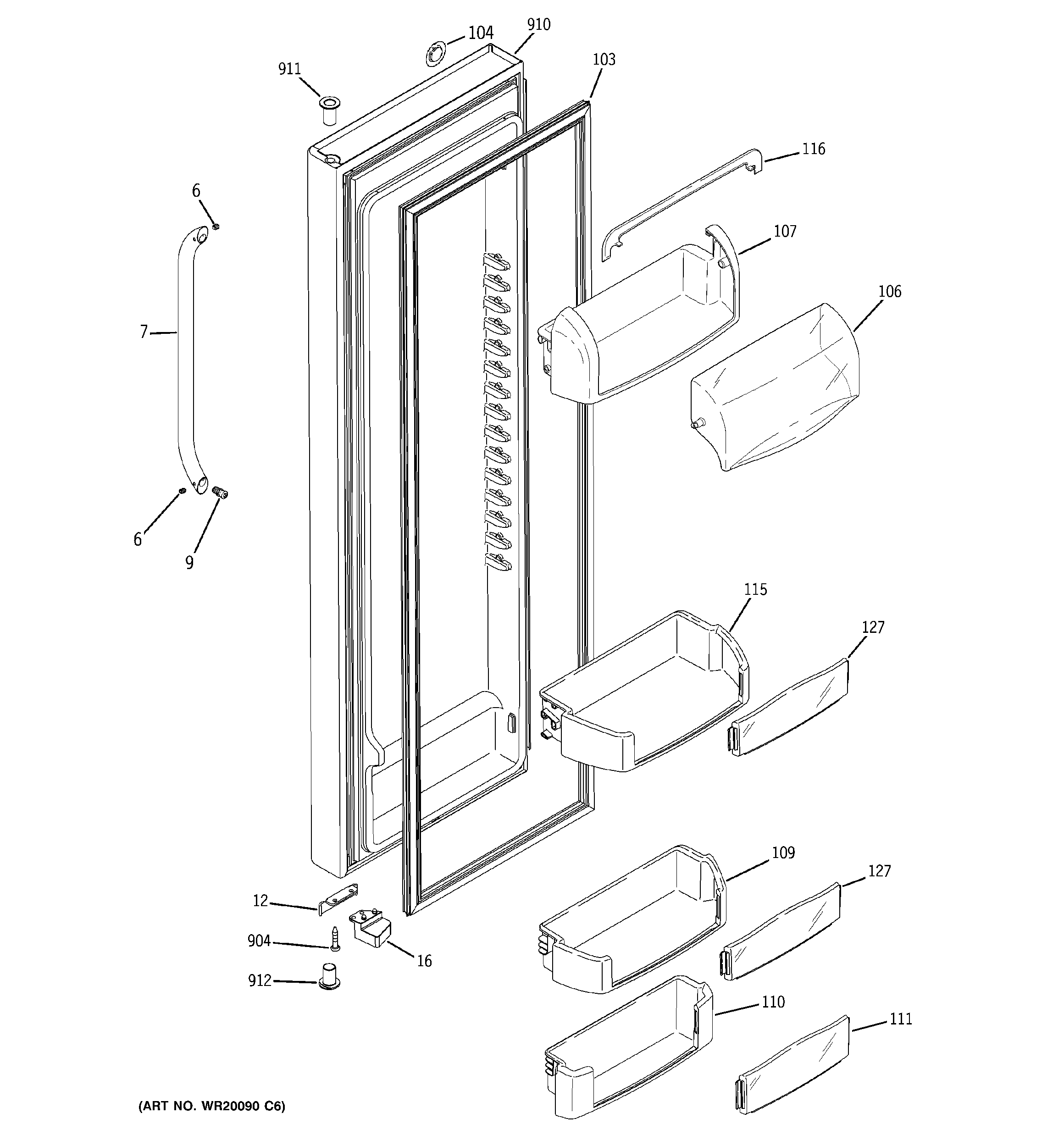

    Fresh food door Diagram

    $98.99

    In Stock

    Refrigerator Door Bin

    #109

    Fresh food door Diagram

    Refrigerator door bin

    Part #WR71X10979
    $47.23

    In Stock

    Refrigerator Toe Grille

    #288

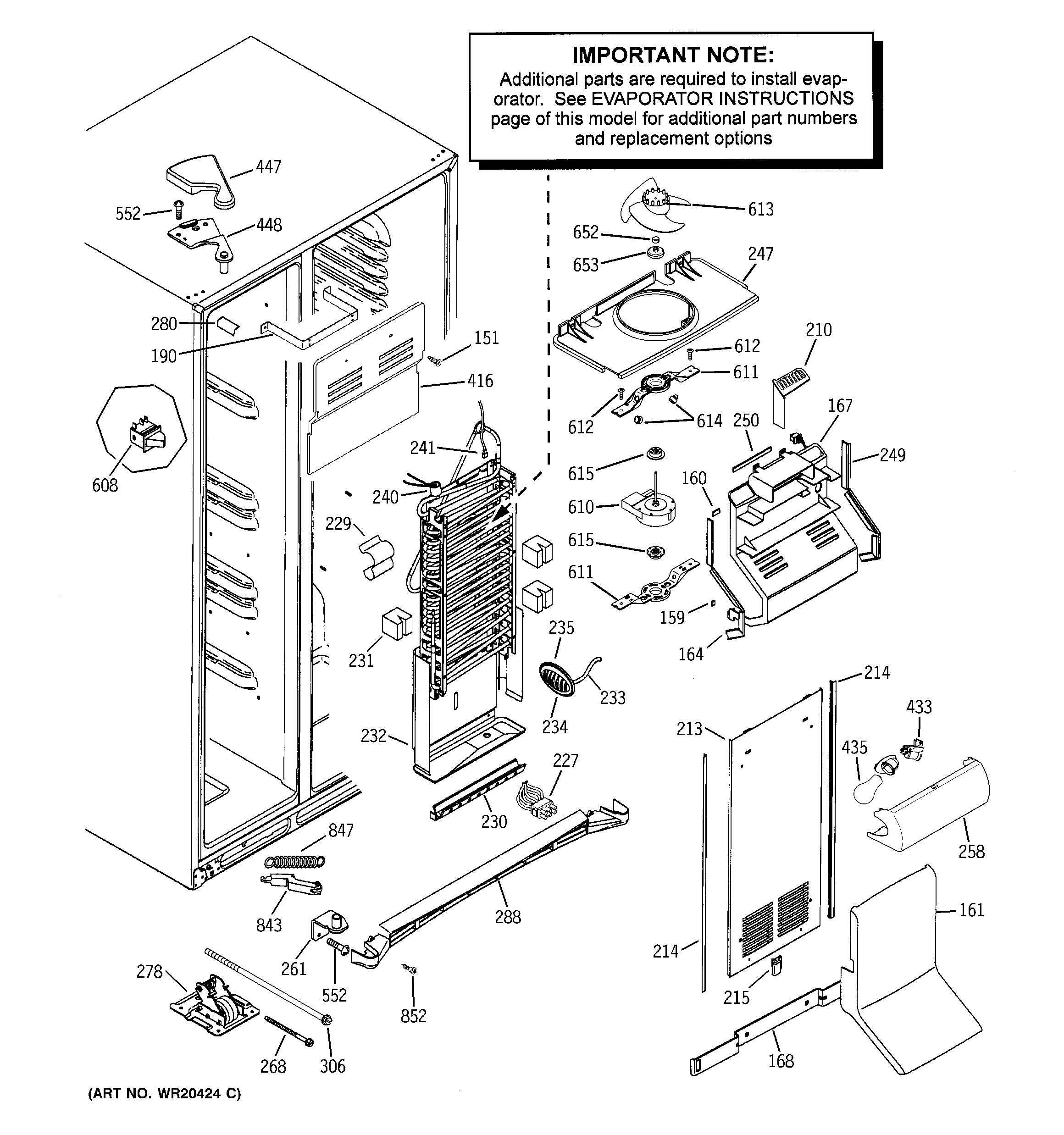

    Freezer section Diagram

    Refrigerator toe grille

    Part #WR74X10270
    $29.99

    In Stock

    Refrigerator Shelf Support

    #204

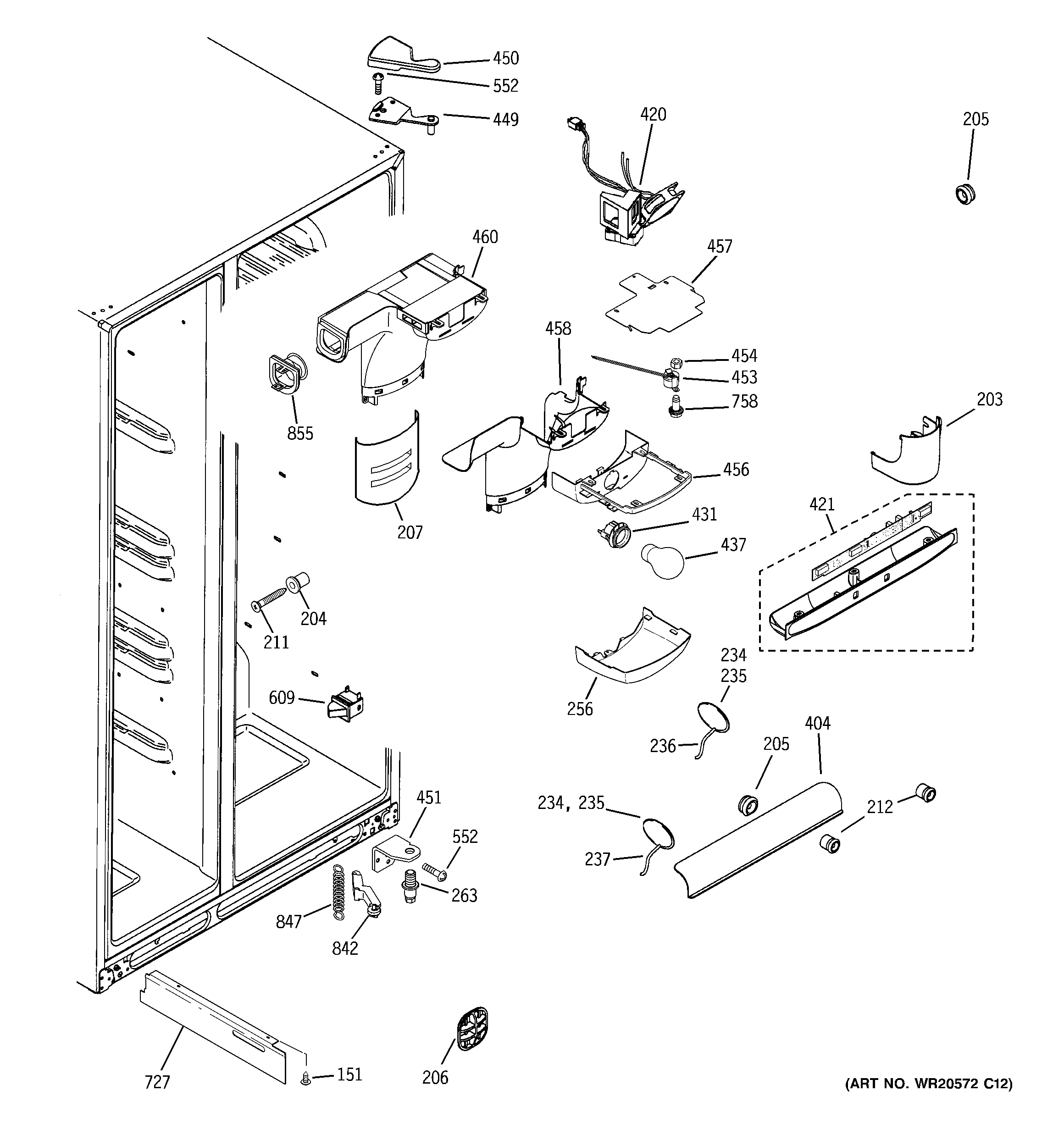

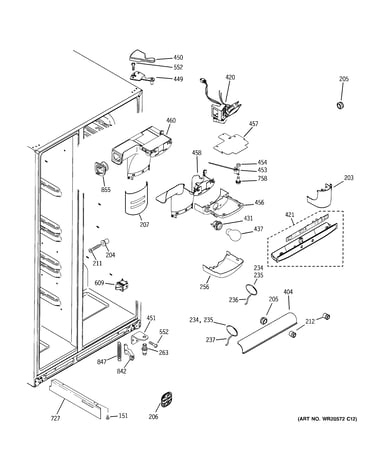

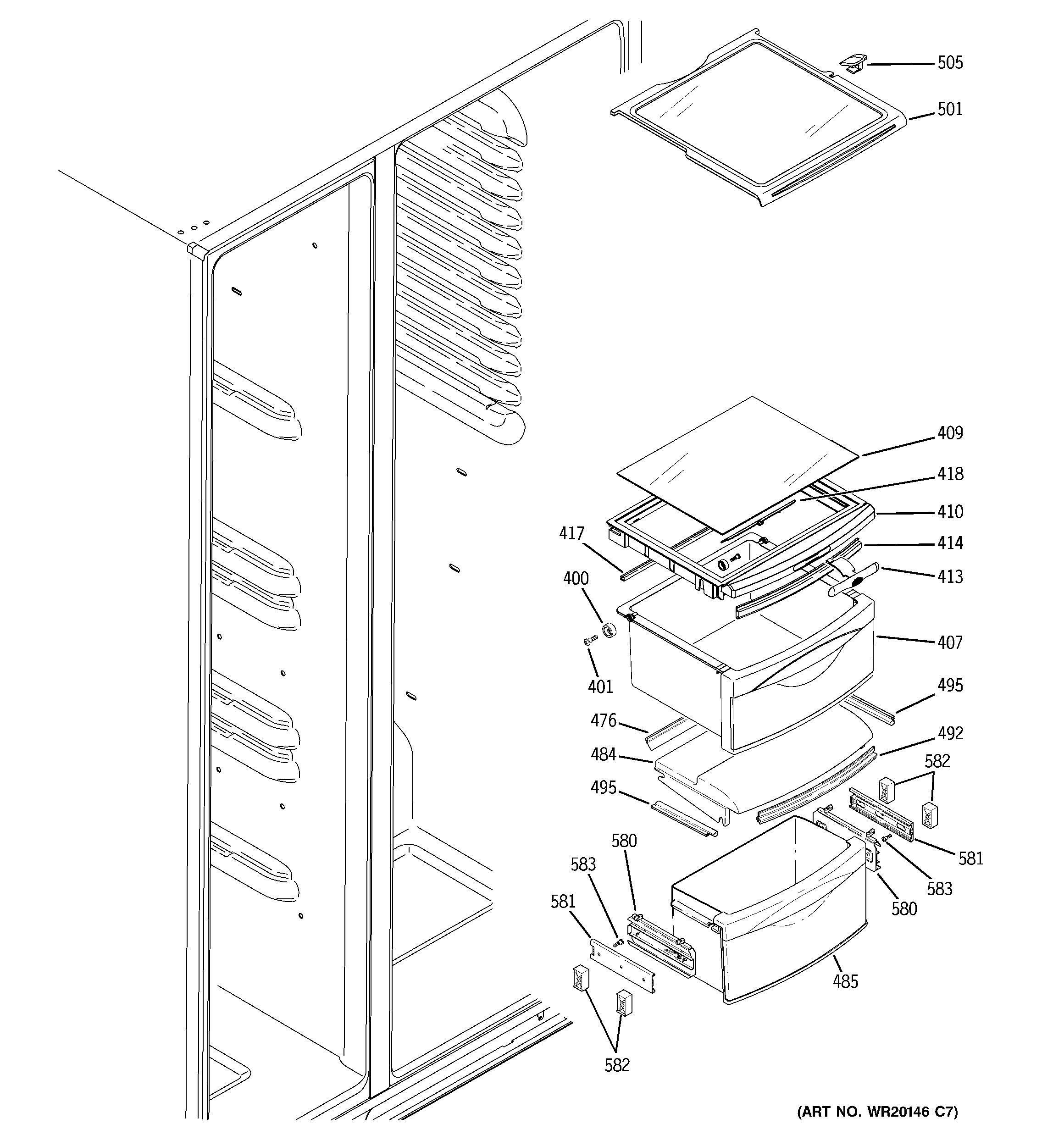

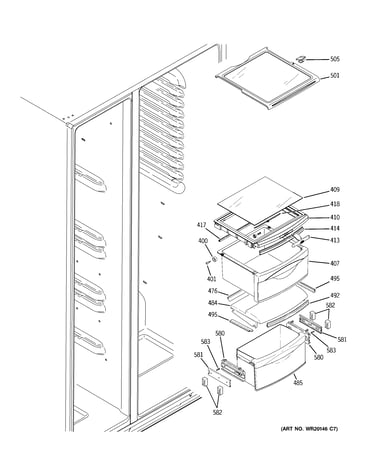

    Fresh food section Diagram

    Refrigerator shelf support

    Part #WR02X12187
    This item is not returnable
    $3.09

    In Stock

    Refrigerator Door Closer Lever

    #842

    Fresh food section Diagram

    $15.32

    In Stock

    Refrigerator Screw

    #612

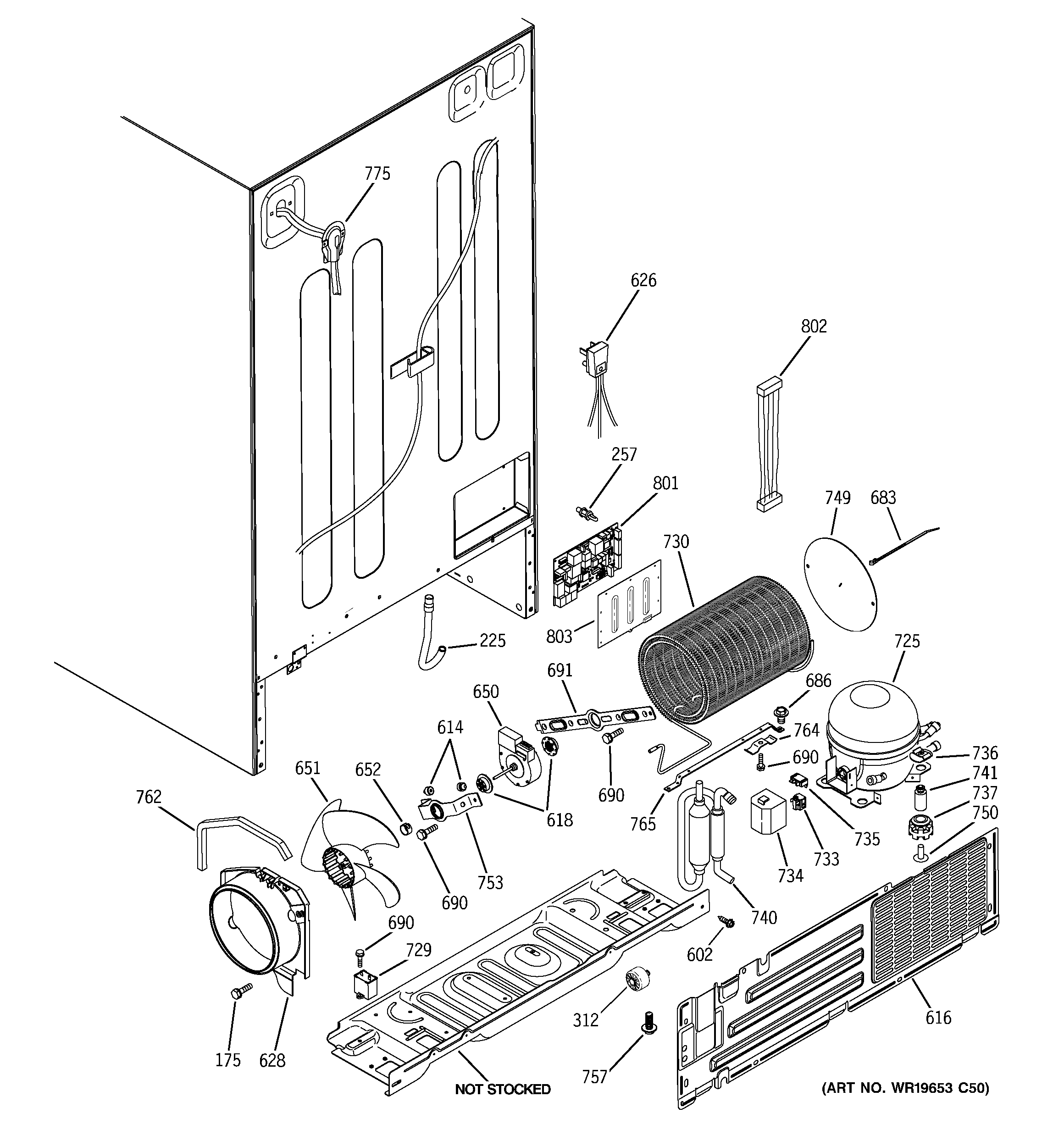

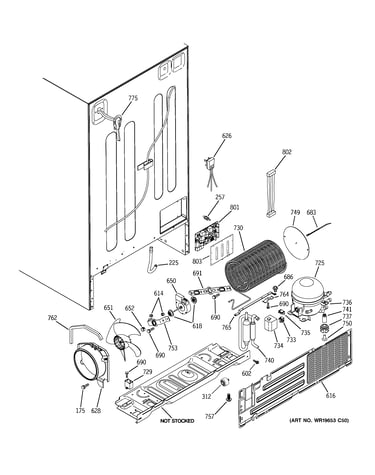

    Freezer section Diagram

    Refrigerator screw

    Part #WR01X10621
    This item is not returnable
    $2.41

    In Stock

    Refrigerator Freezer Door Closer Lever

    #843

    Freezer section Diagram

    $16.61

    In Stock

    Refrigerator Freezer Door Closer Cam (Black)

    #15

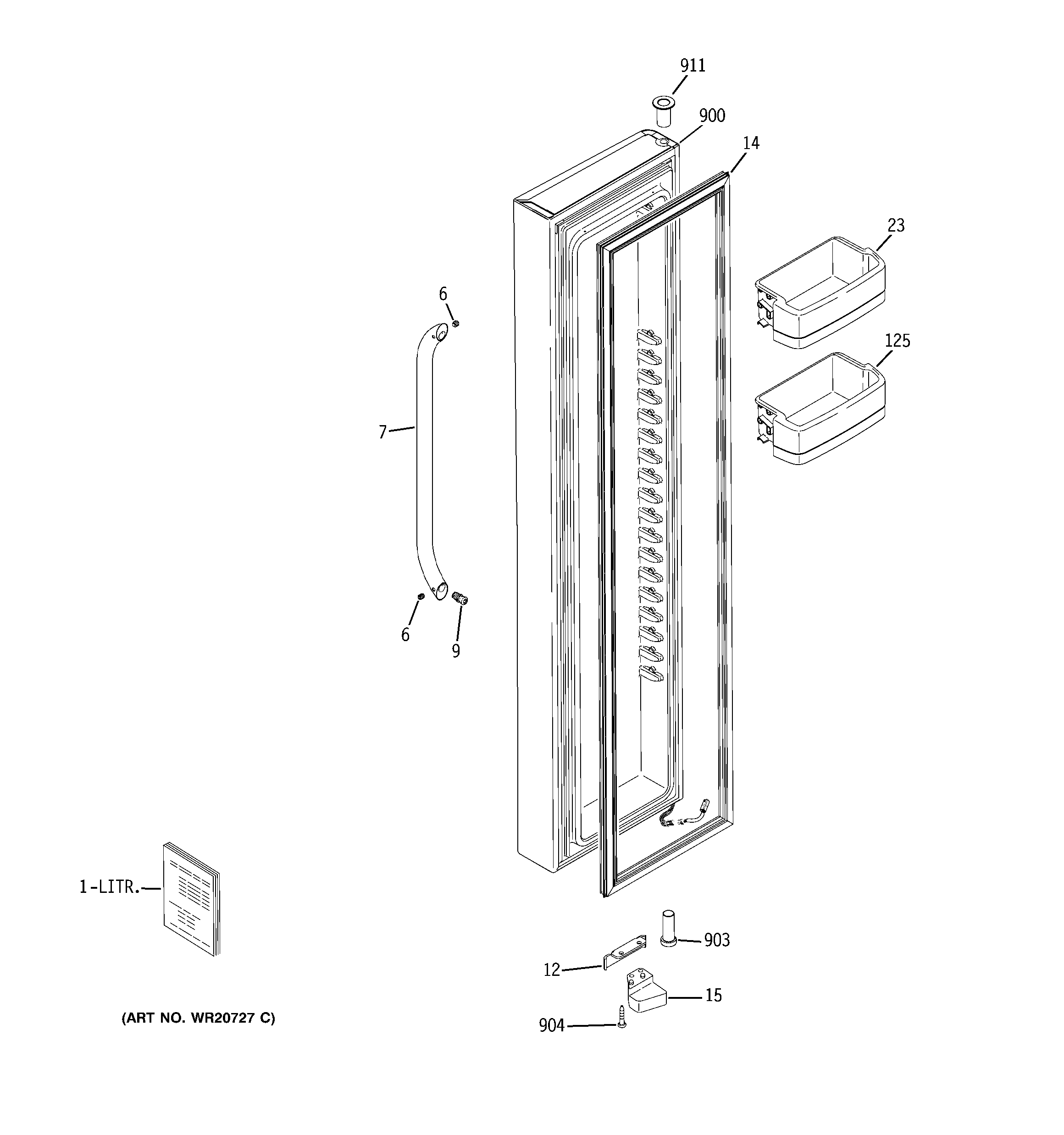

    Freezer door Diagram

    Refrigerator freezer door closer cam (black)

    Part #WR02X10780
    This item is not returnable
    $5.07

    In Stock
