Frigidaire FGEH3047VFB free standing electric range Parts

Yes. For your Frigidaire FGEH3047VFB free standing electric range, we look up the full model number to pull the correct parts list and diagrams so you can match the exact replacement part to your range configuration.

How to look up parts by model number

• Find the model number on the serial plate (commonly inside the lower oven drawer or storage drawer area).
• Enter the full model number FGEH3047VFB exactly as shown.

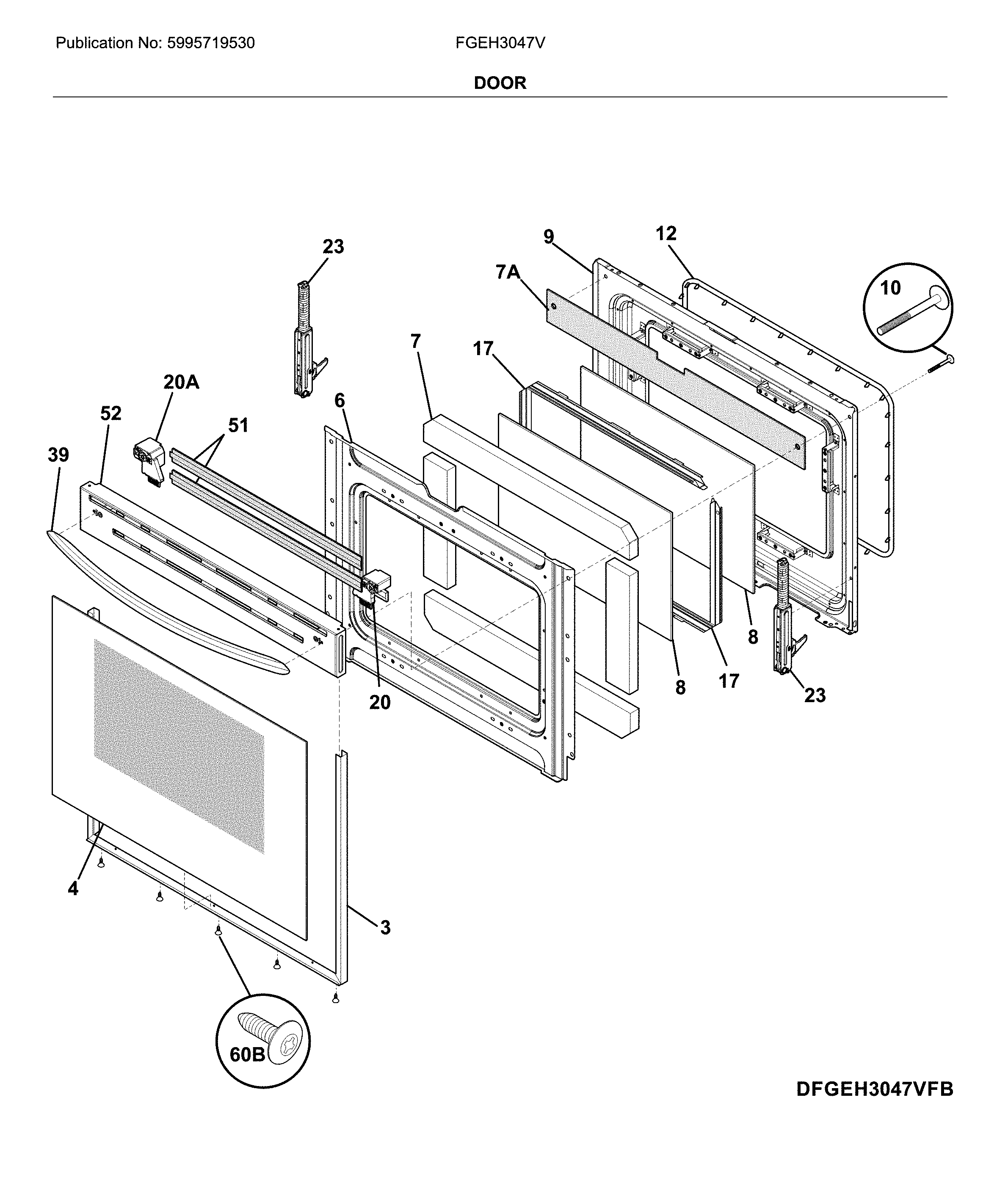

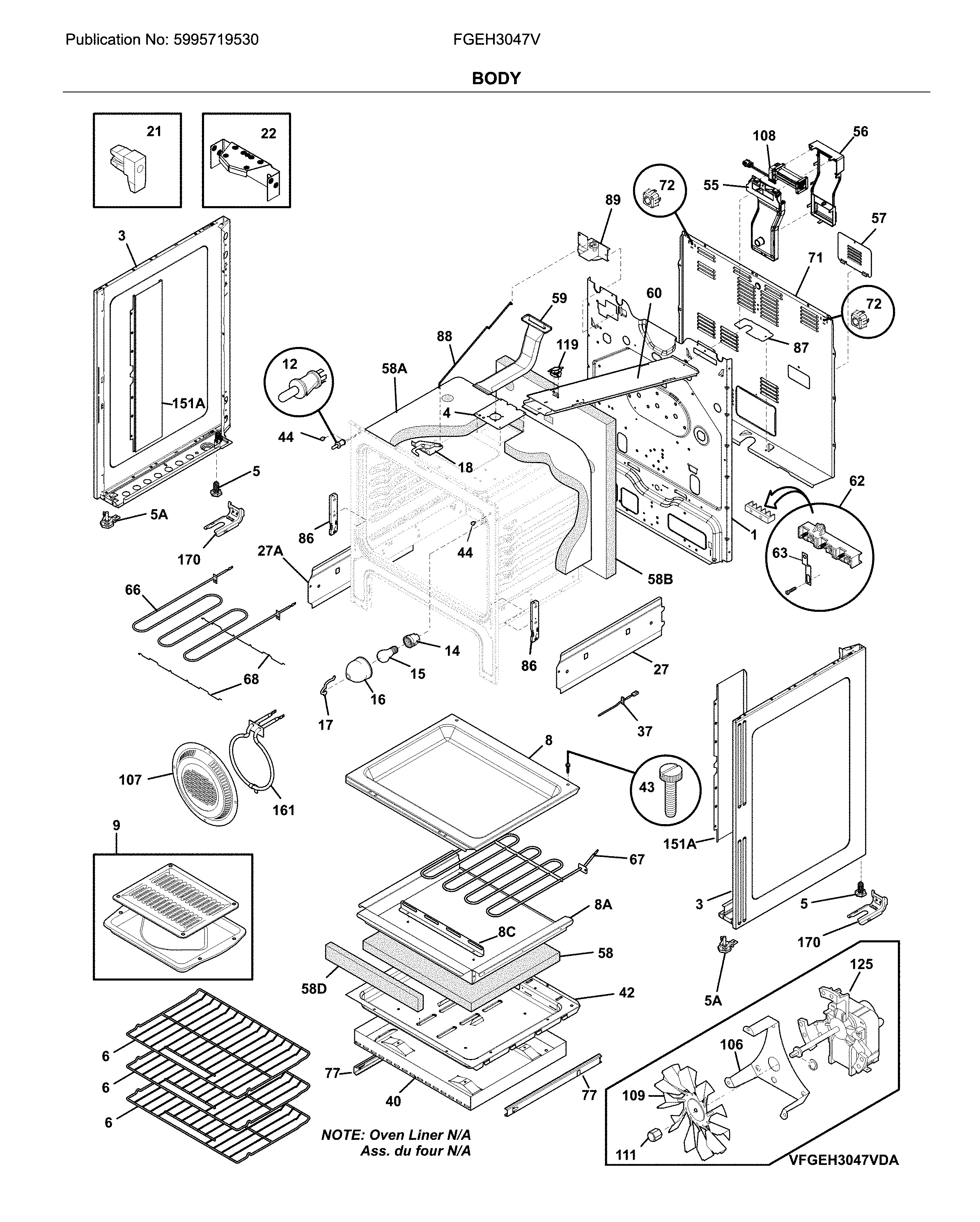

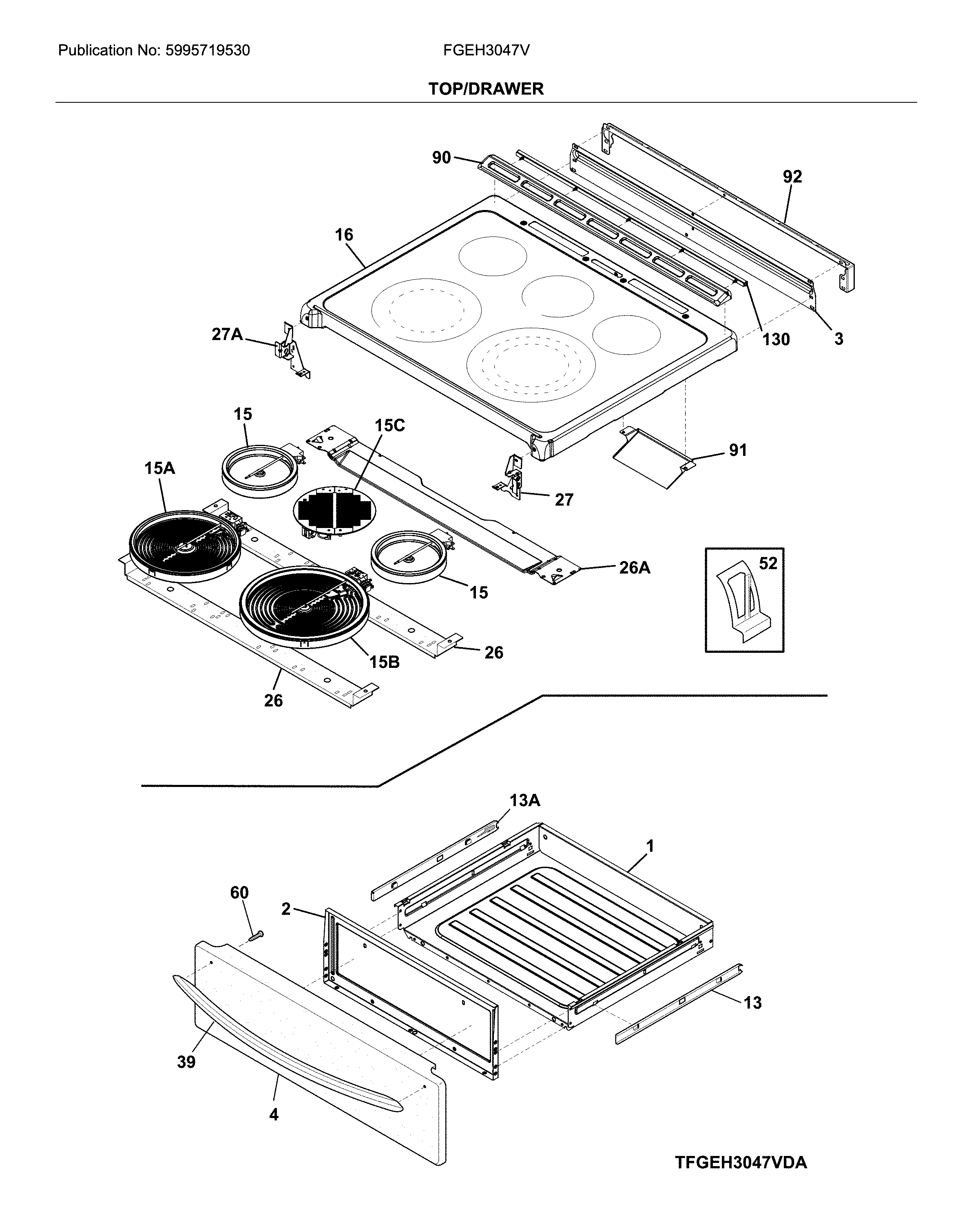

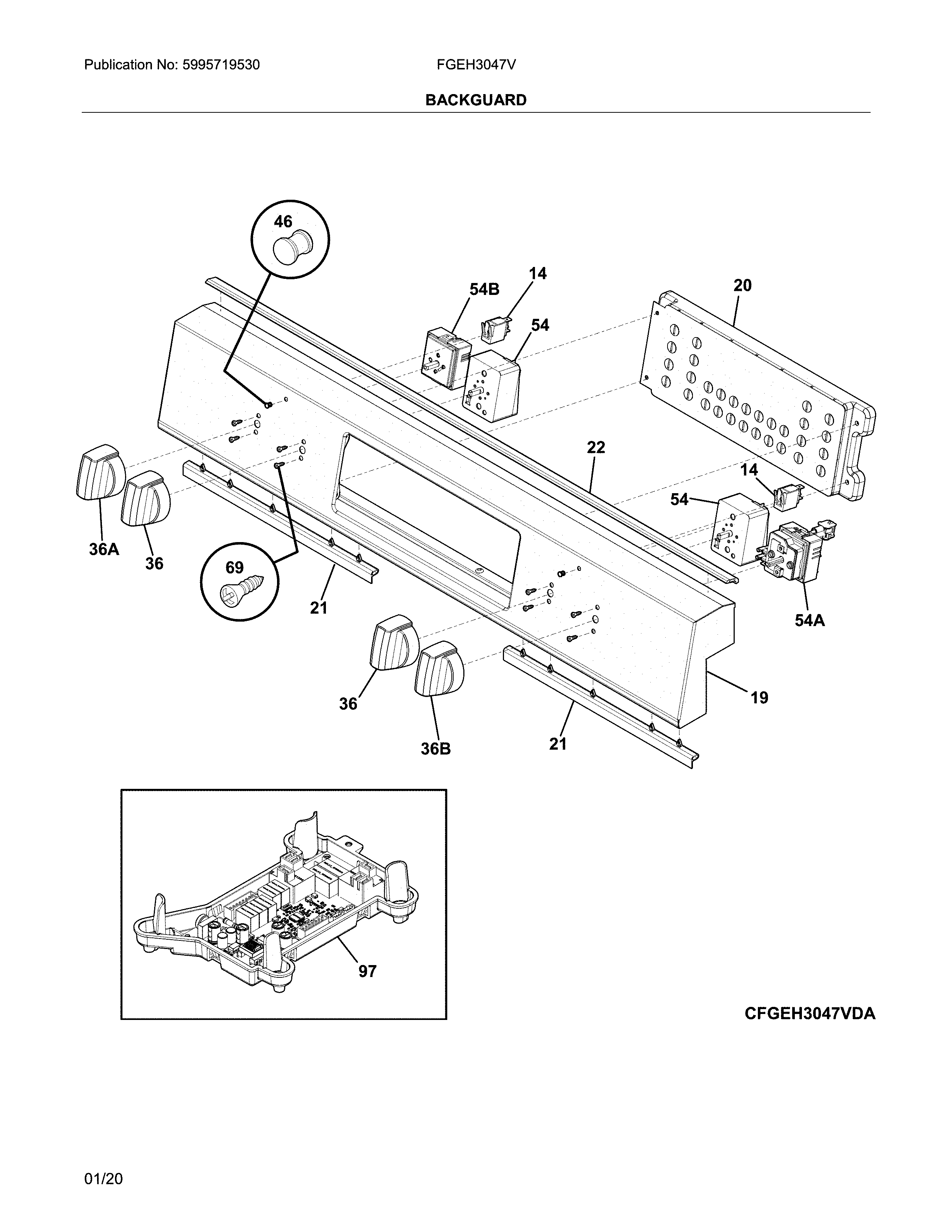

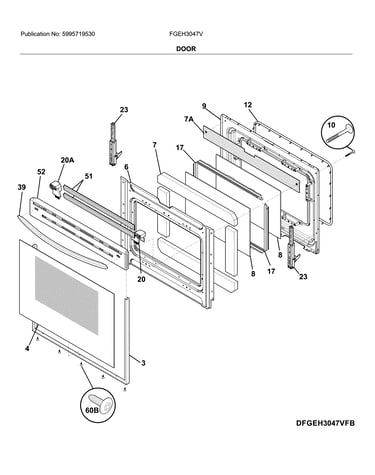

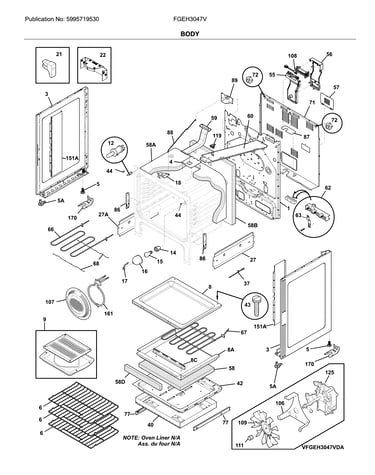

• Use the parts diagrams to confirm location and appearance before ordering.
• Match the part by function and description (for example: bake heat, broil heat, oven temperature sensing, surface element control).
• If multiple similar parts appear, compare mounting style and wire connector type before you buy.

Common parts customers replace on this model

These are examples of parts available for model FGEH3047VFB that you can identify quickly once you are in the parts list:

Symptom or need	Part to check	Example part ID
Oven temperature seems off	Oven temperature sensor	Oven temperature sensor 316490000
Oven light is out	Oven light bulb	Oven light bulb 316538904
No bake heat or uneven baking	Bake element	Bake element 316505500
Weak or no broil	Broil element	Broil element 316203301

Why it matters

Using the model number prevents ordering a “close enough” Frigidaire range part that does not fit your wiring, mounting points, or control panel layout. It also helps you choose the right revision of electrical parts like switches and control boards.

Where to confirm model and operating details

Your owner's manual includes the product record section and guidance that helps you verify the model information and use the “Before You Call” troubleshooting section before replacing parts.

Last updated: February 2026

On your Frigidaire range model FGEH3047VFB, the model and serial number tag (serial plate) is typically on the right-hand oven front frame near the storage or warmer drawer area. Pull the lower drawer out and look along the lower right front frame for the plate.

Where to look on model FGEH3047VFB

Check these common serial plate locations:

• Open the storage or warmer drawer and look at the right-hand surface of the oven front frame
• Look on the lower right front frame of the appliance (near the drawer opening)
• If you do not see it there, check the alternate location under the cooktop
• Use your phone camera to take a clear photo of the tag for future parts ordering

For diagrams and the exact location notes for this model, use the installation guide.

What information to copy from the tag

When you find the plate, record these items:

• Model number (example: FGEH3047VFB)
• Serial number
• Lot number or letter (if shown)
• Voltage rating
• Kilowatt rating (power requirements)

Why it matters

We use the model and serial information to match the correct Frigidaire range parts and wiring configuration for your exact build. That helps avoid ordering the wrong component, especially for electrical items like a control board or surface element switch.

Quick reference table

What you need	Where it’s used
Model number	Matching parts diagrams and compatible replacement parts
Serial number	Identifying production run details for the appliance
Voltage and kW rating	Confirming correct electrical parts and installation requirements

Last updated: February 2026

An electric oven in a Frigidaire free standing electric range like model FGEH3047VFB is built around heating, airflow, lighting, and safety components. The core parts include the bake and broil heating elements, oven racks, oven light assembly, temperature sensing/control parts, and venting and convection fan components.

Main electric oven parts (what they do)

• Bake element: primary heat source for baking; located at the bottom of the oven cavity.
• Broil element: high-heat element at the top for broiling and browning.
• Oven temperature sensor: tells the control how hot the oven is so it can regulate heat.
• Oven relay control board: switches power to elements based on temperature and settings.
• Oven racks: support cookware; should be positioned while the oven is cool.
• Oven light and socket: illuminates the cavity; the glass shield must be in place during use.
• Oven vent/vent ducts: releases heat and moisture; keep unobstructed to prevent overheating and burn hazards.
• Convection fan system (on convection models): fan motor, fan blade, and cover circulate hot air for more even baking.

Model FGEH3047VFB parts you can replace

These are common oven-related replacement parts listed for this model:

Oven function	Example part on this model	What a failure can look like
Temperature sensing	Range oven temperature sensor 316490000	Oven runs too hot/too cool, uneven baking
Baking heat	Frigidaire range bake element 316505500	No heat in bake, slow preheat
Broiling heat	Frigidaire range broil element 316203301	Weak broil, no top browning
Interior lighting	Frigidaire range oven light bulb 316538904	Light out, hard to see food
Air circulation	Range convection fan motor 316256100	No convection airflow, uneven results

Why it matters

Knowing the major oven components helps you troubleshoot faster. For example, poor baking results often relate to rack position, preheating, airflow, or temperature regulation, while smoking from the vent is commonly caused by spills that should be cleaned before heating.

Quick safety and use notes

• Place racks in the desired position before preheating whenever possible.
• Keep the oven vent ducts unobstructed and keep heat-sensitive items away from the vent area.
• For light replacement, shut off power first and reinstall the glass shield correctly (steps are shown in the owner's manual).

Last updated: February 2026
